Introduction
Sincerity and efficiency
STEREO AMP
For true audiophile performance.
Work with united Strengh of Starke Sound’s team and Eversolo's team, base on
Starke Sound NS600 amp module, raising its sampling rate to 600 kHz and further
reducing noise with a newly designed SAPS switch mode power supply of 600 watts.
Implementing the high efficiency of class D with all circuits supporting maximum
sound quality, AMP-F2 also offers the flexibility of 2-channel or bridged mono channel
operation.
With the same width and height, and optimized signal path, AMP-F2 is is a perfect
match with DMP-A6, an ideal combination of value and performance.
It is advised to read this manual to make sure the product's features are applied
correctly.
STEREO AMP
Page 2
Output Power
Gain
Channel quantity
Amplifier type
Frequency Response
Maximum output current per channel
Signal-To-Noise Ratio（SNR）
THD
Input terminals
Input Impedance (RCA)
Input Impedance (XLR)
Input Sensitivity
Output terminals
Output Impedance
Minimum load impedance
True balance circuit
Heat
Fan noise
Power consumption
Control option
Cabinet
Color options
Warranty
145W RMS at 8 ohms (1% THD)
250W RMS at 4 ohms (1% THD)
280W RMS at 4 ohms (1% THD, BTL)
450W RMS at 2 ohms (1% THD, BTL)
21.5dB
2 channels
Class D
10Hz-20KHz －1dB
16.5A/33A(Bridge)
>110dB, “A” weighted at 4 ohm 250W
0.003% 10W at 1KHz
2-Channel RCA Input 2-Channel XLR Input
11KΩ
22KΩ
2.7V
2 pairs beryllium copper binding post
custom made by Starke Sound
0.136Ω(5 Hz to 100 kHz)
0.8Ω
Yes
65 BTU / hr
None
Standby ≤0.5W Idle ≤14W Maximum 900W
12V trigger input & output
Aluminum
Black
1 years (from original purchase date)
Page 3
Hardware
STEREO AMP

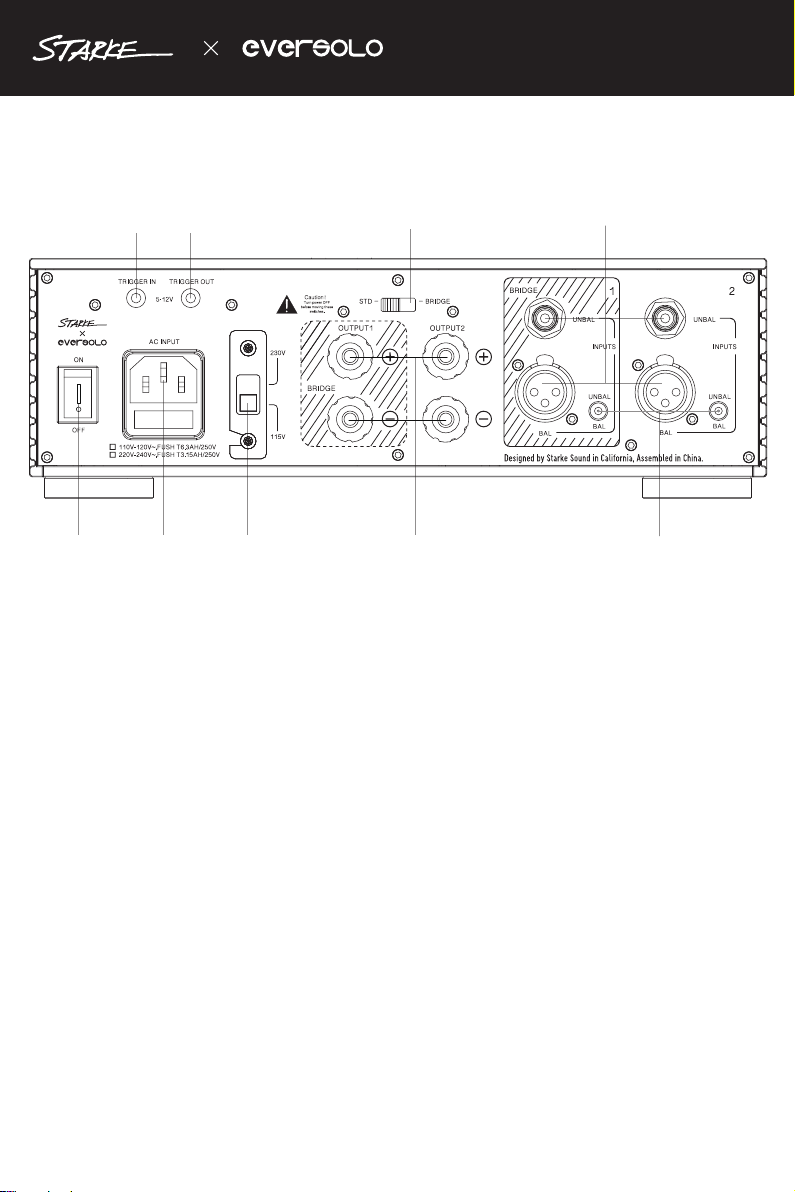

Rear Panel
Descriptions:
① Power on /off
② Power input plug
(Warning: Please carefully check the input power voltage setting before inserting the
power supply, adjust to the position suitable for the local voltage, and replace the
corresponding fuse with proper specifications, the power amplifier could burn with incorrect
fuse! Use a 3.15A fuse at 220V-240V, or a 6.3A fuse at 110V-120V)
③ Voltage switching
④ Output(Used to connect the loudspeaker terminals)
⑤ XLR / RCA Analog input
⑥ XLR Input / RCA Input switch
⑦ BRIDGE switch(AMP-F2 is bridgeable. STD is standard mode, BRIDGE is bridge mode. In
bridge mode, only the input and output with the diagonal line area are working.)
⑧ Trigger output (can be linked to another trigger gear)
⑨ Trigger input (can be linked to the previous stage with trigger function)
⑦
⑨⑧
① ② ③ ④
⑤
⑥
STEREO AMP
Front Panel
Indicator light
Switch
Controls
Short press：
Power on/Power off/Reboot/
Indicator light:
In standby mode, the indicator light is orange.
In working state, the indicator light is white.
Page 4
Page 5
STEREO AMP
Set-up instructions
For standard mode, set this switch to STD (standard). For bridge mode, set this switch to
BRIDGE.
Connect your 2 input channels using either unbalanced (RCA) or balanced (XLR) cables. Channels
are labeled 1 and 2. Set the two toggle switches to UNBAL (unbalanced) or BAL (balanced) as
appropriate.
Connect your two speakers to the output binding posts: 1 and 2. Speaker wires can be terminat-
ed with “banana plugs” which are inserted, or stripped insulation (unscrew binding post cap,
insert wire into hole on threaded shaft and tighten cap). Observe correct polarity (“+” red and
“-”black).
STEREO AMP
Connect your power cord to wall outlet. Please note that the voltage is consistent with the local
area. Then put the switch to the ON position and turn on the power of the amplifier.
AMP-F2 can be turned on/standby through the front panel power on/off button, it can also be
turned on/standby automatically by the trigger cable.
When the TRIGGER IN jack is connected to a device equipped with a TRIGGER OUT jack, the power
on/standby of the unit can be controlled through the linkage operation of the upstream connected
device.
When the TRIGGER OUT jack is connected to a device equipped with a TRIGGER IN jack, the power
on/standby of the downstream connected device can be controlled through the linked operation of
this unit.
TRIGGER IN/OUT jack Inputs/outputs electrical signals are up to 12V DC/150mA.
In TRIGGER mode, the front panel power on/off button will be disabled and the on/off will be
controlled by Trigger.
Page 6
Page7
Downloads
STEREO AMP
1) Read, follow and keep these instructions
2) Do not remove the cover as repairs require qualified technicians
3) Do not use the product near water
4) Do not install near any heat sources such as radiators, heaters, stoves or amplifiers
5) Clean the product only with a damp cloth
6) Use care when lifting or moving this heavy product
7) Protect the power cord from being walked on or pinched
8) Unplug during lightning storms or when unused for long periods of time
9) Ensure that no objects filled with liquids such as vasesare placed on the product
Limited warranty
1 years from purchase date
(Save original invoice for service to be arranged through your dealer, or contact us
directly if you purchased your amplifier online.)
For more tutorials, please visit www.eversolo.com, please visit the Downloads page on
official website and scan QR code.
Wechat Subscription
Safety instructions
第 8 页
产品简介
立体声功放
高品质 高效率
一切都是为了真正的高品质声音。
AMP-F2由Starke Sound团队与Eversolo团队通力合作，基于Starke Sound团队开发的创新的
NS600模组，拥有高达600KHz的采样率。同时通过新设计的SAPS音频专用开关电源来显著
降低噪音，提升动态表现。
采用高效率的D类放大结构，同时最大程度的优化电路来提升音质表现。AMP-F2是可桥接的，
所以在需要2声道或者单声道的时候灵活配置。
与Eversolo DMP-A6厚度和宽度完全一致，并在信号通路搭配上进行优化。AMP-F2是DMP-A6
的最佳搭配，也是价值和性能的完美结合。
使用本机器之前建议您先阅读本说明，以便您正确使用产品的所有功能。
