Stage right 612565 Manuel utilisateur

STAGE RIGHT

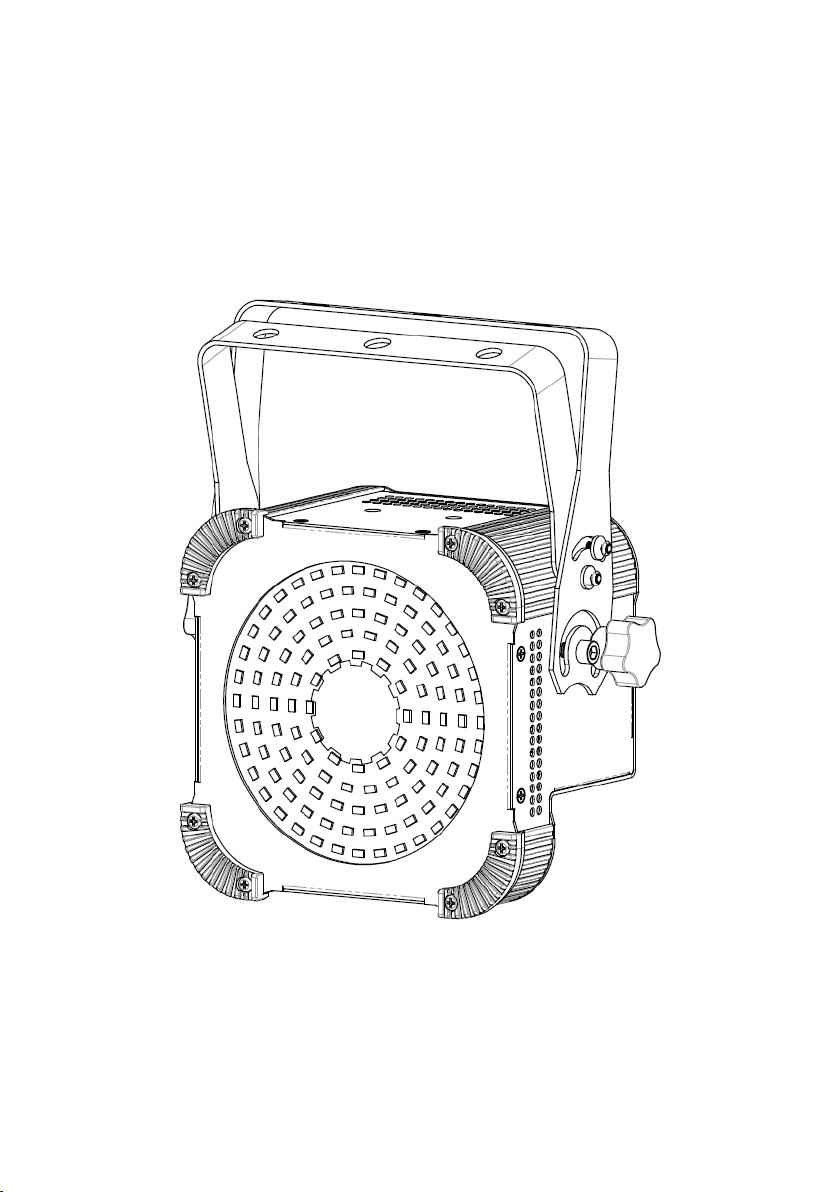

Stage Right Flash Bang 60-Watt LED DMX Strobe Light

P/N 612565

User's Manual

CONTENTS

SAFETY WARNINGS AND GUIDELINES ...................................................................................................................................3

INTRODUCTION............................................................................................................................................................................................4

FEATURES .........................................................................................................................................................................................................5

CUSTOMER SERVICE................................................................................................................................................................................5

PACKAGE CONTENTS.............................................................................................................................................................................5

PRODUCT OVERVIEW.............................................................................................................................................................................6

DIMENSIONS DIAGRAM.......................................................................................................................................................................6

SAMPLE WIRING DIAGRAM.............................................................................................................................................................. 7

DMX TERMINATION................................................................................................................................................................................. 7

CONTROLS AND MENU DISPLAY.................................................................................................................................................8

MENU MAP......................................................................................................................................................................................................9

nodE FUNCTION..........................................................................................................................................................................................9

MASTER/SLAVE MODE .......................................................................................................................................................................10

DMX CONTROL..........................................................................................................................................................................................10

1CH Mode................................................................................................................................................................................................10

2CH Mode...............................................................................................................................................................................................10

4CH Mode ...............................................................................................................................................................................................11

5CH Mode ..............................................................................................................................................................................................12

10CH Mode ............................................................................................................................................................................................12

TECHNICAL SUPPORT........................................................................................................................................................................... 13

SPECIFICATIONS .......................................................................................................................................................................................14

REGULATORY COMPLIANCE..........................................................................................................................................................14

Notice for FCC....................................................................................................................................................................................14

Notice for Industry Canada.....................................................................................................................................................15

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future

reference.

This device is intended for indoor use only.

Do not expose this device to water or moisture of any kind. Do not place drinks

or other containers with moisture on or near the device. If moisture does get in

or on the device, immediately unplug it from the power outlet and allow it to

fully dry before reapplying power.

When installing this device, ensure that the mount is sufficiently robust to

support the weight of the unit and to prevent unwanted movement.

Always secure the device to the mount using a safety wire or chain sufficiently

robust to bear the weight of the device.

Do not subject the product to extreme force, shock, or fluctuations in

temperature or humidity.

Do not touch the device, the power cord, or any other connected cables with

wet hands.

Do not expose this device to excessively high temperatures. Do not place it in,

on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it

in direct sunlight.

This device ventilates excessive heat through the slots and openings in the case.

Do not block or cover these openings. Ensure that the device is in an open area

where it can get sufficient airflow to keep from overheating.

Do not expose this device to excessively high temperatures. Do not place it in,

on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it

in direct sunlight.

Do not operate this device when the ambient temperature exceeds +104°F

(+40°C).

Ensure that there is sufficient ventilation to allow the unit to cool. Do not block

any ventilation vents or slots and ensure that there are no flammable materials

or adjacent surfaces within 20 inches of this device.

Prior to operation, check the unit and power cord for physical damage. Do not

use if physical damage has occurred.

Before plugging the unit into a power outlet, ensure that the outlet provides the

same type and level of power required by the device.

This device uses a grounded power cord and requires a ground connection for

safe operation. Ensure that the power source has a proper ground connection.

Do not modify the plug or use a "cheater" plug to bypass the ground connection.

Unplug this device from the power source when not in use.

Never unplug the unit by pulling on the power cord. Always grasp the connector

head or adapter body.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that

the power cord does not present a tripping hazard.

Never connect this device to a dimmer pack.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

Avoid direct eye exposure to the light from this device. Do not look directly into

the light source.

INTRODUCTION

Thank you for purchasing this Stage Right Flash Bang 60-Watt LED DMX Strobe Light! This

strobe light features 120 0.5-watt SMD LEDs, a 0 to 17 Hz strobe rate, and a greater than

400Hz refresh rate, ensuring flicker free operation for television broadcasts and video

recordings. It includes a sound activated mode, as well as a built-in programs and 1-, 2-, 4-,

5-, and 10-channel DMX control. It features 32-bit dimming technology for smooth, even

fades.

FEATURES

High-power, LED strobe light creates attractive effects using 5 zones of control

1-, 2-, 4-, 5- or 10-channel DMX modes

0 to 17 Hz strobe rate

>400Hz refresh rate for flicker free operation for television broadcasts and video

recordings

Includes exciting sound activation and built-in programs

32-bit smooth dimming technology

Built-in automated programs via master/slave

Combine ring control and special effect macros for stunning visual impact

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at [email protected]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for

a replacement.

1x LED strobe flat PAR light

1x AC power cable

1x User's manual

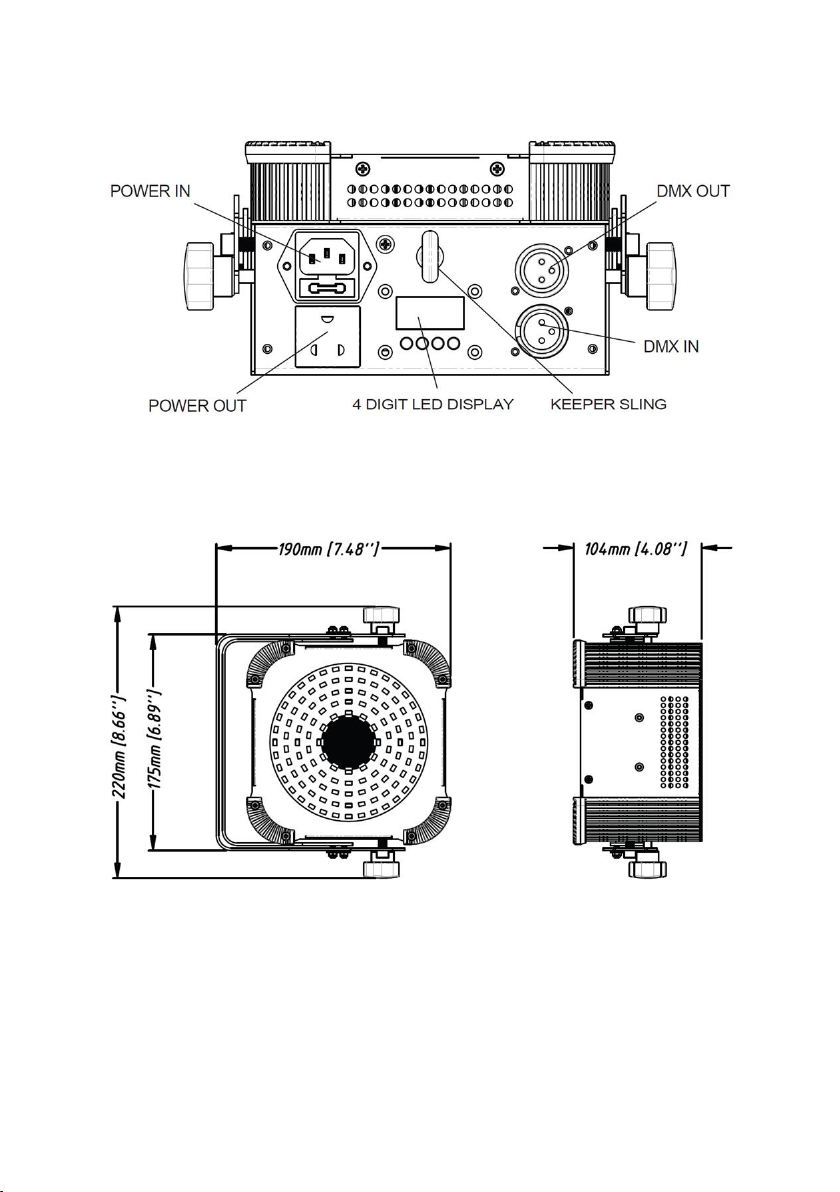

PRODUCT OVERVIEW

DIMENSIONS DIAGRAM

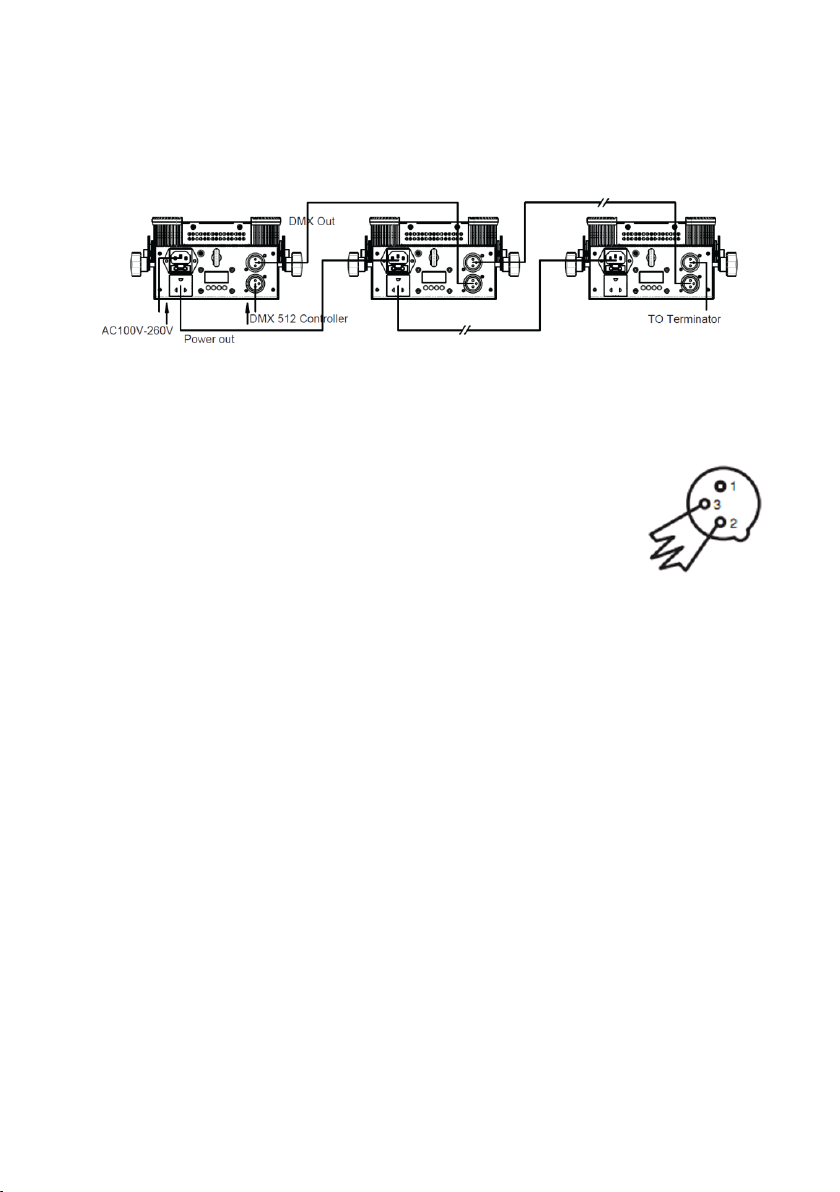

SAMPLE WIRING DIAGRAM

Following is a sample wiring diagram for a multiple fixture installation. Note that the final

fixture must have a DMX Terminator plugged into the DMX Out connector.

DMX TERMINATION

As with all DMX devices, the last unit in any chain must have a DMX

terminator connected to the DMX Out connector. If using just a single

light, connect a DMX terminator to the DMX Out connector.

A DMX terminator is a DMX plug with a 120-ohm, 1/4-watt resistor

soldered between pins 2 and 3.

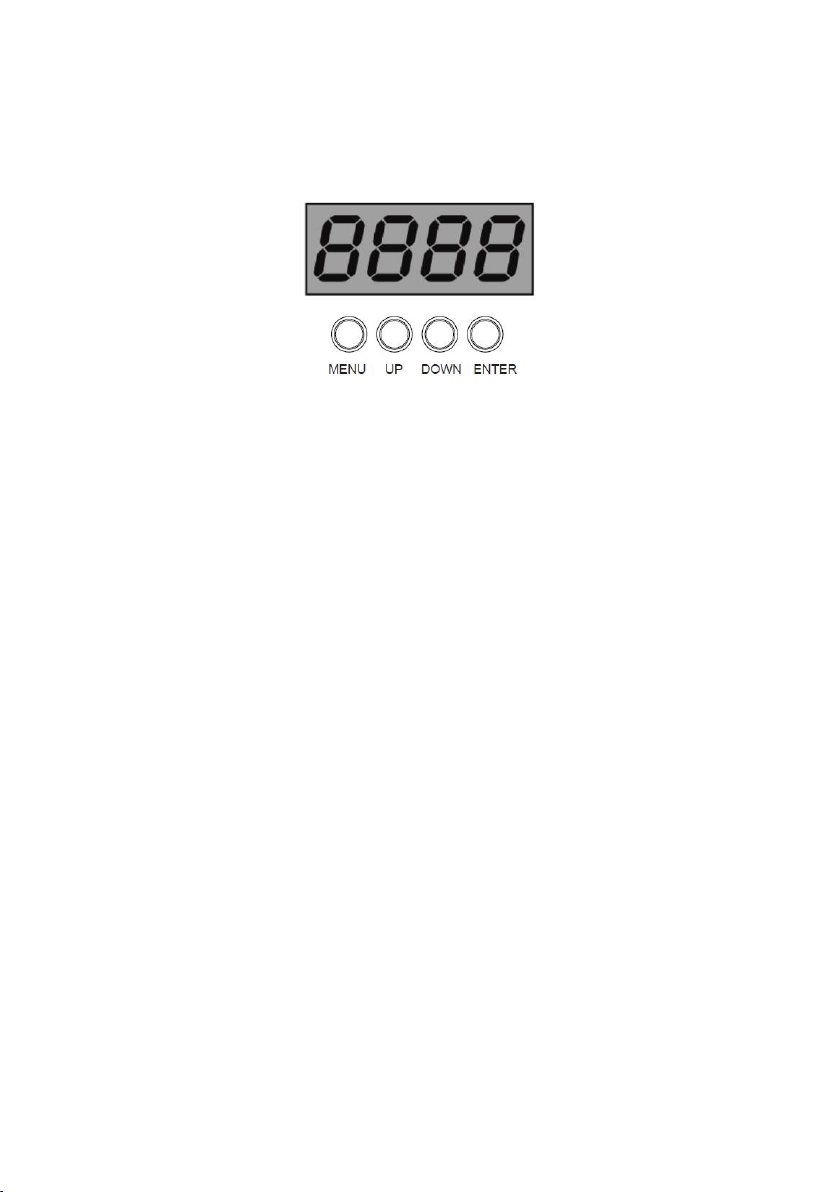

CONTROLS AND MENU DISPLAY

The 4-digit LED display indicates the mode and the value for the selected function or

mode.

Press the MENU button to access the menu system.

Press the ENTER button to edit the currently displayed mode.

Press the UP button to increase the value of the selected function or mode.

Press and hold the button to rapidly increase the displayed value. The list will

cycle back to the beginning after the maximum value is reached.

Press the DOWN button to decrease the value of the selected function or mode.

Press and hold the button to rapidly decrease the displayed value. The list will

cycle back to the end after the minimum value is reached.

Once the desired value is displayed, press the ENTER button to set that value for

the displayed function or mode and allow for selection of another function or

mode.

If you want to discard any changes made to the value of the selected function or

mode, press the MENU button to cancel editing.

MENU MAP

MODE

VALUES

DESCRIPTION

Addr

d001-d512

DMX address

UErn

UE2.0

Displays the software version number

nodE

nod0-nod4

Speed limiter (see the

nodE FUNCTION

section for details)

LEd

on/oFF

LED display always on/auto off (after about 2 minutes)

SoUA

So.UA

Sound activation mode on/off

UL--

U000-U255

White dimming

FLAS

FL00-FL15

Strobe mode (fast to slow)

FAdE

FA00-FA15

Pattern face (fast to slow)

ASC

AC00-AC15

Additional patterns, no speed control

Pr--

Pr00-Pr12

Preset selection

SP--

SP00-SP15

Program speed (fast to slow)

SLAU

SL.AU

Slave mode

CHnd

1,2,3,4,10CH

DMX channel selection

nodE FUNCTION

The nodE function serves as a speed limiter for manual dims and fades. When set to nod0,

any manual dims or fades will occur in real time, meaning that the light will dim or fade as

fast as you move the slider. The other nodE values (1-4) are progressively slower than real

time. It is recommended to use the nod1 value if using a low-res DMX controller.

Note that this functionality is expanded in channel 10 of the 10-channel DMX control

mode.

MASTER/SLAVE MODE

Whenever the light is set to a mode other than a DMX address or Slave mode (SL.AU), the

fixture is in Master mode. For example, when set to Sound Activation mode (So.UA), it is

in Master mode. You can daisy-chain additional fixtures to the Master fixture using 3-pin

DMX cables. All other connected fixtures must be set to Slave mode (SL.UA) and will

perform the same functions as the Master fixture. Note that the final fixture in the daisy-

chain must have a DMX terminator connected to the DMX Out connector. Note that you

cannot use a DMX controller when connecting multiple lights in Master/Slave mode.

DMX CONTROL

When the light is set to a DMX address it will respond to signals from a DMX controller.

The number and complexity of the signals it can respond to correspond directly to the

number of channels selected. The following tables show the functions and values for each

channel in the five different channel modes (1, 2, 4, 5, and 10).

1CH Mode

CHANNEL

VALUE

FUNCTION

REMARKS

000-255

General dimming 0-100%

2CH Mode

CHANNEL

VALUE

FUNCTION

REMARKS

000-255

General dimming 0-100%

000-014

No effect

015-255

Strobe 0-17 Hz
