Stage right SRP200 Manuel utilisateur

SRP200 USB Pad Controller

P/N 625894

User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
CUSTOMER SERVICE.................................................................................................................................................................................... 3
FEATURES..............................................................................................................................................................................................................4
PACKAGE CONTENTS.................................................................................................................................................................................4
PRODUCT OVERVIEW.................................................................................................................................................................................5
Top Panel.........................................................................................................................................................................................................5
Side Panel ....................................................................................................................................................................................................... 7
SOFTWARE USAGE NOTES ....................................................................................................................................................................8
PRESETS..................................................................................................................................................................................................................8
EDIT.............................................................................................................................................................................................................................9
GLOBAL...................................................................................................................................................................................................................9
MIDI Common Channel ......................................................................................................................................................................9
Pad Velocity Curve...............................................................................................................................................................................10
RGB Backlighting....................................................................................................................................................................................10
Mute...................................................................................................................................................................................................................11
Reset...................................................................................................................................................................................................................11
Global Save...................................................................................................................................................................................................11
Pad Note Output Type......................................................................................................................................................................12
TECHNICAL SUPPORT...............................................................................................................................................................................12
REGULATORY COMPLIANCE..............................................................................................................................................................12
Notice for FCC ..........................................................................................................................................................................................12
Notice for Industry Canada...........................................................................................................................................................13



SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

•This device is intended for indoor use only.

•Do not expose this device to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power source and allow it to fully dry

before reapplying power.

•Do not touch the device, the power cord, or any other connected cables with wet

hands.

•Do not expose this device to excessive vibration.

•Do not subject the product to extreme force, shock, or fluctuations in temperature

or humidity.

•Do not expose this device to excessively high temperatures. Do not place it in, on,

or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in

direct sunlight.

•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

•This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com or via email at [email protected]. Check the website for

support times and links.

FEATURES

•16 velocity and pressure sensitive trigger pads with RGB backlighting

•5 assignable dials

•8 assignable sliders

•26 LED backlit assignable buttons

•6 function buttons

•2 pedal jacks

•3 presets for saving and recalling settings

•MIDI in and MIDI out connectors

•USB powered with the option to use an AC power adapter (not included)

•Driver free compatibility with Mac® OS X® and Windows®

•Measures 13.0" x 11.8" x 2.0" (330 x 300 x 50 mm) and weighs 4.0 lbs. (1.8 kg)

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x SRP200 USB Pad Controller

1x USB Cable

1x CD-ROM Disc

PRODUCT OVERVIEW

Top Panel

1. LCD DISPLAY: The display is used for navigating menus, displaying data, and making

changes to the options and parameters.

2. VALUE DIAL: Rotate the knob to change the displayed values. Press the knob down

for the ENTER function.

3. < / >: The <and >buttons are used to navigate through the menus and options.

4. PRESET: Press the PRESET button to enter Preset Mode, where you can select and

recall different program presets.

5. EDIT: Press the EDIT button to enter Edit Mode, which allows you to alter the

behavior of the pads, dials, buttons, and sliders.

6. GLOBAL: Press the GLOBAL button to enter Global Mode, where MIDI reset

commands and global system preferences are set.

7. PROGRAM CHANGE: Press the PROGRAM CHANGE button to enter Program Change

Mode, which allows you to send program change or program and bank change

messages to a hardware or software module.

8. FULL LEVEL: Press the FULL LEVEL button to activate Full Level Mode. When

activated, the pads always play back at maximum velocity/volume (127), regardless

of how hard or soft they are hit.

9. 16 LEVEL: Press the 16 LEVEL button to activate 16 Level Mode. When activated, the

last pad that was hit gets mapped to all 16 pads, which play the same note number

and pressure controller as the initial pad, but with a fixed velocity for each pad, as

shown in the table below.

103

111

119

127

10. CONTROL BANK: This controller has two banks of settings for the dials, sliders, and

buttons. Use these buttons to select the active bank.

11. PAD BANK: This controller has three banks of settings for the pads. Use these

buttons to select the active bank. The currently selected pad bank is shown on the

LCD Display.

12. PADS: These pressure and velocity sensitive pads can be used to trigger drum hits

to a hardware or software MIDI module.

13. DIALS: The five endless 360° dials can be used to send continuous control data to a

digital audio workstation or MIDI Note messages.

14. ASSIGNABLE BUTTONS: These twenty-six buttons can be assigned to send MIDI

Control Change messages.

15. SLIDERS: These eight sliders can be configured to send continuous control data to a

digital audio workstation or external MIDI device.

Side Panel

1. MIDI IN: 5-pin MIDI input connector.

2. MIDI OUT: 5-pin MIDI output connector.

3. PEDAL A: 1/4" jack for connecting a foot pedal (not included) to send MIDI Control

Change messages.

4. PEDAL B: 1/4" jack for connecting a foot pedal (not included) to send MIDI Control

Change messages.

5. USB: USB Type-B connector for connecting a PC using the included USB cable. The

controller can be powered by the USB bus.

6. DC 9V: DC connector for connecting an optional 9 VDC, 1A AC power adapter (not

included). The connector has a 5.5mm barrel diameter and a 2.1mm diameter center

positive pin.

7. OFF-ON: Slider switch to turn the controller on or off.

SOFTWARE USAGE NOTES

Connect your PC to the SRP200 using the included USB cable.

Ensure that the SRP200 and any connected external MIDI devices are powered on and that

the SRP200 is connected to the PC with a USB cable BEFORE starting your software. If you

start your software before plugging in the controller, the software may not recognize it.

In your software application, configure the controller as the default MIDI input device. This

can usually be found in the MIDI section of the software preferences menu.

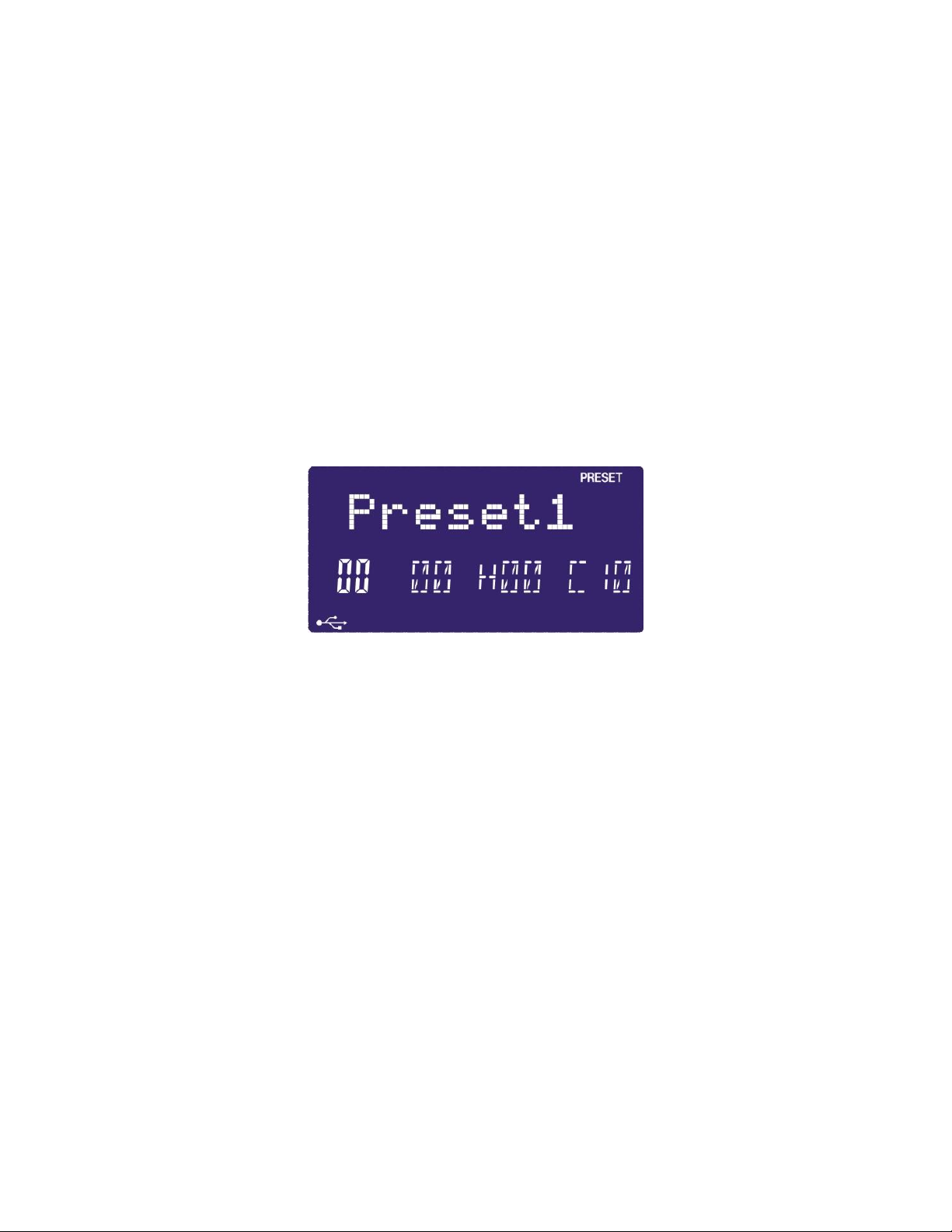

PRESETS

A preset is a collection of settings for the different sliders, buttons, dials, and pads. Perform

the following steps to select and load a preset.

1. Press the PRESET button to activate Preset Mode.

2. Use the <and >buttons to select the desired preset.

3. Press ENTER (press down on the VALUE DIAL) to load the selected preset.

EDIT

Edit Mode allows you to set the parameters for the sliders, dials, and pads. Perform the

following steps to edit a control.

1. Press the EDIT button to activate Edit Mode.

2. Move the slider, dial, pad, or button you wish to edit. The LCD Display will show

current properties of the selected control.

3. Use the <and >buttons to select the parameter you wish to edit, then press down

on the VALUE DIAL to ENTER the selection. The LCD Display will show the current

value of the selected parameter.

4. Rotate the VALUE DIAL to change the displayed value, then press down on the

VALUE DIAL to save the displayed value.

GLOBAL

Global Mode allows you to set and control various elements, such as the velocity curve

and pad backlighting. Perform the following steps to enter Global Mode and control

various global elements.

1. Press GLOBAL button. The LCD Display will show the first page of editable controls.

2. Use the <and >buttons to select the page you want to edit, then press down on

the VALUE DIAL to enter the page.

3. Refer to the following sections for details about each page of options.

MIDI Common Channel

Rotate the VALUE DIAL to set the MIDI channel. The range of values is 1 ~ 16. When the

desired channel number is displayed, press down on the VALUE DIAL to save the change.

Pad Velocity Curve

There are four velocity curves to choose from. Rotate the VALUE DIAL to select the desired

curve. The range of values is 0 ~ 3. When the desired curve number is displayed, press

down on the VALUE DIAL to save the change. The four curves are shown below.

RGB Backlighting

1. When you first enter the page, the LCD Display will show RGB OFF. Press the VALUE

DIAL to toggle it to say RGB ON.

2. Press the Pad you want to edit.

3. Use the F1, F2, and F3 sliders to adjust the brightness of the Red, Green, and Blue

color elements, respectively. The bottom position of the slider represents 0

brightness and the top position represents 127 brightness.

4. Once you have the color you want, press down on the VALUE DIAL to save the

changes.
