EN Operating manual

SquellCooler

123

SquellCooler

Please read this manual carefully before starting up and store it in a

safe place. If you pass on the device to another person, hand over this

instruction manual along with it.

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Description of device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

6 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Explanation of symbols SquellCooler

1 Explanation of symbols

➤Action: This symbol indicates that action is required on your part. The

required action is described step-by-step.

✓This symbol describes the result of an action.

Fig. 15, page 3: This refers to an element in an illustration. In this case,

item 5 in figure 1 on page 3.

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

Damage to the product resulting from mechanical influences and excess

voltage

Alterations to the product without express permission from the manu-

facturer

Use for purposes other than those described in the operating manual

DANGER!

Safety instruction: Failure to observe this instruction will cause

fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause

fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to

injury.

NOTICE!

Failure to observe this instruction can cause material damage and

impair the function of the product.

NOTE

Supplementary information for operating the product.

SquellCooler Safety instructions

2.1 General safety

DDANGER!

On boats: If the appliance is powered by the mains, ensure that

the power supply has a residual current circuit breaker.

!WARNING!

Do not operate the device if it is visibly damaged.

This device may only be repaired by qualified personnel. Inade-

quate repairs may cause serious hazards.

People (including children) whose physical, sensory or mental

capacities prevent them from using this device safely should not

be allowed to operate it without the supervision of a responsible

adult.

Electrical devices are not toys!

Always keep and use the device out of the reach of children.

Children must be supervised to ensure that they do not play with

the device.

Do not store any explosive substances, such as spray cans with

propellants, benzene, ether, adhesive or similar in the device.

Do not store any heavy, poisonous or rusty objects in the de-

vice.

The plug must be accessible once the device is in place to ena-

ble the device is able to be disconnected from the mains net-

work following installation.

ANOTICE!

Check that the voltage specification on the type plate corre-

sponds to that of the energy supply.

Do not move the device by pulling on the power cable.

The cooling device is not suitable for transporting substances

which are caustic or contain solvents.

Never pull the plug out of the socket by the connection cable.

Never lift the device up by using the door. Always carry the de-

vice using the entire body of the unit.

Safety instructions SquellCooler

2.2 Operating the device safely

!CAUTION!

Before starting the device, ensure that the power supply line

and the plug are dry.

ANOTICE!

Do not use electrical devices inside the cooling device unless

they are recommended by the manufacturer for that purpose.

Do not place it near naked flames or other heat sources (heat-

ers, direct sunlight, gas ovens etc.)

Danger of overheating!

Always ensure sufficient ventilation so that the heat generated

during operation can dissipate. Make sure that the device is suf-

ficiently far away from walls and other objects so that the air can

circulate.

Ensure that the ventilation vents are not covered.

Do not fill the inner container with ice or fluid.

Never immerse the appliance in water.

Protect the appliance and the cable against heat and moisture.

Protect the power cable from sharp or pointed edges.

2.3 In the case of damage to the device.

Keep the device away from naked flames or ignition sources.

Allow the room to air for a few minutes.

Switch off the device and pull out the mains plug.

Inform customer service.

Changing the mains power line and other repairs should only be

carried out by customer service. Incorrect installation and re-

pairs can place the user in considerable danger.

SquellCooler Scope of delivery

3 Scope of delivery

4 Description of device

Item no. in: fig. 1, page 2

5 Intended use

The device is suitable for cooling and dispensing drinks from Bag-in-Box

cartons or plastic cassettes.

Quantity Designation

1 Cooler

1 Drip tray and drip plate

1 230 Vwconnection cable

2Key

4 Adjustable feet with lock nut

1 Operating manual

Item Description

1Lock

2 LED display

3 Window for inserting graphics

4 Push-button tap

5Door

6 Drip plate

7Driptray

8 Adjustable feet

9230Vwconnection cable

Function description SquellCooler

6 Function description

The appliance is a compact tabletop device. Bag-in-Box cartons and cartridg-

es can be cooled to a temperature of +3°C to +20°C.

The device is designed to operate with 220 to 240 Voltw/50 Hz. A mainte-

nance-free refrigerant circuit with compressor provides the cooling.

You can use the digital display to set the temperature you require.

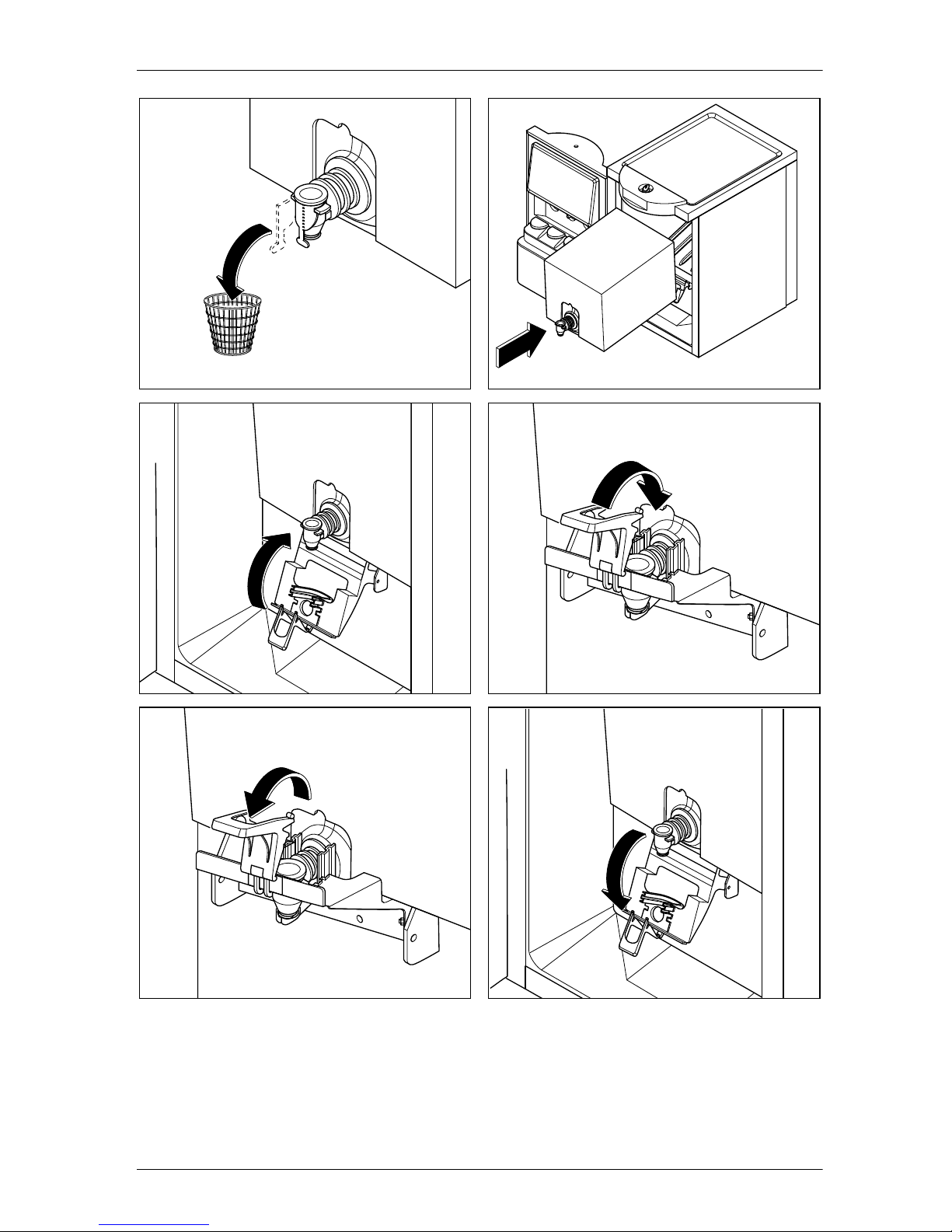

7 Operation

7.1 Before initial use

7.2 Connecting the device

Please observe the following instructions when connecting:

Place the device on a firm and level surface which is stable. Do not place

it on soft material, such as foam for example, in order to prevent the de-

vice moving and producing noise.

Leave a minimum clearance of 30 mm between the rear of the device and

the wall.

Set up the device so that air can circulate freely. Good ventilation around

the device is absolutely essential for the heat dissipation and improves

the cooling capacity and the energy efficiency.

Set up the device so that it is not exposed to direct sunlight and is not sit-

uated close to heat sources (ovens, heating devices or radiators etc.).

Heat can damage the coating and impair cooling. It also increases energy

consumption.

Do not place the device in a damp location. If humidity is too high it will

lead to corrosion of the metal components or cause the insulation to mal-

function. Do not spray water on the device as this can lead to an electric

shock.

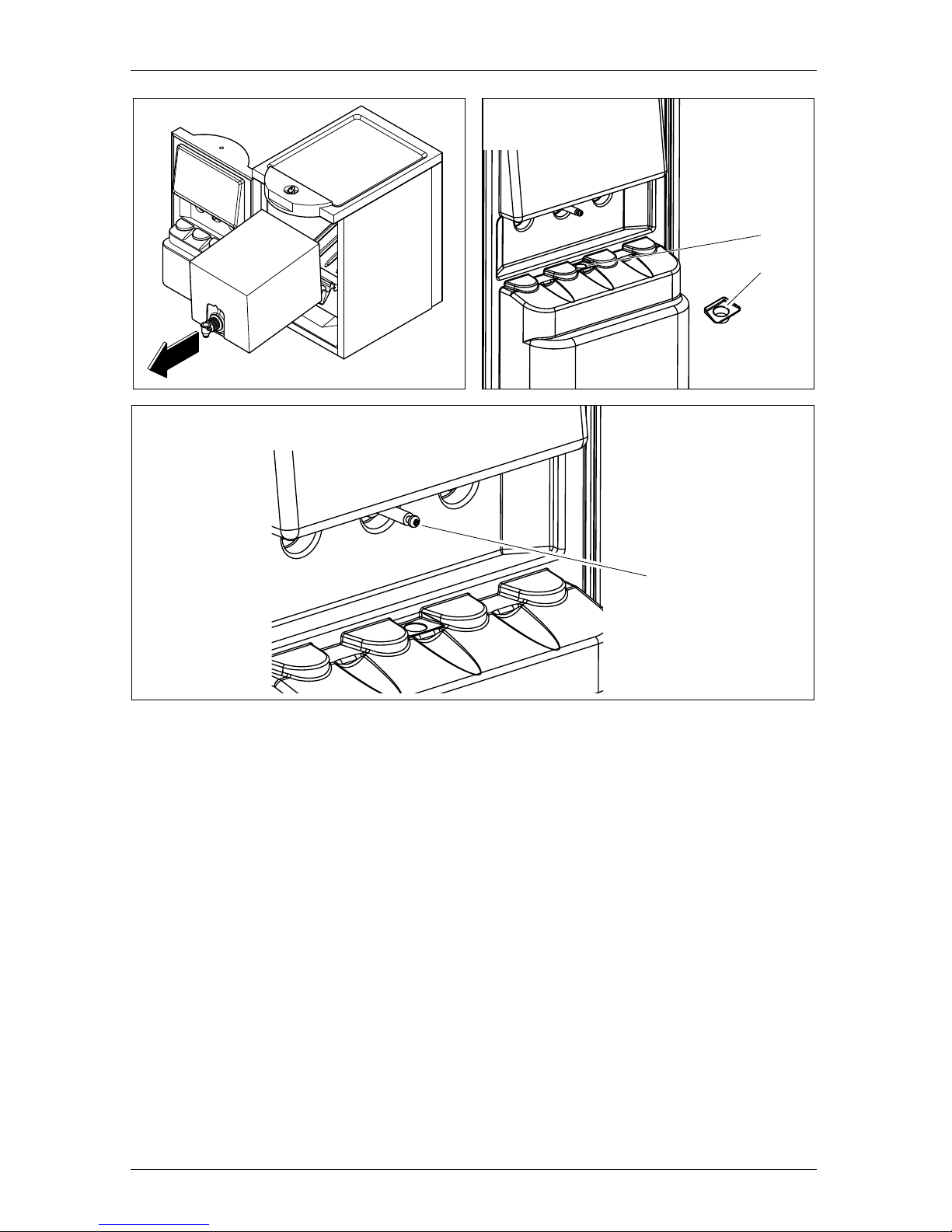

➤Connect the device to the 230 Vw-connection (fig. 2, page 2).

NOTE

On average, cooling drinks at room temperature to the coldest

possible temperature will take 20 h.
