SPT WA-9010E Manuel utilisateur

Portable Air Conditioner

Model: WA-9010E

Instruction Manual

It is important that you read these instructions before using your

portable air conditioner and we strongly recommend that you keep

them in a safe place for future reference.

Sales Inquiries - 800-934-9194

TABLE OF CONTENTS

Thank you and energy saving tips

Introduction.................................................1

Partsandaccessories..................................2

Installation...................................................3

Controlpanelfunctions.................................7

Remotecontrolfunctions..............................8



Operatingtheunit........................................9

Drainage......................................................10



Maintenance................................................12

Storage.......................................................14

Cautions......................................................15



Troubleshooting...........................................16

Specification................................................17

Defectivenotice...........................................18

Your Guarantee

THANK YOU!

Energy Saving Tips

Thank you for choosing the portable air conditioner from SPTusa, a

leading brand in indoor air treatment. We would like you to enjoy the

many benefits this unit offers, so please take the time to read this

manual carefully and take full advantage of the many advanced

features that your SPTusa Air Conditioner offers you.

SPTusa has specialized in complete indoor environment control,

manufacturing world-class air conditioners, dehumidifiers and air

purifiers with innovative technology.

In designing these advanced products, we have listened carefully to

our customers and have passed their views on to our research and

development laboratories. We wish you many years of enjoyable use.

After reading this manual, please keep it in a safe place for future

reference.

·Please use the unit in the recommended room size.

·Do not locate the air conditioner where furniture or other objects

can obstruct the airflow.

·Keep blinds/curtains closed during the sunniest part of the day.

·Close the fireplace damper and floor or wall grills so that cool air

does not escape through the chimney or ductwork.

·Keep the filters clean.

Set the unit to maximum cooling and high speed fan initially, then

adjust the unit to a comfortable setting.

NOTE: It is recommended to turn on the air conditioner when the

room temperature is around 75ºF. Do not wait until the room is

excessively hot.

INTRODUCTION

This Portable Air Conditioner is a small size appliance, which can

adjust the temperature and humidity in a room. Its flexibility

characteristics make it easily used on different occasions in

different rooms. It also has multiple functions, including cooling,

dehumidifying and fan ventilation. This unit is designed to be used

in a family house, office, etc. It has a compact design compared to

others with the same cooling capacity. Power consumption is low

and the noise especially low.

SPTUSA Portable Air Conditioner

Before you use your PORTABLE AIR CONDITIONER,

please read this instruction manual carefully so that you get

the best from the unit.

This instruction manual is used for guidance and does not

form part of a contract. We reserve the right to make technical

changes without prior notice.

ATTENTION

FRONT

BACK

ACCESSORIES, PARTS AND FUNCTIONS

control panel

hot air outlet grill

lower air inlet grill

upper air inlet grill

air outlet

up/down air swinging louvers

caster

power cable



water tank

handle

left/right air swinging louvers

ACCESSORIES

ON/OFF

MODE

TIMER

HOUR

HOLD

MIN

FAN SPEED

SWING

COOL DRY FAN

AM PM ON

OFF

window kit x 2

remote

window kit adapter

flexible exhaust hose

AC/hose adapter x 2

INSTALLATION

20 inch

Installing the air exhaust duct

1) Fix adaptors onto hose by turning clock-wise

2) Fix the square end of the duct to the exhaust terminal of the unit

3) Lead the other end to the nearest window. Note: the length of the hose

is between 23.7 ~ 70 inches. Do not extend beyond the supplied

length. Keep hose length as short and as straight as possible.



12.8 inch



32.7 inch

17.3 inch

20 inch

Selection of installation location

Place the portable air conditioner on a flat surface where the air outlets are not blocked.

Place the unit with at least 20 inches of clearing from a wall or other obstacles.

heat exhaust air duct

hot air terminal

window

exhaust air opening

If the air exhaust requires bending, use the following as a guideline:

INSTALLATION

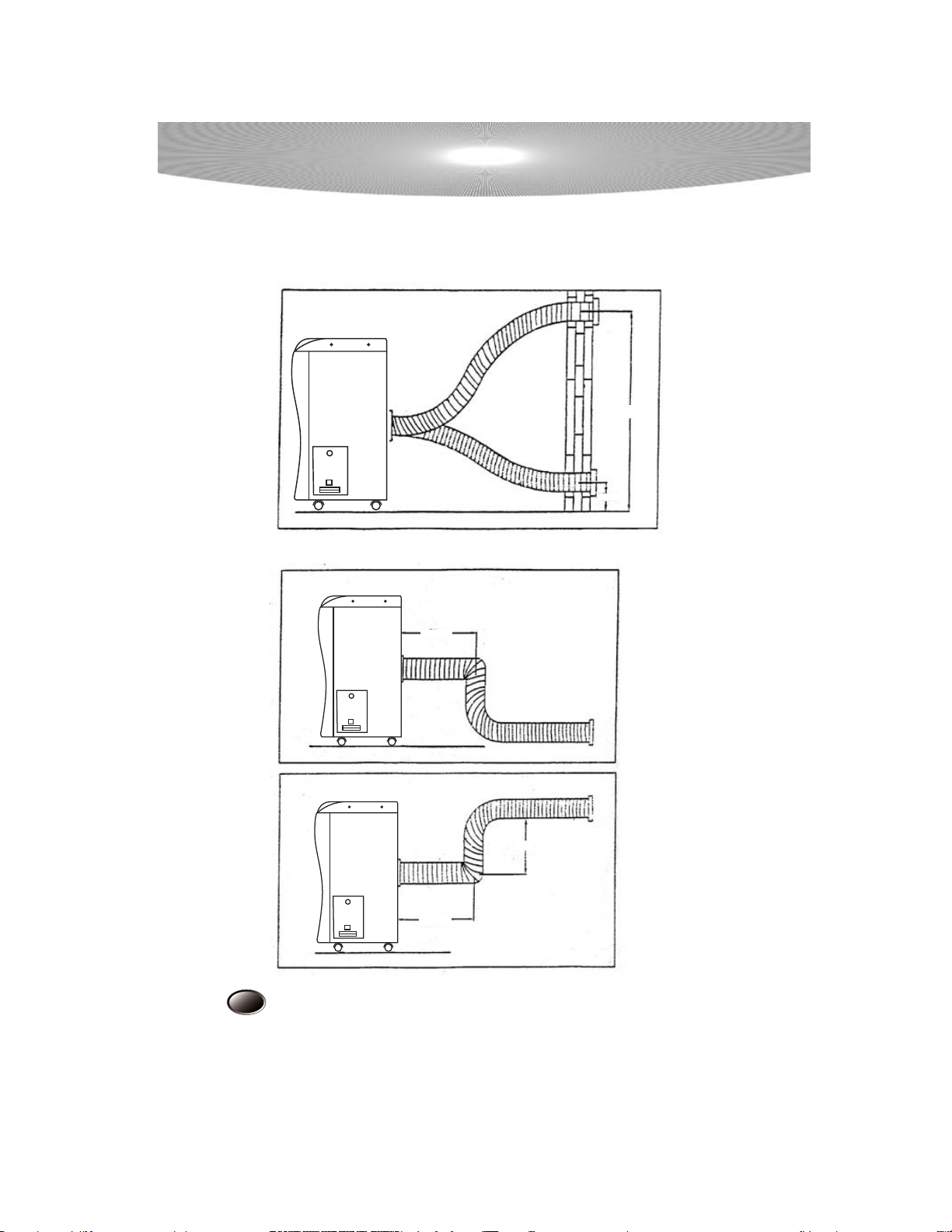

Correct mounting shown below. If mounting through wall, the height of the hole

should be between 16 ~ 51 inches from the floor.

fig. 23

51 inch

16 inch

20 inch

24 inch

20 inch

Example WRONG mounting diagram (Air exhaust bend is too large, will cause overheating.)

INSTALLATION

Window Kit Installation

Your window kit has been designed to fit most standard "vertical" and "horizontal" window

applications. However, it may be necessary for you to improvise/modify some aspects

of the installation procedures for certain types of windows. Please refer to Fig. 24 &

Fig. 24a for minimum and maximum window openings.

Fig.24a

Fig.24

inches

inches inches

inches

Water Tank Safety Feature

This unit is equipped with a fail-safe switch mechanism which prevents the unit from

condensing water in the event the water tank is accidentally displaced and/or FULL with

water. If this situation occurs, the WATER FULL indicator light will flash red continuously

until the water tank is correctly positioned and/or emptied

NOTE: The fan motor will continue to operate under this condition. This is normal, but no

cooling or dehumidifying will occur until the tank is emptied and/or correctly installed. (It

may take several minutes before the compressor resumes normal operation

INSTALLATION

Fig. 25

Installation Accessories (Fig. 25)

Flexible exhaust hose with adapters........3/set

stretches from 19 1/2" to 78 3/4"

Window exhaust adapter (flat mouth ).........1pc

Unit exhaust adapter (round) .....................1pc

Adjustable window slider kit.....................2/set

from 26 5/8" to 48 3/8"

Drain hose connector..................................1pc

continuous drain option (hose not included)

NOTE: Exterior drain hose extension is not

included with this unit but can be purchased

through any local Hardware Store.

Continuous Drainage

1.Remove the seal of drainage tube (as shown in

image).

2.Extend the tube outside the unit for drainage,

as shown.

3.Pay attention to place the tube in a proper

situation to avoid causing the electric controls

to not work properly.

Power cord storage

Fix the roll wire at the back of the air guide plate

with the clasp. Wrap the power cord around the

clasp when unit is not in operation.

CONTROL PANEL FUNCTIONS

Sets the

room

temperature

SWING Button

Selection of this button

will determine the air

delivery in swinging

or fixed direction mode.

FAN SPEED Button

Press this button will

choose high, medium

or low speed of air

delivery.

MODE Button

Press this button will select

among the modes of

cooling, dehumidify or

fan.

TIMER Button

Press this button to

switch-on, switch-off or

delete timer.

TIME Button

Sets remaining

time for timer

operation.

COMPRESSOR

Indication Light

WATER

FULL

indication

light

ON/OFF Button

To turn unit ON or OFF

TEMP Button

Display of preset temperature and failure

code. When SET is displayed, the displayed

digits indicate the preset temperature. When

FAULT is displayed, the displayed digits

indicate the code of failures.



MODE

COOL

DRY

FAN

FAN SPEED HIGH MED LOW

SWING

SET FAULT OFF

Operation mode



Display of Time Setting

The displayed digits

indicate the remaining

time for timer ON/OFF

operation

Louver indicator

Fan speed indicator

TIMER TIME

COMP WATER FULL

SWING

FAN SPEED MODE

TEMP

MODE

COOL

DRY

FAN

FAN SPEED HIGH MED LOW

SWING

SET FAULT OFF

MODE

Timer set to turn ON

Timer set to turn OFF
