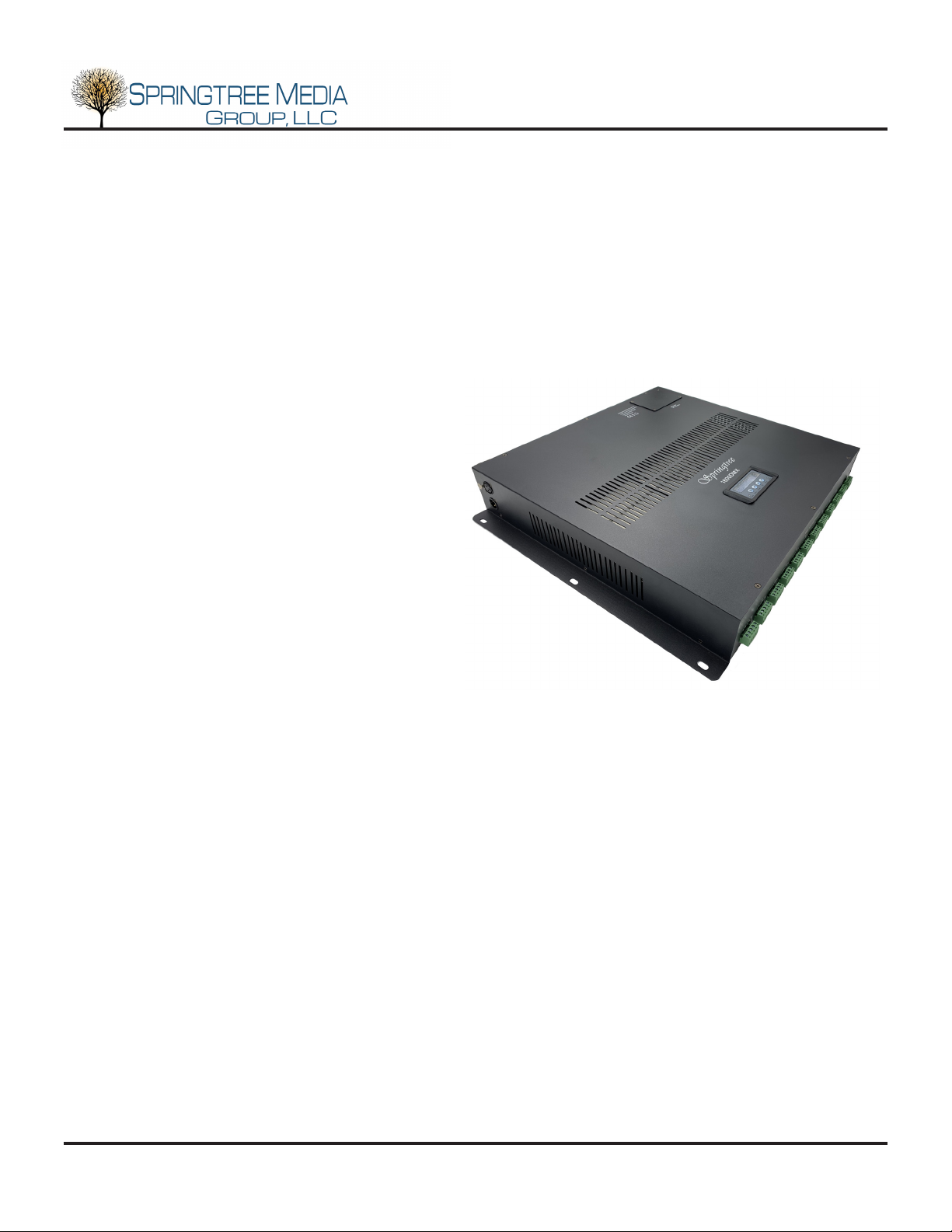

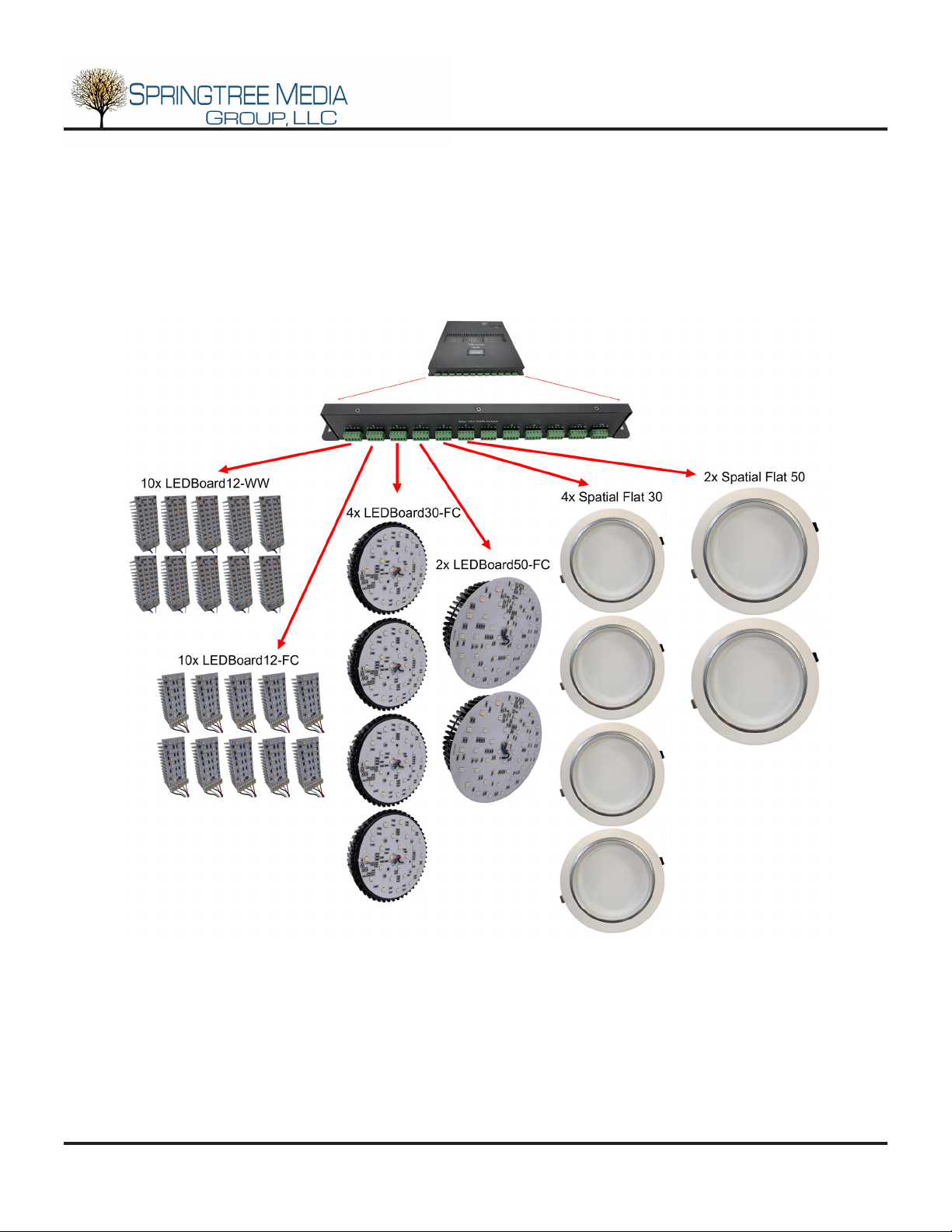

DMX Modes:
1 channel (white) / 5 channel (rgbw) one zone - all 12 outputs combined
2 channels (white) / 10 channels (rgbw) two zones - outputs 1-6 combined, outputs 7-12 combined
3 channels (white) / 15 channels (rgbw) three zones - outputs 1-4 combined, outputs 5-8 com-
bined, outputs 9-12 combined
6 channels (white) / 30 channels (rgbw) six zones - outputs 1-2 combined, 3-4, 5-6, 7-8, 9-10,
11-12
Operation continued - Menu
Output Mode White Output Mode RGBW
Color Macro N/A Red 000-255 Color Macro Red 000-255
Amber 000-255 Amber 000-255
Yellow/Warm 000-255 Yellow/Warm 000-255
Yellow 000-255 Yellow 000-255
Green 000-255 Green 000-255
Turquoise 000-255 Turquoise 000-255
Cyan 000-255 Cyan 000-255
Blue 000-255 Blue 000-255
Lavender 000-255 Lavender 000-255
Mauve 000-255 Mauve 000-255
Magenta 000-255 Magenta 000-255
Pink 000-255 Pink 000-255
Warm White 000-255 Warm White 000-255
White 000-255 White 000-255
Cold White 000-255 Cold White 000-255
Color Fade 000-255 Color Fade 000-255
Color Jump 000-255 Color Jump 000-255
Color Off 000-255 Color Off 000-255
User Color White 000-255 User Color Red 000-255
N/A 000-255 Green 000-255
N/A 000-255 Blue 000-255
N/A 000-255 White 000-255
PWM 12288 PWM 12288
8192 8192
4096 4096
2048 2048
DMX Address 001-512 DMX Address 001-512
Channel 1 One Zone Channel 5 One Zone
2 Two Zones 10 Two Zones
3 Three Zones 15 Three Zones
6 Six Zones 30 Six Zones
12 Twelve Zones 60 Twelve Zones
