Model RR101

Important: This manual contains important safety and operating information. Please read, understand,

and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or

damage to your Sportscaster, accessories, and/or to your vehicle or property.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired

operation.

The AGT XM Sportscaster Satellite Radio Receiver incorporates an

FM transmitter and is therefore classified as an intentional

transmitter. Changes or modifications to the unit not expressly

approved by AGT can void your authority to operate this

equipment.

IMPORTANT: The FCC and FAA have not certified the AGT XM

Sportscaster Satellite Radio Receiver for use in any aircraft

(neither portable nor permanent installation). Therefore, AGT

cannot support this type of application or installation.

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

Table oofCContents

Table of Contents

A Brief History 4

About Advanced Global Technology 4

About XM Satellite Radio 4

ABBrief HHistory

A Brief History

Thank you for purchasing the new AGT Sportscaster Satellite Radio Receiver-smaller,

lighter, and more versatile than any receiver available.

• Dock your Sportscaster into cradles that are easily installed in your vehicle or your

home. Connect your Sportscaster's power, and antenna connectors and you are

ready to enjoy XM Satellite Radio.

• A built-in FM transmitter allows you to hear XM programming on your car or home

FM radio, using an unused frequency on the FM band.

• Available accessory kits make your Sportscaster useable in the home or on the go.

About Advanced Global Technology

Advanced Global Technology (AGT) is a worldwide leader in mobile, home and portable

electronics and audio technology. With its exciting line of satellite radio products,

AGT offers a broad portfolio of products to answer a wide variety of information and

entertainment needs-in the vehicle, home, office, and portable environments.

About XM Satellite Radio

XM Satellite Radio is the nation's leading provider of satellite radio with more than 6

million subscribers. XM offers more than 160 digital radio channels: 100% commercial-

free music channels, ranging from hip hop to opera, rock to bluegrass, big band to

reggae; 71 talk radio channels, including news, sports, comedy, and children's pro-

gramming; and 21 channels of round-the-clock traffic and weather reports.

Subscribers pay $12.95 a month for the XM service, which was named Best Radio

Service by the music industry's leading magazine Billboard at the 2004 Digital

Entertainment Awards. Exclusive programming on XM includes Major League

Baseball® games for every team, all season long. You can listen to XM on a variety of

satellite radio receivers for the vehicle, home, and portable use. In-dash XM radios are

available in more than 120 vehicle models for the 2006 model year. XM is broadcast

via satellite from coast to coast, so you can listen to XM continuously as you travel

across the country.

* To receive the XM service, you must subscribe to XM. Available in the continental United States and Canada only. Satellite radio reception depends

on the ability of the antenna to receive a signal. The signal may not be available in buildings or if obstructed (e.g., by mountains, trees, bridges, etc).

Let’s GGet SStarted

Let's Get Started

First, some important reminders:

We know you're eager to turn on your new Sportscaster and listen to XM, but please

take a moment to read through this instruction manual.

Warning: This manual contains important safety and operating information.

Please read, understand, and follow the instructions in this manual. Failure to do so

could result in personal injury, death, and/or damage to your Sportscaster,

accessories, and/or to your vehicle or property.

Warning: When using this product it is always important to keep your eyes on

the road and your hands on the wheel. Not doing so could result in injury and/or

death to you or to others and/or in property damage.

Caution: Use your Sportscaster only with the enclosed components or approved

accessories. Do not modify wires or other connectors in any way; you could cause a

malfunction, which could damage your Sportscaster and will void your warranty.

Caution: Refrain from using food or drinks near your Sportscaster. Spilling food

or drinks on the unit can damage it. Also, improperly installing the antenna cable

can cause leaks, which can damage your Sportscaster and/or your vehicle.

Let’s GGet SStarted

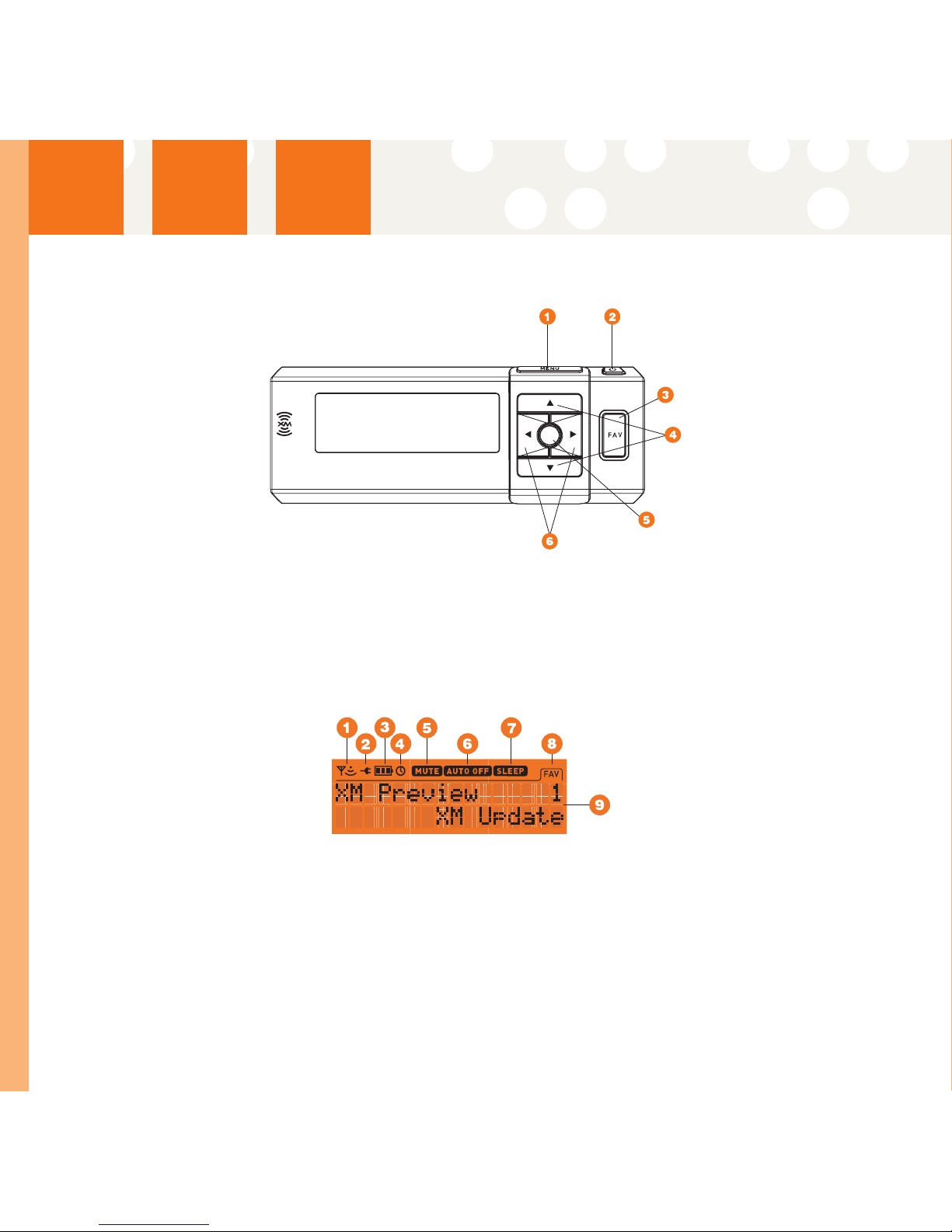

Controls

1. MMeennuu- access advanced features and configuration options

2. PPoowweerr

3. FFaavv((FFaavvoorriitteess))- store up to 30 of your favorite channels

4. UUppaannddDDoowwnnAArrrroowwss- change channels, menu options

5. SSeelleecctt- enter, change display mode options

6. RRiigghhttaannddLLeeffttAArrrroowwss- change categories, menu options

Display

1. SSiiggnnaallSSttrreennggtthhIInnddiiccaattoorr- 1 to 3 bars

2. PPoowweerrCCoonnnneeccttiioonnIInnddiiccaattoorr- displayed when connected to external power

3. BBaatttteerryyIInnddiiccaattoorr- displays battery strength and charging status

4. AAllaarrmmIInnddiiccaattoorr- displayed when alarm clock feature is active

5. MMuuttee

6. AAuuttooOOffffIInnddiiccaattoorr- displayed when auto shutdown feature is active

7. SSlleeeeppIInnddiiccaattoorr- displayed when sleep mode feature is active

8. FFaavv((FFaavvoorriitteess))- displayed when favorite tuning mode is active

9. AAddddiittiioonnaallIInnffoo- channel name, channel number, category name, artist, song title,

time and other information.

Let’s GGet SStarted

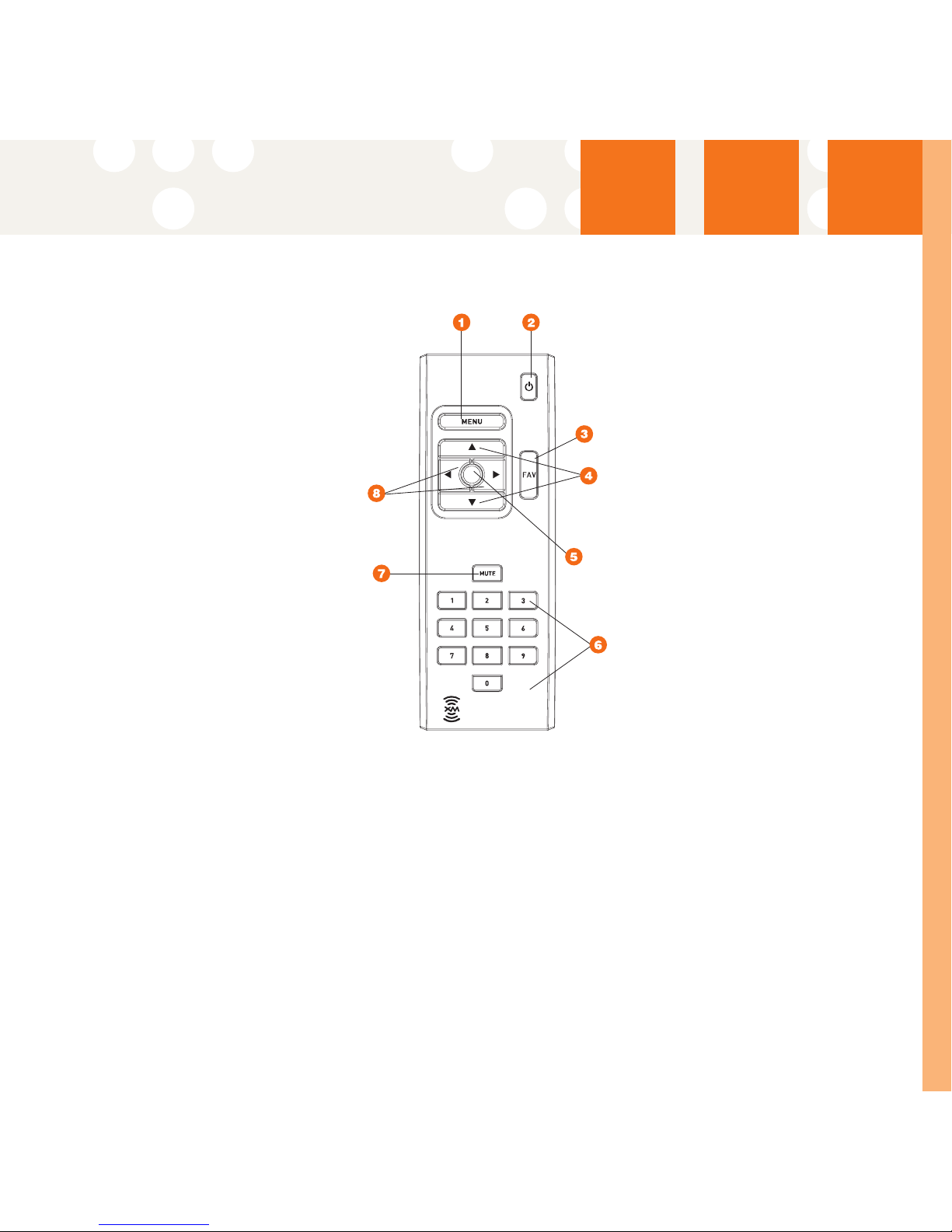

Remote Control

1. MMeennuu- access advanced features and configuration options

2. PPoowweerr

3. FFaavv((FFaavvoorriitteess))- store up to 30 of your favorite channels

4. UUppaannddDDoowwnnAArrrroowwss- change channels, menu options

5. SSeelleecctt- enter, change display mode options

6. NNuummbbeerrss- enter a channel directly

7. MMuuttee

8. RRiigghhttaannddLLeeffttAArrrroowwss- change categories, menu options

Activating YYour SSportscaster

Activating Your Sportscaster

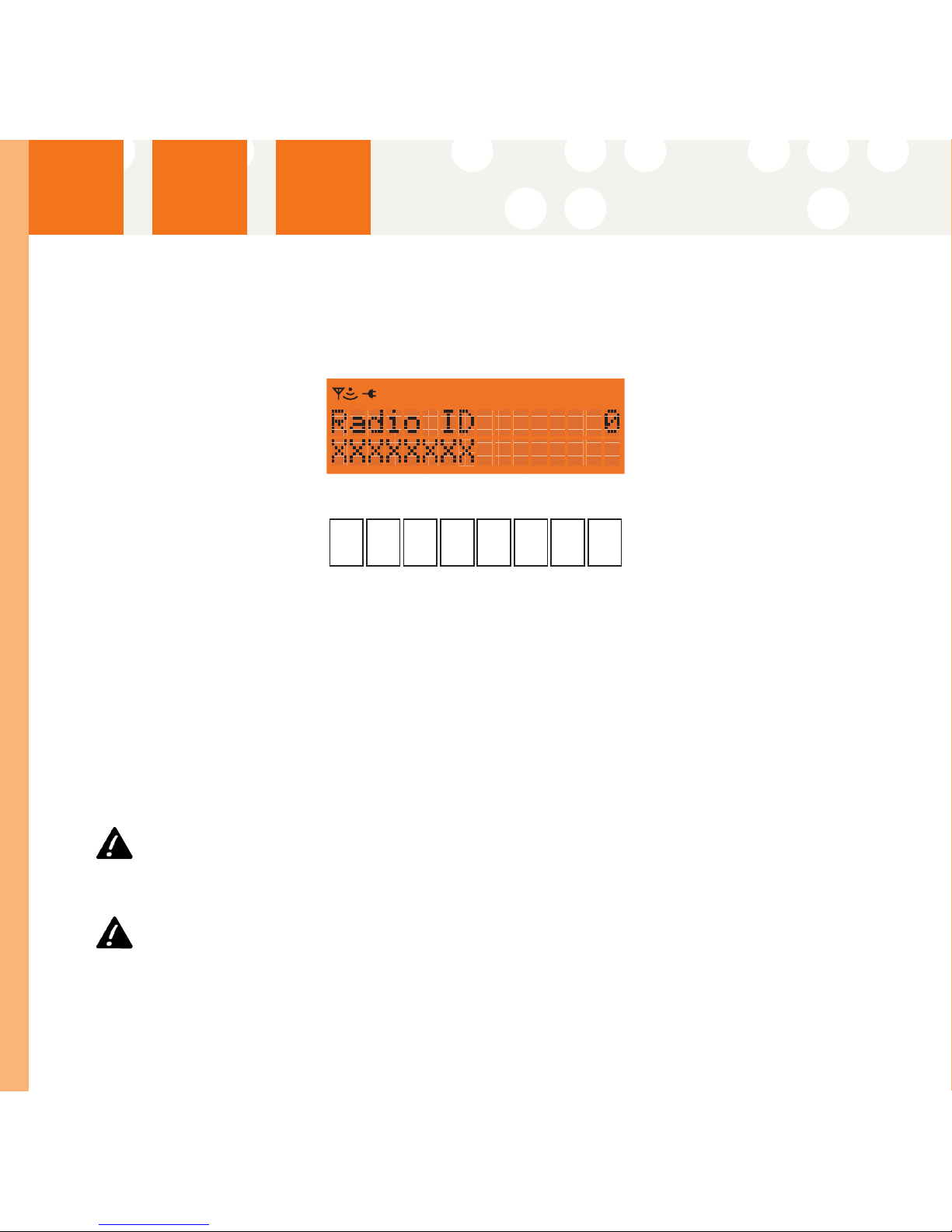

Use the Up and Down Arrow buttons to tune Channel 0, then push the "SSeelleecctt"

button. You should see an 8-character XM Radio ID in the display. The XM Radio ID is

also Printed on the package.)

Please write the XM Radio ID here:

Note: Carefully check your XM Radio ID. The lletters II,OO,SS,aand FFaare nnot uused.

Activate your XM Satellite Radio service by contacting XM at

http://activate.xmradio.com or by calling 1.800.XM.RADIO (1.800.967.2346).

You will need your XM Radio ID and a major credit card.

XM will send a signal from the satellites to activate the full channel lineup. Activation

normally takes 10 to 15 minutes, but during peak busy periods, you may need to keep

your Sportscaster on for up to an hour to complete the activation process. When you

can access the full channel lineup on your Sportscaster, you're done!

Warning: When using this product it is always important to keep your eyes on

the road and your hands on the wheel. Not doing so could result in injury and/or

death to you or to others and/or in property damage.

Warning: Failure to do so could result in personal injury, death, and/or damage

to your Sportscaster, accessories, and/or to your vehicle or property.

Installation

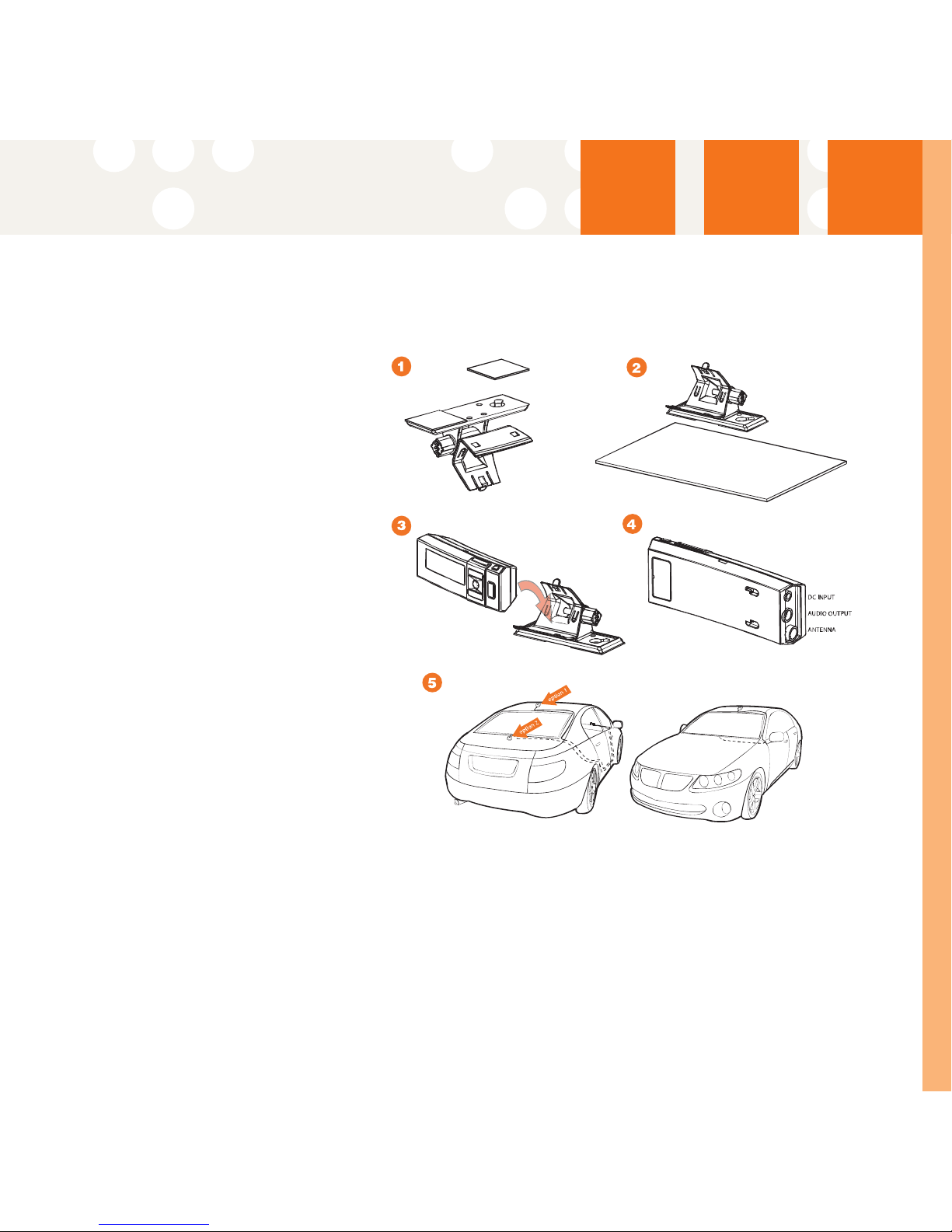

Mounting to the Dashboard or Console

If using the AMPs mounting

holes to fasten the Sportscaster

vehicle mount to your dash or

console, Bolt or screw the

Sportscaster vehicle mount in

place and proceed to step 3.

1. Remove the protective film

from one side of the supplied

double sided tape. Press

firmly to secure the tape to

the bottom of the vehicle

mount. (Figure 1).

2. Remove the protective film

from the remaining side of

the double sided tape. Place

the vehicle mount in the

appropriate location on the

vehicle's dash or console and

press firmly. (Figure 2).

3. Push the Sportscaster into

the vehicle mount until it

locks into place. (Figure 3). To

remove the Sportscaster,

push the release tab on the

top of the vehicle mount

upward and pull the Sportscaster forward.

4. Connect the DC Power, antenna and audio connectors (if required) to the appropri-

ate jacks. (Figure 4).

5. For best reception, place the XM antenna on the vehicle’s metallic roof, at least 6”

from any window or sunroof. It can be placed in the front, middle, or rear of the

roof. (Figure 5).

If the car is a convertible, you may mount the antenna on the metal trunk lid. It

should be at least 4” from the rear window. Ensure that the antenna and cable

don’t interfere with the opening or closing of the convertible top and the trunk lid.

Installation

Mounting to the Windshield

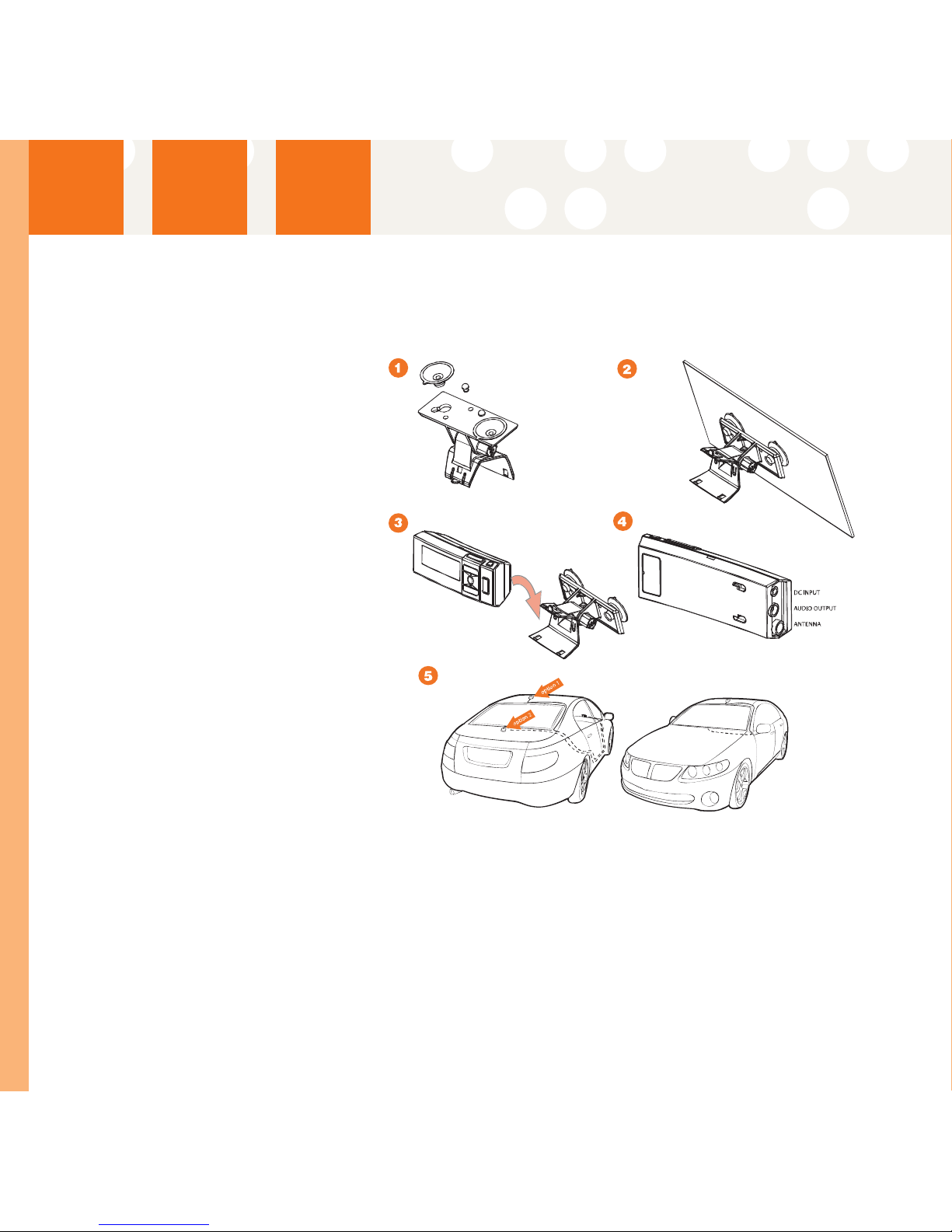

1. Insert the 2 suction cups into

the larger side of the holes

on the vehicle mounting

bracket and slide outward to

lock in place. (Figure 1).

2. Loosen the thumb screw and

rotate the Sportscaster

vehicle bracket to the

appropriate angle for your

vehicle's windshield.

Retighten the thumb screw.

Place the suction cups on the

Sportscaster vehicle mount in

an appropriate location on

your windshield. Press firmly

to secure the Sportscaster in

place. (Figure 2).

3. Push the Sportscaster into

the vehicle mount until it

locks into place. (Figure 3). To

remove the Sportscaster XM

Satellite Radio Receiver, push

the release tab on the top of

the Sportscaster vehicle

mount upward and pull the

Sportscaster forward.

4. Connect the DC Power, antenna and audio connectors (if required) to the appro-

priate jacks. (Figure 4).

5. For best reception, place the XM antenna on the vehicle’s metallic roof, at least 6”

from any window or sunroof. It can be placed in the front, middle, or rear of the

roof. (Figure 5).

If the car is a convertible, you may mount the antenna on the metal trunk lid. It

should be at least 4” from the rear window. Ensure that the antenna and cable

don’t interfere with the opening or closing of the convertible top and the trunk lid.
