Sports Attack Attack Manuel utilisateur
VOLLEYBALL MACHINE
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
PATENTS APPLIED FOR
REV083115
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com
INSTRUCTION MANUAL
Includes: OPERATION · SETUP · USE & CARE · SERVICE
VOLLEYBALLVOLLEYBALL
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com xi
SHIPPING DAMAGE CLAIMS PROCEDURE
NOTE: For your protection, please note that equipment in this shipment was carefully in-
spected and packaged by skilled personnel before leaving the factory.
Upon acceptance of this shipment, the transportation company assumes full responsibility
for its safe delivery.
IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the
freight bill or express receipt, and that the note of loss or damage is signed by the
delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: If damage is unnoticed until the merchandise is
unpacked, notify the transportation company or carrier immediately, and file
“CONCEALED DAMAGE” claim with them. This must be done within fifteen (15) days
from the date the delivery was made to you. Be sure to retain the container
for inspection.
Sports Attack, LLC. cannot assume liability for damage or loss incurred in transit. We will,
however, at your request, supply you with the necessary documents to support your claim.
Warranty/Shipping
To register the Warranty,
please go to our website:
www.sportsattack.com/war-
ranty
For repairs and service after the
Warranty period, please call:
Sports Attack
Customer Service Dept.
Ph 800-717-4251
Fx 775-345-2883
RETURNS
To return an item, please
contact our Customer Service
Department at 800-717-4251.
A 15% restocking fee will be
charged for any items accepted
for return. It is the customer’s
responsibility to handle the
repacking and shipment (as well
as all associated fees) back to
Sports Attack.
No returns will be accepted after
30 days of receiving product.
WARRANTY STATEMENT
What is most important to Sports Attack is that your machine meets your expectations of
quality and performance. We stand behind the material and workmanship of our machines
for five (5) years from the date or original purchase for institutional and residential use and
one (1) year for commercial environments, with the following exceptions:
-Throwing Wheels are warranted for two (2) years;
-Electronic Controller is warranted for two (2) years; and,
-Throwing Wheel Motors are warranted for two (2) years.
This warranty excludes any cosmetic issues or normal wear and tear of the unit, and is not in
effect if the machine has been misused, misapplied, improperly assembled, or modified with-
out the express written permission of Sports Attack. In addition, this warranty does not apply
to damage in transit, in any accident unrelated to the direct operation of the equipment, or
by fire, flood or act of God.
If you encounter any issues during the warranty period, Sports Attack will quickly get your
machine back in working order. If the warranty repair involves a replacement part, we will
make sure you get both the part and easy instructions for replacement at no cost to you. If a
service person is needed, Sports Attack will pay the pre-approved labor charge to get your
machine back in working order.
Please know that any problem can quickly be resolved with a phone call to our experienced,
responsive customer service department at 800.717.4251. We are here to answer your ques-
tions and to make sure your machine provides you years of service.
RETURNS
Sports Attack manufactures the highest quality sports training equipment in the world. If for
any reason you are not satisfied, a machine can be returned within 30 days of receipt for any
reason for a full refund less a 10% restocking fee. Cost of shipping the unit back to Sports At-
tack will also be the responsibility of the purchaser. Please note that the refund amount may
be reduced by any non-cosmetic damage to the machine.
If you have any questions or concerns, please give our experienced, responsive customer service
department a call at 800.717.4251.
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 1
TABLE OF CONTENTS
Warranty Statement ...................................................................xi
Safety Instructions .................................................................... 4
ATTACK and ATTACKII VOLLEYBALL ASSEMBLY INSTRUCTIONS
Assembly Instructions .............................................................. 5
Attack Assembly Figures ............................................................ 6
AttackII Assembly Figures........................................................... 7
Bolt Schedule .....................................................................8-9
Replacing Throwing Head.......................................................... 10
Operation ........................................................................ 11
Shutting Down.................................................................... 12
MAINTENANCE & SERVICE
Care, Cleaning & Maintenance...................................................... 13
Component Replacement
Wheel........................................................................... 14
Motor ........................................................................... 14
Controller ....................................................................... 15
Increasing Bungee Tension......................................................... 16
Attack Component Parts ........................................................... 17
AttackII Component Parts.......................................................... 18
Parts List.......................................................................19-20
SPORTS ATTACK
Product Line ...................................................................21-22
INTRODUCTION
Thank You for purchasing this Sports Attack LLC. equipment.
Proper assembly, careful operation and consistent maintenance of this equipment will
ensure that it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly setup the Attack and AttackII,
and to use, care for and maintain the Attack and AttackII in a manner which will ensure
their optimum performance.
RECEIVING THE PRODUCT
Please check the contents of your boxes to ensure you have received all parts for
the machine. If anything is missing or damaged, call Sports Attack Customer Service,
800-717-4251. If the product or package has been damaged in shipping, note on
shipping tag, save all evidence of damage along with related documents and contact
the shipper immediately.
Table of Contents/Introduction
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 2
Attack & AttackII Safety Instructions
SAFETY INSTRUCTIONS

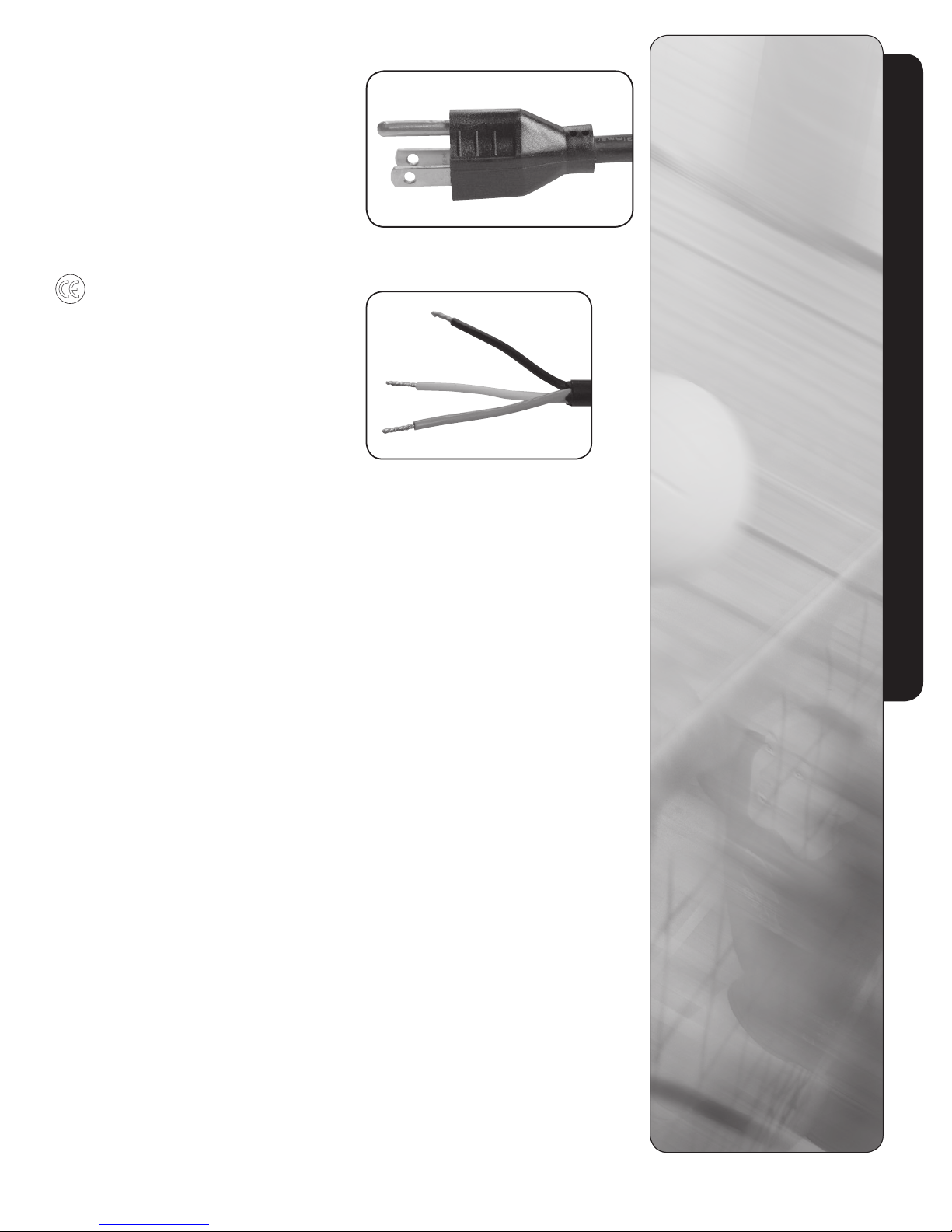

ELECTRICAL SAFETY
Use a 115 volt single phase 3-wire grounded
power source.
Up to 200 ft. from power source,
use a minimum #14/3 grounded 3-wire
extension cord.
Over 200 ft. from power source, consult
a licensed electrician for required power
cord size.
OPTION B 208/220/230V
Green = Earth
White or Blue = Neutral
Black or Brown = Line
OPERATING SAFETY
1. Never reach hands into throwing wheel area.
2. Always use the Attack or AttackII with throwing wheel shields in place.
3. Use the Attack or AttackII only under adult supervision.
4. Use the Attack or AttackII only for their intended purpose.
5. Do not operate the Attack or AttackII with a damaged cord or plug, if the machine
malfunctions or has been damaged.
6. Check machine before turning “ON” to make sure there are no foreign object
in feed chute.
7. If ball becomes lodged and stops motor, immediately turn machine off
before dislodging.
8. To dislodge ball from throwing wheel, unplug machine and push ball through chute.
Do not reach hand into feed chute with the machine running.
9. Only one person at a time should operate the Attack or AttackII.
10. Be sure chain is locked when standing on platform.
11. Do not allow anyone to walk directly in front of the machine. Keep face and hands
away from ball exit.
12. A ball should always be test thrown from the Attack or AttackII before beginning
any drill. Throw several balls to verify end location.
13. Keep hands, hair and loose clothing away from moving parts.
14. Do not use near water or use damp or wet balls.
WARNING
PERSONAL INJURY
HAZARD
Carefully read all instructions
in this manual, and all labels
and warnings on the Attack or
AttackII before using either of
the machines.
Use machine only under adult
supervision. Failure to operate
Attack or AttackII as described in
this manual can result in severe
personal injury or death.
ELECTRICAL SHOCK
HAZARD
Attack or AttackII must be
connected to a properly grounded
electrical receptacle.
•
Do not operate on wet ground.
WARNING
PERSONAL INJURY
HAZARD
Keep hands away from throwing
wheels anytime the machine is
connected to a power source.
•
Carefully check the Attack or
AttackII for completeness and
condition before connecting to
electrical power.
EQUIPMENT ELECTRI-
CAL
DAMAGE
DO NOT plug in or energize the
equipment until all Assembly and
Operation Instructions are read
and followed.
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 3

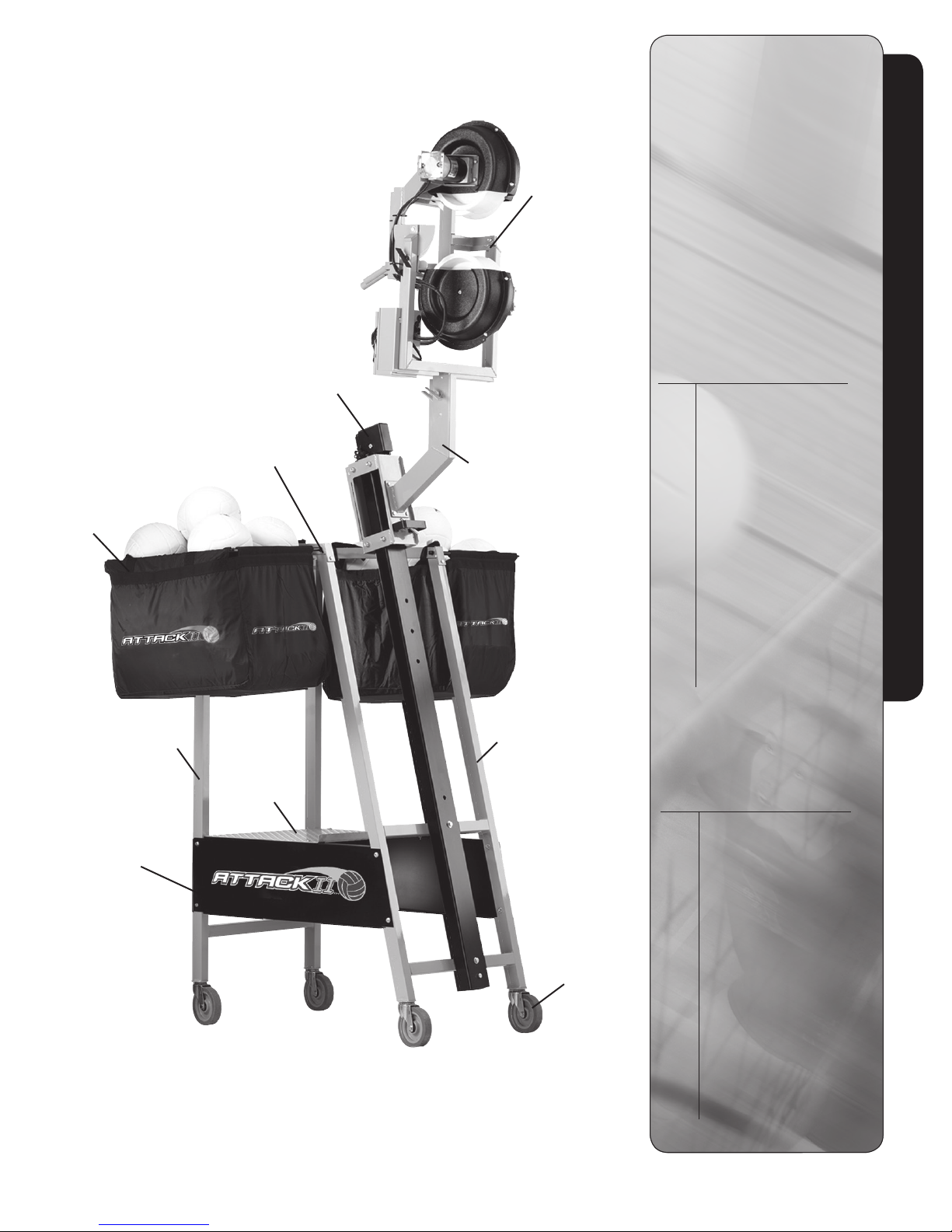

Attack & AttackII Component Parts
Rear Frame
Assembly
Top Cross
Tube Assembly
Mast & Tray
Assembly
Platform
Right-hand
& Left-hand
Panels
Front Frame
Assembly
Yoke & Head
Assembly
Caster
Arm Assembly
Optional
Ball Bags
COMPONENT DIAGRAM & PACKING LIST ATTACK & ATTACKII CAUTION
PERSONAL INJURY
HAZARD
Failure to use the special tool
provided to install the casters
could result in personal injury.
EQUIPMENT DAMAGE
Failure to use the special tool
provided to install the casters
could result in equipment damage.
ASSEMBLY PARTS
Qty Item
1 Yoke & Head Assembly
1 Arm Assembly
1 Mast & Tray Assembly
2 Top Cross Tubes
1 Rear Frame Assembly
1 Front Frame Assembly
1 Platform
1 Right Hand Panel
1 Left Hand Panel
1 Left Hand Panel
1 520-9000 Hardware Kit
1 Ball Bag
HARDWARE KIT
Item# 520-9000
Qty Item
20 1/4” USS Washers
4 1/4” Split Lock Washer
16 1/4” Nylon Nuts w/Flange
8 1/4” - 20 x 3/4” Bolts
8 1/4” - 20 x 2” Bolts
4 1/4” - 20 x 2 1/4” Bolts
4 3/8” USS Washers
2 3/8” Nylon Nuts
2 3/8” - 16 x 4” Bolts
1 Wrench for Casters
2 Casters, 4” Non-locking
2 Casters, 4” Locking
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 4
ASSEMBLY INSTRUCTIONS
Tools required: Two 7/16” wrenches and two 9/16” wrenches or two small crescent wrenches.
STEP ONE
Lay out all parts and check them against the parts list on page 4. Call customer service
immediately if any parts are missing. Please have applicable part numbers as shown on
parts list.
IMPORTANT: as you assemble the machine, leave bolts very loose. Tighten only after the
frame is completely assembled.
STEP TWO
Lay out rear frame assembly, front frame assembly and right- and left-hand panels.
Assemble as shown in (Figure 1) using BS1 and BS1A.
STEP THREE
With bolts from Step Two still loose, set platform in place and tighten bolts securely using
BS2. Now go back and tighten bolts from Step Two assembly (Figure 2).
STEP FOUR
Screw casters BS3A & BS3 into the bottom of each leg (Figure 4) using wrench provided.
TIGTHEN SECURELY.
STEP FIVE
Bolt mast to frame assembly as shown in (Figure 3). Do not tighten bolts until both are in
place with the nuts on finger tight. Use bolt arrangement BS4 shown.
STEP SIX
Bolt arm assembly onto rolling tray as shown in (Figure 3). Again do not tighten bolts until all
four are in place. Use bolt arrangement BS2 shown.
STEP SEVEN
Loosen side-to-side swivel handle on arm assembly and attach throwing head by inserting
shaft into bearing provided in arm assembly and tighten side-to-side swivel handle
(Figure 3).
Assembly is now complete and your Attack or Attack II Volleyball Machine is ready for use.
See instructions in the manual and on the decals on the machine for operating procedures
and options.
Attack & AttackII Assembly Instructions
CAUTION
PERSONAL INJURY
HAZARD
Failure to use the special tool
provided to install the casters
could result in personal injury.
EQUIPMENT DAMAGE
Failure to use the special tool
provided to install the casters
could result in equipment damage.
HARDWARE KIT
Item# 520-9000
Bolt
Ref. Item
20 1/4” USS Washers
4 1/4” Split Lock Washer
16 1/4” Nylon Nuts w/Flange
BS2 1/4” - 20 x 3/4” Bolts
BS1A 1/4” - 20 x 2” Bolts
BS1 1/4” - 20 x 2 1/4” Bolts
4 3/8” USS Washers
2 3/8” Nylon Nuts
BS4 3/8” - 16 x 4” Bolts
BS3 Wrench for Casters
BS3 Casters, 4” Non-locking
BS3A Casters, 4” Locking
Wrench provided (in the nut and bolt kit
with casters) to securely tighten casters.
See Page 6.
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 5
Attack & AttackII Figures In Assembly
Figure 1 Using BS1 & BS1A
BS1
BS1A
BS2
BS2
BS4
Position hole
Position
hole
Position hole Position hole
BS4
BS4
BS4
BS3
BS3A
BS2
BS1A
BS1
Figure 3 Using BS4 and BS5
Figure 2 Using BS2
Figure 4 Using BS4, BS3 & BS3A casters
ATTACK & ATTACKII FIGURES IN ASSEMBLY
Two locking casters. Tighten
using the wrench provided.
Two regular casters
Rear cross bars
Note: Attack has 2 rear cross bars
and AttackII has 1 cross bar
BS2
BS2
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 6
Attack Component Parts
COMPONENT PARTS ATTACK
19- Mast Cap
#280-7010
1- Wheel Guard Outside
#280-4002
2- Wheel Guard Inside
#280-4001
11- Yoke Assembly
#520-0034
3- Throwing Head Frame
#533-4010
10- Motor
90V - #530-1015
180V - #530-1016
4- Throwing Wheel
#531-0007
5- Controller
#530-0008
8- Arm Assembly
#533-4016
9- Shock Absorber Cord
(not shown)
#680-7002
6- Rolling Tray Rollers
(Top & Bottom - not shown)
#271-0031 (each)
7- Mast Assembly
(includes shock absorber cord)
#520-0036
12- Ball Bag Frame
#533-4015
13- Ball Bag
(bag only)
#120-3001
14- Rear Frame Assembly
#533-4012
15- Front Frame Assembly
#533-4011
16R- Right-hand Side Panel
#533-4000
16L- Left-hand Side Panel
#533-4001
22- Rolling Tray Assembly
#533-4005 21- Cord Roller
(not shown)
#271-0032
20- Platform
#533-4014
18- Castor Wrench
#680-7000
23- Non-Locking Castor
#281-0004
17- Locking Castor
#281-0005
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 7
Attack Parts List
EM PART NO. DESCRIPTION QTY PER
1A-104 Rear Frame Assembly 1
2A-105 Front Frame Assembly 1
3533-4014 Platform 1
4533-4000 Righthand Panel 1
533-4001 Lefthand Panel 1
5533-4013 Top Cross Tube Assembly 2
6 281-0004 Caster, non-locking 2
281-0005 Caster, locking 2
7 531-3006 Arm Assembly 1
8 533-4002 Yoke (Universal) 1
9 520-9000 Hardware Kit 1
10 A-1A Caster Wrench 1
11 210-0003 Motor 2
12 280-0006 Throwing Wheel 2
13 223-0009 Controller 1
14 A-116 Head Assembly (Universal) 1
15 A-107 Mast Assembly (Universal) 1
16 A-115 Tray Assembly (Universal) 1
EM PART NO. DESCRIPTION QTY PER
120-3000 Ball Bag Kit (bag and frame) 1
120-3001 Ball Bag (only) 1
533-4015 Ball Bag Frame (only) 1
120-3002 Machine Cover 1
ATTACK PARTS LIST To order additional parts,
please contact:
Sports Attack
Customer Service Dept.
Ph 800-717-4251
Fx 775-345-2883
ATTACK™
OPTIONAL ACCESSORIES
ATTACK™ AND ATTACKII™ VOLLEYBALL MACHINE
SPORTS ATTACK, LLC. •800-717-4251 •sportsattack.com 8
AttackII Component Parts
19- Mast Cap
#280-7010
COMPONENT PARTS ATTACKII
1- Wheel Guard Outside
#280-4002
2- Wheel Guard Inside
#280-4001
11- Yoke Assembly
#520-0034
3- Throwing Head Frame
#533-4010
10- Motor
90V - #530-1015
180V - #530-1016
4- Throwing Wheel
#531-0007
5- Controller
#530-0012
8- Arm Assembly
#523-4046
9- Shock Absorber Cord
(not shown)
#680-7002
6- Rolling Tray Rollers
(not shown)
#271-0031 (each)
7- Mast Assembly
(includes shock absorber cord)
#520-0036
12- Ball Bag Frame
#533-4015
13- Ball Bag
(bag only)
#120-3001
14- Rear Frame Assembly
#533-4018
15- Front Frame Assembly
#533-4017
16R- Right-hand Side Panel
#533-4000
16L- Left-hand Side Panel
#533-4011
22- Rolling Tray Assembly
#533-4005 21- Cord Roller
(not shown)
#271-0032
20- Platform
#533-4014
18- Castor Wrench
#680-7000
17- Locking Castor
#281-0005 23- Non-Locking Castor
#281-0004
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Sports Attack Accessoires
