Sportop E80 Manuel d'utilisation
E80
Owner’s Operating Manual ENGLISH

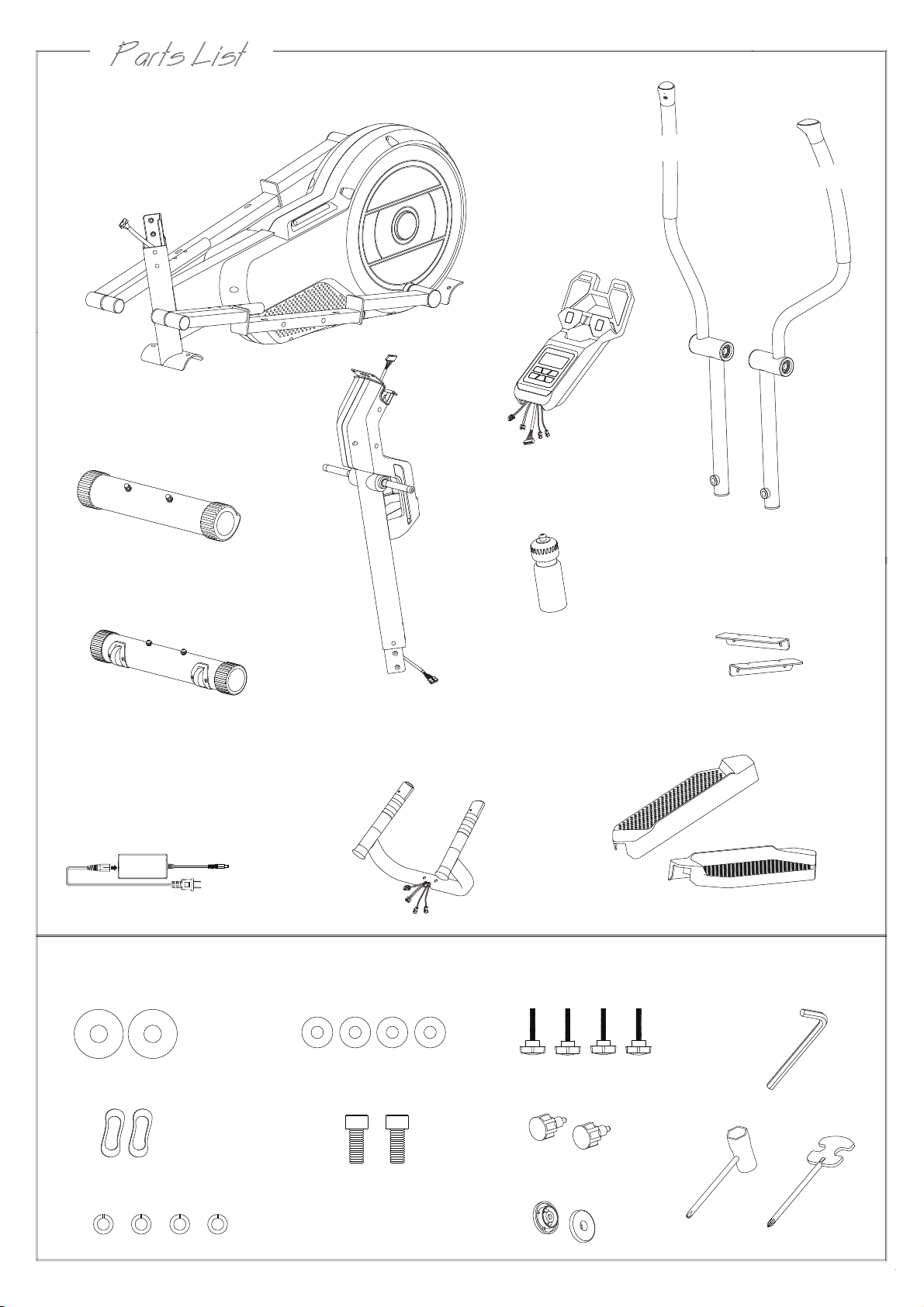

MODEL :
Main frame
A
DFront stabilizer
Rear stabilizer
C
Central supporting
tube
B
E1 Handle bar (L)
E
Console
G
Small handle barF
Adaptor
I
E2 Handle bar (R)
PedalH
)4E( bonK
)1H( bonK
J
Reinforcing plate
(A54)
Tool
(N1) End cap
Water bottleK
(N2) Screw M8x20L
(J7) Washer M8
(J8) Wave washer D17
(J10) Spring washer M6
(J11) Washer M6
1

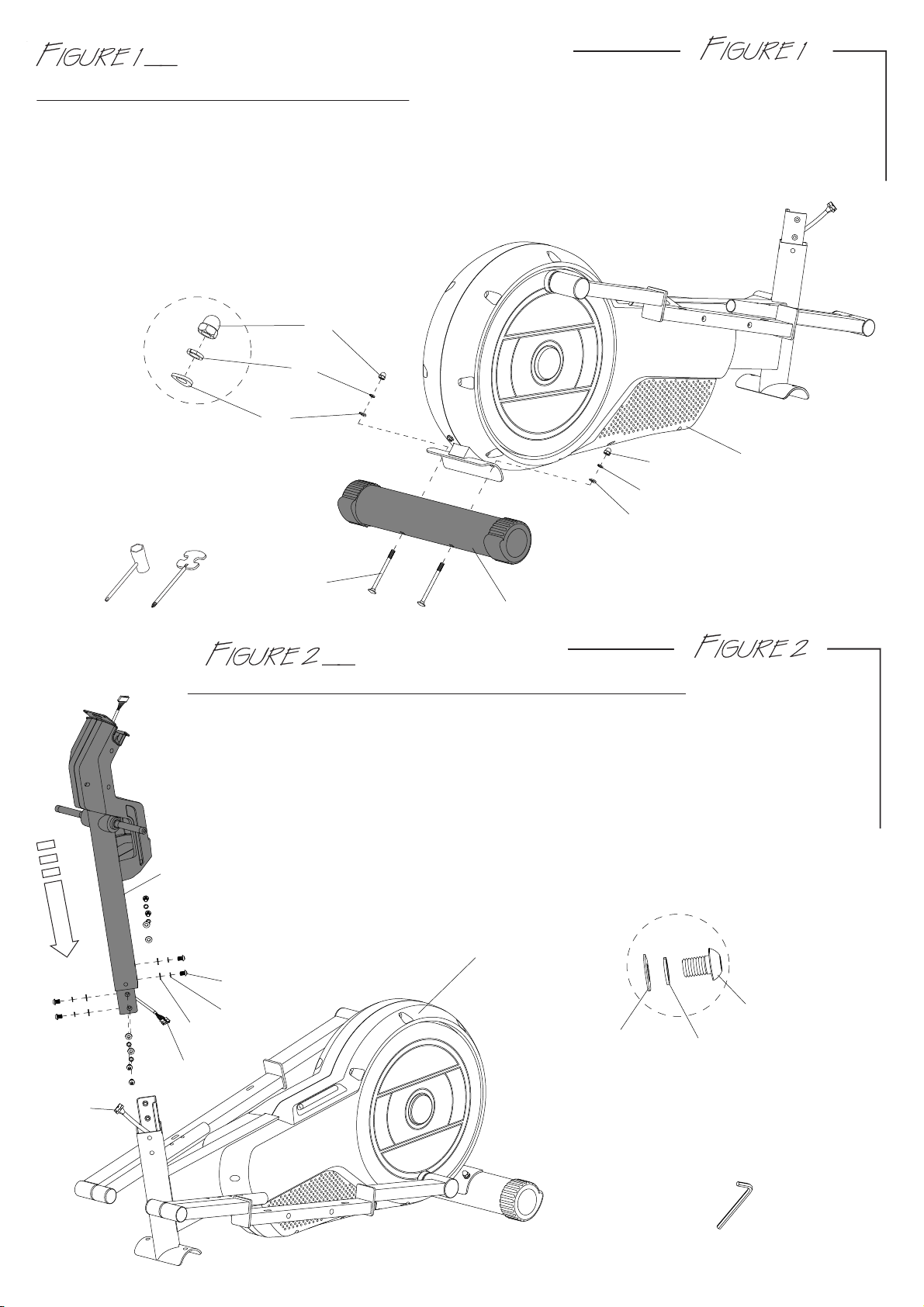

ASSEMBLY FOR REAR STABILIZER
ASSEMBLY FOR CENTRAL SUPPORTING TUBE
First, remove the nuts(J1), spring washers(J2), washers(J3)and screws(J17)
from the rear stabilizer(C).
Mount the rear stabilizer(C) to attach to the bracket at the back of the main frame(A).
Then, secure it with nuts(J1), spring washers(J2), washers(J3)and screws(J17).
Step1. First, remove the screws(J4), washers(J5) and spring washers(J15)
from the main frame(A).
Step2. Connect the sensor wire(L1) with the sensor wire(L2).Then,assemble
the central supporting tube(B) onto the main frame(A) with the screws(J4),
, washers(J5) and spring washers(J15).
NOTE: When pushing the tubes together make sure not to
pinch the cable!
J17
J3
J2
J1
C
J3
J2
J1 A
A
J4
J5
B
J4
J5
L1
L2
Use tool :
Use tool :
J15
J15
2

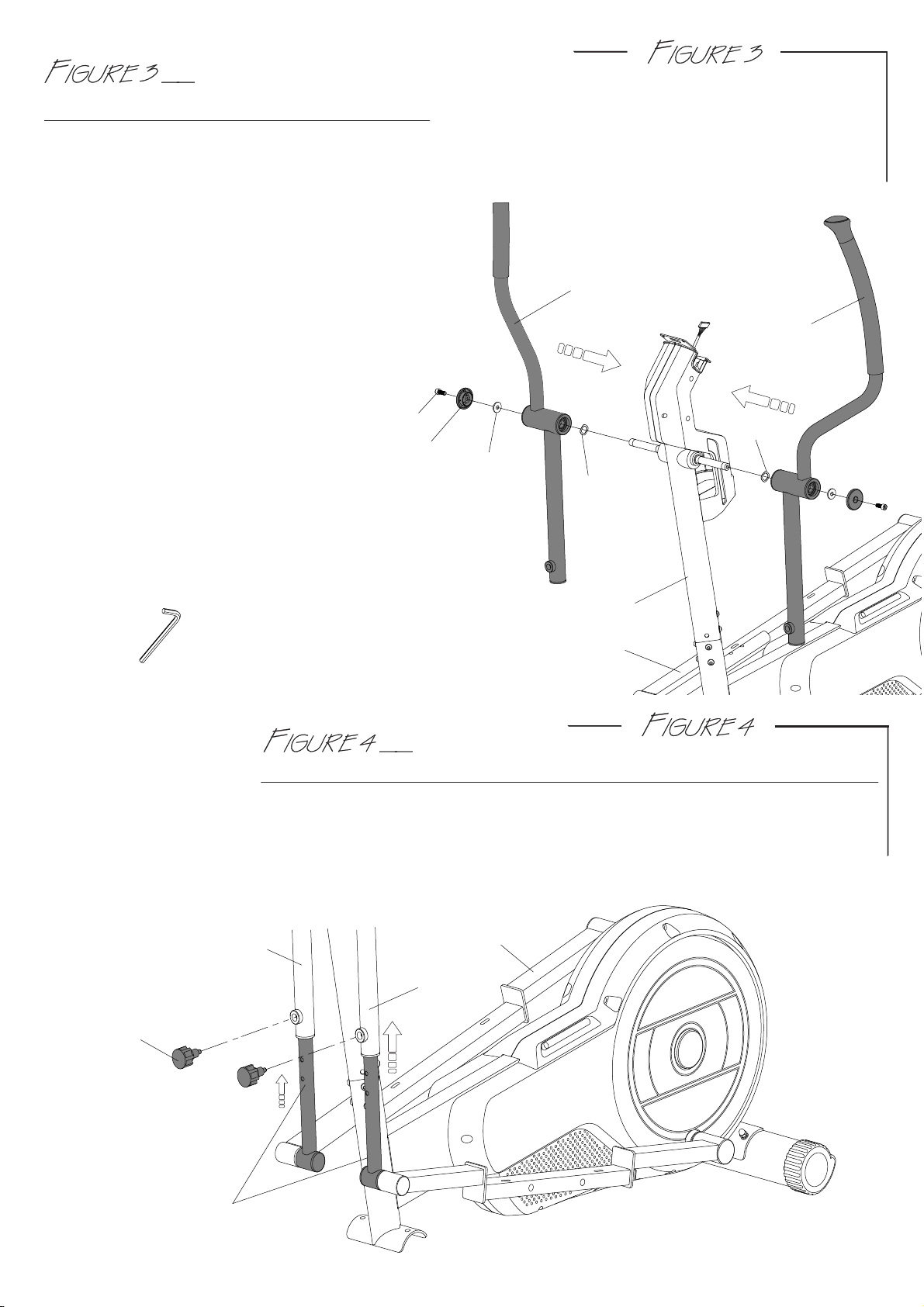

ASSEMBLY FOR SIDE HANDLE BAR
Step1. Put the wave washers(J8) into the axle on the central supporting tube(B) both side first.
Step2. Put the right side handle bar(E2) into the axle and secure it by the washer(J7),
end cap (N1), and screw(N2).
Step3. The left side handle bar(E1) assembly
is the same as the right side.
A
B
E1
E2
J8
J8
J7
CONNECT THE PEDAL TUBE WITH THE SIDE HANDLE BAR
Pull up the pedal connect tube and turn the Knob(E4) into the hole on the side handle
bar(E1&E2). Adjust the suitable position which 4 holes are available when loosing the
pop-pin.
Attention: Please make sure the knob(E4) is turning tightly after choosing the position to
avoid user falling down.
A
E4
Pedal Connect Tube
E1
E2
Use tool :
N1
N2
3
J9
J2
J3
D
A
J9
J2
J3

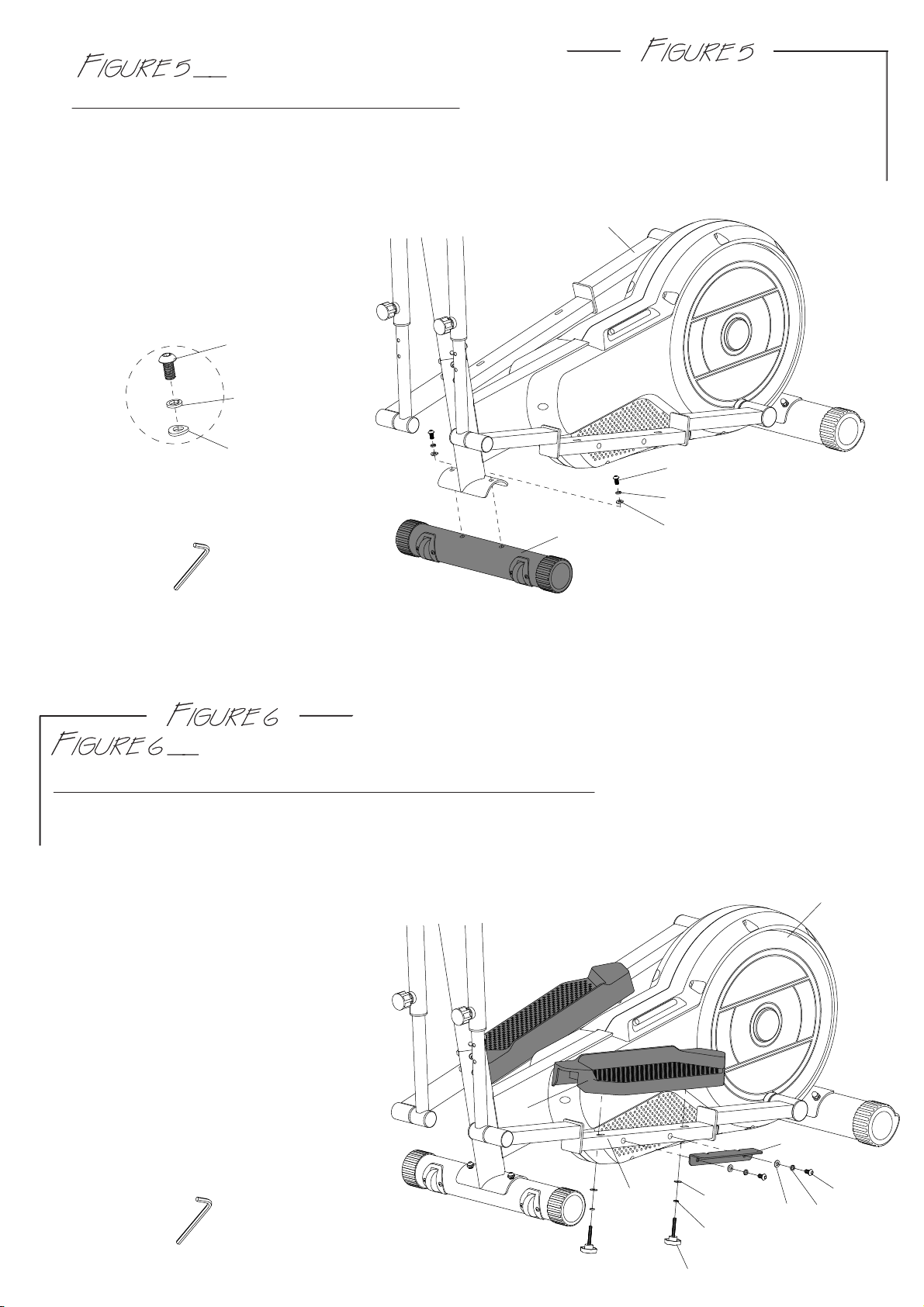

ASSEMBLY FOR FRONT STABILIZER
First, remove the screws(J9), spring washers(J2) and washers(J3) from the front stabilizer(D).
Mount the front stabilizer(D) to attach to the bracket at the front of the main frame(A).
Then, secure it with screws(J9), spring washers(J2) and washers(J3).
Use tool :
ASSEMBLY FOR REINFORCING PLATE AND PEDAL
Step2. Assemble the reinforcing plate(A54) with screws(J9), spring washers(J2), washers(J5).
Step3. Assemble the pedal(H) with knobs(H1), spring washers(J10), washers(J11).
Repeat again to finish other side assemble.
J9
J2
J5
A54
H1
J10
J11
H
A
Step1. First, remove the screws(J9), spring washers(J2), washers(J5) from the pedal tube-L (A49).
A49
Use tool :
4

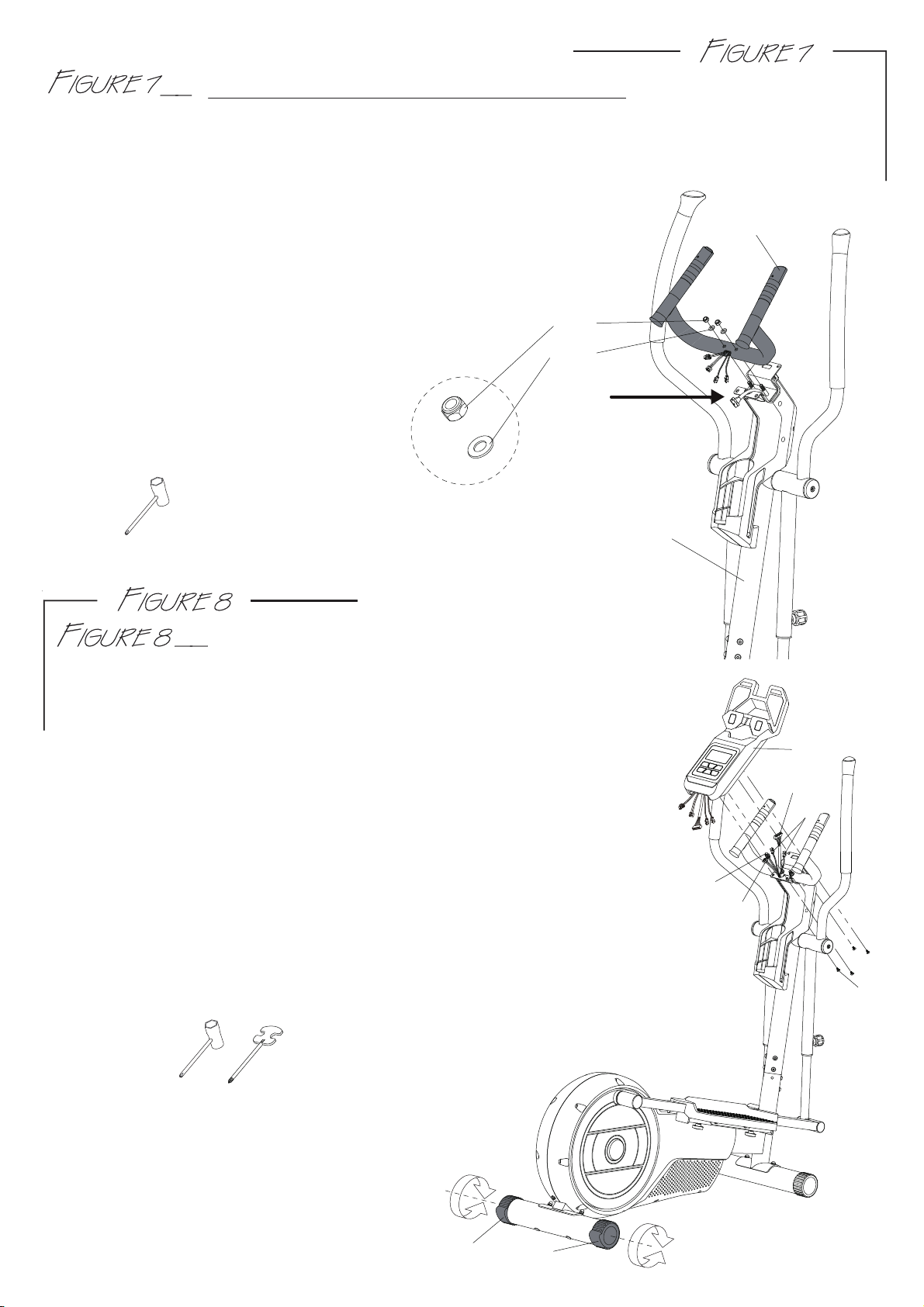

ASSEMBLY FOR SMALL HANDLE BAR
Note : Do not pinch the sensor wire when assembling
Step1. Remove the preinstalled washers(J13) and nuts(J14) from
the central supporting tube(B).
Step2. Put the small handle bar(F) on the central supporting tube(B),
Step3. Assembly the small handle bar(F) with washers(J13) and
nuts(J14).
B
J13
J14
F
Note!
ASSEMBLY FOR CONSOLE
Step2. Connect the sensor wires(L2, L3, L4, L5) with console wires
and put the console on the fixing plate.
Step3. Assembly the console with screws(G1).
Note: Do not pinch the sensor wire when assembling.
Step1. Remove the preinstalled screws(G1) from the console(G).
NOTE:
if the machine dose not sit level, you
can use the two adjustable end
caps(C2&C3) to compensate for uneven
floors.
G
G1
L2
L3
L4
L5
C2 C3
Use tool :
Use tool :
5

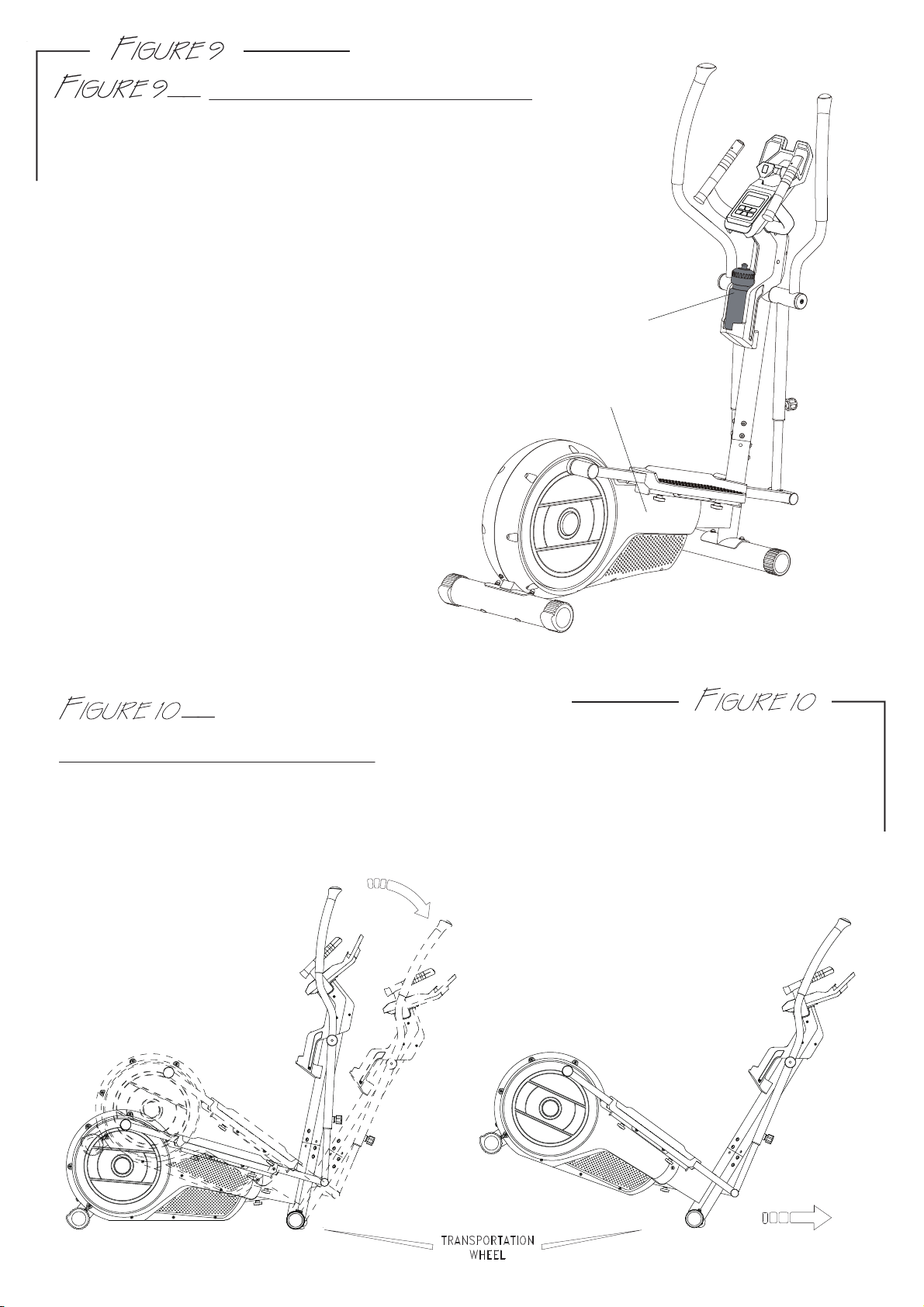

INSTALL THE WATER BOTTLE
HOW TO MOVE THE MACHINE
The front stabilizer has built-in transport wheels.
To move the machine, stand at the front and lift it up until the weight of the machine is
transferred to the transport wheels.
You can now easily move the machine to a new location.
Put the water bottle (K) on the main frame (A).
K
A
6
IOS
QR CODE
ANDROID
QR CODE
Console Dlsplay
LCD Display
Button’s function
Function Function description
UP (+)
· Adjust value by increasing the value, e.g.: LOAD/WATT/TIME
· Setting selection
DOWN(-) · Adjust value by decreasing the value, e.g.: LOAD/WATT/TIME
· Setting selection
MODE · Conrm setting or selection.
RESET ·Press and hold for 2 seconds, console will reboot
· Reverse to main menu during pause mode.
START/STOP · Start or Stop workout.
RECOVERY · Test heart rate recovery status.
7
Function
Function description
· SPEED
· RPM
· TIME
· DISTANCE
Display Function
· CALORIES
· WATT
· PULSE
· U1~U4
·
·
· MANUAL
·
· WATTS
·
· H.R.C
·
· USER
·
· PROGRAM
·
· Resistance
Display
range
·
1~16.
·
·
OPERATION PROCEDURE
POWER ON
Plug
1.
2.
in power supply(or press and hold RESET KEY for 2 seconds), console will power on and display
all segments on LCD for 2 seconds (Drawing 1).
Drawing 1 Drawing 2
LCD will display Wheel diameter and Metric (KM or ML) for 1 second (Drawing 2), the resistance
returns to LOAD=1.
·
Display current training speed.
·
Display range 0.0 ~ 99.9.
·
Display the Rotation Per Minute.
·
Display range 0 ~ 999.
·
Display time.
·
Display range 0:00 ~ 99:59
·
Display accumulates total distance
·
Display range 0.0 ~ 99.9
·
Display accumulates calories consumption during training
·
Display range 0 ~ 9999.
·
Display current workout watts.
·
Display range 0~999.
·
Display user’s pulse.
·
Display
range0-30~230.
U1~U4 user prole setting：
Gender：male/female
Age(A)：1~99 (default value 25)
Height(H) 100~200 (default value 160(cm)
Weight(W)：20~150 (default value 50kg)
Manual mode workout.
Watts mode, the resistance will change according to Target Watts/RPM.
Target HR training mode. The resistance will vary according to Target HR.
User creates resistance level prole. Four in total.
12 PROGRAM selection.
Bluetooth Connection
8
Drawing 3 Drawing 4
Drawing 5
Drawing 7
Drawing 6

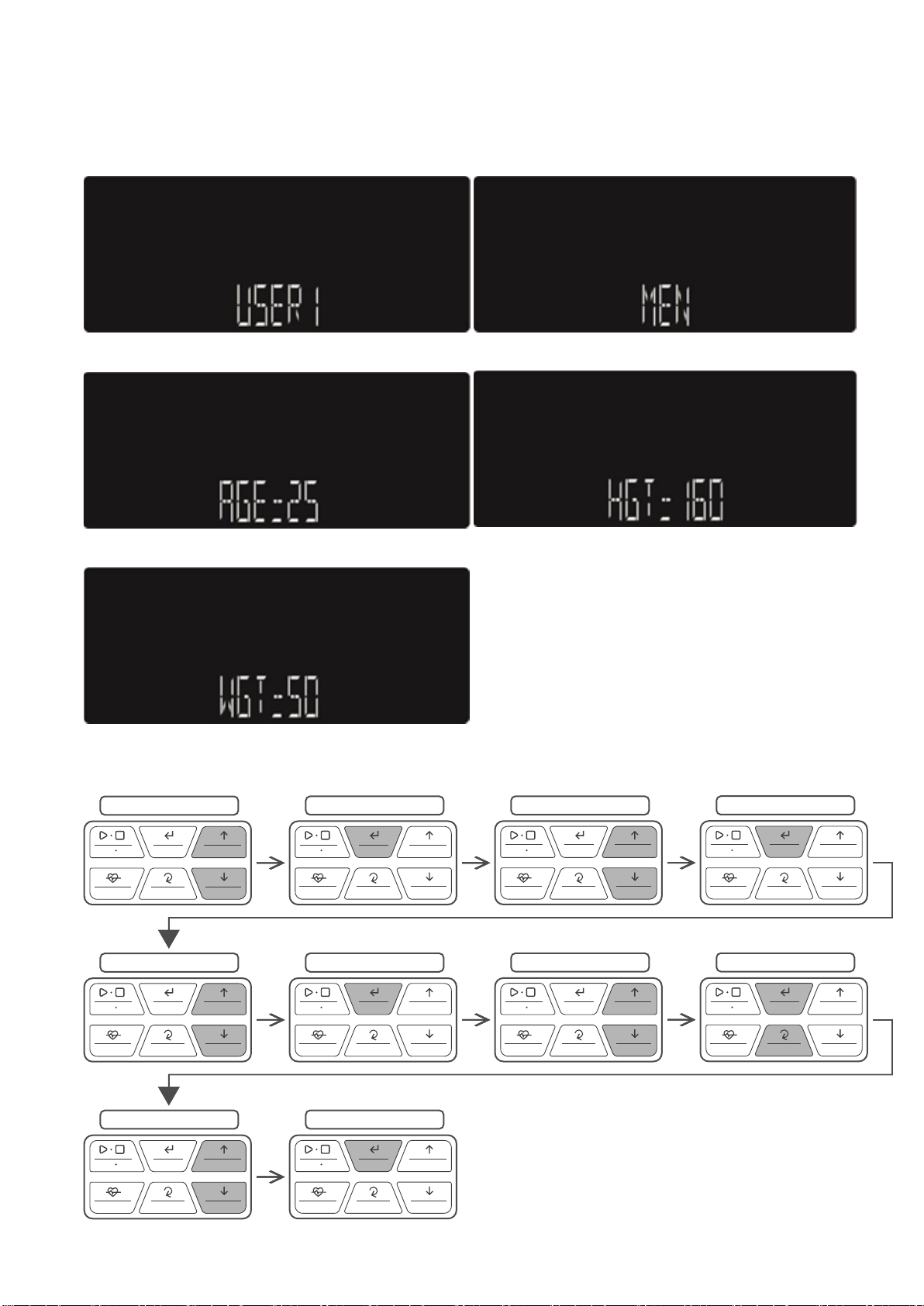

WORKOUT SELECTION
The console will then enter USER setting, the user can select from U1~U4(drawing 3), then select
SEX,AGE,HEIGHT,WEIGHT(drawing 4~7), then enter WORKOUT SELECTION (drawing 8).
RECOVERY
START STOP
REST
MODE
DOWN
UP
USER SELECT
RECOVERY
START STOP
REST
MODE
DOWN
UP
RECOVERY
START STOP
REST
MODE
DOWN
UP
SEX SELECT
RECOVERY
START STOP
REST
MODE
DOWN
UP
RECOVERY
START STOP
REST
MODE
DOWN
UP
AG SELECT
RECOVERY
START STOP
REST
MODE
DOWN
UP
RECOVERY
START STOP
REST
MODE
DOWN
UP
RECOVERY
START STOP
REST
MODE
DOWN
UP
RECOVERY
START STOP
REST
MODE
DOWN
UP
RECOVERY
START STOP
REST
MODE
DOWN
UP
PRESS MODE PRESS MODE
PRESS MODE
PRESS MODE
PRESS MODEHEIGHT SELECT
WEIGHT SELECT
9
