Read and save these instructions
WARNING !
General information
310 410 5008
Technical support
info@thesplashlabusa.com
For further contact information visit:
www.thesplashlabusa.com
Warehouse + Offices:
20809 Higgins Court, Torrance CA 90501
Showroom:
8745 Washington Boulevard, Studio D, Culver City CA 90232
To reduce the risk of fire, electric shock or injury to persons, observe the following:
+ Use this unit only in the manner intended by the manufacturer. If you have any
questions, contactthemanufacturer.
+ This equipment should be installed in a way that ensures all electrical parts are
keptdry.
+ A means of electrical isolation must be incorporated in the fixed wiring, in
accordancewiththecurrentlocalregulationsinforce.
+ Disconnect the power supply before performing any maintenance on the product.
+ Children should not play with this equipment. Cleaning and maintenance shall not
beperformedbychildrenwithoutsupervision.
+ This equipment is designed to be used in commercial and public areas; it is not
intendedfordomesticorresidentialuse.
+
+
Ensure wiring and cover is installed correctly before connecting to live power
supply.
If in doubt, consult an electrician.

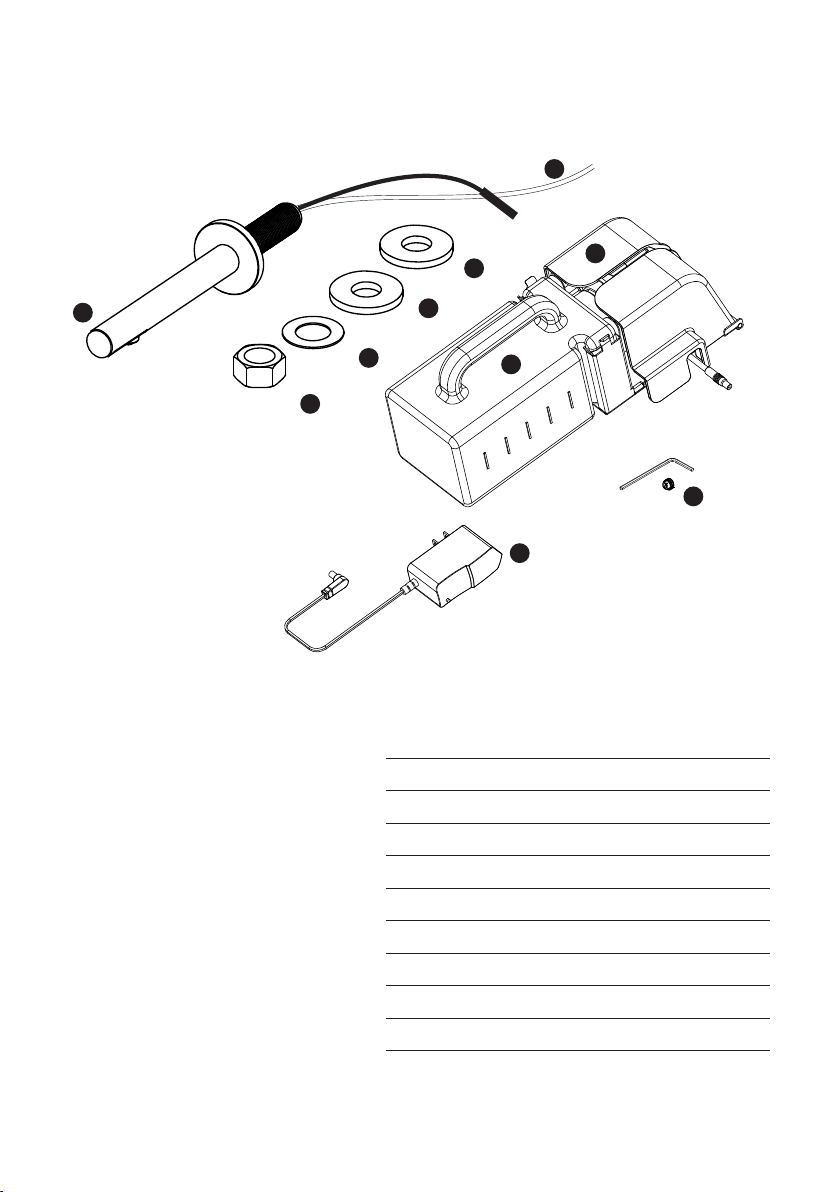

boxcontents
Dispenser head assembly
BPad (already installed)
C Gasket
D Washer
E Fixing nut
F Soap foaming pipe
G Soap reservoir - 0.4 gallons
H Hex wrench/ Soap outlet
I Soap foamer pump unit
J Power supply unit
A
4 + TSL.C.040 CHANNEL SOAP DISPENSER MANUAL
A
B
C
D
E
F
G
I
H
J
Power supply - Battery 6V Type AA x 4 pcs Alkaline (not included)
Standby power 9mA
Weight 2lb3oz
Material316stainlesssteel
Sensor range5-29/32"±19/32"
Recommended soap viscosity Foam soap: - <10cPs
ApprovalsCE,RoHS, ADA
Warranty1 year parts and labor
technical data
Finishes TSL.C.040.C Bright Polished
TSL.C.040.CS Brushed Stainless
TSL.C.040.CP Brushed Copper
TSL.C.040.BK Brushed Black
TSL.C.040.BR Brushed Brass
Power supply - Mains Input 100-240V ac; 50/60Hz
Output 6V DC, 1.5A, 9W max
TSL.C.040 CHANNEL SOAP DISPENSER MANUAL + 5
before you install
6 + TSL.C.040 CHANNEL SOAP DISPENSER MANUAL
A must be provided for plug socket
.connection to the mains power supply
The Splash Lab Monolith (Series C or D)
basin is recommended for use with the
Channel . If an alternative range of products
basin is used, please confirm with
The Splash Lab that there will be no
reflection or splash issue.
If the Channel Soap Dispenser is installed
with the Channel Faucet, it should be 6" to
the left of the Faucet, which is at the center.
The Channel Dryer should be 8" to the right
of the Faucet.
Basins
Spacing
Powersupply
6"8"
Back wall
Fixture insert
Washbasin
Front view
Ø 7/8"
Soap Faucet Dryer
Ø /"
1 3 16
Ø "
1 3/16
The Splash Lab offers an optional backplate
for the fixtures that means the fixtures can
be mounted from the front and have simpler
access.
Backplate
8"MIN
10"MAX
Distance between
the sensor and
the bottom of the basin
before you install
TSL.C.040 CHANNEL SOAP DISPENSER MANUAL + 7
FIXING
SIDEFRONT
1-31/32"
6-27/64"
Sensor
Range
5-29/32"
11-13/16"
MAX
Sensor
wire

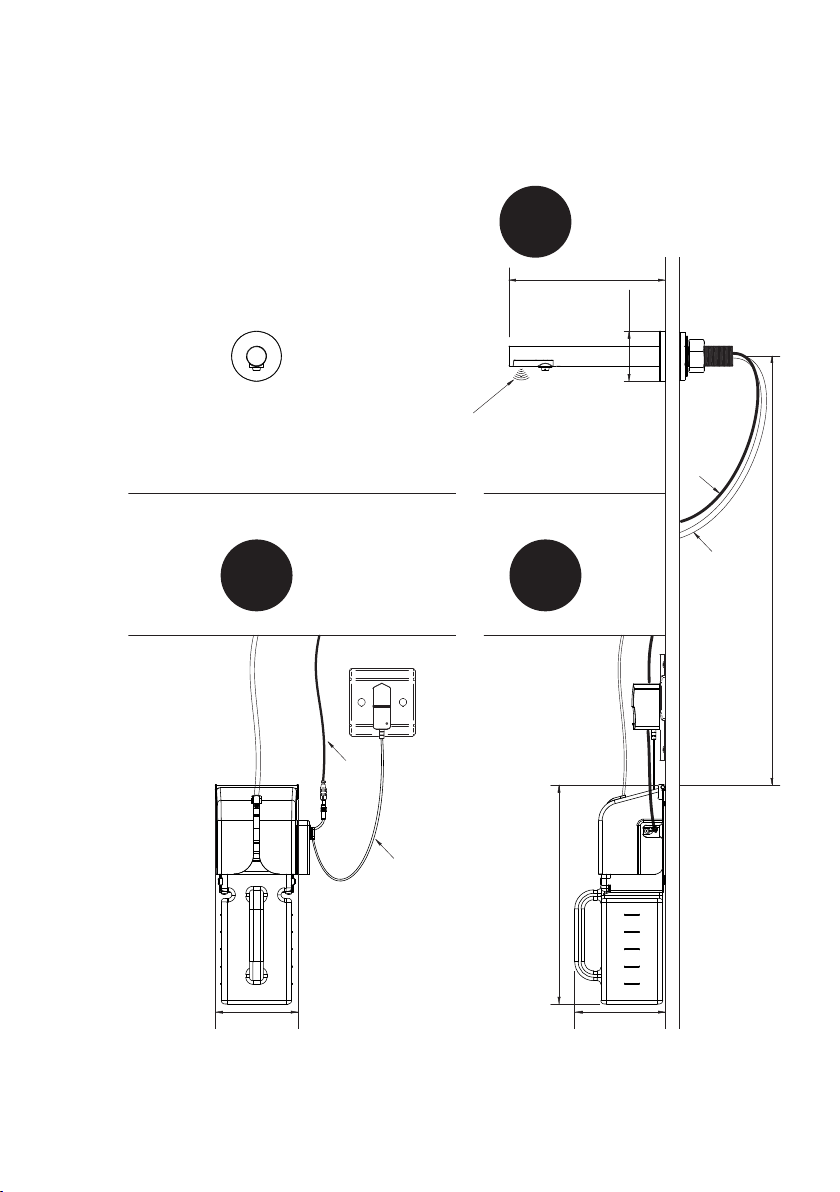

soap foaming
pipe
5-1/16"
12-1/4"
4-5/8"
35-7/16"
14-3/16"
how to install
8 + TSL.C.040 CHANNEL SOAP DISPENSER MANUAL
1

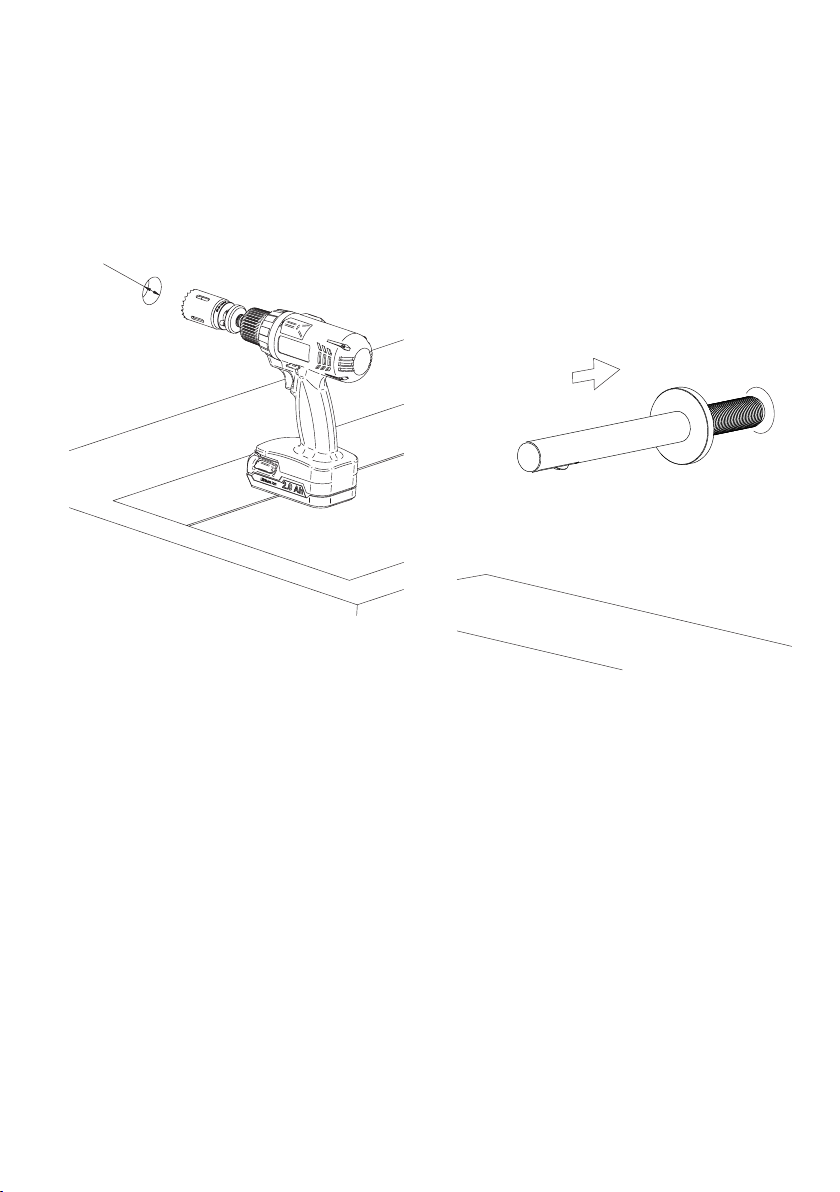

Drill hole 7/8" diameter in wall 8-10"
above the bottom of the basin.
2
Fit dispenser body into the 7/8" hole in wall.
Ø 7/8"
TSL.C.040 CHANNEL SOAP DISPENSER MANUAL + 9
3

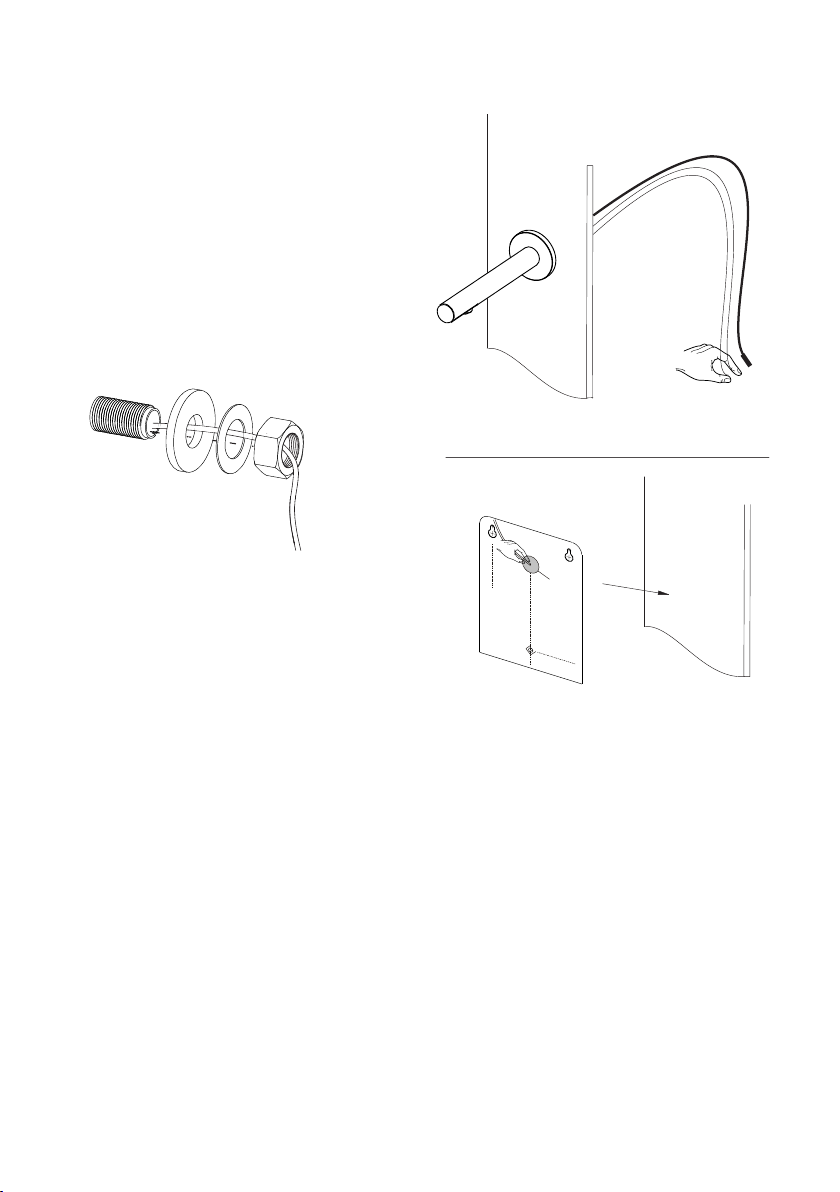

The sensor wire and soap foaming
pipe through the gasket, washer and
fixing nut. Tighten the nut against
the installation wall.
4
Place Mounting template on the wall to
find the best position for installing.
TOUCH HERE
Mounting template
1/4"
how to install
5

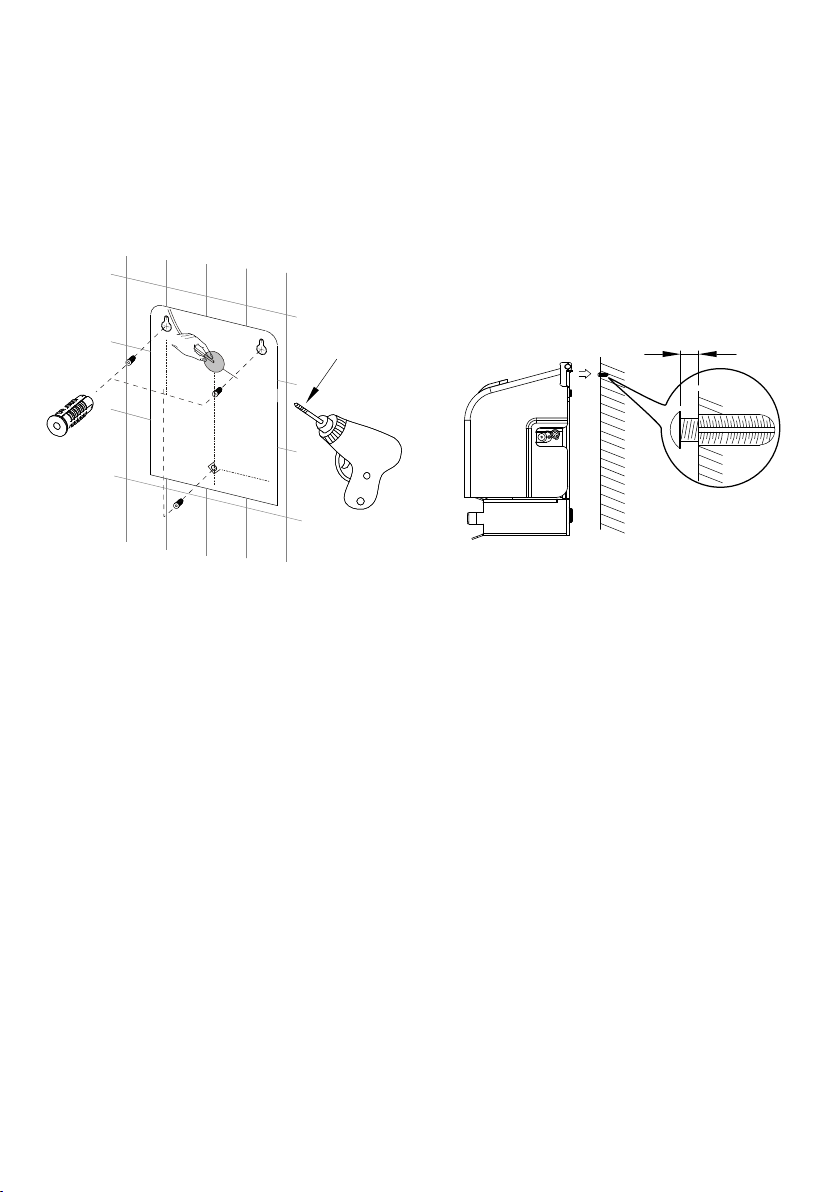

Put the mounting template in the best
installation position on the wall according
to the position of the holes in the mounting
template. Then drill 3 holes (size:1/4")
and put the 3 wall plugs, included in kit,
in the holes. Contractor may use other size.
6
Screw two screws into the top wall plugs,
but leave a 1/4" space between the head
of the screw and wall, so the control box
assembly can hang properly.
10 + TSL.C.040 CHANNEL SOAP DISPENSER MANUAL
1/4"
TOUCH HERE
