SPL SUPREME MASTER AIR Instructions d'installation et d'utilisation

Installation

& maintenance

instructions.

Installation

& maintenance

instructions.

splwashrooms.co.nz

General Safety Information

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Failure to disconnect the power source before installation can result in

serious injury or death from electric shock. Always disconnect the power

source before servicing or installing the hand dryer.

• Fixed wiring is recommended for all installations. Wiring should emerge from

the wall in the position marked on the mounting diagram. All  xed wiring

should incorporate a switch or breaker with a contract separation of at least

3mm in all poles.

• SPL (2021) Ltd accepts no responsibility for any damage or injury to property

or persons caused by improper, incorrect or unreasonable use or installation.

• Failure to properly ground this unit could result in severe electrical shock

and/or death. This hand dryer must be properly grounded (Earthed) for safe

operation. An identi ed ground connection point is supplied on the chassis of

the hand dryer. We recommend GFCI protection in wet or damp locations or

as required by local code.

•

Risk of  re, personal injury or property damage are possible if local codes, or

safety recommendations are not followed. Installation must be carried out by

a quali ed person in accordance with all local wiring regulations.

• If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly quali ed persons in order to avoid a hazard.

• The instructions contained within the Mounting Template must be followed

carefully when installing this unit. Failure to accurately follow the instructions

may result in the incorrect operation of this unit, damage to property and/or

personal injury.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

• Do not insert objects into the air outlet, doing so can be hazardous and could

result in electric shock.

• Do not obstruct the air inlets or outlets in any way.

• Do service your hand dryer at regular intervals.

splwashrooms.co.nz

Operating Instructions and Parts Manual

Please read carefully before attempting to assemble, install, operate or maintain

the product described. Protect yourself and others by observing all safety

information. Failure to comply with instructions could result in personal injury

and/or property damage. Retain instructions for future reference.

Supreme Master Air Hand Dryer

Description:

The Supreme Master Air hand dryer delivers warm air at only 60 dBA, making it

one of the quieter options on the market. Extending just 130mm from the wall, its

slender form is a feature making it ideal where space is a premium.

Specications

Cover

Motor

Power

Element

Rating

Switching

Sound Level

Max Airow

Dimensions

Weight

Warranty

Standards

Planning

We suggest that one hand dryer be installed for every two hand basins.

Ensure that no reective object (such as tap or basin) is located directly under

the infrared sensor eye.

When positioning dryers take note of tra󰀩c ows in the washroom, also be

aware of obstructions such as doors, cabinets etc.

Powder coated diecast aluminium or Stainless Steel

Brushless induction, external rotor

2000W

1900W with overheat protection

220 - 240V AC, 50Hz, IP23

Reective infrared sensor with blue light assist

60 dBA @ 1.5m

300 m3 /hour

265W x 290H x 130D mm

4.7kg

The Supreme Comprehensive Hand Dryer Warranty

24 Month Limited Warranty

Complies with New Zealand and Australian Standards

splwashrooms.co.nz

Installation Instructions

1. Disconnect power source.

2. Using the allen key provided, remove two security screws located at the top

of the unit.

3. Pull top of cover away from back plate and push down and out to remove.

4. Pass power supply cable through hole in back plate.

5. Position back plate on wall as per recommended mounting heights.

6. Fasten dryer to the wall using suitable xings for the type of wall.

7. After terminating cable, replace the cover and test operation.

Supreme hand dryers have been tested and comply with all relevant Australian

and New Zealand standards for electrical safety and electromagnetic

interference.

NOTE: As this appliance is rated class II, it does not need earthing. Phase and

neutral are connected without any polarity on the internal connector.

Recommended Mounting Heights

From Floor to Dryer Bottom Edge:

Men’s washroom 1100mm

Ladies’ washroom 1050mm

Children’s washroom 13-17yr 1000mm

Children’s washroom 10-13yrs 950mm

Children’s washroom 7-10yrs 900mm

Children’s washroom 4-7yrs 800mm

Disabled Person’s 950mm

splwashrooms.co.nz

Maintenance Instructions

Very little maintenance is required to keep your hand dryer in good working

condition. However, the following maintnenace should be carried out six

monthly in high tra󰀩c areas and yearly in normal tra󰀩c areas.

1. Disconnect power supply and remove cover

2. Carefully clean lint from inside the dryer

3. Wash cover in warm soapy water to remove grime

Your warranty could become void if the above is not performed at the

specic intervals.

NOTE: For models incorporating a power cord, if the cord is damaged it

must be replaced by the manufacturer, a service agent or similarly qualied

persons in order to avoid a hazard.

Adjusting IR Sensor Distance

IR sensing distances for the Supreme Master Air are factory set but for some

environments it may need to be adjusted.

Sensitivity can be adjusted as required by turning the trim pot at base of

machine with a small at head screwdriver. Turning anti-clockwise to increase

sensitivity / distance and clockwise to decrease sensitivity / distance.

Aim for activation at 110mm.

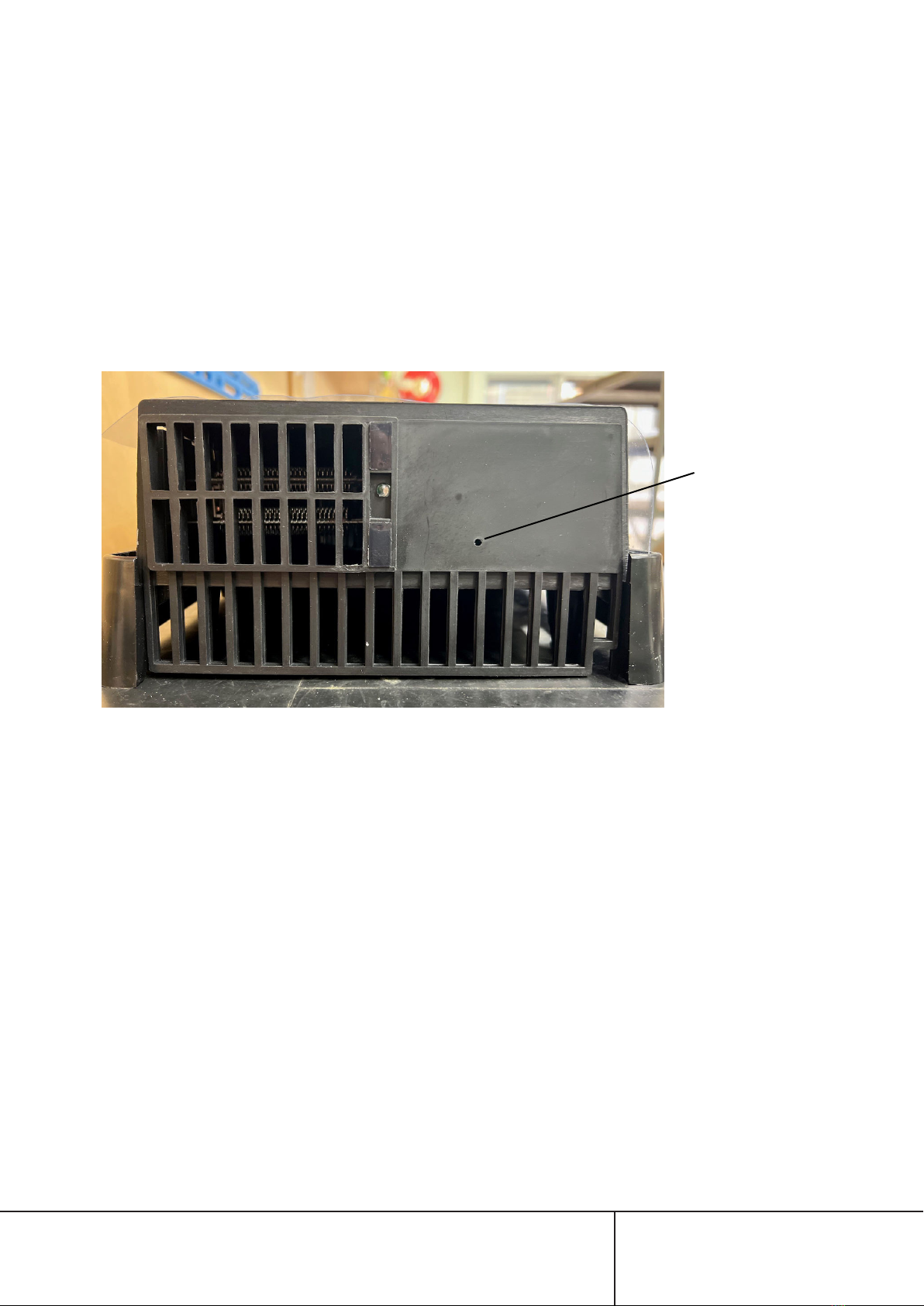

Trimpot

location

splwashrooms.co.nz

Symptom Corrective Action Part required

Hand dryer fails to

start.

Ensure power is available.

Ensure sensor lense is

clean.

Increase sensitivity via

trimpot - see page 6 for

instructions.

PCB - JVD500M

If the above actions are

not successful, replace

integrated sensor and

PCB.

Hand dryer is not

heating.

Isolate from the mains and

replace element.

Element - JVD200MT1.9

Motor is running slowly

in the rst instance.

Isolate from the mains and

replace PCB.

PCB - JVD500M

Troubleshooting

splwashrooms.co.nz

Supreme Comprehensive Warranty

Your Supreme Hand Dryer is fully guaranteed against defective materials and

faulty workmanship commencing from the date of sale (according to SPL’s

records), subject to it being installed and maintained in accordance with the

manufacturer’s instructions.

SPL (2021) Limited warrants that should any part of the dryer fail within the

given warranty period (2- 5 years product dependant), it will be remedied by

SPL. The dryer should be returned to SPL (2021) Limited for all warranty claims.

The cost of cartage will be payable by the customer.

This warranty excludes:

• Incorrect installation, or installation that does not specically follow the

installation guidelines supplied

• Failure to follow manufacturer’s maintenance instructions

• Damage/Failure resulting from:

- the use of non-authorised parts

- authorised parts not installed in accordance with the manufacturer’s

instructions

- accidental damage, negligent use, misuse, vandalism, neglect

- damage caused either directly or indirectly by external sources (power

outages, power surges, incorrect power supply, natural disaster, or insect

infestation)

• Water ingress caused by property maintenance or ooding

• Negligent cleaning practices (water ingress, harmful chemical etc)

The above includes consequential damage to any other goods, furnishings, or

property.

• Normal wear and tear and consumable parts (HEPA lters, UV C Lamps,

fuses, motor brushes etc)

• This warranty does not displace any statutory warranty in relation to the dryer

but any liability of SPL (2021) Limited under any statutory warranty will be

limited to a replacement or repair of the dryer or payment of the cost of such

replacement or repair at the sole discretion of SPL (2021) Limited

Note: Our Warranty only extends to products purchased and installed in

New Zealand.

SPL Limited

PO Box 437, Cambridge 3450

New Zealand

p. +64 7 823 5790

e. o󰀩[email protected]
