Track One Mk3 – Manual

Getting started

Read the safety instructions starting on page 12.

Make sure that the mains voltage of the Track One Mk3 corresponds to the voltage of your

region and that the fuse has the correct value for the selected voltage (see specications

on page 10).

The power switch on the back of the Track One Mk3 must be in the o position.

(O = O / On = I).

Connect the supplied power cord to the power connector of the Track One Mk3 and to a

power outlet.

If the supplied power cord does not match your mains socket outlet, please contact your dealer.

The devices that are to be connected to the Track One Mk3 must be be switched o.

Connect your devices with appropriate audio cables (XLR) to the inputs and outputs of the

Track One Mk3.

Audio cables not included in the scope of delivery.

Power on

Switch on the power switch on the rear panel of the Track One Mk3 (On = I).

The PWR LED and all activated switches light up.

Activating phantom power

Please always follow these instructions to active and deactivate phantom power – also

when changing microphones. The input stage of the Track One Mk3 can be damaged if

you ignore these procedures.

1. Connect the microphone to the Track One Mk3.

2. Now activate phantom power to use the microphone.

3. Aer recording rst deactivate phantom power.

4. Wait at least one minute aer deactivation of phantom power before disconnecting the

microphone! This ensures residual current will be discharged.

Power o

Switch o the power switch on the rear panel of the Track One Mk3 (O = O).

The PWR LED and all activated switches no longer light up.

Track One Mk3 – Manual

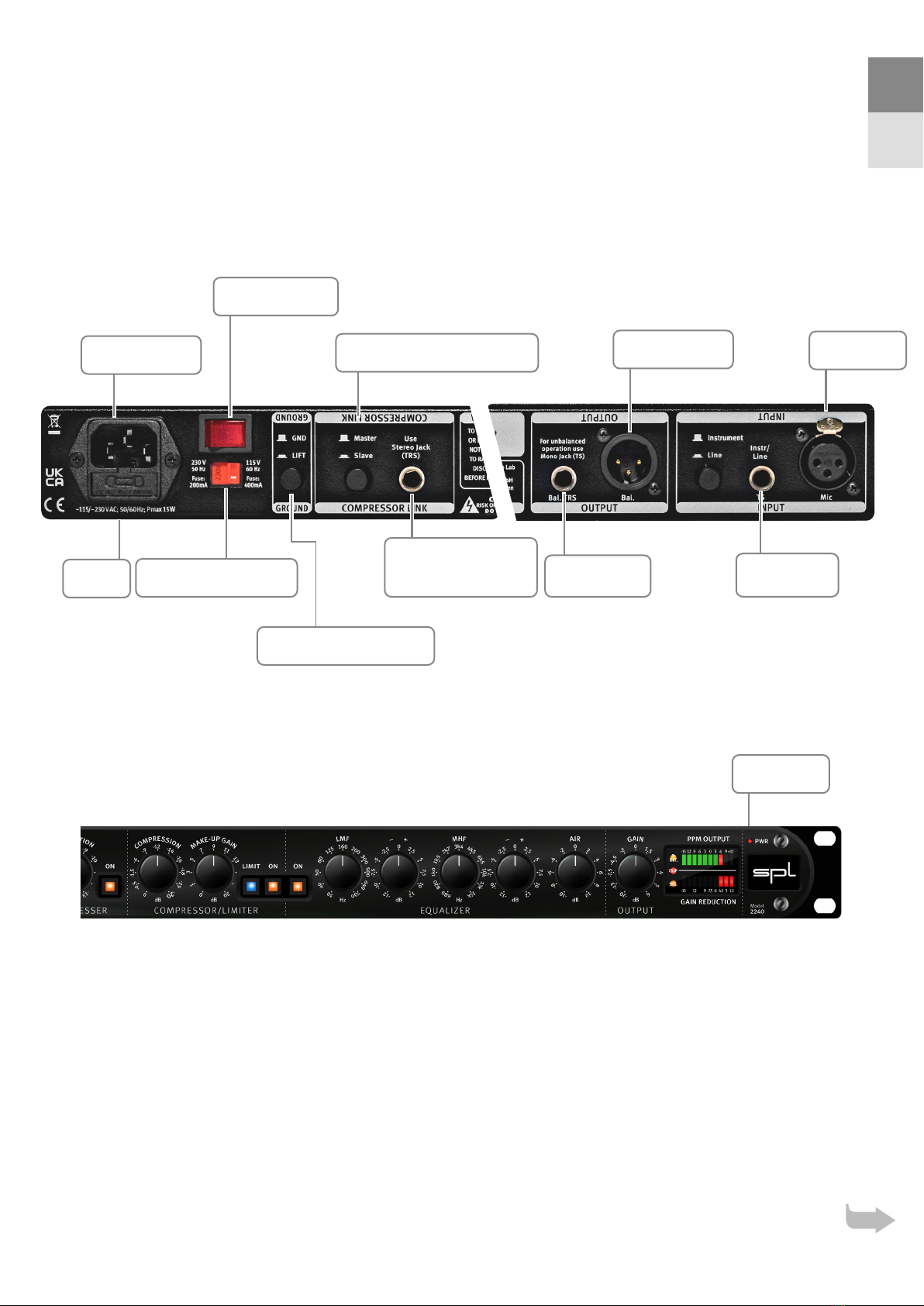

Input, XLR

PWR LED

Output, XLR

Compressor link switch

Power switch

Mains input

Input, TRS

Output, TRS

Ground li switch

Voltage selector

Fuse

Compressor link

input/output

Track One Mk3 – Manual

Preampliers

The Track One is equipped with two preamps:

a microphone preamp with 48V phantom power and a sepa-

rate instrument preamp. Both are tuned to a sound-neutral,

open and transparent characteristic.

Line/Inst

Track One Mk3 oers the possibility to connect instrument

or line signals. The Line/Inst switch can be used to switch

between the Instr/Line input (switch is illuminated) and the

microphone input.

Instruments and sources with line level can be connected to

the rear input Instr/Line. The Instrument / Line switch is used

for level and impedance matching of instrument and line

signals.

When connecting low impedance line signals, the switch should be pressed.

When connecting high-impedance instrument signals, the switch should not be pressed.

The clip LED “CLIP” lights up as soon as an overload is detected

in the device. The indicator picks up at all relevant points of the

signal flow: behind the preamp, behind the compressor, behind

the equalizer and behind the output control.

Gain

The gain control can be used to adjust the preamplication. For

microphone signals, a preamplication of up to 63 dB can be

realized. When optionally equipped with an input transformer,

approximately +14 dB must be added to the scaled values.

The control range for line signals ranges between -12 dB and +22 dB. The control range for

instrument signals ranges between 0 dB and +35 dB.

XLR Wiring:

1 = GND, 2 = (+), 3 = (–)

TRS Jack Wiring:

Sle = GND, Tip = (+), Ring = (–)

TS Jack Wiring:

Sle = GND, Tip = (+)

INPUT

OUTPUT

COMPRESSOR LINK

Serial #

WIRING

Sound Performance Lab

SPL electronics GmbH

41372 Niederkrüchten

Germany

Made in Germany

230 V

50 Hz

Fuse:

200mA

115 V

60 Hz

Fuse:

400mA

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

RISQUE DE CHOC ÉLECTRIQUE

NE PAS OUVRIR

ATTENTION

TO REDUCE RISK OF FIRE

OR ELECTRIC SHOCK DO

NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

DISCONNECT MAINS

BEFORE REMOVING COVER.

WARNING

GROUND

GND

LIFT

Master

Slave

Instrument

Line Instr/

Line

MicBal.Bal. TRS TS

Use

Stereo Jack

(TRS)

For unbalanced

operation use

Mono Jack (TS)

TrackOne

spl.audio

230V

Track One Mk3 – Manual

48V

The 48V switch activates the required phantom power of

48 volts for the use of condenser microphones.

We recommend to switch o the phantom power for all other

microphone types except condenser microphones.

Tube microphones oen source their operating voltage from the associated power

supply unit and therefore usually do not need phantom power.

Ground

The Ground switch can be used to eliminate ground loops by

disconnecting the internal ground from the housing ground

when the switch is pressed.

The signal LED “SIG.” lights up as soon as an input signal

with a higher level than -30 dB is detected.

A highpass lter with 6 dB per octave reduces impact noise

below 80 Hz.

S-Reduction

The S-Reduction control adjusts the intensity of the S-sound

reduction.

In practice, S-Reduction settings between -2 dB and -8 dB

achieve the best results for most applications.

The S-Detection LED “S-DET.” lights up as soon as an S sound

is detected. It is only active when the de-esser is switched on,

but it works independently of the set reduction value.

In other words, it always indicates that the circuit is detecting

sibilants – so your focus is always directed to a possible need

to control.

XLR Wiring:

1 = GND, 2 = (+), 3 = (–)

TRS Jack Wiring:

Sle = GND, Tip = (+), Ring = (–)

TS Jack Wiring:

Sle = GND, Tip = (+)

INPUT

OUTPUT

COMPRESSOR LINK

Serial #

WIRING

Sound Performance Lab

SPL electronics GmbH

41372 Niederkrüchten

Germany

Made in Germany

230 V

50 Hz

Fuse:

200mA

115 V

60 Hz

Fuse:

400mA

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

RISQUE DE CHOC ÉLECTRIQUE

NE PAS OUVRIR

ATTENTION

TO REDUCE RISK OF FIRE

OR ELECTRIC SHOCK DO

NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

DISCONNECT MAINS

BEFORE REMOVING COVER.

WARNING

GROUND

GND

LIFT

Master

Slave

Instrument

Line Instr/

Line

MicBal.Bal. TRS TS

Use

Stereo Jack

(TRS)

For unbalanced

operation use

Mono Jack (TS)

TrackOne

spl.audio

230V

Track One Mk3 – Manual

The On switch activates the compressor section, consisting of

the compression control and the Make-Up Gain.

Limiter

The Limiter switch puts the compressor into limiter mode. The

threshold is still set by the compression knob.

The limiter is designed as an unobtrusive working so limiter.

Compression

The Compression control can be used to set a threshold

between 0 dB and -20 dB. The lower the threshold, the more

the compressor works.

Make-Up GAIN

The Make-Up Gain control can be used to make up for the

overall level reduction caused by compression. A value

between 0 dB and 20 dB can be set by which the level is

increased again aer compression.

Gain Reduction

The Gain Reduction display indicates the processing that is

being performed with the compressor. The level reductions

due to compression are displayed in 1.5 dB steps.

Track One Mk3 – Manual

Compressor Link

The Compressor Link feature allows to operate two Track One

compressors with one control signal to ensure coherent stereo

results.

The Master/Slave switch determines which device operates as

master and which device is being controlled as slave.

CAUTION – PLEASE NOTE: Never switch two connected units

to Master! Both units would try to control each other – in worst

cases, damaging the units can not be excluded.

Therefore, always follow this procedure when activating

Compressor Link:

1.Determine the master device (switch not pressed).

2.Determine the slave device (switch engaged).

3.NOW connect both Compressor Link sockets with a stereo

jack wiring. Always determining the device status before

connecting the Compressor Link sockets excludes a mutual

control activity.

In Compressor Link mode the master device controls the

Compression, Make-Up and Limit controls of both compres-

sors. The respective controls on the slave unit are deactivated.

The Gain Reduction metering of the master unit now is the

master display for both units.

If the two units are to be used separately again, the wiring

must be disconnected and the slave unit must be set to master

again. (not pressed).

XLR Wiring:

1 = GND, 2 = (+), 3 = (–)

TRS Jack Wiring:

Sle = GND, Tip = (+), Ring = (–)

TS Jack Wiring:

Sle = GND, Tip = (+)

INPUT

OUTPUT

COMPRESSOR LINK

Serial #

WIRING

Sound Performance Lab

SPL electronics GmbH

41372 Niederkrüchten

Germany

Made in Germany

230 V

50 Hz

Fuse:

200mA

115 V

60 Hz

Fuse:

400mA

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

RISQUE DE CHOC ÉLECTRIQUE

NE PAS OUVRIR

ATTENTION

TO REDUCE RISK OF FIRE

OR ELECTRIC SHOCK DO

NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

DISCONNECT MAINS

BEFORE REMOVING COVER.

WARNING

GROUND

GND

LIFT

Master

Slave

Instrument

Line Instr/

Line

MicBal.Bal. TRS TS

Use

Stereo Jack

(TRS)

For unbalanced

operation use

Mono Jack (TS)

TrackOne

spl.audio

230V

Track One Mk3 – Manual

LMF

The center frequency of the half-parametric low/mid frequency

lter is set with the LMF control (low/mid frequencies). The

adjustable frequency range is between 30 Hz and 700 Hz so

that this lter covers a range of about 4.5 octaves, allowing it

to be used from the deepest bass to the lower mid range. This

together with the MHF lter ensures that the entire frequency

spectrum is covered.

The LMF lter operates to the proportional-Q-principle, in other words the bandwidth is

dependent on the selected boost or cut.

MHF

The center frequency of the semi-parametric mid/high

frequency lter is set with the MHF control. (MHF: mid/high

frequencies). The frequency range can be set between

680 Hz and 15 kHz so that this lter covers a range of

4.5 octaves and can be equally be used in the lower

mid as well as the high frequency.

The MHF lter operates to the proportional-Q-principle, in other words the bandwidth is

dependent on the selected boost or cut.

AIR

The high frequency lter in the equalizer module is described

as AIR. A coil-capacitor lter with so called bell characteristics

and a center frequency of 19 kHz comes into operation here. At

this frequency the maximum possible accentuation is +10 dB,

the maximum possible damping is -10 dB.

The -/+ control (right to the LMF control) determines the boost

or cut of the LMF lter.

The maximum values are at +/- 12 dB.

The -/+ control (right to the LMF control) determines the cut of

the MHF lter.

The maximum values are at +/- 12 dB.

Track One Mk3 – Manual

Output

The outgoing signal can either be dampened to -20 dB

or further amplied by +6 dB with the Output control to

provide optimal drive to the subsequent units or the optional

AD converter. The selected output level is shown on the

PPM OUTPUT display in the display eld.

The PPM OUTPUT display shows the peak reading of the

output level. This display also serves to level the preamplier.

The balanced XLR and TRS output jacks provide the output

signal. Track One Mk3 oers two outputs connected in parallel.

XLR Wiring:

1 = GND, 2 = (+), 3 = (–)

TRS Jack Wiring:

Sle = GND, Tip = (+), Ring = (–)

TS Jack Wiring:

Sle = GND, Tip = (+)

INPUT

OUTPUT

COMPRESSOR LINK

Serial #

WIRING

Sound Performance Lab

SPL electronics GmbH

41372 Niederkrüchten

Germany

Made in Germany

230 V

50 Hz

Fuse:

200mA

115 V

60 Hz

Fuse:

400mA

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

RISQUE DE CHOC ÉLECTRIQUE

NE PAS OUVRIR

ATTENTION

TO REDUCE RISK OF FIRE

OR ELECTRIC SHOCK DO

NOT EXPOSE THIS UNIT

TO RAIN OR MOISTURE.

DISCONNECT MAINS

BEFORE REMOVING COVER.

WARNING

GROUND

GND

LIFT

Master

Slave

Instrument

Line Instr/

Line

MicBal.Bal. TRS TS

Use

Stereo Jack

(TRS)

For unbalanced

operation use

Mono Jack (TS)

TrackOne

spl.audio

230V

The Track One Mk3 can be ordered with an optional input

transformer for the microphone input. The product with

input transformer is called:

Track One Mk3 – Premium

Track One Mk3 – Manual

Reference: 0 dBu = 0.775V. All specications are subject to change without notice.

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio +/- 15 V

Phantom power 48 V

Mains Power Supply

Mains voltage (selectable) 230 V AC / 50; 115 V AC / 60 Hz

Fuse for 230 V T 312 mA

Fuse for 115 V T 630 mA

Power consumption max. 7.6 VA

Analog inputs & output; XLR & TRS Jack (all balanced, except INSTR./LINE IN: unbalanced)

Maximum input gain (Mic, +8 dB – +63 dB) 10.6 dBu (bei +8 dB GAIN)

Maximaler Eingangs (Line, -12 dB – +22 dB) 33.5 dBu (bei +8 dB GAIN)

Maximaler Eingangs (Instrument, 0 dB – +35 dB) 21.5 dBu (bei +8 dB GAIN)

Input impedance (Instrument) 10 kΩ

Input impedance (Line) 47 kΩ

Input impedance (Instrument) 1.1 MΩ

Frequency range (Mic) 10 Hz – 195 kHz

Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain) -94.5 dBu

Noise (A-weighted, Mic Preamp, 150 Ω, 50 dB Gain) -79 dBu

Nois ((A-weighted, Mic Preamp, 150 Ω, 64 dB Gain) -65 dBu

Noise (A-weighted, Line/Instr Preamp, 0 dB Gain) -97 dBu

Ra usc(A-weighted, Line/Instr Preamp, 10 dB Gain) -90.5 dBu

Rau sc(A-weighted, Line/Instr Preamp, 22 dB Gain) -79 dBu

Equivalent Input Noise (EIN) -126.8 dBu

Common mode rejection (1 kHz) < 80 dB

THD+N Ratio (1 kHz), Mic 30 dB Gain 0.004 %

THD+N Ratio (1 kHz), Mic 50 dB Gain 0.014 %

THD+N Ratio (1 kHz), Mic 64 dB Gain (Max.) 0.029 %

THD+N Ratio (1 kHz), Line 0 dB Gain 0.0021 %

THD+N Ratio (1 kHz), Line 10 dB Gain 0.0016 %

THD+N Ratio (1 kHz), Line 22 dB Gain 0.0045 %

THD+N Ratio (1 kHz), Instrument 0 dB Gain 0.0061 %

THD+N Ratio (1 kHz), (100 kΩ source impedance)

Specications

Autres manuels pour Channel One Mk3

Table des matières

Langues :

Autres manuels SPL Amplificateur

SPL

SPL Perfomer s800 Manuel utilisateur

SPL

SPL Phonitor 2 Manuel utilisateur

SPL

SPL Director Mk2 Manuel utilisateur

SPL

SPL Director Manuel utilisateur

SPL

SPL Phonitor se Manuel utilisateur

SPL

SPL Phonitor 3 DAC Manuel utilisateur

SPL

SPL Cabulator 2930 Manuel utilisateur

SPL

SPL Professional Fidelity Series Manuel utilisateur

SPL

SPL 2485 Manuel utilisateur

SPL

SPL Gorilla GLA4-400 Manuel utilisateur

SPL

SPL GainStation 8 Mk2 Manuel utilisateur

SPL

SPL Phonitor xe Manuel utilisateur

SPL

SPL Phonos Manuel utilisateur

SPL

SPL Professional Fidelity Phonitor x Manuel utilisateur

SPL

SPL ProMike 9524 Manuel utilisateur

SPL

SPL Director Manuel utilisateur

SPL

SPL Phonitor x Manuel utilisateur

SPL

SPL Reducer 1160 Manuel utilisateur

SPL

SPL Auditor 2910 Manuel utilisateur

SPL

SPL performer s800 Manuel utilisateur

SPL

SPL performer s800 Manuel utilisateur

SPL

SPL Phonitor 2 Manuel utilisateur

SPL

SPL Phonitor 2 1280 Manuel utilisateur

SPL

SPL Elector Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
