Spitfire DC10 Manuel d'installation et d'exploitation

OPERATING&MAINTENANCE

MANUAL



INDUSTRIALDIRECTFIREDDIESEL/KEROSENEHEATERS

DC10DC15DC25DC40DC45

NOTFORDOMESTICUSE–SPACEHEATINGONLY

MadeBy:

SpitwaterAustraliaPtyLtd

953MetrySt.,NorthAlbury,NSW,Australia

WARNING:



FAILURETOFOLLOWOPERATING,SAFETYANDMAINTENANCE

INSTRUCTIONSLISTEDINTHISMANUALRELEASESTHEMANUFACTURER

FROMANYRESPONSIBILITYFORACCIDENTSORDAMAGESTOHUMANS,

ANIMALSANDOBJECTSANDMAYRENDERANYWARRANTYVOID



TECHNICALDATA



MODEL DC10DC15 DC25 DC40DC45

FuelSupply

DieselDiesel Diesel DieselDiesel

Kerosene Kerosene Kerosene KeroseneKerosene

HeatOutputkW18.4020.12 26.00 40.5045.65

AirPressurekPa33‐3738‐42 38‐42 38‐4243‐47

Fuel

Consumptionkg/h1.71.82.23.263.38

AirFlowm3/h300350 400 9001100

Electricity

SupplyV/~/Hz240/1/50240/1/50240/1/50240/1/50240/1/50

Connected

LoadkW0.2400.2640.2640.4800.504

Minimum

RoomVolumem3108215269333398

TankSizeL1515 33 4141

Weightkg19.522.5 28.5 35.037.0

Dimensions

LxWxHmm710x275x435890x360x498915x510x5251060x510x5751060x510x635

Themanufacturerreservestherighttomodifydesignfeaturesandtechnicaldatawithoutnotice.



INTRODUCTION

TheSPITFIRErangeofportableheatershasbeendesignedtogivesafe,efficientandreliable

servicewhenthecorrectoperatingsequencesarefollowedandproperattentionisgivento

cleaningandmaintenanceprocedures.Thismanualistoprovideuptodateinformation

necessarytotheuserforoperating,cleaningandservicingtheheaters,togetherwithfault‐

findingtechniquesandgeneralspecifications,detailsanddiagrams.Pleasenotethatthe

informationgivenhereinaftermaybesubjecttorevisionincompliancewiththepolicyof

continualimprovements.

TheSPITFIRErangeofheatersshouldonlybeusedinthemannerandpurposeforwhichthey

wereintendedandinaccordancewiththerecommendationsandsafetyprecautionsdetailed

inthefollowingManualandintheOperatingInstructionsstickersontheunititself.

AllSPITFIREheatersundergorigoroussafetyandoperationaltestsbeforebeingdespatched

intothemarketplacehoweveritisstillimperativethatpriortouse,alloperatorshaveread

andunderstoodallinformationandinstructionsprovidedandareawareofpossiblehazards.



IMPORTANTSAFETYINSTRUCTIONS&PRECAUTIONS

Thisbookletcontainsimportantinformationfortheuseandsafeoperationofthisheater.

Pleasereadandunderstandallwarningsbeforeyoustartusingtheunit.



WARNING:Whenusingthisheater:



1. Readallinstructionsbeforeusingthisheater.

2. Knowhowtostartandstoptheunit.Bequitefamiliarwiththecontrols.

3. Followthemaintenanceproceduresandfault‐findingtechniquesoutlinedinthemanual.

4. Donotrestrictunderanycircumstanceseithertheinletoroutletendoftheheater.

5. Donotoperatethisheaterinbasementsorbelowground.

6. Permanentventilationtotheoutsideatmospheremustbeprovided.Allow6.5cm2for

every293Winputdividedequallybetweenfloorandhighlevels.

7. Notfordomesticuse,spaceheatingonly.

8. Theheatermustnotbeusedincloseproximitytocombustiblematerial.Aguardmust

beplaced900mmawayfromtheheateroutlettopreventtheapproachofcombustible

materials.

9. ReadcarefullytheinstructionsconcerningElectricityandFuelSupply.

10.Useonlycleanfiltereddieselorkeroseneasfuel.Donotrefillthefueltankwhilethe

heaterisrunning.

11.Donotoperatetheheaterwiththetopcoverremoved.

12.Allowaminimumroomsizeaslistedinthetechnicalspecifications.

13.Donotpullontheelectricalcordinordertounplugtheunit.

14.Donoteffecttemporaryrepairsonwornordamagedelectricalcordsandplugs.Have

worn,cutordamagedcordsandplugsreplacedbyanauthorisedservice

person/electrician.

15.Topreventinjuryalwaysdisconnectthepowerplugbeforedisassemblinganypartofthe

heater,effectinganyservicingorwhentheunitisnotinuse.

16.Localregulationsshouldbefollowedastotheinstallationofindustrialheaters.



ELECTRICITYSUPPLY

TheSPITFIRErangeofheatersisdesignedtorunoff220‐240VSingle‐Phase50Hzelectrical

supply.Theunitshouldbepluggedintoa10Aoutlet.

WARNING:Thisappliancemustbeearthed.

Note:IfthePlugneedstobereplacedtosuitlocalrequirementsaqualifiedelectricianshould

carryoutthereplacementtakingcaretoearththeunitandmaintainthecorrectphase

connectionasperthewiringdiagram.



FUELSUPPLY

Pleaseonlyusethefollowingfueltypesintheheater:Kerosenewithviscosityof1.3cstor

Dieselwithviscosityof1.5cst.

WARNING: Undernocircumstancesshouldanyotherfueltypebeused.Donotfillthefuel

tankwhiletheheaterisrunning.



INSTALLATIONANDOPERATINGINSTRUCTIONS



INSTALLATION(AllModels)

1. Identifyyourunitfromthemodeldescriptionontheserialnumberlabelaffixedtothe

heater.



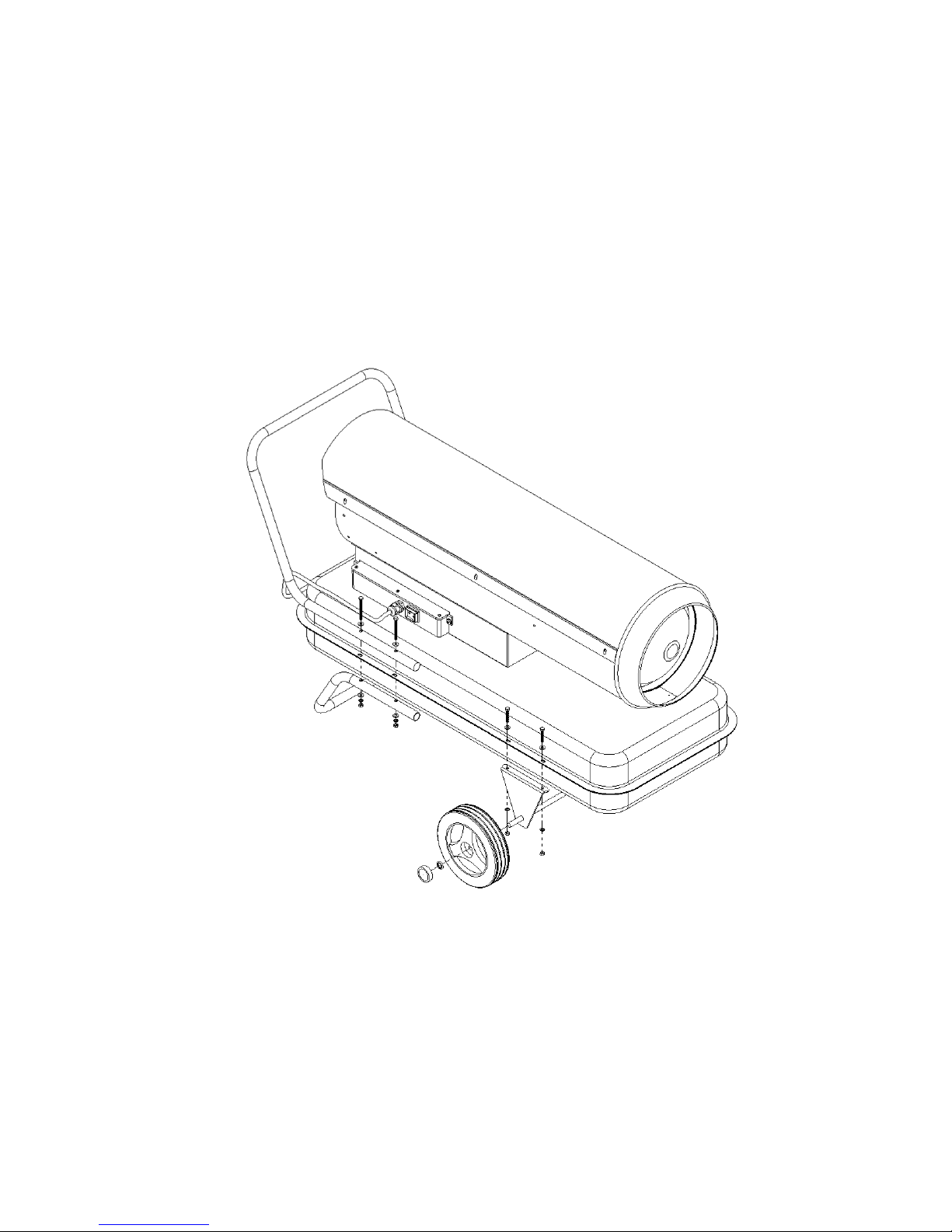

2. Wherenecessary.Fitwheelsonaxleusingtheclipsandcoversupplied.Fitaxle

assembly,handleandsupporttothetankusingthebolts,nutsandwasherssupplied.

(SeeDiagramBelow)



3. 



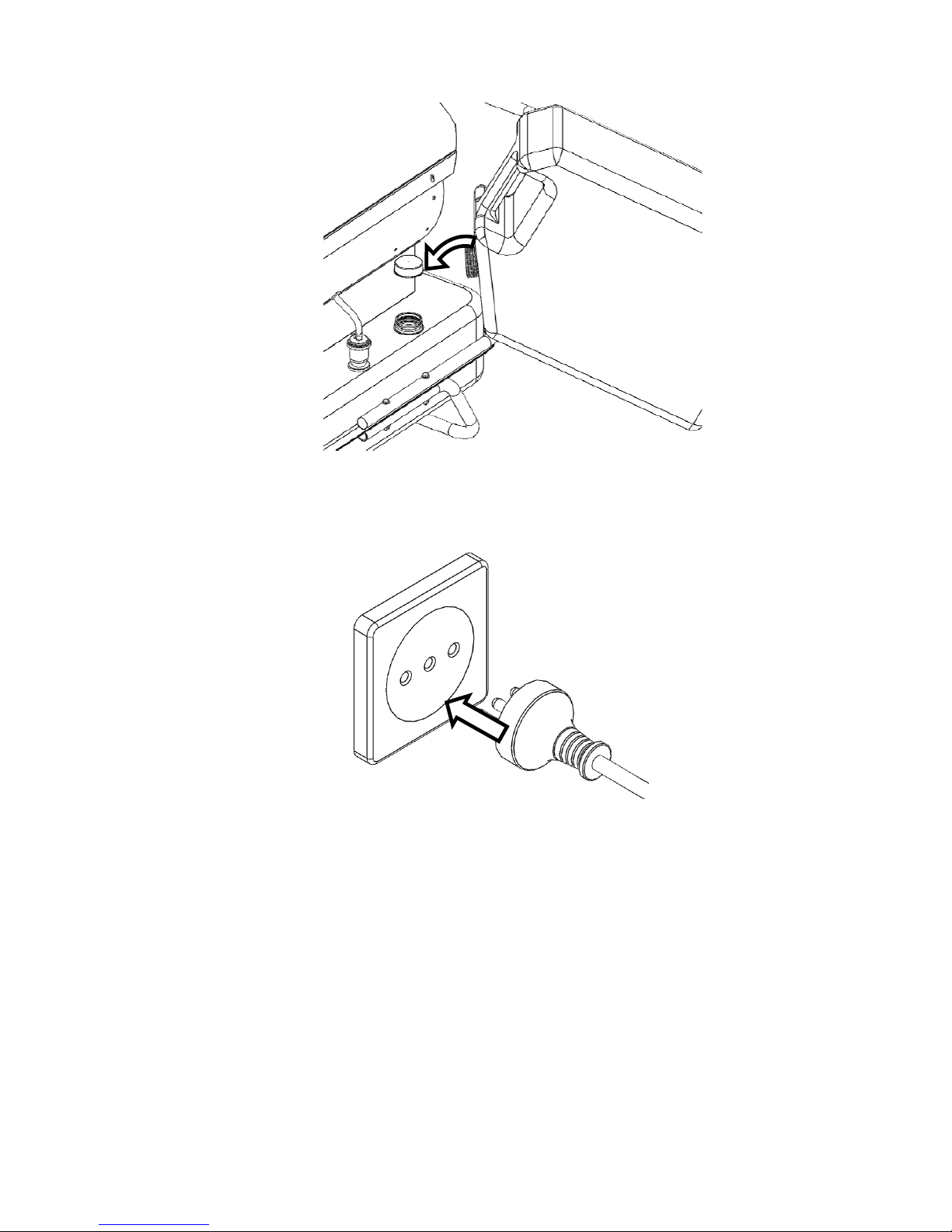

4. FilltheFuelTankusingcleanfilteredfuel.



5. ConnectPowerPlugtoMainsPowerOutlet.



OPERATINGINSTRUCTIONS



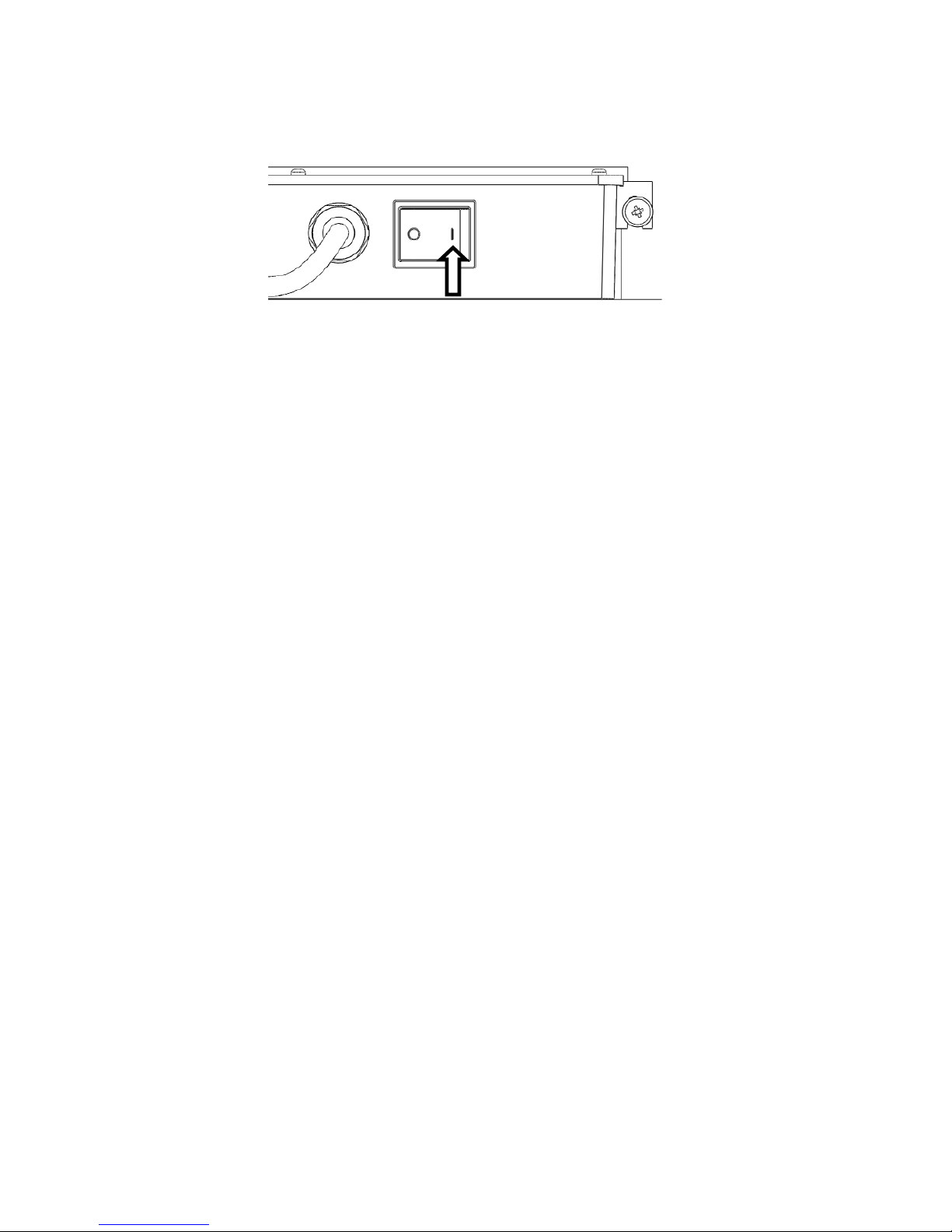

1. TurnpowerswitchtotheOn(I)position.Thiswillstarttheignitioncycle.



2. Iftheheaterisinlock‐out,torestart,switchthemainswitchonthemachineoffandon

againafterreferringtopointBinthetroubleshootingguide.



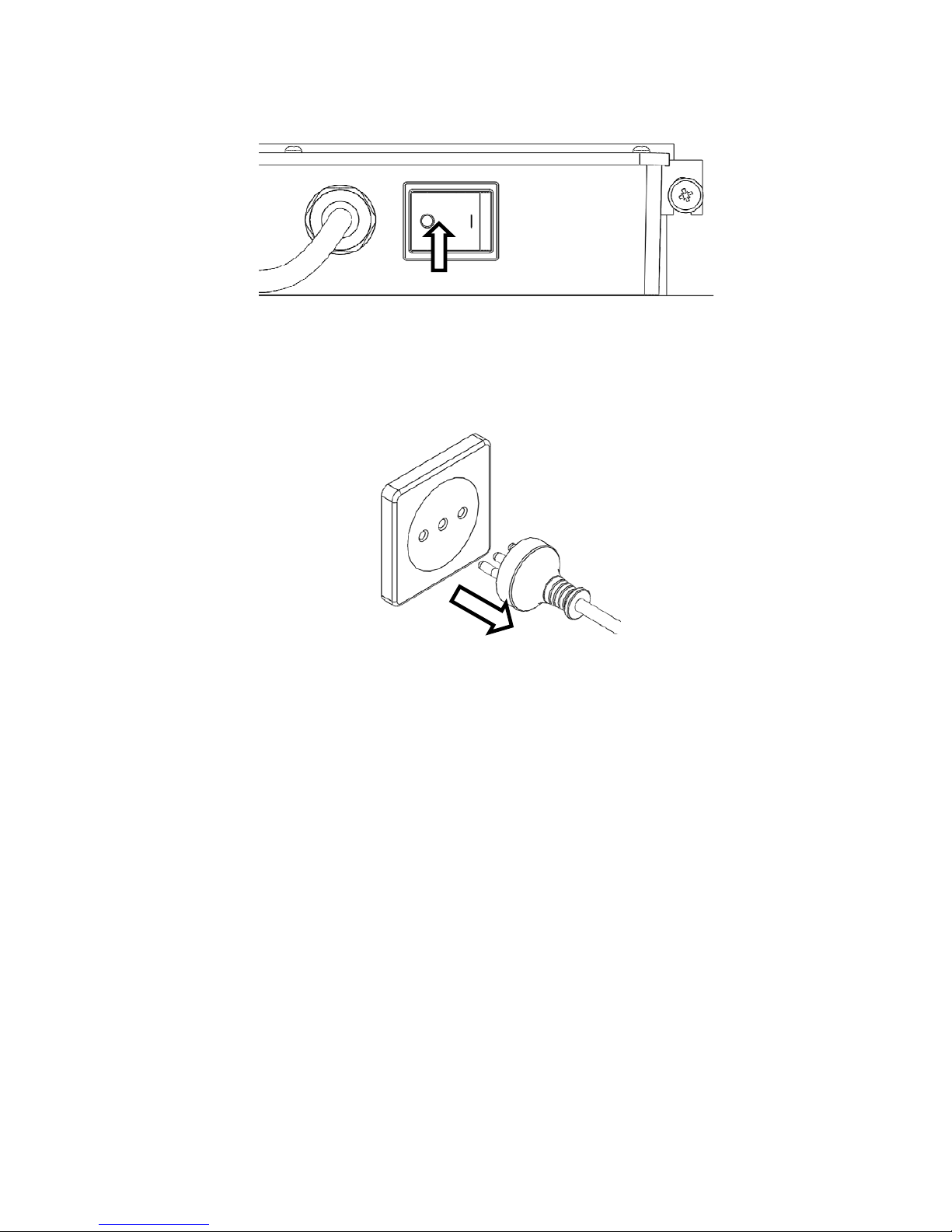

TOSTOP(NORMALOPERATION)

1. TurnpowerswitchtotheOff(0)position.



2. Removetheplugfromtheelectricaloutlet.



MAINTENANCEANDFAULTFINDINGPROCEDURES



WARNING:ALWAYSISOLATEUNITFROMTHEELECTRICALSUPPLYBEFOREATTEMPTING

ANYREPAIRSORMAINTENANCE.



General:



Every150hours:Washinletfilterwithmilddetergentanddry.

Filtermustbethoroughlydrybeforereplacingandmustnotbeoiled.

Every150hours:Checkthatallairlinesaretightandingoodcondition.

Every300hours:Replacefuelfilter.

Every600hours:Drainthefueltankandflushitusingcleanfuel.



PressureSetting:



Onceperseasonorwhennecessary,adjustpressuresettingasperprocedurebelow.

‐ThepressuresettingmustbeadjustedtoachievearedexitconewithNOflameexiting

theheater.

‐Aredexitconewillensureodourfreeoperation.



Toadjustpressuresetting:



1. Startandrunheateruntilstableoperatingtemperatureisachieved.

2. Withheaterrunning,loosenlocknutA.

3. SetcorrectpressurebyadjustingvalveB.

‐Screwingthevalveclockwisewillincreasethefuelflowandachieveamoreredexit

cone.

‐Ifflamesareexitingtheheater,turnthevalveanti‐clockwisetoreducefuelflow.

4. Oncesuitablepressurehasbeenset,tightenlocknutA.



LockNutA

PressureValveB
