XE895 ELLIPTICAL TRAINER
OWNER’S MANUAL
2

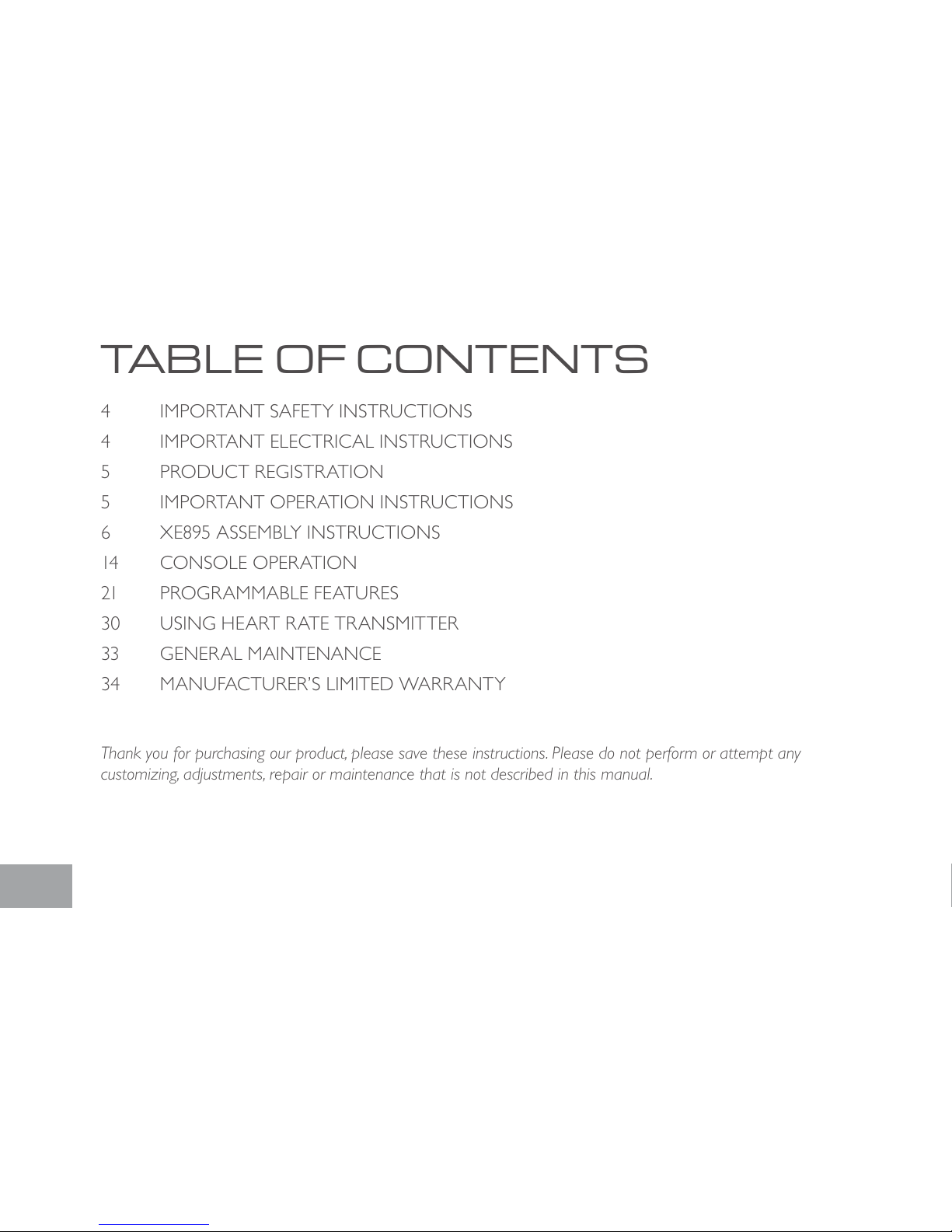

TABLE OF CONTENTS
4 IMPORTANT SAFETY INSTRUCTIONS
4 IMPORTANT ELECTRICAL INSTRUCTIONS
5 PRODUCT REGISTRATION
5 IMPORTANT OPERATION INSTRUCTIONS
6 XE895 ASSEMBLY INSTRUCTIONS
14 CONSOLE OPERATION
21 PROGRAMMABLE FEATURES
30 USING HEART RATE TRANSMITTER
33 GENERAL MAINTENANCE
34 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
3

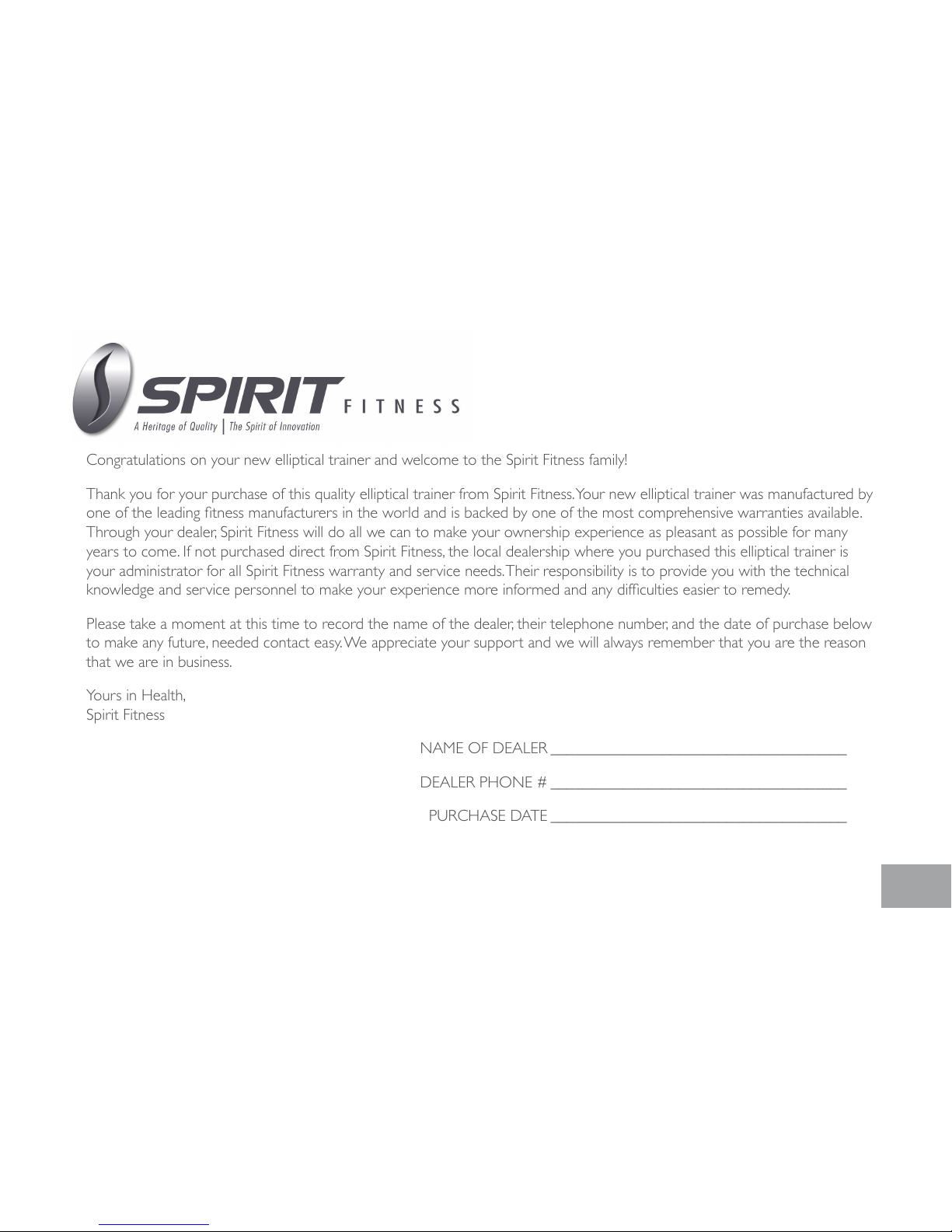

Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality elliptical trainer from Spirit Fitness.Your new elliptical trainer was manufactured by
one of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many
years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this elliptical trainer is
your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical
knowledge and service personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase below
to make any future, needed contact easy.We appreciate your support and we will always remember that you are the reason
that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
4
Important Saftey Instructions
IWARNING
• Read all instructions before using this appliance.
• Do not operate elliptical trainer on deeply padded,
plush or shag carpet. Damage to both carpet and
elliptical trainer may result.
• Keep children away from the elliptical trainer.There are
obvious pinch points and other caution areas that can
cause harm.
• Keep hands away from all moving parts.
• Never operate the elliptical trainer if any of the parts
are damaged. If the elliptical trainer is not working
properly, call your dealer.
• Do not operate where aerosol spray products are
being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous
environment.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your elliptical trainer for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Their purpose is to provide you with an approximate
measurement in relation to your target heart rate. Use
of a chest transmitter strap is a much more accurate
method of heart rate analysis .Various factors, including
the user’s movement, may affect the a ccuracy of heart
rate readings.The pulse sensors are intended only
as exercise aids in determining heart rate trends in
general.
• Wear proper shoes. High heels, dress shoes, sandals
or bare feet are not suitable for use on your elliptical
trainer. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 400 lbs
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Electrical Instructions
IWARNING
Be aware that the generator is producing A.C. power
while the elliptical trainer is being used. Do not service
the elliptical trainer while the generator is spinning; serious
electric shock could occur.
NEVER expose this elliptical trainer to rain or moisture.
This product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment.The
operating temperature specication is 40 to 120 degrees
Fahrenheit, and humidity is 95% non-condensing (no water
drops forming on surfaces).
5
Important Operation Instructions
• NEVER operate this elliptical trainer without reading and completely understanding the results of any operational
change you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment key.The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your elliptical trainer; such as watching television,
reading, etc.These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure.
Record Your Serial Number
Please record the serial number of this tness product in the space provided
below.
Serial Number:
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit Fitness.
You can also go to https://www.spirittness.com/residentialwarrantyregistration.html under the Support
tab to register online.
Serial Number Location
6
XE895 PRE ASSEMBLY
UNPACKING
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any damage or missing parts.
If parts are damaged or missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools rst. Remove the hardware for each
step as needed to avoid confusion.The numbers in the instructions that are in paren-
thesis (#) are the item number from the assembly drawing for reference.
TOOLS INCLUDED:
13/14mm Wrench
12/14mm Wrench
Phillips Screwdriver
8mm L Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Console Mast Cover
2 Swing Arms
2 Connecting Arms
6 Levelers
1 Console
2 Foot Pedals
1 Power Cord
1 Audio Cable
2 Transport Wheels
1 Hardware Kit
7
SPEAKERS
CONSOLE
CONSOLE MAST
CONNECTING ARM
LEVELERS
FRONT STABILIZER
REAR STABILIZER
FOOT PEDALS
MAIN FRAME
RAILS
WATER BOTTLE
HOLDER
PULSE GRIPS
SWING ARM
CONSOLE FAN
8
XE895 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
137 BOLT 3/8”X2-1/4” 2
139 BOLT 3/8”X3-3/4” 4
176 FLAT WASHER 3/8”X19X1.5T 2
187 CURVED WASHER 3/8”X23X2T 4
1. Gather HARDWARE FOR STEP 1.
2. Put the 2 FLAT WASHERS (176) on the 2 HEX
HEAD BOLTS (137) and hand-tighten them,
through the TOP of the MIDDLE STABILIZER
TUBE , into the REAR RAIL ASSEMBLY (2)
with the WRENCH (194).
3. Put 4 CURVED WASHERS (187) on the 4 HEX
HEAD BOLTS (139) and hand-tighten them
through the FRONT of the MIDDLE STABILIZ-
ER TUBE, into the REAR RAIL ASSEMBLY (2)
with the WRENCH (194).
9
XE895 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
145 BOLT 3/8”X3/4” 4
150 SCREW M5X10 4
176 FLAT WASHER 3/8”X19X1.5T 4
186 SPRING WASHER 3/8”X2T 4
1. Gather HARDWARE FOR STEP 2.
2. Use WRENCH (193) to release 2 SOCKET
HEAD CAP BOLTS and take apart side back
disposed. Pierce 14P COMPUTER CABLE (68)
from bottom of the mast tube through it and pull
out of the top. Use 4 SOCKET HEAD CAP
BOLTS (145), 4 SPRING WASHERS (186) and
4 FLAT WASHERS (176) to secure.
3. Untie the COMPUTER CABLE (68) , connect
2 HANDPULSE W/CABLE ASSEMBLY (58)
and HANDLE WIRE (Upper), RESISTANCE/
INCLINE (White/Red) (61/62) with the CON-
SOLE ASSEMBLY (55) respectively.Then place
the CONSOLE on top of the MAST and use
PHILLIPS HEAD SCREW DRIVER (192) to
tighten 4 PHILLIPS HEAD SCREWS (150) to
secure.
10
XE895 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
134 BOLT 5/16”X1-1/4” 2
136 BOLT 3/8”X3/4” 2
168 NYLOC NUT 5/16”X9T 2
175 CURVED WASHER 3/8”X30X2.0T 2
180 FLAT WASHER 5/16”X20X1.5T 2
183 WAVE WASHER ø25 4
1. Gather HARDWARE FOR STEP 4.
2. Locate LEFT and RIGHT LOWER SWING
ARMS (13, 14)together with 4 WAVE WASH-
ERS onto LEFT and RIGHT SHAFTS of the
MAST TUBE then tighten with 2 HEX HEAD
BOLTS (136) and two FLAT WASHERS (175)
by using the WRENCH (194).
3. Untie Rod end Bearing on LEFT CONNECT-
ING ARM (8) and pierce HEX HEAD BOLT
(134) through the rod end holes and rod end
bearing then tighten with FLAT WASHER
(180) and NYLOC NUT (168) by using the
WRENCH (194) and WRENCH (195). Do it
the same way for RIGHT CONNECTING ARM
(9) and RIGHT LOWER HANDLE BAR (14).
