Spirit XE795 Manuel utilisateur

XE795 ELLIPTICAL

Scan to quickly and easily

Fitness machine.

If you require assistance or are

experiencing issues with your

Spirit Machine, please contact

customer care for additional help.

1-800-258-8511

questions@spirittness.com

Online Support

Warranty Registration

XE795_795023_OM_20230602

Available At IRON COMPANY

Table of Contents

Product Registration.........................................................2

Warning / Safety Instructions

Product Labels .....................................................................3

Warnings, Compliance, and Notes.................................4

Safety Instructions .............................................................5

Parts and Assembly

Parts Included ..................................................................... 6

Parts of Your Elliptical .......................................................7

Pre-Assembly ...................................................................... 8

Assembly............................................................................... 9

Setting Up Your Unit ........................................................15

Quick Start.......................................................................... 17

Technology and Features

About Your Machine ........................................................18

Console Screen - Overview............................................19

Console Screen - Workout Mode................................20

Using the Spirit+ App.......................................................21

Features .............................................................................. 22

Heart Rate Monitoring

Heart Rate Chest Strap.................................................. 24

Chest Strap Warning....................................................... 25

Heart Rate Exertion ........................................................ 26

Programs

Programs Intro.................................................................. 28

Programs - Preset ............................................................30

Maintenance

Maintenance & Care........................................................ 36

Engineering Mode............................................................ 37

Exploded View Diagram ................................................ 38

Parts List............................................................................. 39

Warranty

Warranty ............................................................................40

PRODUCT REGISTRATION

WARRANTY REGISTRATION

Use your smartphone to scan the QR code

above to quickly and easily register your

new Spirit Fitness machine.

You can also go to spirittness.com/

warranty under the Support tab to

Congratulations on your new Elliptical, and welcome to the Spirit

Fitness family!

Thank you for your purchase of this quality unit from Spirit Fitness.

Your new unit was manufactured by one of the leading tness

manufacturers in the world and is backed by one of the most

comprehensive warranties available. Through your dealer, Spirit Fitness

will do all we can to make your ownership experience as pleasant as

possible for many years to come.

If not purchased direct from Spirit Fitness, the local dealership where

you purchased this unit is your administrator for all Spirit Fitness

warranty and service needs. Their responsibility is to provide you

with the technical knowledge and service personnel to make your

experience more informed and any diculties easier to remedy.

Please take a moment at this time to record the name of the dealer,

their telephone number, and the date of purchase below to make any

future, needed contact easy. We appreciate your support and we will

always remember that you are the reason that we are in business.

Serial

Number

Date of

Purchase

Dealer /

Place of

Purchase Version: 2.0

Revision: 06.02.23

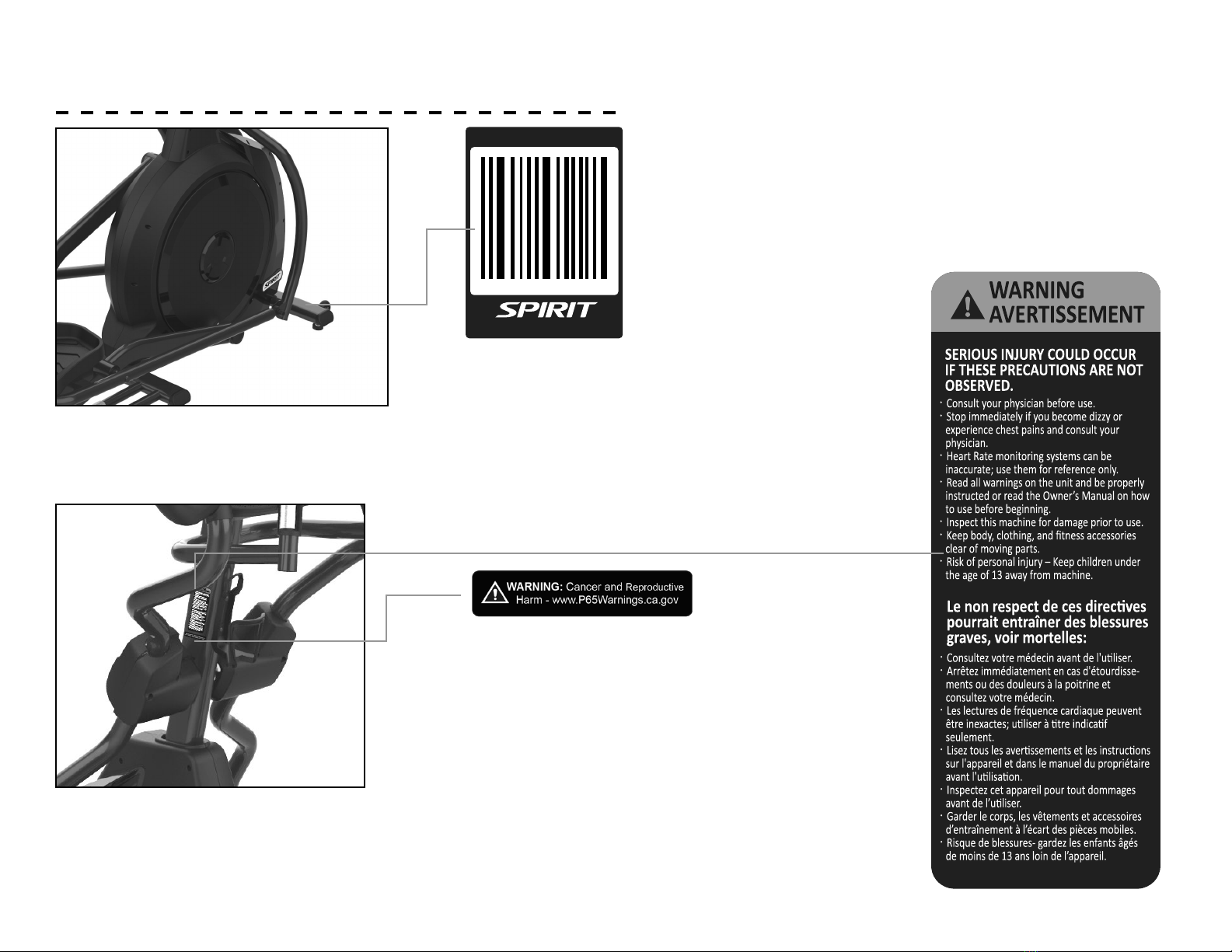

PRODUCT LABELS

SERIAL NUMBER

(870) 935-1107

SERIAL NUMBER STICKER

This sticker will be found on the front stabilizer. Please record

the number below the barcode for the purpose of registering

your Elliptical’s warranty.

PROPOSITION 65 WARNING

This sticker will be found on the left side of

your Elliptical’s upright. The State of California

requires us to inform you that this unit was

manufactured using chemicals that could cause

harm with improper use.

SAFETY WARNING STICKER

This sticker will be found on the left side of your

Elliptical’s upright. The same warning can be

found in this manual. Please read and be aware

of the precautions before operating your unit.

1234 5678 9876

WARNINGS, COMPLIANCE AND NOTICES

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and

receiver.

3. Consult the dealer or an experienced radio/TV technician for

help.

CAUTION:

• To comply with FCC RF exposure compliance requirements,

a separation distance of at least 20 cm must be maintained

between the antenna of this device and all persons.

• This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter

This product has been certied to meet the following

standards:

• FCC part 15

• UL

• Bluetooth (with FTMS)

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

this device must not cause harmful interference, and (2)

this device must not accept any interference received,

including interference that may cause undesired

operation.

SAFETY INSTRUCTIONS

To reduce risk of injury to persons:

Read all instructions before using this appliance.

WARNING - To reduce the risk of burns, re electric shock, or

injury to persons:

1. This exercise equipment is not intended for use by persons

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge.

2. Use this appliance only for its intended use as described in this

manual. Do not use attachments not recommended by the

manufacturer.

3. Never operate the appliance with the air openings blocked. Keep the

air openings free of lint, hair, and the like.

4. Never drop or insert any object into any opening.

5. Do not use outdoors.

6. The appliance is intended for household use.

7. Do not operate equipment on deeply padded, plush or shag carpet.

Damage to both carpet and equipment may result.

8. Before beginning this or any exercise program, consult a physician.

This is especially important for persons over the age of 35 or persons

with pre-existing health conditions.

9. Keep hands away from all moving parts.

10. The pulse sensors are not medical devices. Various factors, including

the user’s movement, may aect the accuracy of heart rate readings.

The pulse sensors are intended only as exercise aids in determining

heart rate trends in general.

11. Do not attempt to use your equipment for any purpose other than

for the purpose it is intended.

12. Wear proper shoes. High heels, dress shoes, sandals or bare feet are

not suitable for use on your equipment. Quality athletic shoes are

recommended to avoid leg fatigue.

13. User Weight Limit: 400 lbs.

Please ensure that you review and adhere to the user

weight restrictions and power requirements of your

new machine. Failure to do so may result in serious

injury or damage to your machine.

PARTS INCLUDED

TOOLS

13/14mm Wrench

Phillips Head Screwdriver

8mm L Allen Wrench

L Allen Wrench

12/14mm Wrench

PARTS INCLUDED:

1 Main Frame

1 Console Mast

1 Console Mast Cover

2 Swing Arms

2 Linkage Arms

6 Levelers

Step.1

Step.2

Step.3

Tools

#93. 13/14mm Wrench #94. Phillips Head Screwdriver #95. 8mm L Allen Wrench

#97. L Allen Wrench #98. 12/14mm Wrench

#106. 5/6” x 20 x 1.5T

Flat Washer (2 pcs)

#51. 3/8” x 30 x 2T

Flat Washer (2 pcs)

#110. Ø25

Wave Washer (2 pcs)

#55. M5 × 10mm Phillips

Head Screw (4pcs)

#84. 5/16" × 18 × 1.5T

Flat Washer (6 pcs)

#86. 5/16" × 23 × 1.5T

Curved Washer (2 pcs)

#85. M8x15mm

Hex Head Bolt (8 pcs)

#56. 3.5 x16mm

Sheet Metal Screw (3 pcs)

#92. 5/16" ×1-3/4" Button

Head Socket Bolt (2 pcs)

#99. 5/16"

Nyloc Nut (2 pcs)

#89. M10 × 20mm Socket

Head Cap Bolt (2 pcs)

Step.4

#87. 5/16" × 9T

Nyloc Nut (2 pcs)

Step.5

#55. M5 × 10mm Phillips

Head Screw (14pcs)

#90. 5/16" × 1-1/4”

Hex Head Bolt (2 pcs)

#91. M8x15mm Button

Head Socket Bolt (6 pcs) #115. 3/8” x 19 x 1.5T

Flat Washer (8 pcs)

#113. 3/8” x 2-1/4”

Hex Head Bolt (6 pcs) #114. 3/8” x 7T

Nyloc Nut (6 pcs)

#116. 3/8” x 23 x 2.0T

Curved Washer (4 pcs)

Step 6.

#123. M5 × 12mm Phillips

Head Screw (3pcs)

#117. 3.5 x12mm

Sheet Metal Screw (8 pcs)

Step.1

Step.2

Step.3

Tools

#93. 13/14mm Wrench #94. Phillips Head Screwdriver #95. 8mm L Allen Wrench

#97. L Allen Wrench #98. 12/14mm Wrench

#106. 5/6” x 20 x 1.5T

Flat Washer (2 pcs)

#51. 3/8” x 30 x 2T

Flat Washer (2 pcs)

#110. Ø25

Wave Washer (2 pcs)

#55. M5 × 10mm Phillips

Head Screw (4pcs)

#84. 5/16" × 18 × 1.5T

Flat Washer (6 pcs)

#86. 5/16" × 23 × 1.5T

Curved Washer (2 pcs)

#85. M8x15mm

Hex Head Bolt (8 pcs)

#56. 3.5 x16mm

Sheet Metal Screw (3 pcs)

#92. 5/16" ×1-3/4" Button

Head Socket Bolt (2 pcs)

#99. 5/16"

Nyloc Nut (2 pcs)

#89. M10 × 20mm Socket

Head Cap Bolt (2 pcs)

Step.4

#87. 5/16" × 9T

Nyloc Nut (2 pcs)

Step.5

#55. M5 × 10mm Phillips

Head Screw (14pcs)

#90. 5/16" × 1-1/4”

Hex Head Bolt (2 pcs)

#91. M8x15mm Button

Head Socket Bolt (6 pcs) #115. 3/8” x 19 x 1.5T

Flat Washer (8 pcs)

#113. 3/8” x 2-1/4”

Hex Head Bolt (6 pcs) #114. 3/8” x 7T

Nyloc Nut (6 pcs)

#116. 3/8” x 23 x 2.0T

Curved Washer (4 pcs)

Step 6.

#123. M5 × 12mm Phillips

Head Screw (3pcs)

#117. 3.5 x12mm

Sheet Metal Screw (8 pcs)

1 Console

2 Foot Pedals

2 Transport Wheels

1 Hardware Kit

PARTS OF YOUR ELLIPTICAL

A. Tablet Holder

B. LCD Screen

C. Swinging Handlebars

D. Adjustable Fan

E. Console Buttons

F. Hand Pulse Grips

G. Console Mast

H. Flywheel Cover

I. Linkage Arms

J. Pedals

K. Rollers

L. Roller Track

M. Rear Stabilizer

N. Transport Wheel

PRE-ASSEMBLY

1. Cut the straps, then lift the box over the unit and unpack.

2. Carefully remove all parts from the carton and inspect

for any damage or missing parts. If parts are damaged or

missing, contact your dealer immediately.

3. Locate the hardware package. Remove the tools rst.

4. Remove the hardware for each step as needed to avoid

confusion. The numbers in the instructions that are in

parenthesis (#) are the item number from the assembly

drawing for reference.

Autres manuels pour XE795

Table des matières

Autres manuels Spirit vélo elliptique

Spirit

Spirit XE295 Manuel utilisateur

Spirit

Spirit XE 700 Manuel utilisateur

Spirit

Spirit Esprit EL355 Manuel utilisateur

Spirit

Spirit CE800 Manuel utilisateur

Spirit

Spirit XE395ENT Manuel utilisateur

Spirit

Spirit XG400 e-Glide Trainer Manuel utilisateur

Spirit

Spirit ESPRIT EL455 Manuel utilisateur

Spirit

Spirit CE900 Manuel utilisateur

Spirit

Spirit XE 850 Manuel utilisateur

Spirit

Spirit E-Glide SE550 Manuel utilisateur

Spirit

Spirit XE 100 Manuel utilisateur

Spirit

Spirit XG200 Manuel utilisateur

Spirit

Spirit Inspire ZE40 Manuel utilisateur

Spirit

Spirit XE520s Manuel utilisateur

Spirit

Spirit Inspire ZE20 Manuel utilisateur

Spirit

Spirit Esprit EL255 Manuel utilisateur

Spirit

Spirit XG400 e-Glide Trainer Manuel utilisateur

Spirit

Spirit CE800 Manuel utilisateur

Spirit

Spirit SE500 Manuel utilisateur

Spirit

Spirit CE800 ENT Manuel utilisateur

Spirit

Spirit XE 125 Manuel utilisateur

Spirit

Spirit XE526SE Manuel utilisateur

Spirit

Spirit XE500 Manuel utilisateur

Spirit

Spirit 16611608000 Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
