Speedata KT40Q Manuel utilisateur
KT40Q
Quick Guide
Android 5.1
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China2/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
CATALOGUE
KT40Q SPECIFICATION .............................................................................3
External structure ....................................................................................6
Android 5.1 introduction..........................................................................7
Notification Bar Icons............................................................................8
Dialing.................................................................................................10
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China3/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
CAMERA..............................................................................................11
Shortcut Menu of Notification Bar......................................................12
File Transfer Instructions ....................................................................13
Main Menu .........................................................................................14
Settings Menu.....................................................................................17
Wireless Network ...............................................................................19
Focus Scanning ......................................................................................20
Barcode parameter.............................................................................21
F1 Key on the keyboard ......................................................................23
RFID（optional）..................................................................................23
Technical Support Contact .....................................................................24
KT40Q SPECIFICATION
BASIC INFORMATION
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China4/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
CPU
Cortex-A53 1.3GHz Quad core
STORAGE&MEMORY
Flash 8GB RAM 1GB
OS
Android 5.1
CONNECTIVITY
1.Bluetooth: v2.1 +EDR/v3.0+HS/v4.1
2.WIFI: 802.11 b/g/n/a 2.4G/5G
3.GPRS /HSPA/EDGE/CDMA2000/TDD/FDD
GPS MODULE
GPS
PC CONNECTOR
USB 2.0 High-Speed
SCREEN
SCREEN SIZE
4.0’’IPS LCD
SCREEN RESOLUTION
480*800
TOUCH SCREEN TYPE
Capacitive Touch screen
VEDIO FUNCTION
MAIN CAMERA
800MP
FOCUS MODE
Auto
SENSOR TYPE
CMOS
FLASH
LED
COMMUNICATION MODULE
COMMUNICATION
SPECTRUM
Support two cards
CDMA&EVDO: 800 MHz(BC0)
2G GSM:850/900/1800/1900 Mhz(B2 B3 B5 B8)
3G TD-SCDMA: 1900/2100 MHZ (B34 B39 )
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China5/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
3G WCDMA:850/900/1900/2100 MHz(B1 B2 B5 B8)
4G TDD-LTE : 1900/2300/2500/2600 MHz(B38/B39/B40/B41)
4G FDD-LTE : 1800/2100/2600 MHz (B1/B3/B7)
BARCODE SCANNER
1D SCANNER
Honeywell: N4313
2D SCANNER
Honeywell: N6603(1D/2D)
Motorola: SE4500(1D/2D)
Newland: EM3095(1D/2D)
RFID READER
FREQUENCY
HF 13.56MHz
PROTOCOL
14443A/B, 15693, Mifare NFC
PHYSICAL SPEC
SIZE
166mm*74mm*20mm
BATTERY
4300mAh, 3.8V
WORK ENVIRONMENT
WORK TEMPERATURE
-20℃~60℃
HUMIDITY RANGE
5%~95%（no condensation）
DROP SPECIFICATION
Within the scope of operation，all 6 sides can withstand the impact of falling to
sement floor from 1.5m in height
SCROLL
SPECIFICATION
1000 times 0.5m, 6 rolling contact sides
SEAL GRADE
IP65
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China6/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n

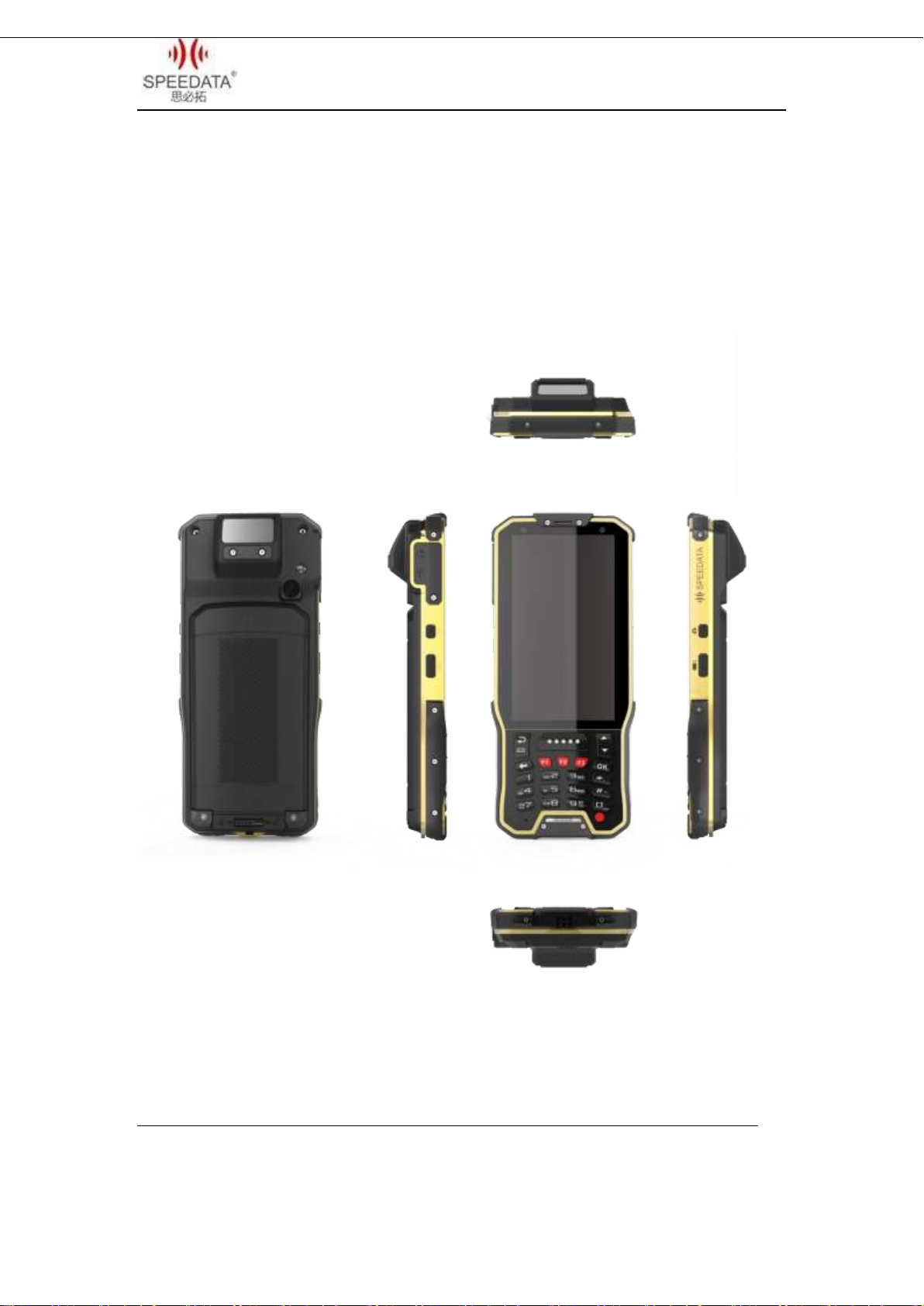

External structure
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China7/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
Android 5.1 introduction
Home screen shows some important information, such as missed calls
and messages. Touch the shortcut menu to make a call, take photos,
check or send messages directly and so on.
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China8/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
Notification Bar Icons
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China9/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
KT40 Quick Guide V2.0
Speedata Group LTD
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China10/25
T:(86)010 8234 6858 F:(86)010 8234 6858w w w . s p e e d a t a . c n
Dialing
Click Phone at Home Screen into dial interface. As shown in the
figure.
