Speed Queen SLW330RAW Manuel

Speed Queen RDomestic WasherTechnical Information

August 2000 RT3100014 Rev. 01

120 V, 60 Hz Models

SLW330RAW PSLW330RAW

•Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or

repair of this unit.

•Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly

instructions.

•Refer to Parts Manual RP3100017 for part number information.

CAUTION

All safety information must be followed as provided in this Technical Sheet and in Service Manual RS3100007.

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to unit and discharge capacitor

before servicing, unless testing requires it.

Models SLW330RAW Models SLW330RAW

Power Source Wash cyles 7

Voltage AC 120 VAC Water temperatures 3

Amperage (Single Unit) 10 A Water level Variable

Frequency 60 Hz Features

Motor horsepower 1/2 Steady SpinBalance System X

Receptacle 6-20R Self-cleaning lint filter X

Plug 6-20P Self-adjusting rear leveling legs X

Dimensions 210 Agitation stroke X

Cabinet Tri−Actionwash system X

Height−overall 43” Fabric softener dispenser X

Height of cabinet 36”

Width 27” Motor speed 2 speed

Depth 28” Spin speed (revolutions per minute) 640 / 427 rpm

Clearance−washer lid 17 1/2” Agitation speed (strokes per minute)

Weight High 69 spm

Crated 193 lbs. Medium 46 spm

Component Testing Information

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

RT3100014 Rev. 0 August 20002

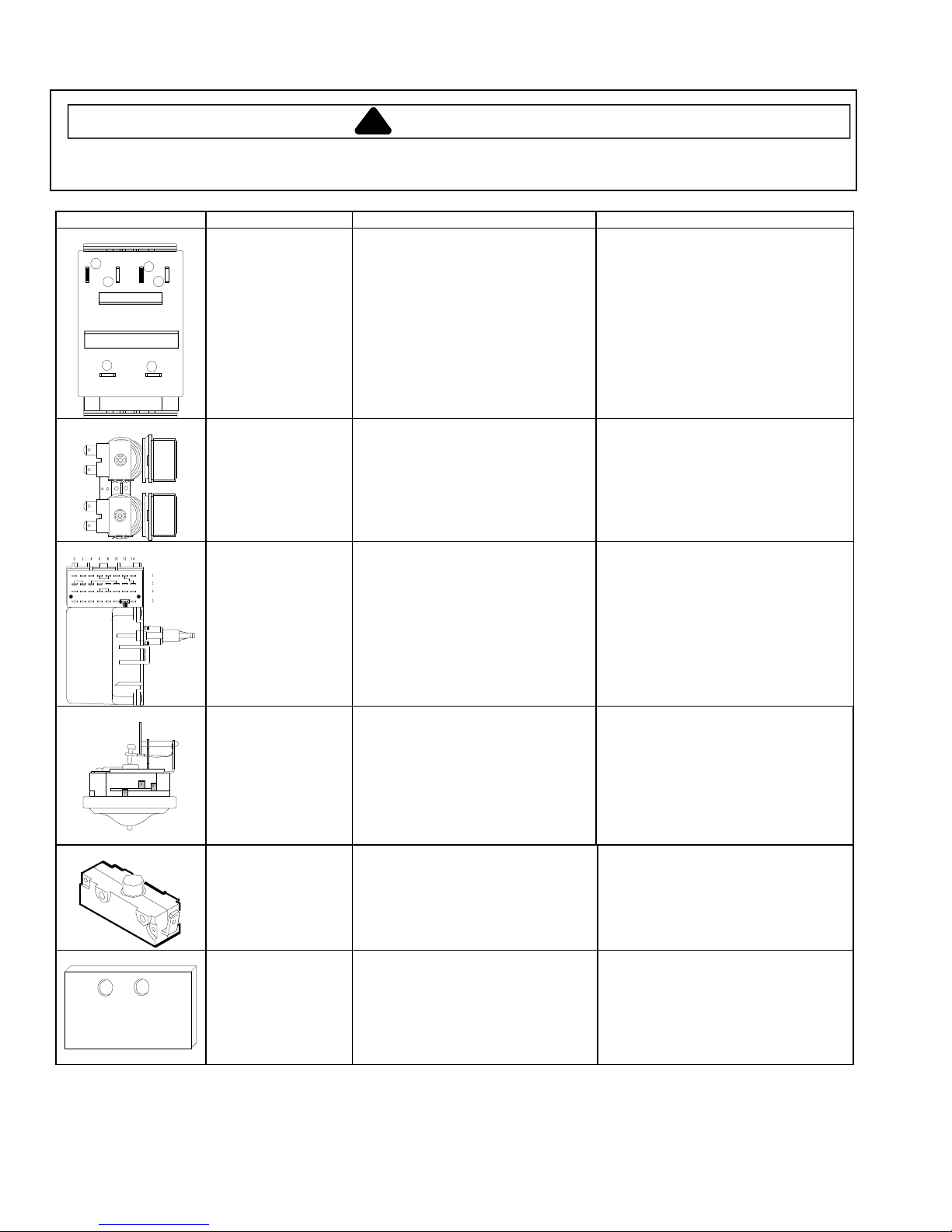

Illustration Component Test Procedure Results

40077101

L1 L2

234

Temperature switch

L1 = A

L2 = B

3 = 1, 2

4 = 3, 4

Disconnect wires from component to

properly measure the resistance of the

component.

Place switch in the following positions

and measure across the terminals

below:

Hot / Cold L1-4 

Warm / Cold L1-3, L1-4, 3-4 -

Cold / Cold L1-3 

>1 Ω

40097701 Mixing valve Measure resistance of terminals on

each valve.

Resistance across each valve. Approximately 1000 Ω±10%

40058801 Timer Verify input and output voltage is

present.

Verify wiring is correctly connected to

the timer.

See timing sequence chart for functional

description of the component.

40077201

Pressure switch Do not disconnect the pressure hose

from pressure switch to perform

measurements.

Measure resistance across the

following terminals on the pressure

switch:

Terminal 1 to 2

Terminal 1 to 3

Refer to wiring diagram/schematic for

correct contacts.

Air pressure that actuates switch is

determined by the water level of the

tub.

Continuity (no pressure)

Continuity (pressure)

40035001 Lid switch−SPST Disconnect wire terminals from switch.

Test terminals with switch closed.

Test terminals with switch open. Continuity >1 Ω

Infinite 1 MΩ

R0000014 Brake pad kit If washtub does not stop spinning

within seven seconds after opening

loading door.

If brake pads make noises.

Replace all three brake pads.

Apply a thin layer of silicone (26594P)

on pads, see Service Bulletin

“ASQ−213−B”

Component Testing Information

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

August 2000 3 RT3100014 Rev. 0

Illustration Component Test Procedure Results

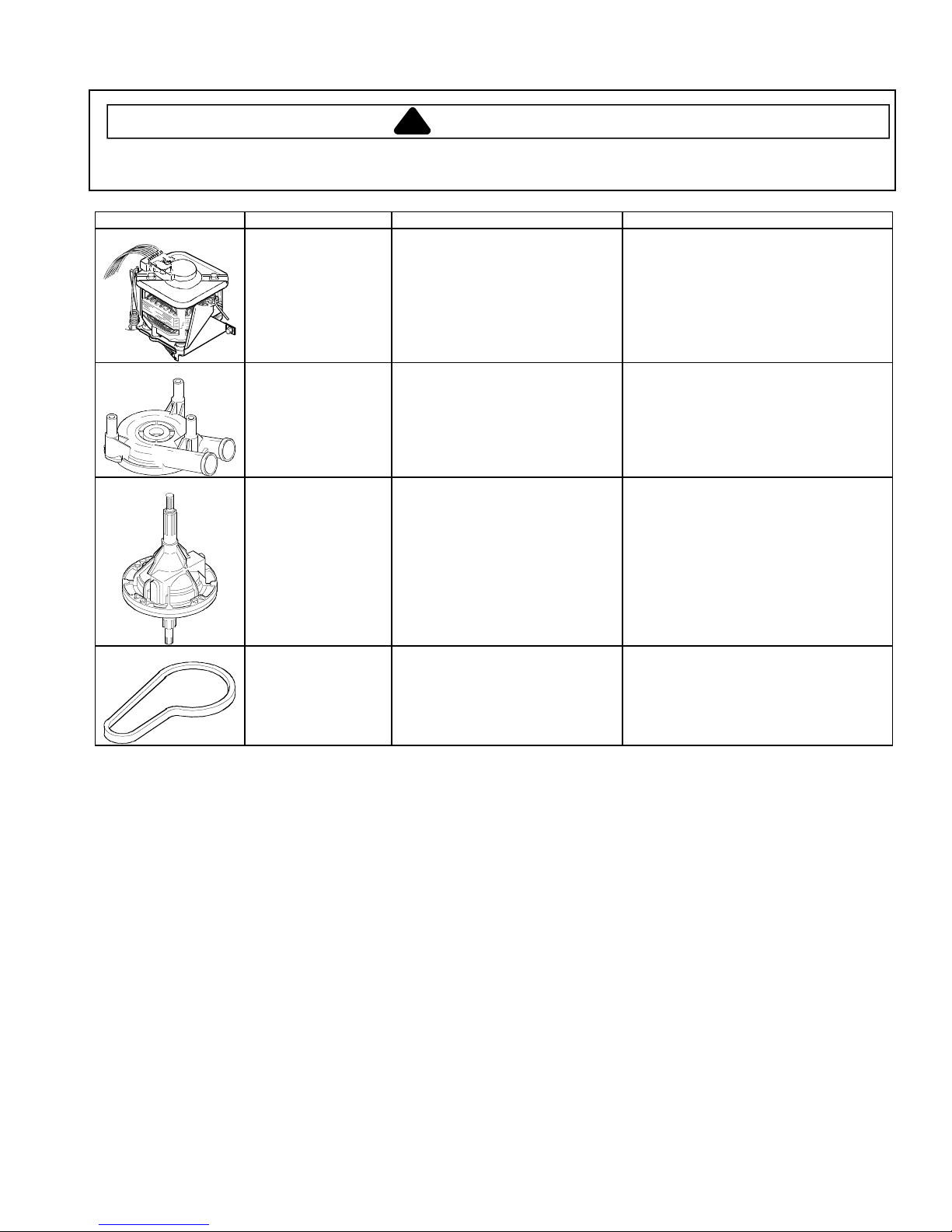

40095001 Motor Type of motor:

Two speed See following section “Internal Motor

Diagram and Schematic” for correct

wiring contacts.

40040301 Drain pump Verify drain pump is not clogged or

damaged. Remove clog and verify proper operation.

Replace drain pump if damaged.

40065301 Transmission

assembly Type of transmission:

640 rpm Externally identical, must be identified by

part number.

If transmission locks-up, replace.

40053602 Drive belt Type of drive belt:

640 rpm

Refer to “Parts Manual” for proper

pulley size.

Refer to “Parts Manual”, to verify which

drive belt and pulley size is required.

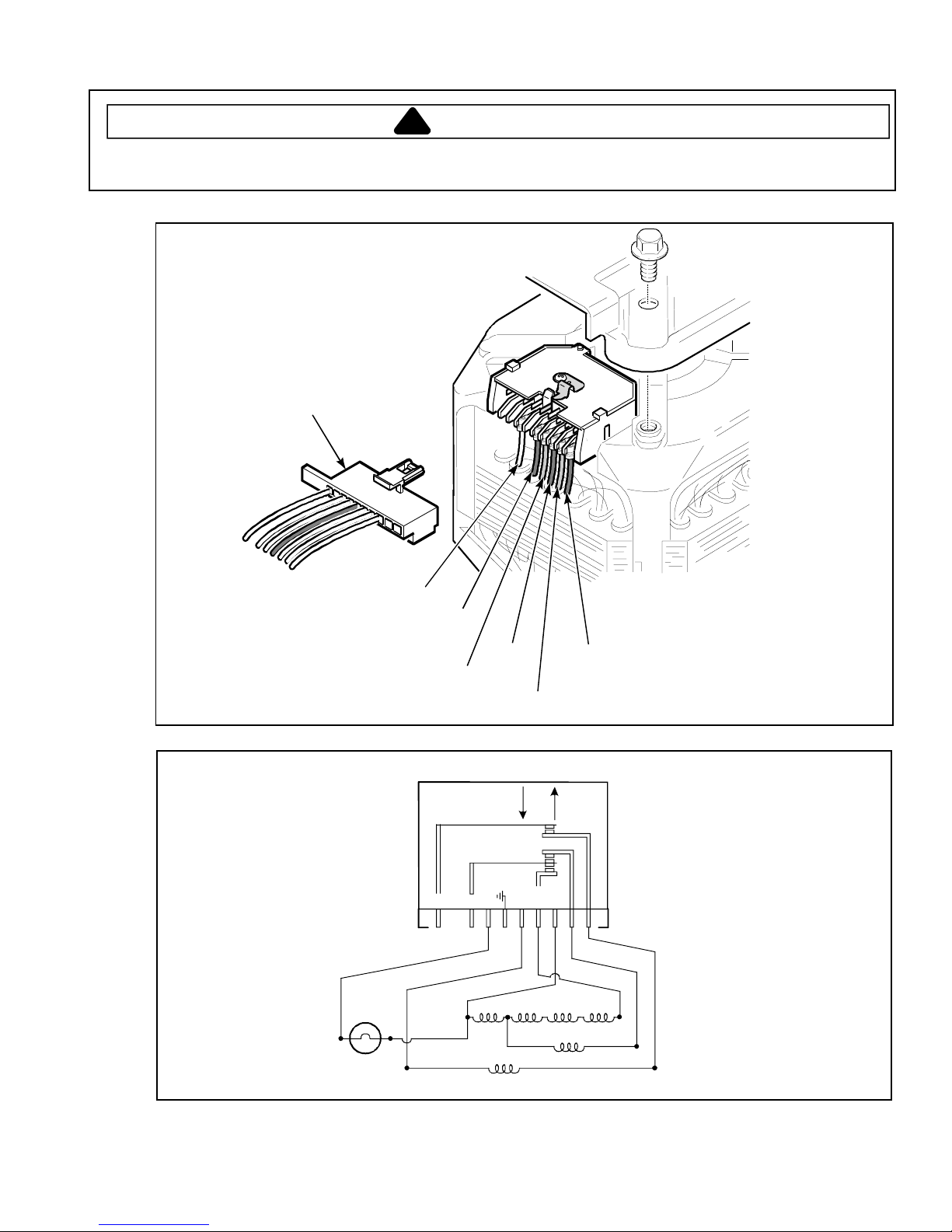

Internal Motor Diagram and Schematic

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

RT3100014 Rev. 0 August 20004

Continuity exists between switch

terminal Rand Red wire.

Manually depress actuator.

Continuity broken between

switch terminal Rand Red wire.

Continuity exists between switch

terminal Pand Red wire.

Manually depress actuator.

Continuity broken between

switch terminal Pand Red wire.

Inoperative start switch.

Replace switch.

Inoperative high speed

switch. Replace switch.

Continuity broken between

switch terminal Pand Violet wire.

Manually depress actuator.

Continuity exists between switch

terminal Pand Violet wire.

Inoperative low speed

switch. Replace switch.

Motor switch checks OK.

YES

Start

Terminals

High Speed

Terminals

Low Speed

Terminals

One or Two Speed Motors

4-5 ohms between Brown wire

and Red wire.

1-2 ohms between Blue wire and

Yellow wire.

1-2 ohms between Yellow wire

and Violet wire.

Continuity exists between Yellow

wire and White wire.

All motor windings checks OK.

Inoperative start winding.

Replace motor.

Inoperative high speed winding.

Replace motor.

Inoperative low speed winding.

Replace motor.

Inoperative common lead.

Replace motor.

Start

Winding

High Speed

Winding

Low Speed

Winding

Protector

YES

Internal Motor Diagram and Schematic

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

August 2000 5 RT3100014 Rev. 0

Wire harness

connection

block

WhiteBrown

Blue Yellow

Violet

Red

RUN

START

Red

Blue

Yellow

Brown

White

4P M

6P M

Aux.

Overload

protector

Yellow

Violet

Motor Assembly

(two speed motor)

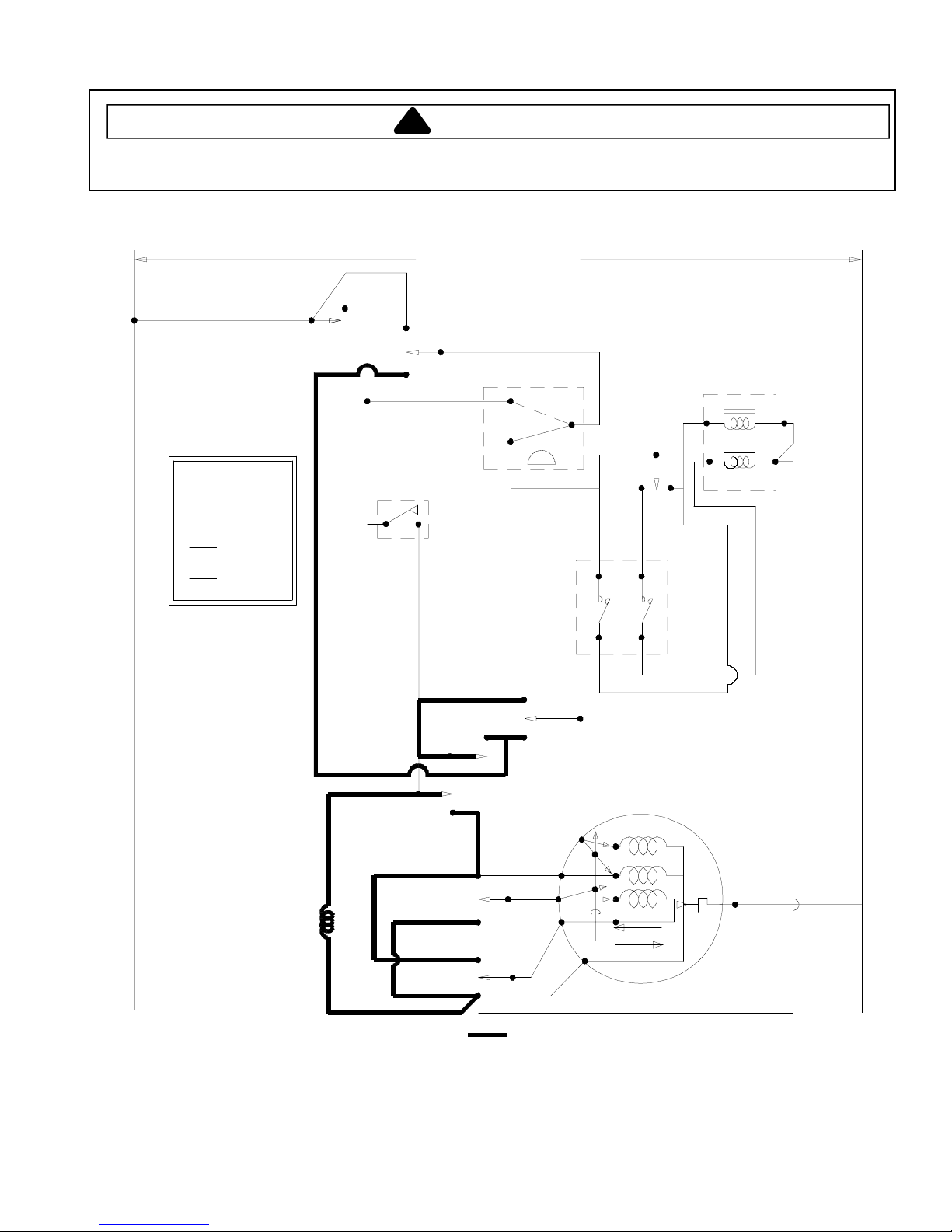

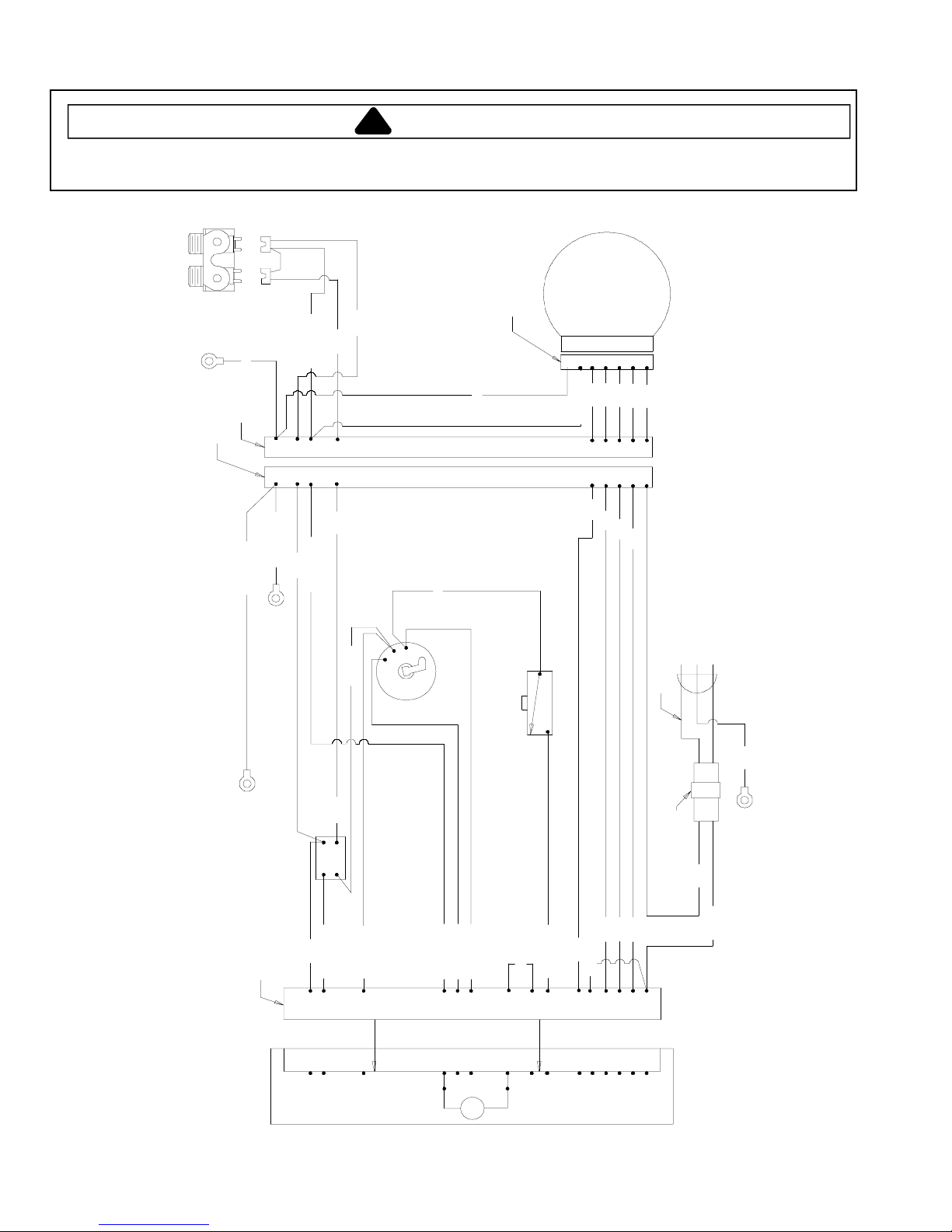

Wiring Diagram and Schematic

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

RT3100014 Rev. 0 August 20006

3RED

BLU

BRN

VLT

PNK

ORG

BLU

VLT

BRN

15 WHT/RED

GRY/BLK

PNK/BLU

WHT/BLK

N.O.

RED/BLK

BLU/BLK

22 TEMP. SWITCH

AORG

CONNECTION

DIAGRAM

TIMER

24 PIN

HOUSING

GRY

24 3 POSITION

GROUND TO

CONTROL HOOD

8 8

PNK

7MOTOR

WHT 4 4

7BLU

BRN

VLT 6

WHT/RED

PNK 3

PRESSURE

LID

SWITCH

COM.

SWITCH

PNK/BLU

1 1

HOUSING

GRN/YEL

GRY

ORG

RECEPTACLE

GRN/YEL

WHT/RED

TO TOP

GROUND

GRY

GRN/YEL

9 9

RED

WHT/RED

CABINET

GRN/YEL

PLUG NATURAL

HOT

MIXING VALVE

GROUND TO COLD

BLK

MTR 7

RED/BLK

18 GA.

TOP

GROUND TO GRN

CONNECTOR

BLK WHT

RIDGE OR TINNED TERMINAL = NEUTRAL

CORD

POWER

Wiring Diagram and Schematic

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

August 2000 7 RT3100014 Rev. 0

MOTOR

TIMER

INDICATES INTERNAL

TIMER BUSS

START

AGITATE

SPIN

HIGH

LOW

MOTOR

120 VOLTS A.C. 60 HZ

PRESSURE SWITCH

TM HI

MTR

SIS

FI PS

SIS

SCHEMATIC

COLD

SPRAY RINSES = COLD

COLD

COLD B-3

TEMP. SWITCH

3 POSITION WATER

WARM

COLD

HOT

A-1, B-3

A-1

SWITCH

LID

N.O.

SWITCH

WATER TEMP.

3 POSITION

PHOT

MIXING VALVE

COLD

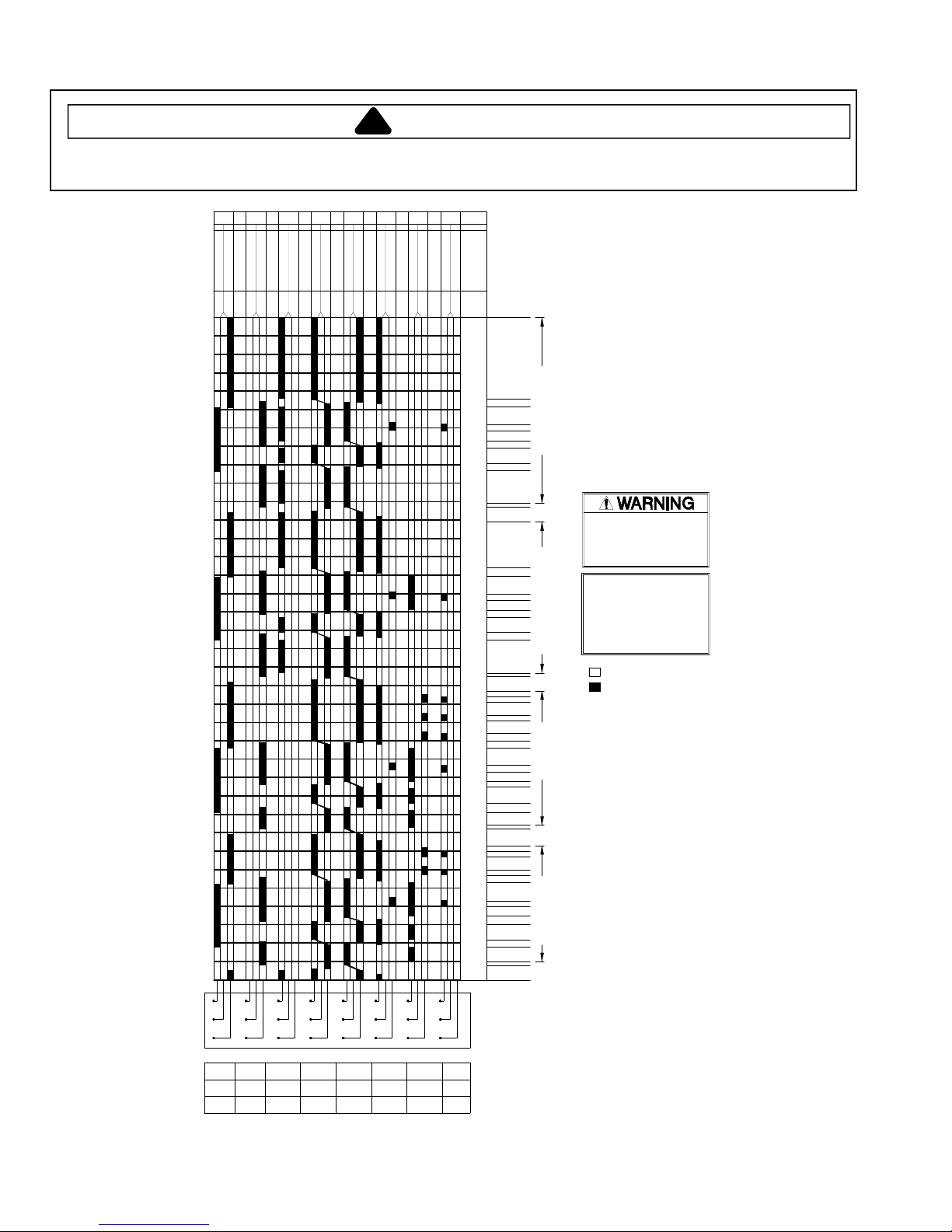

Timer Cycle Chart

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless

testing requires it.

RT3100014 Rev. 0 August 20008

V P H

PERMANENTPRESS

40101201

TIMER

CHART

BLU/

GRY BLK

17 1618

BLK

PNK/

21 19

14 1315

RED

WHT/ BRN

VLT

12 10

BLU

GRY/

BLK

897

PNKWHT/

BLK

564

WIRE POSITION

231

24 PIN HOUSING

BLU

KEY

"A" INDICATES 27 SECOND WATER ON ±7 SECONDS.

"B" INDICATES 27 SECOND MOTOR ON ±7 SECONDS.

TERM

IDENT

SWITCH

FUNCTION

REGULARWASH HANDWASHDELICATE

A BP

HI TM

L G K

L F K

FI PS SIS

LO MTR SIS

SA SIS

RED

RED/

BLK

x 2

COLD WATER

HOT WATER P-H

P-V

PRES SW BYPASS

AGITATE

HIGH MOTOR

A-BP

TM-HI

SPIN G-L

G-K

AGITATE

FILL SIS

LOW MOTOR SIS

LOW MOTOR

SPIN

FILL

F-L

F-K

PS-FI

PS-SIS

MTR-LO

MTR-SIS

SPRAY & AGIT SIS

BSIS-SA

WASH

SPIN

SPIN S

SPIN

SPIN T

DEGREES

100

320

160

120

110

130

140

150

170

180

200

190

210

240

220

230

250

260

280

270

290

300

310

330

340

360

350

123 2254 678 111091213 171514 16 2018 19 21 2723 24 2625 2928 30 31 3632 33 34 35 3837 39 40 5849454341 42 44 4746 48 5150 52 53 565554 57 6259 60 61 6463 65 66

INTERVAL NUMBER

PARTNO.

CONTACTS CLOSED

CONTACTS OPEN

THIS MACHINE MANUFACTURED

UNDER ONE OR MORE OFTHE

FOLLOWING PATENTS:

UNITED STATES NO: 3,253,874;

3,838,755; 3,8453642

CANADIAN NO: 1,008,265;

994,685

OTHER PATENTS PENDING

Failure to install, maintain, and/or

operate this machine according to

manufacture's instructions may

result in conditions which can

produce bodily injury and/or

property damage.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Speed Queen Rondelle

Speed Queen

Speed Queen CL8861 Manuel utilisateur

Speed Queen

Speed Queen AWS75NW Manuel utilisateur

Speed Queen

Speed Queen TLW2003N Manuel utilisateur

Speed Queen

Speed Queen Super 20 CL8761 Manuel utilisateur

Speed Queen

Speed Queen 25 lb Manuel utilisateur

Speed Queen

Speed Queen AWNE92SP Manuel utilisateur

Speed Queen

Speed Queen Washer Manuel utilisateur

Speed Queen

Speed Queen 802757R4 Manuel utilisateur

Speed Queen

Speed Queen SF3JM Mode d’emploi

Speed Queen

Speed Queen wx40120 Guide de démarrage rapide

Speed Queen

Speed Queen NX18 Manuel utilisateur

Speed Queen

Speed Queen WX75130 Guide de démarrage rapide

Speed Queen

Speed Queen SCN020G2 Instructions d'installation

Speed Queen

Speed Queen LTSA0AWN Manuel utilisateur

Speed Queen

Speed Queen LWN412 Manuel utilisateur

Speed Queen

Speed Queen WHITE PORCELAIN WASHTUB LWN311SP111TW01 Manuel utilisateur

Speed Queen

Speed Queen ADG41F Manuel utilisateur

Speed Queen

Speed Queen AFNE9RSP113WH Manuel utilisateur

Speed Queen

Speed Queen TR7003WN Manuel utilisateur

Speed Queen

Speed Queen LWS11 Manuel utilisateur

Speed Queen

Speed Queen Top loading Washer Manuel utilisateur

Speed Queen

Speed Queen FA6300 Manuel utilisateur

Speed Queen

Speed Queen AWM393L23059 Manuel utilisateur

Speed Queen

Speed Queen 202147R2 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
