SP-RO-90 RO™ BASIC

Reverse Osmosis Water Purification System

INSTALLATION AND OPERATING MANUAL

WARNING

Please read carefully before proceeding with installation. Failure

to follow any attached instructions or operating parameters

may lead to the product’s failure and possible damage to property.

SpectraPure

Inc.

480.894.5437 Call us toll-free 1.800.685.2783

2167 East Fifth St, Tempe, Arizona 85281

TABLE OF CONTENTS:

Thank You for your purchase of a

SpectraPure®System. With proper

installation and maintenance, this system will provide you with high quality

water for years to come. All SpectraPure

products are rigorously tested by

us for safety and reliability. If you have any questions or concerns, please

contact our customer service department at 1.800.685.2783.

Introduction ............................................................................................................ 3

System Specifications ............................................................................................ 4

System Description ................................................................................................ 5

RO Basic Front View .............................................................................................. 6

RO Basic Rear View ............................................................................................... 7

Working With Push Fittings ................................................................................ 8

System Installation & Initialization .................................................................... 9

Carbon Block Filter Replacement ..................................................................... 10

RO Membrane Replacement ............................................................................. 11

RO Membrane Diagnostics ................................................................................ 12

Testing the Quality of the Membrane ............................................................. 12

Membrane Production Calculation ............................................................ 13-14

Tips for Long Membrane Life ............................................................................ 15

Membrane Troubleshooting Guide ................................................................. 16

Terms and Conditions ........................................................................................ 17

Three Year Limited Warranty ............................................................................ 18

Optional Accessories .......................................................................................... 19

Replacement Parts .............................................................................................. 20

No part of this publication may be reproduced, stored in a retrieval

system, or transmitted in any form or by any means, electronic, mechanical,

photocopying, recording or otherwise without the prior written permission

of SpectraPure Inc.

SpectraPure

Inc

. Fax 480.894.6109 Fax us toll-free 1.877.527.7873

E-mail: [email protected] Visit us on the web www.spectrapure.com 3

SpectraPure

The SP-RO-90-BASIC is a low-waste RO system which has

been specifically designed for easy-to-produce purified water.

Purified water grows healthier freshwater fish than ordinary

tap water. The SP-RO-90-BASIC™ System eliminates up to

99% of contaminants harmful to aquatic growth. Your fish

will flourish with our “better than rain” quality water.

The SP-RO-90-BASIC™ System comes complete

with:

• 90 gallon per day, high-rejection SpectraPure advanced

thin-film membrane

• 3:1 waste ratio produces 33% less waste water

• 5 micron carbon block prefilter eliminates dirt, chlorine,

herbicides and other organic pollutants.

• 5-foot feed tubing, 6-foot product and 5-foot waste tubing

• Garden hose adapter for tap water hookup

• 3-year warranty

SpectraPure

Inc.

480.894.5437 Call us toll-free 1.800.685.2783

2167 East Fifth St, Tempe, Arizona 85281

SYSTEM SPECIFICATIONS:

Carbon Filter 5 micron carbon block prefilter (IL-CB-12)

RO Membrane Type Thin-Film Composite (TFC)

Rejection Rate 98% typical

Input Water Pressure 60 psi (4.15 bar) line pressure*

Input Water Temp 77°F (25°C)

Recovery Rate 25% (i.e. 25% of the water will be collected as pure water)

Dimensions:

8" H x 15" W x 5" D

Nominal Membrane Flow Rates @ 60 psi, 77° F, & 250 ppm TDS :

GPD Product Water Flow Rate Concentrate Flow Rate

90 236 ml/min 710 ml/min

Reverse Osmosis Feed Water Requirements:

Operating Pressure* 40 – 80 psi (2.75 – 5.5 bar)

pH Range 3 – 10

Maximum Temperature 100° F (38° C)

Maximum Turbidity 1.0 NTU

Maximum Silt Density Index 5.0 (based on 15 min. test time)

Maximum Chlorine less than 0.1 ppm

Maximum TDS 500 ppm

Maximum Iron less than 0.1 ppm

Maximum Manganese less than 0.1 ppm

Maximum Hydrogen Sulfide 0 ppm

Langelier Saturation Index LSI must be negative

*Operating pressure less than 40 psi may require a booster pump:

Operating pressure greater than 80 psi may require a pressure regulator.

SpectraPure® Inc.Assumes no responsibility for water

damage due to leaks. It is the user’s responsibility to determine

that the system is leak-free.

SpectraPure

Inc

. Fax 480.894.6109 Fax us toll-free 1.877.527.7873

E-mail: [email protected] Visit us on the web www.spectrapure.com 5

SpectraPure

SYSTEM DESCRIPTION:

The SP-RO-90-BASIC™ System gives you a continuous supply of

sparkling clear, delicious water for drinking, cooking, aquaculture, etc.

Foods will look better and taste better too. The reliability with the Water

Treatment System is greatly improved over other systems and costly

maintenance can be avoided. The system eliminates the need to buy

bottled water. Instead, it puts high quality water at your fingertips.

The incoming feed water from a cold water source is directed through

BLACK tubing to the 5 micron carbon block prefilter. This filter is used to

remove dirt, organics and chlorine from the feed water that can damage

the membrane. The second stage of the system is the RO membrane.

Household water pressure is used to force tap water through the

semipermeable RO membrane. The membrane only allows the purest of

water molecules to pass through it while over 98% of

most inorganic salts,

all micro-organisms and almost all high molecular weight organics in the

water

are rejected and automatically rinsed from the membrane and sent

down the drain.

There is a thin capillary tube (called a Flow Restrictor) located inside the

short red tubing that restricts and regulates the amount of water that goes

to drain. This water is necessary to help keep the membrane flushed free

of pollutants.

An optional manually-operated Flush Valve can be used to periodically

rinse the accumulated impurities and concentrated waste water from the

surface of the RO membrane to help increase the life of the membrane.

SpectraPure

Inc.

480.894.5437 Call us toll-free 1.800.685.2783

2167 East Fifth St, Tempe, Arizona 85281

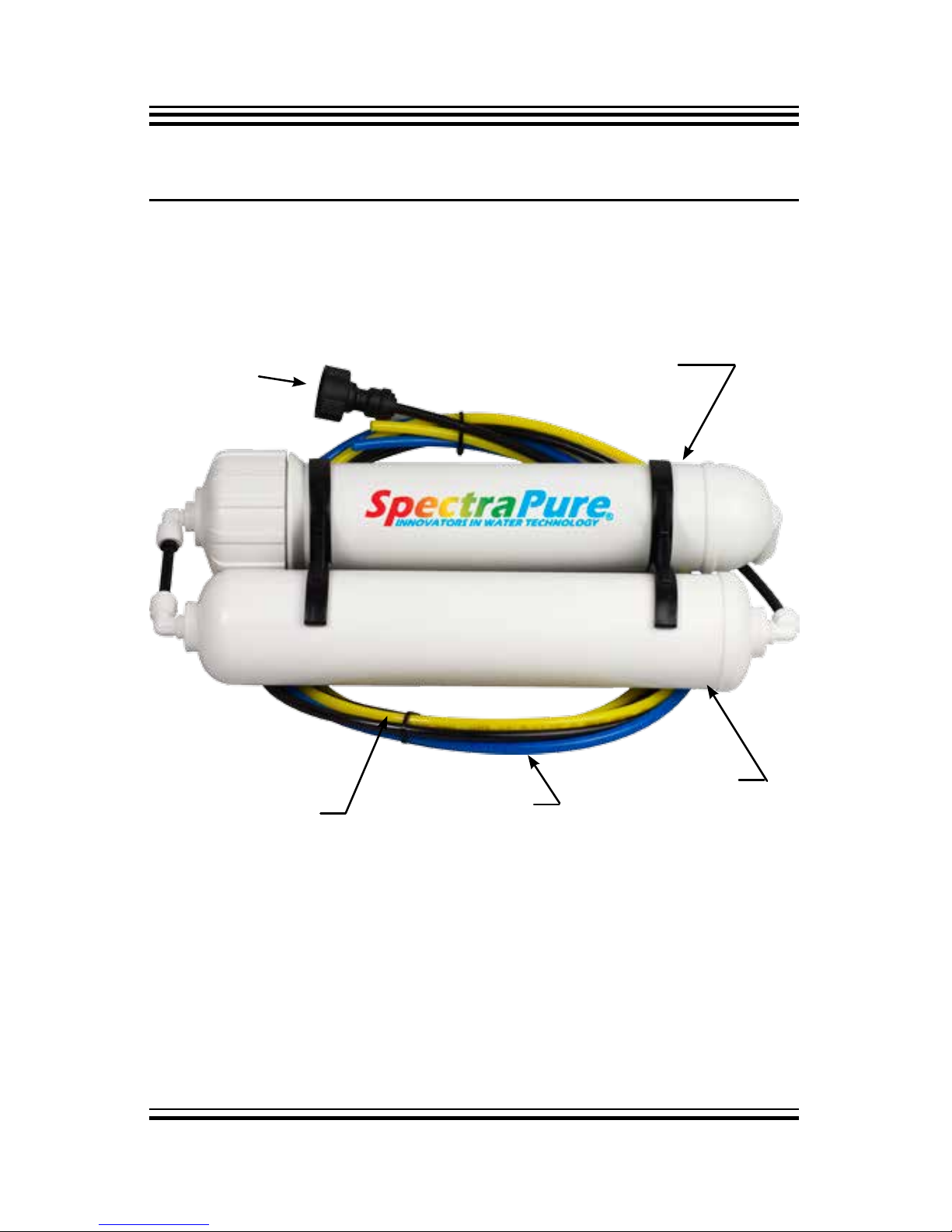

SINGLE MEMBRANE SYSTEM - 90 GPD - FRONT VIEW:

TFC RO Membrane (MEM-0090)

& Housing

5 micron

Carbon Block

Filter

(IL-CB-12)

Feed Water

Attaches

Here

Blue Product

Water Tubing

Yellow Waste

Water Tubing

SpectraPure

Inc

. Fax 480.894.6109 Fax us toll-free 1.877.527.7873

E-mail: [email protected] Visit us on the web www.spectrapure.com 7

SpectraPure

SINGLE MEMBRANE SYSTEM - 90 GPD - REAR VIEW:

BLUE 1/4"

RO Water

Tubing

Attaches

to Blue Collar

Here

YELLOW

1/4"

Waste Water

Tubing

Attaches

Here

RED 1/4" Tubing

and Flow Restrictor

SpectraPure

Inc.

480.894.5437 Call us toll-free 1.800.685.2783

2167 East Fifth St, Tempe, Arizona 85281

WORKING WITH PUSH FITTINGS:

Push fittings are very reliable and convenient tubing connectors.

To remove the tubing from its push fitting:

1. Firmly depress and hold the push fitting collar down with your thumbnail.

2. While the push fitting collar is depressed, pull the tubing straight out

of the push fitting. Once the tubing is removed, release the collar.

To reinsert the tubing into its push fitting:

1. Moisten the O-ring seal inside the push fitting by dripping a few drops

of clean water into the fitting.

2. Grasp the tubing near the end, and insert the tubing into the push

fitting.

3. Push the tubing into the fitting until resistance is felt, approximately

1/2 inch (12.7 mm). The tubing is now resting on the O-ring seal

inside the fitting.

4. Firmly push the tubing approximately an additional 1/4 inch (6.35 mm)

further into the fitting to completely seat the line into the fitting and

past the O -ring seal.

5. Turn on the system water supply and check for leaks prior to further

use or testing. If a leak is observed, you may not have pushed the

tubing into the push fitting far enough to seal the tubing against the

O-ring. Turn off the system water supply and reseat the tubing as

described above.

SpectraPure

Inc

. Fax 480.894.6109 Fax us toll-free 1.877.527.7873

E-mail: [email protected] Visit us on the web www.spectrapure.com 9

SpectraPure

SYSTEM INSTALLATION & INITIALIZATION:

1. Most of the components of this system are plastic and are subject to

damage by ultraviolet light from the sun and other sources such as

metal halide lighting.

2. Avoid installing this unit in an area where it may be subjected to

bright light or direct sunlight, as algae is more likely to thrive inside

the clear filter housings when exposed to bright light.

3. The unit must be kept out of areas that are subject to freezing

temperatures.

4. High temperatures greater than 100° F (38° C) must be avoided. If

the unit is used outside, avoid putting the system in direct sunlight

or connecting it to a garden hose that may be exposed to sunlight.

5. Attach the garden hose adapter (connected to the black tubing) to your

cold water source. Never run hot water (greater than 100° F/38° C)

through the system.

6. Place the yellow concentrate (waste) tubing and the blue purified

(product) water tubing temporarily into a drain. Do not restrict flow

from these lines.

7. Open the cold water supply valve. The pressure should not exceed 80 psi

8. Run the system for one hour to flush any membrane residue.

9. Check the system to ensure that all fittings are tight and leak-free

before leaving the system unattended. (If anything is leaking,

contact SpectraPure for assistance.)

NOTE: If the unit is not used for several days, run the system for

about 10 minutes before collecting any water. This will flush

out any stale water in the system.

10. Finish the installation by directing the yellow line to a drain.

11. Direct the blue line to a collection reservoir.

SpectraPure

Inc.

480.894.5437 Call us toll-free 1.800.685.2783

2167 East Fifth St, Tempe, Arizona 85281

CARBON BLOCK FILTER REPLACEMENT:

A Carbon Filter will usually last 4-6 months ,depending on the chlorine (or

chloramine) content of your tap water and quantity of water being pro-

duced. The best way to determine when your Carbon Block Prefilter needs

replacement is to use a chlorine test kit.

Any chlorine level above 0.1 ppm will cause damage to the membrane

and indicates that the carbon block filter must be changed. To test for

chlorine breakthrough, collect a 10 ml sample of the concentrate from

the yellow tubing and test the chlorine concentration using test kit TK-CL-

10-KIT. If the chlorine concentration is above 0.1ppm, replace the carbon

prefilter.

**NOTE: A drop in the system’s production is, in most cases, an indication

that the sediment filter has become saturated with contaminants, but a

carbon filter can also decrease production if it’s covered with extremely

fine sediment. If the carbon becomes plugged with sediment, it will no

longer be able to remove chlorine.

Carbon Block Filter Replacement

Materials Required: 5 micron Carbon Block Filter (IL-CB-12),

Chlorine Test Kit (TK-CL-10-KIT)

Procedure:

1. Turn off water supply to the system.

2. Disconnect the two black tubes, remove the old filter and discard.

3. Install the new carbon block filter and reconnect the two black tubes.

4. Turn on system water supply and check for leaks.

Table des matières

Autres manuels SpectraPure Système de filtration d'eau

SpectraPure

SpectraPure Coffee Lovers System CLS-90 Manuel utilisateur

SpectraPure

SpectraPure PERFORMANCE PLUS MC-RODI-100-PPLUS Instructions originales

SpectraPure

SpectraPure The MarinePRO Manuel utilisateur

SpectraPure

SpectraPure CSPDI-180 Manuel utilisateur

SpectraPure

SpectraPure Eliminator 90 Manuel utilisateur

SpectraPure

SpectraPure MAXCAP D1 Manuel utilisateur

SpectraPure

SpectraPure MAXCAP RO/DI Manuel utilisateur

SpectraPure

SpectraPure MAXCAP RO Manuel utilisateur

SpectraPure

SpectraPure MaxPure MPRO-300 RO System Manuel utilisateur

SpectraPure

SpectraPure MC-RODI-200UHE Instructions originales

SpectraPure

SpectraPure The Eliminator RO System Manuel utilisateur

SpectraPure

SpectraPure 100 GPD U.H.E RO/DI Instructions originales

SpectraPure

SpectraPure 4-Stage Compact DWS-CLS-3 Manuel utilisateur

SpectraPure

SpectraPure The Eliminator Manuel utilisateur

SpectraPure

SpectraPure Mega MaxCap Manuel utilisateur

SpectraPure

SpectraPure MaxCap MC-RODI-180-MF Manuel utilisateur

SpectraPure

SpectraPure SpectraPlus 2000 Manuel utilisateur

SpectraPure

SpectraPure MaxPure MPDI-90 GPD Manuel utilisateur

SpectraPure

SpectraPure Eliminator RO 100-LP Manuel utilisateur

SpectraPure

SpectraPure PROPLUS RO System Manuel utilisateur

SpectraPure

SpectraPure CR-RODI-90-10 Manuel utilisateur

SpectraPure

SpectraPure MaxCap D1 Manuel utilisateur

SpectraPure

SpectraPure The Eliminator DI Manuel utilisateur

SpectraPure

SpectraPure MaxPure MPDI RO/DI System Manuel utilisateur

Manuels Système de filtration d'eau populaires d'autres marques

Wisy

Wisy LineAir 100 Manuel utilisateur

Schaffner

Schaffner Ecosine FN3446 Series Manuel d'utilisation

Pentair

Pentair FLECK 4600 SXT Guide de l'utilisateur

H2O International

H2O International H20-500 Manuel utilisateur

Renkforce

Renkforce 2306241 Manuel utilisateur

Neo-Pure

Neo-Pure TL3-A502 Manuel utilisateur

FLTR

FLTR OBF Manuel utilisateur

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Manuel utilisateur

Applied Membranes

Applied Membranes W-G844EM Manuel utilisateur

BEGA

BEGA 116 Manuel utilisateur

WATA

WATA Standard Manuel utilisateur

Price

Price FFU series Manuel

Gaggenau

Gaggenau BRITA INTENZA 467873 Manuel utilisateur

Brita

Brita SAFF-100 Manuel utilisateur

HEISSNER

HEISSNER FPU24000-00 Manuel utilisateur

BGS technic

BGS technic 1518 Manuel utilisateur

Reverse Osmosis

Reverse Osmosis RF Series Manuel utilisateur

ubbink

ubbink Filtramax Series Manuel utilisateur
