Speco SPTVIVP Manuel utilisateur
V1.0
Surge Protector
Model: SPTVIVP
HD-TVI/AHD/HDCVI/CVBS & Power Surge Protector
1
User Manual
SPTVIVP
Introduction
SPTVIVP is a surge protector designed to provide protection for analog camera video signals and power
feeds from high voltage surges, supporting a power input of up to DC 40 to 56V.
Features
Resolution up to 4K.
Supports power input up to AC40V/ DC56V.
Response time less than 1 ns.

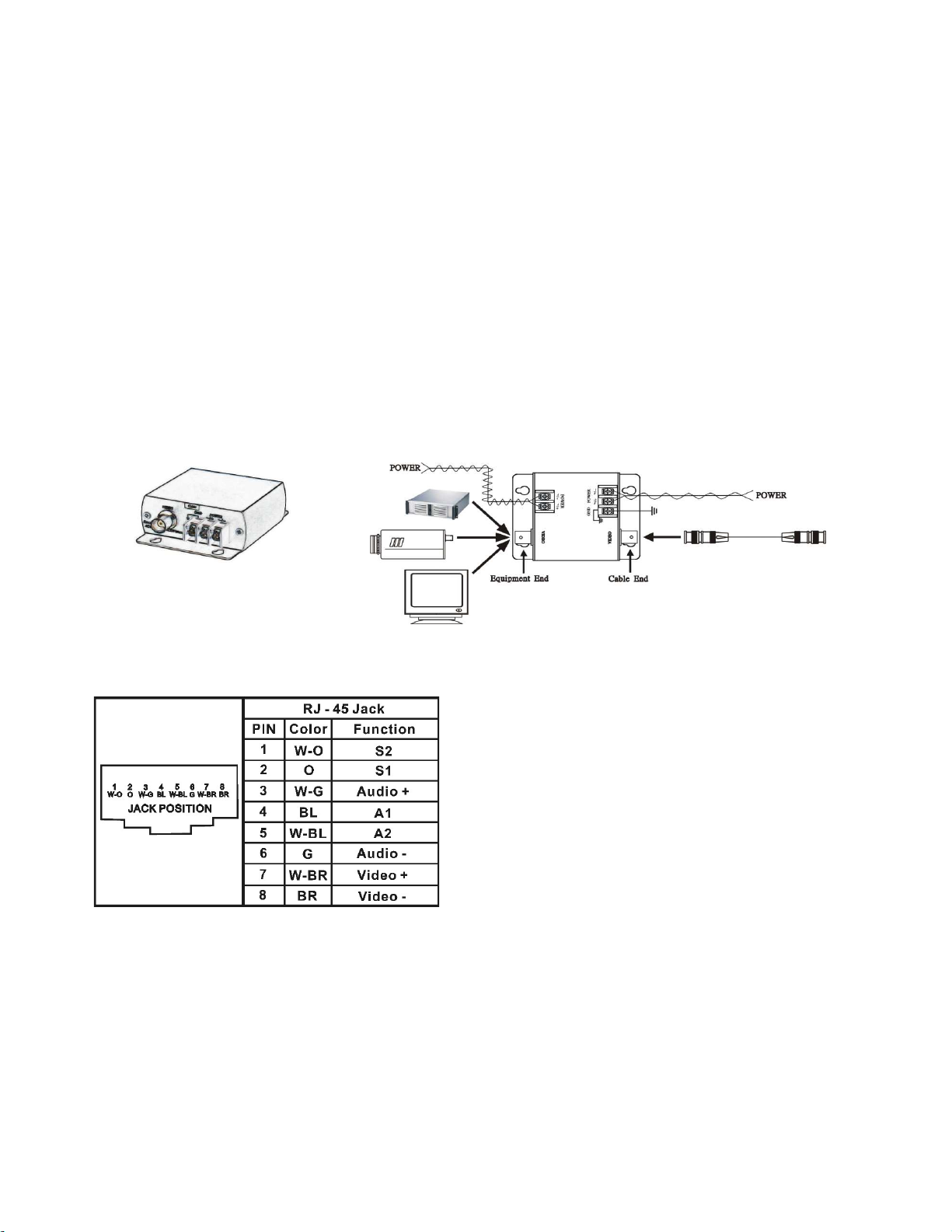

Installation View
2
User Manual
SPTVIVP
Application
Camera Systems
Television antennas
Video Cassette Recorders
FM receivers
Video Cameras and monitors
Multiplexers and Quad Processor
Note
To ensure the unit can protect
your equipment, the cable
must be connected to ground.
3
User Manual
SPTVIVP
Specifications
ITEM NO. SPTVIVP
Support
Response Time Less than 1ns
Max. Surge Voltage 4 KV
Surge Life 300 Times/ 100A Surge
Normal Resistance Across Coax 10,000 MΩ
Band Pass 0 to 1 GHz
Power Passing Capability DC / AC 130V，65 Vrms@10 A
Insertion Loss Less than 0.2dB
Return Loss (75Ω) 16dB
Max. Power Input AC 40V, DC56V
Ports & Interfaces
Equipment End 1 x BNC Female, 1 x 2-pin Terminal Block
Cable End 1 x BNC Female, 1 x 3-pin Terminal Block
Ambient Temperature
Operation 14 to 185°F (-10 to 85℃)
Storage -40 to 221°F (-40 to 105℃)
Humidity 95%
Physical Characteristics
Dimensions 2.6 x 3.4 x 1” (67 x 87 x 27mm)
Weight 0.3 Lbs (145g)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 10/31/22
