Speco O8FD1M Manuel utilisateur

Quick Start Guide

O8FD1M

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class 2 power supply or adequate PoE switch.

Please note: The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water

and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature

and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic

radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Dome cover is an optical device, please don't touch or wipe cover surface directly during

installation and use, please refer to the following methods if dirt is found:

Stained with dirt: Use oil-free soft brush or hair dryer to remove it gently.

Stained with grease or fingerprint: Use oil-free cotton cloth or paper soaked with alcohol

or detergent to wipe from the lens center outward. Change the cloth and wipe several

times if it is not clean enough.

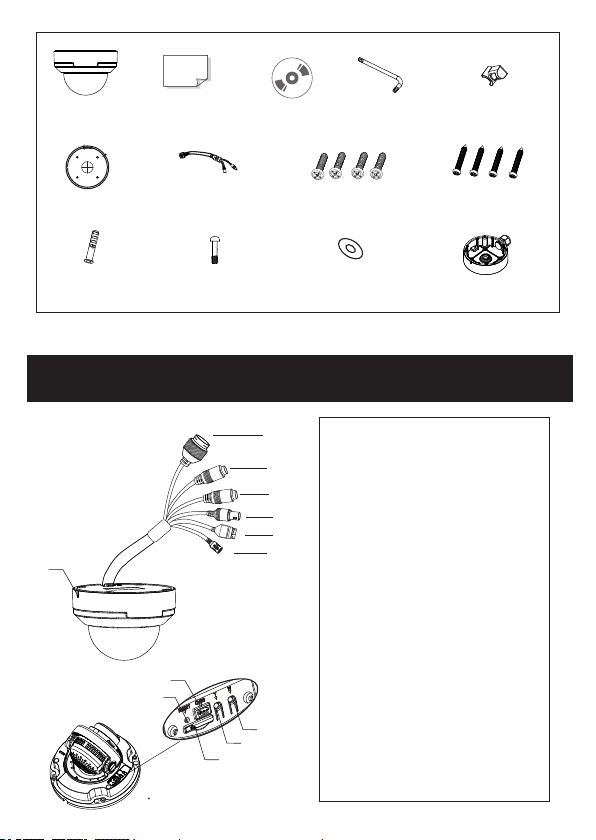

Package

Overview

3 Overview

Camera Quick start guide CD

Drill template

Screwdriver

Junction box

CVBS&DC

IN cables

Rubber plug

1 Ethernet Connector

2 Audio Input (MIC)

3 Audio Output (HP)

4 CVBS Video Output

5 Alarm Input/Output

6 Power Connector

7 Zoom-

8 Zoom+

9 Micro SD Card Slot

10 Reset

11 DC IN & CVBS Interface

12 Microphone

ALARM

4321

4 Screws

(6.5×38mm)

4 screws

8 Plastic screw

anchors

4 Screws 4 Rubber o-rings

for screws

(PM 4×16mm)

(PA 4×25mm)

* It is recommended to install the water-proof connector for outdoor installations.

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the water-proof connector. Then tighten the

nut and the main cover.

Water-proof connector

1--ALM-COM

2--ALM-OPEN

3--ALM-INA

4--ALM-GND

12VDC

ALARM

4 3 2 1

External microphone

Connecting Network Cable

Gap

Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

① Attach the drill template of the junction box to the place where you

want to install the junction box and then rill the screw hole and calbe

hole on the wall according to the drill template.

② Install junction box onto the wall by using the screws provided.

Trim Ring

Lower Dome

12mm

6.5×38mm

4×

Rubber o-ring

③ Align the gap of the trim ring with the microphone by turning the

trim ring with fingers. Then remove the trim ring from the gap of the

camera.

Microphone

④ Connect the cables, mount the rubber plug to the gap of the

mounting base and install the camera onto the junction box.

Turn

Rubber Plug

⑤ Three-axis adjustment. Before adjustment, preview the image of the

camera on a monitor and then adjust the camera according to the figure below

to get an optimum angle.

Rotation 0°~345°

Tilt 0°~77°

Pan 0°~345°

PM 4×16mm

6mm

4×

Web Operation and Login

● Operation

IP Scanner can search for the device on the local network.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

Or download from https://www.specotech.com/ip-scanner/

 Install the lower dome back to the camera and fasten it with screws.

 Put the trim ring onto the lower dome. Finally, remove the protection

film softly.

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.

O8FD1M

5C:F 2:07:24:68:9A
