Speco HTSD37X Manuel utilisateur

HTSD37X

37X Optical Indoor / Outdoor Speed Dome Cameras

Please read this manual thoroughly before operation and keep it handy for further reference

HTSD37X

2/56

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN THE COVERS.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONAL

This lightning flash with arrowhead symbol is intended to alert the user to

the presence of un-insulated "dangerous voltage" within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric

shock to persons.

This exclamation point symbol is intended to alert the user to the presence

of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

This Device compiles with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interface, and

(2) This device must accept any interference received, including

interference that may cause undesired operations.

HTSD37X

3/56

Important Safety Guide

1. Read, heed and follow all the Instructions

Read all the safety and operating instructions before using the product.

2. Keep this manual

Keep this manual for reference in future.

3. Attachments / Accessories

Use only the attachments or accessories specified by the manufacturer.

4. Installation

Do not install near any heat resources such as radiators, heat registers, stoves, or other

appratus including amplifiers that product heat. Improperly installed product may fall,

cause serious injury to a child or adult and damage the product.

Do not block any ventilation holes or openings. Install in accordance with the

manufacturer’s instructions.

Use only with the cart, stand, tripod, bracket, mounting devices, or table specified by

the manufacturer.

Installation should be done only by qualified personnel and conform to all the

instructions by the manufacturer.

Refer all servicing to qualified service personnel.

Unless the product is specifically marked as IP67, more than IP67 or confirmed by the

manufacturer, it is designed for indoor use only and it must not be installed where

exposed to rain and moisture.

Do not load on the product.

Use stainless steel hardware to fasten the mount.

To prevent damage from water leakage when installing a mount outdoors on a roof or

wall, apply sealant properly around holes.

These servicing instructions are for use by qualified service personnel only. To reduce

the risk of electric shock, do not perform any servicing other that contained in the

operationg instructions unless you are qualified to do so.

Use only replacement parts specified by the manufacturer.

5. Power source

This product should be operated only from the type of the power source indicated on the

marking label.

NOTICE

HTSD37X

4/56

Caution

Operating

Before using, make sure that the power supply and others are properly installed.

While operating, if any abnormal condition or malfunction is observed, stop using the

product immediately and then contact your local dealer.

Handling

Do not disassemble or tamper with the parts inside the product.

Do not drop or subject the product to shock and vibration as this can damage the

product.

Care must be taken when you clean the clear dome cover. Especially, scratch and dust

will ruin the quality of the product.

Installation and Storage

Do not install the product in areas of extreme temperature, which exceed the allowable

range.

Avoid installing in humid or dusty places.

Avoid installing in places where radiation is present.

Avoid installing in places where there are strong magnetic fields and electric signals.

Avoid installing in places where the product would be subject to strong vibrations.

NOTICE

HTSD37X

5/56

①Introduction

Features

__________________

Package Components

Main Part Description

②Installation

DIP Switch Setup

Installation with Ceiling Mount Bracket

Installation with Wall Mount Bracket

Wiring and Cabling

③Operation

Check Point before Operation

Check Points for Preset and Pattern Function before Operation

OSD Menu

Reserved Preset (Hot Keys)

Preset

Swing

Pattern

Group

Other Functions

OSD Display

④OSD Menu

Quick Programming Guide

Main Menu

Display Setup

Privacy Zone Mask Setup

Clock Setup

Camera Setup

Motion Setup

Preset Setup

Swing Setup

Pattern Setup

Group Setup

Schedule Setup

Password Setup

System Initialize

⑤Specifications

Dimension

TABLE OF CONTENTS

HTSD37X

6/56

Features

Powerful Zoom Camera & Setup Options

Image Sensor : 1/4" Interline Transfer CCD

Zoom : 37 Optical Zoom, 16 Digital Zoom



Day & Night, Privacy Mask and WDR



DNR (Digital Noise Reduction) Function



Various Focus Mode : Auto-Focus, Manual Focus, Semi-Auto Focus

Various Setup Options in OSD Menu.

Powerful Pan/Tilt Functions

MAX. 500/sec High Speed Pan/Tilt Motion

With the Vector Drive Technology, Pan/Tilt motions are accomplished along the

shortest path. As a result, the time to target view is remarkably short and the video on

the monitor is very natural in monitoring.

With the Micro-Stepping Control Technology, the video looks very natural at high

zoom magnification during a jog operation on a controller since the camera can be

controlled by 0.05/sec. Hence it is very easy to make the camera focus on desired

target views at high zoom magnification. Additionally it is easy to make the camera

focus on desired positions with zoom-proportional pan/tilt movement.

RTC(Real Time Clock) Function

Date and Time can be configured for Schedule Function

With Backup Battery Function, Date and Time configuration should be kept up for a while,

even though power is off

INTRODUCTION

HTSD37X

7/56

Preset, Pattern, Swing, Group, Schedule, Privacy Mask and More…

MAX. 209 Presets are programmable and each preset can have its own parameter

values independently from the other presets.

For an example, refer to the below table.

Preset No.

White Balance

AutoExposure

•••

Label

Remarks

Preset 1

CaseA

Case3

“ENTRANCE”

Preset 2

CaseC

Case5

“WAREHOUSE”

•••

Preset 95



ReservedforOSDMenu

•••

Preset 255

CaseK

Case9

“TERRACE”

MAX. 10 sets of Swing are programmable. This function is that a camera moves

repetitively between two preset positions at programmed speeds.

MAX. 8 Patterns are programmable. This function is that a camera memorizes the path

(mostly curve path) by the joystick of the controller and revives the trajectory

operated by the joystick as closely as possible.

MAX. 8 sets of Group are programmable. This function is that a camera memorizes the

combination of Presets, Pattern and/or Swings sequently and runs Presets, Pattern

and/or Swings repetitively. A Group can be combined upto 40 functions with any of

Preset/Pattern/Swing.

MAX. 8 Privacy Masks are programmable, not to intrude on any other’s privacy.

MAX. 8 sets of Schedule are programmable. This function is that a camera runs a function

such as Preset, Pattern, Swing or Group at an assigned time. Also this function can be run

periodically by pre-defined schedules.

PTZ(Pan/Tilt/Zoom) Control

With the RS-485 communication connection, MAX. 255 units of cameras can be

connected to a single controller.

Pelco-D or Pelco-P protocols can be selected as a control protocol in the current

firmware version.

OSD(On Screen Display) Menu

OSD menu is provided to display the status of camera and to configure the functions

interactively. A Password can be configured in OSD menu and OSD menu can be protected.

The information such as Camera ID, Pan/Tilt Angle, Time/Date, Direction, Alarm Input

and Preset is displayed on screen.

Multi-Language OSD menu is supported.

INTRODUCTION

HTSD37X

8/56



Alarm In/Out Function

3 alarm sensor inputs and 1 alarm sensor outputs are available.

Alarm sensor input is decoupled with photo-couplers to avoid external electric noise

and shock perfectly.

Both of N.O.(Normal Open) sensors and N.C.(Normal Close) sensors can be used and

the signal range of the sensor input is from DC 5.0V to 12.0V for various applications.

The camera can be set to move to a Preset position or to run functions such as Pattern,

Swing and Group when there are external sensor activations. Also “Post Alarm”

function is possible, which is supposed to activate after user-defined time period and

sequentially in succession to the action by external sensor activations.

Reserved Presets(Hot Keys)

Most camera setup options can be set up easily and directly with the reserved presets

(Hot Keys), without entering into OSD menu. For more information, refer to “Reserved

Presets(Hot Keys)”in this manual.

Dual Power Input

The input power source is DC 12 V or AC 24 V.



Perfect Outdoor Environment Compatibility and Easy Installation

The fans and heaters are built-in in the camera for cold and hot temperature

environment. Also idealistic mechanical design protects the camera from water and

dust. (IP67 when installed properly with wall mount bracket only)

It is easy to install and repair the camera.

INTRODUCTION

HTSD37X

9/56

Package Component

Product & Accessories

MainBody &Surface MountBracket

DefaultAccessories

[MainCable,I/OCable ,Wrench,Owner’sManual]

Brackets (Wall Mount Bracket is included but Ceiling Mount Bracket is optional)

Wall MountBracket includedin thepackage

[Screws :TORX Machine M4L18,HexLag

#1450]

CeilingMount Bracket (CLGMT37X)isoptional

[Screws :TORX Machine M4L18,AnchorBolt

3/8"70]

INTRODUCTION

HTSD37X

10/56

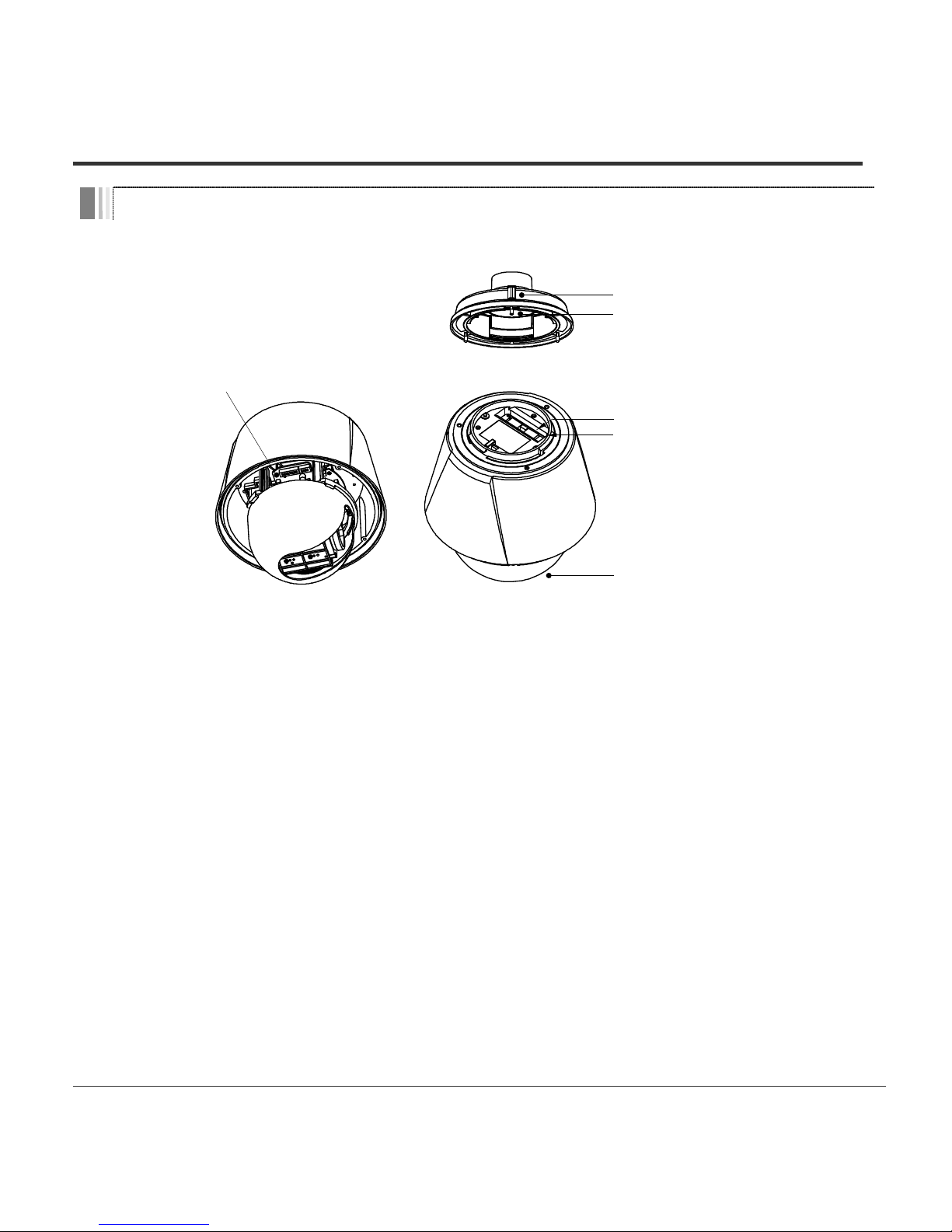

Main Part Description

DIP Switch

Main Connector

Sensor I/O Port

Dome Cover

Mounting Screw Hole

Drop Prevention Spring

DomeCover

Do not detach the protection vinyl from the dome cover before

finishing all the installation process to protect the dome cover from

scratches or dust.

DIPSwitch

Used to set up camera IDs and protocols.

DropPrevention

Spring

This part keeps the camera from dropping during installation and

maintenance. After install the Bracket, please, hang the spring to

the drop prevention hook of main body as shown in picture for

further tasks.

MountingScrewHole

Used to assemble the main body with a bracket with screws.

MainConnector

Used for the power wire, the video cable and the RS-485

communication cable connection.

SensorI/OPort

Used for the sensor in/out connection.

INTRODUCTION

Autres manuels pour HTSD37X

Table des matières

Autres manuels Speco Caméra de sécurité

Speco

Speco O4VD1 Manuel utilisateur

Speco

Speco ONSIP 02T5 Manuel utilisateur

Speco

Speco CVC-1705 Manuel utilisateur

Speco

Speco HT-647HRTP Manuel utilisateur

Speco

Speco 960H Series Manuel utilisateur

Speco

Speco IP-SD10X Manuel utilisateur

Speco

Speco INTENSIFIER3 HTINTB10 Manuel utilisateur

Speco

Speco VL-183 Manuel utilisateur

Speco

Speco HLPR1TW Manuel utilisateur

Speco

Speco CVC-340LC Manuel utilisateur

Speco

Speco HTMD1H Manuel utilisateur

Speco

Speco 650Line Intensifier3 Series Manuel utilisateur

Speco

Speco O4DT5 Manuel utilisateur

Speco

Speco INTENSIFIER CVC6246IHR Manuel utilisateur

Speco

Speco O8VLB3 Manuel utilisateur

Speco

Speco VIP1D1 Manuel utilisateur

Speco

Speco Intensifier K HTINT70K Manuel utilisateur

Speco

Speco CVC-7245EXTP Manuel utilisateur

Speco

Speco HT-7816DNV Manuel utilisateur

Speco

Speco HT7040K Manuel utilisateur

Speco

Speco O5D2 Manuel utilisateur

Speco

Speco HT-650IRVFHQ/S Manuel utilisateur

Speco

Speco H5T1M Manuel utilisateur

Speco

Speco O8FD1 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
