TVI 10x Auto Focus Zoom LPR Camera

4QFDP5FDIOPMPHJFTJTDPOTUBOUMZEFWFMPQJOHQSPEVDUJNQSPWFNFOUT

8FSFTFSWFUIFSJHIUUPNPEJGZQSPEVDUEFTJHOBOETQFDJGJDBUJPOTXJUIPVUOPUJDFBOEXJUIPVUJODVSSJOHBOZPCMJHBUJPO 3FW

HLPR67T

(IR Bullet Camera)

Contents

- 1 -

Ł

Contents......................................................1

Ł

Precautions.................................................2, 3

Ł

Safety Instructions ......................................4

Ł

Package Contents.......................................5

Ł

Camera Installation.....................................6-8

Ł

6SHFL¿FDWLRQV..............................................9

Ł

Camera Dimension.....................................10

Ł

Features......................................................11

Ł

OSD Menu Details......................................12-25

Ł

Trouble Shooting.........................................26

- 2 -

Precautions

Do not install the camera in

extreme temperature conditions. Do not touch the front lens of the

camera.

Never keep the camera pointed

directly at strong light. Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially careful to

provide ventilation when operating under

high temperatures.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

It can cause malfunctions to occur. If exposed to radioactivity the CCD

will fail.

Severe lighting change or flicker can

cause the camera to work improperly.

Housing damage can compromise

weatherproof ratings.

NOTE

* If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

- 3 -

CA

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION : To prevent electric shock and risk of fire hazards:

ōDo NOT use power sources other than those specified.

WARNING - To prevent electric shock and risk of fire hazards:

୛Do NOT use power sources other than that specified.

୛Do NOT expose this appliance to rain or moisture.

In USA and Canada, Use Class 2 Power Supply Only

- 4 -

Safety Instructions

1SFDBVUJPOTGPSVTF

1MFBTFIBOEMFUIJTDBNFSBDBSFGVMMZ

Ł7KLVFDPHUDVKRXOGEHLQVWDOOHGE\TXDOL¿HGSHUVRQQHORQO\

ŁThere are no user serviceable parts inside

ŁDo not disassemble this camera other than to make initial adjustments

ŁUse a UL approved regulated 24 volt AC or 12 volt DC power supply

8VHDSSURSULDWHORZYROWDJHSRZHUFDEOHWRSUHYHQW¿UHRUHOHFWULFDOVKRFN

Please insure that your installation area can support the weight of the camera

ŁDo not use a strong or abrasive detergent when cleaning the camera

ŁDo not install near cooling or heating device

- 5 -

Package Contents

Please make sure that the following items are included in the Package:

1) HLPR67T

q8KFGQ6GUV%QPPGEVQT2QYGT,CEM

q(QEWU#FLWUVOGPV*.246

q$TCEMGV$CUG

q9TGPEJ

q5GV5ETGY

6CRRKPI5ETGYUZ

*GZCIQP5QEMGV5ETGYU/Z

- 6 -

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500mA)

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

3. CONNECT VIDEO CABLE

1) WHEN USING IT AS ANALOG OUTPUT,

CONNECT YELLOW COLOR BNC CABLE TO THE BNC JACK.

2) WHEN USING IT AS TVI OUTPUT,

CONNECT BLACK COLOR BNC CABLE TO THE BNC JACK.

DC 12V Power S upply

Power Input :RED

Center : (+)

C V B S

T V I

LBACK:(-)

RED(+)

PowerSupply

AC 24V

- 7 -

CAMERA INSTALLATION

Compatibility

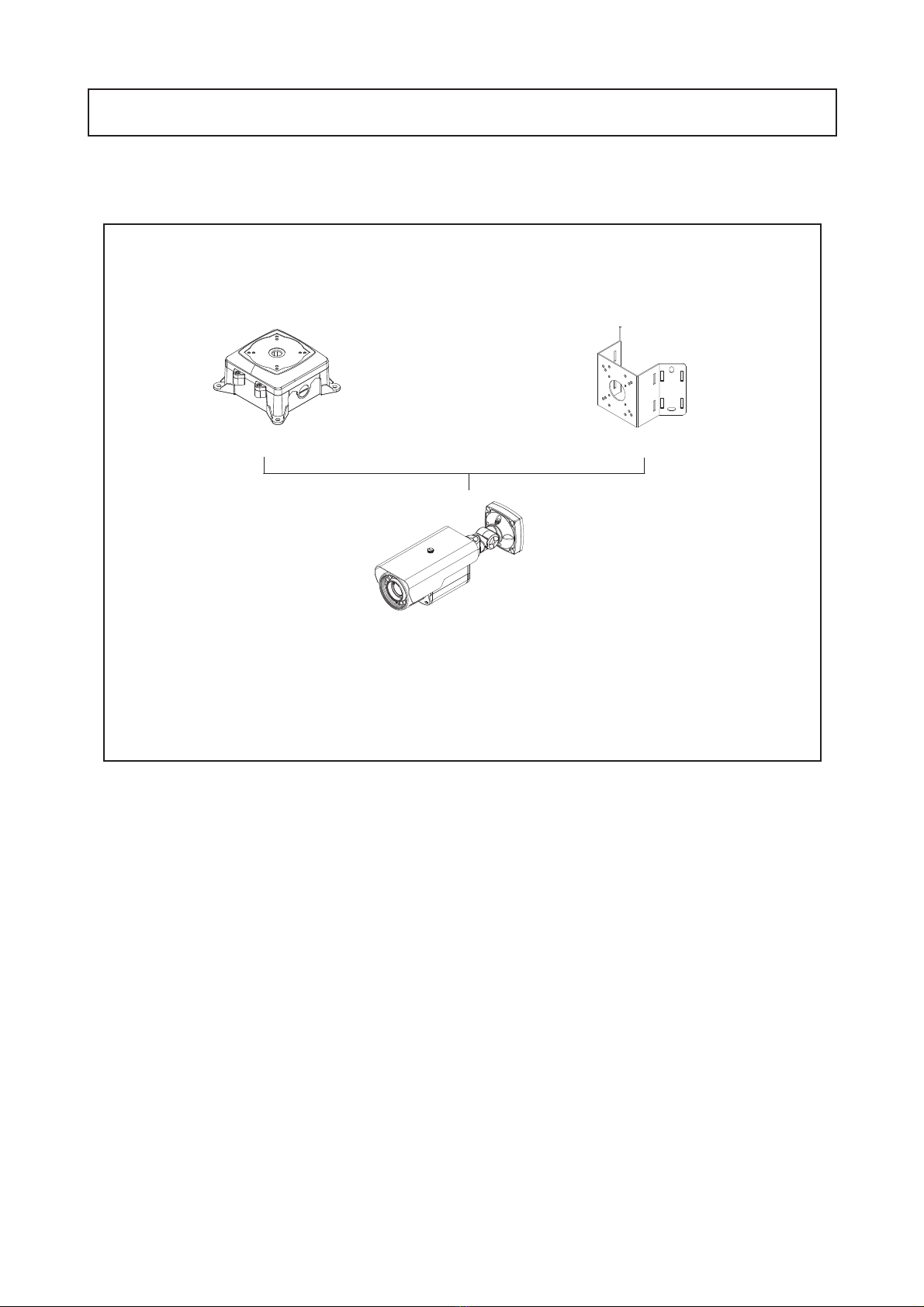

1) HLPR67T

INTJBSW INTCMW

CAMERA INSTALLATION

- 8 -

%#76+10The installation instructions in this manual are for use by qualified service

personnel only. To reduce the risk of electric shock, do not perform any servicing other

than that contained in the operating instructions unless you are qualified to do so.

SCREW TS T1, 4X25, TH, SUS, 4EA

WALL

SCREW M5X10, HEXAGON SOCKET, SUS, BK, 4EA

1. HLPR67T

- 9 -

Image Sensor

Total Pixels

Active Pixels

Scanning System

Sync. System

Resolution

Video Output

Min. Illumination

Lens Type

Focal Length

MODE

AGC

Shut Speed

IRIS

Brightness

WDR/BLC

HLC

DNR

GAMMA

COLOR/B&W

IR CONTROL

FOCUS

DISTANCE

ZOOM SPEED

LENS REFRESH

EXPOSURE

WHITE BAL

MIRROR

DEFOGE

FREEZE

ACE

PRIVACY

MOTION

DEFECT

IMAGE RANGE

LANGUAGE

Power Source

Power Consumption

Operating Temperature

1/3” Panasonic CMOS Sensor

1,956(H) x 1,266(V), 2.48M Pixels

1,944(H) x 1,092(V), 2.12M Pixels

Progressive Scan

Internal

Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps

Analog : 700TVL

HD : HD TVI, Analog : CVBS(without WDR)

S/N RatioC More than 50dB(AGC off)

0 Lux(IR LED ON)

10x Auto Focus Zoom Lens / Optical x10, Digital x32 Zoom

F=5mm ~ 50mm

AUTO,IRIS.P,SHUT.P,MANUAL

0~5~10

4X,2X,1/30sec,1/60sec,1/120sec,1/250sec,1/700sec,1/1000sec,1/1600sec,

1/2500sec,1/5000sec,1/7000sec,1/10000sec,1/30000sec

0~7~20

0~20

WDR / BLC / OFF

MODE / LEVEL / COLOR

OFF,LOW,MIDDLE,HIGH,AUTO

0.45,0.55,0.65,0.75

COLOR/B&W

ON/OFF

ONE PUSH/MANUAL/AUTO

0.1m,1.0m,3.0m,5.0m,10.0m

0~7

ONE PUSH,1day,2day,3day,4day,5day,6day,7day,8day,9day,10day

FLICKERLESS / ---

MODE / RED GAIN / BLUE GAIN / CHROMA

OFF,H,V,H&V

OFF,MANUAL,AUTO / MANUAL-LOW,MIDDLE,HIGH

ON/OFF

OFF,LOW,MIDDLE,HIGH

ON/OFF (#: 1~24) / COLOR (0~13) / TRANS (0~3)

ON/OFF (#: 1~3) / SENSITIVITY (1~20) / INTERVAL & DWELL TIME (0~255sec)

0~255

COMP / USER / FULL

ENG

DC 12V / AC 24V Dual Votage Operation

260mA(IR ON : 560mA)

-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)

Storage Temperature -4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)

External Diemension 3.98”(W) x 4.57”(H) x 13.11”(D)

Weight 3.52Ibs

HLPR67T

SPECIFICATIONS

+/357;$872)2&86=220/(16

79,;$872)2&86=220/35 &$0(5$
