Assembly Instruction
AI – D8WRSMPMQB2
Description: D8WRSM, D16WRSM
Product Code(s): TBD
Equipment #1 Size Phillips head drill, Flat head screwdriver,
Required 3/16” hex head driver, ¼” hex head driver
Associated
Documents:
Eng Approved:
Date:
Alt Approved:
Date:
REVISION HISTORY
DATE INITIAL REASON FOR CHANGE REV.
4/22/14
5/23/14
rm
rm
•
New Document
Changed colors of power cable
NC
a
Product: AI- D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14 Page 2 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
Equipment Required:
10mm open end wrench
10 mm nutdriver
Lamp Cable Assy
Sensor assembly cable
Power cable assy – (see image below)
drill w/ 5/16” drill bit
conical washer
ruler
heat gun
1/8” shrink tubing
Cable Assemblies Required
Refer to Photo 1 on the following page. Mask the case and mark the drill
locations. The holes will be drilled on the door hinge side of the wall mount
and at the specific locations
5.25” and 6.00” from the base.
Use a starter drill such as 1/8”. Final drill size for both holes is 5/16”.
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 3 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
Drill Locations Adding the hardware
Connect the Lamp assembly and the sensor switch assembly to the
chassis with the supplied hardware. Note that the switch assembly gets the
conical washer as shown. Below are the 2 cable assemblies mounted to
the chassis (inside).
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 4 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701

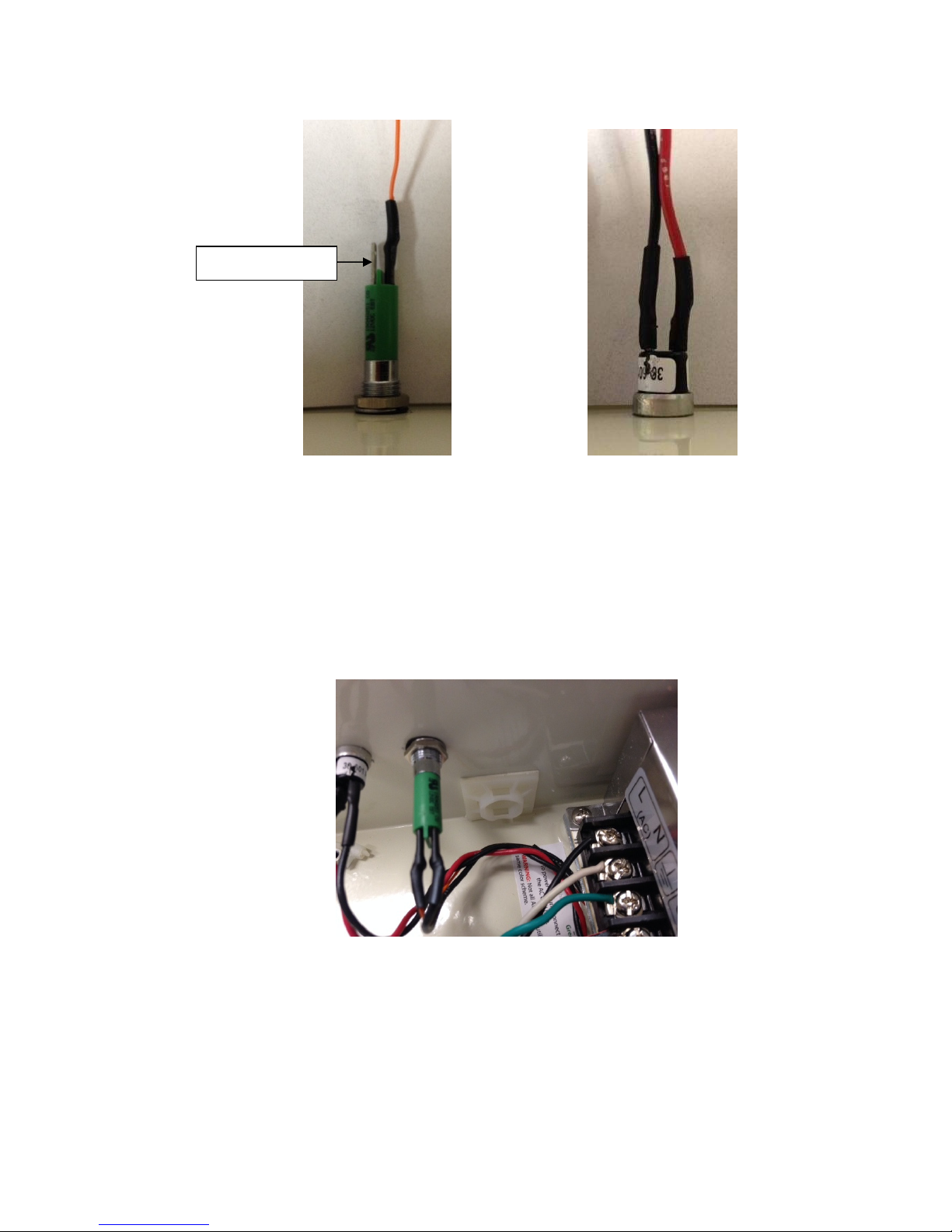

Slide a 1/8” pre-cut shrink tubing over the red wire of the Power Cable.
Solder this wire to the gold terminal post on the Lamp Cable led. Heat the
shrink tubing with the heat gun.
Add a cable anchor to the inside chassis as shown.
Photo right, tie assemblies cable in a neat bundle and secure with a tywrap.
Embossed +
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 5 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
The photo above shows the 2 cable assemblies in a bundle.
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 6 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
2.0 - Pre Assembly
1) Attach brackets to the HDD using four DVRWM632SCREW (No ring permitted on screw)
2) Attach the control board to the painted side of WRSMPlate using two 2-56 screws
(90272A081), two 2-56 nuts (90480A003) and two bumpers (9540K11). Place the bumper
between the board and the plate. The nut should be on the plate. The wired side should be
at the bottom of the plate near the tabs.
Repeat on other side.
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 7 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
3) Attach the Monitor board to the unpainted side of the WRSMPlate using two 2-56 screws
(90272A081), two 2-56 nuts (90480A003) and two bumpers (9540K11). Place the bumper
between the board and the plate as shown below. The nut should be on the board.
4) Connect the power board cable and the video cable to the monitor board
5) Release the ribbon from the back of the monitor and place the power connector through the
hole in the WRSMPlate.
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 8 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
6) Slide the monitor into the tabs and lock down using the clip. Attach the clip with a 4-40
screw (90272A106) and a 4-40 locknut (90633A05).
7) For the new WRSMPLATE, add small piece of doubled sided tape to lower part of the
monitor side and below one clip.
8) Connect the monitor power connector to the monitor board
9) Attach the ribbon to the monitor board by releasing the clip and inserting the ribbon. Be
sure not to crease the ribbon. Once inserted lock in by pressing the clips back in.
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 9 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
10) Group the cables and wire tie down using the open hole on the monitor board as shown
below.
Product: D8WRSPMQB2 AI- D8WRSPMQB2 Rev a
4/22/14
Page 10 of 20
Speco Technologies Confidential 200 New Highway, Amityville NY 11701
Section 3.0 - Main Assembly
Box Breakdown:
1) Place the WM Housing in front of you and tighten the nylon screw (93135A144) into the 3
pems which will not be utilized during the build. See below.
HDD
Monitor
Main Board
IR Board
