SPECIALIZED TURBO CREO SL

SERVICE & REPAIR WORKBOOK

Dear Specialized Retailer and Specialized Employee,

we are excited to present the all-new Turbo Creo SL! We’re going to flatten your climbs. We’re going to make you laugh at headwinds, ride farther, and go faster than you

ever imagined. That’s what our first Turbo road bike is all about. Because, let’s be honest, riding faster is just more fun.

Turbo Creo SL –It`s you, only faster.

About This Workbook

SBCU developed this Workbook to help you efficiently service Specialized Turbo Creo SL bicycles. In addition to this workbook, SBCU also offers you these resources:

•Workbook ‘Turbo SL Technology System: Features & Benefits’ -overs the Turbo SL Technology in detail

•Workbook ‘Turbo Creo SL: Features, Benefits & Guidelines’ -covers the Creo bike family in detail

•Resources on the Service Website -cover specific aspects around service & repair

•SBCU.com product videos -cover key product knowledge

•‘Turbo Creo SL Quick Start Guide’ -covers key usage tips (rider-facing)

Please refer to your market contacts for these assets in your language and go to the Service Website to access all technical documentation.

Our Asks For Using This Workbook

1. Keep it and its value within your business -this document is meant to be a source of knowledge exclusively for Turbo Retailers and Specialized staff

2. Save this PDF to all your PCs for quick access

3. Go through it at least once in its entirety so that you know the content

4. Use the clickable table of contents to find your desired topic

5. Use the search function (Ctrl+f) to scan the document for key words

6. Use it to host product presentations to your teams and colleagues

We are confident this Workbook quickly turns into a key element for lasting success in your environment.

-The Specialized Turbo Team

Disclaimer: The content of this Workbook was compiled according to best knowledge and with greatest care. Yet, all data is subject to change. Regular corrections and additions will make sure the content stays up-to-date.

CREO SL SERVICE & REPAIR WORKBOOK: INDEX

CREO SL SYSTEM COMPONENTS

UNBOXING & BIKE BUILDING

WIRING & CABLING SCHEME

TURBO CONNECT UNIT

SPEED SENSOR SYSTEM

REPLACING NON-TURBO CABLING

CHARGE PORT & MAIN HARNESS

BASIC THEORY OF OPERATION

MOTOR & INTERNAL BATTERY

DIAGNOSTICS & TROUBLESHOOTING

MAINTENANCE & CLEANING TIPS

FIRMWARE UPDATES

SERVICE PARTS

BIKE PREP FOR RIDER HANDOVER

REPLACING ELECTRONIC COMPONENTS

EXPERIENCE & MODELS

FOLLOW-UP CHECKLIST

NORMAL SYSTEM BEHAVIOR

EXPERIENCE & MODELS

CREO SL: SERVICE & REPAIR

TURBO CREO SL: EXPERIENCES

ENDURANCE ROAD (NON-EVO MODELS)GRAVEL (EVO MODEL)

TURBO CREO SL: EXPERIENCES

ENDURANCE ROAD (NON-EVO MODELS) GRAVEL (EVO MODEL)

TURBO CREO SL: MODEL OVERVIEW

MODEL FRAME FORK FUTURE

SHOCK MOTOR INT.

BAT. RE BAT. UI DRIVETRAIN BRAKES WHEELS TIRES

SEATPOST

CREO SL SW

CARBON

FACT 11r

Disc FACT,

Full Carbon

Future Shock

Damped w/

lockout, 20 mm

travel

Specialized

SL 1.1 SBC-B15

320 WH

Included

(w/ Zee Cage,

retention strap,

Y-charge

cable) Turbo Connect

Unit (TCU) in

top tube

Dura-Ace Di2 Dura-Ace BR-

R9170

Roval Rapide CLX

50 Disc Boost

Turbo SW,

700x28

S-Works FACT

carbon

CREO SL

EXPERT

CARBON EVO

Not

included

(compatible)Ultegra Di2 Ultegra BR-

R8070

Roval C38 Disc

Boost

Pathfinder

Pro 2BR,

700x38

X-Fusion,

Manic, 50mm

Travel

CREO SL

EXPERT

CARBON

Turbo Pro,

700x28

S-Works FACT

carbon

MODEL OVERVIEW

1. THIS IS AHIGH-LEVEL OVERVIEW

2. FOR ALL SPECIFICATION DETAILS REFER TO THE CREO SL WORKBOOK

CREO SL SYSTEM COMPONENTS

CREO SL: SERVICE & REPAIR

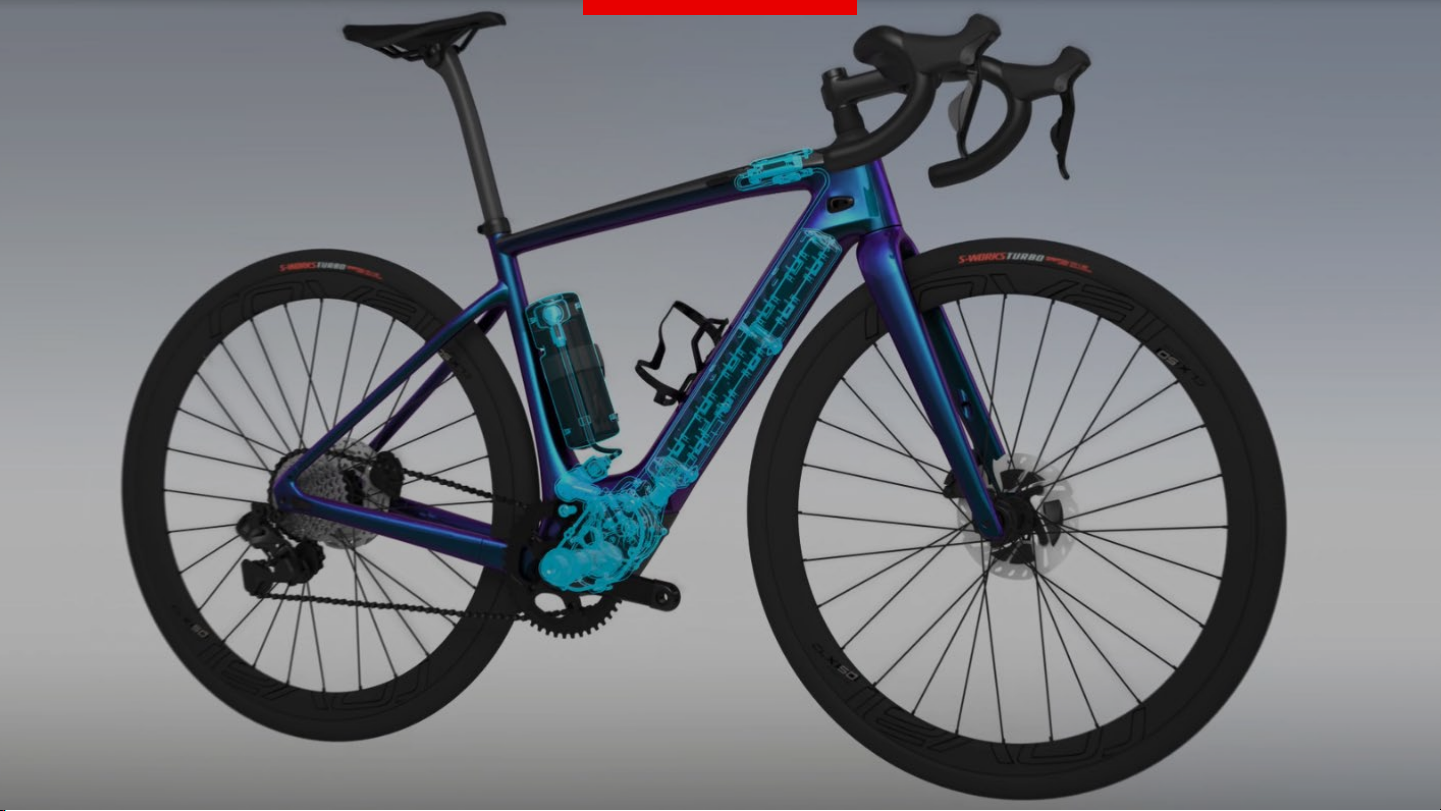

Main Harness

Connects battery, motor, TCU and charge/RE port

Range Extender Battery (RE)

160 Wh, 48V

Sits in bottle cage

Connects to charge/RE port

Turbo SL 1.1 Motor

180% Rider Amplification, 2x Yo u

240 W nominal & peak power

35 Nm max. torque

1.95 kg

48V

Speed Sensor System

Frame and centerlock integration

TCU

Identical part as Levo2

Shows soc for both batteries

SL Charger

48V

Dedicated connector

Internal Battery

320 Wh, 48V

Integrated in

downtube

CREO SL: SYSTEM COMPONENTS
