H.264 Network Digital Video Recorder User Manual



USERMANUAL

ElegantSeriesDVR





DualStreaming

H.264Multiplex8Ch/16Ch/24Ch/32CHChNetworkDVR

V1.5

H.264 Network Digital Video Recorder User Manual

Welcome

Thank you for purchasing our DVR!

This manual is designed to be a reference tool for the installation and operation of your system.

Here you can find information about this series DVR features and functions, as well as a detailed menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

Do not place the heavy object on the DVR.

Do not let any solid or liquid fall into or infiltrate the DVR.

Please brushing the printed circuit boards, connectors, fans, machine box and so on regularly. Before the dust

cleaning please switch off the power supply and unplug it.

Do not disassemble or repair the DVR by yourself. Do not replace the electronic components by yourself.

Environment

Avoid direct sunlight. Stay away from heat source.

Do not install the DVR in damp environment.

Do not use the DVR in smoky or dusty environment.

Avoid collision or strong fall.

Please insure the DVR level installation in a stable workplace.

Please install in ventilated place. Keep the vent clean.

Use within the rating input and output scope.

H.264 Network Digital Video Recorder User Manual

Contents

1. Production Introduction..........................................................................................................................................4

1.1 Product overview..................................................................................................................................................4

1.2 Main functions......................................................................................................................................................4

2. Open-package check and cable connection……………………………………………………………..…………5

2.1 Open-package check.............................................................................................................................................5

2.2 Frame installation .................................................................................................................................................5

2.3 Front panel............................................................................................................................................................5

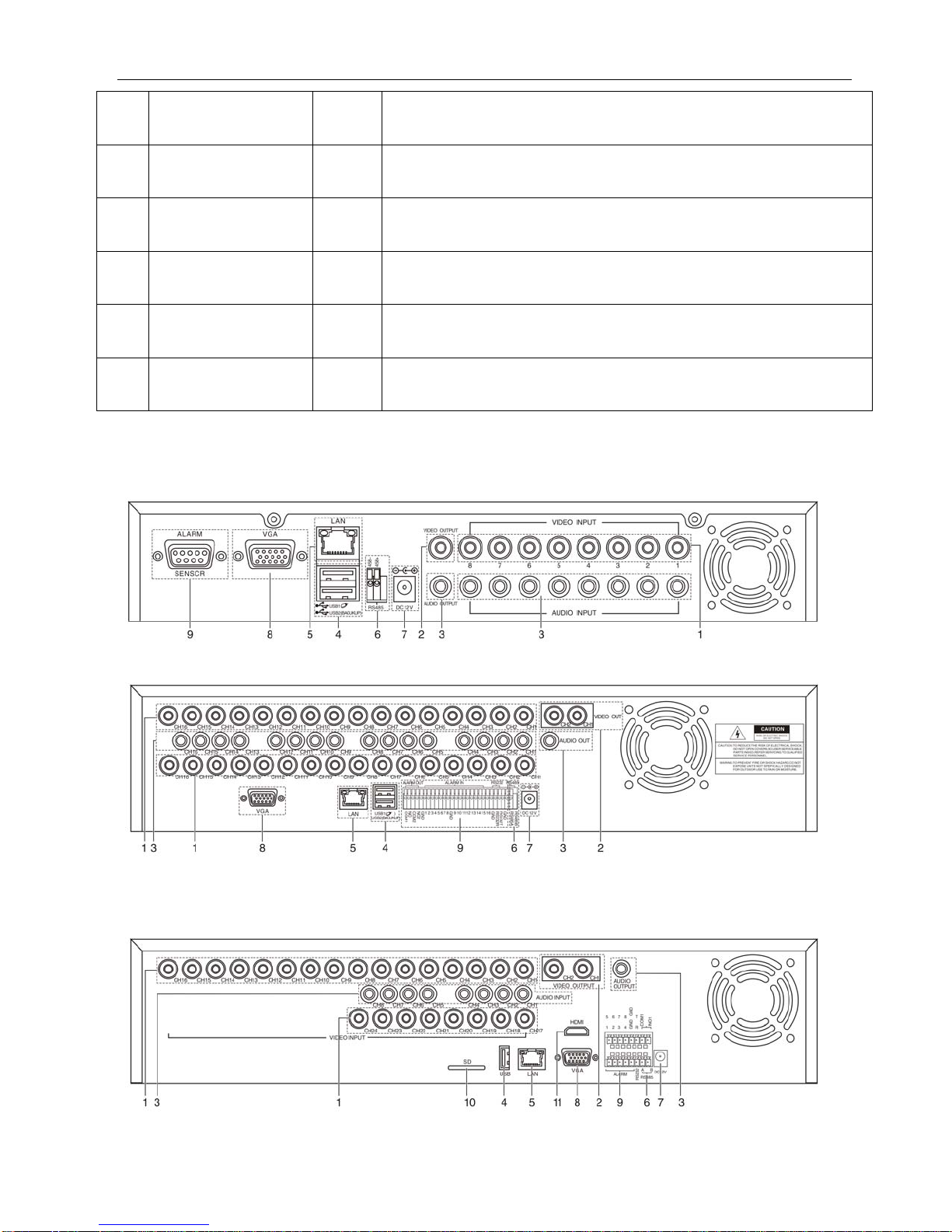

2.4 Rear panel.............................................................................................................................................................7

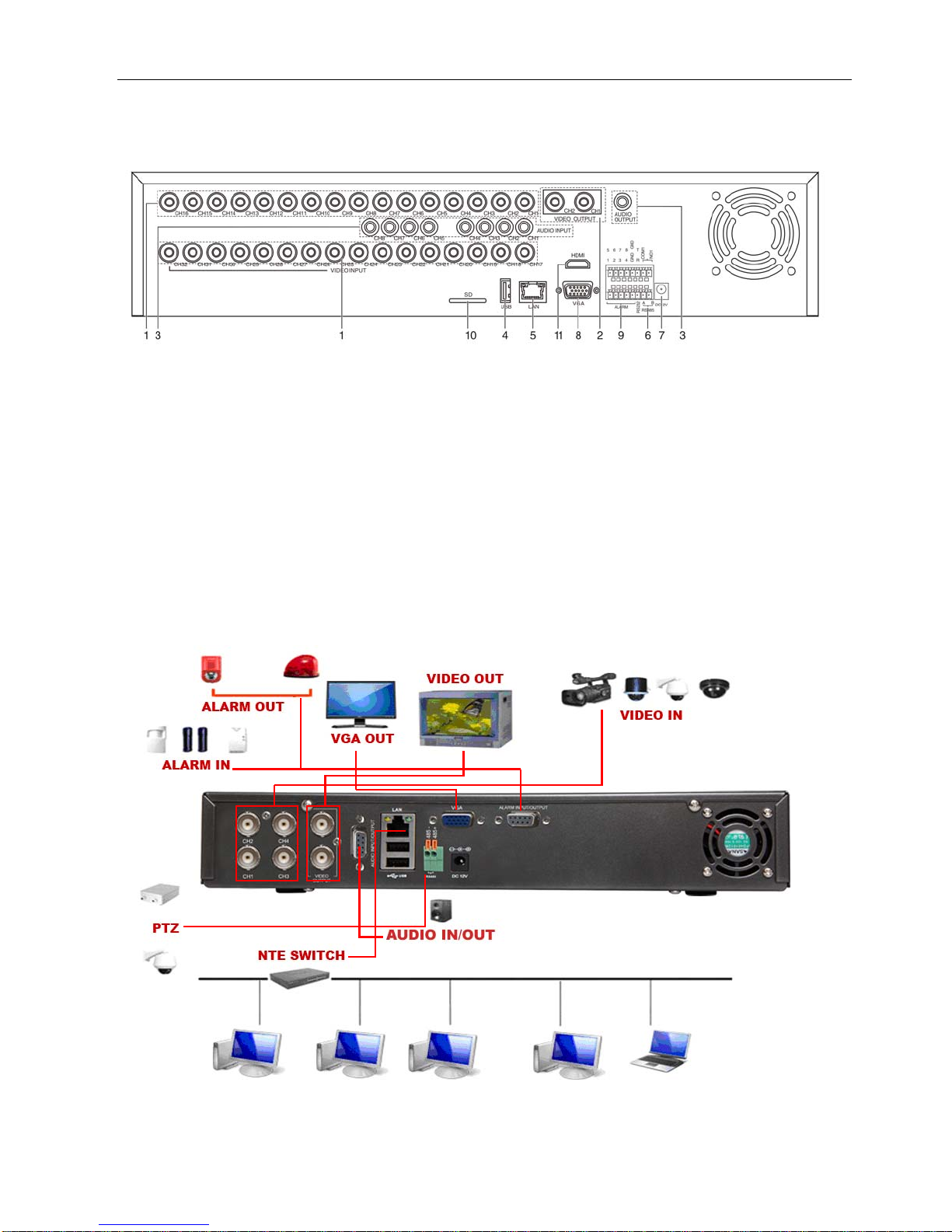

2.5 Installation connections sketch map (Below just as the 4CH DVR for example,Specifically please refer to practical product.)................8

2.6 Audio and video input and output connections.....................................................................................................9

2.6.1 Video input connections.............................................................................................................................9

2.6.2 Video output connections and options.......................................................................................................9

2.6.3 Audio input ................................................................................................................................................9

2.6.4 Audio output ..............................................................................................................................................9

2.7 Alarm input and output connections(Some models no such function,please prevail in kind.) ....................................................10

2.7.1 Alarm input port specification(This feature should be used in conjunction and external alarm module, some models have an external

alarm module for optional.）.................................................................................................................................10

2.7.2 Alarm output port specification(This feature should be used in conjunction and external alarm module, some models have an external

alarm module for optional.）.................................................................................................................................10

2.8 Speed dome connections.....................................................................................................................................11

3. Basic operation ..................................................................................................................................................11

3.1 Turn on................................................................................................................................................................11

3.2 Turn off...............................................................................................................................................................11

3.3 Login...................................................................................................................................................................12

3.4 Preview...............................................................................................................................................................12

3.5 Desktop shortcut menu.......................................................................................................................................13

3.5.1 Record Mode ...........................................................................................................................................13

3.5.2 Video playback ........................................................................................................................................13

3.5.3 PTZ control..............................................................................................................................................16

3.5.4 Color Setting............................................................................................................................................20

3.5.5 Output Adjust...........................................................................................................................................21

3.5.6 Window switch ........................................................................................................................................21

3.5.7 System information..................................................................................................................................21

3.5.7.1 Hard Disk information......................................................................................................................21

3.5.7.2 Log information................................................................................................................................22

3.5.7.3 Code stream statistics........................................................................................................................22

3.5.7.4 Online user........................................................................................................................................23

3.5.7.5 Edition information...........................................................................................................................23

H.264 Network Digital Video Recorder User Manual

3.5.8 Logout......................................................................................................................................................23

4. Main Menu ........................................................................................................................................................24

4.1 Main Menu navigation........................................................................................................................................25

4.2 Record Mode ......................................................................................................................................................26

4.3 Record Config.....................................................................................................................................................26

4.4 Encode setup.......................................................................................................................................................27

4.5 HDD manage......................................................................................................................................................28

4.6 Network setup.....................................................................................................................................................29

4.7 PTZ config..........................................................................................................................................................36

4.8 Alarm setup.........................................................................................................................................................36

4.8.1 Motion Detect..........................................................................................................................................36

4.8.2 Video Blind..............................................................................................................................................39

4.8.3 Video Loss ...............................................................................................................................................39

4.8.4 Alarm input..............................................................................................................................................40

4.8.5 Alarm output............................................................................................................................................40

4.9 System setup.......................................................................................................................................................41

4.9.1 General setup ...........................................................................................................................................41

4.9.2 GUI Display.............................................................................................................................................42

4.9.3 Account management...............................................................................................................................43

4.9.4 Upgrade ...................................................................................................................................................45

4.9.5 Restore config..........................................................................................................................................45

4.9.6 Backup.....................................................................................................................................................45

4.9.7 Device Info ..............................................................................................................................................47

4.9.8 AutoMaintain...........................................................................................................................................47

5. Netview and Management.................................................................................................................................47

5.1 WEB network control.........................................................................................................................................47

5.2 Client CMS software operation ..........................................................................................................................49

6. FAQ and Maintenance.......................................................................................................................................52

6.1 FAQ .................................................................................................................................................................52

6.2 Maintenance........................................................................................................................................................56

Appendix 1.Remote controller operation..................................................................................................................56

Appendix 2.Mouse operation....................................................................................................................................56

Appendix 3.Hard Disk capability calculation...........................................................................................................58

Appendix 4. Technique parameters...........................................................................................................................58

H.264 Network Digital Video Recorder User Manual

1. Production Introduction

1.1 Product overview

The series DVR is designed specially for security and defense field which is an outstanding digital surveillance

product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp

video compressed format and G.711A audio compressed format which insures the high quality image, low error

coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network

communication ability and telecommunication ability.

The series DVR can be used individually or online applied as a part of a safety surveillance network. With the

professional network video surveillance software it achieves the strong network communication ability and

telecommunication ability.

The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation,

intelligent housing, factory, storehouse, water conservancy and so on.

1.2 Main functions

Real-time surveillance

· analog interface and VGA interface (VGA interface is equipped selectively)

· surveillance function through monitor or display

Storage

· non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the

life-span

·special storage format which insures the data safety

Compression

·real-time compression by individual hard disk which insures the audio and video signal stable synchronization

Backup

·through SATA interface and USB interface such as USB equipment, removable hard disk and so on

· through net download the files in the hard disk

Playback

· individual real-time video recording as well as searching, playback, network surveillance, recording check,

downloading and so on

· multi-channel playback mode

· zoom at arbitrary region

Net operating

· through net tele-surveillance in the real time

· remote control PTZ

· remote check the recording and real-time playback

Alarm linkage

·only one channel relay alarm output which is convenient for the alarm linkage and light control at the spot

·protecting circuits at the alarm input and output interface which protects the main machine from damage

Communication interface

·RS485 interface which fulfills the alarm input and PTZ control

H.264 Network Digital Video Recorder User Manual

·standard ethernet network interface which fulfills the telecommuting function

Intelligent operating

·mouse action function

·fast copy and paste operating for the same setting

2. Open-package check and cable connection

2.1 Open-package check

When you receive the DVR, please check first .

First, please check whether there is any visible damage to the package appearance. The protective materials used for

the package of the DVR can protect most accidental clashes during transportation.

Then, please open the box and get rid off the plastic protective materials. Check whether there is any visible damage

to the DVR appearance.

At last, please open the machine crust and check the data wire in the front panel, power wire, the connection between

the fan power and the main board.

(1).Front panel and rear panel

The key function specification in the front panel and the interface specification in the real panel are in the

specification.

Please check the product type in the front panel whether is accordant with the product type you order.

The label in the real panel is very important for the after service. Please protect it carefully. When you contact

us for after service, please provide the product type and serial number in the label.

(2). After open the case should be checked

In addition to checking whether there are obvious signs of external damage, please note that before the inspection

panel data lines, power lines and motherboard connection is loose.

2.2 Frame installation

The specification of machine box is standard 1U.It can be installed in the standard frame.

Installation approach and notice:

1. Make sure the house temperature under 35℃(95°f).

2. Keep the DVR away from other equipments at least 15 centimeters (6 inches).

3. Frame installation from bottom to top.

4. If installing multiple components in the frame, take precaution to avoid the overload of the jack.

2.3 Front panel

8CH DVR panel:

H.264 Network Digital Video Recorder User Manual

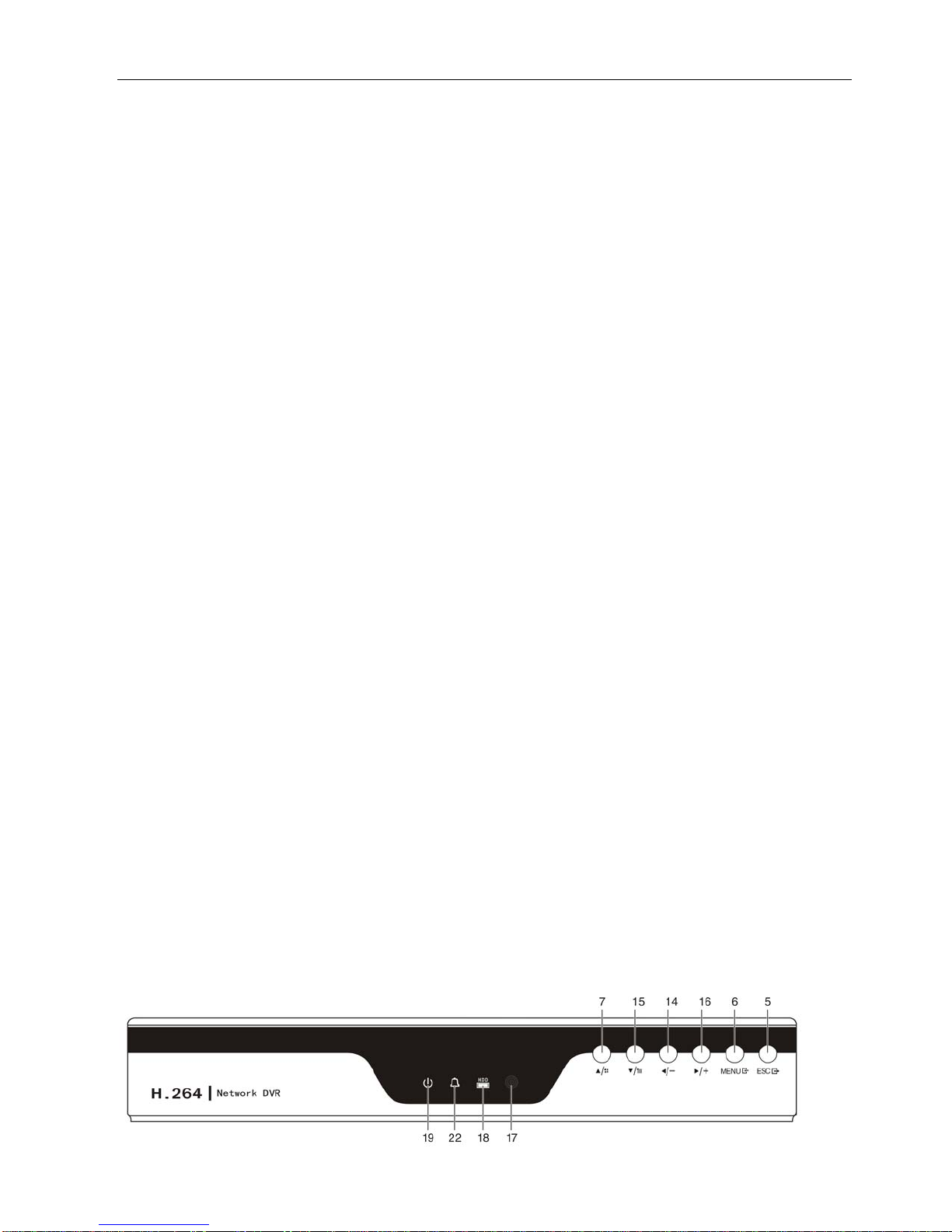

16CH DVR panel / 24CH DVR panel / 32CH DVR panel

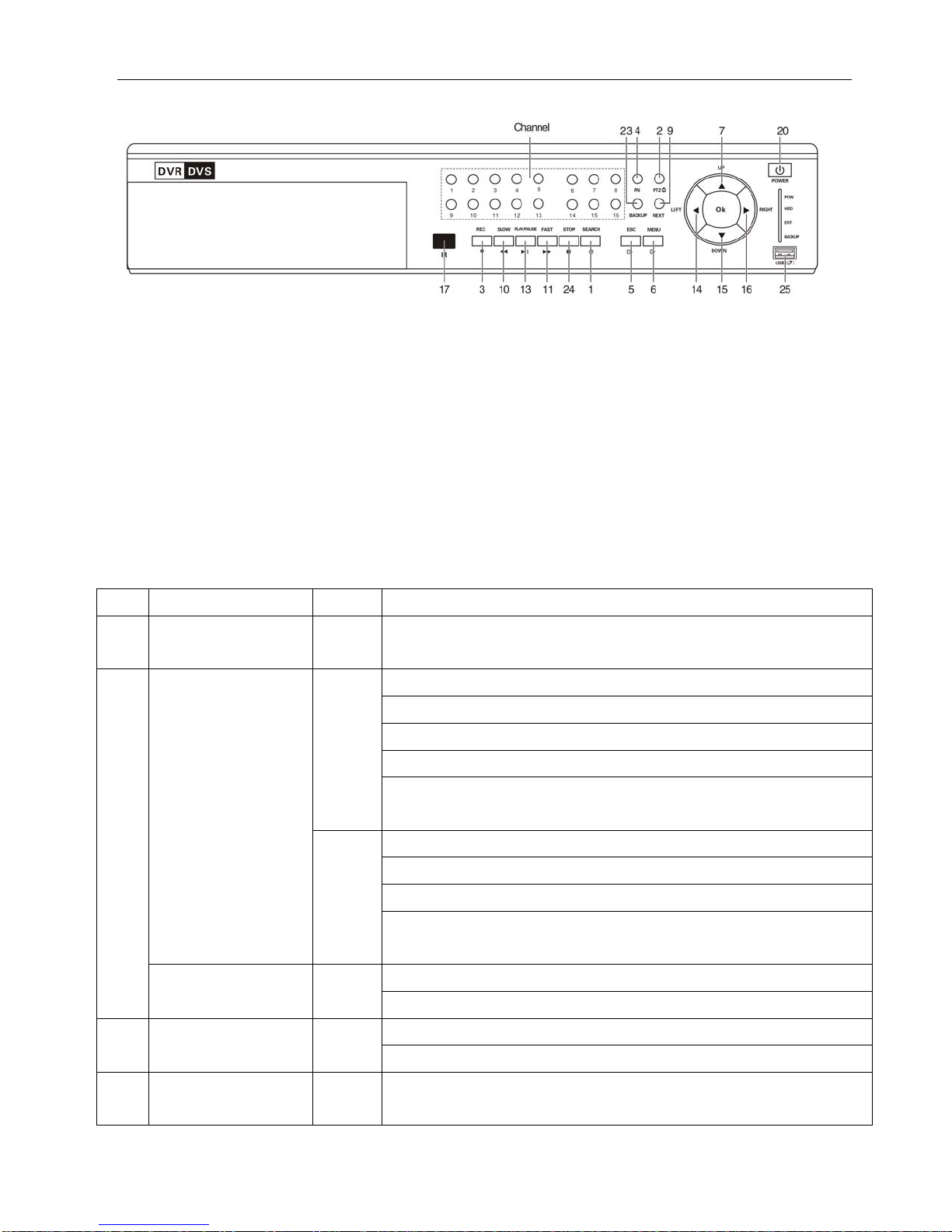

(1) Recording search button / 7 (2) PTZ control button / 8 (3) recording button / 0

(4) Shift function button (5) cancel button (6) menu & confirm button

(7)Upbutton (8)Playpreviousfile/1 (9)Playnextfile/2

(10) Slow play / 3 (11) Fast play / 4 (12) Playback or pause / 5

(13) Play or pause / 6 (14) Left button (15) Down button

(16)Rightbutton (17)IRremoterreceiver (18)Harddiskindicatorlight

(19) Power indicator light (20) Power switch (21) Hard disk information

(22)Alarm (23)Backup (24)Stop

(25) USB interface

Front panel button operation function table

Num. Button name Mark Function

1 Shift function button

SHIFT Shift in the number button, character button and other function button during

the user under input state

Direction button

Remove the cursor

Add or decrease number during the user edit state

Change the setting in the menu

Enter 1 channel or 4 channels surveillance during surveillance image

After pressing the shift button, press this button can enter 1 or 4 during edit

state

< >

Remove the cursor when the main menu or submenu is popped

Remove the cursor during the playback state

Enter 2 channel or 3 channel surveillance during surveillance image

After pressing the shift button, press this button to enter 2 or 3 during edit

state

Main menu/Confirm

button ENTER Confirm

Enter main menu

3 Cancel button ESC Back to the above level menu or cancel operation in the operation menu

Back to the real-time surveillance during the playback state

4 Play previous file

button I_Play previous video during the playback state

Enter 1 during edit state

H.264 Network Digital Video Recorder User Manual

5 Play next

file button `I Play next video during the playback state

Enter 2 during edit state

6 Slow play ►Play in the multi-low or regular speed video during the playback state

Enter 3 during edit state

7 Fast play Play in the multi-fast or regular speed video during the playback state

Enter 4 during edit state

8 Playback/pause button

II/_Playback the video or pause during the playback state

Enter 5 during edit state

9 Play/pause button `\II Play the video or pause during the playback state

Enter 6 during edit state

10 Recording button REC Start/stop the video recording manually

With the direction button choose the channel in the recording control menu

2.4 Rear panel

8CH DVR panel

16CH DVR panel

24CH DVR panel

H.264 Network Digital Video Recorder User Manual

32CH DVR panel

(1)Videoinput (2)Videooutput (3)Audioinput/audiooutput

(4) USB interface (5) Network interface (6) RS-485 interface video

(7)Powerjack (8)VGAoutput (9)Alarminput/alarmoutput

(10) SD Card interface (11) HDMI interface

Note: Some models have front panel USB interface,this interface with the top of the rear panel USB port are

mutually exclusive,only one interface at the same time effective.The bottom of a rear panel USB as an independent

and effective.

2.5 Installation connections sketch map (Below just as the 4CH DVR for example, Specifically please

refer to practical product.)

H.264 Network Digital Video Recorder User Manual

2.6 Audio and video input and output connections

2.6.1 Video input connections

The video input port is BNC connector plug. The demand of input signal is PAL/NTSC BNC(1.0VP-P,75Ω).The

video signal must be accorded with the state standard which has the high signal to noise ratio, low aberration and low

interference. The image must be clear and has natural color in the appropriate brightness.

Insure the camera signal stable and credible

The camera should be installed in the appropriate location where is away from backlighting and low illumination or

adopts the better backlighting and low illumination compensation.

The ground and power supply of the camera and the DVR should be shared and stable.

Insure the transmission line stable and credible

The video transmission line should adopt high quality coaxial pair which is chosen by the transmission distance. If

the transmission distance is too far, it should adopt shielded twisted pair, video compensation equipment and transmit

by fiber to insure the signal quality.

The video signal line should be away from the electromagnetic Interference and other equipments signal lines. The

high voltage current should be avoided especially.

Insure the connection stable and credible

The signal and shield lines should be firm and connected credible which avoid false and joint welding and oxidation.

2.6.2 Video output connections and options

The video output is divided into PAL/NTSC BNC (1.0VP-P, 75Ω) and VGAoutput (selective configuration).

When replace the monitor by the computer display, there are some issues to notice.

1. Do not stay in the turn-on state for a long time.

2. Keep the computer display normal working by demagnetizing regularly.

3. Stay away from the electromagnetic Interference.

TV is not a credible replacement as a video output. It demands reducing the use time and control the power supply

and the interference introduced by the nearby equipments strictly. The creepage of low quality TV can lead to the

damage of other equipments.

2.6.3 Audio input

Audio port is RCA connection.

The input impedance is high so the tone arm must be active.

The audio signal line should be firm and away from the electromagnetic Interference and connected credible which

avoid false and joint welding and oxidation. The high voltage current should be avoided especially.

2.6.4 Audio output

Commonly the output parameter of DVR audio signal is greater than 200mv 1KΩ(BNC) which can connect the low

impedance earphone and active sound box or other audio output equipments through power amplifier. If the sound

box and the tone arm cannot be isolated, howling phenomena is often existed. There are some methods to deal with

the above phenomena.

1. Adopt better directional tone arm.

2. Adjust the sound box volume to be under the threshold that produces the howling phenomena.

3. Use fitment materials that absorb the sound to reduce reflection of the sound.

4. Adjust the layout of the sound box and the tone arm.

Autres manuels pour Elegant Series

Table des matières

Autres manuels Sparsh DVR

Sparsh

Sparsh Dual Streaming Manuel utilisateur

Sparsh

Sparsh SE4204 Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
