SPARENERGO SE5000U Manuel utilisateur

User Manual

SE5000U (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh)

SE7000U (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh)

SE10000U (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh)

For On / Off Hybrid Solar Storage System

Version: 1.0

Contents

1. Safety Pre autions.............................................................................................................................................. - 2 -

1.1. Before Conne ting .................................................................................................................................................. - 2 -

1.2. During operation .................................................................................................................................................... - 2 -

2. Battery Spe ifi ations

................................................................................................................................................... - 3 -

3. Introdu tion to the battery

.......................................................................................................................................... - 5 -

3.1. Key Features ........................................................................................................................................................... - 5 -

3.2. Interfa e Introdu tion ............................................................................................................................................. - 5 -

3.3. SOC Indi ator & Status Indi ator Guides.............................................................................................................. - 6 -

3.4. Conne tors.............................................................................................................................................................. - 7 -

3.5. Wake Up button........................................................................................................................................................ - 7 -

3.6. Display fun tion instru tion ..................................................................................................................................... - 7 -

3.6.1. Referen e of real figure

................................................................................................................................. - 7 -

3.6.2. S reen Display

.............................................................................................................................................. - 8 -

3.6.3. Fun tional Spe ifi ations

............................................................................................................................. - 8 -

4. Safe handling guide

.................................................................................................................................................. - 10 -

4.1. System Diagram .................................................................................................................................................... - 10 -

4.2. Tools....................................................................................................................................................................... - 10 -

4.3. Safety Gear............................................................................................................................................................. - 11 -

5. Installation

................................................................................................................................................................ - 11 -

5.1. Inventory of items ................................................................................................................................................... - 11 -

5.2. Installation Lo ation ............................................................................................................................................... - 11 -

5.2.1. Minimum learan es

.................................................................................................................................. - 12 -

5.3. Installing the Battery Pa k...................................................................................................................................... - 13 -

5.3.1. Mounting to a wall

....................................................................................................................................... - 13 -

5.4. Parallel use of battery ........................................................................................................................................... - 14 -

5.4.1. Parallel use of battery ( All off grid solar inverters )........................................................................................ - 14 -

5.4.2. Parallel use of SL battery on Canbus /RS485( All hybrid on-off grid solar inverters) ............................... - 16 -

5.4.3. ADS guide Line ............................................................................................................................................... - 17 -

6. Produ t Warranty

...................................................................................................................................................... - 24 -

6.1. ................................................................................................................................................................................ - 24 -

6.2. ................................................................................................................................................................................ - 24 -

6.3. ................................................................................................................................................................................ - 24 -

6.4. Fa tory Warranty S ope ....................................................................................................................................... - 24 -

6.5. Warranty onditions............................................................................................................................................... - 24 -

Safety Pre autions

•It is very important and ne essary to read the user manual arefully before installing or using the

battery. Failure to follow any of the instru tions or warnings in this do ument an result in

ele tri al sho k, serious injury, death, or may damage the battery and the whole system.

•If the battery is stored for a prolonged time, it is requirement that they are harged every three to

six months, and the SOC should be no less than 80%.

•The battery needs to be re harged within 12 hours, after fully dis harging.

•Do not expose able outside.

•All battery terminals must be dis onne ted before maintenan e.

•Do not use leaning solvents to lean the battery.

•Do not expose the battery to flammable or harsh hemi als or vapors.

•Do not paint any part of the battery, in lude any internal or external omponents.

•Do not onne t battery with PV solar wiring dire tly.

•Any foreign obje t is prohibited to be inserted into any part of the battery.

•Any warranty laims are ex luded for dire t or indire t damage due to items above.

1.1.

Before Conne ting

•After unpa king, please he k the battery and pa king list first, if the battery is damaged or spare

parts are missing, Please onta t the dealer.

•Before installation, be sure to ut off the grid power and make sure the battery is in the turned-off

mode;

•Wiring must be orre t, do not mix- onne t the positive and negative ables, and ensure no short

ir uit with the external devi e;

•It is prohibited to onne t the battery with AC power dire tly;

•The embedded BMS in the battery is designed for 48VDC, please DO NOT onne t battery in

series;

•It is prohibited to onne t the battery with different type of battery;

•Please ensure the ele tri al parameters of battery system are ompatible to inverter;

•Keep the battery away from fire or water.

1.2.

During operation

•If the battery system needs to be moved or repaired, the power must be ut off first and the

battery is ompletely shutdown;

•It is prohibited to onne t the battery with different type of battery;

•It is prohibited to put the batteries working with faulty or in ompatible inverter;

•In ase of fire, only dry powder fire extinguisher an be used, liquid fire extinguishers are

prohibited;

•Please do not open, repair or disassemble the battery. We do not undertake any onsequen es or

related responsibility due to violation of safety operation or violating of design, produ tion and

equipment safety standards.

Battery Spe ifi ations

Model No

SE-5000U/15S SE-7000U/15S SE-10000U/15S

Nominal Parameters

Voltage

48 V 48 V 48 V

Capa ity

100Ah 150Ah 200Ah

Energy

4.8 KwH 7.2 KwH 9.6 KwH

Dimensions (L x W x H)

680 x480 x180(220)mm 680 x480 x180(220)mm 680x480x180(220)mm

Weight

58.5kg 75.0 kg 96.5kg

Basic Parameters

Life time(25°C)

20 years

Life y les(80% DOD, 25°C)

6000 Cy les

Storage time / temperature

5 months @ 25°C; 3 months @ 35°C; 1 month @

45°C

Operation temperature

-20°C to 60°C @60+/-25% Relative Humidity

Storage temperature

0°C to 45°C @60+/-25% Relative Humidity

Lithium Battery Standard

IEC62619,UN38.3,ROHS,CE-

EMC,UL1642,MSDS

En losure prote tion rating

IP21

Ele tri al Parameters

Operation voltage

48 Vd 48

48 Vd

Max. harging voltage

54 Vd 54

54 Vd

Cut-off Dis harge Voltage

42 Vd 42

42 Vd

Max. harging and

dis harging urrent

100A(4800W) 120A(5760W) 120A(5760W)

Battery Spe ifi ations

Model No

SE-5000U/16S SE-7000U/16S SE-10000U/16S

Nominal Parameters

Voltage

51.2V 51.2V 51.2V

Capa ity

100Ah 150Ah 200Ah

Energy

5.12KwH 7.68KwH 10.24KwH

Dimensions (L x W x H)

680 x480 x180(220)mm 680 x480 x180(220)mm 680x480x180(220)mm

Weight

60.50kg 78.0 kg 105.5kg

Basic Parameters

Life time(25°C)

20 years

Life y les(80% DOD, 25°C)

6000 Cy les

Storage time / temperature

5 months @ 25°C; 3 months @ 35°C; 1 month @

45°C

Operation temperature

-20°C to 60°C @60+/-25% Relative Humidity

Storage temperature

0°C to 45°C @60+/-25% Relative Humidity

Lithium Battery Standard

IEC62619,UN38.3,ROHS,CE-

EMC,UL1642,MSDS

En losure prote tion rating

IP21

Ele tri al Parameters

Operation voltage

51.2 Vd 51.2 Vd 51.2 Vd

Max. harging voltage

58 Vd 58 Vd 58 Vd

Cut-off Dis harge Voltage

44 Vd 44 V d 44 Vd

Max. harging and

dis harging

urrent

100A(5120W) 120A(6144W) 120A(6144W)

Introdu tion to the battery

3.1.

Key Features

•LiFePO4 omposition – provides ex eptional safety and longevity

•High safety and reliability

•6,000 y les/20 year servi e life

•Consistent performan e over wide temperature range

•Wall-mounted, onvenient installation

•Integrated state-of-the-art BMS to manage and monitor battery information in luding voltage,

urrent and temperature as well as balan e ell harging/dis harging rates

•5-10years warranty

3.2.

Interfa e Introdu tion

•This se tion details the interfa e fun tions of front and ba k panel..

•Front interfa e:

•No. •Des ription •Silk-s reen •Remark

•1-2 •UES0600 •P+ P+ •Output terminal

•3-4 •UES0600 •P- P- •Output terminal

•

•Dial swit h •ADS •Set the address

•

•Canbus •Canbus •Canbus ommuni ation port

•

•RS485 port •RS485 •RS485 ommuni ation port

•

•port Reset button •RST •For reset the batter

•

•Battery Swit h •On/Off •Turn On/Off

•10 •LED •CAPACITY •Capa ity indi ator

•11 •LED •ALM •Alarm indi ator

•12 •LED •RUN •Operation indi ator

•13 •LCD

• •

•14 •LCD Key

• •

•15 •Handle

• •

•16 •Bra ket

• •

3.3.

SOC Indi ator & Status Indi ator Guides

•Chart 1: Battery Status

Normal/

RUN

ALM Capa ity LED

Status

Warning/

Prote tion

Description

Shut

Down

Shut down OFF OFF OFF OFF OFF OFF All OFF

Standby

Normal Flash OFF OFF OFF OFF OFF Standby

Charge

Normal ON OFF

Based on apa ity

Warning ON Flash

Prote tion ON ON

Dis harge

Normal ON OFF Based on apa ity

Warning ON Flash

Prote tion OFF ON OFF OFF OFF OFF UVP, OCP…

Fault

Prote tion OFF ON OFF OFF OFF OFF Stop harging

or dis harging

•Chart 2: Battery Capa ity

Status Charging

Dis harging

Capa ity LED Indi ator

～

L4 L3 L2 L1 L4 L3 L2 L1

Capa ity

0 25%

～

OFF OFF OFF Flash OFF OFF OFF NO

25 50%

～

OFF OFF Flash ON OFF OFF NO NO

50 75%

～

OFF Flash ON ON OFF NO NO NO

75 100% Flash ON ON ON NO NO NO NO

RUN Status

NO Flash

3.4.

Conne tors

Charge / Dis harge onne tors: to onne t the positive pole (+) and negative pole (-) from the battery

to the inverter via DC isolator.

Canbus/ RS485: A tive ommuni ation portal between battery and inverter.

USB To RS232: to get dynami monitoring data of the battery from upper omputer.

Address: Reserved Address portal for multiple parallel onne tions.

3.5.

Wake Up button

•Battery On: When battery is shut down, press this RST button for 3 se onds. It is a tivated

when the LED lights fli ker from RUN light to the lowest apa ity indi ator.

•Battery off: When battery is a tivated, press this button for 3 se onds. It will be shut down

when the LED lights fli ker from lowest apa ity indi ator to RUN light.

3.6.

Display fun tion instru tion

3.6.1.

Referen e of real figure

3.6.2.

S reen Display

3.6.3.

Fun tional Spe ifi ations

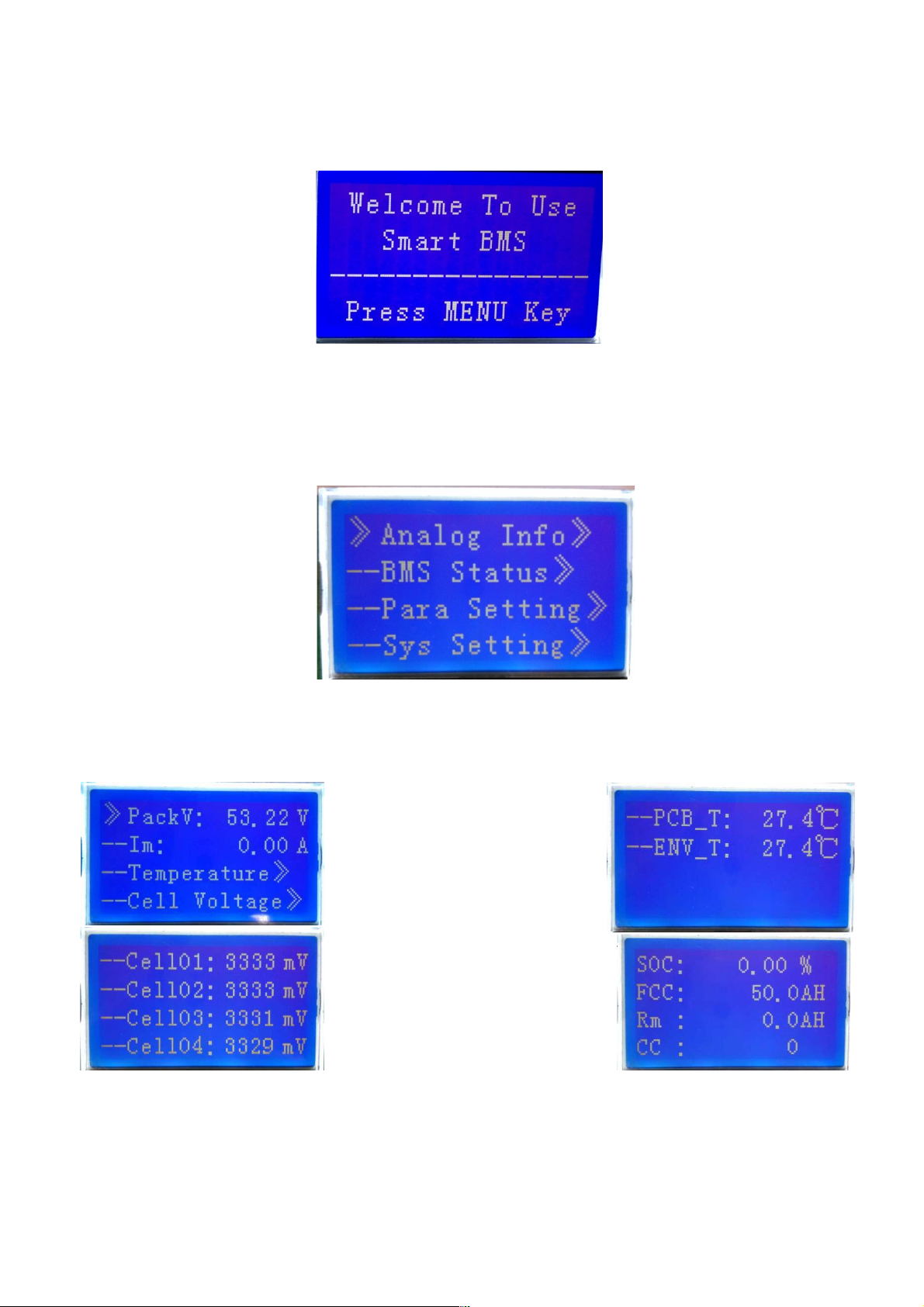

•Interfa e introdu tion

•Main menu page

•Ele tri ity/dorman y a tivated, will show the wel ome s reen, press the MENU button to enter

the main menu page. As shown in the figure below：

•Battery parameters olle tion page

When the ursor“》”is point to “Battery Parameters A quisition”，press ENTER key will enter

into the page of“Battery Parameters A quisition”，As shown in the figure below：
