1410 – SPi Electronic Service & Diagnostic Tool

Please read this information carefully before using your new SPi Handset

Thank you for purchasing your SPi diagnostic and service tool. We at SP Diagnostics believe

that you will have many years of successful business as a result of your investment and it is our

aim to ensure that you will remain as up-to-date as possible. Please refer to these instructions

when using the tool, if you experience any difficulties then please contact the technical help line

on the number below:

TECHNICAL HELP LINE NO. 0844 561 7861

Please register your product with SP Diagnostics by completing the registration card that came

with your product. (please remember to affix stamp before posting), you can also register on-line

by selecting the following link: www.spsupport.com which will give you exclusive access to the

SPi support area!

By registering your product you can take advantage of the following:

•SP Diagnostics product and technical updates via email

SP Diagnostics will keep you up to date with new products, special offers and

technical information

•Notification of application updates for your new SPi tool

Your new SPi Tool is updateable. When updates are available notifications will be

sent to all registered users and a posting will be made on the SP Diagnostics

support website www.spsupport.com

Updating your SPi Tool

When you receive notification of an update, you can log on to the SPi support area of the SP

Diagnostic Support web site and follow the instructions. Updates are easy to install and keep

you up to date with the very latest software available at all times.

We are always keen to hear back from customers regarding our products, and what you would

like to see included. If you have any specific thoughts, please feel free to contact our Technical

Support Help line on 0844 561 7861 and discuss them with the team. Also, don’t forget to log in

to the SP Diagnostics Support Forum where you can share experiences and ask questions to

SP Diagnostics technical staff and other SP Diagnostics customers. Check the SP Diagnostics

Support website www.spsupport.com for regular updates and product news.

Training

SP Diagnostics can provide access to several training courses. Please contact customer

services on 0845 6016510 for details.

Features:

Covers over 30 Vehicle Manufacturers plus EOBD

Consolidates existing ACR4 & G2 technology

Use of just one J1962 harness to cover all 16Pin applications

No more Pods required, Just 1 SD Card

Integrated Applications List

Large Multi-Functional graphics display with dual screen options

High Visibility Back Lit Display

Split Screen function to allow analogue and ECU data at the same time*

Monthly Internet or four monthly SD card updates

New soft touch case with improved ergonomic design

Easy to navigate keypad and menu systems with SP-Icons

Full product support helpline backup

ZigBee wireless ready, enables communications with optional add-on modules for voltage/current &

temperature measurement.*

Future Proof design incorporates upgradeable communications protocol hardware allowing for cost

effective updates if and when required.

Fully updateable multiplexed vehicle communications eliminating the need for additional adaptors and

cables for 16Pin vehicles.

High performance processor and re-programmable hardware, via the internet or SD Card.

Specifications:

J1850 VPW / PWM

ISO High & Low Speed

CAN

Single Wire CAN

LIN

Fault Tolerant CAN

5v Rosco Systems

User ID:

Serial Number & PIN:

* Functionality will be added with updates – Modules available Q3 2009

1410LL September 2009

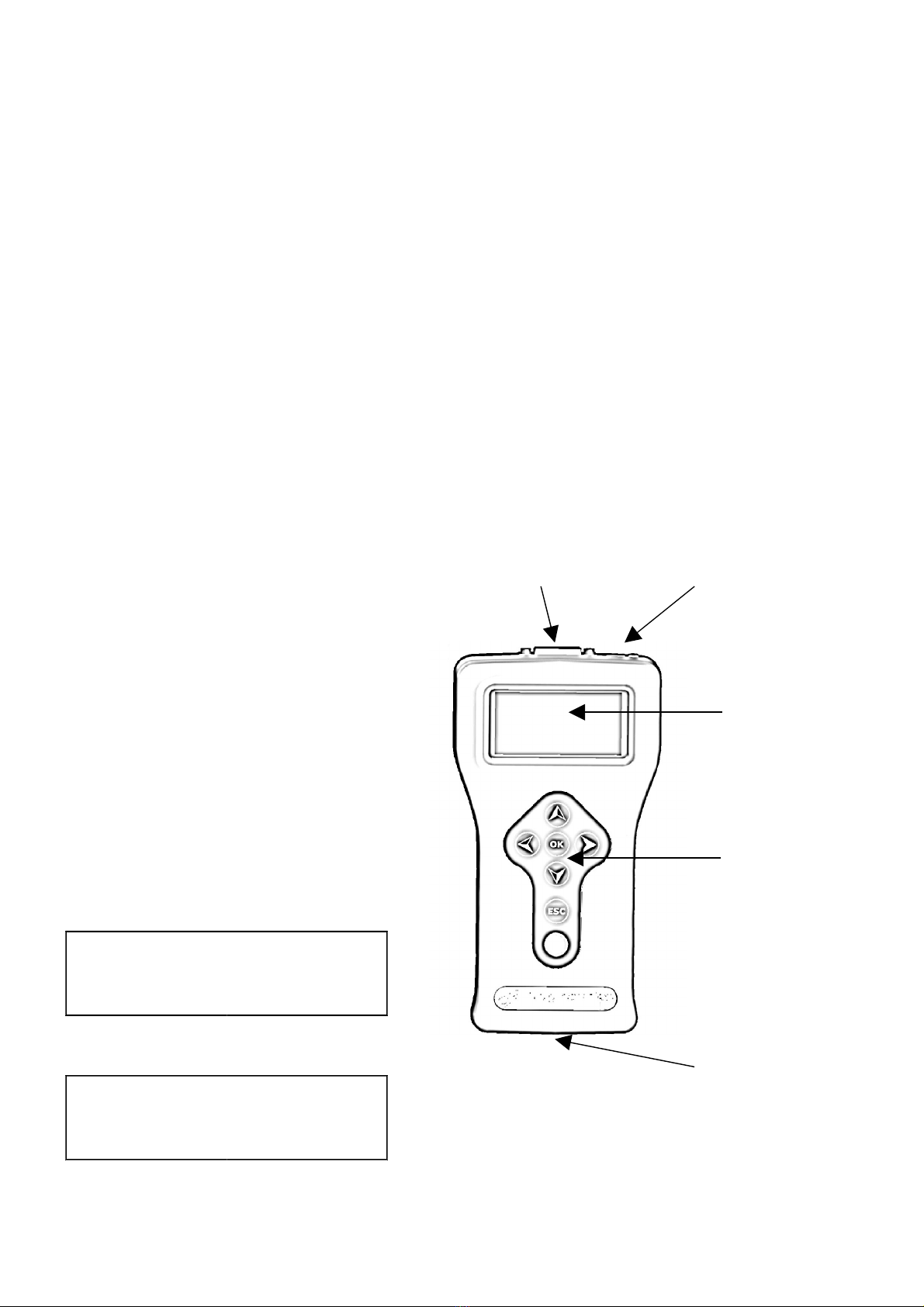

Vehicle Harness

Connector

USB Connector

Status LED

LCD Display

Multi-Functional

Keypad

SD Card Slot

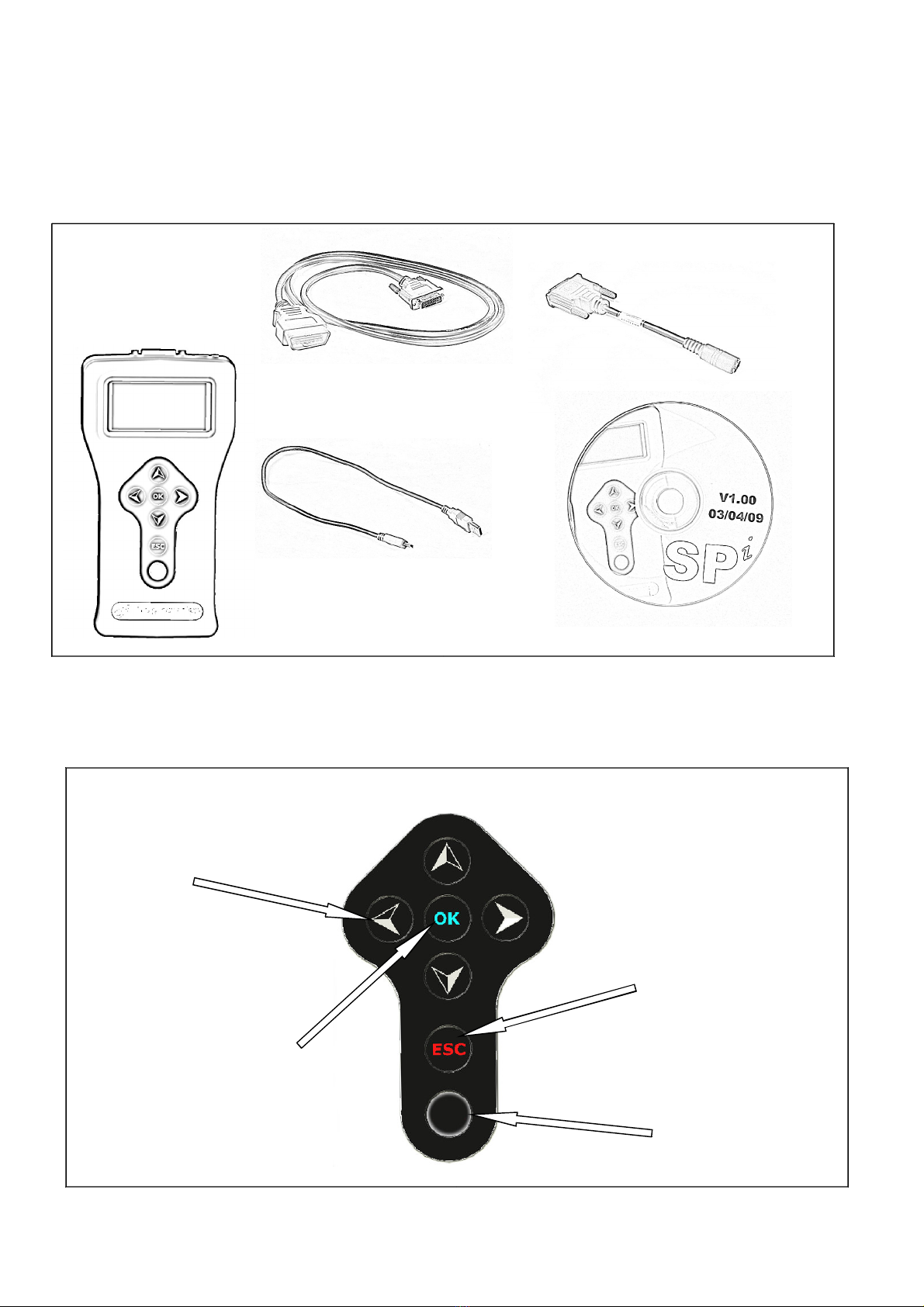

Kit Contents

1. SPi Handset (30550100)

2. SPi 16Pin Diagnostic Cable (30220300)

3. SPi Legacy Harness Adapter

4. PC/SPi USB Data Cable (USBSPi)

5. SPi Applications CD (CDSPi)

SPi Navigation

1410LL September 2009

3. Legacy

Harness Adapter

2. 16Pin Diagnostic

Cable

1. SPi Handset

5. SPi Applications CD

4. PC/SPi USB

Cable

Arrows control the

cursor around the

screen

OK Button confirms

the selected option

ESC Button cancels an

operation or returns

from a menu

Button used for special

functions

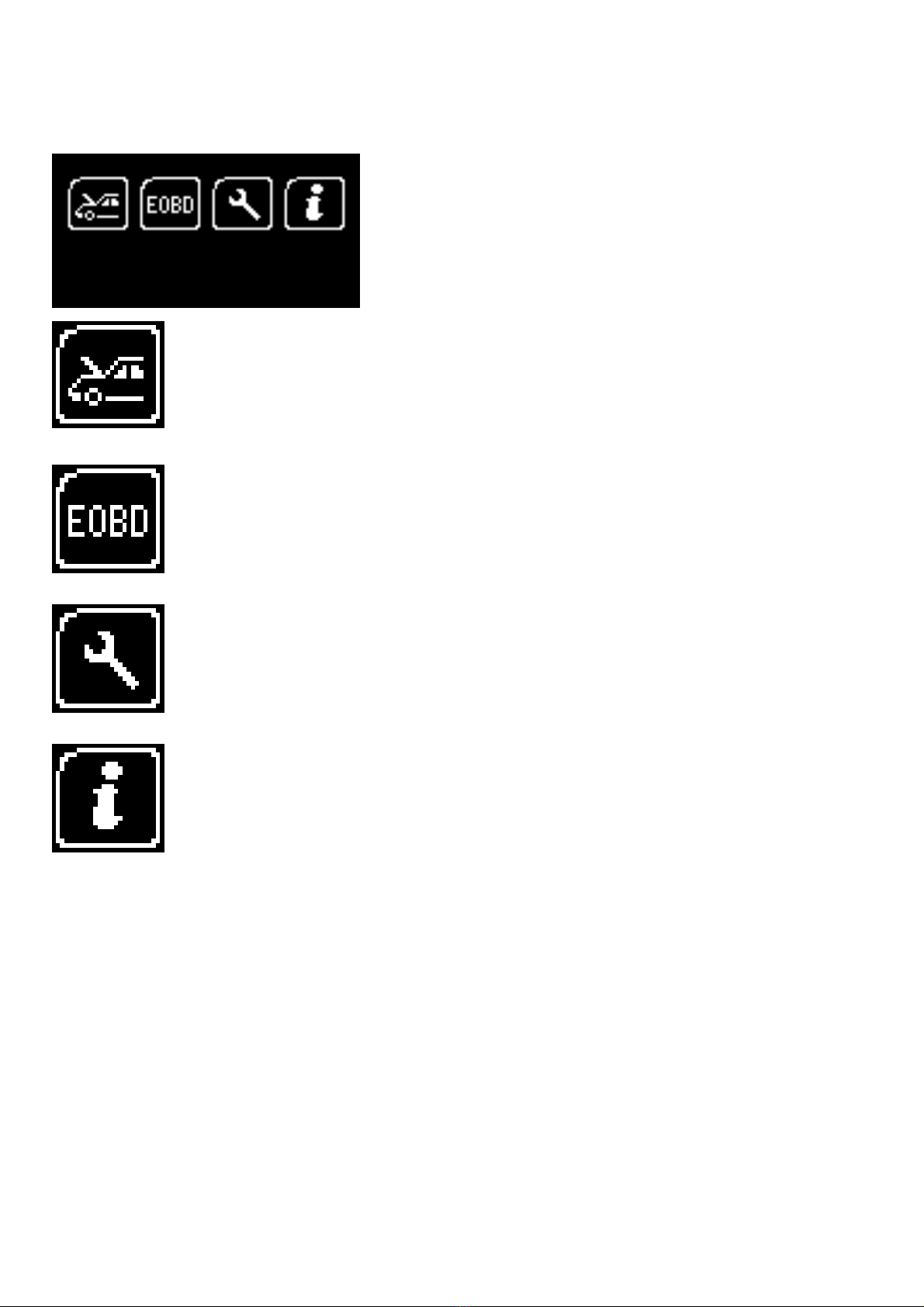

Menu & Icons

Main Menu

1410LL September 2009

Manufacturer Icon – Select this to start Vehicle

Specific Serial Diagnostics

EOBD Icon – Select this to start Generic Diagnostics functions with Graphing

Capability. Remember to select manufacturer for OEM specific EOBD

Descriptions!

System Setup Icon – Select this to configure the

various settings of the SPi

Information Icon – Select this to display

software and hardware version information

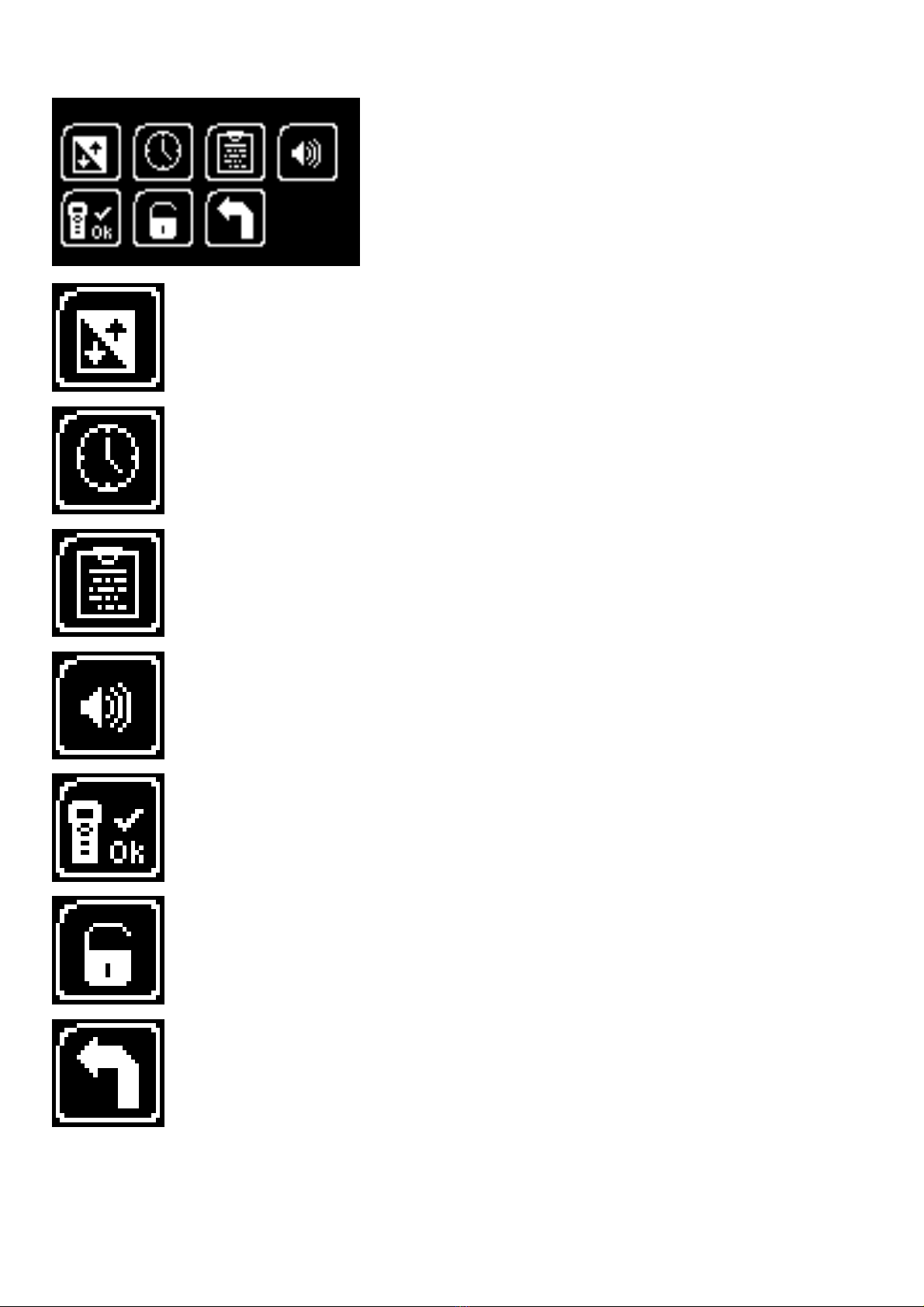

System Setup Menu

1410LL September 2009

Contrast Icon – Select this to adjust the display

contrast. Use the up and down arrows to adjust

and press OK to save the settings

Clock Icon – Select this to change the date and

time of the SPi

Garage Information Icon – Select this to display

your user details. This is changed through the

PC Suite

SPi Test Icon – Select this to carry out

hardware tests on the SPi if requested by SP

Support

Volume Icon – Select this to adjust the sounder

volume using the left and right arrow keys and

press OK to save the setting

Application Unlock Icon – Select this to unlock

application packages available to you

depending on your subscription

‘Back’ Icon – Select this to return to the

previous menu

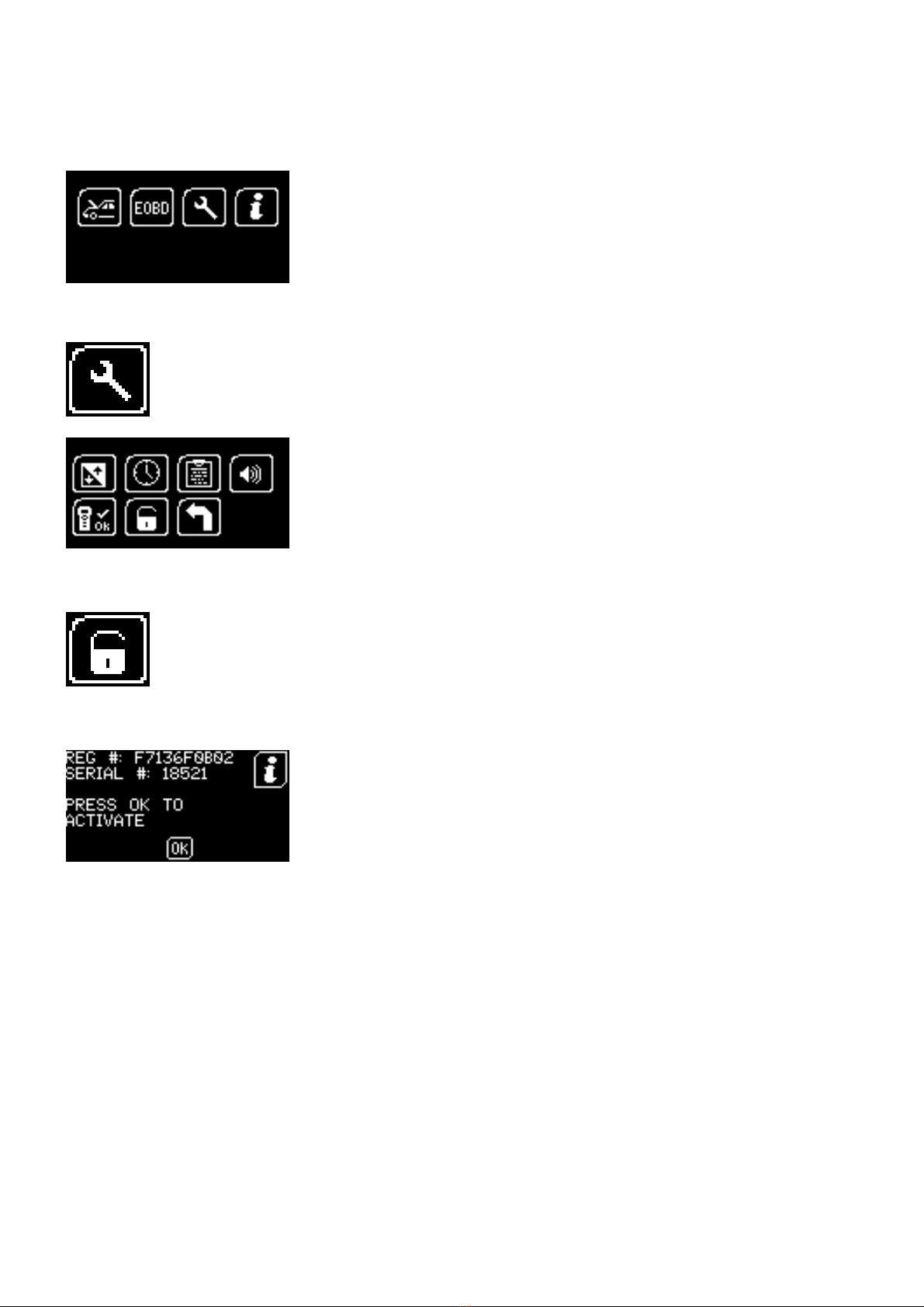

First Time Use Procedure

Your SPi arrives to you in a locked state. This is for security and registration purposes. To use

your new SPi first you are required to unlock your unit. Please follow the instructions below to

obtain your “Registration Code”:

Plug the SPi in to the diagnostic socket on any available car

with a 16Pin socket, or if you have an ACR4 power supply you

can use this in conjunction with the “Legacy Harness Adapter”.

The handset will now boot up and you will be presented with

the main menu.

Using the arrow keys, navigate to the “System Setup Icon” and

press OK to enter the “Setup” menu.

Using the arrow keys again, navigate to the “Application

Unlock” icon and press OK to enter the unlock screen.

Record the Serial Number and the Registration Code on the

screen and then call Technical Support on 0844 561 7861.

You will be asked to provide your customer details including

an up to date email address. This is important so as we can

keep you informed of any software updates.

Technical Support will now use this information to generate an

“Unlock Code” and when asked please press the OK button to

proceed to the next step.

1410LL September 2009

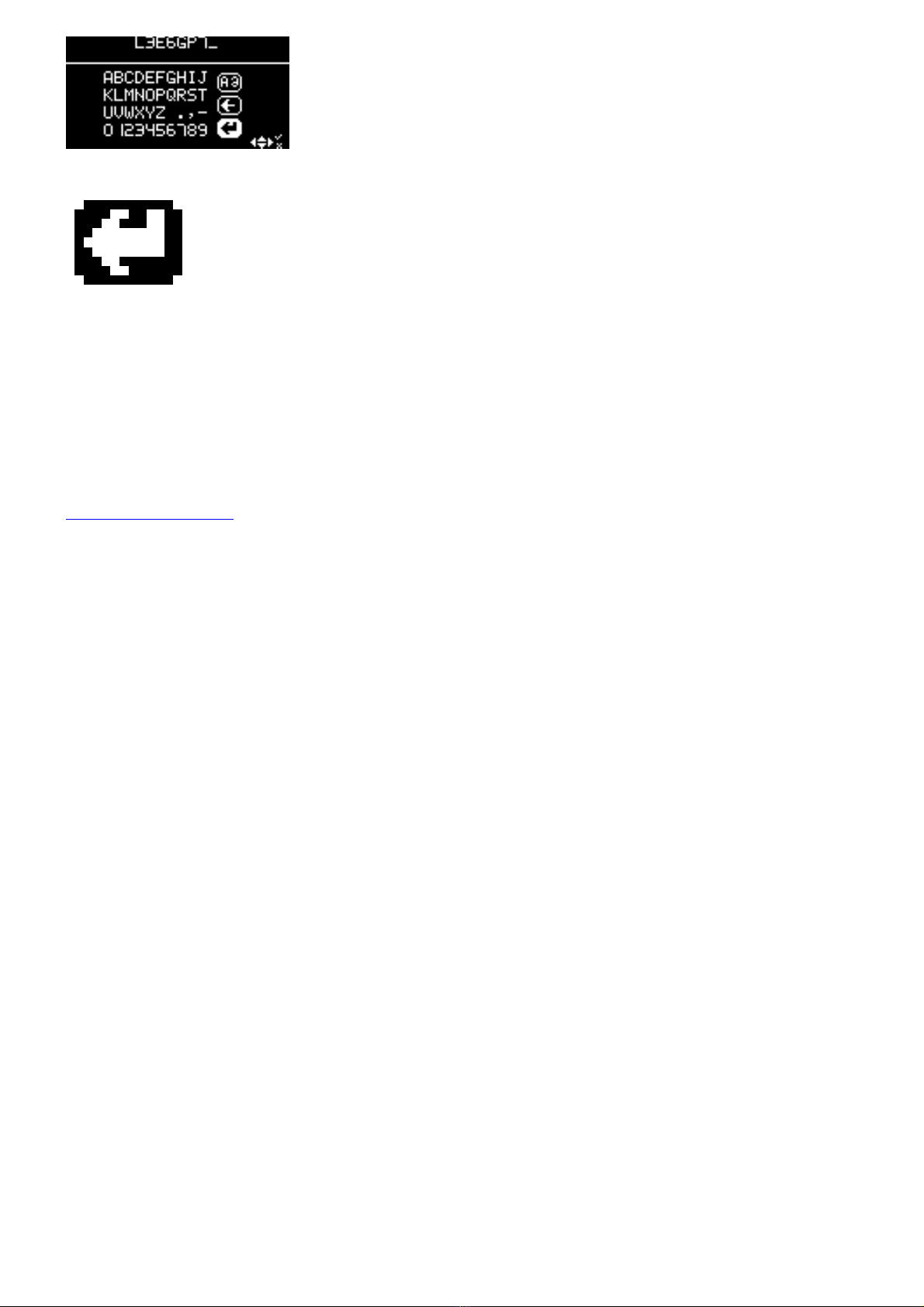

“ENTER”

Technical Support will provide you with the unlock code.

Using the arrows to navigate around the on screen keyboard,

enter your code provided by Customer Services. Mistakes can

be deleted by using the ESC key. When you have entered

your code you can confirm by navigating to the “Enter” button

on the screen and pressing OK on the keypad.

Check your code if you have any problems and start again by

disconnecting and re-connecting your SPi.

Your SPi is now ready for use!

Web Site Registration

It is important that you take the time to register on the SP Diagnostics Support web site at

www.spsupport.com . To do this click on the “Register” text at the top right hand of the screen

and follow the instructions. Make a note of your ……….

Username _______________ and Password ( or reminder) ______________ here.

When you then “Log In” to the site you can keep an eye on the SPi updates page as well as the

forum for handy hints and tips as well as general automotive diagnostics chat with other SP

Diagnostics Customers.

1410LL September 2009

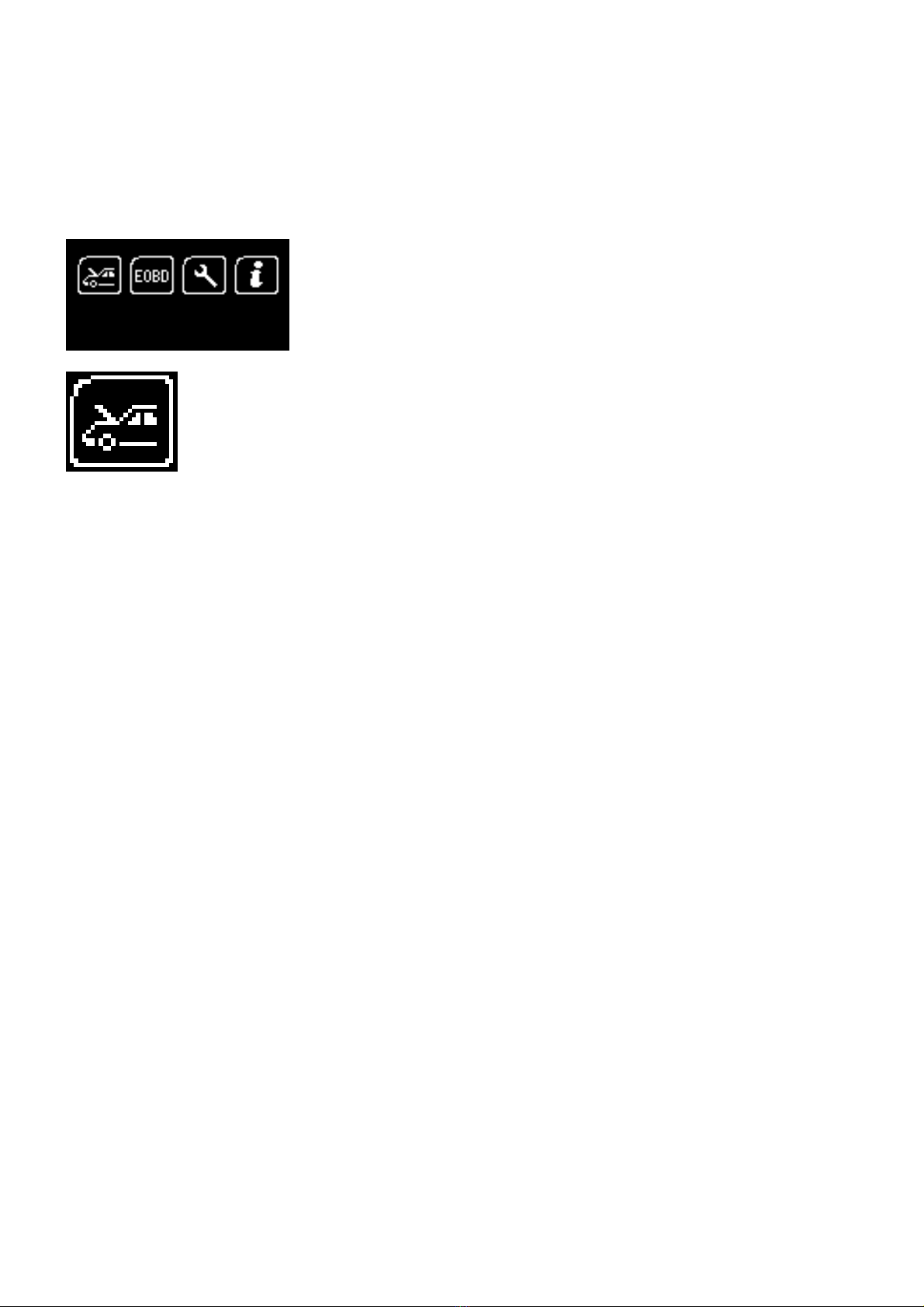

Quick Start Guide

Now you are ready to start using the SPi to diagnose faults and also carry out service functions

on the range of cars covered. Remember you can look at the complete Applications List on the

CD provided, simply put the disk in to your laptop or desktop PC and you will be presented with

a menu to choose from the Application Guides.

Connect the SPi to a vehicle using the required harness. The

SPi will then power up and take you to the Main Menu screen.

Using the keypad, navigate to the Manufacturer Icon and press

OK.

Using the keypad to navigate up and down the menus you will

be given the following options:

Select the Manufacturer

Select the Model

Select the Type of System ( ABS, AirBag, Engine etc..)

Select the Size of the engine

Select the Fuel type

Select the Year of the vehicle

Select the Variant of the vehicle

Select the Engine Code

And finally you will be shown the System or Systems fitted to

that choice of vehicle

The SPi will now load the correct software and establish

communications with the vehicle!

Remember you can always call our Product Support

Helpline on 0844 561 7861 for further assistance or speak

to us about subscribing to the Vehicle Technical Support

Helpline

1410LL September 2009

Saved Screens

Overview of Saved Screens

The saved screens functionality allows you to record an image of what is displayed on the SPi

handset for viewing later. This can be used to record fault codes and descriptions or

component readings without needing to write them down.

Screens that you save using the SPi are stored on the SD memory card and so are retained

after the SPi is powered off. You can save as many screens as there is space for on the SD

memory card (several hundred can be stored on the 2GB SD memory card provided as

standard with the SPi).

Once screens have been saved on the SPi they can be transferred to your PC (computer) for

viewing using the SPi Suite PC software (available from www.spsupport.com). These screens

can then be saved on to your computer’s hard drive as standard image files or printed out.

Saved screens remain stored on the SD memory card until they are deleted through the SPi

Suite PC software.

Saving screens on the SPi handset

1. When the SPi handset is displaying a screen you wish to save press the Special

Function button (located below the ESC key on the handset keypad).

2. The SPi will then briefly display

SAVING SCREEN

in the top left corner of the screen

3. If the screen has saved successfully the message

SAVING SCREEN

will disappear and a short double beep will be audible.

4. If the screen does not save successfully a message

FAILED TO SAVE SCREEN

will be displayed. If this occurs then it could be that the SD memory card is full.

1410LL September 2009

Accessing screens saved on the SPi handset

1. Start the SPi Suite using either the SP Diagnostics SPi Suite icon on your desktop or on

your start menu (Start > All Programs > SP Diagnostics > SPi Suite).

2. From the main screen click:

3. Connect your SPi as shown and click

1410LL September 2009
