Hundreds of Thousands of Lathes Sold With a Tradition of

uality Since 1906!

MODEL SB1019

OWNER'S MANUAL

7" x 8" SWIVEL MAST

METAL-CUTTING BANDSAW

Customer Service

We stand behind our machines. If you have any service questions, parts requests or general questions

about the machine, feel free to contact us.

South Bend Lathe Co.

P.O. Box 2027

Bellingham, WA 98227

Phone: (360) 734-1540

Parts Department: (417) 886-2954

Fax: (360) 676-1075 (International)

Fax: (360) 734-1639 (USA Only)

Email: [email protected]

Updates

For your convenience, any updates to this manual will be available to download free of charge

through our website at:

www.southbendlathe.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control

it during operation, and how to keep it in good working condition. We assume the reader has a basic

understanding of how to operate this type of machine, but that the reader is not familiar with the

controls and adjustments of this specific model. As with all machinery of this nature, learning the

nuances of operation is a process that happens through training and experience. If you are not an

experienced operator of this type of machinery, read through this entire manual, then learn more

from an experienced operator, schooling, or research before attempting operations. Following this

advice will help you avoid serious personal injury and get the best results from your work.

Manual Feedback

We've made every effort to be accurate when documenting this machine. However, errors sometimes

happen or the machine design changes after the documentation process—so the manual may not

exactly match your machine. If a difference between the manual and machine leaves you in doubt,

contact our customer service for clarification.

We highly value customer feedback on our manuals. If you have a moment, please share your

experience using this manual. What did you like about it? Is there anything you would change to

make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Lathe, Inc.

C/O Technical Documentation Manager

P.O. Box 2027

Bellingham, WA 98227

Email: [email protected]

Table of Contents

Tooth Type ........................................................22

Blade Pitch (TPI) ...............................................23

Blade Changes ...................................................24

Blade Tension..................................................... 25

Blade Breakage..................................................25

Blade Care & Break-In...................................... 26

Blade Care ........................................................ 26

Blade Break-In ..................................................26

Blade Speed........................................................26

Blade Speed Chart ............................................. 27

Chip Inspection Chart .......................................27

Downfeed Rate ...................................................28

Downfeed Pressure ............................................28

Angle Cuts..........................................................29

Cuts to the Right ...............................................29

Cuts to the Left .................................................29

Blade Guide........................................................30

Workpiece Holding.............................................30

Vise Quick Release.............................................30

Cutting Fluid...................................................... 31

Cutting Fluid System ........................................ 31

Operation Tips ...................................................32

MAINTENANCE ............................................................. 33

Maintenance Schedule....................................... 33

Cleaning .............................................................33

Lubrication.........................................................33

Gearbox.............................................................34

Machine Storage ................................................34

TROUBLESHOOTING................................................. 35

SERVICE...........................................................................38

Blade Tracking................................................... 38

Blade Guide Bearings........................................ 39

Squaring the Blade ............................................39

Adjusting Angle Stops .......................................40

ELECTRICAL................................................................... 41

Electrical Safety Instructions ...........................41

220V Conversion ................................................42

Wiring Diagram .................................................43

Wiring Component Locations............................ 44

PARTS................................................................................ 45

Cabinet & Base ..................................................45

Motor & Head..................................................... 47

Blade Guide Assemblies .................................... 49

Gearbox ..............................................................50

Machine Labels ..................................................52

WARRANTY & RETURNS.......................................... 53

INTRODUCTION...............................................................2

About This Machine.............................................2

Capabilities .........................................................2

Features.............................................................. 2

Identiﬁcation ........................................................ 3

Machine Speciﬁcations ........................................4

SAFETY................................................................................6

Understanding Risks of Machinery .................... 6

Basic Machine Safety ..........................................6

Additional Metal Bandsaw Safety ......................8

PREPARATION .................................................................9

Preparation Overview.......................................... 9

Things You'll Need............................................... 9

Power Supply Requirements...............................9

Availability..........................................................9

Full-Load Current Rating ....................................9

Circuit Information............................................10

Circuit Requirements for 110V...........................10

Circuit Requirements for 220V...........................10

Grounding Requirements................................... 10

Extension Cords ................................................11

Unpacking ..........................................................11

Inventory ............................................................11

Cleaning & Protecting .......................................12

Location ..............................................................13

Physical Environment........................................ 13

Electrical Installation ........................................13

Lighting ............................................................13

Weight Load ......................................................13

Space Allocation ................................................13

Lifting & Moving................................................14

Leveling & Mounting......................................... 14

Leveling ............................................................14

Bolting to Concrete Floors.................................. 15

Machine Mounts................................................ 15

Machine Setup ...................................................16

Power Connection ..............................................17

Test Run .............................................................18

Inspections & Adjustments ...............................18

OPERATION.................................................................... 19

Operation Overview........................................... 19

Description of Controls & Components ............20

Blade Selection...................................................21

Blade Terminology.............................................21

Blade Length.....................................................21

Blade Width ......................................................21

Tooth Set........................................................... 22

INTRODUCTION

-2-

For Machines Mfg. Since 8/09

Model SB1019 INTRODUCTION

About This Machine

Capabilities

This metal cutting bandsaw uses a hydraulically-

stabilized gravity-fed headstock to make straight

cuts through workpieces that are clamped in a

vise. Since the workpiece is secured and remains

stationary while the blade lowers automatically,

accuracy and operator safety are maximized,

since the operator can stand safely away from

the machine as it is cutting.

The vise on the Model SB1019 is capable of

holding rectangular stock up to 7" x 8" and round

stock up to 7".

After a cut is complete, the OFF switch is

triggered and the motor automatically turns off.

Features

In addition to its capabilities, the Model SB1019

has several features to increase versatility and

efﬁciency.

The headstock swivels and can be rotated to

make angled cuts from 45° to the left through 45°

to the right while three blade speeds ensure that

the proper cutting rate is available for a variety

of blade pitches, workpiece sizes and material

types.

Both the downfeed rate and pressure are

adjustable for ﬁne-tuning each cutting operation

and an adjustable auto-OFF power switch

maximizes safety and minimizes energy use by

turning the machine off at the end of every cut.

A ﬂood coolant system, comprised of a coolant

tank and pump in the machine base and an

adjustable nozzle at the blade provide adequate

coolant for optimum cutting efﬁciency and blade

life.

A storage compartment in the cabinet base

provides a convenient location for keeping spare

blades or other accessories and the transport

handle makes moving the machine easy.

For Machines Mfg. Since 8/09 Model SB1019

-3-

INTRODUCTION

Identiﬁcation

Serious personal injury could occur if

you connect the machine to power before

completing the setup process. DO NOT

connect power until instructed to do so later

in this manual.

Untrained users have an increased risk

of seriously injuring themselves with this

machine. Do not operate this machine until

you have understood this entire manual and

received proper training.

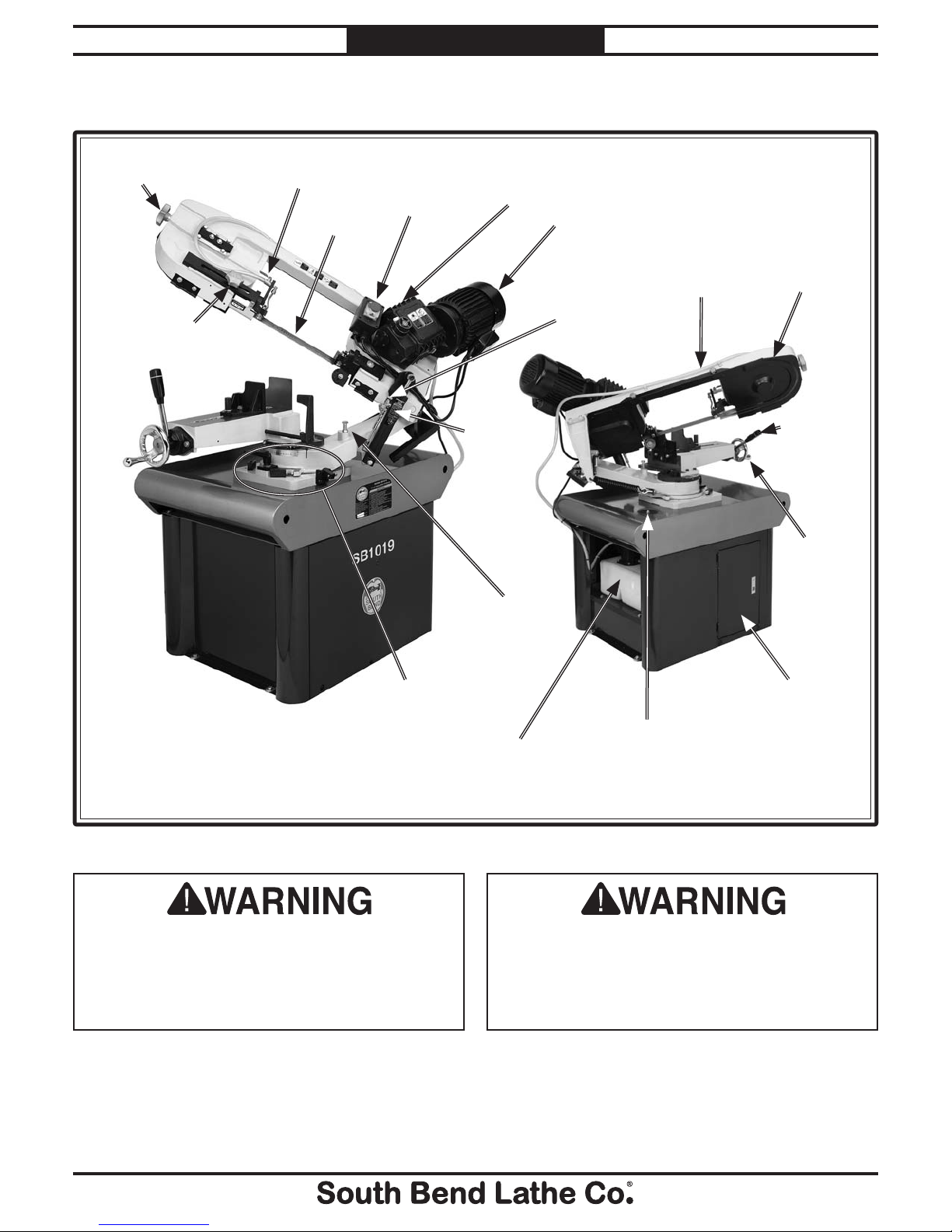

Front View

Rear View

Blade Tension

Knob

Guide Post

Knob

Downfeed

Rate Adjust

Knob

Motor

Downfeed

Stop Bolt

Adjustable

Stops

Blade

Vise Jaw

Handwheel

Cabinet Access

Door

Coolant Tank

& Pump

Downfeed

Ram

Figure 1. Identification of controls and components.

Headstock

Gearbox &

Speed Selector

ON/OFF

Buttons

Vise Quick

Release

Coolant Valve

and Nozzle

Blade

Cover

Screened Catch

Basin

-4-

For Machines Mfg. Since 8/09

Model SB1019 INTRODUCTION

Machine Speciﬁcations

Model SB1019

7" x 8" Swivel Mast Metal-Cutting Bandsaw

Product Dimensions:

Weight ..........................................................................................................................................................................481 lbs.

Length/Width/Height ............................................................................................................................. 511⁄4" x 295⁄8" x 605⁄8"

Foot Print (Length/Width) .................................................................................................................................... 511⁄4x 255⁄8"

Space Required for Full Range of Movement (Length/Width/Height)....................................................... 59" x 47" x 673⁄8"

Shipping Dimensions:

Type................................................................................................................................................................ Wood Slat Crate

Weight ...........................................................................................................................................................................558 lbs.

Length/Width/Height ....................................................................................................................................... 52" x 30" x 61"

Electrical:

Required Power Source .................................................................................................. 110V or 220V, Single-Phase, 60 Hz

Switch.................................................................................................................................................. Safety ON/OFF Switch

Switch Voltage .................................................................................................................................................................. 110V

Cord Length ..................................................................................................................................................................... 71⁄2ft.

Cord Gauge .................................................................................................................................................................14 gauge

Minimum Circuit Size......................................................................................................20 Amps @110V, 15 Amps @ 220V

Plug Included.......................................................................................................................................................................Yes

Included Plug Type.................................................................................................................................NEMA 5-15 for 110V

Recommended Plug Type for 220V.......................................................................................................................NEMA 6-15

Motors:

Main

Type ............................................................................................................................TEFC Capacitor Start Induction

Horsepower........................................................................................................................................................... 11⁄2HP

Voltage............................................................................................................................................................110V/220V

Phase .......................................................................................................................................................... Single-Phase

Amps ....................................................................................................................................................................... 18/9A

Speed............................................................................................................................................................... 1725 RPM

Cycle .......................................................................................................................................................................60 Hz

Number Of Speeds .........................................................................................................................................................1

Pre-Wired ................................................................................................................................................................ 110V

Power Transfer................................................................................................................................ Sealed Worm Gear

Bearings................................................................................................................... Shielded and Permanently Sealed

Main Specifications:

Operation Information

Head Swivel....................................................................................................................................................... 45 to 45.

Blade Speeds .................................................................................................................................... 135, 197, 256 FPM

Std. Blade Length ...................................................................................................................................................... 93"

Blade Size Range .........................................................................................................................................................3⁄4"

Model SB1019 Page 1 of 2

P.O. Box 2027, Bellingham, WA 98227 U.S.A.

PHONE: (360) 734-1540 • © South Bend Lathe Co.

www.southbendlathe.com

Machine Speciﬁcations

For Machines Mfg. Since 8/09 Model SB1019

-5-

INTRODUCTION

Cutting Capacities

Angle Cuts................................................................................................................................................. -45 to 45 deg.

Vise Jaw Depth ....................................................................................................................................................... 101⁄4"

Vise Jaw Height........................................................................................................................................................ 41⁄8"

Max. Capacity Rect. Height At 90D ........................................................................................................................... 7"

Max. Capacity Rect. Width At 90D ......................................................................................................................... 81⁄4"

Max. Capacity Rnd. At 90D ........................................................................................................................................ 7"

Max. Capacity Rect. Height At -45D ....................................................................................................................... 33⁄8"

Max. Capacity Rect. Width At -45D ........................................................................................................................ 51⁄2"

Max. Capacity Rnd. At -45D ....................................................................................................................................... 5"

Max. Capacity Rect. Height At 45D ........................................................................................................................ 33⁄8"

Max. Capacity Rect. Width At 45D ......................................................................................................................... 51⁄2"

Max. Capacity Rnd. At 45D ........................................................................................................................................ 5"

Construction

Wheel Construction Upper.............................................................................................................................. Cast Iron

Wheel Construction Lower..............................................................................................................................Cast Iron

Body Construction ...........................................................................................................................................Cast Iron

Base Construction............................................................................................................................................Cast Iron

Stand Construction ................................................................................................................................................. Steel

Other

Wheel Size .............................................................................................................................................................. 117⁄16"

Blade Guides Upper...................................................................................................................................................Yes

Blade Guides Lower...................................................................................................................................................Yes

Coolant Capacity..................................................................................................................................................21⁄2Gal

Table Info

Floor to Cutting Area Height................................................................................................................................ 335⁄16"

Other Specifications:

ISO Factory................................................................................................................................................................ ISO 9001

Country Of Origin ........................................................................................................................................................ Taiwan

Warranty.........................................................................................................................................................................1 Year

Serial Number Location .................................................................................................................. ID Label on Body Frame

Customer Setup and Cleaning Time .................................................................................................. Approximately 1 Hour

Sound Rating (No Load)...................................................................................................................................................80 db

Features:

Heavy-duty one-piece steel stand

Adjustable hydraulic down feed

Swivel mast with angle stops

Built-in coolant system

Storage cabinet

Dual position vise

Double ball bearings on each side of blade

Quick change 3-speed blade control

Model SB1019 Page 2 of 2

............45°L to 45°R

SAFETY

-6-

For Machines Mfg. Since 8/09

Model SB1019 SAFETY

Understanding Risks of Machinery

Operating all machinery and machining equipment can be dangerous or relatively safe depending

on how it is installed and maintained, and the operator's experience, common sense, risk awareness,

working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This

responsibility includes proper installation in a safe environment, personnel training and usage

authorization, regular inspection and maintenance, manual availability and comprehension,

application of safety devices, integrity of cutting tools or accessories, and the usage of approved

personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property

damage from negligence, improper training, machine modiﬁcations, or misuse. Failure to read,

understand, and follow the manual and safety labels may result in serious personal injury, including

amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are deﬁned as follows:

Death or catastrophic

harm WILL occur.

Moderate injury or ﬁre

MAY occur.

Death or catastrophic

harm COULD occur.

Machine or property

damage may occur.

Basic Machine Safety

1. Owner’s Manual: All machinery and

machining equipment presents serious

injury hazards to untrained users. To

reduce the risk of injury, anyone who uses

THIS item MUST read and understand

this entire manual before starting.

2. Personal Protective Equipment: Operating

or servicing this item may expose the user

to ﬂying debris, dust, smoke, dangerous

chemicals, or loud noises. These hazards

can result in eye injury, blindness, long-

term respiratory damage, poisoning,

cancer, reproductive harm or hearing loss.

Reduce your risks from these hazards

by wearing approved eye protection,

respirator, gloves, or hearing protection.

3. Trained/Supervised Operators Only:

Untrained users can seriously injure

themselves or bystanders. Only allow

trained and properly supervised personnel

to operate this item. Make sure safe

operation instructions are clearly

understood. If electrically powered, use

padlocks and master switches, and remove

start switch keys to prevent unauthorized

use or accidental starting.

4. Guards/Covers: Accidental contact with

moving parts during operation may cause

severe entanglement, impact, cutting,

or crushing injuries. Reduce this risk by

keeping any included guards/covers/doors

installed, fully functional, and positioned

for maximum protection.

For Machines Mfg. Since 8/09 Model SB1019

-7-

SAFETY

5. Entanglement: Loose clothing, gloves,

neckties, jewelry or long hair may

get caught in moving parts, causing

entanglement, amputation, crushing,

or strangulation. Reduce this risk by

removing/securing these items so they

cannot contact moving parts.

6. Mental Alertness: Operating this item

with reduced mental alertness increases

the risk of accidental injury. Do not let a

temporary influence or distraction lead to a

permanent disability! Never operate when

under the influence of drugs/alcohol, when

tired, or otherwise distracted.

7. Safe Environment: Operating electrically

powered equipment in a wet environment

may result in electrocution; operating near

highly ﬂammable materials may result in a

ﬁre or explosion. Only operate this item in

a dry location that is free from ﬂammable

materials.

8. Electrical Connection: With electically

powered equipment, improper connections

to the power source may result in

electrocution or fire. Always adhere to all

electrical requirements and applicable

codes when connecting to the power source.

Have all work inspected by a qualified

electrician to minimize risk.

9. Disconnect Power: Adjusting or servicing

electrically powered equipment while it

is connected to the power source greatly

increases the risk of injury from accidental

startup. Always disconnect power

BEFORE any service or adjustments,

including changing blades or other tooling.

10. Secure Workpiece/Tooling: Loose

workpieces, cutting tools, or rotating

spindles can become dangerous projectiles

if not secured or if they hit another object

during operation. Reduce the risk of this

hazard by verifying that all fastening

devices are properly secured and items

attached to spindles have enough clearance

to safely rotate.

11. Chuck Keys or Adjusting Tools: Tools used

to adjust spindles, chucks, or any moving/

rotating parts will become dangerous

projectiles if left in place when the machine

is started. Reduce this risk by developing

the habit of always removing these tools

immediately after using them.

12. Work Area: Clutter and dark shadows

increase the risks of accidental injury.

Only operate this item in a clean, non-

glaring, and well-lighted work area.

13. Properly Functioning Equipment: Poorly

maintained, damaged, or malfunctioning

equipment has higher risks of causing

serious personal injury compared to

those that are properly maintained.

To reduce this risk, always maintain

this item to the highest standards and

promptly repair/service a damaged or

malfunctioning component. Always follow

the maintenance instructions included in

this documentation.

14. Unattended Operation: Electrically

powered equipment that is left unattended

while running cannot be controlled and is

dangerous to bystanders. Always turn the

power OFF before walking away.

15. Health Hazards: Certain cutting fluids

and lubricants, or dust/smoke created

when cutting, may contain chemicals

known to the State of California to cause

cancer, respiratory problems, birth defects,

or other reproductive harm. Minimize

exposure to these chemicals by wearing

approved personal protective equipment

and operating in a well ventilated area.

16. Difﬁcult Operations: Attempting

difficult operations with which you are

unfamiliar increases the risk of injury.

If you experience difficulties performing

the intended operation, STOP! Seek an

alternative method to accomplish the

same task, ask a qualified expert how the

operation should be performed, or contact

our Technical Support for assistance.

-8-

For Machines Mfg. Since 8/09

Model SB1019 SAFETY

Additional Metal Bandsaw Safety

1. Blade Condition. A dull or damaged

blade can break apart during operation,

increasing the risk of operator injury. Do

not operate with a dull, cracked or badly

worn blade. Inspect the blade for cracks or

missing teeth before each use.

2. Hand Placement. Hands could be cut

by the blade or crushed when lowering

the headstock. Never position ﬁngers or

thumbs in line with the cut or under the

headstock while it is moving.

3. Blade Guard. Hands and ﬁngers can easily

be cut by the bandsaw blade. To reduce the

risk of laceration injuries, do not operate

this bandsaw without the blade guard in

place.

4. Starting Position. To reduce the

likelihood of blade breakage and possible

entanglement, never turn the saw ON

with the blade resting on the workpiece.

5. Blade Replacement. The blade can only

make a safe and efﬁcient cut if the teeth

are facing the workpiece. When replacing

blades, make sure the teeth face toward

the workpiece. Wear gloves to protect

hands and safety glasses to protect eyes.

6. Workpiece Handling. A workpiece that shifts

unexpectedly when being cut can result in

impact or laceration injuries. To reduce the

risk of injury, always securely clamp the

workpiece in the vise and use additional

support ﬁxtures if needed. Never hold the

workpiece with your hands during a cut.

Flag long pieces to reduce the risk of tripping

over them.

7. Power Interruption. Unplug the machine

and turn the power switch OFF after a

power interruption. If left plugged in and

turned ON, this machine will start up when

power is restored, resulting in possible

entanglement, laceration, or amputation

hazards.

8. Hot Surfaces/Sharp Edges. Due to the

cutting process, a freshly cut workpiece,

chips, and some machine components can be

hot enough to burn you and sharp enough to

cut you. Allow components to cool and use

safe handling methods to reduce the risk of

these injuries.

9. Moving Blade. A moving bandsaw blade

presents a serious risk for laceration or

amputation injuries. Always allow the blade

to come to a complete stop before mounting

or repositioning a workpiece in the vise.

Never touch a moving blade.

Table des matières

Autres manuels Southbend Scie

Southbend

Southbend SB1018 Manuel utilisateur

Southbend

Southbend SB1017 Manuel utilisateur

Southbend

Southbend SB1020 Manuel utilisateur

Southbend

Southbend SB1020 Manuel utilisateur

Southbend

Southbend SB1110 Manuel utilisateur

Southbend

Southbend SB1040 Manuel utilisateur

Southbend

Southbend 14" METAL CUTTING BANDSAW SB1021 Manuel utilisateur

Southbend

Southbend SB1080 Manuel utilisateur

Manuels Scie populaires d'autres marques

RIDGID

RIDGID BS1400 Manuel utilisateur

ATIKA

ATIKA BWS 400-2 Manuel utilisateur

RGC

RGC FS20 Manuel utilisateur

Makita

Makita M2300 Manuel utilisateur

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuel utilisateur

IMET Spa

IMET Spa SIRIO 370 AF-E Manuel utilisateur

Optimum

Optimum OPTisaw CS 275 Manuel utilisateur

Makita

Makita BPB180 Manuel utilisateur

Stihl

Stihl MS 462 C-M Manuel utilisateur

AEG

AEG TS 250 K Manuel utilisateur

Meec tools

Meec tools 004665 Manuel utilisateur

Makita

Makita LS1018L Manuel utilisateur

Ryobi

Ryobi RCS1400 Manuel utilisateur

DeWalt

DeWalt DCS391 Manuel utilisateur

Sealey

Sealey SA72 Manuel utilisateur

skilsaw

skilsaw SPT88 Instructions de montage

Urrea

Urrea SI810 Dimensions et guide d'installation

EINHELL

EINHELL BKG 210/1 Manuel utilisateur
