South-Tek Systems N2Blast FPS-650 Manuel utilisateur

FPS-650

FPS-1250

Fire Protection Systems

O&M Manual

Version 7; 09/06/2019

The Leader in Nitrogen Generation Technology

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 2 of 29

VERSION HISTORY

Revision

Implemented

Revision

Date

Approved

Approval

Date

Reason

J. Nguyen

10/13/15

A. Norman

10/13/15

Initial Release

J. Nguyen

7/5/15

A. Norman

7/5/15

J. Nguyen

8/15/16

A. Norman

8/15/16

J. Nguyen

4/27/16

A. Norman

4/27/16

Updated Bypass Info

Matt Thomas

9/20/16

A.Norman

9/30/16

Updated EU rating info

Kyle Mellott

8/10/17

J. Nguyen

8/14/17

MiniPSAv7 Release

Kyle Mellott

8/9/19

M. Thomas

9/6/19

MiniPSAv9 Release

----------------------------------------Notes----------------------------------------

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 3 of 29

TABLE OF CONTENTS

1INTRODUCTION .....................................................................................................................4

Purpose..................................................................................................................................... 4

Audience ................................................................................................................................... 4

Important Information.............................................................................................................. 4

2SAFETY GUIDELINES .............................................................................................................5

General...................................................................................................................................... 5

3SYSTEM DESCRIPTION..........................................................................................................7

Key Features ............................................................................................................................. 7

Specifications........................................................................................................................... 8

System Operations................................................................................................................... 9

4PRODUCT INSTALLATION ...................................................................................................10

Unpacking and Preparation ...................................................................................................10

Electrical Requirements .........................................................................................................11

Installation (For FPS-650)......................................................................................................11

Installation (For FPS-1250).................................................................................................... 13

Panel Layout and Gas Connections ......................................................................................14

Air Bypass Setup (optional) ................................................................................................... 17

Start-up Procedures ............................................................................................................... 17

Checking for Leaks................................................................................................................. 18

Access Controls ..................................................................................................................... 19

Starting the System..............................................................................................................19

Stopping the System ............................................................................................................ 19

5SYSTEM USAGE...................................................................................................................20

Instructions.............................................................................................................................20

Alarm Notification .................................................................................................................. 20

6SYSTEM MAINTENANCE .....................................................................................................21

7KEY CONTACTS ...................................................................................................................24

8FAQS ...................................................................................................................................24

Power Issues .......................................................................................................................... 24

Pressure Issues......................................................................................................................24

Gas Leaks ............................................................................................................................... 24

BlastOff™ - Leak Detection System: ...................................................................................... 25

APPENDIX A: WARRANTY.........................................................................................................26

APPENDIX B: INTERNAL QUICK FILL COMPRESSOR OPTION FOR FPS-1250 ...........................27

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 4 of 29

1INTRODUCTION

PURPOSE

The N2-BLAST® FPS-650 and FPS-1250, provide an economical, precise

means of generating high purity

Nitrogen. Since air is comprised of ~79%

N2, the N2 Generator is a simple and cost-effective way to separate the N2

from the air. Nitrogen is an inert gas (non-combustible) and widely used in

thousands of industries along with Fire

Protection Systems. The N2 is

“generated” by means of the air compressor pushing air into the simple,

safe

filtering vessels, which in turn mechanically separates N2 molecules from

other molecules found within air.

**The installer and the user should read this manual in its entirety.

AUDIENCE

This manual is intended for Installer/Supervisory Staff and should be read in

its entirety prior to operation.

Please contact your local distributor provider for any operation and

maintenance first prior to contacting the manufacturer.

IMPORTANT INFORMATION

All personnel (and their supervisors) installing, operating, and maintaining

the N2-BLAST® must read and fully understand this manual prior to

installing, operating or performing maintenance on the system.

The N2-BLAST® produces Nitrogen (N2) at a low flow rate, which quickly

dissipates into the air. N2 gas is not poisonous but the gas should not be

directly inhaled since in high concentrations it can cause

asphyxiation.

Ensure the unit is installed within a well-ventilated room, one that is not

sealed off from

normal living space air changes.

All personnel involved with installation, operations, and maintenance of the

N2-BLAST® must follow safe

working practices, OHSA, and local

health/safety code regulations during the installation, operation, and

maintenance of the unit.

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 5 of 29

2SAFETY GUIDELINES

GENERAL

Correct use of the FPS-650 and FPS-1250 is important for your personal

safety and for trouble-free functioning of the FPS-650 and FPS-1250.

Incorrect use can cause damage to the FPS-650 and FPS-1250 or can lead to

incorrect gas supply.

The FPS-650 and FPS-1250 produces Nitrogen (N2) at a low flow rate, which

quickly dissipates into the air. N2gas is not poisonous but it should not be

directly inhaled, since in high concentrations, they can cause asphyxiation.

Ensure that the unit is installed within a well-ventilated room, one that is not

sealed off from normal living space air changes.

Read carefully and act accordingly before installing, operating, or repairing

the unit.

Operator must use safe working practices and rules when operating

the nitrogen generator.

The owner is responsible for keeping the unit in safe operating

condition at all times.

Always use approved parts when performing maintenance and

repairs. Make sure that replacement parts meet or exceed the original

parts’ specification.

Only authorized, trained, and competent individuals can perform

installation, operation, maintenance, and repair.

Completely isolate incoming and outgoing pressures to the generator,

and make sure to depressurize the service/repair section prior to

performing any mechanical work, including changing the filters. The

nitrogen generator’s exhaust gas and/or any venting gas must be

vented to the outside or to a large, well-ventilated room to avoid

suffocation due to lack of oxygen.

Safety glasses should be worn if the cabinet door is open while the

machine is operating.

Use ear protection when the equipment is operating.

WARNING: Pressurized gases are contained within the generator, the

receiver, and product tanks. Pressurized gases are dangerous and may

cause injury or death if handled or used inappropriately.

Never allow pressurized gas to exhaust from an unsecured hose. An

unsecured hose may exhibit a whipping action, which can cause

serious injury. If a hose should burst during use, immediately close all

isolation valves if it is safe to do so and power down the unit.

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 6 of 29

Never disable or bypass any safety relief valves.

Always make certain that the nitrogen generator is disconnected from

the supply power prior to performing any electrical work.

NOTE: Always following local and site safety regulations in conjunction with

this manual.

Correct use of the nitrogen generator is important for your personal safety.

Incorrect safety practices can cause damage to yourself and/or to the

equipment.

All personnel involved with installation, operations, and maintenance of the

FPS-650 and FPS-1250 must follow safe working practices, OSHA, and local

health/safety code regulations during the installation, operation, and

maintenance of the unit.

Warning:

This manual must be read in its entirety to installing and operating

the FPS-650 and FPS-1250 to prevent accidents and damage to the

FPS-650 and FPS-1250.

Contact your supplier if you detect a problem that you cannot solve

with this manual.

Only use the FPS-650 and FPS-1250 in accordance with its designed

purpose.

Only service-engineers, that are qualified to work on electric and

pneumatic equipment, can do the installation, maintenance and

repairs. Unqualified people are not allowed to repair the equipment.

Do not tamper or experiment with the equipment or exceed the

technical specifications

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 7 of 29

3SYSTEM DESCRIPTION

KEY FEATURES

The FPS-650 and FPS-1250 key features include the following:

-Air compressor

-Air Filters

-Programmable Logic Controller (PLC)

-Pressure Swing Adsorption Beds

-Safety Relief Valves

-N2 Storage Tank

-Automatic Pressure Cut-in/Cut-out

-STS Patented Blast-Off (optional)

Air Compressor:

The air compressor is designed internally to the cabinet and features

engineered dampening system to reduce vibration and noise throughout the

cabinet. It is an oil-less compressor with a pre-filter attached to the air input.

The recommended replacement on the pre-filter is 1000 run hours or 1 year

(whichever comes first). Dirtier environments may be required to be changed

out more frequently. Consult your supplier for a different filter maintenance

schedule if you are installing the generator in dirty environment.

Air Filters:

The generator has two filters after the air compressor: the particulate and

coalescing. The Particulate has a 5-micron filter that will catch any of the

larger particles. The Coalescing has a 0.1-micron filter that will catch the

remaining smaller particles. Both filters feature and auto-drain that will drain

the water captured after the air compressor. The drain is plumbed to the

outside of the cabinet where the end-user can then connect ¼” tubing and

drain to a safe location.

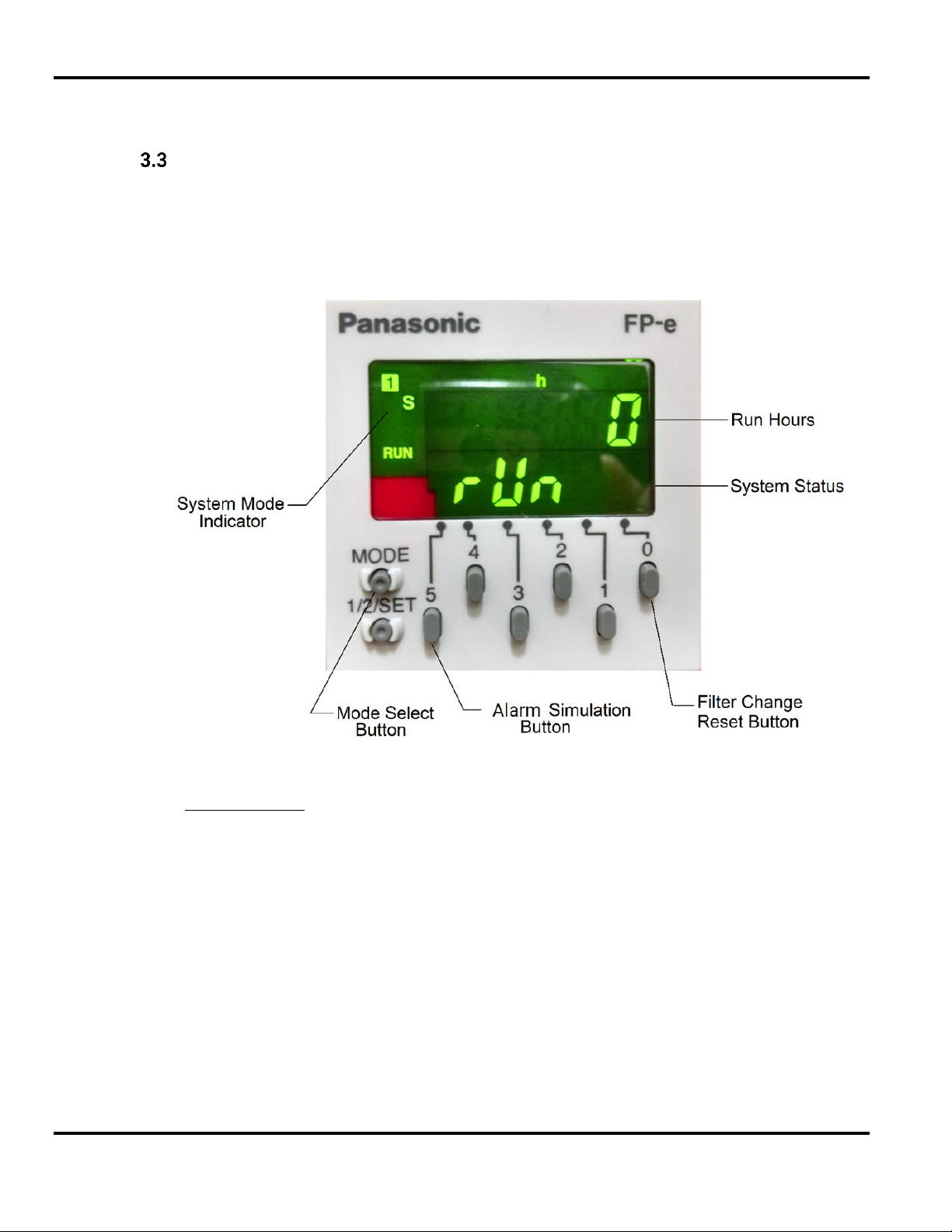

Programmable Logic Controller (PLC):

There’s an integrated PLC within the cabinet. It features smart and efficient

coding to maximize the performance of the generator. It controls the timing

and sequencing of the valves to effectively move compressed gas

throughout the system. It also has a smart feature to automatically go into

different “modes” based on the current run stages. It comes with a visual

screen that will display run hours and alarms.

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 8 of 29

Safety Relief Valves:

Safety Relief Valves have been placed throughout the system for maximum

safety. They are designed and put in place to minimize failure of other

components. They all come with an ASME stamp.

N2 Storage Tank:

A N2 Storage Tank is housed inside the cabinet with manual ball valves and

gauge. It is plumbed to an external manual ball valve so that the end-user will

not have to do any plumbing within the cabinet.

Automatic Cut-In/Out:

The generator comes with a built-in pressure switch that is tied into the PLC.

This will provide a low voltage signal back to the PLC to put the system in a

“Standby Mode” when the tank is full of Nitrogen.

Patented Blast-Off Detection (optional):

The Blast-Off Leak Detection will provide the end-user with an alarm when it

detects characteristics of a leak somewhere on the system. It will trigger an

audible alarm, display it on the screen, and the end-user can tie into the dry

contact so that the alarm can be relayed back to the Building Management

System (BMS).

SPECIFICATIONS

Table 1: Specification Data

N2-Blast® FPS-650 and FPS-1250 –Specifications

Nitrogen Purity

98.0+%

Installation

Wall Mount (FPS-650) / Floor standing (FPS-1250)

Display

Run Hours / Run Status / Alarm Status

N₂Storage Pressure

55-75 PSIG

Cabinet Port

Connections

1/2" NPT Female

Electrical

110-240V / 50-60Hz / 1Phase; 20 Amp Breaker

Compressor

Integral / Oil-Free

Ambient Temperature

40° to 90°F

Noise Level (dbA)

< 75 dBa (Nitrogen Generator)

Size

12.68” W x 10” D x 29.5” H (FPS-650 Cabinet Dimensions)

26" W x 18" D x 59" H (FPS-1250 Cabinet Dimensions)

15.1” OD x 50” H (100# Tank for FPS-650 Only)

Weight

Appx: 84 lbs (FPS-650)

Appx: 265 lbs (FPS-1250)

Appx: 75 lbs (100# Tank)

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 9 of 29

SYSTEM OPERATIONS

The system has two standard run modes –Run and Standby. When the

power switch is turned on, the controller will automatically determine which

mode to enter and will display the current run mode on the screen –“Run” in

Green and “StdbY” in Yellow. The layout of the controller can be seen on the

next page.

System Status

“Run” mode is when the FPS-650 and FPS-1250 is producing nitrogen and

feed it to the storage tank. The system will automatically enter “Standby”

mode when the tank is fully pressurized (65-75 psig). It will remain in

“Standby” mode until the tank pressure falls 7-10 psig.

Figure 1: Controller Display

FPS-650 and FPS-1250 South-Tek Systems

Version: 7

Revision Date: 9/6/19Page 10 of 29

Lock and Unlock Controller

To utilize the buttons on the front of the controller the unit must be unlocked.

If the system is displaying “LOCK” the Mode Select Button may be pressed

and held to unlock the controller (Repeat this step if a system lockout is

desired). Unlocking the controller allows access to two features:

Alarm Simulation (5) –Hold the Alarm Simulation Button for 3

seconds to activate. This will simulate an alarm condition and trip

the alarm dry contact in the unit (if installed) for 2 seconds so that

proper functioning can be confirmed.

Filter Change Reset (0) –When a new FRP (Filter Replacement Kit)

is installed, the 1000-hour filter change time must be reset. After

replacing the filter elements, press and hold the Filter Change Reset

Button for 7 seconds. An audible beep will confirm that the filter

change time and filter alarm are reset.

4PRODUCT INSTALLATION

UNPACKING AND PREPARATION

The N2-BLAST® FPS-650 System’s cardboard carton should be carefully

opened and all parts should be

inspected for damage upon receipt. For

the N2-BLAST® FPS-1250 system, a wooden crate is used for

shipping and

should be opened on the side noted on that crate. Identify and verify that

all parts listed

on the packing list are present and undamaged. South-Tek

Systems (STS) is not responsible for damages that have occurred during

the shipping and handling of the N2-BLAST®. Any visual damages should

immediately documented and reported to the shipping company

responsible. Then, contact STS at

(888)526-6284 to assess the damages

only after the shipping company has been notified.

Until Installation:

oStore the N2-BLAST® in a dry and climate controlled (60-80°F

recommended) room.

oAlways keep N2-BLAST® in an upright position / or in box as

shipped.

oDo not connect the AC power cable until this manual has been

read completely and all connections are made as stated within.

oKeep all gas lines dry so moisture does not enter generator upon

hookup.

oNever place/stack objects on top of the N2-BLAST®.

To remove FPS-1250 from crate, unbolt cabinet from the crate. Carefully, lift

unit from the crate and set it on the floor. Use a floor jack to move it to the

final location. Once in place, unbolt the 4 colored bolts at the bottom of the

cabinet.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels South-Tek Systems Onduleur

South-Tek Systems

South-Tek Systems N2-BLAST FPS-500 Manuel utilisateur

South-Tek Systems

South-Tek Systems N2Blast FPS-15000 Manuel utilisateur

South-Tek Systems

South-Tek Systems BEERBLAST 7 KPH Mode d'emploi

South-Tek Systems

South-Tek Systems N2Blast FPS-1750 Manuel utilisateur

South-Tek Systems

South-Tek Systems N2Blast FPS-900 Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
