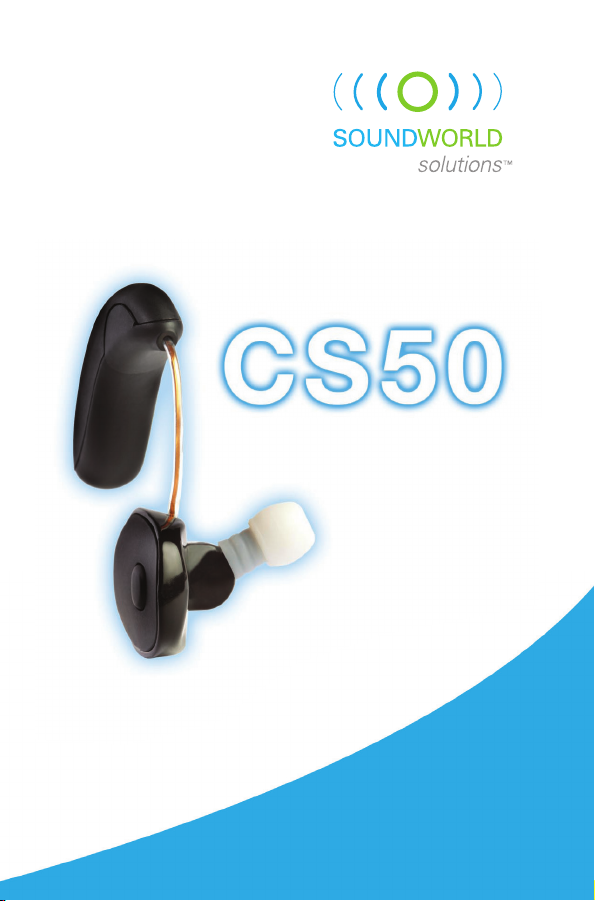

Soundworld Bluetooth series CS50 Manuel utilisateur

Personal

sound

amPlifier

USER GUIDE

bluetooth series

Thank you for purchasing the CS50.

This Bluetooth Personal Sound Amplifier

offers tremendous flexibility and

customization in terms of

fit and sound settings,

allowing you to hear

better in circumstances

like business meetings

and family gatherings.

Visit our web site

and register your CS50 to

receive important updates, information

about new products, and exclusive offers.

THANK YOU

CONTENTS

Getting Started ................................................................ 4

Earpiece ............................................................................ 5

Charging Kit ...................................................................... 6

Charging batteries ....................................................... 6

Using Your CS50............................................................... 8

Personal fit..................................................................... 8

Attaching a battery to the CS50 ............................... 9

Placing the CS50 on your ear.................................. 10

Adjusting the volume ................................................ 10

Selecting an environmental setting ...................... 11

Changing your baseline profile .............................. 12

Getting used to your CS50 ....................................... 13

Pairing with Bluetooth devices .............................. 14

Answering phone calls............................................. 15

Audio streaming......................................................... 16

Advanced customization ......................................... 17

Care and Cleaning ........................................................ 18

Appendix.......................................................................... 19

Troubleshooting ......................................................... 19

One-year limited warranty....................................... 20

Important Information............................................... 23

• CS50 Earpiece

Your CS50 Bluetooth Personal

Sound Amplifier includes

the following parts:

• Carrying case

• Two rechargeable

batteries

• Battery charging kit

• Three ear tips

(small, medium, large)

• Earpiece cleaning tool

GETTING STARTED

Volume button

located on the face of

the earpiece allows user

to increase or decrease

level in 3 dB increments.

Program button

located on the

back edge of

earpiece switches

between three

environmental

settings.

Battery wire

in adjustable tube

provides comfortable fit

regardless of ear size.

Ear tip

fits in your

ear like

standard

ear buds.

The smallest

ear tip comes

pre-attached

to the CS50.

Battery

terminal

has magnetic

connectors

for quick and

easy battery

installation.

Nozzle provides

secure base for

mounting ear tips.

EARPIECE

Directional

microphone

for improved

audio quality

during phone

calls.

CHARGING KIT

Charger cable

micro-USB to USB

Charger base has two

battery charging stations

with independent LED

indication lights.

Charger

power supply

(wall plug)

Charging Batteries

While your batteries may have a small charge when you

unpack them, we recommend fully charging the batteries

before you start using your CS50. It will take up to 2 ½ hours

to fully charge your batteries. Fully charged, each battery will

power the CS50 for up to 15 hours of normal listening.

To charge the batteries:

1. Assemble the

charging kit by

plugging the small

end of the cable into

the charger base,

and plugging the

large end into the charger power supply.

Note: The large end of the charging cord can also be

plugged into a standard USB connector on your computer.

2. Plug the power supply into a standard AC outlet.

The lights on top of the charger will glow blue to

confirm power is reaching the charging stations.

3. Connect the batteries to the two charging points on

the charger by aligning the magnets. Once the battery

is in place, the indicator light will change color.

A red light indicates the battery is charging. The light

will turn green when the battery is fully charged and

is ready to use.

WARNING - Magnetic Field

Can be harmful to pacemaker and defibrillator wearers.

Do not place CS50 earpiece or batteries in a shirt pocket

or near your pacemaker or defibrillator.

Personal fit

1. The CS50 comes

with three different

sized ear tips: small

(pre-attached to earpiece nozzle), medium, and large.

If the small tip is not snug in your ear, detach the ear tip

from the nozzle and try the medium or large tip.

2. Slide the ear tip all the way onto the earpiece nozzle.

The end of the sleeve should come into contact with

the base of the nozzle.

Note: Do not wear the earpiece without an

ear tip attached.

USING YOUR CS50

The ear tips that come with the CS50 can be

trimmed for a more comfortable fit. Use a pair

of scissors to cut along one of the guide

lines on the stem of the ear tip before

attaching it to the nozzle of the CS50.

Trim in small increments

to reach the perfect fit.

Attaching a battery to the CS50

1. Align the contacts and magnets of a charged battery

with the battery terminals and magnets on the earpiece.

2. Once the battery snaps into place, the unit is on.

It is normal to have a slight delay of a few seconds

as the unit powers up. To turn the unit off, simply

disconnect the battery.

3. The CS50 provides an audible low battery indication.

When you hear five tones played in sequence

(low, high, low, high, low) it is time to change batteries.

3. The battery wire can be adjusted to maximize the

comfort of your CS50. Grasping the body of the

earpiece in one hand, gently pull or push the battery

wire with your

other hand to

achieve the

desired length.

Be careful not

to pull too hard.

Grasp the body in one hand

Gently pull or

push the wire

with your other

hand to achieve

desired length

Placing the CS50 on your ear

1. Place the battery behind your ear,

hanging the battery wire over your ear.

2. If you wear eyeglasses, position the

battery between the earpiece of your

glasses and your ear. Be aware that

removing or adjusting your glasses may

create a distracting noise in your CS50.

3. Insert the ear tip straight into your ear

gently, wiggling slightly to ensure a good

fit. The ideal fit is snug, but not tight.

Adjusting the volume

Press the volume button to increase the volume. You will

hear four tones in ascending pitch to indicate the new level.

When you have reached the maximum volume, the last

tone in the series will descend. Push and hold the volume

button to decrease the volume. You will hear four tones in

descending pitch to indicate the new level.

USING YOUR CS50
