Soundstream VRCPAA-7DRM Manuel utilisateur

2 DIN 7" Monitor

Touch screen

MP3/MP4

USB/SD

AM/FM Radio

Support Apple CarPlay

Support Android Auto

Support Bluetooth

VRCPAA-7DRM

AV Center

2-DIN Head Unit

1. Appearance

2. Accessories and Installation

3. Wiring Connection

4. Front panel Description

5. Remote Control

6. Main Menu

7. Settings

8. Apple CarPlay & Android auto

9. Radio

10. USB

11. BT Audio

12. BT Phone

13. Specification

14. AV IN

15 Camera

FCC Notes

Warranty

---------------------------------------------

---------------------------------

Content

---------------------------------

Main Menu

Carplay Menu

Android Auto Menu

Appearance Accessories & Installation

(2) Screw 8

(1) Mounting bracket

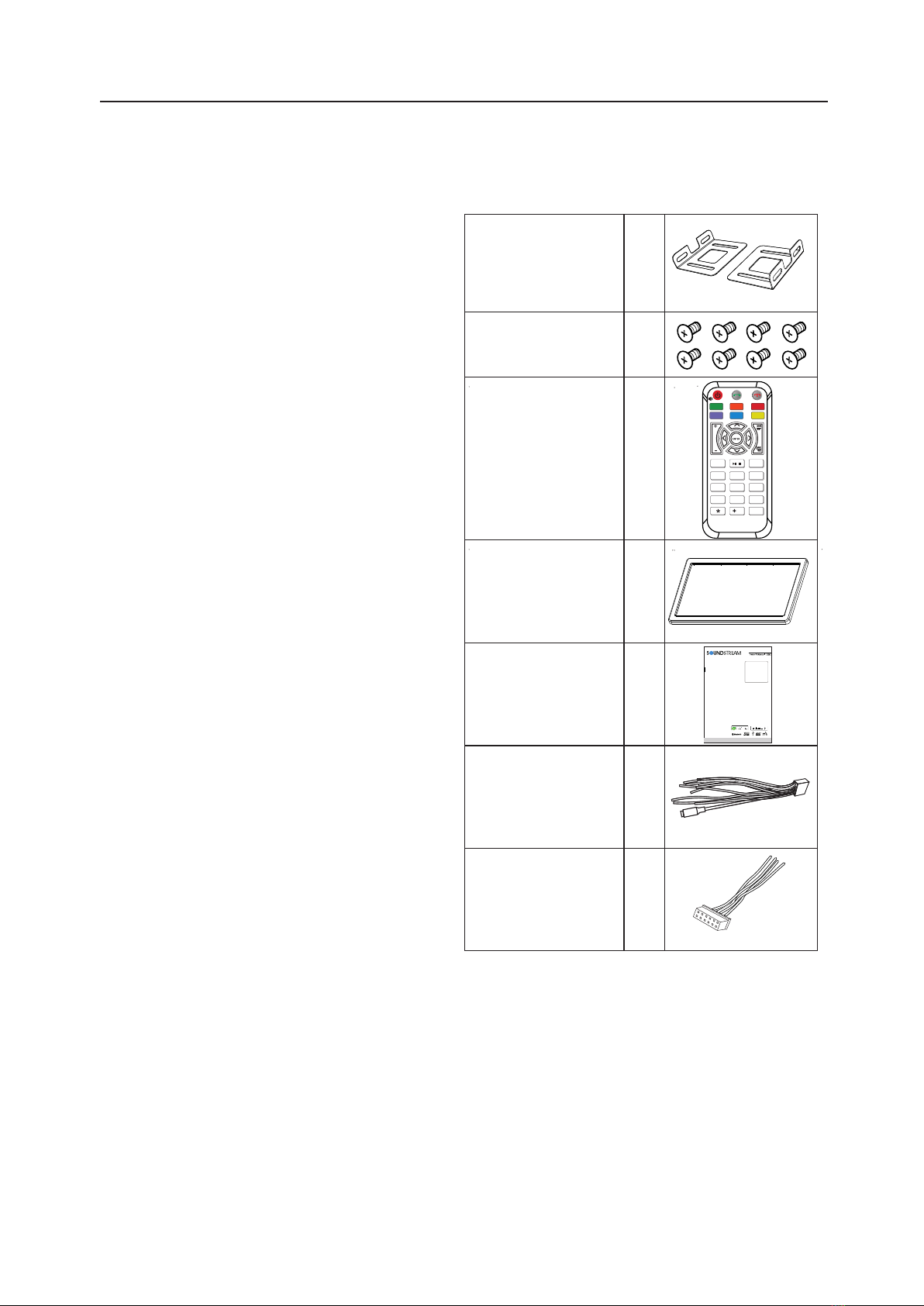

Package contains the following accessories for

installation and operation of the unit.

(3) Remote 1

1 2 3

4 5 6

7 8 9

EJECT EQ

DISC BT USB

CP/AA

SXM Radio

(4) Trim Ring 1

(5) User Manual 1

1. Appearance 2. Accessories & Installation

(7) 4 Pin Connector 1

(6) Wire Harness 1

2 DIN 7" Mo nitor

Touch s creen

MP3/M P4

USB/S D

AM/FM R adio

Suppo rt Appl e CarPla y

Suppo rt Andro id Auto

Suppo rt Bluet ooth

VRCP AA-7D RM

AV Cen ter

2-DI N Head U nit

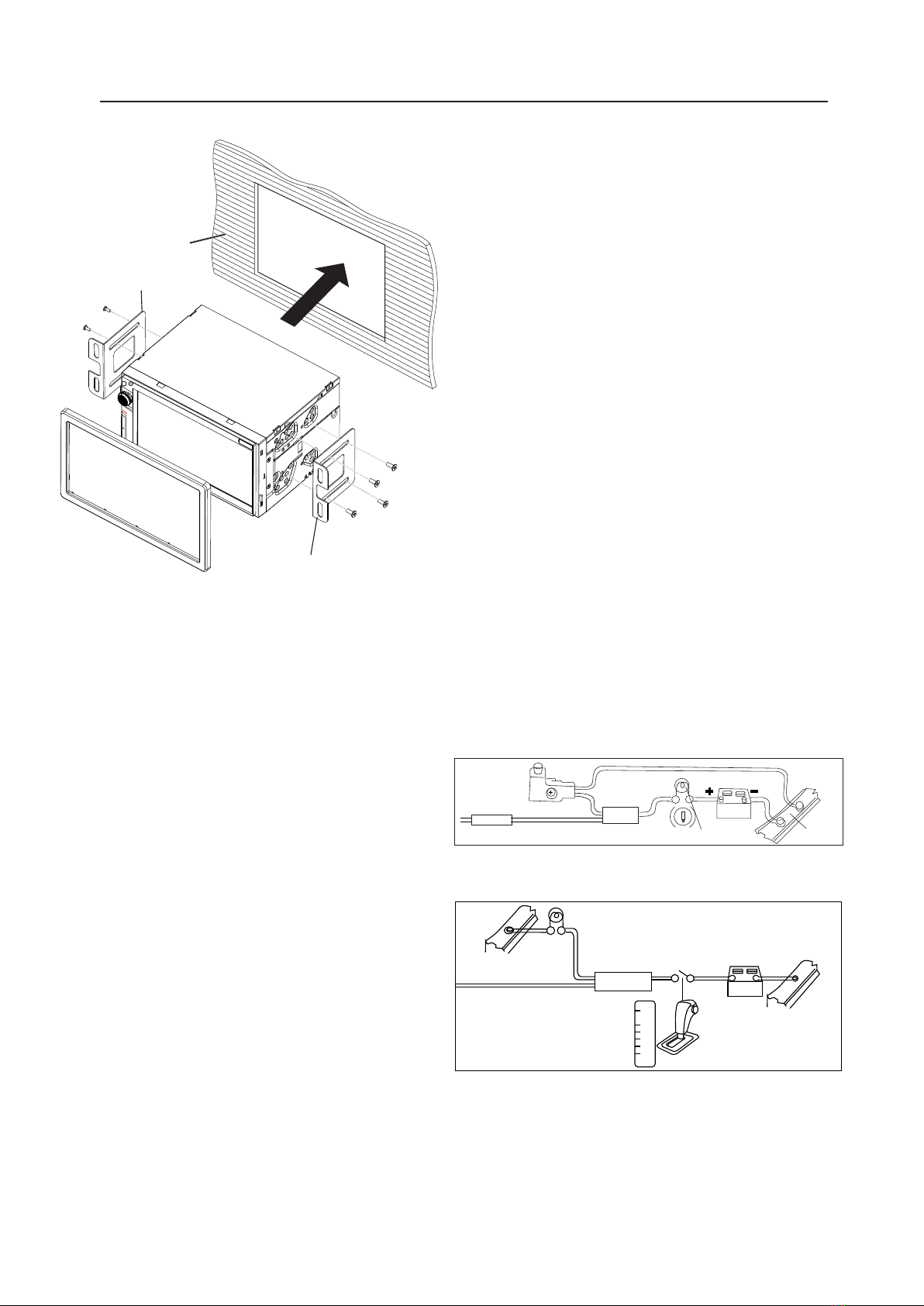

Installation

1.Put the 2 brackets to the left and right

side of the headunit.

2.Use screws to fix the brackets to the

unit.

3.Install the body chassis into the

dashboard via the 2 brackets.

4.Install the trim ring to the body

chassis.

Note:

1. Make sure the ignition is turned off,

and disconnect the cable from the

vehicle batteryʼs negative (-)

terminal.

You never want electricity running

when you install this 2-DIN car

receiver.

2. Before installation, disconnect the

wire harness and the antenna.

3. Attach the brackets on the both

sides of the car receiver with

screws as shown as the installation

drawing. Please buy from your

dealer according to the drilling of

holes size.

4. Consult with your nearest dealer if

installation requires the drilling of

holes or other modification of the

vehicle.

5. Install the car receiver in the dashboard.

6. Connect the wire harness & antenna

to the car receiver being carefully not

to pinch any wires or cables.

7. Install the plastic outer trim ring onto

the car receiver.

8. Reconnect the battery and run through

all of the options on this car recei ar

you intend to install it in. Please

choose the correct installation method

according to the actual situation of

your car. Always contact the car dealer

or manufacturer if you have any

questions.

Installation

2. Accessories & Installation

Dashboard

Bracket

Note: To watch video the parking wire

should be connected to brake signal.

Note: The parking wire is connected with

brake signal; for safety, the programs can

be seen on the monitor after braking the

car..

Parking wire

Connecting the reversing line to taillight on

the car

After connecting, when you start up the

reverse gear, the unit will receive the

picture from car rear view camera.

Parking brake lead

Brown wire

Brake light

12V

battery

Car frame

12V

Car frame

Battery

Reverse driving light

Car frame

Pink wire

Rear view video camera lead

Gearbox

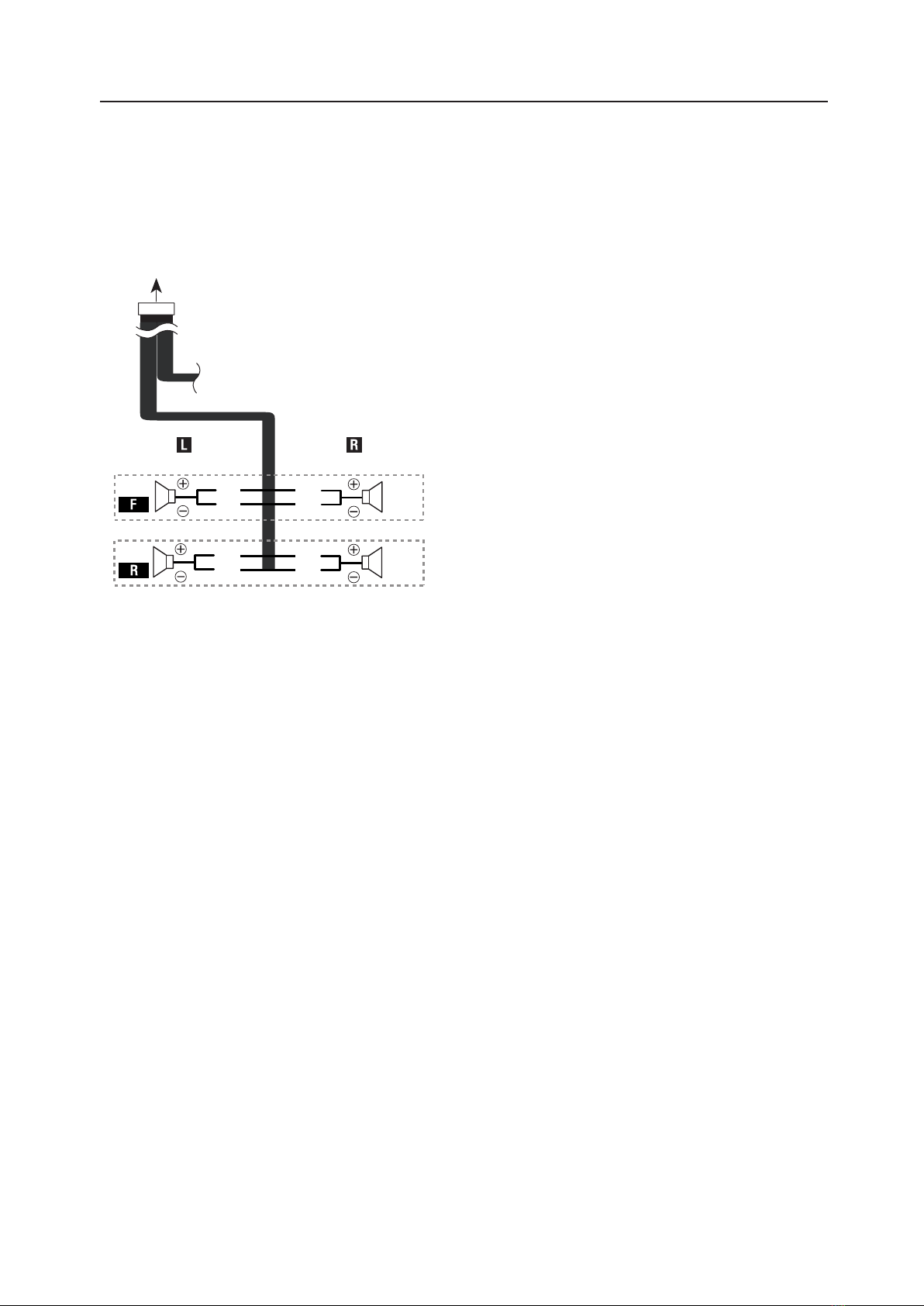

Connect the speakers according the

f o l l o w i n g d i a g r a m , i n c o r r e c t

connections will damage the unit or

your loudspeakers.

Speaker Connection

White

Green

Grey

Purple

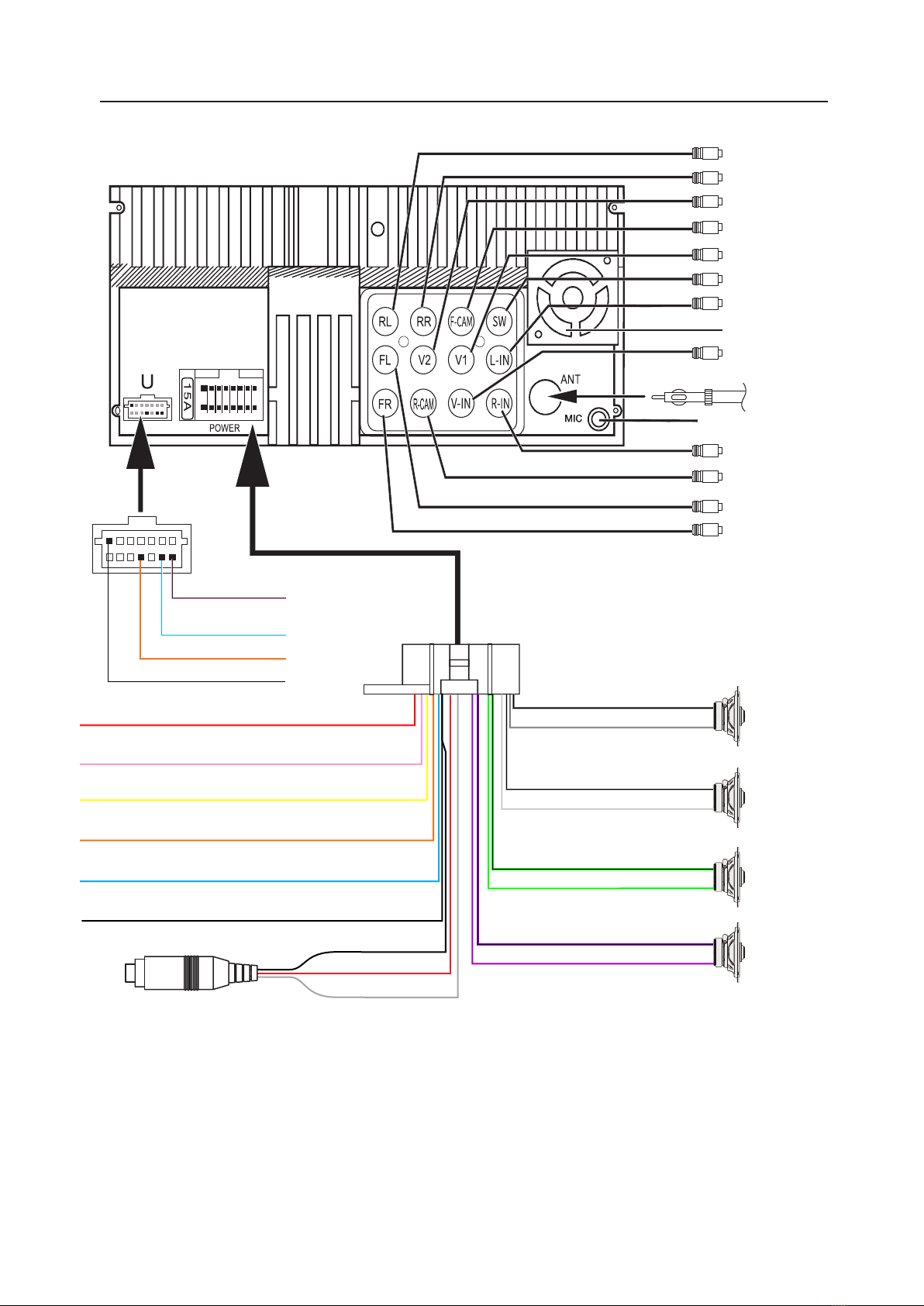

3. Wiring

Subwoofer Out

Brown

Yellow

External MIC jack

Red

White Line Out (FL)

Video Input (V-IN)

Radio Antenna

Line Out (RL)

Line Out (RR)

Video Output 2

Front Camera

Video Output1

Audio Input (L-IN)

Audio Input (R-IN)

White

Yellow

Green

White

Red

Black BT Antenna

Red

Yellow Rear Camera input

Line Out (FR)

U1. GND (Black)

U2. Brake detect (Brown)

U3. Amplifier control

(Blue/White)

U4. FCCD (Pink/Black)

16 Pin Harness

5. FR- (Gray/Black)

6. FR+ (Gray) Front Right

Speaker

7. FL- (White/Black)

8. FL+ (White) Front Left

Speaker

13. RL- (Green/Black)

14. RL+ (Green)

16. RR- (Purple /Black)

15. RR+ (Purple) Rear Right

Speaker

Rear Left

Speaker

1. Ground (Black)

2. ACC (Red)

3. Rear Camera Control (Pink)

9. Battery + (Yellow)

10. Illumination (Orange)

12. Auto Antenna (Blue)

1. Black

4. Red

11. White

3.5mm Connector for SWC

Note: To use the steering wheel control feature,

you need an universal remote adapter (not supplied)

matched your car.

Fuse: Max 15 Ampere

Voltage: 12V(DC); Negative Ground

1 2 3 4 5 6 7 8

1011

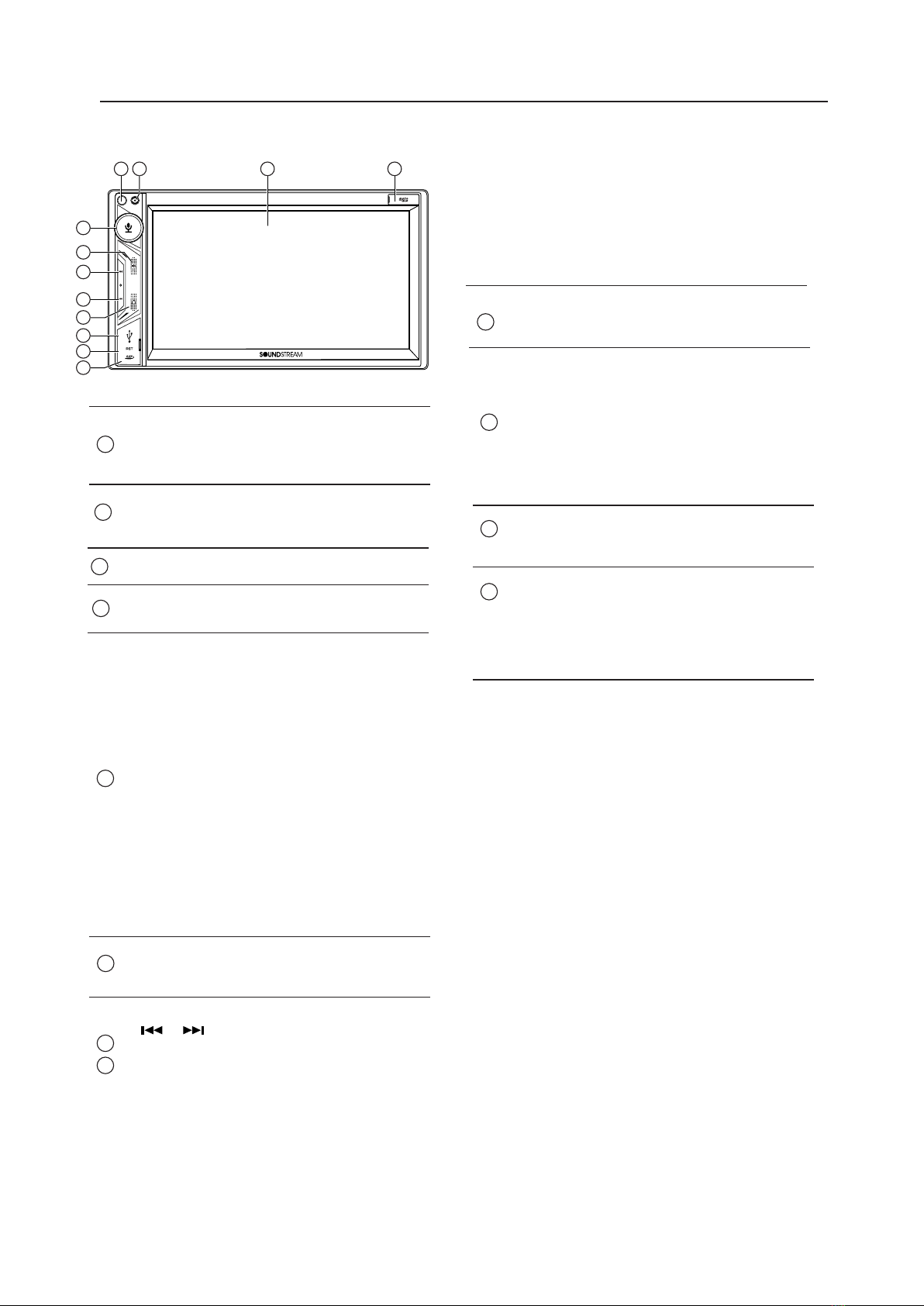

4.Front panel Description

Front panel

7 inch TFT LCD

Mic

Build in Microphone.

IR Sensor of Remote

IR remote control signal receiving

window.

9HOME button

Press to back to Main menu.

Rotary Control

On/Off button

Short press to switch On the

source unit.

Long press to switch Off the

source unit.

In operation, rotate to adjust the

sound output level.

Siri button

When Apple CarPlay or Android

Auto available, press Siri button

to start the voice control function.

7button

[USB/SD Music] Press repeatedly to

shift track previous or next for playback.

Press and hold to active various fast rewind

or fast forward speeds for playback.

[Bluetooth Music] Press repeatedly to

shift track previous or next for playback.

Press to Mute or Un-mute.

Mute Button

Insert an extrenal device to this port

in order to have sound output of

that external device through the unit.

AUX in jack

Insert micro SD for playback.

Micro SD slot

Press to default factory settings.

Reset button

Connect USB for digital playback.

Connect your iPhone for Apple

CarPlay.

Connect your Android Phone for

Android Auto.

USB port

2 4

Press and hold to seek downward

or upward.

[Radio] Press to select previous/

next preset radio station for

broadcasting.

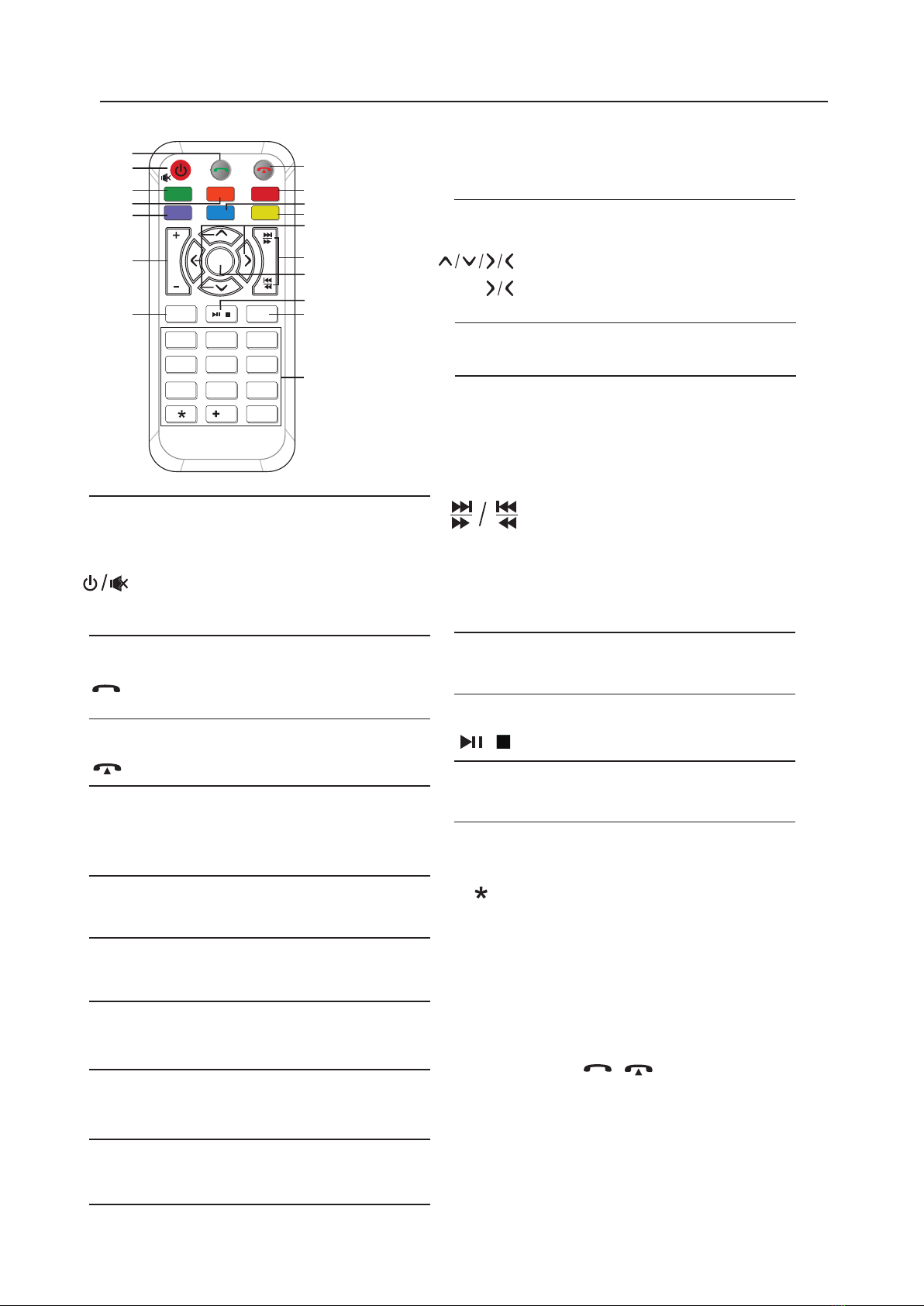

5.REMOTE CONTROL

Press and hold to power it on or off.

Short press this button mute the

volume output when unit turn on.

Long press is Power OFF function

when unit turn on.

Press it to increase or decrease the

volume level.

Note: 1. SXM just for include SiriusXM

function models.

2. * # these functions

for Bluetooth.

14 16

1 2 3

4 5 6

7 8 9

EJECT EQ

ENTER

DISC BT USB

CP/AA

SXM Radio

2. [Bluetooth ]: Press it to make a call

after inputted a phone number or

answer an incoming call.

3. [Bluetooth ]: Press it to reject a coming

call or hangup while calling

4. Press it to switch to CarPlay or Android

Auto mode; Head Unit will show string

"invalid operation" when CP/AA is not

pluged in Head Unit.

CP/AA

SXM

6. Press it to switch to RADIO mode.

Radio

7. *This button have not function for

VRCPAA-7DRM.

DISC

8. Press it to switch to Bluetooth mode.

9. Press it to switch to USB mode.

USB

10.

VOL+/-

Press it to eject the disc.

14.

EJECT

15.

[USB/SD]: short press it to

switch play or pause.

16.

EQ Press it to Equalizer functions .

17.

0-9 [Radio ]: Select 1-6 desired preset

station.

[USB/SD ]:Input 0-9 for

selecting track number.

[BT Phone ]:Input 0-9/*/# for

desired phone number.

Remark: VRCPAA-7DRM have not Disc function.

Press it to confirm selection.

It is UP /Down/Left/Right Arrow, use

this button to select the menu item,

the title track or to show next frame.

[USB/SD]: short press it to skip to

the next track or previous functions.

Long press to activate fast forward

or fast review in a track .

11.

12.

ENTER

13.

[Bluetooth Music]: short press it to

skip to the next track or previous

functions.

[Radio] Press to seek upward/

downward.

[Radio] Press to select next/

previous preset radio station for

broadcasting.

*This button have not function for

VRCPAA-7DRM.

6.MAIN MENU

VRCPAA-7DRM is a 2-DIN car audio with

following functions:

Apple CarPlay, Google Android Auto,

Radio, Bluetooth, USB, SD.

The Mode icon in gray means the corre-

sponding function is not ready or proper

device have not been connected.

Touch the corresponding Mode icon to

enter playing mode.

Turn off TFT display.

TFT enter black mode touch any

zone return to TFT on.

7.Settings

Audio Settings

Below shown is the Audio Setting Menu.

EQ Settings

Balance/Fader:

Touch the “+” or “-” of Balance /Fader to tune

for the driver and passenger preference.

The value of Balance (Left15-Right 15) and

Fader ( Front 15- Rear 15).

Touch Reset to set both Balance and Fader

to 0.

Hidden soft button bar

A hidden pop up soft button bar is located

at the bottom. Touch the icon to shown

the soft button bar. Touch the to hidden.

Pop up the soft button bar.

Hidden the pop up soft button bar.

Setup, to enter the Settings Menu.

AUX IN, to enter the AUX and A/V IN

interface

Dimming, to change Daylight or

Night (If lighting detect is OFF in

Display Setting)

Bluetooth pairing.

Front Camera, to enter the front

camera.

EQ, to enter the Equalizer setting

mode.

Touch the icon to enter the Setup menu.

The Setup menu is included System Settings,

Display Settings, Audio & EQ Settings, Bluetooth

Settings and Rear Camera Settings

System Settings

The System Settings allow the user to set up

the Language, Date & Time, Key Beep, Factory

Reset and About

Language

The Language Settings allow the user to select

the desired Language.

7.Settings

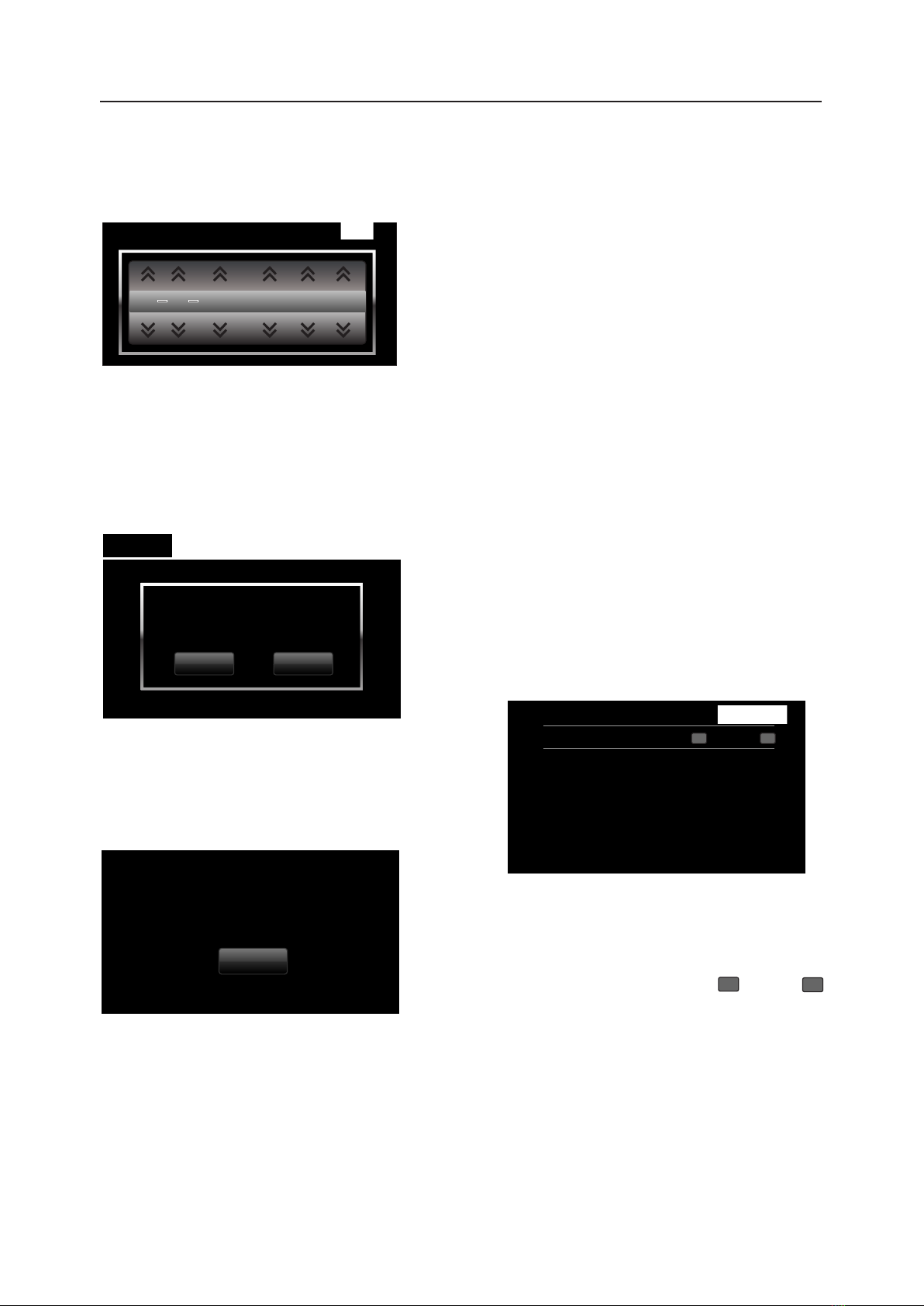

Display Settings :

Below is the Display setting menu, user can

select Lighting Detect, Daylight Dimming

Level, Night Dimming Level, Illumination

and Wallpaper.

Lighting Detect: On/Off

Daylight Dimming Level: 8 – 15

Night Dimming Level: 0 – 8

Illumination

Led Auto OFF

Led Color

Red

Led Auto: On/Off .

ON: The Led color will change automatically.

OFF: You press the button or

to select desired color.

Color: White / Red / Yellow /Blue / Green /

Purple / Light Green

About

Factory Reset

To reset the default factory setting.

To display the Unit Hardware and Firmware

version.

Reset Factory Data

Cancel OK

MCU:

SOC:

Hardware:

Update

Date & Time:

To setting Time display format (12H or 24H),

and set the correct date and time.

Time Format

Settings 2:05 AM

12H

1 1 2022 1 : 06 AM

Beep Tone: On/Off

To set the touch button beep tune On or Off

Table des matières

Autres manuels Soundstream Système vidéo embarqué

Soundstream

Soundstream VDVD-150 Manuel utilisateur

Soundstream

Soundstream VRCPAA-106F Manuel utilisateur

Soundstream

Soundstream VCM-143DMH Manuel utilisateur

Soundstream

Soundstream TFT Monitor/DVD/AM/FM Manuel utilisateur

Soundstream

Soundstream VR-75XB Manuel utilisateur

Soundstream

Soundstream VR-652NB Manuel utilisateur

Soundstream

Soundstream VR-732 Manuel utilisateur

Soundstream

Soundstream VM-700HB Manuel utilisateur

Soundstream

Soundstream VIR-7840N Manuel utilisateur

Soundstream

Soundstream VRCPAA-106 Manuel utilisateur

Soundstream

Soundstream Mobile Link Vision 1080p Manuel utilisateur

Soundstream

Soundstream RESERVE Manuel utilisateur

Soundstream

Soundstream VHR-76 Manuel utilisateur

Soundstream

Soundstream VRCPAA-106M Manuel utilisateur

Soundstream

Soundstream VR-650B Manuel utilisateur

Soundstream

Soundstream VDVD-150 Manuel utilisateur

Soundstream

Soundstream VRCP-65 Guide de l'administrateur

Soundstream

Soundstream VIR-7830B Manuel utilisateur

Soundstream

Soundstream VCM-108 Manuel utilisateur

Soundstream

Soundstream MOSFET 50W x 4 Manuel utilisateur

Soundstream

Soundstream VCM-88D Manuel utilisateur

Soundstream

Soundstream VIR-7355 Manuel utilisateur

Soundstream

Soundstream VIR-7022 Manuel utilisateur

Soundstream

Soundstream VDVD-160 Manuel utilisateur

Manuels Système vidéo embarqué populaires d'autres marques

Stinger

Stinger HEIGH10 RB10RAM13B Manuel utilisateur

Eonon

Eonon E1057 Manuel utilisateur

Milion

Milion D2223 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8153 Manuel utilisateur

Voxx Electronics

Voxx Electronics HR8MA1 Manuel utilisateur

Axxera

Axxera AV604Bi Manuel utilisateur

Clarion

Clarion NX706E Manuel utilisateur

Pyle view

Pyle view PLDN74BTi Manuel utilisateur

Clarion

Clarion NX602 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-5850N Manuel utilisateur

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guide de l'utilisateur

Lanzar

Lanzar SVDVD5 Manuel utilisateur

Kia

Kia MTXM100YPPE Manuel utilisateur

Eonon

Eonon E1060 Manuel utilisateur

Macrom

Macrom M-AN900 Manuel utilisateur

Hyundai

Hyundai BAPE-L3000N Manuel utilisateur

r.LiNK

r.LiNK RL2-UCON8-SM Manuel utilisateur

Blaupunkt

Blaupunkt DVP 01C Manuel utilisateur
