Soundstream LIL'WONDER LW1.1100D Manuel de programmation

Owner’s Manual and

Installation Guide

LW1.1100D

LW1.1700D

LW1.2600D

T E C H N O L O G I E S

CONGRATULATIONS!

You now own a Limited Edition LIL’WONDER Amplifier, the product of an uncompromising

design and engineering philosophy.

To maximize the performance of your system, we recommend that you thoroughly acquaint

yourself with its capabilities and features. Please retain this manual and you sales receipt

for future reference.

Soundstream amplifiers are the result of American innovation and the highest quality control

standards. When properly installed, they will provide you with many years of listening

pleasure. Should your amplifier ever need service or replacement due to theft, please record

the following information which will help protect your investment.

Serial #

Dealer’s Name

Date of Purchase

Installation Shop

Installation Date

Prolonged listening at extremely high levels may result in hearing loss. Even though your

new Soundstream Limited Edition LIL’WONDER Amplifier, sounds better than anything

you’ve heard, exercise caution to prevent hearing damage.

C A U T I O N !

FEATURES

Mono-Block Class D Amplifier

Total Harmonic Distortion:0.5%

Frequency Response: 15-150Hz

Signal to Noise Ratio: 105dB

Damping Factor: >250

Input Sensitivity 100mV - 8V

50-150Hz,12dB Low Pass Fiter

45Hz, 0-18dB Bass Boost

180° Phase Switch

Midnight Black Finish w/ Brushed Accents

Remote Gain Control

Master/Slave Operation

Pre-amp Outputs

SPECIFICATIONS

Frequency Response 15Hz-150Hz

LPF

Signal/Noise Ratio

Input Voltage Range

>105dB

THD 50Hz -150Hz,12dB

11-16 Volts DC

30K Ohms

High Impedance RCA/LINE

Level Input Impedance

POWER RATINGS & FUSE

MODEL 4 ohm 2 ohm 1 ohm FUSE

LW1.1100D

LW1.1700D

LW1.2600D

600W

700W

1000W

900W

1200W

1800W

1100W

1700W

2600W

35A X 3

40A X 4

250A

0.50%

DIMENSIONS

MODEL Length Width Height

LW1.1100D

LW1.1700D

LW1.2600D

390mm

450mm

580mm

205mm

60mm

TOOLS/PARTS FOR INSTALLATION

NOTE: TOOLS ARE NOT SUPPLIED

Small flat blade screwdriver phillips screwdriver (#2 or medium sized),

Wire cutters, Wire strippers, - #6 round head screws, and 1 - #8 sheet metal

screw (or nut, bolt flat washer, start washer) (see detail) 2 Ring connectors

(large enough to accommodate your method of grounding) In-line fuse or

Grommets (Sized to work with the power wire you plan to use in your

installation) Tube of silicone seal.

Protection Circuitry

The amplifier protection circuitry will disable the amplifier if the inputs are

overloaded, short-circuited or extremely high temperature conditions are detected.

When the protection mode is in operation, the LED indicator on the front panel will

be illuminated , indicating the amplifier has gone into a self-preservation mode.

If you observe that the protection LED is lit, please check the system carefully to

determine what has caused the protection circuit to engage. The amplifier can be

reset by turning the remote power off and then on again. If the amplifier shuts down

due to a thermal overload condition, please allow it to cool down before powering

up. If the amplifier shuts down because of an input overload or short circuit, be sure

to repair these conditions before attempting to power up the amplifier again.

Electrical Wiring

All LIL’WONDER Amplifiers are equipped with easy top access screw terminals .

These terminals are nickel-plated in order to ensure excellent electrical contact

and to resist corrosion.

When making electrical connections to the amplifier, please observe the following :

Use at least 4 gauge or heavier wire for power and ground connections.

Wire the amplifier directly to the car battery. Make sure there is circuit protection

(Such as a fuse) on the positive power lead, within 18 inches of the battery.

For the ground connection, use the shortest possible wire to a good chassis ground

point.

Wire the Remote connection to the remote turn-on lead of your equalizer or head unit.

In some cases this may be the power antenna lead of the head unit.

Remote Subwoofer Level Control

The LIL’WONDER Amplifiers are equipped with a dashboard mount remote

subwoofer level control. Run the supplied dashboard remote control from the

front panel of your amplifier. By turning the level knob clockwise, you will

increase the output of low frequencies.

Fuses

Fuses protect both the amplifier and the electrical system of your vehicle from faulty

conditions . If you must replace the fuse in your LIL’WONDER Amplifier, use a

fuse of exactly the same type and rating. A different type or rating may resuit in

damage or cause a fire.

Mounting the Amplifier

Mark the location for the mounting screw holes by positioning the amplifier where you

wish to install it and use a scribe (or one of the mounting screws) inserted in each

mounting hole to mark the mounting surface. If the mounting surface is carpeted,

measure the hole centers and mark with a felt tip pen.

Drill pilot holes in the mounting surface for the mounting screws and insert the

mounting screws into these holes. Tighten them securely.

Note: Before beginning your installation, be sure to take note of any wires, lines or

other devices in your vehicle which may be located behind any mounting surface.

PANEL LAYOUT

LW1.1100D

LW1.1700D

Line Out Line Input Input

Level Subsonic

Filter Bass

Boost PHASE

0 180

Low Pass

Filter

Input Sensitivity Bridged

Mode DATALINK

PROTECTION

REMOTE

CONTROL

Master Slave

.1V-2V 2V-8V

Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB

Line Out Line Input Input

Level Subsonic

Filter Bass

Boost PHASE

0 180

Low Pass

Filter

Input Sensitivity Bridged

Mode DATALINK

PROTECTION

REMOTE

CONTROL

Master Slave

.1V-2V 2V-8V

Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB

POWER CONNECTIONS

BATT+ REMOTE GND

FUSES

SPEAKER

FUSES

SPEAKER POWER CONNECTIONS

BATT+ REMOTE GND

LEFT VIEW

RIGHT VIEW

LEFT VIEW

RIGHT VIEW

PANEL LAYOUT

LW1.2600D

Class D Monoblock Amplifier Installation Wiring

LW1.1100D/LW1.1700D/LW1.2600D

min max

Power

Line Out Line Input Input

Level Subsonic

Filter Bass

Boost PHASE

0 180

Low Pass

Filter

Input Sensitivity Bridged

Mode DATALINK

PROTECTION

REMOTE

CONTROL

Master Slave

.1V-2V 2V-8V

Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB

Line Out Line Input Input

Level Subsonic

Filter Bass

Boost PHASE

0 180

Low Pass

Filter

Input Sensitivity Bridged

Mode DATALINK

PROTECTION

REMOTE

CONTROL

Master Slave

.1V-2V 2V-8V

Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB

Low Level Inputs

Line Out Line Input Input

Level Subsonic

Filter Bass

Boost PHASE

0 180

Low Pass

Filter

Input Sensitivity Bridged

Mode DATALINK

PROTECTION

REMOTE

CONTROL

Master Slave

.1V-2V 2V-8V

Min Max 10Hz 40Hz 50Hz 150Hz 0 +18dB

LEFT VIEW

RIGHT VIEW

POWER CONNECTIONS

SPEAKER

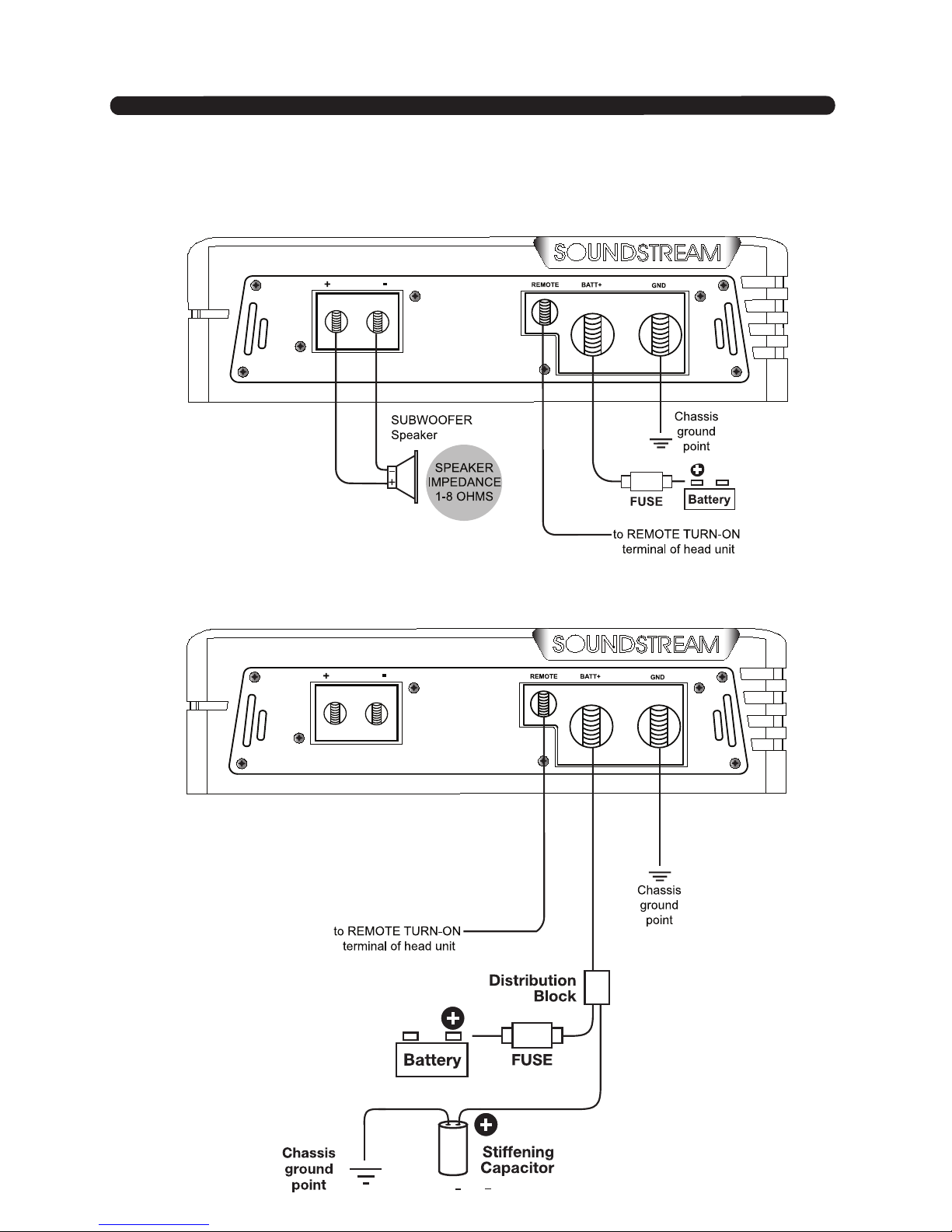

Class D Monoblock Amplifier Installation Wiring

LW1.1100D/LW1.1700D

LW1.1700D

has four fuses

here

LW1.1700D

has four fuses

here

FUSES POWER CONNECTIONS

BATT+ REMOTE GND

SPEAKER

FUSES POWER CONNECTIONS

BATT+ REMOTE GND

SPEAKER

POWER CONNECTIONS

SPEAKER

POWER CONNECTIONS

SPEAKER

Class D Monoblock Amplifier Installation Wiring

LW1.2600D
