Soundigital EVOX2 400.4 Manuel utilisateur

OWNER´S MANUAL

400.4

Code document review: 1000750315-001/JUN2022

TABLE OF CONTENTS

Introduction............................................................................................................................ 3

Package contents ............................................................................................................ 3

Safety instructions ............................................................................................................ 4

Technologies

DTM ...................................................................................................................... 5

Ultra Compact PCB...................................................................................... 5

Robust Construction.................................................................................... 5

I-Power Supply................................................................................................. 5

Full Range .......................................................................................................... 6

Assembling and Disassembling the plastic cover ............................................. 7

Panels description

Audio inputs and controls......................................................................... 8

Power inputs and audio outputs ........................................................... 9

Installation sequence ........................................................................................................ 10

Electrical Dimensioning ................................................................................................... 11

Audio inputs

RCA inputs......................................................................................................... 11

High Level inputs............................................................................................ 11

Wiring diagram

Four channels wiring diagram ............................................................... 12

Three channels wiring diagram............................................................. 12

Two channels wiring diagram and Gain Setting .......................... 13

SD RLC and Gain Setting..................................................................................................... 13

Crossovers set up.................................................................................................................... 14

Technical specifications

Parameters........................................................................................................ 15

Dimensional data ........................................................................................... 15

DEAR CUSTOMER,

CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST

QUALITY AND TECHNOLOGY!

You have just purchased a SounDigital product of the highest technology and

quality, so we thank you for your confidence.

SounDigital products are made with raw materials of the highest quality

standards, and the most modern processes, equipment and technology are used

in their production.

On this manual you will learn about the product, its features and characteristics, in

order to obtain the best result and to be able to enjoy your music with SounDigital

quality and power.

To better understand and take advantage of all the functions of the product and use

it safely, read this manual carefully and if you have any questions, consult our

support by email [email protected].

PACKAGE CONTENTS

▪ 01 400.4 EVOX2 Amplifier

▪ 01 Installation quick guide with warranty card

▪ 01 Allen wrench 2.0mm

▪ 02 Cables for high level input

▪ 01 Promotional sticker

INTRODUCTION

SAFETY INSTRUCTIONS

THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING

THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE

EQUIPMENT.

Warning!

To prevent injuries to the user or damage to the amplifier, read all safety instructions

written on this manual;

If you are insecure about the installation of this equipment, get in touch with our

tech support or with a professional specialized in car audio installation;

Before proceeding with the installation of any electric equipment on your vehicle,

unplug the negative (-) terminal of the battery to avoid fires, injuries or damages;

Use your sound system safely. The continuous exposure to sound pressures over

85dB may cause irreversible hearing damage;

This equipment is for use in automotive DC voltage batteries between 12.6 and

14.4 volts. Before installing the equipment, check voltage of the batteries;

Do not install the amplifier in places exposed to water, dirt or humidity;

Choose a ventilated place to install the amplifier and avoid blocking the side

ventilation windows;

Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the

vehicle, because it may cause ground looping (noise);

Make sure that the location chosen for the amplifier installation does not effect the

operation of the vehicle;

When passing cables through metallic walls, use rubber O-rings to avoid cable

cutting and short-circuits;

Clean the amplifier periodically with brush or dry cloth to assure the thermal

efficiency of the heatsink;

This product may reach temperatures over 60°C/140°F. Make sure it is cold before

touching it;

Be careful when making holes in the vehicle. Make sure you are not making holes

in the fuel tank, brake lines or electrical cables of the vehicle;

Make sure the cables are properly secured throughout the installation;

Wear gloves, safety glasses and and all necessary PPE during the installation of

SounDigital amplifiers.

TECHNOLOGIES

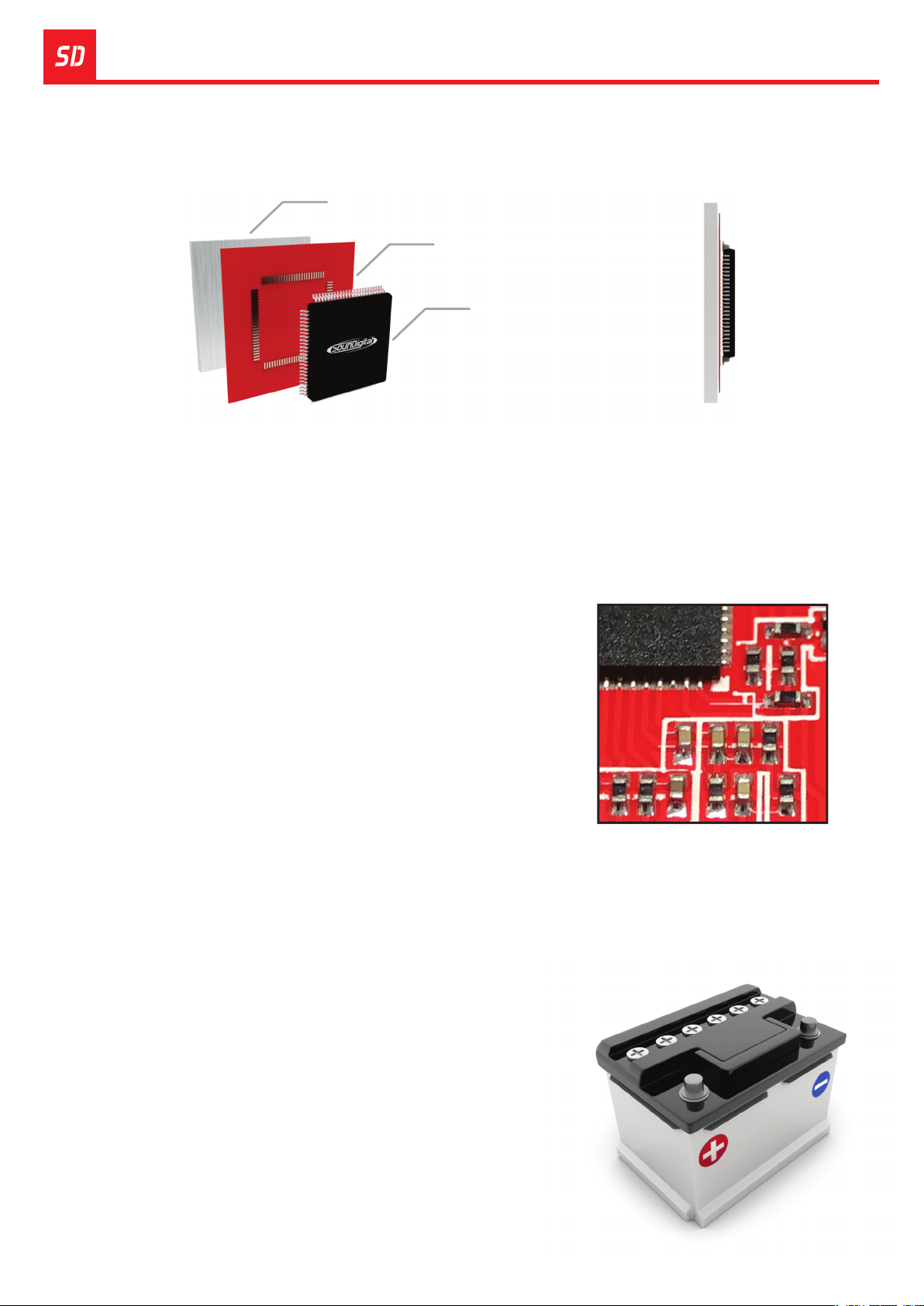

The DTM* is a dynamic thermal recovery system which always maintains a high efficiency

of the amplifier by accelerating the thermal exchange of electronic components with the

heatsink.

* Patent. Required

ALUMINIUM

HEATSINK

CONDUCTIVE

COPPER LAYER

ELECTRONIC

COMPONENT

DYNAMIC THERMAL MANAGEMENT - DTM®

An intelligent layout, with great use of the PCB area

and the use of modern components with reduced

structure guarantee SounDigital products a

compact design, at the same time robust and with

excellent thermal efficiency.

ULTRA COMPACT PCB

*Efficiency measured at power supply only

SounDigital amplifiers are known for their low

consumption of battery, and this feature was

i m p r o v e d o n t h e E VOX 2 L i n e . T h e n e w

I-POWER SUPPLY is even more modern, which

r e p l a c e s t h e o l d t o r o i d a l t r a n s f o r m e r s

by a new generation of "E-E" core transformers

delivers efficiency above 90%*, ensuring more

hours of sound without battery recharge.

I-POWER SUPPLY

ROBUST CONSTRUCTION

Thinking about the application of power sports,

the product has an extremely robust assembly,

both the fixing points and the layout of the PCB

were designed to withstand high vibrations,

bumps and impacts.

TECHNOLOGIES

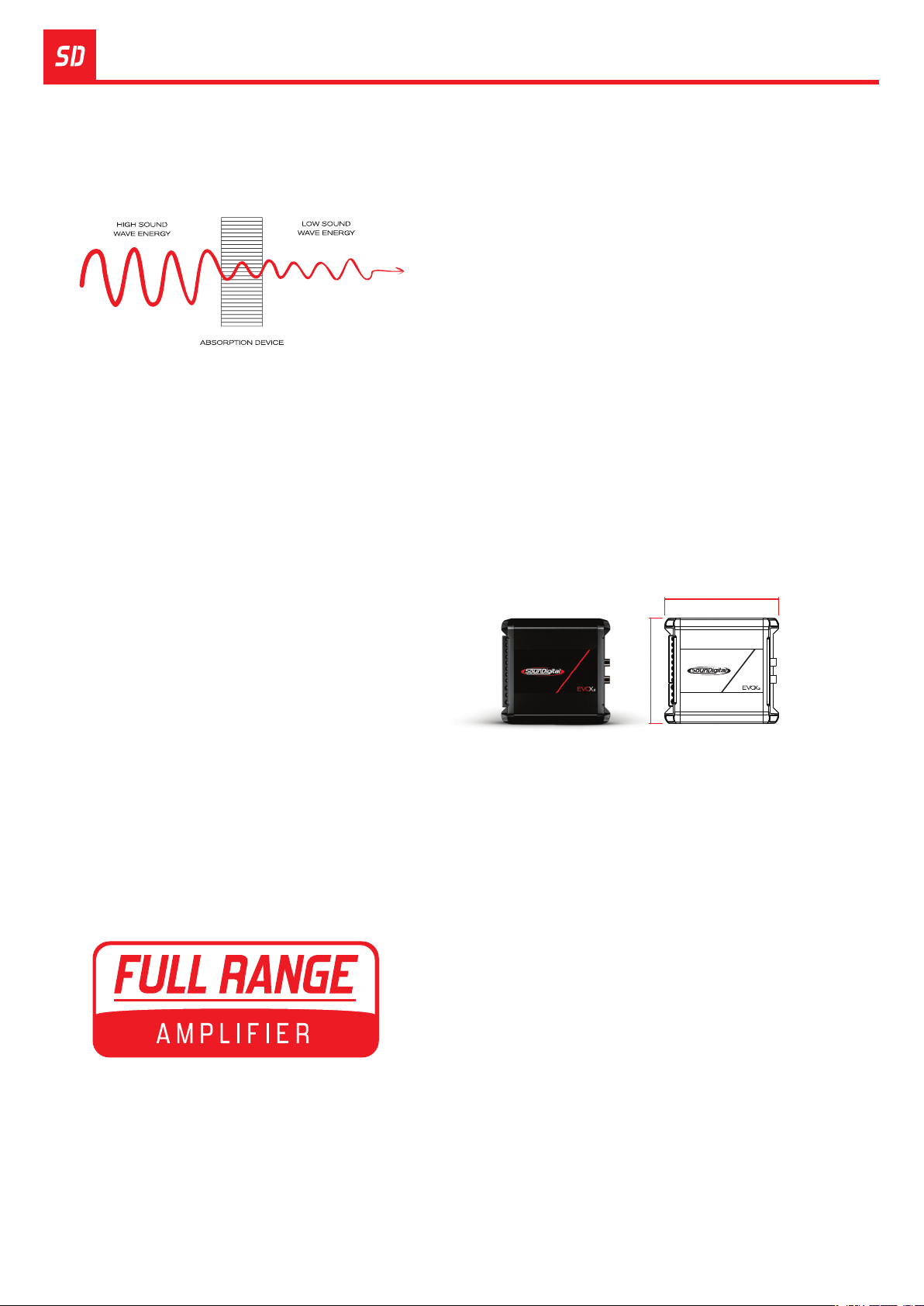

Our Technology reduces all impact

VAD

caused by vibration on the electronic circuit

board. This can include road vibration and

even vibration caused by sound waves,

increasing the reliability of our amplifiers.

VIBRATION ABSORPTION

DEVICE - VAD

Versatile products that cover the entire

audible frequency range, any type of

loudspeaker or music program.

FULL RANGE

REDUCED SIZE 4.8"

4.4"

The technology used in our

amplifiers bring both high

performance and power a

compact chassis, providing

flexible installation solutions for

vehicles with limited space.

1 2

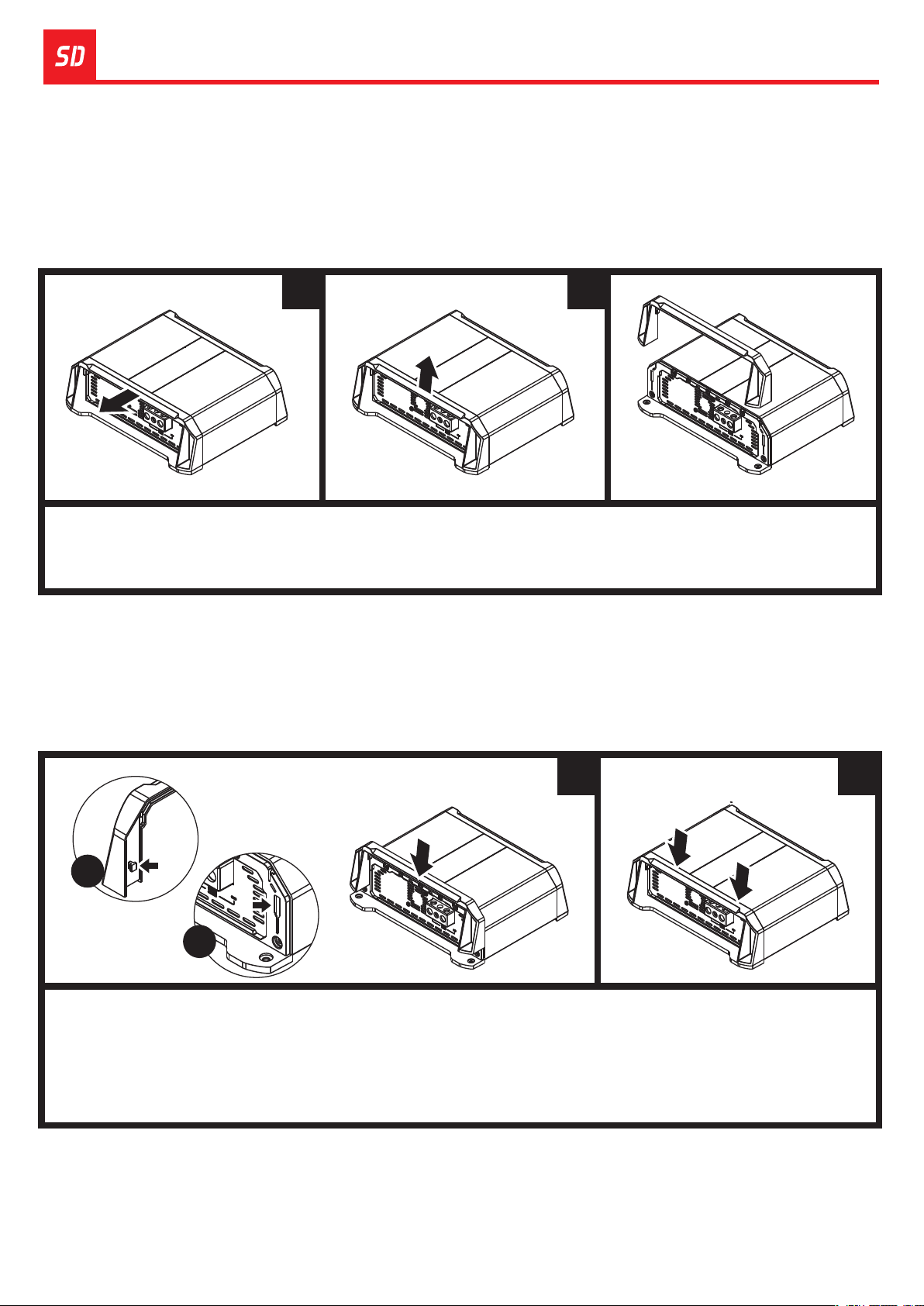

DISASSEMBLING OF THE PLASTIC COVER

ASSEMBLING THE PLASTIC COVER

The plastic covers have the function of finishing and hiding the amplifier fixing

screws. To disassembling and assembling them, follow the instructions

below.

1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1.

2. Slide up the plastic cover in a continuous movement to remove it.

1. To fit the plastic cover back, carefully insert the point A of the plastic cover into point B of the

amplifier, slowly sliding it down.

2. Gently press the sides of the top of the plastic cover towards the bottom of the amplifier until

you hear a clicking noise.

ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER

*Merely illustrative images.

PANELS DESCRIPTION

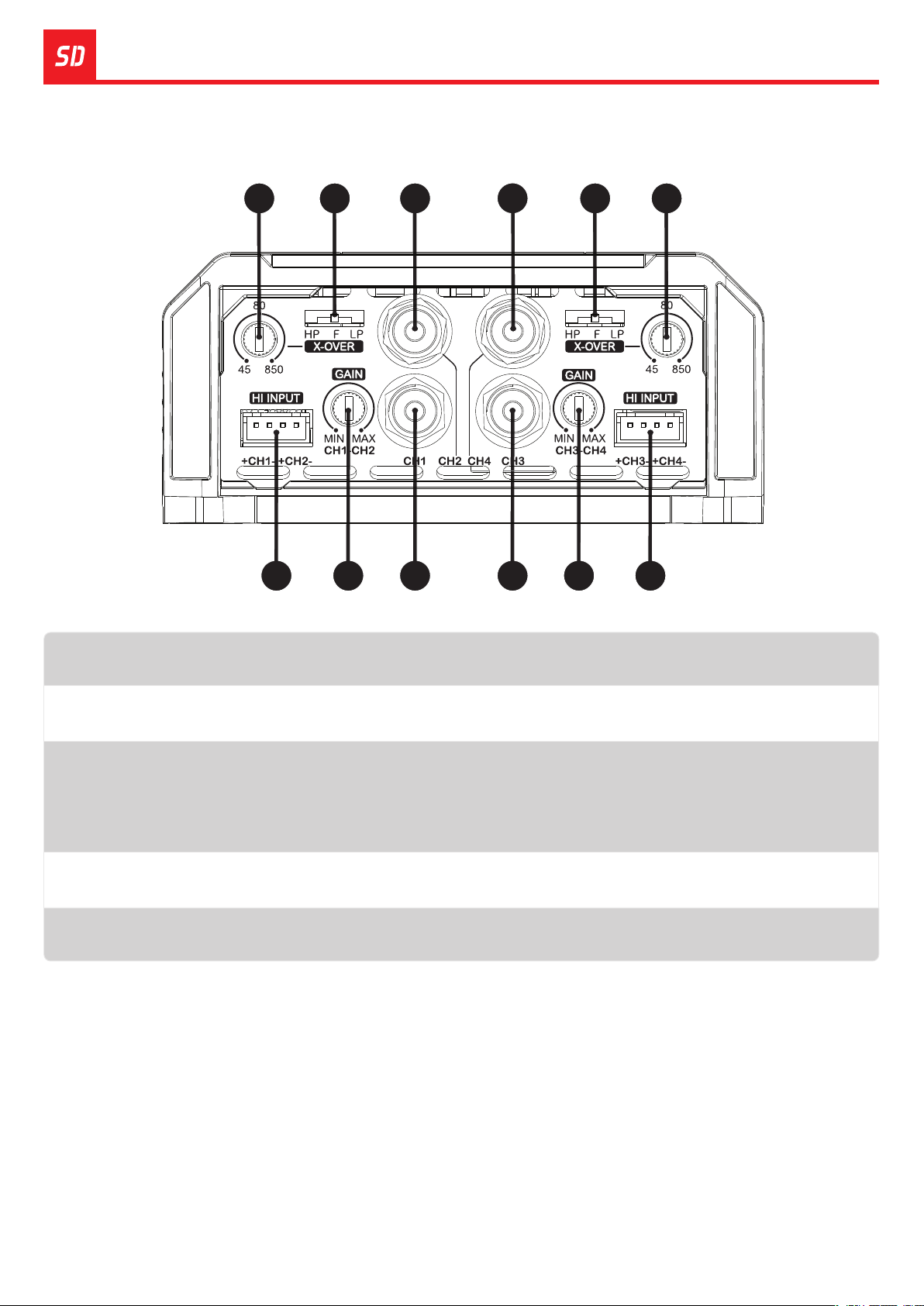

Variable crossover control - 45Hz to 850Hz

Audio inputs - High Level

(To connect to the speaker output of the head unit)

Crossover Switch

Low Pass - Full - High Pass

Variable Gain Control

Audio inputs - RCA connectors

CH1/CH2

CH1

CH3

CH3/CH4

CH2

CH4

69 2

101

11 712 4

Negative speaker connector

Positive speaker connector

CH4

CH3

CH4

PANELS DESCRIPTION

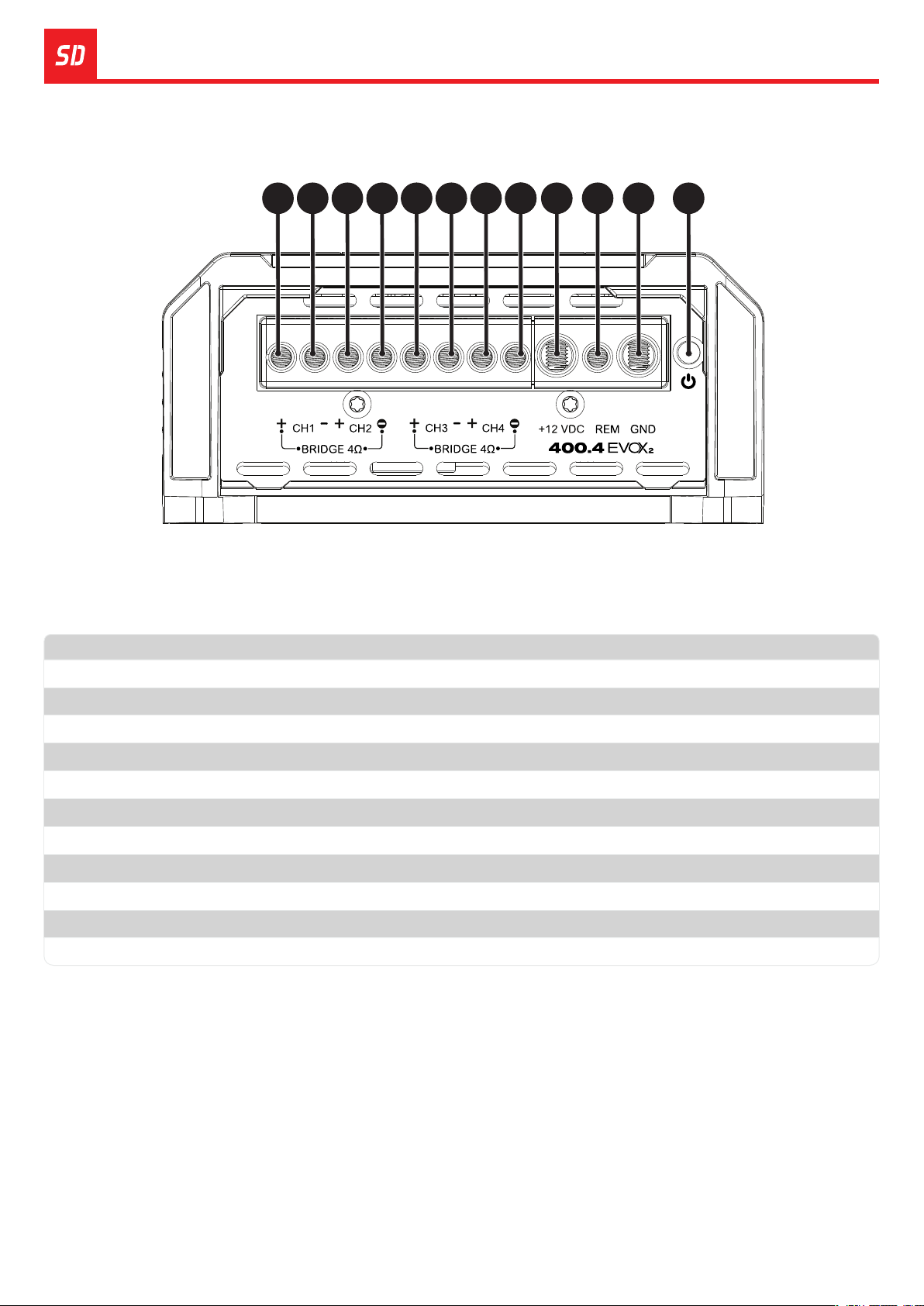

Positive power supply connector (+12VDC)

Negative power supply connector (GND)

Remote power supply connector (REM)

Positive speaker connector

Negative speaker connector

CH1

CH2

CH3

Negative speaker connector

Positive speaker connector

Negative speaker connector

15 16

"Power ON" LED indicator (Blue)

13 14 19

17 18 22 23

21 24

ØMount the amplifier in such a way you have access to the connectors;

ØInstall the power cables in the vehicle properly, starting from the battery to the fuse

holder or circuit breaker, use the cable with the appropriate size. Make all

connections, install fuse holders or circuit breakers, but without placing the fuses

or with the circuit breakers in the "OFF" position;

ØConnect the power cables in to the amplifier, observing the polarity. Connect all the

positive cables from the fuse holder or circuit breaker to the positive conector of

the amplifier and all the negative power cables from the batteries to the negative

connector of the amplifier;

ØThe ground cable must be as short as possible and must be connected to the

vehicle chassis and the battery negative;

ØInstall the signal input cables in a proper way, distant from the power cables;

ØConnect the RCA or the high level signal input cables to the head unit and

amplifiers;

ØInstall the audio output cables with the appropriate section, distant from the power

and audio input cables;

ØConnect the audio output cables to the amplifier and speakers respecting the

positive (+) and negative (-) polarities;

ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or

thicker;

ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's

remote power output (when not using the high level signal inputs);

ØBefore powering the system, verify all the connections and make sure there are no

mistakes or short-circuits on the power and ground cables;

Ø;Reconnect the ground of the batteries

ØCheck if the head unit is turned off and then place the fuses in the fuse holders or

switch the circuit breakers on;

ØTurn on the main unit and the amplifier will turn on the "ON" LED indicating that it is

in operation.

INSTALLATION SEQUENCE

Warning!

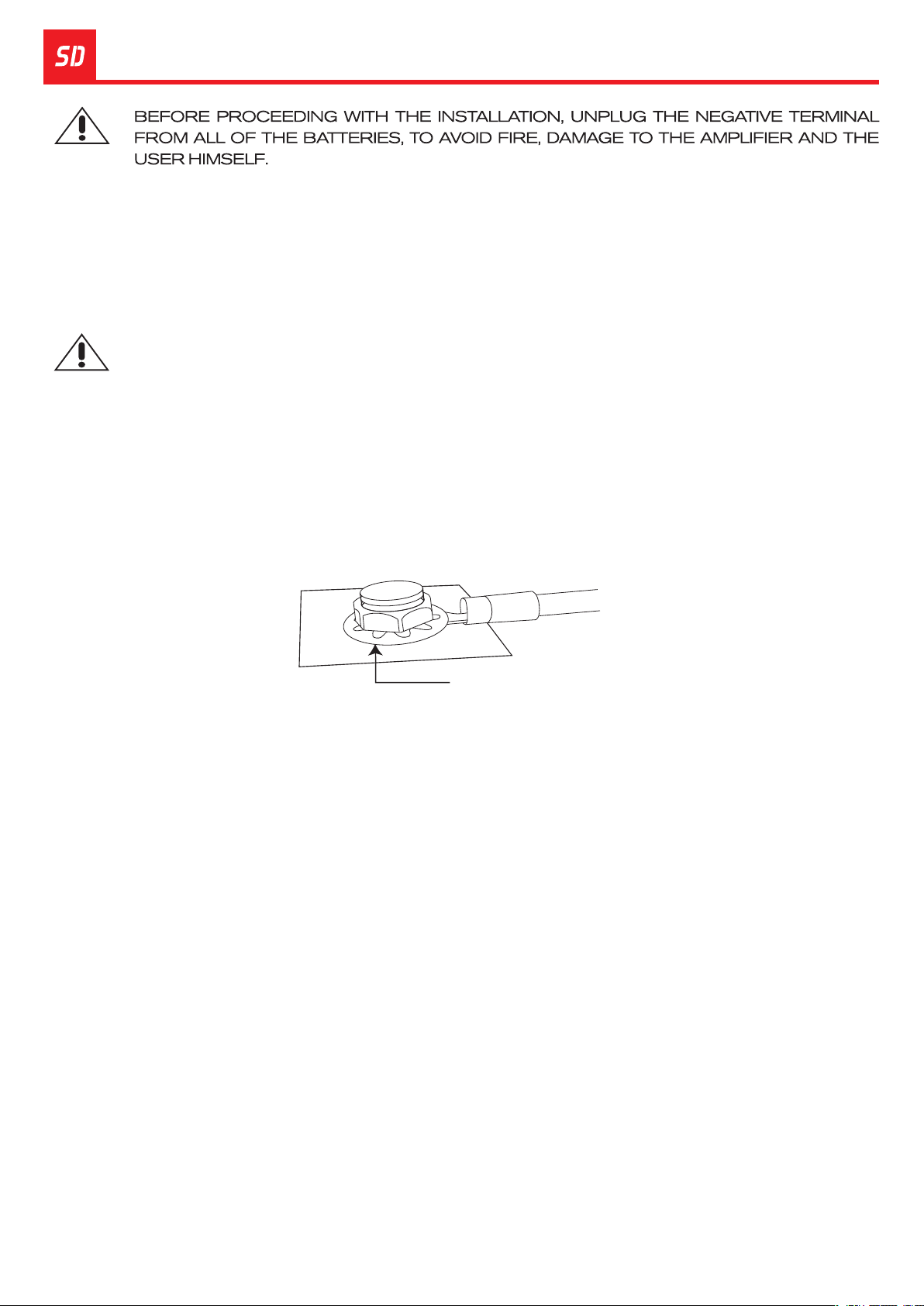

Remove the paint between

the terminal and chassis

THE MAXIMUM DISTANCE FOR THE INSTALLATION OF THE FUSE/CIRCUIT

BREAKER IS 12 INCHES (30cm) AWAY FROM THE BATTERY.

Table des matières

Autres manuels Soundigital Amplificateur

Soundigital

Soundigital 800.4 EVO6 Manuel utilisateur

Soundigital

Soundigital GAN 1500.5 Manuel utilisateur

Soundigital

Soundigital 8000.1D EVO Manuel utilisateur

Soundigital

Soundigital 1600.1 EVO5 Manuel utilisateur

Soundigital

Soundigital 3000.1D Manuel utilisateur

Soundigital

Soundigital EVOPS POWER SPORTS 2000.4 Manuel utilisateur

Soundigital

Soundigital EVO PowerSport 400.4 Manuel utilisateur

Soundigital

Soundigital 2000.4 EVO5 Manuel utilisateur

Soundigital

Soundigital EVOX2 3000.1 Manuel utilisateur

Soundigital

Soundigital EVOX2 800.4 Manuel utilisateur

Soundigital

Soundigital 20000.1 EVOX Manuel utilisateur

Soundigital

Soundigital EVOX2 3000.1 Manuel utilisateur

Soundigital

Soundigital 1200.1 EVO5 Manuel utilisateur

Soundigital

Soundigital 400.2 EVO4.0 Manuel utilisateur

Soundigital

Soundigital 4000.1D EVO Manuel utilisateur

Soundigital

Soundigital 3000.1 EVO5 Manuel utilisateur

Soundigital

Soundigital 400.4 EVO6 Manuel utilisateur

Soundigital

Soundigital 20000.1 EVOX Manuel utilisateur

Soundigital

Soundigital 1200.1D EVO Manuel utilisateur

Soundigital

Soundigital POWER SPORTS 2400.1 EVOPS Manuel utilisateur

Soundigital

Soundigital EVOX 12000.1 Manuel utilisateur

Soundigital

Soundigital POWER 20000.1D Manuel utilisateur

Soundigital

Soundigital EVOX2 5000.1 Manuel utilisateur

Soundigital

Soundigital 6500.1D EVO Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
