SoundCraft 328xd Guide de démarrage rapide

RIGHT

STE-2STE-1

SELECT

MUTE

SOLO

MIX

dBFS

0dBFS = 18dBu

STEREO INPUTS

GROUP LINK

CHANNEL /

XDX D

EXIT

PARAMETER

FUNCTION

OUT

THRU

MIDI

IN OUT IN

OUT

S/PDIF

OUT IN

AES/EBU

WORD

CLOCK CLOCK

WORD/SUPER

LEXICON STUDIO LDI-12T

328

Soundcraft 328XD and Lexicon Studio LDI-12T

328XD AND

328XD AND328XD AND

328XD AND

LEXICON STUDIO

LEXICON STUDIOLEXICON STUDIO

LEXICON STUDIO

LDI-12T

LDI-12TLDI-12T

LDI-12T

Connecting the system 2

328XD Configuration 3

LDI-12T Configuration 5

Soundcraft 328XD and Lexicon Studio LDI-12T

CONNECTING THE SYSTEM

Audio Connections

Connect audio connections as shown in the diagram below. ADAT Optical cables must be connected from

the ADAT Out port of the Lexicon Studio LDI-12T card to an ADAT In port of the 328XD and vice versa.

Coaxial digital S/PDIF cables can also be connected from the Lexicon Studio LDI-12T S/PDIF output to the

328XD S/PDIF input and vice versa. Connect the 328XD wordclock output to the wordclock input of the

Lexicon Studio LDI-12T with a suitable BNC wordclock cable.

The ADAT connections allow digital transfer of either direct output for input channels 1-16 to the Lexicon

Studio LDI-12T card, or the 328XD’s 8 Group outputs. The S/PDIF output from the console can be

assigned to either the Mix output or 1 of 3 stereo auxiliary outputs. The 328XD S/PDIF Input can be

configured to be a digital Stereo Input or as a digital 2-Track Return. The wordclock cable will allow the

Lexicon Studio LDI-12T to synchronize to the internal clock of the 328XD.

Soundcraft 328XD and Lexicon Studio LDI-12T

328XD CONFIGURATION

Wordclock

To configure the 328XD as the wordclock master, enter the 328XD Menu pages by pressing the

<MENU> button on the right hand side of the LCD display. Using the PARAM encoder beneath the

display, scroll up or down until the ‘Clock Source Sel’ menu is highlighted, and press <ENTER>. Here,

either the internal 44.1kHz clock or the internal 48kHz clock must be selected, depending on the

sampling rate at which work is to be carried out. Press <MENU> to return to the menu pages.

Tape Ports

To ensure that the 328XD Tape Ports are set to ADAT to work with the Lexicon Studio LDI-12T, enter the

328XD Menu pages by pressing the <MENU> button on the right hand side of the LCD display. Using

the PARAM encoder beneath the display, scroll up or down until the ‘Tape Port Select’ menu is

highlighted. Press <ENTER> and press the Up cursor key until the ‘<Tape Ch17-24 >’ menu page is

displayed. Using the PARAM encoder set the Bank Source to ADAT.

Press the Down cursor key once to set the wordlength. The Lexicon Studio LDI-12T is capable of 24-bit

recording, and so for optimum results, 24-bit wordlength can be selected here. If your audio sequencer

software does not allow 24-bit recording, 20-bit or 16-bit should be selected. The sequencer manuals

should be consulted for further information. The wordlength is set on the 328XD with the PARAM

encoder. Press <MENU> to return to the menu pages.

S/PDIF Input

The 328XD S/PDIF input can be routed to any one of the following inputs:

Stereo Input 1;

` Stereo Input 2;

FX Return 1;

FX Return 2;

2 Track Tape Return,

provided that the 328XD AES/EBU input or internal osciallator has not already been assigned to that

input. Commonly the Lexicon Studio LDI-12T S/PDIF output would best be routed to a Stereo Input or

the 2 Track Tape Return input.

Soundcraft 328XD and Lexicon Studio LDI-12T

NOTE:

Assigning a digital source to an input will override an analogue signal, if present.

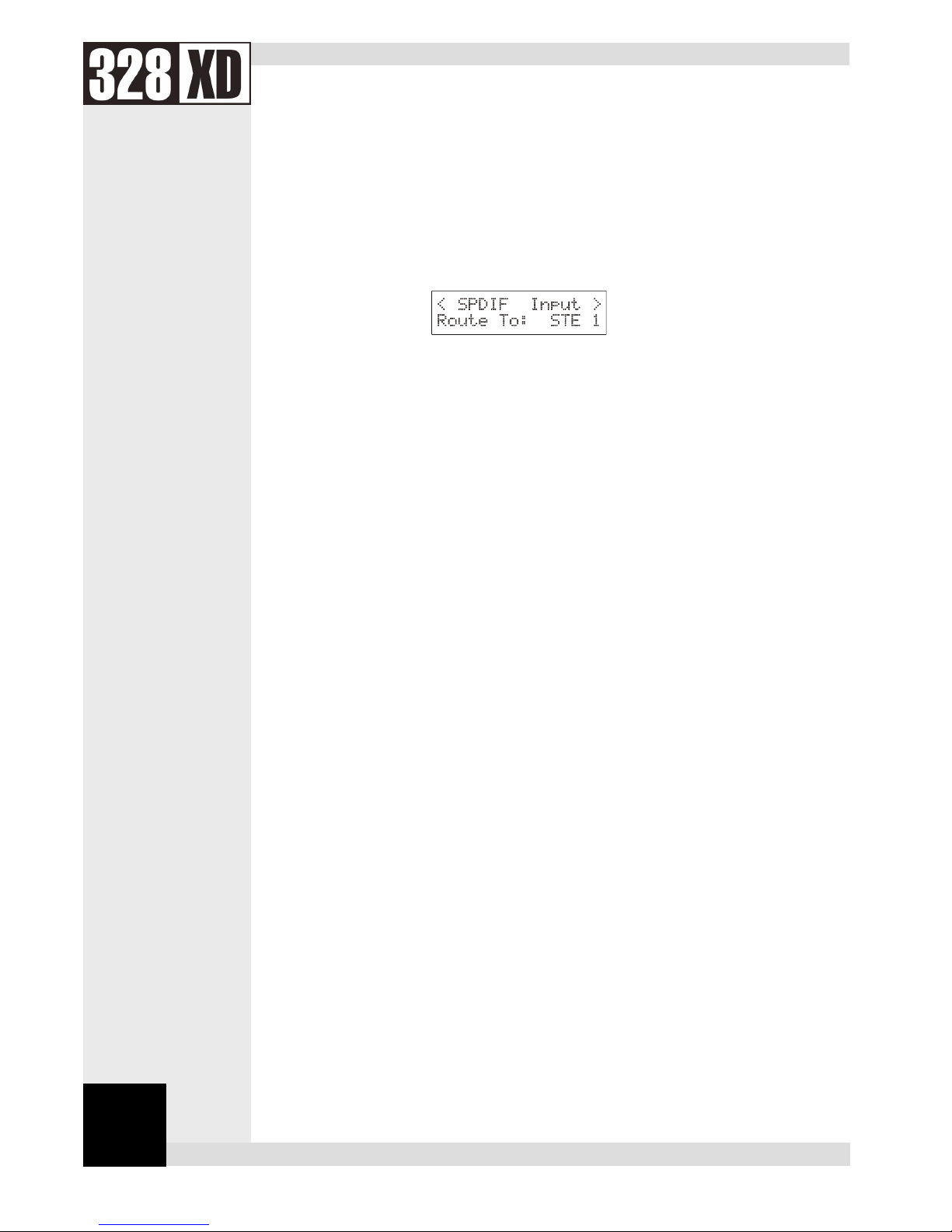

Press <MENU> to enter the menu pages, scroll through the pages until the ‘SPDIF I/P Setup’ is

highlighted and press <ENTER>. Using the PARAM encoder, select the destination for the S/PDIF input.

Press <MENU> to return to the menu pages.

NOTE:

If the S/PDIF input is not required, NOWHERE should be selected in the menu.

Soundcraft 328XD and Lexicon Studio LDI-12T

LDI-12T CONFIGURATION

Wordclock

The Lexicon Studio LDI-12T must now be set up to receive the wordclock transmitted by the 328XD.

Open the Lexicon Studio Control Panel, by double clciking the Lexicon Studio icon in the taskbar. and

select ‘Clock Source’ from the page options.

Click on the drop down menu and select WCBNC as the clock source input.

If the BNC wordclock cable is connected, the Lexicon Studio LDI-12T should slave to the clock on the

BNC wordclock input.

If a wordclock cable is not connected, the Lexicon Studio LDI-12T must slave to the clock on one of its

ADAT or S/PDIF inputs. Set the Lexicon Studio LDI-12T to use the clock source from the ADATDATA 12T

input or the SPDIF 12T Input as required using the method described above.

Audio Data

The Lexicon Studio LDI-12T must now be set up to transmit and receive audio data to and from the

328XD. Open the Lexicon Studio Control Panel, by double clciking the Lexicon Studio icon in the taskbar

and select ‘CtrlI/O’ from the page options.

Soundcraft 328XD and Lexicon Studio LDI-12T

Leave the virtual faders for the input and output level at their default positions, this is correct for the

328XD.

Now select S/PDIF RCA in the ‘Input’ settings, this forces the Core32 to recieve the ADAT signal from the

328XD.

The in the ‘Output’ settings select S/PDIF RCA / ADAT OPTICAL, this forces the Core32 to send audio from

the ADAT port to the 328XD.

Please refer to the Lexicon Studio documentation for other system settings.

Soundcraft 328XD and Lexicon Studio LDI-12T

SOUNDCRAFT

HARMAN INTERNATIONAL INDUSTRIES LTD

CRANBORNE HOUSE

CRANBORNE ROAD

POTTERS BAR

HERTS EN6 3JN UK

TEL: +44 (0) 1707 665000

FAX: +44 (0) 1707 660742

EMAIL: info@soundcraft.com

SOUNDCRAFT USA

1449 DONELSON PIKE

NASHVILLE TN 37217 USA

TEL: 1-615-360-0471

FAX: 1-615-360-0273

EMAIL: soundcraft-usa@harman.com

www.soundcraft.com
