Sound Tube DS31-EZ Guide de configuration

Install Instructions For:

DS31-EZ

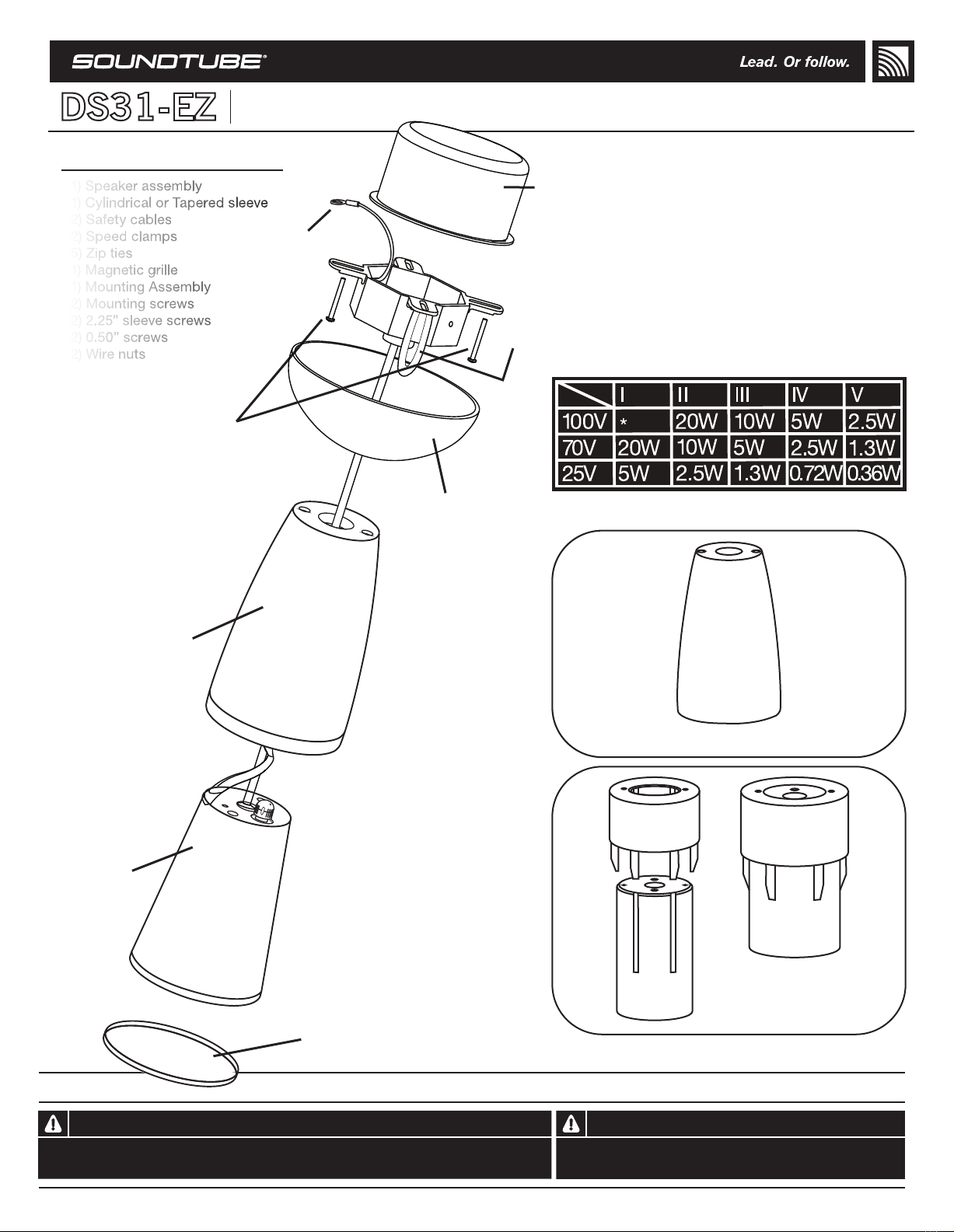

Box contents

1.435.647.9555

800.647.TUBE

www.soundtube.com

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

DS31-EZ

(1) Speaker assembly

(1) Cylindrical or Tapered sleeve

(2) Safety cables

(2) Speed clamps

(5) Zip ties

(1) Magnetic grille

(1) Mounting Assembly

(2) Mounting screws

(2) 2.25” sleeve screws

(2) 0.50” screws

(2) Wire nuts

Cover plate

Tapered Sleeve

Mounting plate

Mounting screws (2)

Dual-Gang Junction Box (not included)

Speaker

Grille

Safety leash

Adjustment loop

Tapered Sleeve

Tap Settings

Cylindrical Sleeve

(two pieces)

Install Instructions For:

DS31-EZ

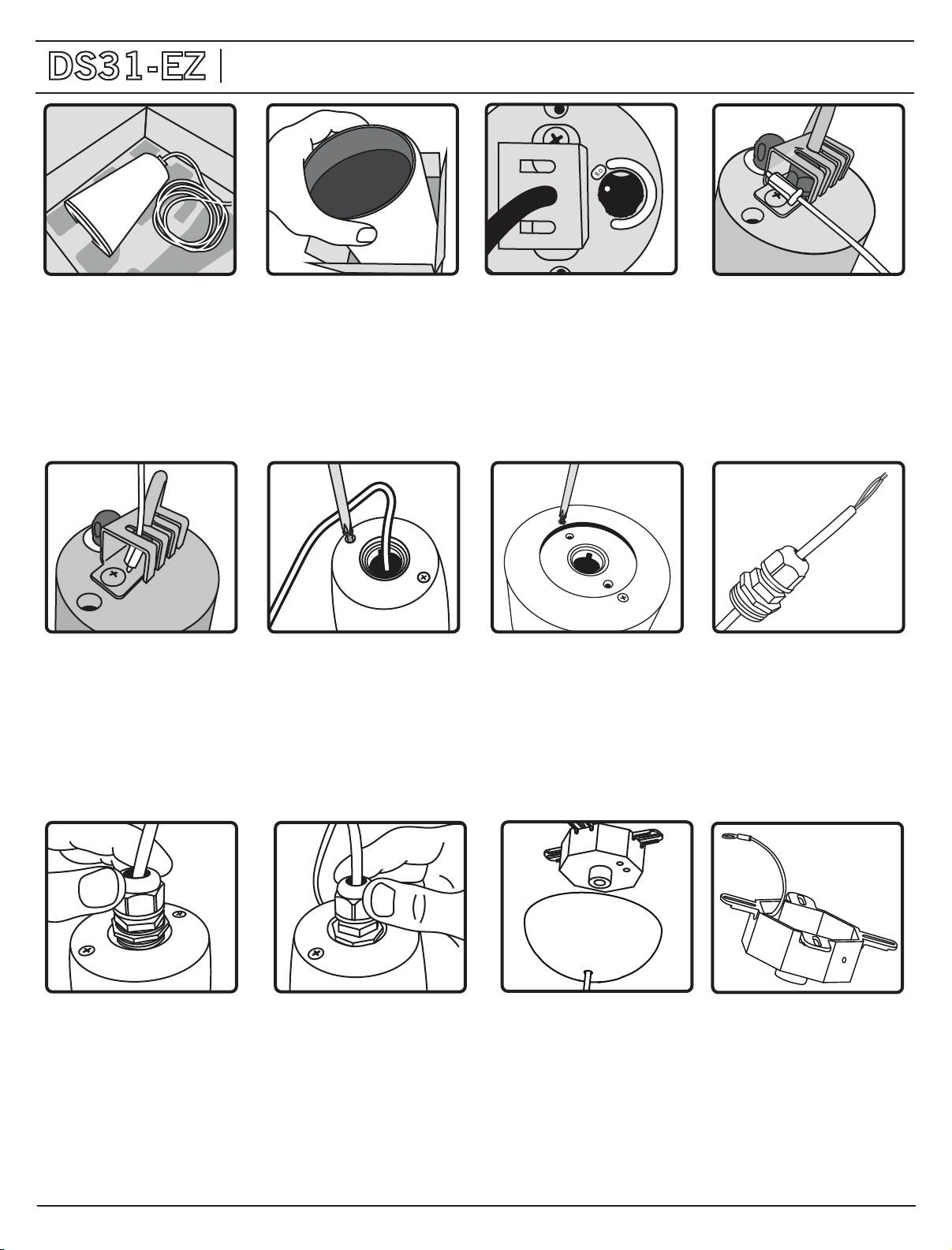

1. Remove speaker body from

box and unravel signal wire.

2. Unpack Designer Sleeve. 3. Select tap setting on the

back face of the speaker body.

Each numeral setting

corresponds to a wattage

shown in tap setting table on

back of speaker (also shown

on Page 1). Use 8Ω for

transformer bypass.

4. If necessary, attach safety

cable by rst inserting into side

of mounting bracket.

6. Thread signal wire through

Designer Sleeve central hole,

then use two included 2.25”

Phillips-head screws to secure

sleeve to speaker body

(Tapered Sleeve shown).

7. If using both Cylindrical

Sleeve pieces, use two

included 0.50” Phillips-head

screws to secure the two

sleeve pieces to one another.

8. Thread signal wire through

included Strain Relief Bushing.

9. Screw bushing into

Designer Sleeve, pulling excess

wire through until snug.

10. Tighten down top gland to

secure the signal wire. Gland

must be tightened around

signal cable to prevent water

ingress and maintain IP rating.

12. Where needed, connect

safety leash to secure point on

structure/ junction box.

11. Unpack Mounting Assembly

and separate hemispherical

cover plate from mounting plate.

Thread signal wire through

hemispherical cover plate and

central hole in mounting plate.

1.855.663.5600

www.soundtube.com

5. Align safety cable with

bracket slot and pull up to

secure.

13. Loop wire down through

one of the smaller holes on the

mounting plate, then back up

through adjacent hole. Run

signal wire from amplier to the

speaker and connect it to the

speaker’s signal wire using

included wire nuts. Red is

positive, black is negative.

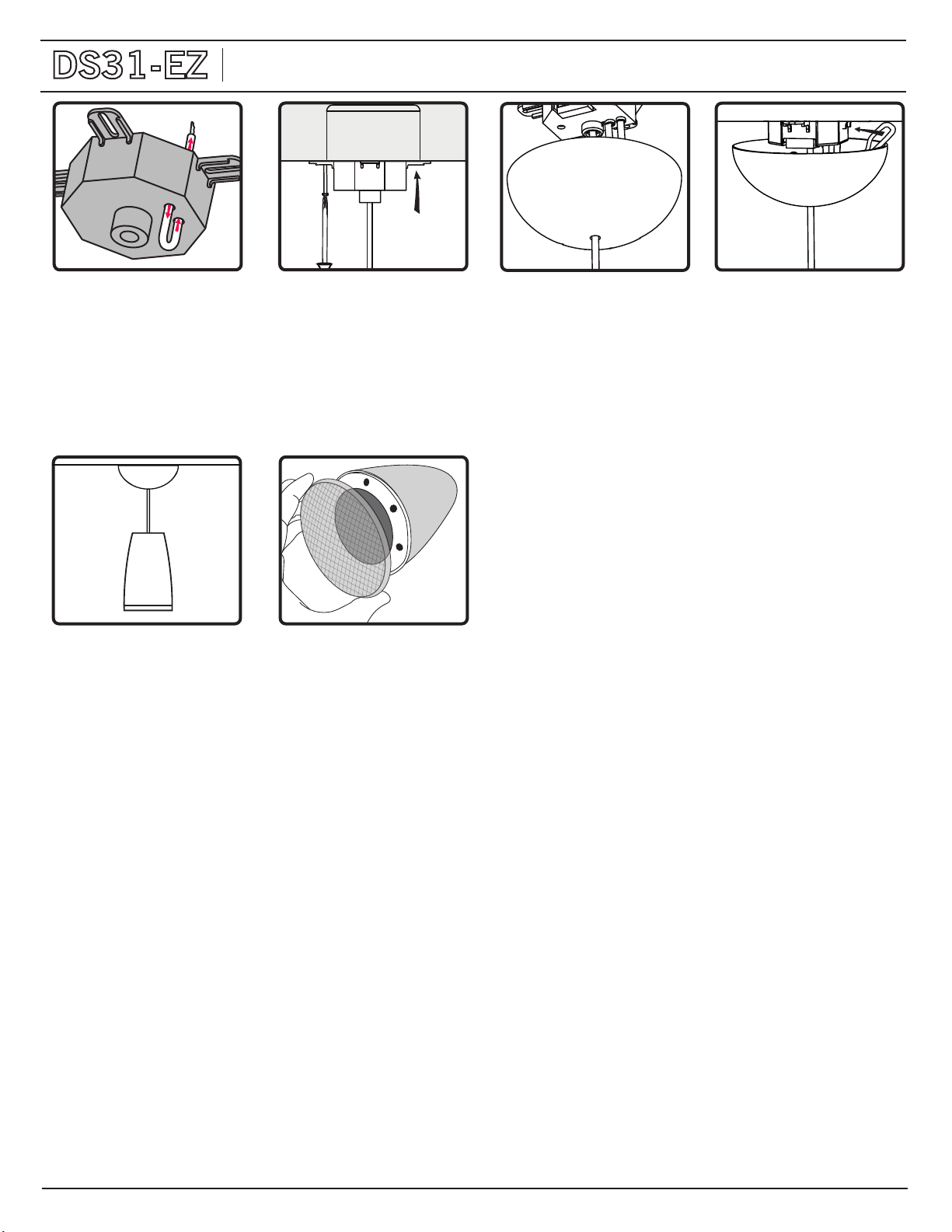

13. Screw mounting plate into

the junction box (not included)

using the mounting screws

provided.

Install Instructions For:

DS31-EZ

1.855.663.5600

www.soundtube.com

15. Move cover plate up

speaker wire, begin to thread

cover plate into mounting plate,

leaving half an inch between

cover plate and mounting

surface.

16. Excess wire can be

hidden inside of cover plate by

wrapping excess wire clock-

wise and into gap between

plate and surface.

18. Unpack grille and

magnetically attach it to the

front of the speaker.

Done.

17. Completely thread cover

plate to secure speaker.
