Sound Storm SDVD250T Manuel utilisateur

Compatible with PAL DVD (Video CD)

and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles multi-

function software (multi-language

audio-track/subtitle, multi-angle,multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Center list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30˚.

FEATURES

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Front View ...............................................................................................................6

Back View ...............................................................................................................7

Installation .....................................................................................................8

Electric Connection ....................................................................................11

Remote Control...........................................................................................12

Location and Function of Keys.............................................................................12

Preparing the Remote Control..............................................................................14

General Operation.......................................................................................15

Turn the Unit On....................................................................................................15

Basic Play .............................................................................................................15

DVD Video Menu Play...........................................................................................16

Mode Selection.....................................................................................................16

Reset Function......................................................................................................16

Last Play Memory .................................................................................................16

Advanced Operation...................................................................................16

Repeat Play/ Paragraph Repeat Play ...................................................................16

PBC Menu Playback of VCD/SVCD .....................................................................16

On-screen Display Function .................................................................................17

PAL/NTSC System Selection................................................................................18

Bookmark Function ..............................................................................................18

Random Playing....................................................................................................18

Zoom Function......................................................................................................19

Special Function for DVD .....................................................................................19

Special Function for VCD .....................................................................................20

Data Disc and Audio CD Play Operation ..............................................................20

Setup ............................................................................................................22

Language Setup ...................................................................................................22

Display Setup........................................................................................................23

Audio Setup ..........................................................................................................23

Lock Setup............................................................................................................24

Others Setup.........................................................................................................25

TV Operation ...............................................................................................25

Trouble Shooting.........................................................................................26

Specifications..............................................................................................27

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

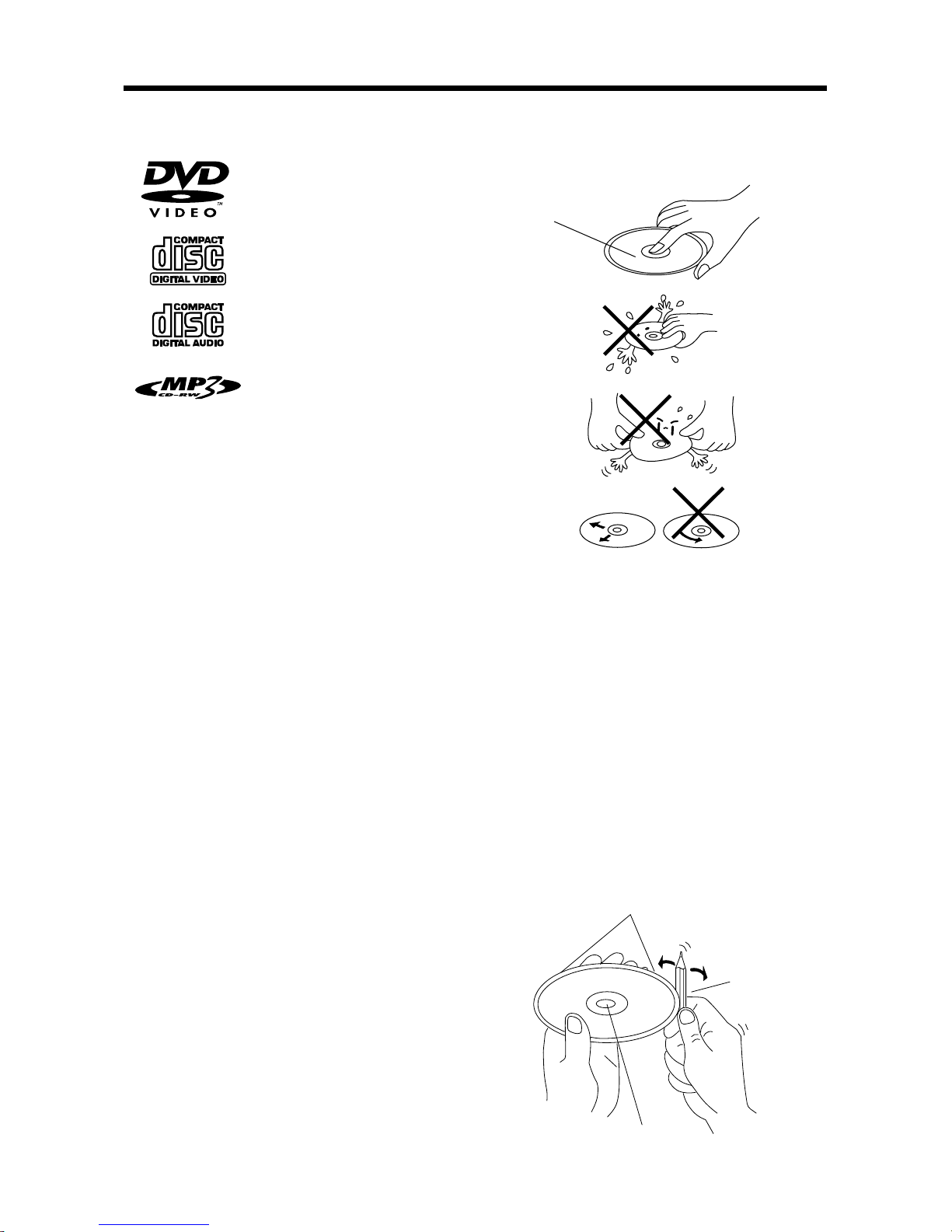

Disc formats supported by this player

DVD

12 cm disc

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damage.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handling

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

THE PLAYER

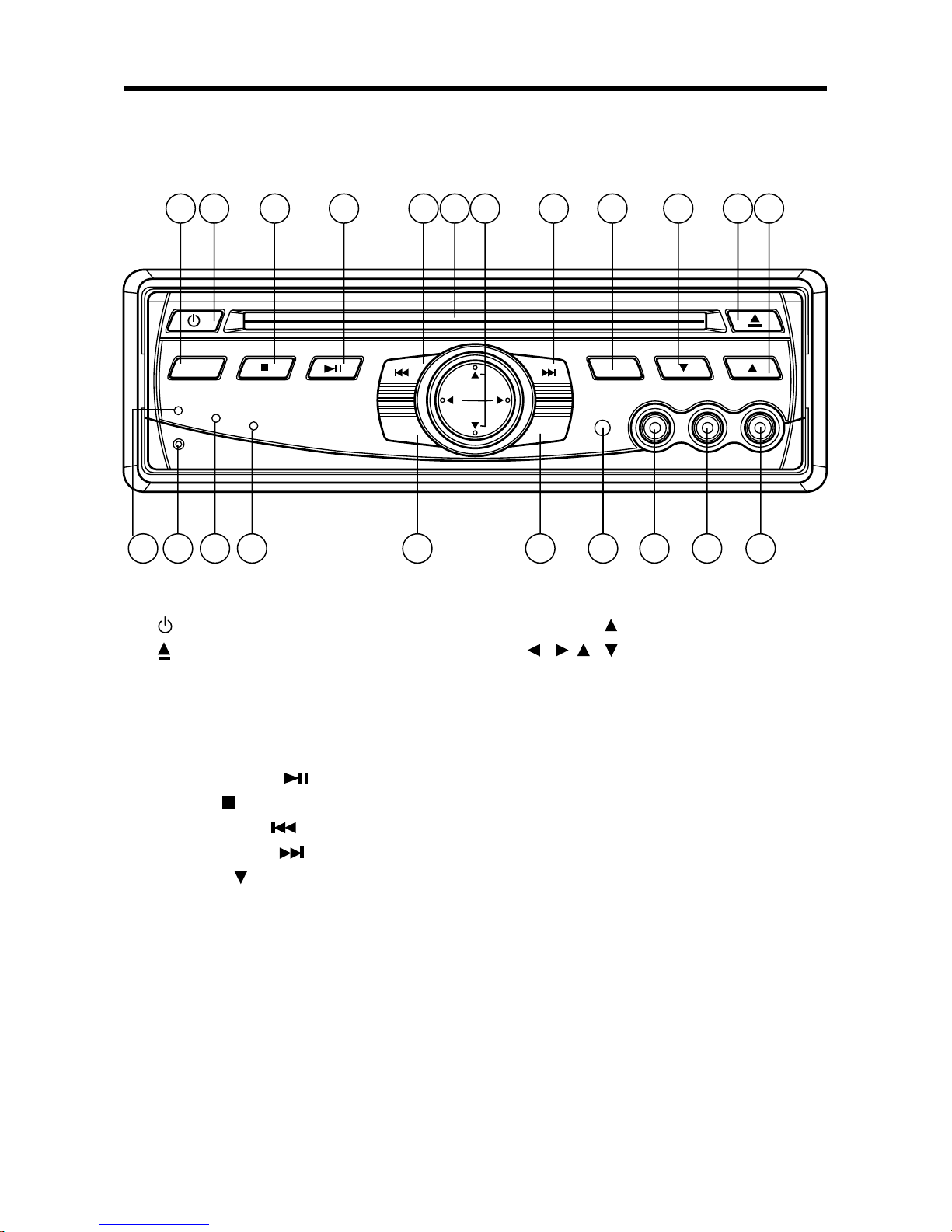

FRONT VIEW

1. (POWER BUTTON)

2. (EJECT BUTTON)

3. SETUP

4. MENU/TV SEARCH

5. SOURCE

6. DISC SLOT

7. PLAY/PAUSE ( )

8. STOP ( )

9. PREV / CH- ( )

10. NEXT / CH+ ( )

11. VOLUME

12. VOLUME

13. / , / cursor buttons

14. ENTER

15. Indicator Light for DVD

16. Indicator Light for TV

17. Indicator Light for AV

18. VIDEO IN

19. AUDIO IN L

20. AUDIO IN R

21. IR

22. RESET BUTTON

1821322 20171615 14 19

2410135 8 7 9 61 11 12

THE PLAYER

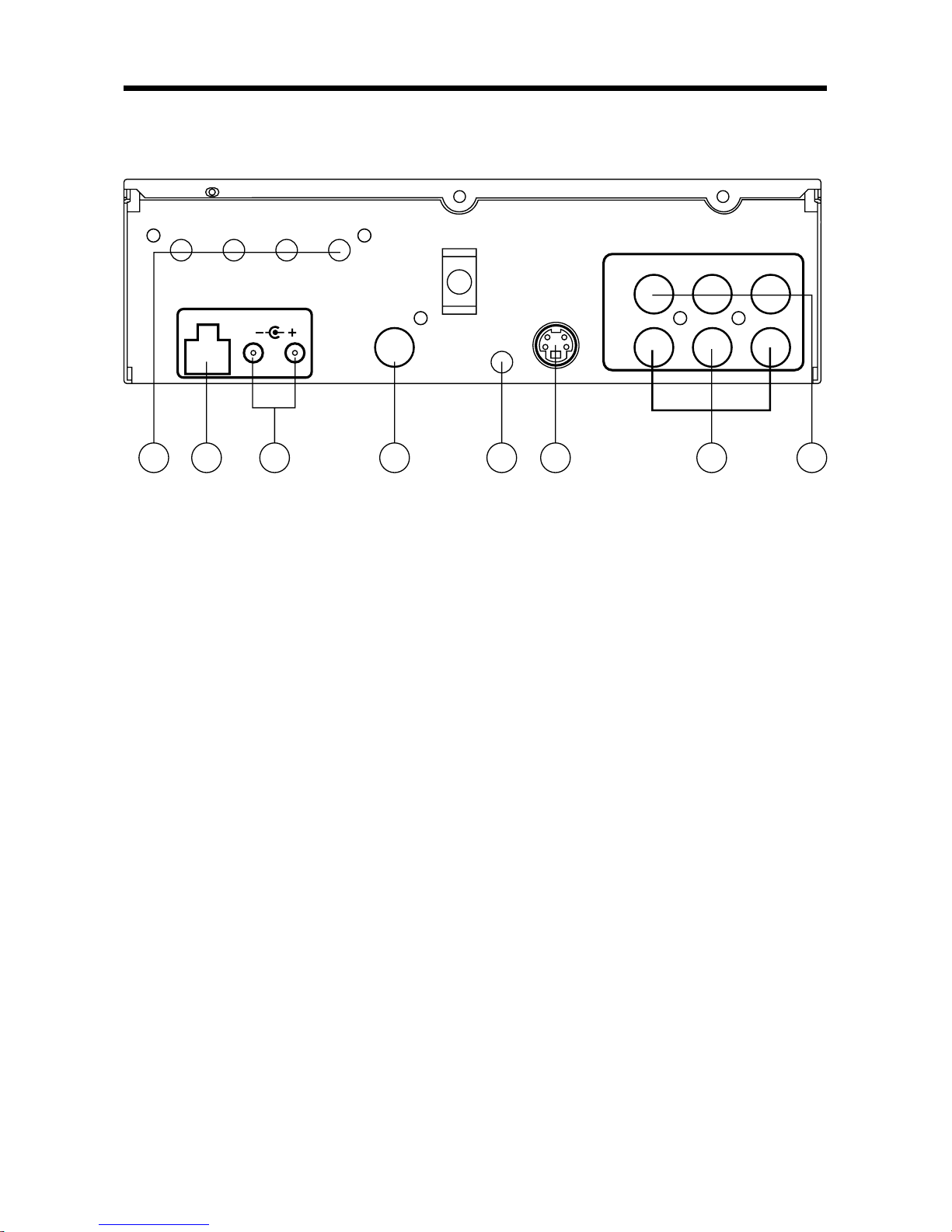

BACK VIEW

23. DC 12V INPUT Socket

24. DC 12V OUTPUT Socket

25. DIGITAL AUDIO

26. REMOTE Socket

27. S-VIDEO Socket

28. AUDIO/VIDEO OUTPUT 1

29. AUDIO/VIDEO OUTPUT 2

30. DIVERSITY ANTENNA INPUT

2829272625242330

Notes:

•Choose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

•Before finally installing the unit,

connect the wiring temporarily and

make sure it is all connected properly

and the unit and the system work

properly.

•Use only the parts included with the

unit to ensure proper installation.

The use of unauthorized parts can

cause malfunctions.

•Consult with your nearest dealer if

installation requires drilling holes or

other modifications of the vehicle.

•Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

•If installation angle exceeds 30˚from

horizontal, the unit might not give its

optimum performance.

•Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

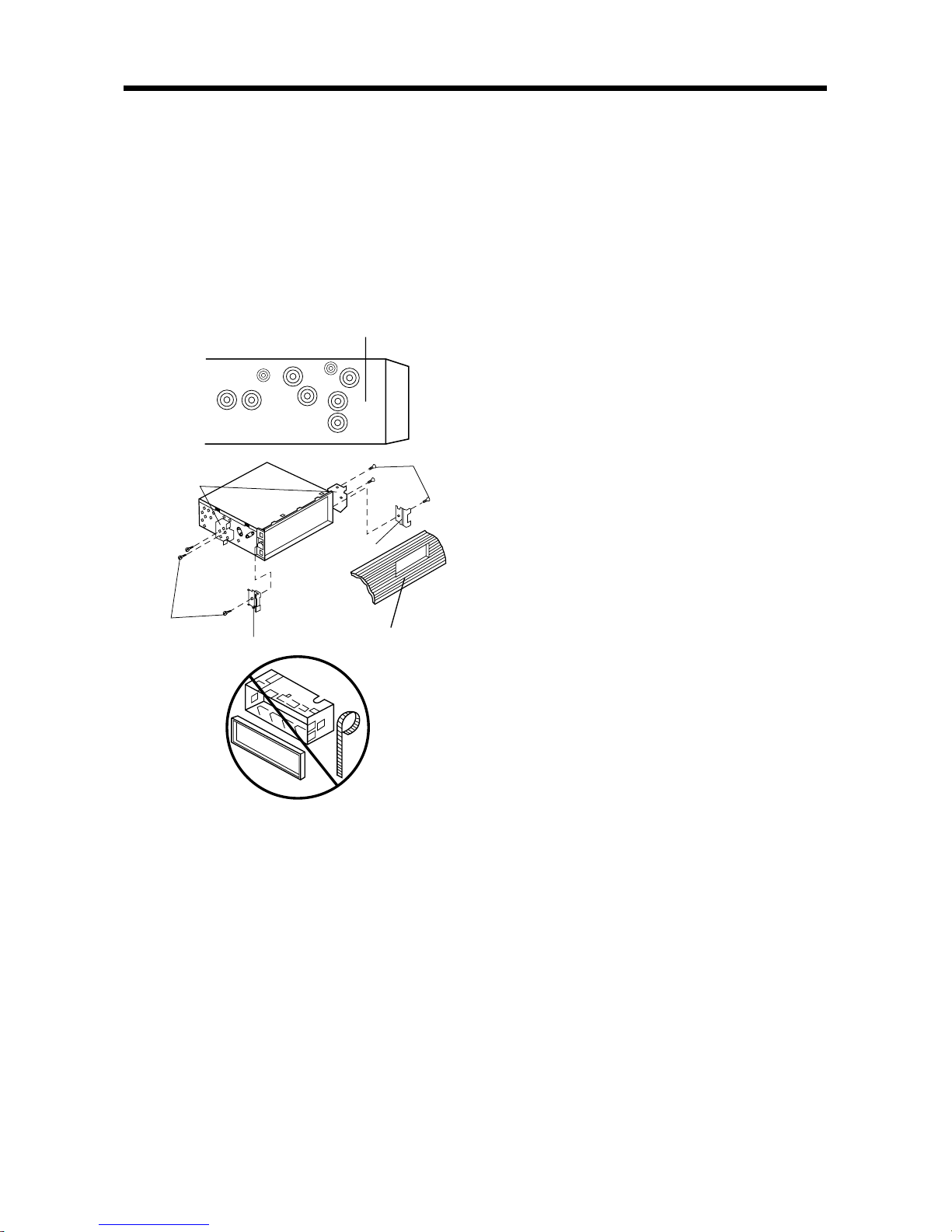

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front”(conventional DIN Front-

mount) or “Rear”(DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis).

For details, refer to the following

illustrated installation methods.

30˚

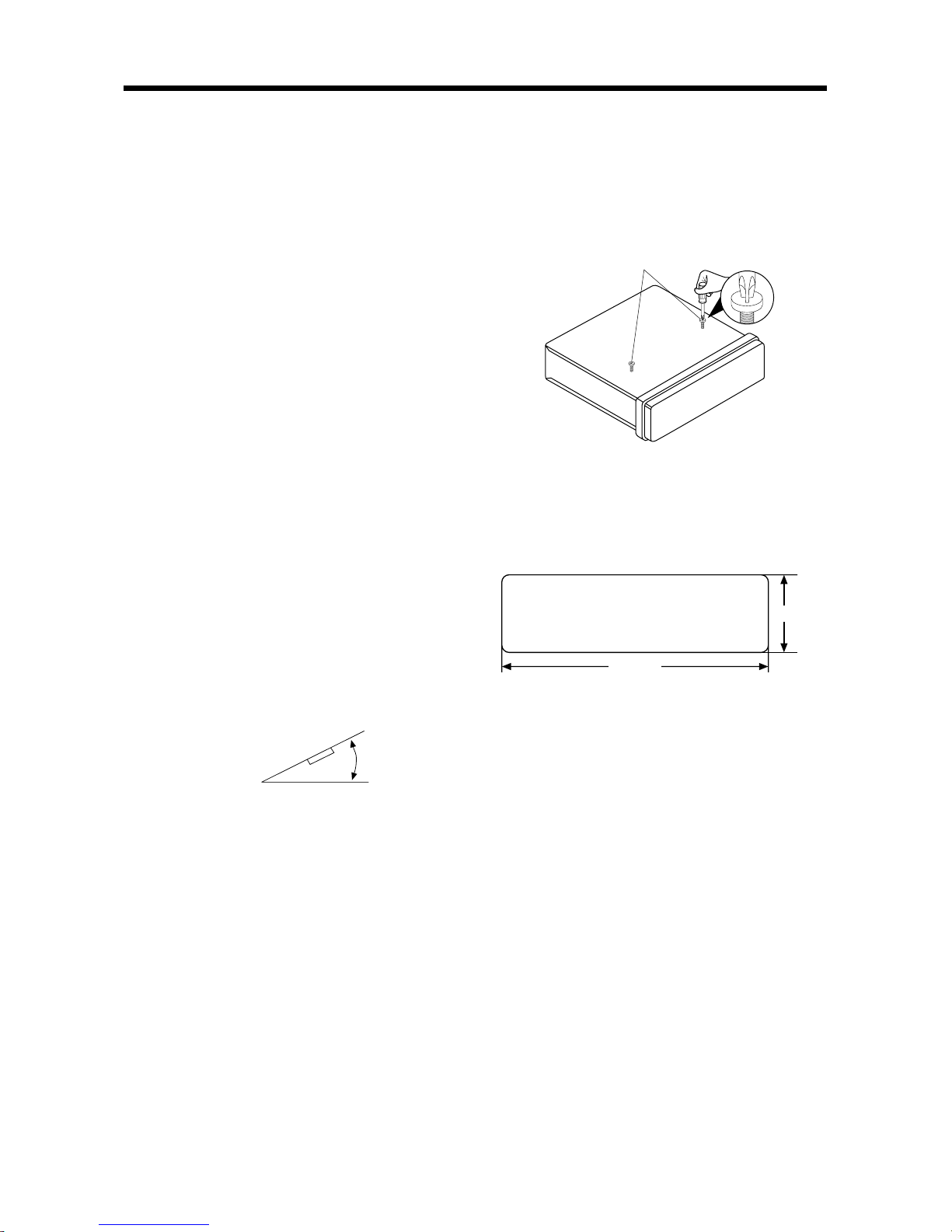

TAKE OUT SCREW BEFORE

INSTALLATION

Before install the unit, please remove the

two screws.

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard

having an opening as shown below:

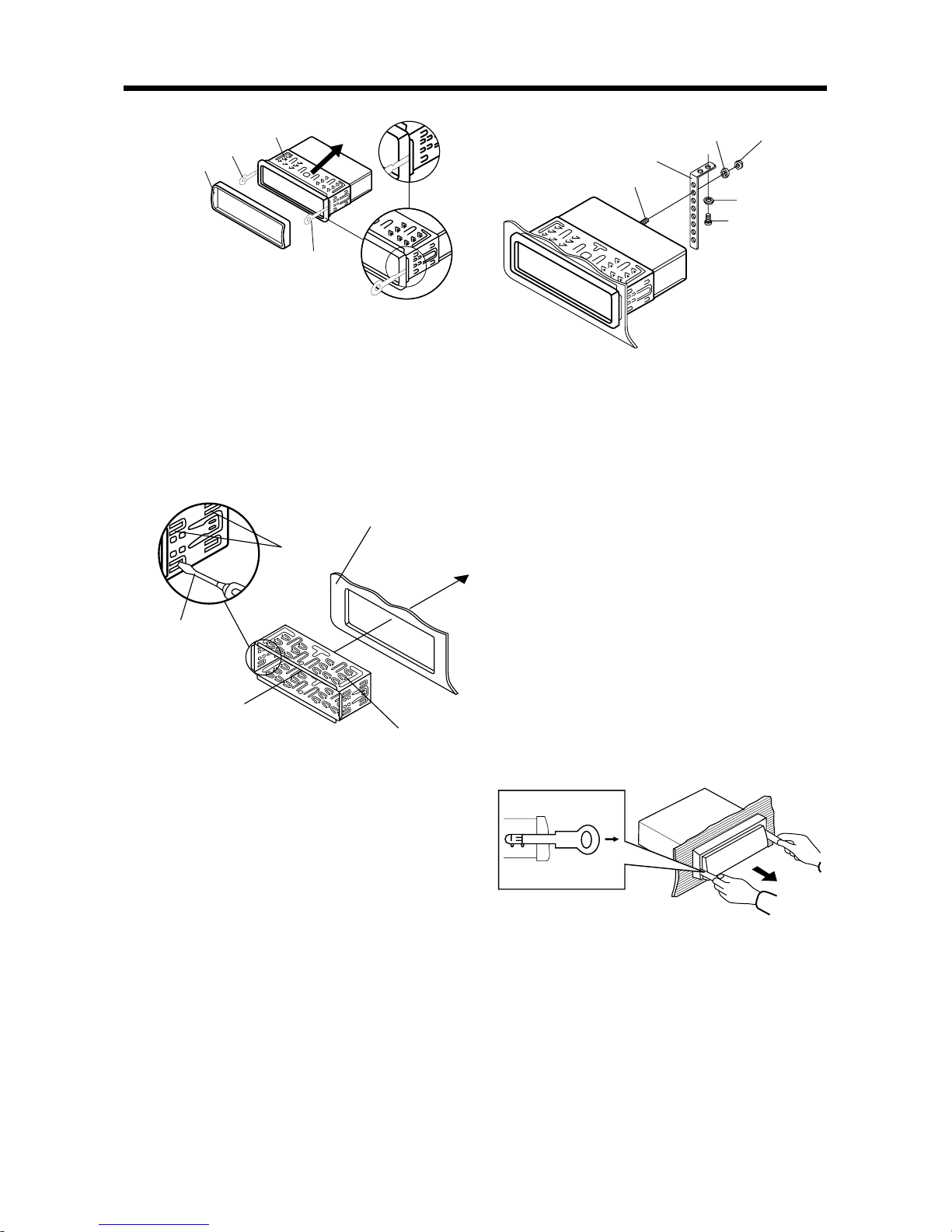

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery's positive (+) terminal.

2. Disconnect the wire harness and the

antenna.

3. Lift the top of the outer trim ring then

pull it out to remove it.

4. The two supplied keys release the tabs

inside the unit's sleeve so you can

remove it. Insert the keys as far as they

will go (with the notches facing up) into

the appropriate slots at the middle left

and right sides of the unit. Then slide

the sleeve off the back of the unit.

182 mm

53 mm

Take out screw before installation

INSTALLATION

5. Mount the sleeve by inserting the sleeve

into the opening of the dashboard and

bend open the tabs located around the

sleeve with a screwdriver. Not all tabs

will be able to make contact, so

examine which ones will be most

effective. Bending open the appropriate

tabs behind the dashboard to secure

the sleeve in place.

6. Reconnect the wire harness and the

antenna and be careful not to pinch

any wires or cables.

7. Slide the unit into the sleeve until it

locks into place.

8. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap

to the mounting bolt on the back of

the unit. If necessary, bend the metal

strap to fit your vehicle's mounting

area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain

Washer) to attach the other end of

metal strap to a solid metal part of the

vehicle under the dashboard. This strap

also helps ensure proper

electricalgrounding of the unit.

Outer Trim Ring

L Key

Sleeve

R Key

Sleeve

Dashboard

Screwdriver

Tabs

9. Reconnect the cable to the vehicle

battery's negative (-) terminal. Then

replace the outer trim ring .

Removing the unit

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery's negative (-)

terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

3. Lift the top of the outer trim ring then

pull it out to remove it.

4. Insert both of the supplied keys into

the slots at the middle left and right

sides of the unit, then pull the unit out

of the dashboard.

Spring Washer

Tapping Screw

Plain Washer

Hex Nut

Metal Strap

Mounting Bolt

INSTALLATION

Dashboard or

Console

Side view showing

Screw Holes marked

T, N or S

Factory Radio

Mounting

Bracket

Hook

Screw

Hook

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota or

Suzuki, follow these mounting instructions.

Use the screw holes marked T (Toyota),

N (Nissan) or S (Suzuki) located on both

sides of the unit to fasten the unit to the

factory radio mounting brackets supplied

with your vehicle.

To fasten the unit to the factory radio

mounting brackets.

1. Use a screwdriver to loose the hook's

screws on the front left and right sides

of the unit and remove the hooks.

2. Align the screw holes on the bracket

with the screw holes on the unit, and

then tighten the screws on each side.

3. Fasten with the supplied truss screws

(5x5mm) or flush surface screws

(4x5mm), depending on the shape of

the screw holes in the bracket.

Note: the outer trim ring, sleeve and the

metal strap are not used for method B

installation.

INSTALLATION

Table des matières

Autres manuels Sound Storm Récepteur de voiture

Sound Storm

Sound Storm SDVD100 Manuel utilisateur

Sound Storm

Sound Storm SCD-850R Manuel utilisateur

Sound Storm

Sound Storm ML33USA Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Sound Storm

Sound Storm SMP3-100R Manuel utilisateur

Sound Storm

Sound Storm ML39USA Manuel utilisateur

Sound Storm

Sound Storm DD661B Manuel utilisateur

Sound Storm

Sound Storm SDC25A Manuel utilisateur

Sound Storm

Sound Storm SDVD900 Manuel utilisateur

Sound Storm

Sound Storm SD812B Manuel utilisateur

Sound Storm

Sound Storm SM316 Manuel utilisateur

Sound Storm

Sound Storm SD420UA Manuel utilisateur

Sound Storm

Sound Storm SD706MI Manuel utilisateur

Sound Storm

Sound Storm SCD-150 Manuel utilisateur

Sound Storm

Sound Storm SD315 Manuel utilisateur

Sound Storm

Sound Storm SCD-550R Manuel utilisateur

Sound Storm

Sound Storm SCD-350 Manuel utilisateur

Sound Storm

Sound Storm SDC22A Manuel utilisateur

Sound Storm

Sound Storm SD642T Manuel utilisateur

Sound Storm

Sound Storm SCD-500R Manuel utilisateur

Sound Storm

Sound Storm SM630U Manuel utilisateur

Sound Storm

Sound Storm M312USA Manuel utilisateur

Sound Storm

Sound Storm S6000V Manuel utilisateur

Sound Storm

Sound Storm SD730M Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur
