Precautions

THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy

for future reference .

To avoid injury or accident, read the following precautions before

installing and operating the unit .

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

NOTES ON CLEANING

Do not press on the LCD panel on the unit as doing so can distort the

picture or cause a malfunction . The picture may become unclear , or the

LCD panel may be damaged .

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

Do not use alcohol to clean the screen .

If your car was parked in a cold or hot place, the picture may not be clear .

The monitor is not damaged . The picture will become clear the temper-

ature in your car becomes normal .

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this

may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this

may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving.

IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the wiring diagram .)

ON INSTALLATION

Safety Information

CAUTION:

WARNING:

REGION MANAGEMENT INFORMATION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD

PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

This DVD Player is designed and manufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the Region number

described on the DVD disc does not correspond to the Region number of this

DVD Player, this DVD Player cannot play this disc.

Disc Notes

Preparing New Discs with

Spots

Rough

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc. Therefore,

remove the rough edges in advance

by using a ball point pen or pencil as

shown on the right. To remove the

rough edges, press the side of the pen

or pencil against the inside and outside

edges of the disc.

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Label side

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Discs which cannot be played

with this player

DVD-ROM

DVD-RAM

CDV

CD-G

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

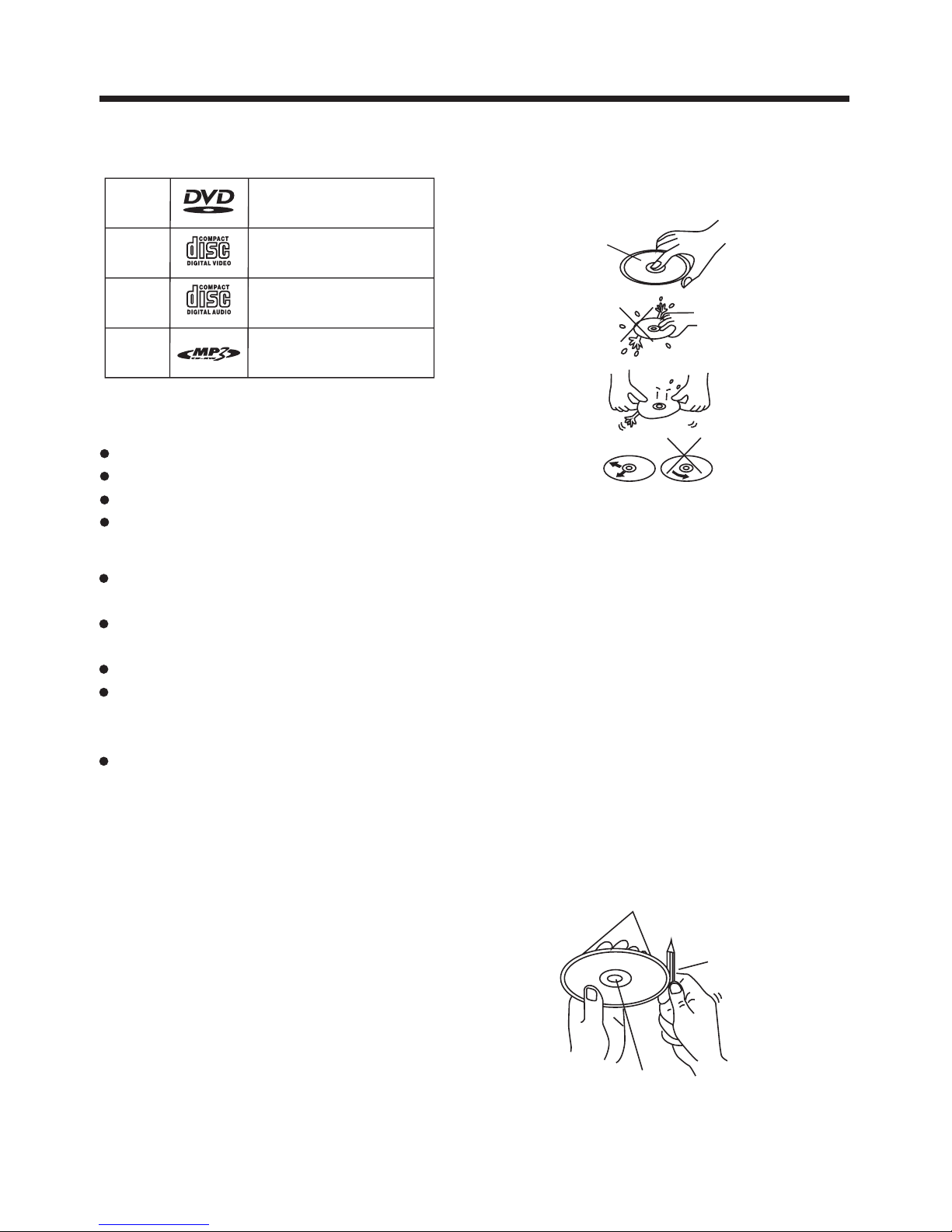

Disc formats supported by this

player

DVD

VCD

MP3

Audio and Video

Discsize12cm

Audio and Video

Discsize12cm

Audio

Discsize12cm

Audio

Discsize12cm

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

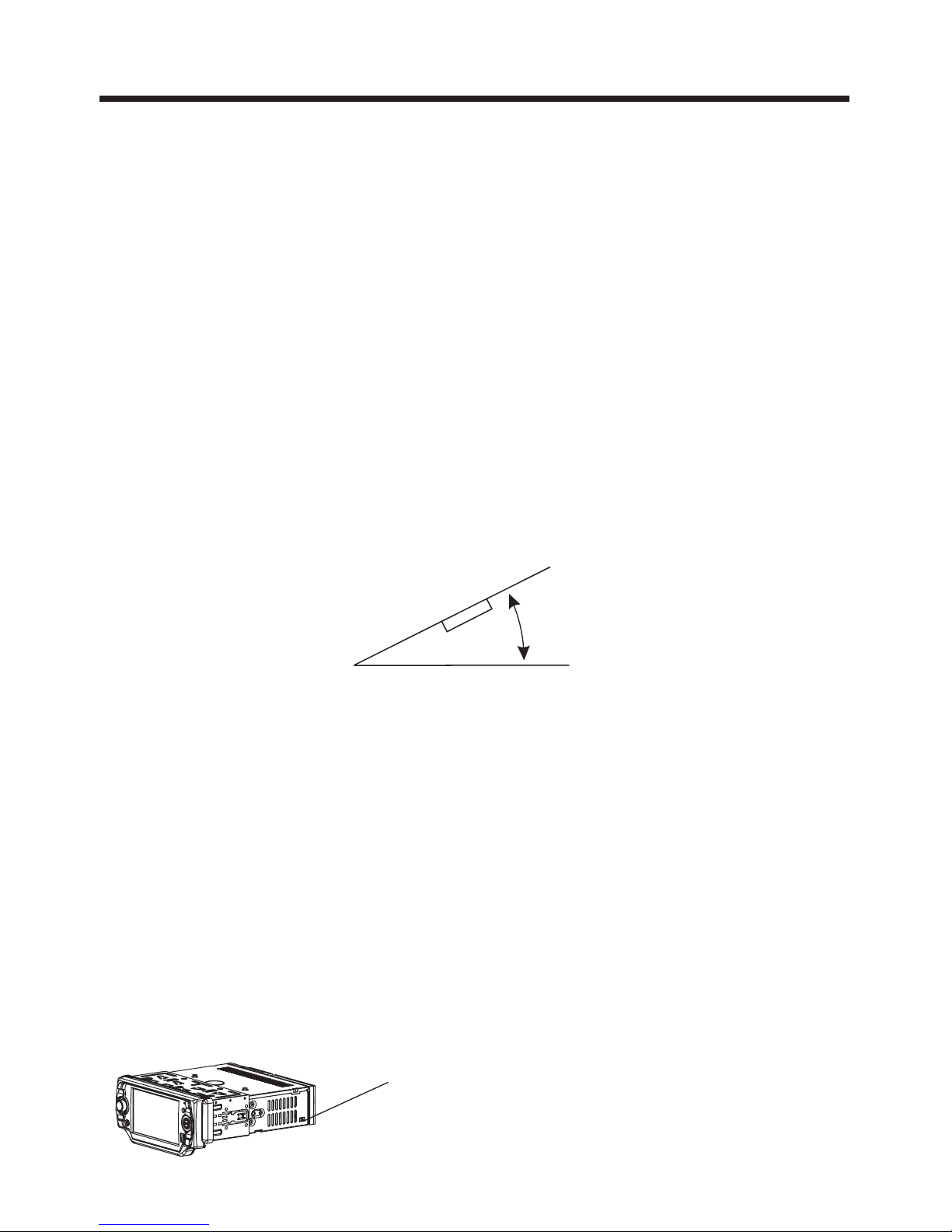

If installation angle exceeds 30 from horizontal, the unit might not give its

performance.

Avoid installing the unit where it would be subject to high temperature, such

direct sunlight, or from hot air, from the heater, or where it would be

dirt or excessive vibration.

This unit can be properly installed either from "Front"(conventional DIN

or "Rear"(DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

illustrated installation methods.

NOTES:

DIN FRONT/REAR-MOUNT

it is

other

optimum

as from

subject to dust,

Front-mount)

screw holes at the sides of

Installation

USA/EURO Frequency Switch

On the right of this device, there is a USA/EURO frequency switch, you can select

the desired radio frequency before installing .

USA/EURO Frequency Switch (radio frequency

switch for selecting between the USA and EUROPE

frequency band. )

Installation

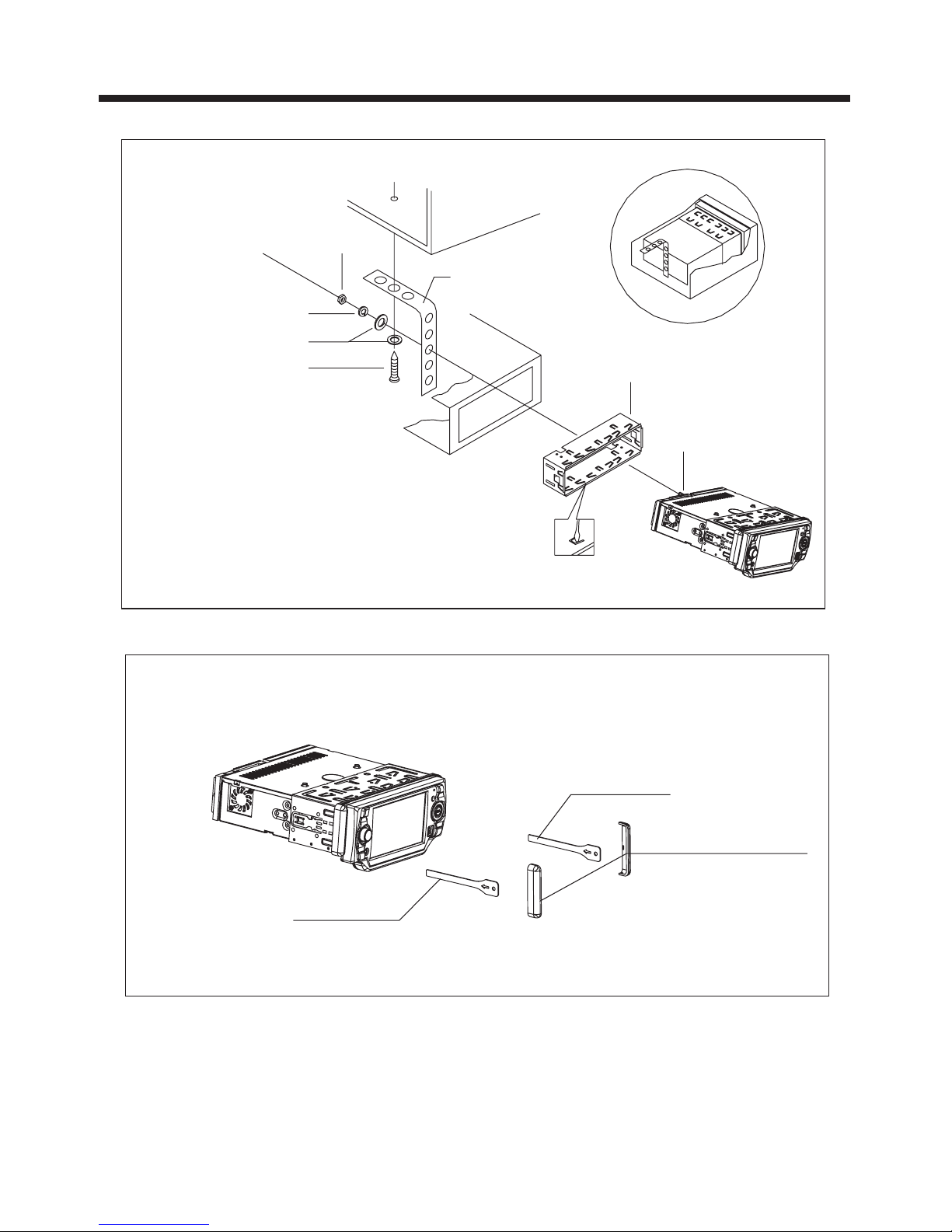

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING,

first remove the PLASTIC COVER of the both sides away, then insert

the two KEY PLATE into left and right side of chassis as above illustration.

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

KEY PLATE

PLASTIC COVER

Installation

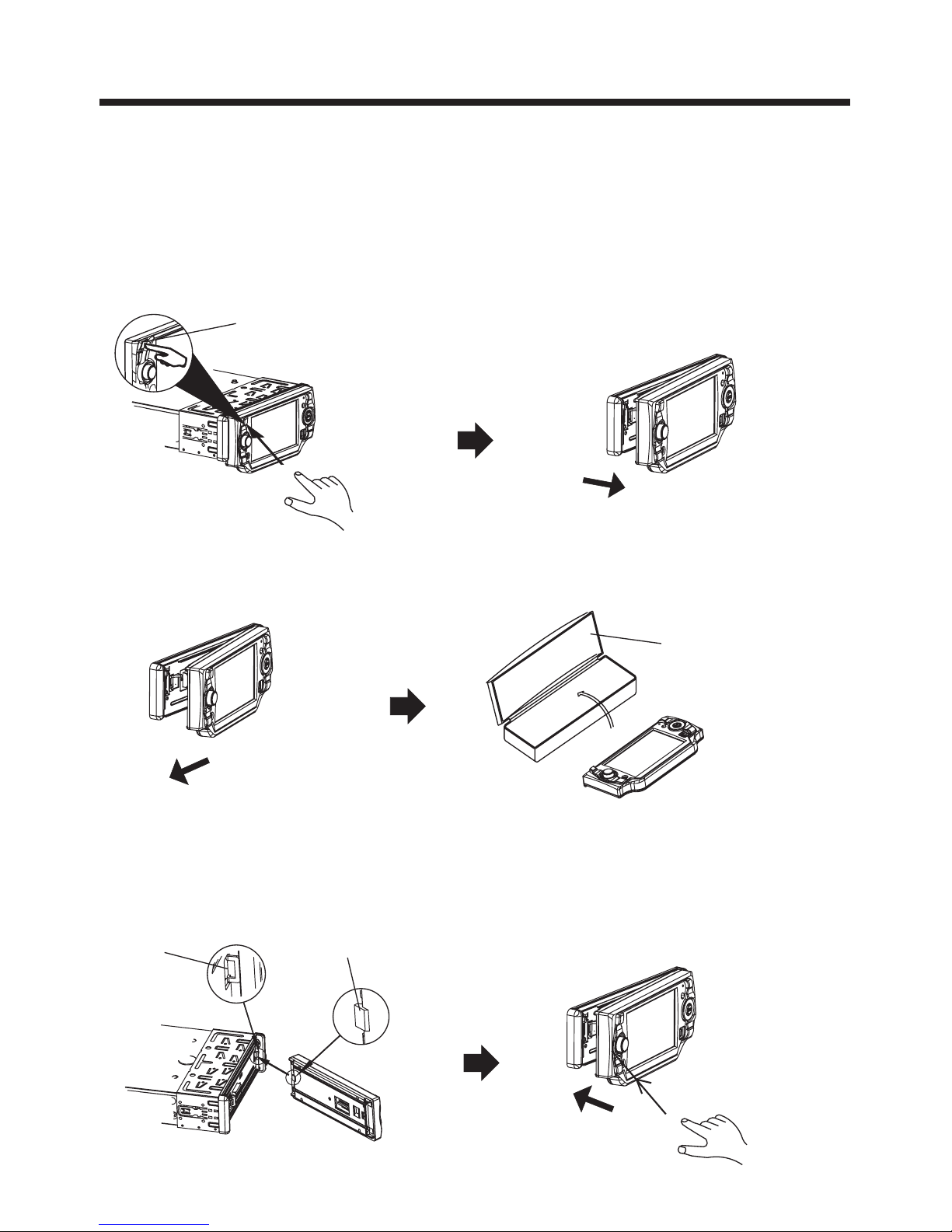

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the

connectors on the back of the control panel and on the panel holder.

2). Pull-off the front panel and keep the front panel into the case .

Detaching The Front Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the release button and the left hand side of the front panel will release.

Attaching The Front Panel

1). First insert the right hand side of the front panel into the hollow of the unit .

(NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

RELEASE BUTTON

Hollow Bulge

PROTECTIVE CASE

Panel Angle Adjustment

Caution:

Do not insert your finger behind the control panel.

When you want to change the viewing angle of the operating unit to play,

you can touch the section on touch screen (or press the button

on the front panel) repeatedly to select the desired angle as follows:

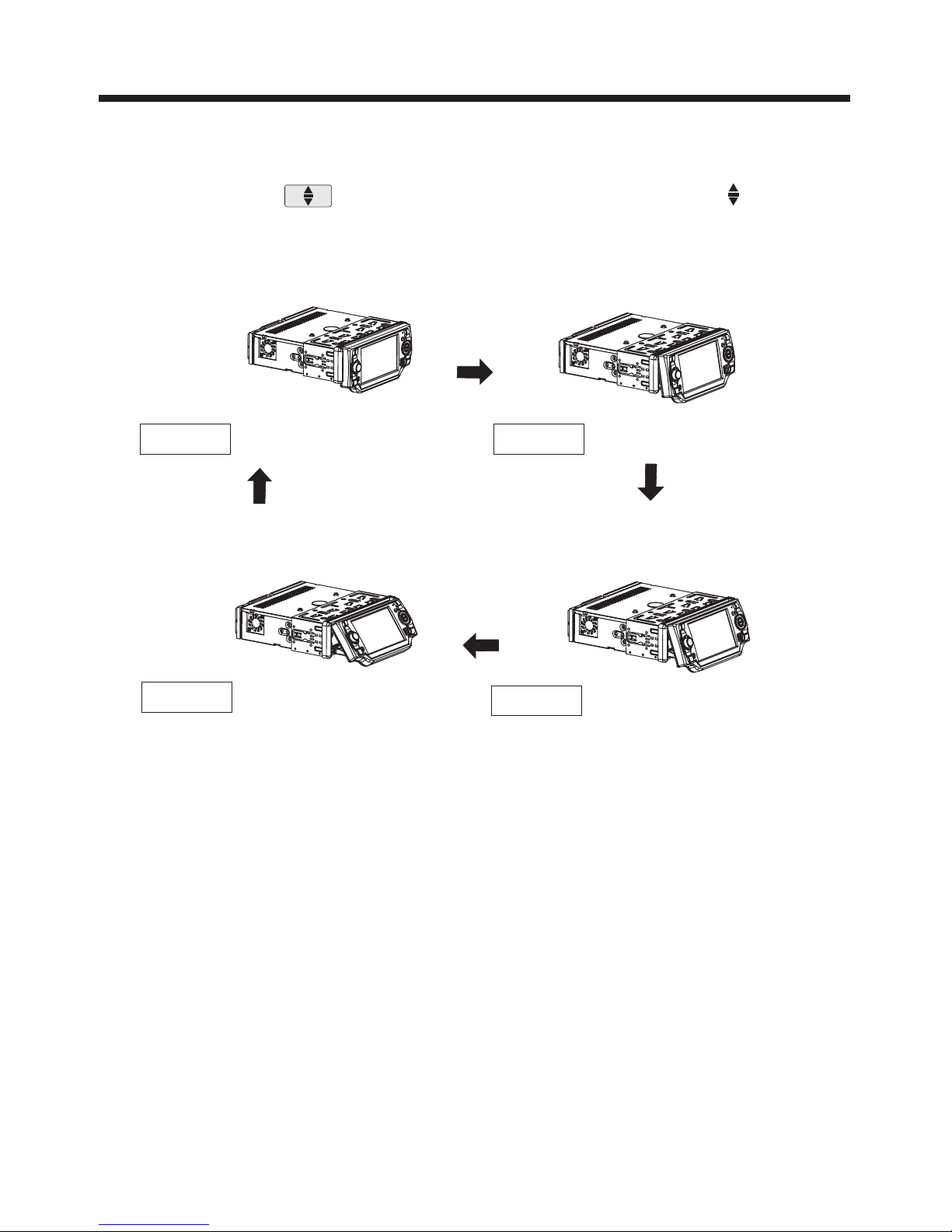

CHANGING THE CONTROL PANEL ANGLE

Angle 3

Angle 4

Angle 1 Angle 2

Electric Connection

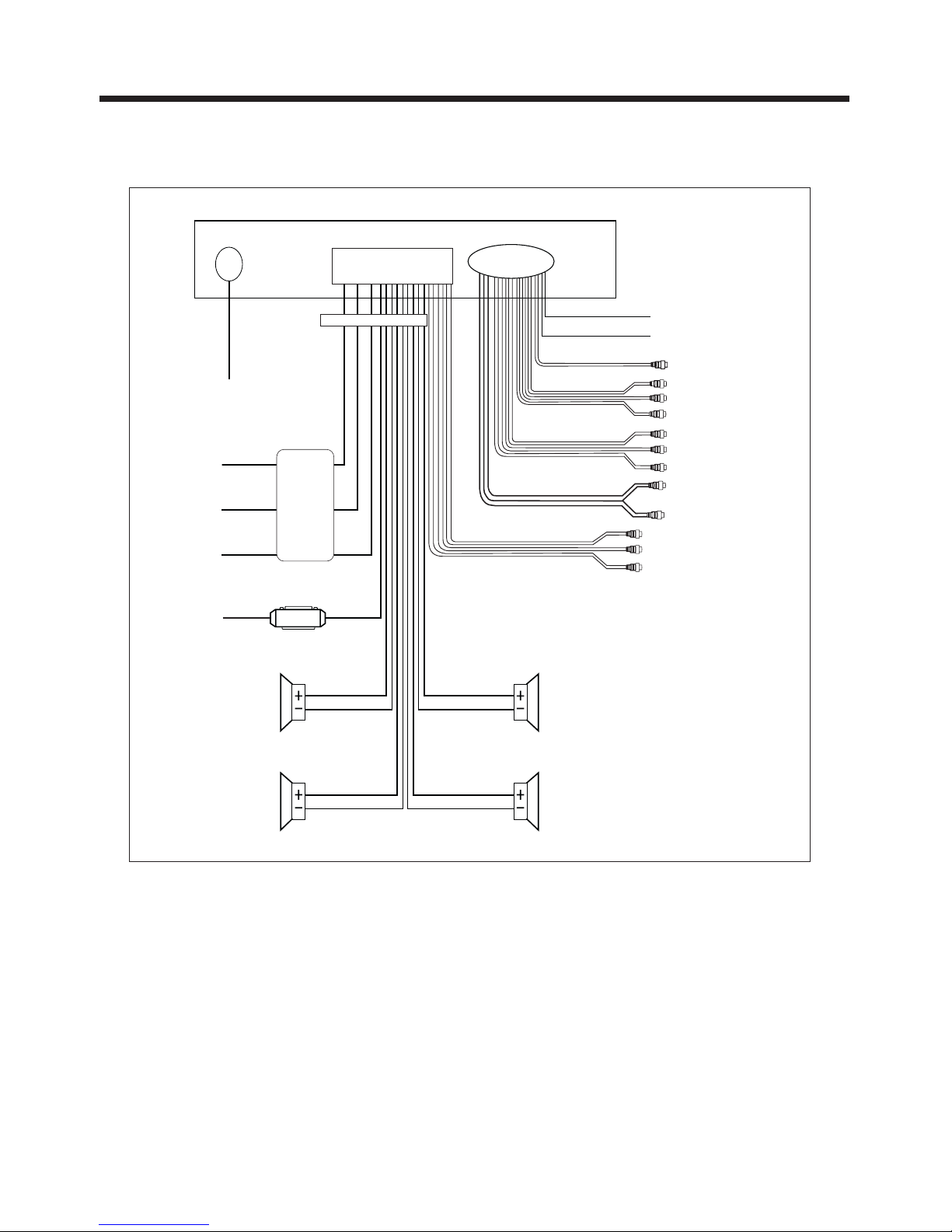

WIRING CONNECTION

Note:

“The Parking Brake wire must be connected in order to to watch DVD's on this unit.

If that wire has not been connected then the message, "PARKING BRAKE" will

appear on the LCD screen.”

VIDEO IN YELLOW

RCH IN RED

LCHINWHITE

GREY SUBWOOFER

VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

WHITE (B+)12V

REAR CAMERA SWITCH

GREEN

YELLOW

AUX(optional)

RCA CABLE

REAR CAMERA INPUT

(B-)PARKING BRAKE

FRONT RCA WHITE L

RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1 YELLOW

REAR RCA OUTPUT

CABLE (optional)

FRONT RCA OUTPUT

CABLE

GREY

GREY/BLACK

FRONT

Rch SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

Lch SPK.

AUTO

ANTENNA BLUE

FUSE

GROUND(B-)

MEMORY

BACK-UP(B+)

IGNITION

SWITCH(B+)

ANTENNA CONNECTOR

RED

YELLOW

BLACK

MAIN UNIT

REAR

Rch SPK.

FRONT

Lch SPK.

CHOKE

BOX

ISO CONNECTOR

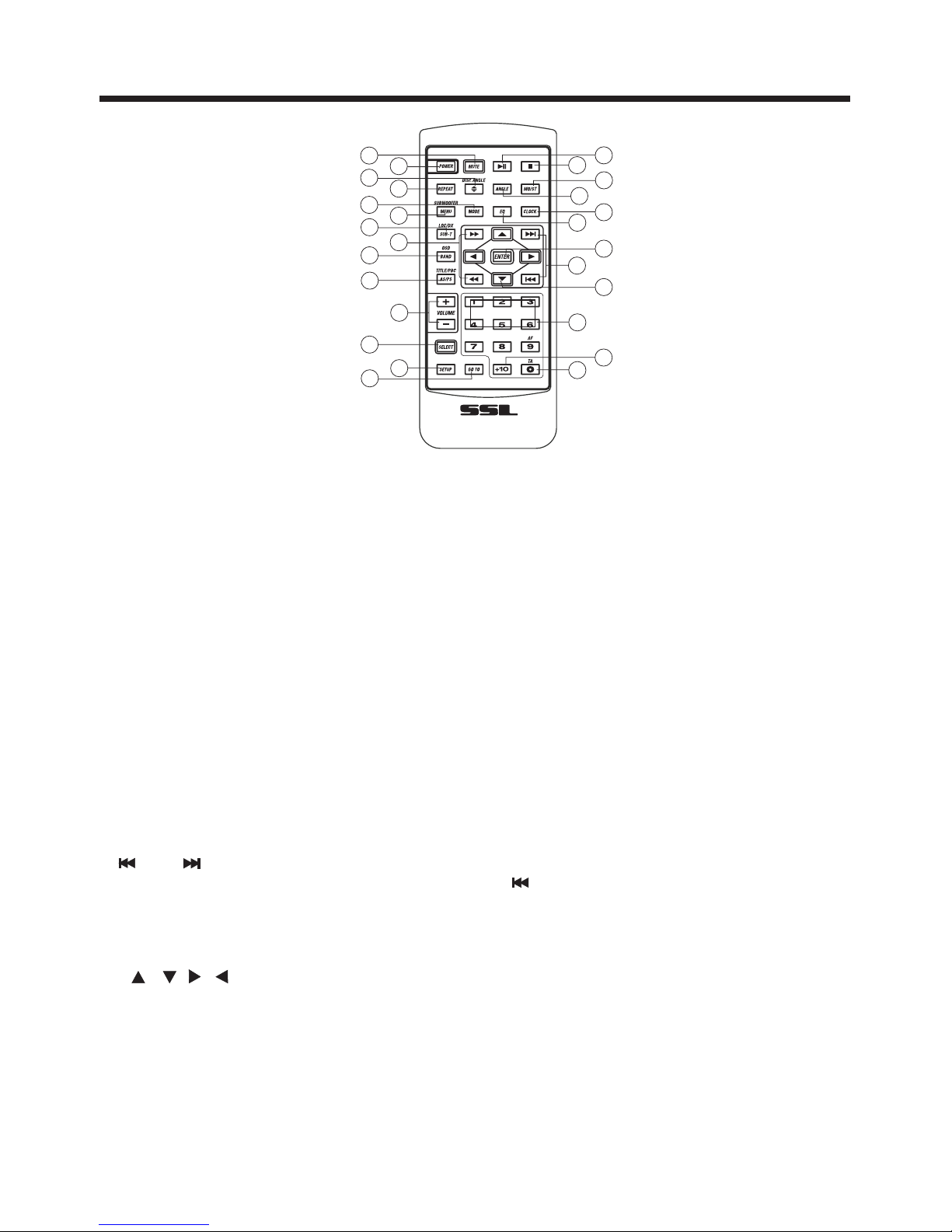

Remote Control

1. CLOCK

2. MODE

3. STOP

4. SETUP

Press this button to view the clock time. Press again to return to normal

display mode.

Press repeatedly to cycle through the various modes:

RADIO>DISC>AUXIN.

Press once to pause playback. Press PLAY/PAUSE to resume playback.

Please note: if you press STOP twice, playback will start at the beginning

of the disc.

Press this button to open the SETUP menu.

In Radio mode, press this button to change between Mono and Stereo

reception modes (when a station is weak, sometimes switching to Mono

will improve sound quality). In Disc Playback mode, pressing this button

opens the AUDIO setup menu for making changes to the way the

soundtrack is reproduced.

In DVD Disc Playback mode, pressing this button will allow you to change

the subtitle language on discs which have this as an option. In Radio

mode, press this button to change the radio reception sensitivity in

stations are near or far.

Pressing this button will open a menu presenting you with the playback

repeat options available for that kind of disc.

Press this button to begin playback at a moment in the program you

designate. Use the number buttons to enter the data that is needed.

Press these buttons to skip ahead or back one track.

Press this button repeatedly to cycle through the various audio and video

adjustments you can make: VOLUME, BASS, TREBLE, BALANCE,

FADER, COLOR, BRIGHTNESS, CONTRAST and TINT.

Use these controls to adjust the volume level.

Use these buttons to navigate the various menus present in the product.

Press this button briefly to display the root level directory of a DVD disc.

Press and hold this button to turn on or off the SUBWOOFER output.

In Radio mode, press this button repeatedly to switch between the five

radio bands: FM1 > FM2 > FM3 > AM1 > AM2. In Disc Playback modes,

Press this button to see information about the disc currently in play.

Press to turn the unit on or off.

In Disc Playback mode, press to pause playback. Press again to start

where playback stopped.

Press this button to turn off the audio. Press again to restore the sound

to its prior volume level.

(Note: In DVD

mode, press continually the twice to skip back one)

6. SUBTITLE

LOCAL/DISTANT

7. REPEAT

8. GOTO

9. and

10. SELECT

11. VOL+/VOL-

12. / / /

13. MENU

SUB WOOFER

14. BAND(OSD)

15. POWER

16. PLAY/PAUSE

17. MUTE

5. MO/ST(AUDIO)

17 15

316

Table des matières

Autres manuels Sound Storm Récepteur de voiture

Sound Storm

Sound Storm SD800TS Manuel utilisateur

Sound Storm

Sound Storm SCD-350 Manuel utilisateur

Sound Storm

Sound Storm ML40USA Manuel utilisateur

Sound Storm

Sound Storm SHR7 Manuel utilisateur

Sound Storm

Sound Storm SD709MBI Manuel utilisateur

Sound Storm

Sound Storm SDC90RDS Manuel utilisateur

Sound Storm

Sound Storm ML33USA Manuel utilisateur

Sound Storm

Sound Storm M330USA Manuel utilisateur

Sound Storm

Sound Storm DD661B Manuel utilisateur

Sound Storm

Sound Storm SCD-850R Manuel utilisateur

Sound Storm

Sound Storm STM93RDS Manuel utilisateur

Sound Storm

Sound Storm SCD-750R Manuel utilisateur

Sound Storm

Sound Storm SD707M Manuel utilisateur

Sound Storm

Sound Storm SDVD100 Manuel utilisateur

Sound Storm

Sound Storm SMP3-90R Manuel utilisateur

Sound Storm

Sound Storm S6000V Manuel utilisateur

Sound Storm

Sound Storm SD642T Manuel utilisateur

Sound Storm

Sound Storm ML44USA Manuel utilisateur

Sound Storm

Sound Storm SDVD500 Manuel utilisateur

Sound Storm

Sound Storm SCD-150 Manuel utilisateur

Sound Storm

Sound Storm SM43UA Manuel utilisateur

Sound Storm

Sound Storm SDC22A Manuel utilisateur

Sound Storm

Sound Storm SM630U Manuel utilisateur

Sound Storm

Sound Storm RDSM35A Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur
