Sound Advance CT8 Manuel utilisateur

CT8

Wide-Dispersion Speaker for 8” Installations

Recommended Installations:

• Suspended ceilings

• Wood or metal stud walls and ceilings

• Soffits and fascia

• Retrofit into almost all standard 8” speaker

openings

Recommended Environment:

• Indoor or weather-protected outdoor

Recommended Accessories:

• PBB8-10 Backcan

• UMB8-10 Universal Mounting Bracket

• ECS8-10 Enclosure compensation module

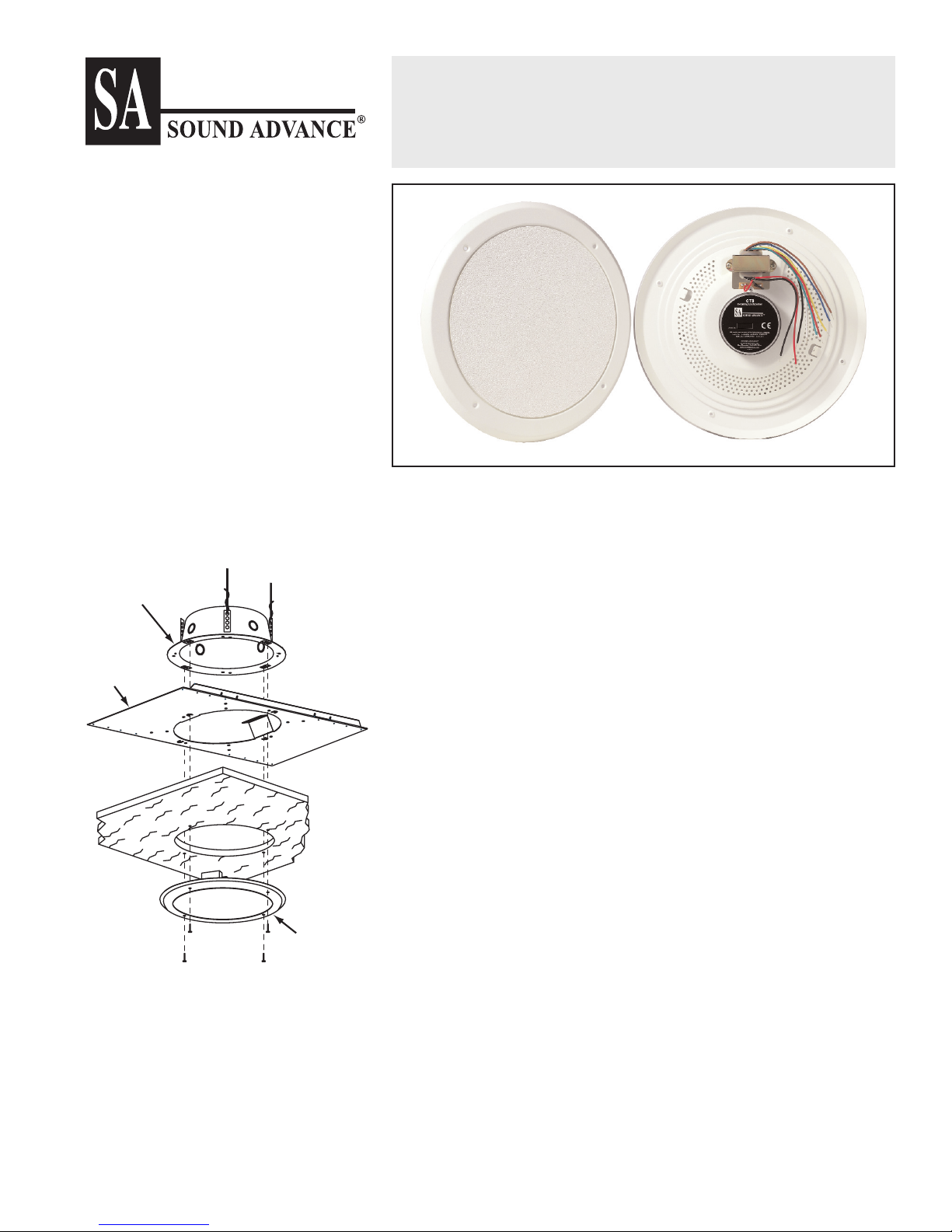

Installation Example: HIGH QUALITY, WIDE DISPERSION

LOUDSPEAKER

The Sound Advance®CT8 is a unique, extended bandwidth, wide-dispersion pla-

nar loudspeaker designed for use in commercial installations.

Patented Planar Diaphragm Technology™ allows a CT8 that has been properly

installed in a ceiling or wall boundary to radiate sound in a 140° hemispherical

pattern with smooth, even coverage. This dispersion characteristic allows CT8

speakers to be spaced farther apart than narrow-dispersion conventional speakers,

reducing the total quantity of loudspeakers required in almost any installation.

The CT8 is generally mounted into wood or metal stud walls and ceilings or

suspended ceiling tile systems, and will retrofit into almost all existing standard

8” diameter speaker openings. Mounting is standard screw-type, and optional tile

bridge and backcan mounting accessories are available. An optional enclosure

compensation module is also available, to restore bass performance when the CT8

is installed in a backcan.

The flat Expanded Polystyrene®[EPS] loudspeaker surface may be finished with

water soluble materials such as latex paints to match almost any decor or color

requirement using conventional brush-on, roller or airless spray application

systems.

The CT8 is transformer-coupled, with the following taps: 0.5W, 1W, 2W, 4W, 8W,

16W, and 8-ohm bypass.

Warranty:

Sound Advance®warrantees the CT8 to be free of any defect in material of work-

manship for a period of 5 years from the date of purchase. During the warranty

period, Sound Advance will repair or replace (at its option) all such defects without

charge for parts or labor, if returned prepaid to the proper Sound Advance service

facility, together with the original sales receipt or other proof of purchase. The unit

will be returned prepaid.

CT8

Speaker

UMB8-10

Universal

Mounting

Bracket

PBB8-10

Backcan

(w/hang

straps)

Performance Specifications:

Radiating Surface: 85.5 in2(532.3cm2) Planar Diaphragm (fits

standard 8” diameter speaker openings)

Driver System: 0.82 lb (0.37kg) Magnet with 1.02” (26mm)

voice coil

Frequency Response: 80Hz – 15kHz ±4dB

Power Rating: 20 Watts RMS as per EIA standard RS-426-A

Pressure Sensitivity: 94dB, 1W/1m

Maximum Output: 106dB @ 1 meter

System Impedance: 8 ohms nominal; 5.5 ohms minimum

Transformer: Primary Voltage — 70.7 Volts

Primary Taps — 0.5, 1, 2, 4, 8, 16 Watts;

8 ohm bypass

Dimensions (Dia x D): 13” x 23/8” (330mm x 60mm)

Product Weight: 4.2 lbs. (1.9kg) each

Shipping Weight: 12.0 lbs. (5.5kg) pair

212 Avenida Fabricante

San Clemente, CA 92672

(800) 592-4644 • (949) 492-5449

FAX: (949) 361-5151

www.soundadvance.com

Architects and Engineers Specification:

The loudspeaker shall be a full-range device, producing frequencies from 80Hz

to 15kHz in both horizontal and vertical planes. Total radiating surface shall

be 85.5 in2(532.3cm2). The high-frequency dispersion shall be at least 140° up

to 15kHz in both horizontal and vertical planes. The loudspeaker shall have a

sensitivity of 94dB (1W/1m) with a power rating of 20 watts RMS according to

EIA standard RS-426-A.

The loudspeaker shall have an exterior frame constructed of stamped steel,

with a powder-coated white enamel finish, measuring 13” (330mm) in

diameter and a total unit depth of 23/8” (60mm), not including backcan.

Mounting facilities shall be screw mount.

The complete unit shall weigh no more than 4.2 lbs. (1.9kg).

The loudspeaker shall be the Sound Advance CT8 or equivalent.

Polar Response:

Optional accessories:

PBB8-10: Backcan for ducted air return ceilings

12¼” x 4¼” (311mm x 106mm), Dia x D;

10¼” (260mm) Cutout Dia

1.7 lb (0.7kg)

UMB8-10: Universal mounting bracket for solid or suspended ceilings

2.7 lb (1.23kg)

ECS8-10: Line-level enclosure compensation module for installations

using the PBB8-10 backcan

CT8

Wide-Dispersion Speaker for 8” Installations

Specifications subject to change without notice. For the latest Sound Advance product information please go to

www.soundadvance.com 05/06

500Hz

300°

330°

0°

30°

60°

270°

50dB40dB30dB

20dB

10dB

0dB

90°

50dB 40dB 30dB 20dB 10dB 0dB

1kHz

300°

330°

0°

30°

60°

270°

50dB40dB30dB

20dB

10dB

0dB

90°

50dB 40dB 30dB 20dB 10dB 0dB

2kHz

300°

330°

0°

30°

60°

270°

50dB40dB30dB

20dB

10dB

0dB

90°

50dB 40dB 30dB 20dB 10dB 0dB

500Hz 1kHz

2kHz

4kHz

300°

330°

0°

30°

60°

270°

50dB40dB30dB

20dB

10dB

0dB

90°

50dB 40dB 30dB 20dB 10dB 0dB

8kHz

300°

330°

0°

30°

60°

270°

50dB40dB30dB

20dB

10dB

0dB

90°

50dB 40dB 30dB 20dB 10dB 0dB

16kHz

300°

330°

0°

30°

60°

270°

50dB40dB30dB

20dB

10dB

0dB

90°

50dB 40dB 30dB 20dB 10dB 0dB

4kHz

8kHz 16kHz

On-Axis Frequency Response:

20 50 100Hz 2500200 5 10 20kHz1kHz

50 25

dB dB

Measured in an Infinite Baffle Enclosure
