Sony Trinitron WEGA KV-AZ21 Manuel utilisateur

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

 

•,!"#$%&'() *$+-./

KV-AZ21

2-662-328-12 (1)

M81

Trinitron Color TV

Mode d’emploi

•Avant de faire fonctionner cet appareil, lisez attentivement le présent

mode d’ emploi et conservez-le pour toute référence ultérieure.

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

01AR+s01COV-STMME.p65ME 12/4/06, 4:48 PM1

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-STMME.p65 12/12/06, 10:22 AM2

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

Getting Started ................................................................................................................ 4

Setting up your TV (“Initial Setup”) ............................................................................ 5

TV top control, front and rear panels .......................................................................... 7

Connecting optional components ................................................................................ 8

Using the remote control and basic functions .......................................................... 10

Introducing the WEGA GATE navigator .................................................................. 12

“Settings” Adjustment ................................................................................................. 13

Changing the “Picture” setting ................................................................................... 14

Changing the “Sound” setting .................................................................................... 15

Changing the “Channel Setup” setting ..................................................................... 16

Changing the “Setup” setting ..................................................................................... 18

Viewing Teletext ............................................................................................................ 19

Troubleshooting ............................................................................................................ 20

Specifications .................................................................................................. Back cover

Table of Contents

01GB03TOC-STMME.p65 12/12/06, 10:22 AM3

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

xGetting Started

Step 2

End

Select Confirm

Step 1

Step 3

Step 4

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 8).

Plug in the power cord, then press !on the TV to turn

it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 5).

01GB04INS-STMME.p65 12/12/06, 10:22 AM4

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You may change the menu language, preset the TV channels

automatically, sort or edit the channels and adjust the picture position using the

buttons on the remote control or TV top control panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected

channel, then press B.

End

Select Confirm

End

Select Confirm

Program:

TV System: Auto

VHF Low

End

continue

01GB04INS-STMME.p65 12/12/06, 10:22 AM5

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/-.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

4Press B or bto adjust the bars on the top

and bottom of the menu if they are

slanted, then press .

If no adjustment is necessary, then press .

5To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

•You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.

End

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

Setting up your TV (“Initial Setup”) (continued)

01GB04INS-STMME.p65 12/12/06, 10:22 AM6

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

(MONO)

WEGA GATE

PROG

SOUND MODE

09876

qsqdqf

(

MONO)

(

MONO)

13 2

TV front panel

TV rear panel

xTV top control, front and rear

panels

TV top control panel

Button/Terminal Function Page

1!Turn off or turn on the TV. 4

2Remote control sensor. -

3Wake Up indicator. 11

31Standby indicator. 4

4iHeadphone jack. -

5t2Video input terminal 2. 8

6PROG +/– Select program number. -

72+/– Adjust volume. -

8tSelect TV or video input. 8

WEGA GATE menu operations

6,7V,v,B,bSelect and adjust items. 12

8Confirm selected items. 12

9WEGA GATE Display or cancel WEGA GATE menu. 12

0SOUND MODE Select sound mode options with a 5-Band Graphic 10

Equalizer display.

qa 8Antenna input terminal. 8

qs TMonitor output terminal. 8

qd Component video input terminal. 9

qf t1Video input terminal 1. 8

01GB05AVD-STMME.p65 12/12/06, 10:23 AM7

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

xConnecting optional components

Connecting to the video input terminal ( t)

Notes

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see page 17).

• When both (S video) and (video) for t1 are connected at the same time,

(S video) is automatically selected. To view (video), disconnect the S video cable.

TV rear panel

Audio system

(

MONO)

(

MONO)

VCR

Audio/Video

cable

(not supplied)

Connecting to the monitor output terminal ( T )

TV front panel

Antenna cable

(not supplied)

DVD player

TV rear panel

Audio/Video cable

(not supplied)

Audio/Video cable

(not supplied) Camcorder

S Video cable

(not supplied)

VCR

(MONO)

(

MONO)

(

MONO)

01GB05AVD-STMME.p65 12/12/06, 10:23 AM8

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

DVD player

TV rear panel

Component video

cable

(not supplied)

Audio cable

(not supplied)

(

MONO)

(

MONO)

Connecting to the component video input terminal ( )

Notes

•If your DVD player can output interlace and progressive mode signals, select the interlace

output when connecting to (component video input) on your TV. Your TV can receive

either 525i/60Hz or 625i/50Hz interlace signals.

•The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/

PR, Y/Cb/Cror Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T(monitor output) jacks will not

be output properly. This does not indicate a malfunction.

01GB05AVD-STMME.p65 12/12/06, 10:23 AM9

Black

Sony KV-AZ21M81 Group P12 (GB, FR, AR)_2-662-328-12 (1)

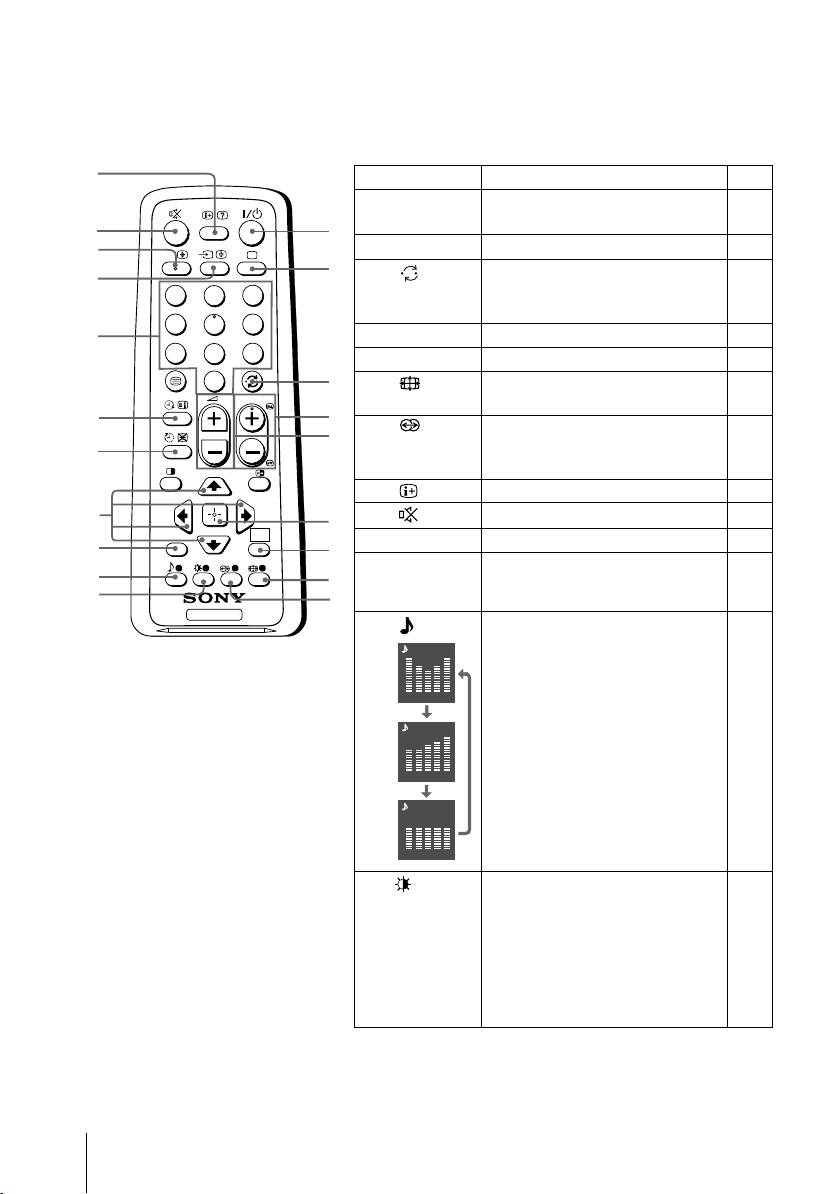

xUsing the remote control and basic

functions

123

789

PROG

A/B

RETURN WEGA

GATE

Button Description Page

1?/1Turn off temporarily or turn on –

the TV.

2aDisplay the TV program. –

3Jump to last program number –

that has been watched for at

least five seconds.

4PROG +/–

Select program number. –

52+/– Adjust volume. –

Change the picture size: –

“On” (16:9 wide-mode), “Off”.

9Select surround mode options: 15

“TruSurround”, “WOW”,

“Simulated”, “Off”.

0Display on-screen information. –

qa Mute the sound. –

qd tSelect TV or video input. 8

qf 0 – 9 Input numbers. For program

–

numbers 10 and above, enter the

second digit within two seconds.

ql Select sound mode options 15

with a 5-Band Graphic

Equalizer display:

“Dynamic”, “Standard”,

“Custom”*.

When the “Custom” mode is

selected, you can receive the last

adjusted sound settings from the

“Sound Adjustment” option in the

menu.

w; Select picture mode options: 14

“Vivid”, “Standard”, “Custom”*.

When the “Custom” mode is

selected, you can receive the last

adjusted picture settings from the

“Picture Adjustment” option in the

menu.

Dynamic

100 300 1k 3k 8k

Custom

100 300 1k 3k 8k

Standard

01GB05AVD-STMME.p65 12/12/06, 10:23 AM10

Black

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony TV

Sony

Sony Bravia XR-75X9 J Series Manuel utilisateur

Sony

Sony BRAVIA KD43X75WL Manuel utilisateur

Sony

Sony WEGA KV-AR25 Manuel utilisateur

Sony

Sony SI-319S Manuel utilisateur

Sony

Sony Bravia KD-49XF9005 Guide de référence

Sony

Sony Bravia XR-83A9xJ Manuel utilisateur

Sony

Sony TRINITRON KV-VF21M40 Manuel utilisateur

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Manuel utilisateur

Sony

Sony TRINITRON KV-PG21P10 Manuel utilisateur

Sony

Sony Trinitron WEGA KV-HP21 Manuel utilisateur

Sony

Sony Bravia KDL-47W807A Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-36HS510 Manuel utilisateur

Sony

Sony KV29T80 Manuel utilisateur

Sony

Sony Bravia KDL-52W3000 Mode d’emploi

Sony

Sony Trinitron KV-EX29 Manuel utilisateur

Sony

Sony KV-HR36M31 Manuel utilisateur

Sony

Sony Trinitron KV-XA34 Manuel utilisateur

Sony

Sony BRAVIA KD-65Z9D Manuel utilisateur

Sony

Sony BRAVIA KDL-26M4000 Manuel utilisateur

Sony

Sony FD Trinitron Wega KV-AR29 Manuel utilisateur

Sony

Sony KV-32HS500 Instructions: TV stand (primary... Manuel utilisateur

Sony

Sony KV-XA25M50 Manuel utilisateur

Sony

Sony KV-32HS500 Instructions: TV stand (primary... Manuel utilisateur

Sony

Sony Trinitron KV-21FT250 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
