Sony Trinitron WEGA KV-AW21 Manuel utilisateur

Trinitron Color TV

KV-AW21

2-886-622-12 (1)

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

P52

220-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G

PAL, PAL 60, NTSC3.58 (AV IN), NTSC4.43

A2 Bilingual B/G

VHF : E2 to E12 /UHF : E21 to E69/

CATV : S01 to S03, S1 to S41

75-ohm external terminal

3 W + 3 W

Input: 2 Phono jacks; 1 Vp-p, 75 ohms

Input: 2 Phono jacks; 500 mVrms

21 in.

545 mm

Measured diagonally

507 mm

Measured diagonally

600 ×465 ×481 mm

25 kg

ASpecifications

Note

Design and specifications are subject to change without notice.

KV-AW21P52

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual System

Channel coverage

B/G

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

Picture tube

Tube size

Viewing screen size

Dimensions (w/h/d)

Mass

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 – 240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

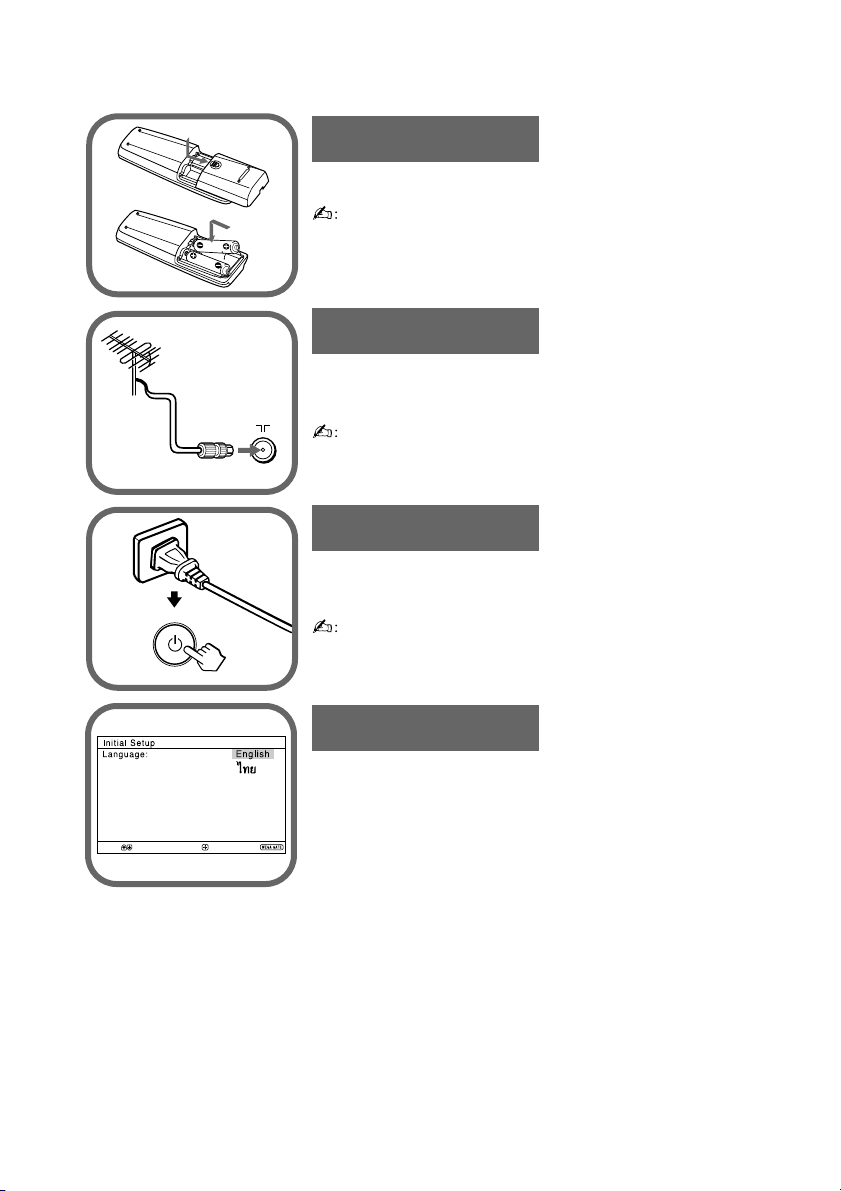

Step 2

End

Confirm

Select

Step 1

Insert the batteries (supplied) into the remote.

• Do not use old or different types of batteries together.

Step 3

Step 4

Set up the TV by following the instructions of the

“Initial Setup” menu (see D).

Plug in the power cord, then press 1on the TV to

turn it on.

• The 1(standby) indicator flashes green for a few

seconds when turning on the TV. This does not indicate

a malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

• You can also connect the TV to other optional

components (see E).

CGetting Started

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

Initial Setup

Language:

English

Start Auto Program now?

Yes

First please connect

cable/ antenna

Initial Setup

End

Select Confirm

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You can adjust settings below using the buttons on the remote control

or TV front panel. Press V, v , B or b to select or adjust items, then press .

1Select the desired menu language.

2Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels (see K).

4Adjust the bars on the top and bottom of the menu

if they are slanted.

5To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1,

select “No”.

To allow this menu to appear again, select “Yes”.

• You can immediately go to the end of the “Initial Setup” menu by pressing WEGA

GATE.

Select Confirm

Initial Setup

Display this menu next time?

Yes

End

Select Confirm

(MONO)

WEGA

PROG

GATE

(MONO)

EConnecting optional components

You can connect a wide range of optional components to your TV. Connecting

cables are not supplied.

Connecting to the TV (front)

Connecting to the TV (rear)

(MONO)

WEGA

PROG

GATE

(MONO)

Camcorder

Audio/Video

cable

Step 1 Step 2

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see K).

(MONO)

VCR

DVD Player

Antenna

cable

Audio/Video

cable

FTroubleshooting

If you find any problem while viewing your TV, you can either use the

“Factory Settings” function (see L) or check the Troubleshooting guide below.

If the problem persists, contact your Sony dealer.

Snowy picture, noisy sound

• Check the antenna setup and other connections.

• Preset the channel manually again (see K).

• Set the “Signal Booster” to “Auto” (see K) or try using an external booster.

Distorted picture, noisy sound

• Set the “Signal Booster” to “Off” (see K), or turn off or disconnect any external booster in

use.

No picture, no sound

• Check the power cord, antenna setup and other connections.

• Press 4/1 (power) to turn on the TV.

• Press 1 (main power) on the TV to turn off the TV for about five seconds, then turn it on

again.

Good picture, no sound

• Press 2 + to increase the volume level or press to cancel the muting.

Dotted lines or stripes

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup.

Double images or “ghosts”

• Use the fine tuning (“Fine”) function (see K).

• Check the antenna setup or use a highly directional antenna.

• Turn off or disconnect any external booster in use.

No color

• Adjust the “Color” level from “Picture Adjustment” (see I).

• Select the appropriate “Color System” (see L).

• Check the antenna setup.

Picture slant

• Keep external speakers or other electrical equipment away from the TV.

• Adjust the “Picture Rotation” (see L).

Abnormal color patches

• Keep external speakers or other equipment away from the TV. Do not move the TV while

the TV is turned on. Press 1 (main power) on the TV to turn off the TV for about 15

minutes, then turn it on again to demagnetize the TV.

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

• Count the number of times the 1 (standby) indicator flashes. Press 1 (main power) to

turn off your TV. Contact your nearest Sony service center.

The TV screen sometimes goes blank for slightly longer than usual during channel change.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a

malfunction.

TV cabinet creaks.

• Changes in room temperature sometimes make the TV cabinet expand or contract, causing

a noise. This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

• The TV’s demagnetizing function is working. This does not indicate a malfunction.

GTV buttons and remote control

11Turn off or turn on the TV.

2Remote control sensor.

3Wake Up indicator.

31Standby indicator.

4PROG +/– Select program number.

52+/– Adjust volume.

6tSelect TV or video input.

WEGA GATE menu operations (see H)

4,5 V,v,B,bSelect or adjust items.

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

123

789

PROG

A/B

RETURN

WEGA

GATE

1?/1Turn off temporarily or turn on the

TV.

2aDisplay the TV program.

3Jump to last program number that

has been watched for at least five

seconds.

4PROG +/– Select program number. To select

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume.

8Not function for your TV.

9 Not function for your TV.

0 Display on-screen information.

qa Mute the sound.

qs A/B Select bilingual mode:

Receiving Selected sound

A2 bilingual Main (main), Sub (sub)

(MONO)

WEGA

PROG

GATE

PROG

WEGA

GATE

432

567

• When viewing a non-bilingual program, select

the main sound. Otherwise, you may hear

some noise or abnormal sound.

TV buttons and remote control (continued)

qd tSelect TV or video input.

qf 0-9 Input numbers. For program numbers 10 and above, enter the second

digit within two seconds.

ql Not function for your TV.

w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see I).

* When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

WEGA GATE menu operations (see H)

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

qj V, v, B, b Select or adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

the wake up timer. If no buttons or controls are pressed for more than

one hour after the TV is turned on using the wake up timer, the TV

automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon)

, , , ,

Not function for your TV.

, , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v, B, bNot function for your TV.

HWEGA GATE navigator

WEGA GATE is a gateway that allows you access to preset TV channels,

connected external inputs and “Settings”menu.

How to use WEGA GATE

watch the preset TV

channels (see D)

select the inputs for the

connected equipment

(see E)

change the settings

of your TV

(see I,J,K,L)

“TV”

“External Inputs”

“Settings”

(1) Press WEGA GATE to display or cancel

the WEGA GATE menu.

(3) Press V or vto select the desired item. (4) Press RETURN to move to the previous

level.

(2) Press (or b) to confirm your selection

or go to the next level.

•When a feature is dimmed in the menu, it is not selectable.

•The WEGA GATE, and V,v,B,bbuttons on the front panel can also be used for

the operations above.

Confirm

Select

WEGA GATE

Settings

External Inputs

Confirm

Select

End

Confirm

Select

End

Confirm

Select

WEGA GATE

Settings

External Inputs

Confirm

Select

WEGA GATE

Settings

External Inputs

TV 01

Confirm

Select

End

External Inputs

Confirm

Select

End

Video 1

2Video 2

Confirm End


Select

Color Temperature: Cool

Picture Adjustment

Picture Mode: Vivid

Intelligent Picture: On

Signal Level Indicator: On

Autres manuels pour Trinitron WEGA KV-AW21

Table des matières

Autres manuels Sony TV

Sony

Sony Bravia KD-75X9400C Manuel utilisateur

Sony

Sony BRAVIA XBR-65A9G Manuel utilisateur

Sony

Sony BRAVIA KDL-40XBR2 Manuel utilisateur

Sony

Sony TRINITRON KV-DR29M31 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-28FQ86B Manuel utilisateur

Sony

Sony KD-27FS170, KD-32FS170, KD-36F Manuel utilisateur

Sony

Sony BRAVIA KD-75X8000G Manuel utilisateur

Sony

Sony TRINITRON KV-DR34M97 Manuel utilisateur

Sony

Sony BRAVIA KD-85Z9G Manuel utilisateur

Sony

Sony TRINITRON KV-AR292N90 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-AR21 Manuel utilisateur

Sony

Sony KV-ES29M61 Manuel utilisateur

Sony

Sony BRAVIA XR-85Z9K Manuel utilisateur

Sony

Sony KV-25FXR20 Manuel utilisateur

Sony

Sony Trinitron WEGA KV-HP29 Manuel utilisateur

Sony

Sony GrandWega KDF-42WE655 Manuel utilisateur

Sony

Sony KV-32S65 Manuel utilisateur

Sony

Sony KV-XR34 Manuel utilisateur

Sony

Sony Trinitron KV-32S22 Instructions d'utilisation

Sony

Sony KDL-32NL140 - Bravia Nl Series Lcd... Manuel utilisateur

Sony

Sony BRAVIA XBR-85X807H Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-32CS71K Manuel utilisateur

Sony

Sony KDL-40V3000 Manuel utilisateur

Sony

Sony BRAVIA XH8196 Series Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
