Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

01GB01COV-STMOce.p65 10/14/04, 6:06 PM1

Black

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

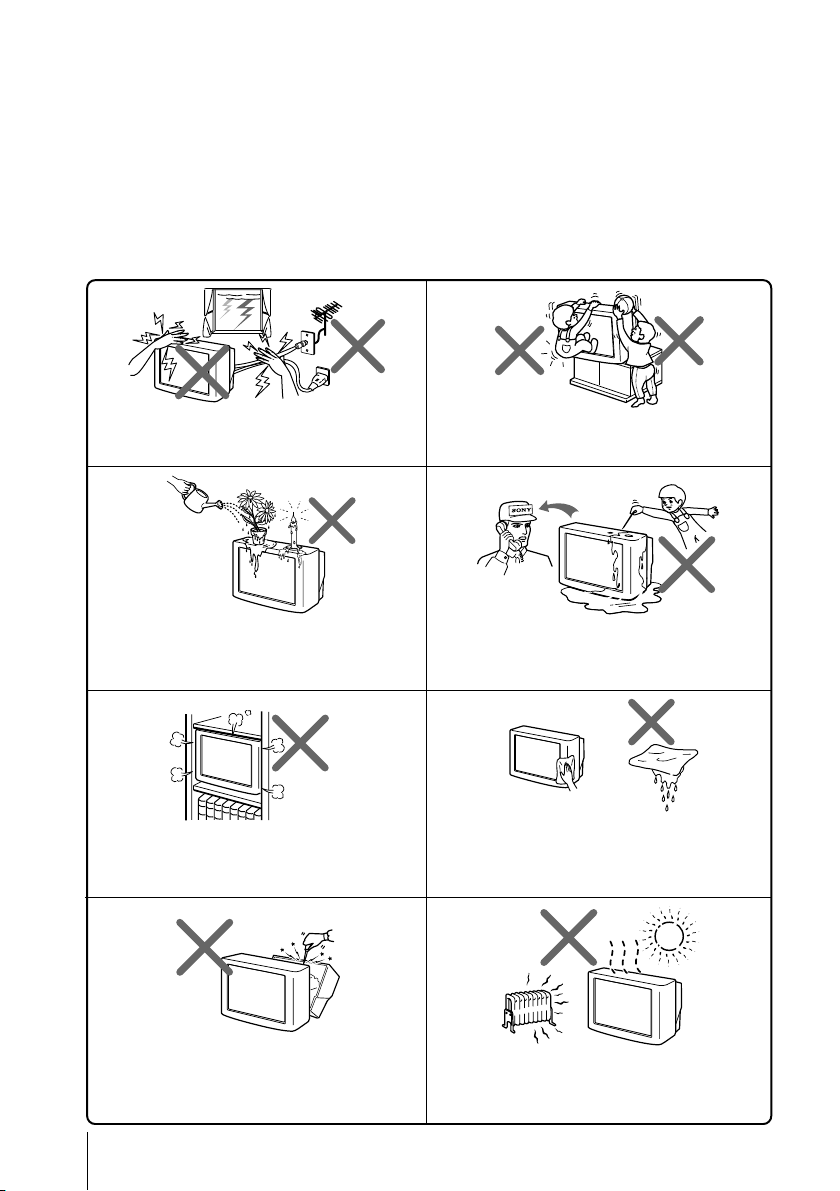

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

•Dangerously high voltages are present inside the TV.

•TV operating voltage: 220 –240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape, glue) on the painted

cabinet of the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

01GB02WAR-STMOce.p65 10/14/04, 6:06 PM2

Black

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned off,

it is still connected to the AC power source (mains)

as long as the power cord is plugged in. Unplug

the TV before moving it or if you are not going to

use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

01GB02WAR-STMOce.p65 10/14/04, 6:06 PM3

Black

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

01GB02WAR-STMOce.p65 10/14/04, 6:06 PM4

Black

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV front and rear panels ..................... 9

Using the remote control and

basic functions .................................... 10

Advanced Operations

Selecting the picture and sound

modes .................................................. 12

Using the wide screen mode ............ 13

Enjoying the WEGA Theatre Mode

with center speaker ........................... 15

Watching Picture-in-Picture (PIP) ... 16

Enjoying stereo or bilingual

programs ............................................. 17

Viewing Teletext ................................. 18

Operating optional components ...... 19

Menu Adjustment

Introducing the menu system .......... 20

Changing the “Picture”setting ........ 23

Changing the “Sound”setting ......... 25

Changing the “Wide Screen”

setting .................................................. 27

Changing the Picture-in-Picture

(“PIP”) setting .................................... 28

Changing the “Channel Setup”

setting ................................................. 29

Changing the “Setup”setting .......... 31

Additional Information

Connecting optional components ... 33

Troubleshooting ................................. 36

Specifications ...................... Back cover

01GB03TOC-STMOce.p65 10/14/04, 6:06 PM5

Black

6Installation

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

Installation

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

•The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 33).

01GB04INS-STMOce.p65 10/14/04, 6:07 PM6

Black

Installation

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup”menu will appear.

You may change the menu language, preset the TV channels automatically, change the

order of TV channels that appear on the screen and adjust the picture position using

the buttons on the TV front panel.

Tip

•The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

1Press 2+/– to select the desired menu

language, then press t.

The selected menu language appears.

2Press 2+/– to select “Yes”, then press t

to preset the channels automatically.

The screen will indicate automatic

presetting in progress.

After all available channels have been tuned

and stored, the “Program Sorting”menu

appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press t.

If the message “No channel found. Please

connect cable/antenna”appears, check your

TV connections, then press t.

3The “Program Sorting” menu enables you

to change the order in which the channels

appear on the screen.

a) If you wish to keep the channels in the

tuned order, press MENU.

b) If you wish to store the channels in a

different order:

1) Press 2 +/– to select the program

number with the channel you wish to

rearrange, then press t.

Program Sorting

Program:

Select channel

Program:

TV System: Auto

VHF Low

continue

01GB04INS-STMOce.p65 10/14/04, 6:07 PM7

Black

8Installation

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

The selected channel will appear on

the screen.

2) Press 2+/–to select the new

program number position for your

selected channel, then press t.

3) Repeat steps b) 1) and 2) if you wish

to change the order of the other

channels.

c) Press MENU to go to the next menu.

4Press 2+/– to adjust the bars on the top

and bottom of the menu if they are

slanted, then press t.

“Picture V-Position”menu appears.

5If the upper and lower bars are not

equally positioned to the top and

bottom of the screen, press 2+/– to

adjust them, then press t.

If no adjustment is necessary, then press t.

6Press 2+/– to select “No”, then press t.

This menu will not appear again the next

time you turn on the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press t.

Tips

•You can immediately go to the end of the ”Initial Setup”menu by pressing MENU.

•You can also set up your TV using the menu system (see page 20).

•You can also preset the channels automatically by pressing MENU (AUTO PROG) button on

the TV front panel for about five seconds.

Program Sorting

Program:

Select new position

continued

01GB04INS-STMOce.p65 10/14/04, 6:07 PM8

Black

Overview of Controls

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

Overview of Controls

L(MONO) R

PROG

(AUTOPROG)

SOUND

MODE

AUTOPROG:Press[MENU]for5sec

PROG

(AUTO PROG)

SOUND

MODE

58 76

AUTO PROG:Press [MENU] for 5sec

123

RLY

CBCR

qd qs

L(MONO) R

120W MAX 8

c –

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

21Standby indicator. 6

2Wake Up indicator. 11

3Remote control sensor. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 33

Menu operations

52+/– Select and adjust items. –

6tConfirm selected items. –

7MENU Display or cancel the menu. –

7(AUTO PROG) Preset channels automatically. 8

8SOUND MODE Select sound mode options. 12

5-Band Graphic Equalizer display will appear.

9t4 Video input terminal 4. 33

0iHeadphone jack. –

qa Component video input terminal. 34

qs TMonitor output terminal. 33

qd t1, t2, t3 Video input terminal 1, 2, 3. 33

qf 8Antenna input terminal. 33

qg Center speaker input terminal. 35

01GB04INS-STMOce.p65 10/14/04, 6:07 PM9

Black

10 Overview of Controls

Sony KV-SA32M36 Group F12 (GB)_2-348-392-11 (1)

xUsing the remote control and basic

functions

123

789

DVD

PROG

VIDEO

A/B

OPTION RESET

CENTER

SP WEGA

THEATRE

Button Description Page

1?/1Turn off temporarily or turn –

on the TV.

3aDisplay the TV program. –

4tSelect video input. 33

5WEGA THEATRE Select WEGA Thearte Mode. 15

6CENTER SP Select TV’s center speaker mode. 15

qa Change the picture size. 14

qd Select surround mode options: –

“TruSurround”(surround sound

that spreads out to the rear of a

room), “WOW”(full, deep bass

sound), “Simulated”(stereo-like

monaural sound), “Off”.

qf Jump to last program number –

that has been watched for at

least five seconds.

qg PROG +/– Select program number. –

qk Mute the sound. –

Display on-screen information. –

w; DVD

Select component video input. 34

wj Select sound mode options. 12

5-Band Graphic Equalizer

display will appear.

wk Select picture mode options. 12

wl 0 – 9, -Input numbers. –

e; 2+/– Adjust volume. –

es RESET Set TV to factory setting. 36

Menu operations

8MENU Display or cancel the menu. 22

wg V, v, B, b Select and adjust items. 22

wh Confirm selected items. 22

Stereo/bilingual operations

7A/B Select stereo/bilingual mode. 17

Timer operations

qh Set TV to turn off automatically

–

(Sleep Timer) according to the desired period

of time (max. of one hour and

30 min.).

01GB04INS-STMOce.p65 10/14/04, 6:07 PM10

Black

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony TV

Sony

Sony FD Trinitron WEGA KD-36FS170 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-XJ29 Manuel utilisateur

Sony

Sony BRAVIA KLV-40R252F Manuel utilisateur

Sony

Sony WEGA KLV-S20G10 Manuel utilisateur

Sony

Sony BRAVIA KD-75X9400E Manuel utilisateur

Sony

Sony Trinitron KV-20V50 Manuel utilisateur

Sony

Sony TRINITRON KV-T29SN81 Manuel utilisateur

Sony

Sony WEGA KV-SW21 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-32FS12 Manuel utilisateur

Sony

Sony Bravia XBR-49X805H Manuel utilisateur

Sony

Sony Trinitron KV-HW212 Manuel utilisateur

Sony

Sony BRAVIA 55A8F Manuel utilisateur

Sony

Sony KV-27FA210 - 27" Tv With Subwoofer Manuel utilisateur

Sony

Sony Trinitron KV-1370R Manuel utilisateur

Sony

Sony TRINITRON KV-29FS60A Manuel utilisateur

Sony

Sony Bravia KLV-V40A10E Manuel utilisateur

Sony

Sony BRAVIA 65A9xJ Manuel utilisateur

Sony

Sony KDF-46E3000 - Bravia 3lcd Micro Display High Definition... Manuel utilisateur

Sony

Sony TRINITRON KV-DR34M97 Manuel utilisateur

Sony

Sony KDL-32BX310 Manuel utilisateur

Sony

Sony KV-BZ212 Manuel utilisateur

Sony

Sony Bravia KD-75XG80 series Manuel utilisateur

Sony

Sony Bravia KDL-60R510A Manuel utilisateur

Sony

Sony Trinitron KV-9PT40 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
