MODEL COMMANDER DEST. CHASSIS NO.

KV-HF51P50

RM-952 Indonesia SCC-U20K-A

KV-XF21M80

RM-952 E SCC-U13C-A

KV-XF21M80

RM-952 ME SCC-U16W-A

KV-XF21M80

RM-952 Vietnam SCC-U28A-A

KV-XF21M83

RM-952 Vietnam SCC-U28B-A

KV-XF21N90

RM-915 Taiwan SCC-P13D-A

KV-XF51M65

RM-952 Indonesia SCC-U20F-A

MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

TRINITRON

COLOR TV

SERVICE MANUAL BG-3S

Self Diagnosis

Supported model

HF51RM-915 RM-952 XF21

– 2 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

SPECIFICATIONS (KV-HF51P50)

Note

Power requirements 110-240 V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system B/G

Color system PAL, PAL 60, NTSC4.43, NTSC3.58 (AV IN)

Channel coverage VHF: E2 to E12 / UHF: E21 to E69 / CATV: S01 to S03, S1 to S41

˘(Antenna) 75-ohm external terminal

Audio output 5W + 5W

Number of terminal

D(Video) Input: 2 Output: 1 Phono jacks; 1VP-P, 75 ohms

≥(Audio) Input: 2 Output: 1 Phono jacks; 500 mVrms

2(Headphone) Output: 1 Minijack

Picture tube

Tube size (mm) 545 Measured diagonally

Screen size (mm) 507 Measured diagonally

Dimension (w/h/d, mm) 640 ×456 ×495

Mass (kg) 27

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK !ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PARTS LISTARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN

SUPPLEMENTS PUBLISHED BY SONY.

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

– 3 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

SPECIFICATIONS (KV-XF21M80/XF21M83/XF51M65)

Note

Power requirements 110-240V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system B/G, I, D/K, M

Color system PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58

Stereo/Bilingual system NICAM Stereo/Bilingual B/G; I; A2 Stereo/Bilingual (German) B/G KV-XF51M65 only

Teletext Language English, Arabic, French KV-XF51M65 only

Channel coverage VHF: E2 to E12 / UHF: E21 to E69 / CATV: S01 to S03, S1 to S41

˘(Antenna) 75-ohm external terminal

Audio output 3W + 3W KV-XF21M83/ XF51M65

5W + 5W KV-XF21M80

3D WOOFER 9W KV-XF21M83/ XF51M65 only

Number of terminal

D(Video) Input: 2 Output: 1 Phono jacks; 1 VP-P, 75 ohms

≥(Audio) Input: 2 Output: 1 Phono jacks; 500 mVrms

2(Headphone) Output: 1 Minijack

Picture tube 21 inch

Tube size 54 cm Measured diagonally KV-XF21M80/ XF21M83

545 mm KV-XF51M65

Screen size 51 cm Measured diagonally KV-XF21M80/ XF21M83

507 mm KV-XF51M65

Dimension (w/h/d, mm) 640 ×470 ×498 KV-XF21M83/ XF51M65

640 ×456 ×498 KV-XF21M80

Mass (kg) 29 KV-XF21M83/ XF51M65

27 KV-XF21M80

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK !ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN

SUPPLEMENTS PUBLISHED BY SONY.

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

– 4 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

SPECIFICATIONS (KV-XF21N90)

Note

Power requirements 110 V AC, 60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system M

Color system NTSC3.58, PAL*, PAL 60*, SECAM*, NTSC 4.43* *AV only

Stereo system MTS

Channel coverage VHF: 2 to 13/ UHF: 14 to 69

CATV: A-8 to A-1, A-W, W+1 to W+84

˘(Antenna) 75-ohm external terminal

Audio output 5W + 5W

Number of terminal

Video Input: 2 Output: 1 Phono jacks; 1VP-P, 75 ohms

Audio Input: 2 Output: 1 Phono jacks; 500 mVrms

Headphone Output: 1 Minijack

Picture tube 21 inch

Tube size (mm) 545 Measured diagonally

Screen size (mm) 510 Measured diagonally

Dimension (w/h/d, mm) 640 ×456 ×498

Mass (kg) 27

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK !ON

THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE

PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN

SUPPLEMENTS PUBLISHED BY SONY.

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

– 5 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

TABLE OF CONTENTS

Section Title Page

SELF DIAGNOSIS FUNCTION................................ 6

1. GENERAL........................................................................ 10

2. DISASSEMBLY

2-1. 3D Speaker Box Removal ....................................... 46

2-2. Rear Cover Removal................................................ 46

2-3. Chassis Assy Removal............................................. 46

2-4. F Bracket Removal .................................................. 46

2-5. Service Position ....................................................... 47

2-6. Replacement of Parts ............................................... 47

2-6-1. Replacement of Control Button ....................... 47

2-6-2. Replacement of Light Guide ............................ 47

2-7. H4 and K1 Board Removal ..................................... 48

2-8. Terminal Bracket Removal ...................................... 48

2-9. Degauss Coil Removal............................................. 48

2-10. Picture Tube Removal.............................................. 49

3. SET-UP ADJUSTMENTS

3-1. Beam Landing.......................................................... 51

3-2. Convergence............................................................. 52

3-3. Focus Adjustment .................................................... 54

3-4. G2 (Screen) and White Balance Adjustments......... 54

4. CIRCUIT ADJUSTMENT

4-1. Adjustments with Commander ................................ 55

4-2. Adjustment Method ................................................. 56

4-3. Picture Quality Adjustments.................................... 64

4-4. A Board Adjustment After IC003 (Memory)

Replacement............................................................. 64

4-5. Picture Distortion Adjustment ................................. 65

Section Title Page

5. DIAGRAMS

5-1. Block Diagram ......................................................... 67

5-2. Frame Schematic Diagram ...................................... 70

5-3 Circuit Boards Location .......................................... 73

5-4. Schematic Diagrams and Printed Wiring Boards ... 74

(1) Schematic Diagram of A (1/2) Board...................... 77

(2) Schematic Diagrams of A (2/2) and K1 and

VM1 Boards............................................................. 82

(3) Schematic Diagrams of C5 and V1 Boards............. 91

(4) Schematic Diagrams of J3, H4 and F Boards................. 99

5-5. Semiconductors ....................................................... 102

6. EXPLODED VIEWS

6-1. Chassis (except KV-HF51P50)............................... 105

6-2. Chassis (KV-HF51P50) .......................................... 108

6-3. 3D Speaker.............................................................. 110

7. ELECTRICAL PARTS LIST...................................... 111

– 6 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically

begin to flash.

The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER

lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot

be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past

problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

When an errors occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the

problem. If there is more than one error, the lamp will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

Diagnostic

Item

Description

• Power does not

turn on

• +B overcurrent

(OCP) or

overvoltage

(OVP)

• Vertical deflection

stopped

• Horizontal

deflection

overdrive

• White balance

failure (no

PICTURE)

• Micro reset

No. of times

STANDBY/TIMER

lamp flashes

Does not light

2 times

5 times

—

Self-diagnostic

display/Diagnostic

result

—

002:000 or

002:001~255

003:001~255

004:001~255

at the same time

005:000 or

005:001~225

101:00 or

101:001~225

Probable

Cause

Location

• Power cord is not plugged

in.

• Fuse is burned out F4601

(F)

• H.OUT Q511 is shorted. (A

board)

• IC1800 is shorted. (C5

board)

• -13V is not supplied. (A

board)

• IC 503 faulty (A board)

• IC 301 faulty (A board)

• G2 is improperly adjusted.

(Note 2)

• CRT problem.

• Video OUT IC1800 is faulty.

(C5 board)

• IC301 is faulty. (A board)

• No connection A board to

C5 board.

• Discharge CRT (C5 Board)

• Static discharge

• External noise

Detected

Symptoms

• Power does not come on.

• No power is supplied to the

TV.

• AC power supply is faulty.

• Power does not come on.

• Load on power line is

shorted.

• Has entered standby state

after horizontal raster.

• Vertical deflection pulse is

stopped.

• Power line is shorted or

power supply is stopped.

• No raster is generated.

• CRT cathode current

detection reference pulse

output is small.

• Power is shut down shortly,

after this return back to

normal.

• Detect Micro latch up.

Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.

SELF DIAGNOSTIC FUNCTION

– 7 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT

Diagnostic Item Flash Count*

+B overcurrent/overvoltage 2 times

Vertical deflection stopped

White balance failure 5 times

* One flash count is not used for self-diagnostic.

3. STOPPING THE STANDBY/TIMER FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp

from flashing.

Lamp ON 0.3 sec. Lamp OFF 3 sec.

Lamp OFF 0.3 sec.

2 times

5 times

STANDBY/SLEEP lamp

– 8 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

4. SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it

is possible to bring up past occurances of failure for confirmation on the screen:

[To Bring Up Screen Test]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

[Screendisplay] /channel [5] /Sound volume [-] /Power ON

Note that this differs from entering the service mode (mode volume [+]).

Self-Diagnosis screen display

002 : 000

003 : 000

004 : 000

005 : 001

Numeral "0" means that no fault has been detected.

Numeral "1" means a fault has been detected.

101 : 000

SELF DIAGNOSTIC

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen

during repairs. When you have completed the repairs, clear the result display to “0”.

Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after

completion of the repairs.

[Clearing the result display]

To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnostic

screen is being displayed.

Channel [8] /0

[Quitting Self-diagnostic screen]

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

– 9 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

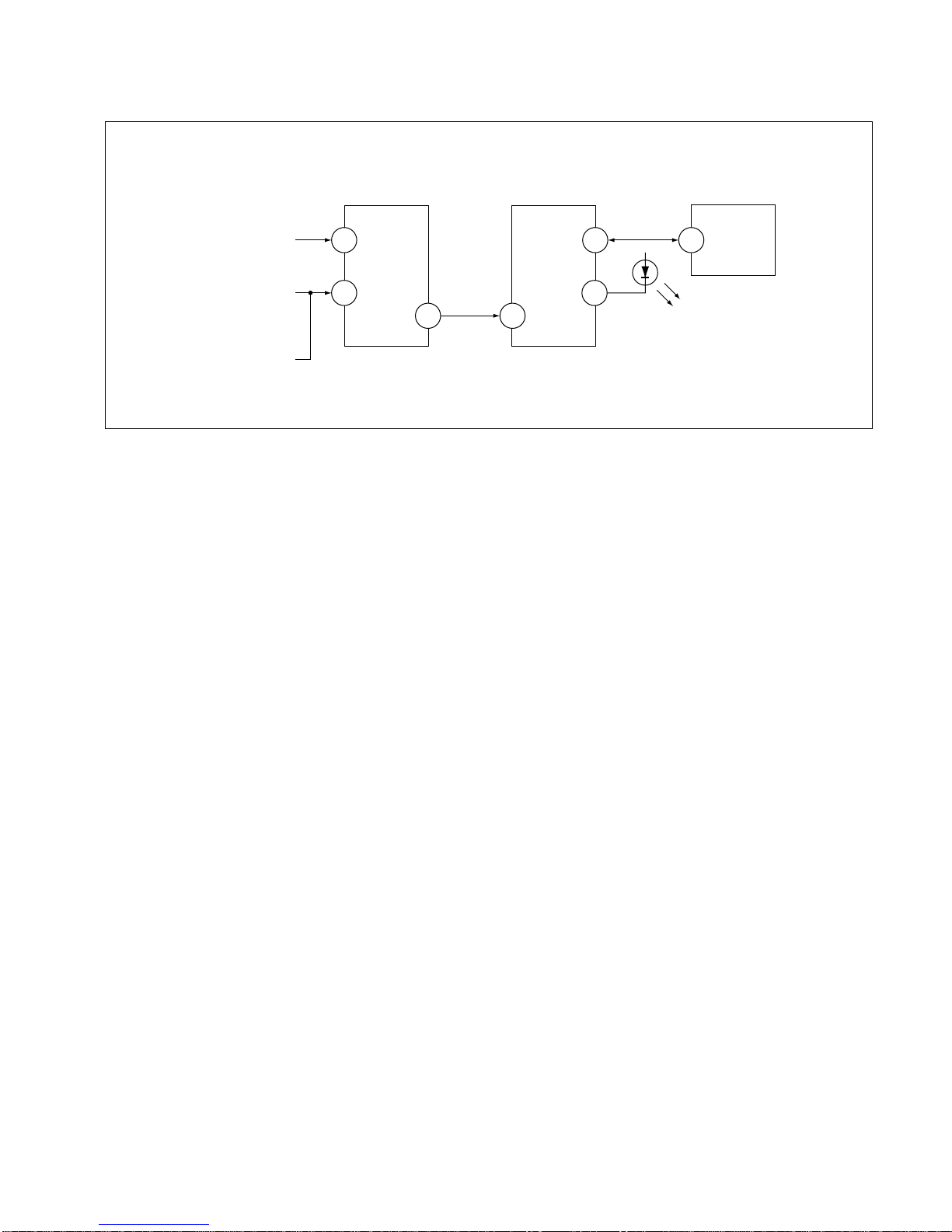

6. SELF-DIAGNOSTIC CIRCUIT

[+BovercurrentªOCPº] Occurs when an overcurrent on the +B(135) line is detected by Q604. If Q604 go to ON

and the voltage to pin 18 of IC301 should go down when V.SYNC is more than seven

verticals in a period, the unit will automatically turn off.

[Verticaldeflectionstopped] Occurs when an absence of the vertical deflection pulse is detected by Q509 and IC001

shut down the power supply.

[Verticaldeflectionovercurrent] Occurs when an overcurrent on V drive line is detected by Q507. Power supply will be

shut down when detect this by IC001.

[Whitebalancefailure] If the RGB levels* do not balance or become low level within 5 seconds, this error will be

detected by IC301. TV will stay on, but there will be no picture.

* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

IC301

Y/CHROMA JUNGLE

FROM

CRT

FROM

[+B] Q604 C5

[V] Q509/507

IC001

SYSTEM IC003

MEMORY

B-DAT

IO-SDAT

IK-IN

MP/

PROTECT

IO-8DAT

O-LED

SDA

54521

18 51

4635

– 10 –

KV-HF51P50/XF21M80/XF21M83/XF21N90/XF51M65

RM-952 RM-952 RM-952 RM-915 RM-952

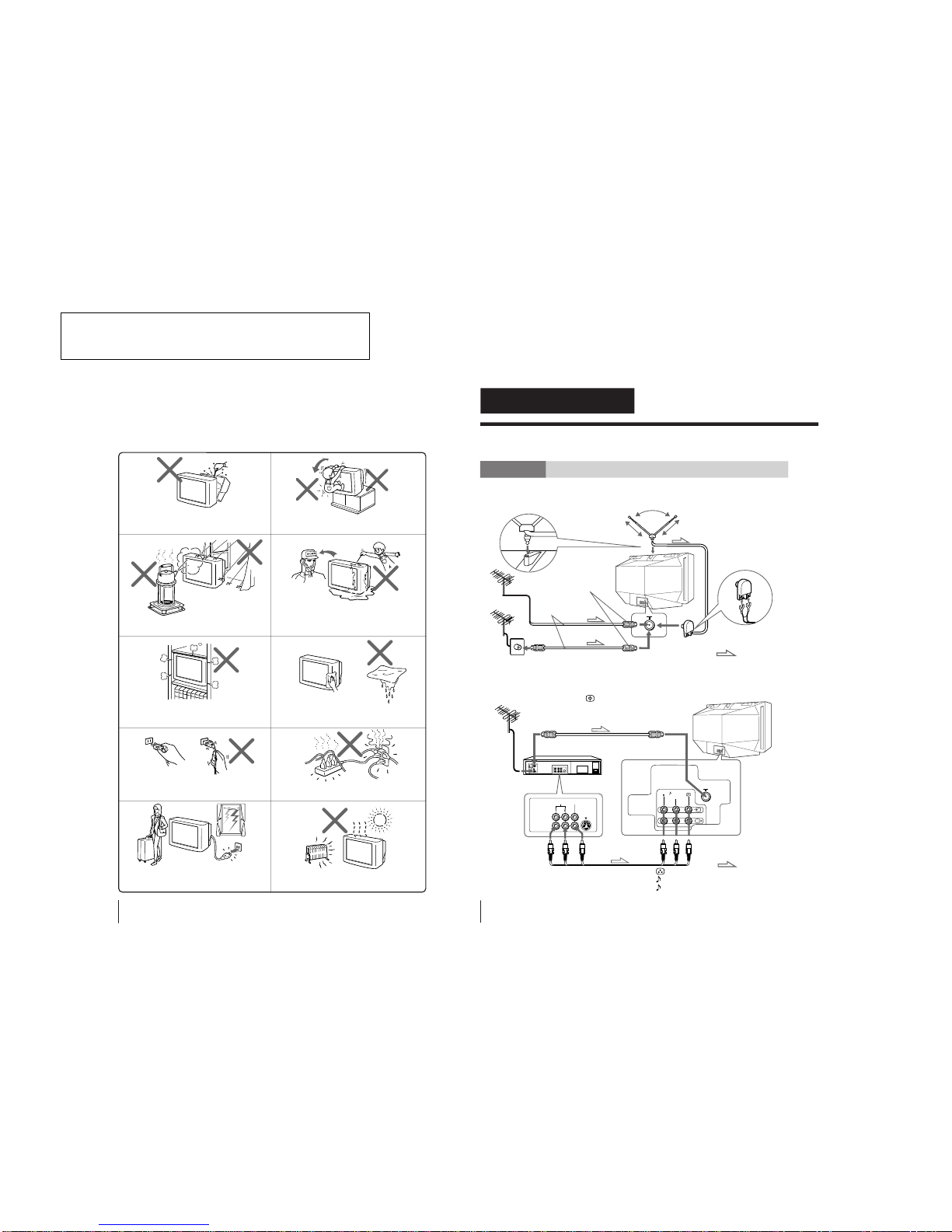

SECTION 1-1

GENERAL

(KV-HF51P50)

Using Your New TV

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

L(MONO)

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO) (white)

-R (red)

Antenna cable (not supplied)

To …1

(video input)

Audio/Video cable

(not supplied)

: Signal flow

To antenna

output

Antenna cable

(not supplied)

Rear of TV

Connecting a VCR

To watch the video, press …(see page 12).

Note

• You are advised to use an outdoor antenna for better reception.

Rod antenna and cable

To ˘

(antenna)

: Signal flow

The operating instructions mentioned here are partial abstracts

from the Operating Instruction Manual. The page numbers of

the Operating Instruction Manual remain as in the manual.

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony TV

Sony

Sony KP 53V80 Manuel utilisateur

Sony

Sony WEGA KV 27FS320 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-36FS12 Manuel utilisateur

Sony

Sony TRINITRON KV-BT21M50 Manuel utilisateur

Sony

Sony BRAVIA KD-85X9500B Instructions d'utilisation et d'entretien

Sony

Sony Trinitron KV-XG29 Manuel utilisateur

Sony

Sony BRAVIA KD-85X85J Manuel utilisateur

Sony

Sony BRAVIA KLV-40R352E Manuel utilisateur

Sony

Sony KV-32XBR200 - 32" Fd Trinitron Wega Xbr Manuel utilisateur

Sony

Sony Trinitron KV-13M53 Manuel utilisateur

Sony

Sony BRAVIA XBR-75X900E Manuel utilisateur

Sony

Sony KV-27FS120 - FD Trinitron WEGA Flat Screen... Manuel utilisateur

Sony

Sony TRINITRON KV-27FV15 Manuel utilisateur

Sony

Sony KDL-V26XBR1 Operating Instructions... Manuel utilisateur

Sony

Sony Trinitron KV-21FT250 Manuel utilisateur

Sony

Sony KV-XS29M31 Manuel utilisateur

Sony

Sony BRAVIA XR XR-55X9 S Series Manuel utilisateur

Sony

Sony KDL-22EX355 Guide d'installation

Sony

Sony Bravia KDL-23S2000 Manuel utilisateur

Sony

Sony KV-20V80 Trinitron Manuel utilisateur

Sony

Sony KV-9PT50 - 9" Trinitron Color Tv Manuel utilisateur

Sony

Sony KDL-40V3000, KDL-46V3000 Manuel utilisateur

Sony

Sony Trinitron WEGA KV-SZ292 Manuel utilisateur

Sony

Sony TRINITRON KV-J14P2S Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
