Sony KV-PG21 Manuel utilisateur

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and

retain it for future reference.

KV-PG21

KV-PG14

4-085-612-12 (1)

AGetting Started

Plug in the power cord, then press !on the TV to

turn it on.

Press CABLE on the remote to select “CABLE: ON”,

then press AUTO PROGRAM on the remote to preset

the channels automatically. (See J)

Tip

• To stop the automatic channel presetting, press SELECT.

Press SELECT on the remote until “LANGUAGE/

: ENGLISH” appears on the screen, then press

+ or – to change the on-screen display language.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components.

(See E)

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old batteries nor use different types of batteries

together.

Step 2

Step 3

Step 4

Step 5

CABLE

AUTO

PROGRAM

SELECT

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections;

otherwise a minimum leakage current might flow through the antenna and other terminals to

ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the remote if

you are not going to use it for several days. If any liquid that leaks from the batteries touches

you, immediately wash it away with water.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto

it.

Clean the TV with a dry and soft cloth. Do not use

benzine, thinner, or any other chemicals to clean

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as

a bookcase or built-in cabinet.

Do not place any objects on the TV.

CSecuring the TV

B KV-PG21 only

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the

clamps.

(2) Screw one clamp to a wall or pillar

and the other clamp to the provided

hole at the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

20 mm

3.8 mm

screws clamps band

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

WARNING (continued)

Install the TV on a stable TV stand and floor

which can support the TV set weight. Ensure that

the TV stand surface is flat and its area is larger

than the bottom area of the TV.

CHANNELVOLUME

SELECT

AUDIO

VIDEO INPUT

VIDEO TV/

VIDEO

STANDBY/

WAKE UP

MONITOR

OUT

VIDEO

AUDIO VIDEO

DTV front and rear panels

TV front panel

TV rear panel

Button Function

1!Turn off or turn on the TV.

2Remote control sensor.

3STANDBY Standby indicator.

3WAKE UP Wake Up indicator.

4CHANNEL +/– Select channel number.

5VOLUME +/– * Adjust volume.

6TV/VIDEO Select TV or video input.

7SELECT Select the desired item.

8Earphone terminal.

9VIDEO INPUT Video input terminal.

08Antenna input terminal.

qa VIDEO IN Video input terminal.

qs MONITOR OUT Monitor output terminal.

* You can also use the VOLUME +/– buttons on the TV to work as the +/– buttons on the

remote.

EConnecting optional components

Connecting to the video input terminal

TV front panel

Camcorder

Audio/Video cable

(not supplied)

Note

• Do not connect video equipment to VIDEO INPUT at the front and VIDEO IN at the rear of

your TV at the same time; otherwise the picture will not be displayed properly on the screen.

TV rear panel

Audio/Video cable

(not supplied)

Connecting to the monitor output terminal

AUDIO

VIDEO INPUT

MONITOR

OUT

VIDEO

AUDIO VIDEO

VCR

Video game

equipment

MONITOR

OUT

VIDEO

AUDIO VIDEO

VCR

Audio systemAudio/Video cable

(not supplied)

TV rear panel

Antenna cable

(not supplied)

FTroubleshooting

If you find any problem while viewing your TV, please check the following

guide. If any problem persists, contact your Sony dealer.

Snowy picture,

noisy sound

No picture, no sound

Good picture, no sound

Dotted lines or stripes

Double images or

“ghosts”

No color

Abnormal color

patches

The STANDBY

indicator on your TV

flashes red several

times after every

three seconds.

TV cabinet creaks.

A "boom" sound is

heard when the TV is

turned on.

Symptom Solutions

• Check the antenna cable and connection on the TV, VCR and on the wall.

• Preset the channel manually again. (See J)

• Check the antenna setup. Contact a Sony dealer for advice.

• Check the power cord, antenna and the VCR connections.

• Press POWER or !(main power) to turn on the TV.

• Press VOL + to increase the volume level.

• Press MUTING to cancel the muting.

• Do not use a hair dryer or other equipment near the TV.

• Check the antenna setup. Contact a Sony dealer for advice

• Turn off or disconnect the booster if it is in use.

• Check the antenna setup. Contact a Sony dealer for advice.

• Select the appropriate color system. (See J)

• Adjust the color level. (See K)

• Check the antenna setup. Contact a Sony dealer for advice.

• Keep external speakers or other electrical equipment away from the TV.

Press !(main power) to turn off the TV for about 15 minutes, then turn

it on again to demagnetize the TV.

• Count the number of times the STANDBY indicator flashes. Press !

(main power) to turn off your TV. Contact your nearest Sony service

center.

• Changes in room temperature sometimes make the TV cabinet expand or

contract, making a noise. This does not indicate a malfunction.

• The TV's demagnetizing function is working. This does not indicate a

malfunction.

Power requirements 110-240 V AC, 50/60 Hz

Power consumption (W)

Indicated on the rear of the TV

Television system M

Color system NTSC3.58, PAL*, PAL 60*, NTSC4.43* * AV IN only

Channel coverage VHF: 2 to 13

UHF: 14 to 69

CATV: 1 to 125

8(Antenna) 75-ohm external terminal

Audio output (Speaker)

Number of terminal

VIDEO

Input: 2

Output: 1 Phono jacks; 1 Vp-p, 75 ohms

One input line

available

AUDIO

Input: 2

Output: 1 Phono jacks; 500 mVrms *

One input line

available

(Earphone) Output: 1 Monaural minijack

Picture tube 21 in. 14 in.

Tube size (cm) 54 37 Measured diagonally

Screen size (cm) 51 34 Measured diagonally

Dimensions (w/h/d, mm)

497 x 458 x 487 375 x 346 x 411

Mass (kg) 25 12

GSpecifications

Design and specifications are subject to change without notice.

Note

KV-PG21N70 KV-PG14N70

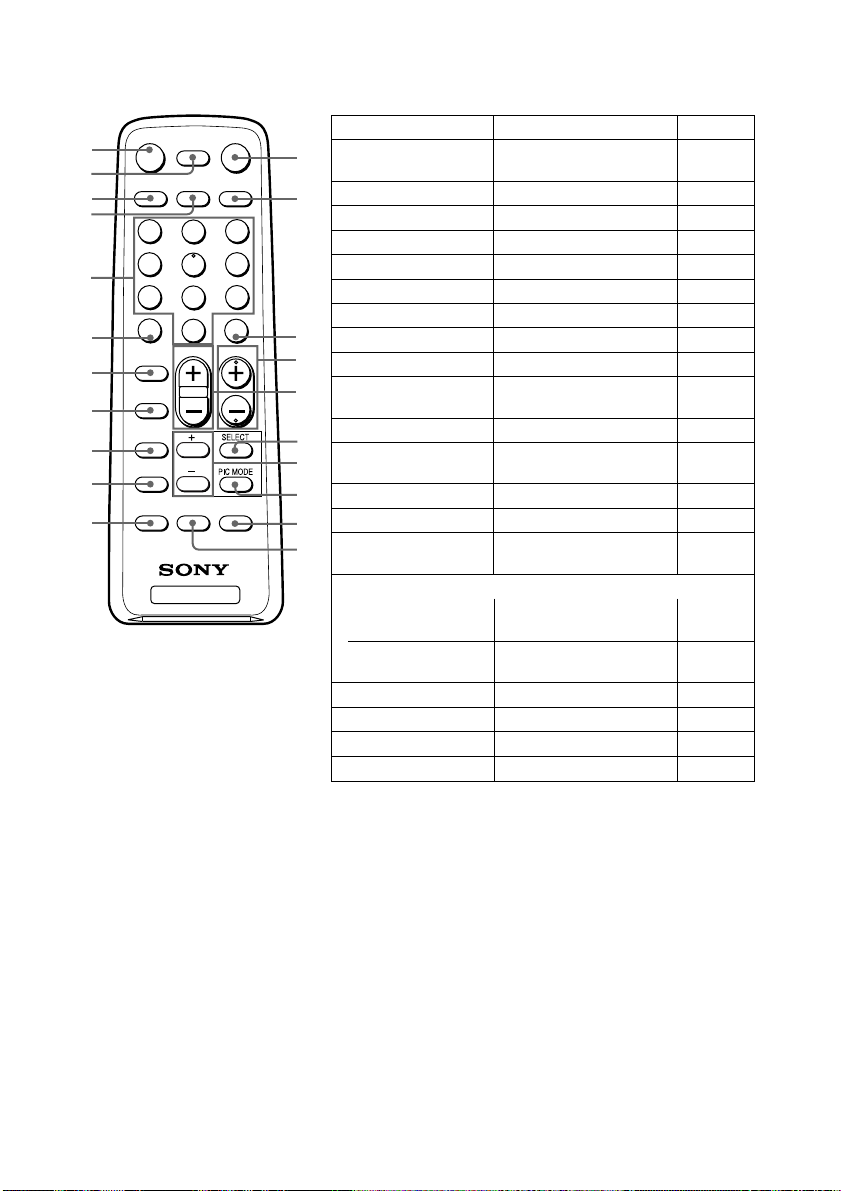

HRemote control

Button Function

1POWER Turn off temporarily or

turn on the TV.

2TV Display the TV program.

3ENT Confirm input number

4CH +/– Select channel number.

5VOL +/– Adjust volume.

6SELECT Select the desired items.

7+/– Adjust items.

8PIC MODE Select picture mode.

9ADD/ERASE

Preset channels manually

AUTO PROGRAM

Preset channels

automatically.

qa MUTING Mute the sound.

qs DISPLAY Display on-screen

information.

qf VIDEO Select TV or video input.

qg 0 – 9 Input numbers.

qh JUMP Jump to previous

channel number.

Timer operations

ql WAKE UP Set TV to turn on

automatically.

w; SLEEP Set TV to turn off

automatically.

wa CABLE Select the cable TV.

qd MTS

Not function for your TV.

qj SOUND MODE

Not function for your TV.

qk FAVORITE

Not function for your TV.

See

–

123

789

ENT

FAVORITE

WAKE UP

SLEEP

JUMP

CABLE

DISPLAYMUTING POWER

MTS

VOL CH

VIDEO

SOUND

MODE

AUTO

PROGRAM ADD/

ERASE



wa 9

ISetting the timers

You can turn on and off your TV by using the WAKE UP and SLEEP buttons

respectively.

Setting the Wake Up timer

1Press WAKE UP until the desired period of time

appears on the screen.

The Wake Up timer starts immediately after you

have set it.

2Select the program number or video input you

want to wake up to.

3Press POWER, or set the Sleep timer if you want

the TV to turn off automatically.

The WAKE UP indicator on the TV lights up

orange when the TV goes into standby mode.

Setting the Sleep timer

Press SLEEP until the desired period of time

appears on the screen.

The Sleep timer starts immediately after you have

set it.

Notes

• You can also cancel the Wake Up and Sleep timers by turning off the TV’s main power.

• If no buttons or controls are pressed for more than two hours after the TV is turned on using

the Wake Up timer, the TV automatically goes into standby mode.

123

789

ENT

FAVORITE

WAKE UP

SLEEP

JUMP

CABLE

DISPLAYMUTING POWER

MTS

VOL CH

VIDEO

SOUND

MODE

AUTO

PROGRAM ADD/

ERASE



WAKE UP TIMER:0H10M

WAKE UP TIMER:OFF WAKE UP TIMER:12H00M

(After 10 minutes)

(No Wake Up timer) (After 12 hours)

SLEEP TIMER:30M SLEEP TIMER:60M

SLEEP TIMER:OFF SLEEP TIMER:90M

(After 30 minutes)

(No Sleep timer)

(After 60 minutes)

(After 90 minutes)

POWER

WAKE UP

SLEEP

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony TV

Sony

Sony WEGA KV-LS212 Manuel utilisateur

Sony

Sony BRAVIA KDL-55W800C Guide de l'utilisateur

Sony

Sony KV-SR29 Manuel utilisateur

Sony

Sony XR-75X90L Manuel utilisateur

Sony

Sony KD-32NX100AEP Manuel utilisateur

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Manuel utilisateur

Sony

Sony WEGA KV-AR34 Manuel utilisateur

Sony

Sony Bravia KD-55X7007G Manuel utilisateur

Sony

Sony TRINITRON KV-HR29M61 Manuel utilisateur

Sony

Sony BRAVIA XR XR-77A8 K Series Manuel utilisateur

Sony

Sony KP-48PS2 Manuel utilisateur

Sony

Sony FD Trinitron KV-28CL11B Manuel utilisateur

Sony

Sony Bravia KDL--48W705C Manuel utilisateur

Sony

Sony KV-20FS100 - 20" Fd Trinitron Wega Manuel utilisateur

Sony

Sony KD-32DX40U Manuel utilisateur

Sony

Sony Bravia XBR-75X900F Manuel utilisateur

Sony

Sony FD Trinitron KV-29FX64E Manuel utilisateur

Sony

Sony Trinitron KD-32NX200U Manuel utilisateur

Sony

Sony FD Trinitron WEGA Hi-Scan KD-34XS955 Manuel utilisateur

Sony

Sony BRAVIA KD-55X75K Manuel utilisateur

Sony

Sony Trinitron KV-XA21 Manuel utilisateur

Sony

Sony Trinitron KV-EF29 Manuel utilisateur

Sony

Sony BRAVIA KLV-40U100M Manuel utilisateur

Sony

Sony Trinitron KV-XA21 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
