Sony KV-EF34 Manuel utilisateur

Trinitron Color TV

KV-EF34

3-864-789-21 (3)

Operating Instructions

M91

M80

M31

Before operating the unit, please read this manual thoroughly and retain it for

future reference.

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet or the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug too many appliances into the same

power socket. Do not damage the power cord.

Clean the TV with a dry soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

Using Your New TV

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote.......................................... 5

Step 3: Preset the channels automatically ........................................... 5

Connecting optional components ............................................................. 6

Securing the TV............................................................................................ 8

Watching the TV .......................................................................................... 9

Advanced Operations

Viewing your favorite channels

—FAVORITE CHANNEL .................14

Watching two programs at the same

time—PIP, TWIN ...............................15

Displaying multiple programs

—PROGRAM INDEX .......................17

Listening with surround sound.......20

Selecting a stereo or bilingual

program (KV-EF34M91/EF34M31

only) .....................................................21

Viewing Teletext (KV-EF34M91/

EF34M31 only) ...................................23

Operating optional components......25

Adjusting Your Setup (MENU)

Introducing the menu system ..........27

Changing the A/V CONTROL

setting ............................................29

Changing the MULTI PICTURE

setting ............................................31

Changing the SET UP setting .....33

Changing the CH. PRESET setting

........................................................36

Additional Information

Troubleshooting .................................39

Self-diagnosis function......................42

Identifying parts and controls .........43

Specifications...................... Back cover

The features you will enjoy include:

• FAVORITE CH for quick and easy program

selection (page 14)

• PIP & TWIN for viewing two programs

(page 15)

• PROGRAM INDEX for displaying

multiple programs (page 17)

• PICTURE/SOUND/SURROUND modes

for customizing your TV

Your TV also offers the following setup

features:

• Menu language options—English/Arabic

(for KV-EF34M91/EF34M80), English/

Chinese (for KV-EF34M31) (page 11)

• CHILD LOCK for locking out specific

channels (page 34)

• INTELLIGENT VOL for automatic volume

adjustment (page 33)

• FINE tuning feature (page 38)

4Using Your New TV

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

123

(MONO)

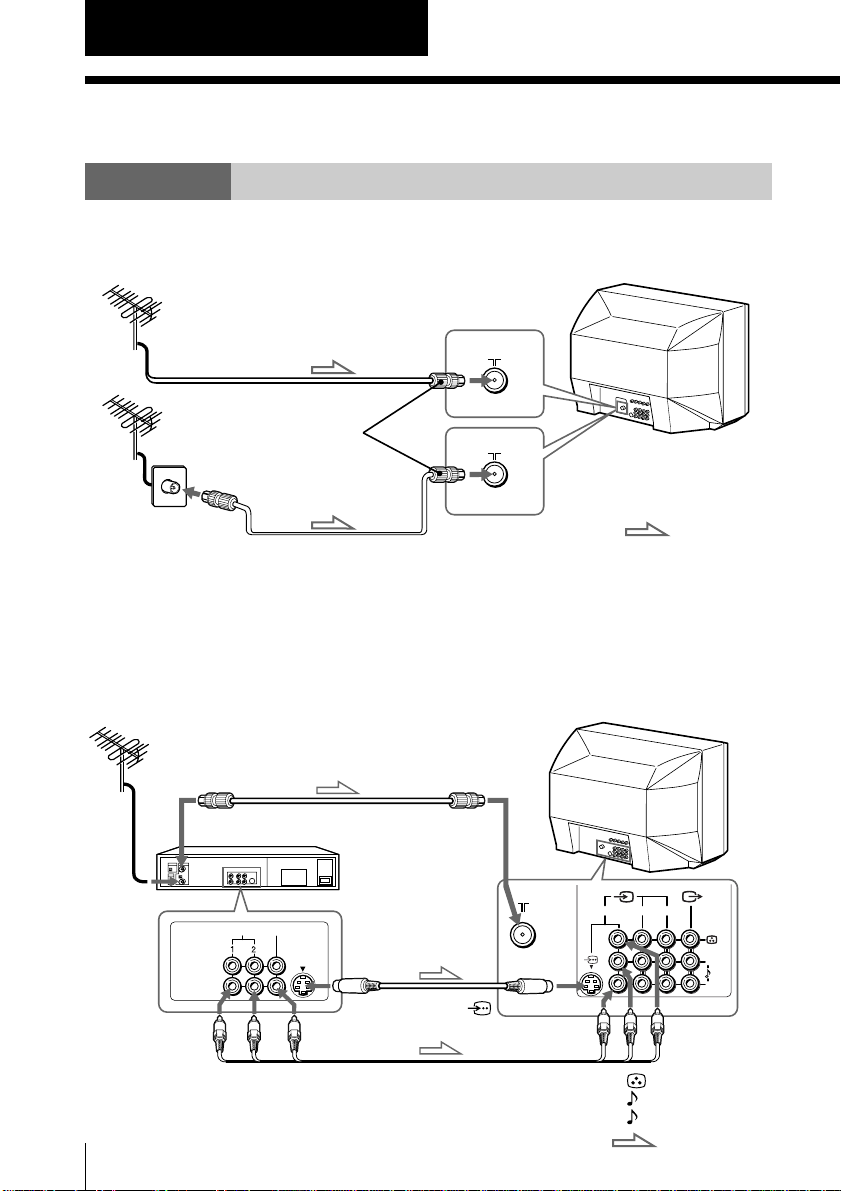

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

CAUTION

Do not connect the power cord until all other connections are complete;

otherwise, a minimal current leakage through the antenna and/or other

terminals to the ground could occur.

Connecting a VCR

To play a video tape, see page 10.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO) (white)

-R (red)

To S video

output

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

S video cable

(not supplied)

: Signal flow

(S video input)

To antenna

output To ˘

(antenna)

: Signal flow

Antenna cable (not supplied)

Antenna cable

(not supplied)

Using Your New TV

Notes

• If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the ˘(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• Do not have concurrent connections of video equipment to the …3

(video input) jacks at the front and the …3 (video input) jacks at the rear

of your TV; otherwise, the picture will not be displayed properly on the

screen.

• When both the (S video input) and …1 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to …1 (video input), disconnect the S video cable.

Step 2

Insert the batteries

into the remote

Note

• Do not use old batteries or different types of batteries together.

Step 3

Preset the channels automatically

Tip

• To stop the automatic channel presetting, press MENU twice.

Now You Are Ready. . .

The channels are now automatically preset

in your TV. To preset the channels manually,

see page 37.

AUTO

PROGR

ONE-PUSH AUTOMATIC PROGRAMMING

AUTO PROGRAM

TV SYS : AUTO

VHF LOW

PR:

6Using Your New TV

(MONO)

123

(MONO)

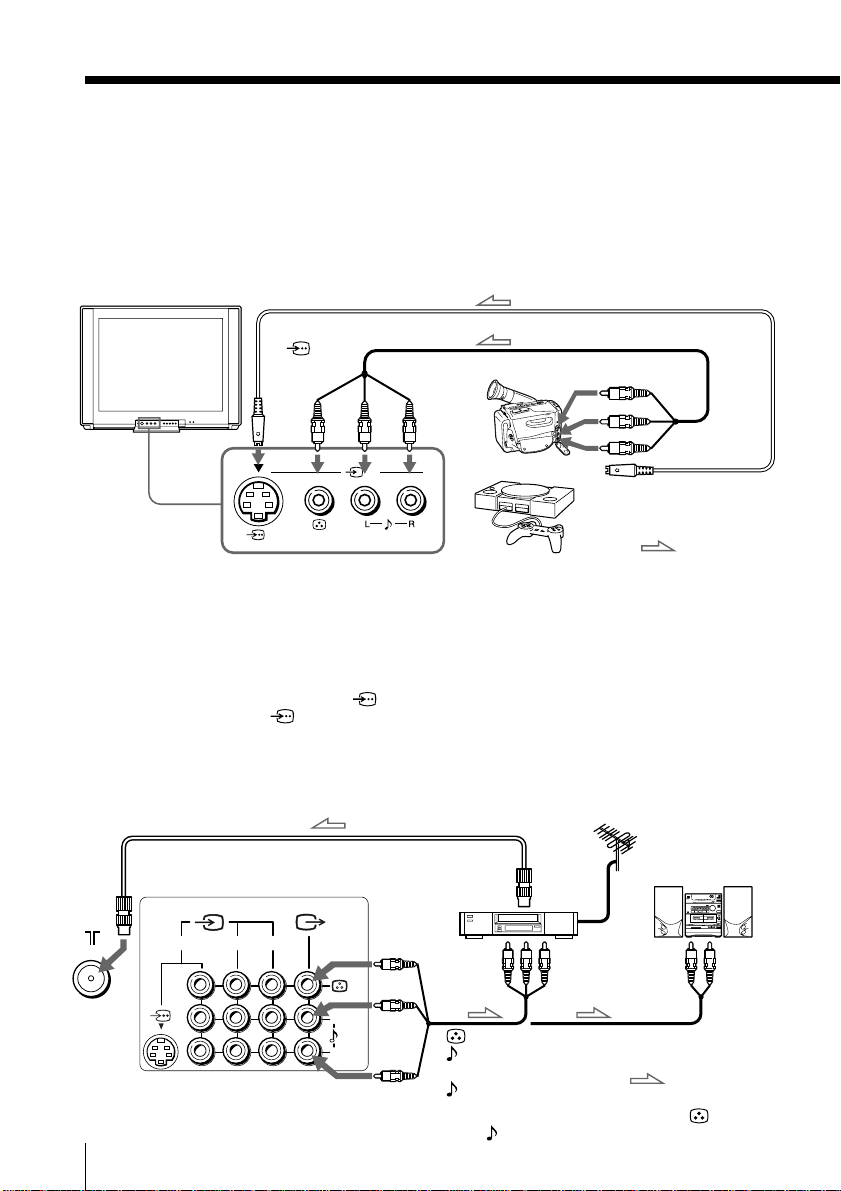

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game, or stereo system. For operations of the connected equipment,

see pages 10 and 25.

Connecting a camcorder/video game equipment

using the …(video input) jacks

Notes

• You can also connect video equipment to the …1, 2, or 3 (video input)

jacks at the rear of your TV.

• Do not have concurrent connections of video equipment to the …3

(video input) jacks at the front and the …3 (video input) jacks at the rear

of your TV; otherwise, the picture will not be displayed properly on the

screen.

• When both the (S video input) and …3 (video input) are connected,

the (S video input) is automatically selected. To view the video input

to …3 (video input), disconnect the S video cable.

Connecting audio/video equipment using the Ú

(monitor output) jacks

Note

• When connecting a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

To S video output

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

: Signal flow

(S video

input) To…3

(video input)

Audio/Video cable (not supplied)

S video cable (not supplied)

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To Ú

(monitor

output)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

Using Your New TV

VIDEO

R-AUDIO-L

LINE OUT

123

(MONO)

Notes

• Some DVD player terminals may be labeled differently:

• Since the high quality pictures on a DVD disc contain a lot of information,

picture noise may appear. In this case, adjust the sharpness (“SHARP”) in the

PERSONALADJUST menu of the PICTURE MODE menu (see page 30).

• Connect your DVD player directly to your TV. Connecting the DVD player

through other video equipment will cause unwanted picture noise.

DVD player

Audio/Video cable

(not supplied)

DVD player

L (white)

R (red)

Audio cable

(not supplied)

To component

video output

Component

video cable

(not supplied)

(yellow)

-L (MONO) (white)

-R (red)

To …1, 2, or 3

(video input)

: Signal flow

To audio

output

: Signal flow

(component

video input)

Connect To (on the DVD player)

Y (green) Y

CB(blue) Cb, B-Y or PB

CR(red) Cr, R-Y or PR

Connecting a DVD player

Connect …1, 2, or 3 (video input) /(audio/video) connectors on your TV to

LINE OUT on your DVD player.

Connecting a DVD player with component video

output connectors

1 Connect R and L under (component video input) on your TV to the LINE OUT,

AUDIO R and L output connectors on your DVD player.

2 Using a component video cable, connect Y, CB, and CRunder (component video

input) on your TV to the COMPONENT VIDEO OUT Y, CB, and CRoutput

connectors on your DVD player.

VIDEO

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

R L Y C

8Using Your New TV

3.8mm

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the stabilizer band to the TV stand and to

the rear of the TV using the provided hole.

BPass a cord or chain through the clamps and secure them to the rear of the

TV and a wall or pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Using Your New TV

Number buttons

PROGR +/–

continued

123

456

-/--

231

564

897

0JUMP

PIC MODE

PROGR

A/B

PIP PROGR

ZOOM

LEFT

FAVORITE PROGR

INDEX

ZOOM

RIGHT

SURROUND

SOUND

MODE

PIP PROGR

VIDEO

TITLE

ENTER

Watching the TV

This section explains various functions

and operations used while watching the

TV. Most operations can be done using

the remote.

1Press Uto turn on the TV.

When the TV is in standby

mode (the uindicator on

the TV is lit red), press u

on the remote or on the TV.

The PROGR +/–, .+/–,

and …indicators on the

TV light up.

2Press PROGR +/– or the

number buttons to select

the TV channel.

For double digit numbers,

press ÷, then the number

(e.g., for 25, press ÷, then

2 and 5).

10 Using Your New TV

Turn off temporarily

Turn off completely

Adjust the volume

Mute the sound

Watch the video input

(VCR, camcorder, etc.)

Jump back to the previous channel

Display the on-screen information*

Press

The uindicator on the TV lights up red.

Uon the TV.

.+/–.

¤.

…(or …on the TV) to select “VIDEO 1,”

“VIDEO 2,” “VIDEO 3,” or “DVD.”

To return to the TV screen, press ;(or …on the TV).

JUMP.

Additional tasks

Watching the TV (continued) ¤

…

;

JUMP

.+/–

PROGR +/–

* The picture, sound, and either the program number or video mode are

displayed. The on-screen display for the picture and sound information

disappears after about 3 seconds.

V/b/v/B/ENTER

231

564

897

JUMP

PIC MODE

PROGR

A/B

PIP PROGR

ZOOM

LEFT

FAVORITE PROGR

INDEX

ZOOM

RIGHT

SURROUND

SOUND

MODE

PIP PROGR

VIDEO

TITLE

ENTER

Autres manuels pour KV-EF34

Table des matières

Autres manuels Sony TV

Sony

Sony BRAVIA XBR-85X950G Manuel utilisateur

Sony

Sony Trinitron WEGA KV-SZ29 Manuel utilisateur

Sony

Sony BRAVIA XBR-85X850F Manuel utilisateur

Sony

Sony BRAVIA KD-85X8500F Manuel utilisateur

Sony

Sony Trinitron KV-EX29M93 Manuel utilisateur

Sony

Sony bravia KD-65S9000B Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-13FS110 Manuel utilisateur

Sony

Sony BRAVIA KLV-32S550AE Manuel utilisateur

Sony

Sony Bravia KD-49X9500H Manuel utilisateur

Sony

Sony KV-29LS30E Manuel utilisateur

Sony

Sony Trinitron Wega KV-HW213 Manuel utilisateur

Sony

Sony KV-9PT60 - 9" Trinitron Color Tv Mode d’emploi

Sony

Sony KV-27S10 Manuel utilisateur

Sony

Sony KV-25K5K Instructions de construction

Sony

Sony FD Trinitron WEGA KV-27FV16 Manuel utilisateur

Sony

Sony FD Trinitron KV-28CL11B Manuel utilisateur

Sony

Sony TRINITRON KV-ES29M90 Manuel utilisateur

Sony

Sony WEGA KLV-S26A10 Guide de l'utilisateur

Sony

Sony FDL-PT22 - 2.2" LCD Portable TV Manuel utilisateur

Sony

Sony KV-27S10 Manuel utilisateur

Sony

Sony BRAVIA Z9J Manuel utilisateur

Sony

Sony BRAVIA KD-75X8000G Manuel utilisateur

Sony

Sony WEGA KD 32FS130 Manuel utilisateur

Sony

Sony KDL-22BX300 - Bravia Bx Series Lcd... Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
