Sony BRAVIA FW-49BZ35F Manuel utilisateur

Sony FW-49BZ35F / 43BZ35F

[GB, CS, CT, VN, FR, TH, ID, ES, AR] 4-735-249-12(1)

4-735-249-12(1)

1.5 N∙m/1,5 N∙m

{15 kgf∙cm}

1 2

SB2

SB1 M4L12

SB2

SB1

M4L12

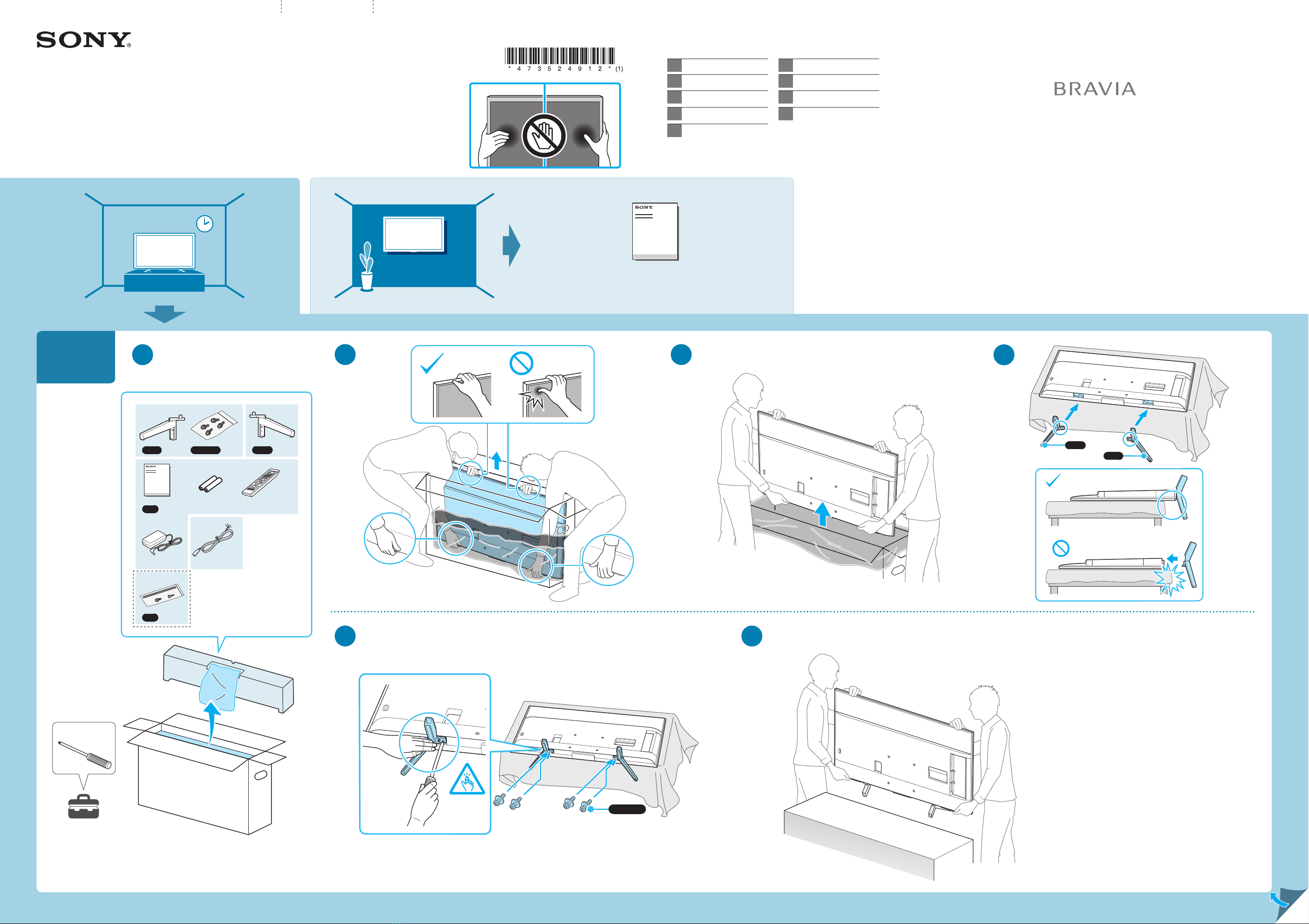

Setup Guide

EN Setup Guide

CS 设定指南

CT 安裝指南

VN Hướng dẫn cài đặt

FR Manuel de configuration

TH 

ID Panduan Penyetelan

ES Guía de configuración

AR  

Reference Guide / 参考指南 / 參考指南 / Hướng dẫn Tham khảo / Manuel de

référence /  / Panduan Referensi / Guía de referencia /  

FW-49BZ35F / 43BZ35F

Only on limited region/country/model.

仅针对有限的地区/ 国家/ 型号。

僅限受限區域／國家／型號。

Chỉ có ở khu vực/quốc gia/model giới hạn.

Uniquement pour certaines régions/pays/modèles.



Hanya untuk kawasan/negara/model tertentu.

Solo en algunos países/regiones/modelos.

.  // 

Sony FW-49BZ35F / 43BZ35F

[GB, CS, CT, VN, FR, TH, ID, ES, AR] 4-735-249-12(1)

2 3

FB *

Help / 帮助 / 說明 / Trợ giúp /

Aide /  / Bantuan / Ayuda /



Connections Refer to “Connection Diagram” in the Professional Guide for

additional connection information.

连接请参见专业指南中的“连接示意图”了解更多连接信息。

連接有關更多連接資訊，請參閱專業指南中的“連接圖”。

Kết nối Tham khảo phần “Sơ đồ Kết nối” trong Hướng dẫn Chuyên

nghiệp để biết thêm thông tin kết nối.

Raccordements Reportez-vous au « Schéma de connexion » dans

le Guide professionnel pour des informations de raccordement

supplémentaires.

 

Sambungan Lihat “Diagram Sambungan” di dalam Panduan Profesional

untuk tambahan informasi sambungan.

Conexiones Consulte la sección “Diagrama de conexión” en la Guía

profesional para obtener información adicional de conexión.

.         « »    

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\010COV.fm masterpage: Cover

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

LCD Display

Écran LCD

Pantalla LCD

Professional Guide

(Supplement) US

Guide professionnel

(Supplément) FR

Guía profesional

(Suplemento) ES

2US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\010COVTOC.fm masterpage: Left

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

Table of Contents

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connection Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Using Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote Control Parts Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Pro mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Recommended settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

RS-232C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Extended software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\020PAT_US.fm masterpage: Right

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

Overview

Thank you for purchasing this Sony product. This LCD Display is designed for professional

use. It has functions such as [Pro mode], [RS232C control] function, [IP control] function that

can be used for professional use. Furthermore, by using optional software, you can add

convenient functions. Before operating the LCD Display, please read this manual thoroughly.

Introduction

Connection Diagram

Headphone/Audio

System/Subwoofer

USB memory/

Keyboard/Mouse

etc.

HDMI Device/PC

Audio System with

ARC/HDMI Device/PC

Home Controller

Audio System with

Optical Audio Input

DVD player with

component output

HDMI Device/PC

VCR/Video game equipment/

DVD player/Camcorder

DVI-HDMI Adapter/

HDMI Device/PC

Router

DVI-Audio Out

4US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\020PAT_US.fm masterpage: Left

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

USB 1/2, USB 3

• Connecting a large USB device may

interfere with other connected

devices beside it.

• When connecting a large USB device,

connect to the USB 1 port.

AUDIO OUT /

• Supports 3-pole stereo mini jack only.

• To listen to the LCD Display's sound

through the connected equipment,

press HOME. Select [Settings] 

[Sound] [Headphone/Audio out]

and then select the desired item.

HDMI IN 1/2/3/4

• HDMI interface can transfer the digital

video and audio on a single cable.

•

•HDMI IN 2/3

To enjoy high quality 4K 60p

contents, connect a Premium High

Speed HDMI cable to the HDMI IN 2/3

and set the [HDMI signal format] to

[Enhanced format].

For details of supported formats, refer

to the “Specifications” in Reference

Guide (page 16 - 18).

•HDMI IN 3 ARC (Audio Return

Channel)

Connect your audio system to the

HDMI IN 3 to route LCD Display audio

to your audio system. An audio

system that supports HDMI ARC can

send video to the LCD Display, and

receive audio from the LCD Display

via the same HDMI cable. If your

audio system does not support HDMI

ARC, an additional connection with

DIGITAL AUDIO OUT (OPTICAL) is

necessary.

REMOTE RS-232C

• Terminal for serial communication.

For details, refer to “RS-232C” on the

control functions (page 9).

HDMI 1 AUDIO IN

• If the device has a DVI jack, connect it

to HDMI IN 1 through a DVI - HDMI

adapter interface (not supplied), and

connect the device's audio out jack to

HDMI 1 AUDIO IN.

* When connecting mono equipment, connect to

the L (MONO) audio jack (socket).

< 21 mm

< 12 mm

GND

5US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\020PAT_US.fm masterpage: Right

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

Using Remote Control

(Input select)

Display and select the input source.

SYNC MENU

Display the BRAVIA Sync Menu.

(LCD Display standby)

Turn on or turn off the LCD Display

(standby mode).

HDMI 1/2/3/4

Switch to the HDMI input.

Number buttons

Use with the 0-9 buttons to select

digital channels.

Turn subtitles on or off (when the

feature is available).

Color buttons

Execute corresponding function at that

time.

Remote Control Parts Description

The remote control shape, location, availability and function of remote control buttons

may vary depending on your region/country/LCD Display model.

Slide and open the lid of the battery

compartment, then insert two R03

(size AAA) batteries.

6US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\020PAT_US.fm masterpage: Left

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

HELP

Display the Help menu. Help Guide can

be accessed from here.

(Screen display)

Switch to show/hide the information of

the input source, clock, etc.

/BACK

Return to the previous screen.

OPTIONS

Displays a list of functions that can be

used at that time.

//// (NavigationD-Pad)

On screen menu navigation and

selection.

HOME/MENU

Display the LCD Display Home Menu.

+/– (Volume)

Adjust the volume.

AUDIO

Change the language for the program

currently being viewed.

(Muting)

Mute the sound. Press again to restore

the sound.

CH/PAGE +/–

Press to change a channel or a page.

///.///>

Operate media contents on the LCD

Display and connected BRAVIA Sync-

compatible device.

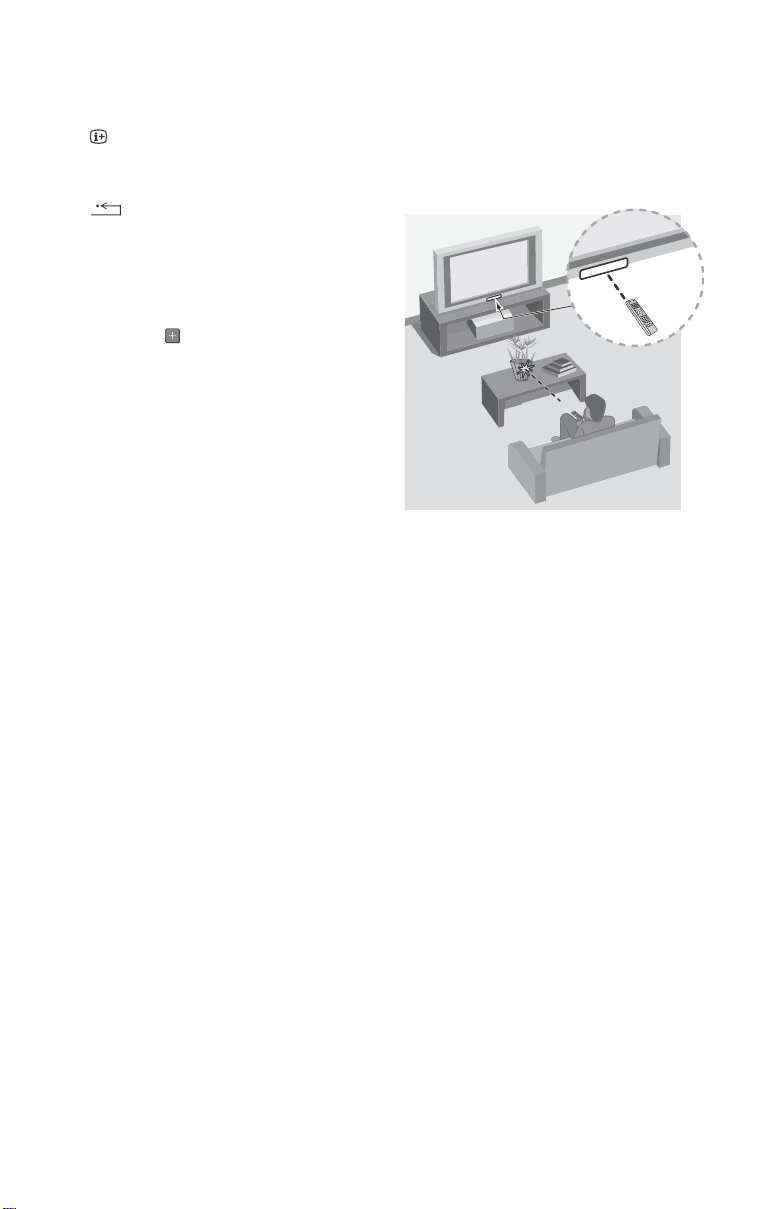

Guidelines for IR Remote Control

• Point your remote control directly at

the IR sensor located on your LCD

Display.

• Make sure that no objects are blocking

the path between the remote control

and the IR sensor on your LCD Display.

• Fluorescent lamps can interfere with

your remote control; try turning off the

fluorescent lamps.

• If you are having problems with the

remote control, reinsert or replace your

batteries and make sure that they are

correctly inserted.

7US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\030ADD_US.fm masterpage: Right

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

Settings

In [Pro mode], you can use various convenient functions for professional use. Here, we

introduce how to change to [Pro mode] and typical functions of [Pro mode].

Pro mode

Normal mode: This is the default mode. [Pro mode] functions are not available in this mode.

Pro settings mode: This mode allows you to set various settings of [Pro mode] functions.

Pro mode: This is the operation mode for professional use where you can use the [Pro mode]

functions.

How to change the mode

When the LCD Display is in Normal mode and Pro settings mode

• Go to [Home] t[Apps] t[Pro mode tool], then select the mode you want to change.

When the LCD Display is in the Pro mode

• Press the activation keys described below on the remote control in order within a one

second interval.

After restarting the LCD Display, the mode changes to [Pro settings mode].

Activation key: (Screen display) / (Muting) / +/– (Volume +) / (HOME)

* Initially you cannot change the mode from [Pro mode tool] in [Pro mode]. If you want to change the mode

from [Pro mode tool], go to [Pro settings] t[Function restrictions] t[Apps] and change [Pro mode tool]

to [Enable] in [Pro settings mode].

Introduction of the Pro mode functions

In [Pro mode], you can use various convenient functions. Typical [Pro mode] functions are

introduced below.

Setting LCD Display operation when turning the AC power on

You can set the operation of the LCD Display when unplugging and reinserting the AC

power plug.

Optimized display of the PC input screen

The screen displays the PC input screen with optimum size according to the PC format.

Power supply control and automatic input switching by HDMI signal detection

If you turn on the LCD Display when the HDMI device is connected, you can change to the

connected HDMI input automatically.

Settings of the displaying menu when pressing the HOME button

You can select the menu displayed when pressing the HOME button on the remote control.

Initial input source designation when starting the LCD Display

You can designate the initial input source when starting the LCD Display.

Pro mode lock

You can protect the settings of [Pro mode] by using a PIN.

Initial/maximum volume setting

You can set the initial and maximum volume of the LCD Display.

Restriction of the LCD Display operation on the remote control

You can restrict the LCD Display operation using the remote control.

Restriction of external inputs

You can restrict the use of external inputs.

Pro mode

8US

D:\SONY TV\2018\CHH B2B\SY18_CHHB_UC2_PG221\4734761221_US\030ADD_US.fm masterpage: Left

FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F

4-734-761-22(1)

Restriction of using applications

You can restrict the use of LCD Display applications.

How to set Pro mode functions

Go to [Home] t[Pro settings] or go to [Home] t [Settings] t[Pro settings] when the LCD

Display is in [Pro settings mode].*

* Varies depending on the version of the OS.

This section introduces recommended settings when using the LCD Display for professional

use.

Setting ECO features

1Go to [Settings] t[Power] t[Eco].

• Set [Idle TV standby] to [Off].

Setting IP features

2Go to [Settings] t[Network] t[Home network] t[IP control].

• Set [Authentication] to [Normal and Pre-Shared Key].

• Set [Simple IP control] to [On].

Automatic Software Download

3Go to [Settings] t[About] t[System software update].

• Set [Automatic software download] to [Off].

Picture settings

4Select the [Inputs] (ex. HDMI 1) whose settings you want to change, then press

OPTIONS and select [Display & Sound] t[Picture adjustments].

• Set [Light sensor] to [Off].

• Select [Picture mode] according to usage.

[Vivid]: When using the digital signage display

[Custom]: When displaying the original image as is

[Graphics]: When displaying the PC screen

Setting values of [Picture mode]

The following is the initial value of each setting item of [Picture mode].

* Since the LCD Display responds faster in [Graphics] mode than it does in [Custom] mode, the LCD Display

can display the mouse movement smoothly when operating the PC screen in [Graphics] mode.

Note

Each setting value is subject to change without notice.

Recommended settings

Items [Picture mode]

[Vivid] [Standard] [Custom]* [Graphics]*

[Brightness] Max.(50) 30 35 35

[Color] 60 60 50 50

[Contrast] Max.(100) Max.(100) 90 90

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony TV

Sony

Sony FD TRINITRON WEGA KV-13FM12 Guide d'installation

Sony

Sony BRAVIA KDL-70XBR7 Guide d'installation

Sony

Sony Bravia KLV-40R352C Manuel utilisateur

Sony

Sony BRAVIA KDL-32L4000 Manuel utilisateur

Sony

Sony BRAVIA KD-49X9000G Manuel utilisateur

Sony

Sony Trinitron KV-EX29 Manuel utilisateur

Sony

Sony KV-36XBR800 - 36" Trinitron Color Flat Tv Wega... Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-AR21 Manuel utilisateur

Sony

Sony TRINITRON KV-T25SN81 Manuel utilisateur

Sony

Sony Trinitron KV-8AD10 Manuel utilisateur

Sony

Sony Bravia KDL-42W805A Mode d'emploi

Sony

Sony BRAVIA XR XR-77A8 K Series Manuel utilisateur

Sony

Sony FD Trinitron Wega KV-34HS420 Manuel utilisateur

Sony

Sony Trinitron KV-27XBR95S Manuel utilisateur

Sony

Sony XR-55A83L Manuel utilisateur

Sony

Sony Trinitron KV-13VM30 Manuel utilisateur

Sony

Sony KD-60XF8305 Manuel utilisateur

Sony

Sony KV-XG29M80 Manuel utilisateur

Sony

Sony BRAVIA KDL-32V2000 Manuel utilisateur

Sony

Sony KDL-32BX310 Manuel du propriétaire

Sony

Sony KDL-46NX800 Manuel utilisateur

Sony

Sony BRAVIA KDL-26S2000 Manuel utilisateur

Sony

Sony KV43TR27 Manuel utilisateur

Sony

Sony Bravia KDL-60W605B Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
