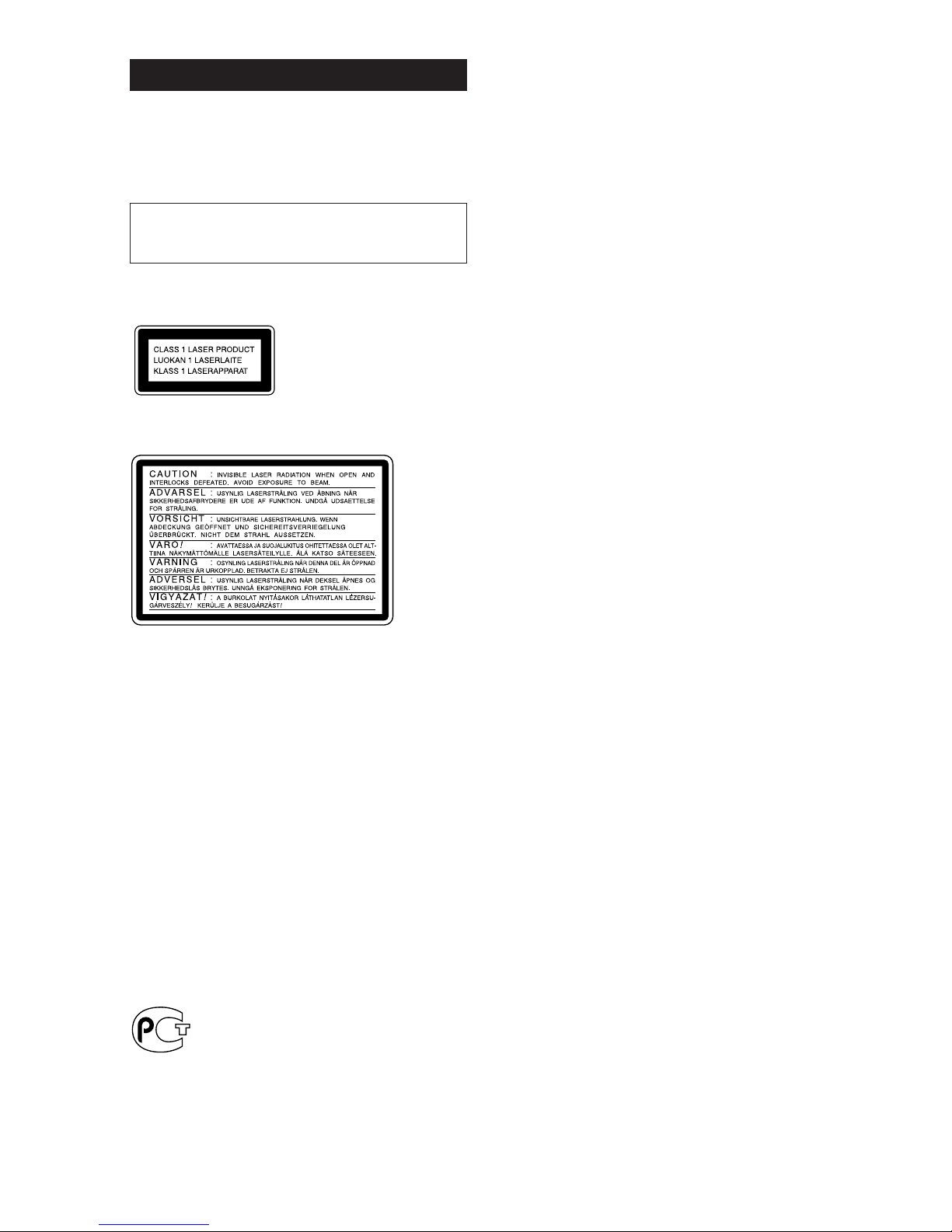

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

Laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This caution label is located inside the unit.

This appliance is classified

as a CLASS 1 LASER

product. The CLASS 1

LASER PRODUCT

MARKING is located on

the rear exterior.

NOTICE FOR THE CUSTOMERS IN

CANADA

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE

THIS POLARIZED AC PLUG WITH AN

EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADES CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

This stereo system is equipped with the Dolby B-

type noise reduction system and Dolby Pro Logic

Surround decoder*.

* Manufactured under license from Dolby

Laboratories Licensing Corporation.

DOLBY, the double-D symbol aand “PRO

LOGIC” are trademarks of Dolby Laboratories

Licensing Corporation.

Table of Contents

Getting Started

Step 1: Hooking up the main unit....... 4

Step 2: Setting up your speakers ......... 5

Step 3: Setting the time ......................... 9

Step 4: Presetting radio stations ........ 10

Connecting optional AV components 12

Basic Operations

Playing a CD ......................................... 15

Recording a CD .................................... 17

Listening to the radio........................... 18

Recording from the radio .................... 19

Playing a tape........................................ 20

Recording from a tape ......................... 22

The CD Player

Using the CD display........................... 24

Playing the CD tracks repeatedly ...... 25

Playing the CD tracks in random

order ................................................ 26

Programming the CD tracks ............... 27

Playing CDs without interruption ..... 28

The Tape Deck

Recording on a tape manually ........... 29

Recording a CD by specifying track

order ................................................ 30

DJ Effects

Looping part of a CD ........................... 32

Flashing part of a CD ........................... 32

Using the drum pads ........................... 33

Using the beat functions...................... 34

Sound Adjustment

Adjusting the sound ............................ 36

Selecting the audio emphasis ............. 37

Selecting surround effects ................... 38

Enjoying Dolby Pro Logic Surround

sound ............................................... 39

Adjusting the graphic equalizer......... 40

Making a personal audio emphasis

file .................................................... 41

Other Features

Using the Radio Data System

(RDS)* .............................................. 42

Singing along: Karaoke ...................... 44

Falling asleep to music ........................ 46

Waking up to music ............................. 46

Timer-recording radio programs ....... 48

Additional Information

Precautions ............................................ 49

Troubleshooting ................................... 50

Specifications ........................................ 53

Index........................................ Back cover

* European model only

FM75

COAXIAL

Extend the FM lead

antenna horizontally.

AM loop antenna Extend the FM lead

antenna horizontally.

AM loop antenna

Step 1: Hooking up the main unit

Getting Started

AM loop antenna

FM antenna

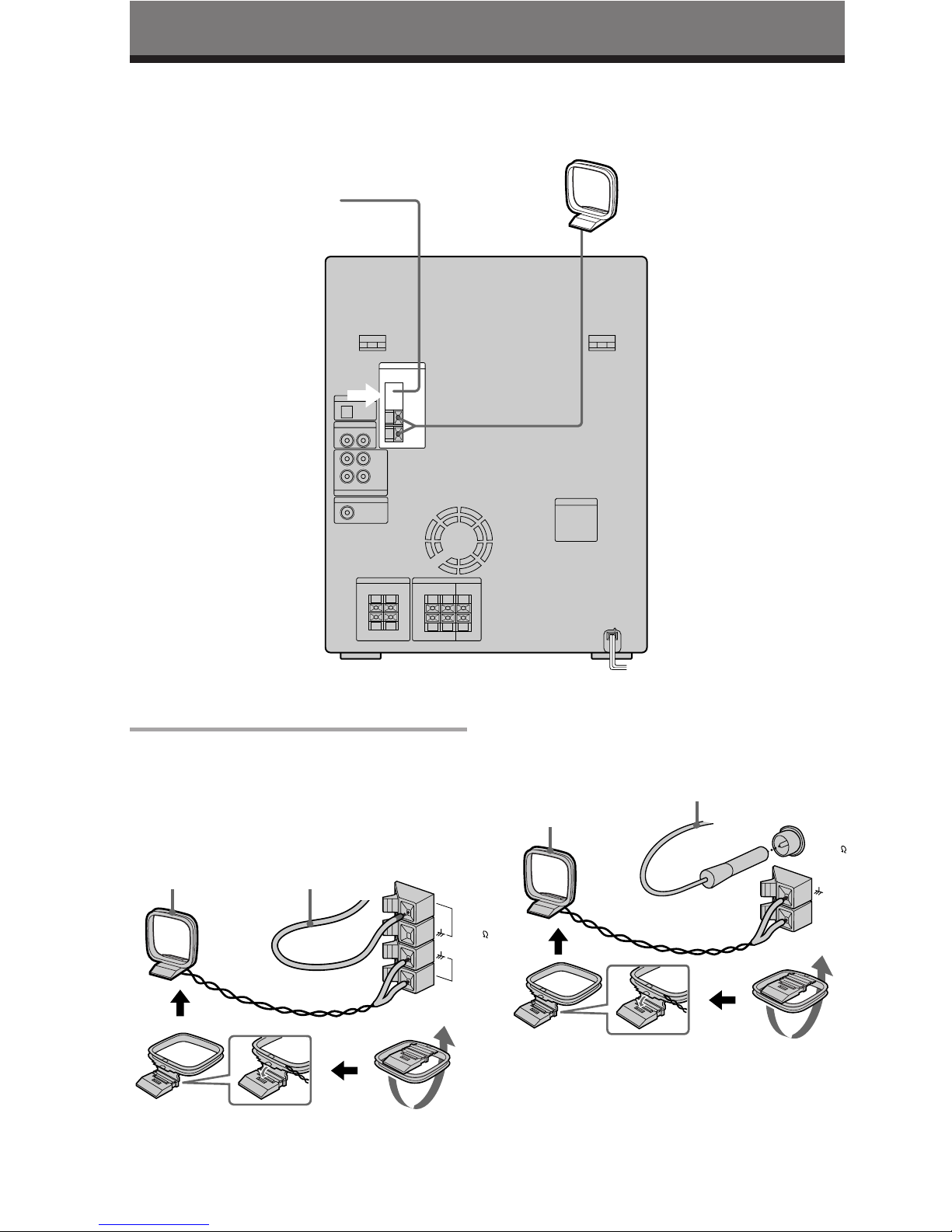

/Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

Jack type A

Jack type B

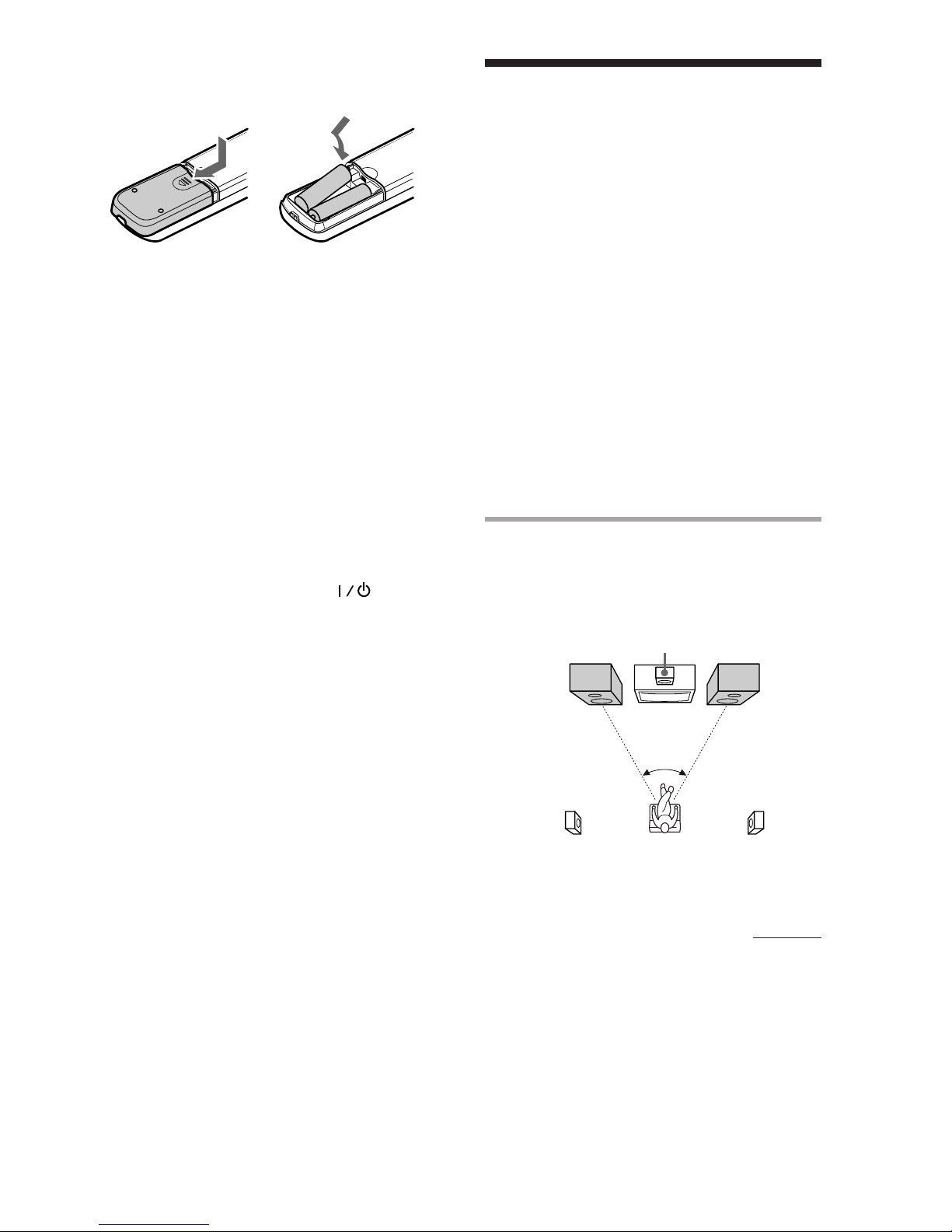

Inserting two size AA (R6)

batteries into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates

the system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down LOOP and press so that

“LOCK” appears in the display.

]

}

]

}

Step 2: Setting up

your speakers

Connecting the supplied rear and center

surround speakers enables you to fully enjoy

Dolby Pro Logic Surround sound. Dolby Pro

Logic Surround is a decoding system

standardized in TV programs and movies.

Dolby Pro Logic Surround improves the

sound image by using four separate channels.

These channels manipulate the sound to be

heard and enhance the action as it happens

on the screen.

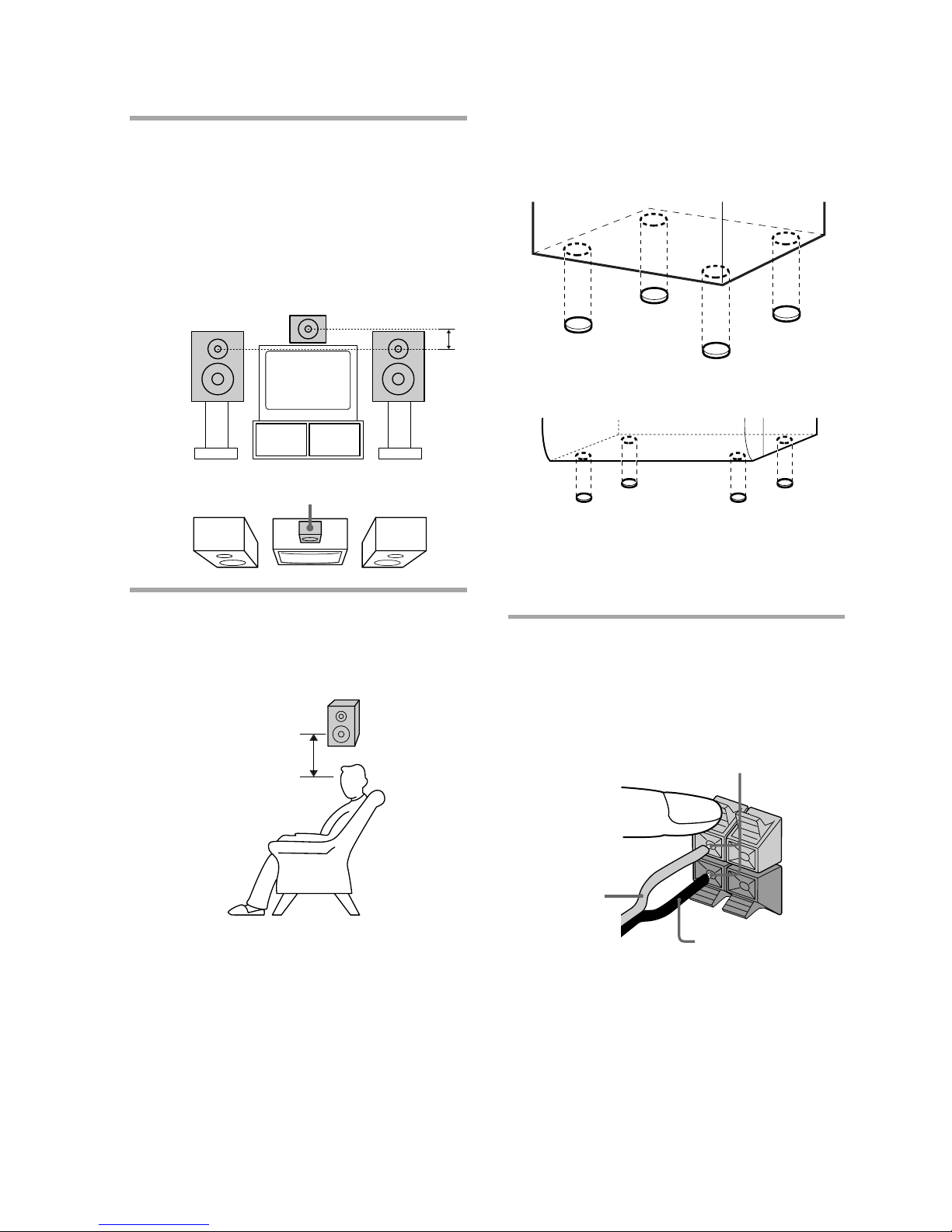

Positioning the speakers

Before you connect them, determine the best

location for your speakers.

1Place the front speakers at an angle

of 45 degrees from your listening

position.

Front

speaker (L) Front

speaker (R)

Center

surround

speaker

Rear surround

speaker (L) Rear surround

speaker (R)

continued

45°

–

To attach the speaker pads

Attach the supplied speaker pads to the

bottom of the speakers to stabilize the

speakers and prevent them from slipping.

Front speaker

Center surround speaker

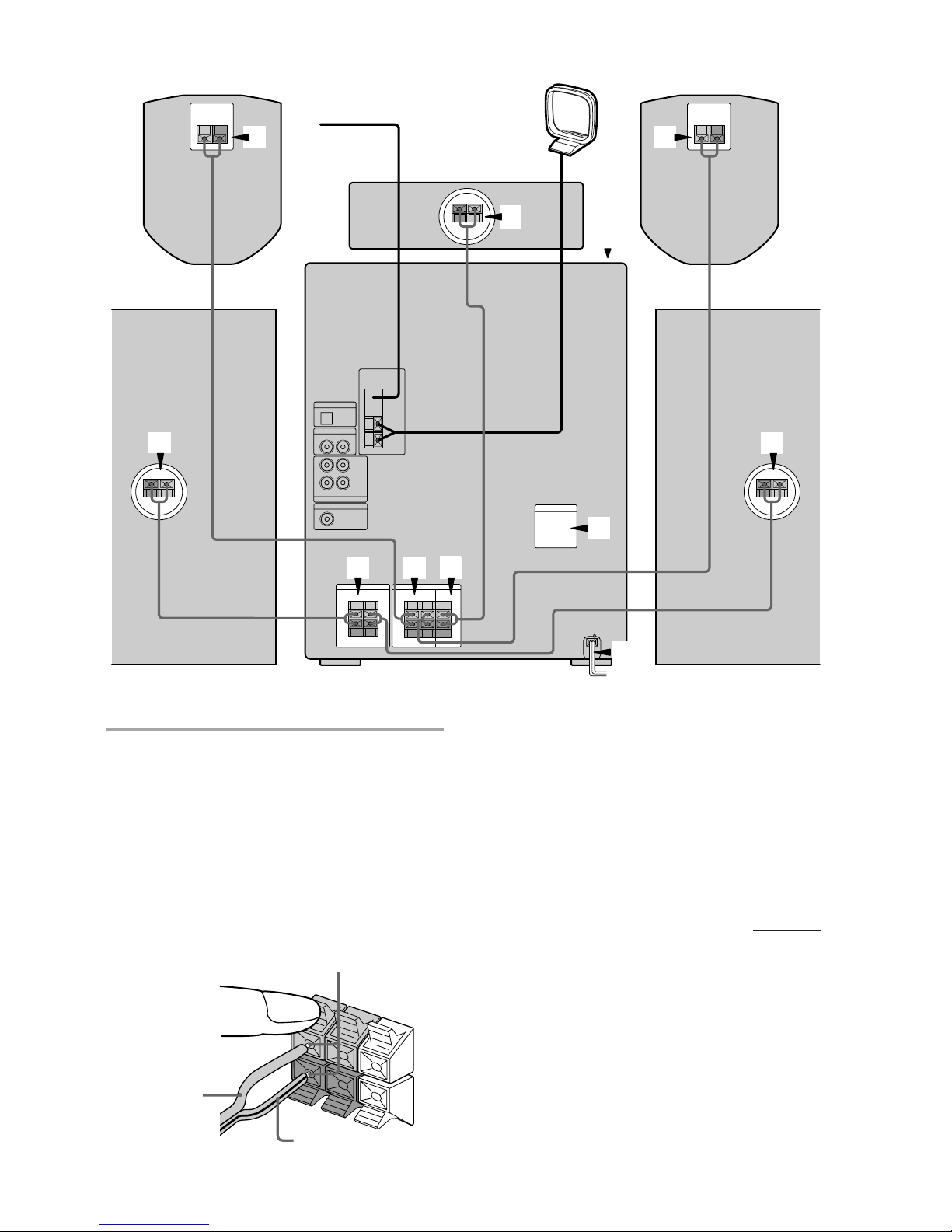

Connecting the speakers

(Refer to illustration at right.)

Connect the front speakers.

Connect the speaker cords to the FRONT

SPEAKER jacks of the same color.

Keep the speaker cords away from the

antennas to prevent noise.

Note

The type of speakers supplied vary

according to the model you purchased

(see “Specifications” on page 53).

2Place the center speaker so it is

placed about the same height as the

front speakers (A). Align the center

surround speaker with the front

speakers or place it slightly back

from the position of the front

speakers (B).

3Place the rear surround speakers

facing each other at about 60 to 90

cm (2 to 3 feet) above your listening

position.

Step 2: Setting up your speakers

(continued)

Center surround speaker

Rear

surround

speaker

60 to 90 cm

(2 to 3 feet) Insert only the stripped portion.

Black (’)

Red (‘)

321

Center

surround speaker

Front speaker (Left)Front speaker (Right)

Rear surround speaker (Left)Rear surround speaker (Right)

Connect the rear surround speakers.

Connect the speaker cords from the rear

surround speakers to the appropriate

REAR SURROUND SPEAKER jacks.

Connect the solid cords to the red jacks

and connect the striped cords to the

black jacks.

Keep the speaker cords away from the

antennas to prevent noise.

Notes

• Do not place the rear surround

speakers on top of a TV. This may

cause distortion of the colors in the TV

screen.

• Be sure to connect both left and right

rear surround speakers. Otherwise,

the sound will not be heard.

Insert only the stripped portion.

Stripe (’)

Solid (‘)

–

continued

)0P

P·p

·ª

√

◊

√

◊

VOLTAGE SELECTOR

220V

120V

230

240V

Connect the center surround

speaker.

Connect the speaker cords fron the

center surround speaker to the

appropriate CENTER SURROUND

SPEAKER jacks.

Connect the solid cord to the red jacks

and connect the striped cord to the black

jacks.

Keep the speaker cords away from the

antennas to prevent noise.

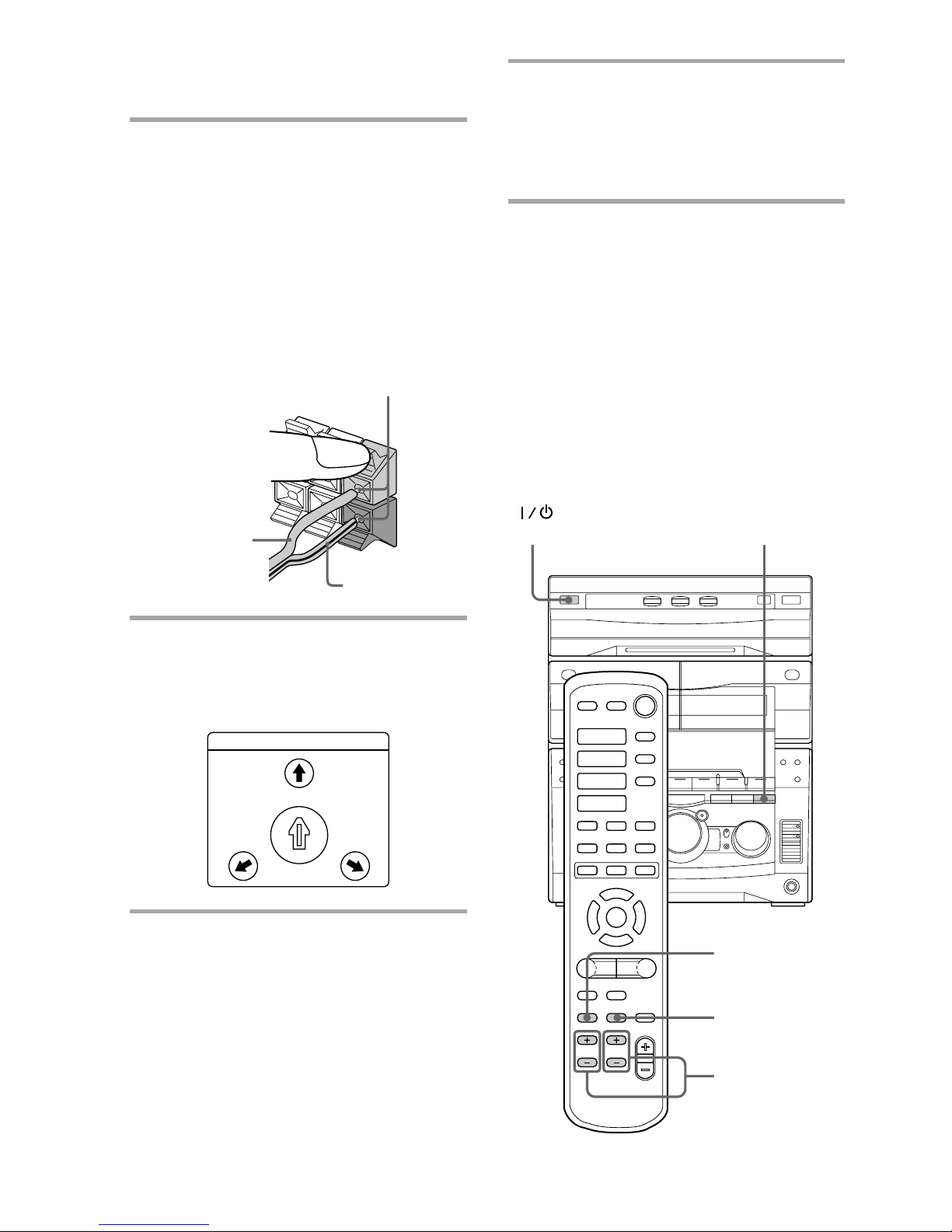

Set VOLTAGE SELECTOR to

position of your local power line

voltage (for models with a voltage

selector).

Connect the power cord to a wall

outlet.

Demo mode appears in the display.

Step 2: Setting up your speakers

(continued)

Deactivate the demo mode by

pressing DEMO when the system

power is turned off.

The demo mode is also deactivated

when you set the time.

Tip

You can reinforce the bass sound by connecting an

optional super woofer to the super woofer

connector.

Adjusting the speaker

volume

To enjoy Dolby Pro Logic Surround sound,

turn the Dolby Pro Logic mode on, then

adjust the volume of each speaker using the

test tone that the system provides.

Insert only the stripped portion.

Stripe (’)

Solid (‘)

–

2, 4

(Power)

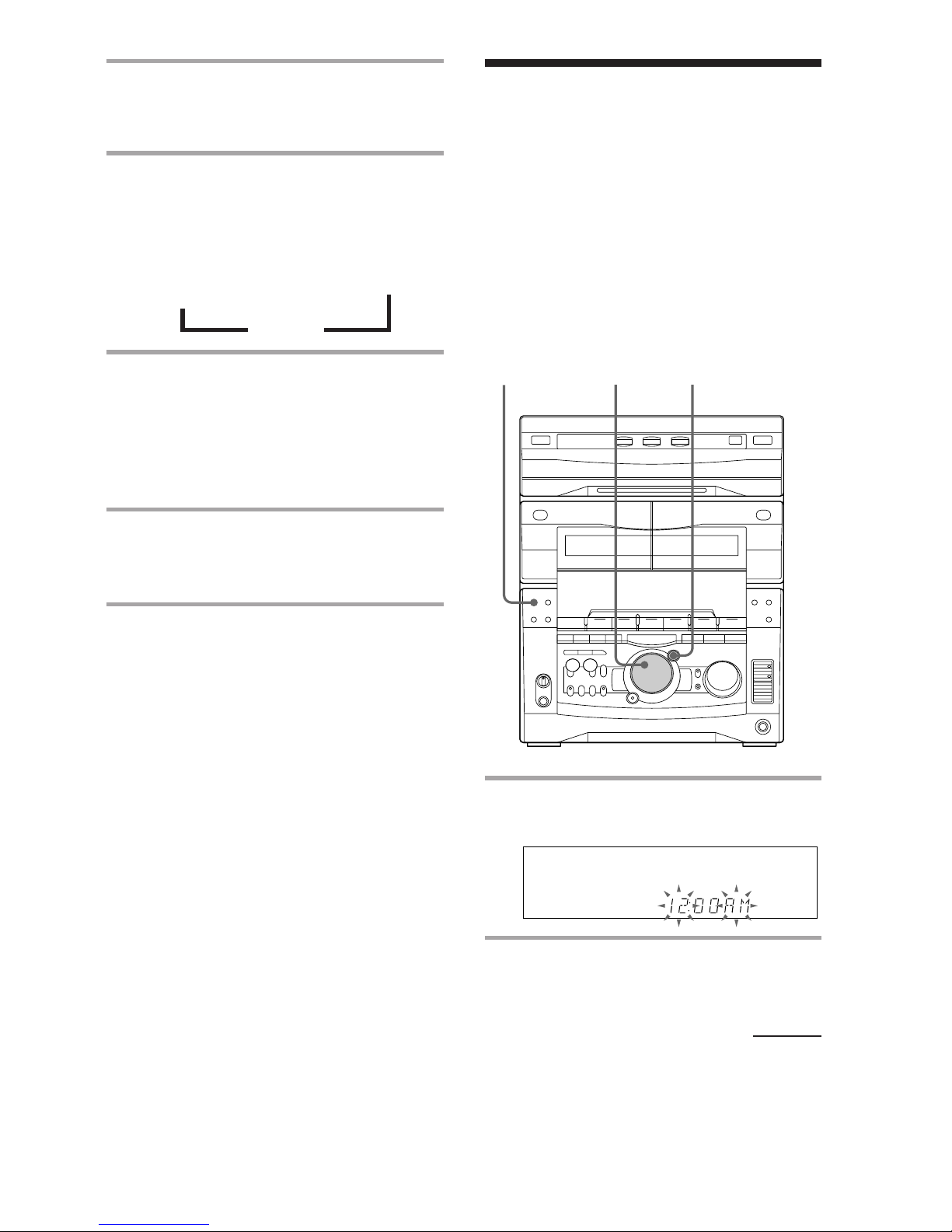

Step 3: Setting the

time

You must set the time before using the timer

functions.

The clock is on a 24-hour system for the

European and Russian models, and a 12-hour

system for other models.

The 12-hour system model is used for

illustration purposes.

1Press CLOCK/TIMER SET.

The hour indication flashes.

2Turn the jog dial to set the hour.

13,52,4

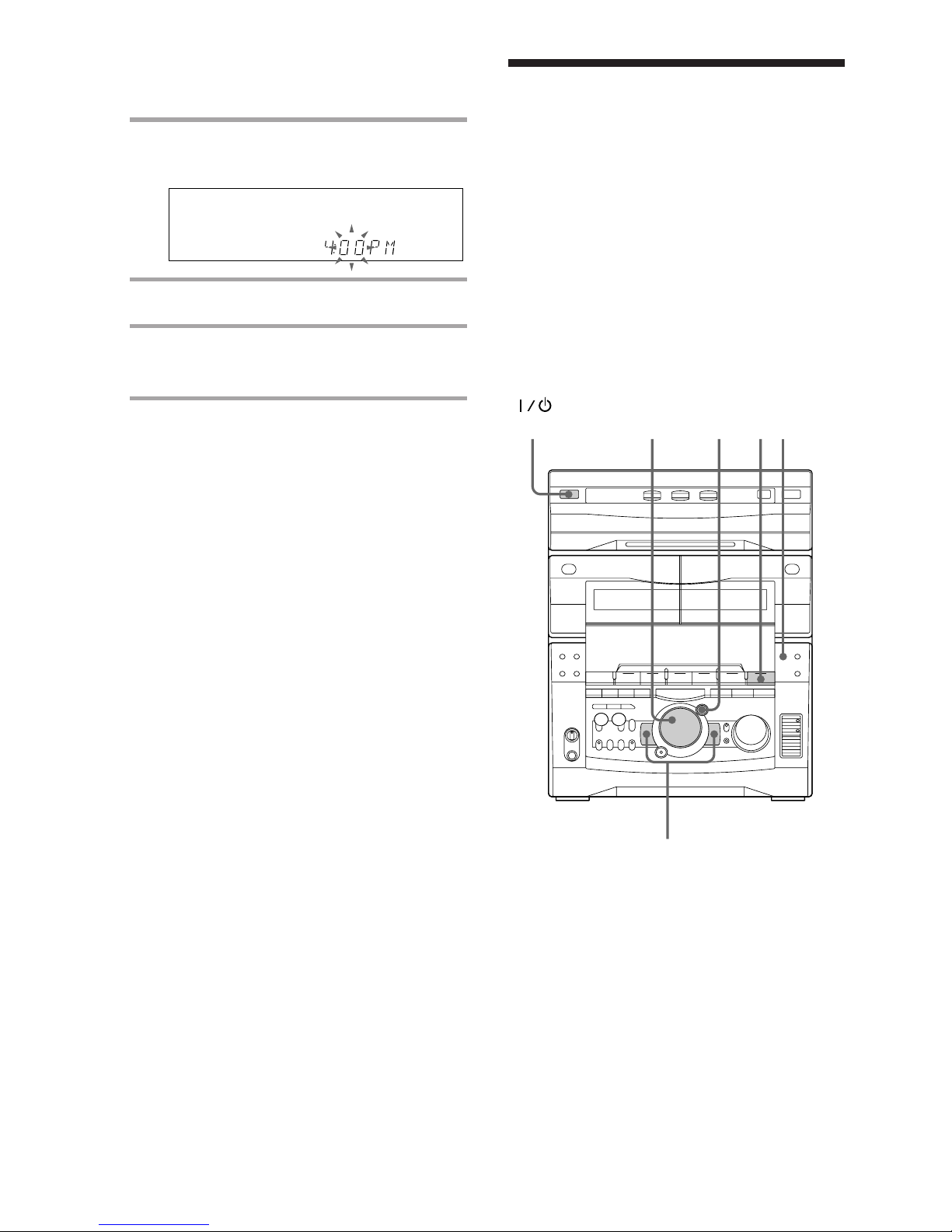

1Press PRO LOGIC (or PRO LOGIC

ON/OFF on the remote).

“PRO LOGIC ON” appears.

2Press T.TONE ON/OFF on the

remote.

The test tone is heard from the speakers

in the following order. Adjust the

volume of the test tone.

Front (left) bCenter bFront (right)

Rear B

3From your listening position, press

CENTER LEVEL (+/–) and REAR

LEVEL (+/–) on the remote to

adjust the volume.

The volume levels from each speaker

must become the same.

4Press T.TONE ON/OFF when you

are done adjusting.

The test tone turns off.

Tip

If you turn VOLUME (or press VOLUME +/– on the

remote) all the speaker volumes change.

Note

The test tone feature works only for Dolby Pro Logic

Surround sound.

continued

3Press ENTER/NEXT.

The minute indication flashes.

4Turn the jog dial to set the minute.

5Press ENTER/NEXT.

The clock starts working.

Tips

• If you’ve made a mistake, start over from step 1.

• Setting the time deactivates the demo mode.

If you want to display the demo mode, press

DEMO when the power is off.

Note

The previous explanation shows you how to set the

time while the power is off. To change the time

while the power is on, do the following:

1 Press CLOCK/TIMER SET.

2 Turn the jog dial to select SET CLOCK.

3 Press ENTER/NEXT.

4 Perform steps 2 through 5 above.

Step 4: Presetting

radio stations

You can preset the following number of

stations:

– 2 band model: 20 for FM, 10 for AM.

– 3 band model: 20 for FM, 10 for MW, and

10 for SW (or LW, depending on the model

you purchased).

– 4 band model: 20 for FM, 10 for MW, 10 for

LW, and 5 for UKV.

Step 3: Setting the time

(continued)

(Power)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Système stéréo

Sony

Sony HCD-GN660 Manuel utilisateur

Sony

Sony LBT-G2500 - Lbt Electronics Manuel utilisateur

Sony

Sony MHC-EC78Pi - Mini Hi-fi Component System Manuel utilisateur

Sony

Sony MHC-ECL7D Manuel utilisateur

Sony

Sony HCD-RV2 Manuel utilisateur

Sony

Sony MHC-331 Primary Manuel utilisateur

Sony

Sony MHC-2750 Manuel utilisateur

Sony

Sony HCD-VX77 Manuel utilisateur

Sony

Sony ALT-SA32PC - Wireless Multi-room Music... Manuel utilisateur

Sony

Sony NAS-CZ1 M-Crew Manuel utilisateur

Sony

Sony MHC-V42D Guide de référence

Sony

Sony CMT-EX5 - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony SRS-ZR7 Manuel utilisateur

Sony

Sony CMT-NEZ3 - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony SRS-X77 Guide de l'utilisateur

Sony

Sony HCD-GT22 Manuel utilisateur

Sony

Sony HCD-MDX10 - Compact Disk Deck Receiver... Guide de démarrage rapide

Sony

Sony ZS-D10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony MHC-EC70 - Mini Hi-fi Component System Manuel utilisateur

Sony

Sony HCD-M10 Manuel utilisateur

Sony

Sony HCD-LV100AV Manuel utilisateur

Sony

Sony MHC-DX70 Manuel utilisateur

Sony

Sony SRS-ZR5 Manuel utilisateur

Sony

Sony MHC-V41D Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
