Sony LBT-XB3S Manuel utilisateur

Operating Instructions

3-859-895-11(1)

Compact Hi-Fi

Stereo System

LBT-XB3S

LBT-XB4KS

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

The laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This caution label is located inside the unit.

CAUTION

You are cautioned that any changes or modifications

not expressly approved in this manual could void

your authority to operate this equipment.

This stereo system is equipped with the Dolby* B-

type noise reduction system.

* Dolby noise reduction manufactured under license

from Dolby Laboratories Licensing Corporation.

“DOLBY” and the double-D symbol aare

trademarks of the Dolby Laboratories Licensing

Corporation.

This appliance is classified as

a CLASS 1 LASER product.

The CLASS 1 LASER

PRODUCT MARKING is

located on the rear exterior.

Table of Contents

Getting Started

Step 1: Hooking up the system ............ 4

Step 2: Setting the time ......................... 6

Step 3: Presetting radio stations .......... 7

Connecting optional AV

components ...................................... 8

Basic Operations

Playing a CD ......................................... 10

Recording a CD .................................... 12

Listening to the radio........................... 13

Recording from the radio .................... 14

Playing a tape........................................ 15

Recording from a tape ......................... 17

The CD Player

Using the CD display........................... 18

Playing CD tracks repeatedly ............. 18

Playing CD tracks in random

order ................................................ 19

Programming CD tracks ..................... 20

Playing CDs without interruption ..... 21

The Tape Deck

Recording on a tape manually ........... 22

Recording CDs by specifying the track

order ................................................ 23

DJ Effects

Looping part of a CD ........................... 25

Flashing part of a CD........................... 25

Waving the equalizer........................... 26

Sound Adjustment

Adjusting the sound ............................ 27

Selecting the audio emphasis ............. 28

Adjusting the audio emphasis............ 29

Making a personal audio emphasis

file .................................................... 30

Other Features

Singing along: Karaoke ...................... 31

Falling asleep to music ........................ 33

Waking up to music ............................. 34

Timer-recording radio programs ....... 35

Additional Information

Precautions ............................................ 37

Troubleshooting ................................... 38

Specifications ........................................ 40

Index....................................................... 42

Step 1: Hooking up the system

Getting Started

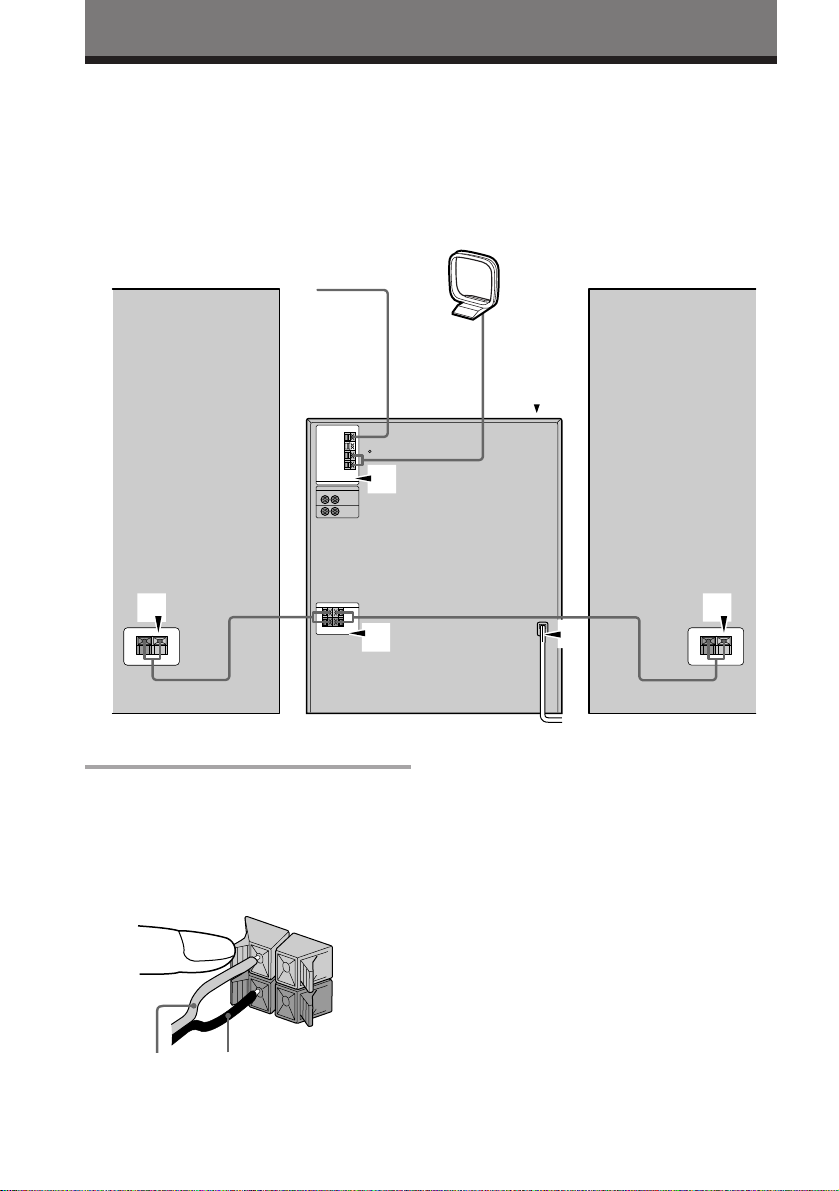

Follow steps 1through 4to hook up your system using the supplied cords and accessories.

The above illustration is of the LBT-XB4KS.

1Connect the speakers.

1Connect the speaker cords to

SPEAKER jacks of the same color.

Keep the speaker cords away from the

antennas to prevent noise.

2Insert only the stripped portion of the

cord. Inserting the vinyl portion will

interfere with the speaker connection

and no sound will come from the

speaker.

Note

The speakers for LBT-XB3S do not have the speaker

jacks.

Connect the speaker cords to the speaker jacks on

the unit.

Left speakerRight speaker

AM loop antenna

FM antenna

Black (’)Red (‘)

–

2Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

3Connect the power cord to a wall

outlet.

The demonstration appears in the

display.

4Deactivate the demonstration mode

by pressing DISPLAY/DEMO while

the system is off.

Inserting two size AA (R6)

batteries into the remote

Tips

•With normal use, the batteries should last for

about six months. When the remote no longer

operates the system, replace both batteries with

new ones.

•When you set the time, the demonstration is

deactivated.

To activate the demonstration again, press

DISPLAY/DEMO while the system is off.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down PLAY MODE and press

POWER to turn off the system.

AM loop antenna

Extend the FM wire

antenna horizontally.

FM75

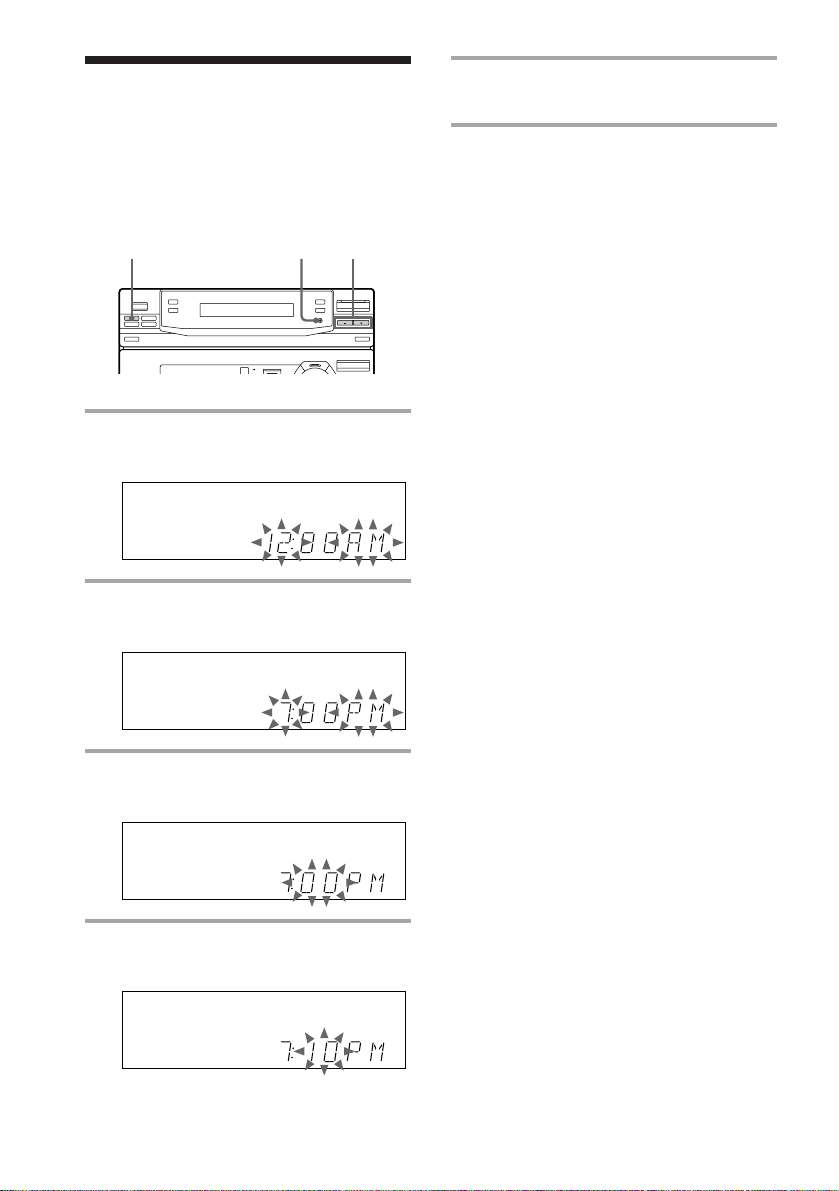

Step 2: Setting the

time 5Press ENTER/NEXT.

The clock starts.

Tip

If you make a mistake, start over from step 1.

You must set the time before using the timer

functions.

1Press t/CLOCK SET.

The hour indication flashes.

2Press TUNING +/– to set the hour.

The clock uses the 12-hour system.

3Press ENTER/NEXT.

The minutes indication flashes.

4Press TUNING +/– to set the

minutes.

3,51 2,4

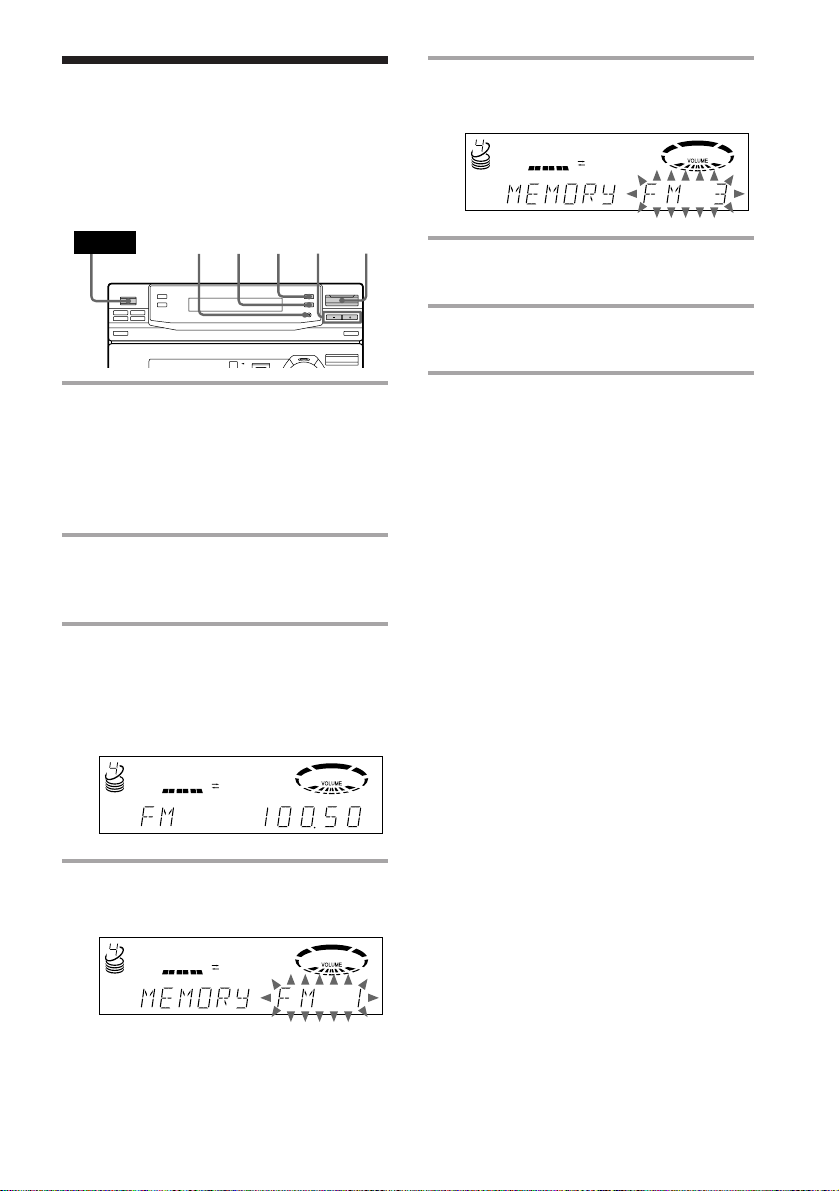

Step 3: Presetting

radio stations

You can preset up to 30 stations, 20 for FM

and 10 for AM.

1Press TUNER/BAND repeatedly

until the band you want appears in

the display.

Each time you press this button, the

band changes as follows:

FM ˜AM

2Press TUNING MODE repeatedly

until “AUTO” appears in the

display.

3Press TUNING +/–.

The frequency indication changes and

scanning stops when the system tunes in

a station. “TUNED” and “STEREO” (for

a stereo program) appear.

4Press TUNER MEMORY.

A preset number flashes in the display.

5Press TUNING +/– to select the

preset number you want.

6Press ENTER/NEXT.

The station is stored.

7Repeat steps 1 through 6 to store

other stations.

To tune in a station with a weak

signal

Press TUNING MODE repeatedly until

“MANUAL” appears in step 2, then press

TUNING +/– to tune in the station.

To change the preset number

Start over from step 1.

To change the AM tuning interval

The AM tuning interval is factory-preset to 9 kHz

(10 kHz in some areas). To change the AM tuning

interval to 10 kHz (or 9 kHz), press TUNER/BAND

repeatedly until “AM” appears first, then turn off

the system. While holding down ENTER/NEXT,

turn the system back on. When you change the

interval, the AM preset stations will be erased. To

reset the interval, repeat the same procedure.

Note

The preset stations are canceled when you

disconnect the power cord or if a power failure

occurs for half a day.

3,5 1246

POWER

DOLBY NR

OFF TUNED

STEREOAUTO

ALL DISC S

DOLBY NR

OFF TUNED

STEREOAUTO

ALL DISC S

MHz

DOLBY NR

OFF TUNED

STEREOAUTO

ALL DISC S

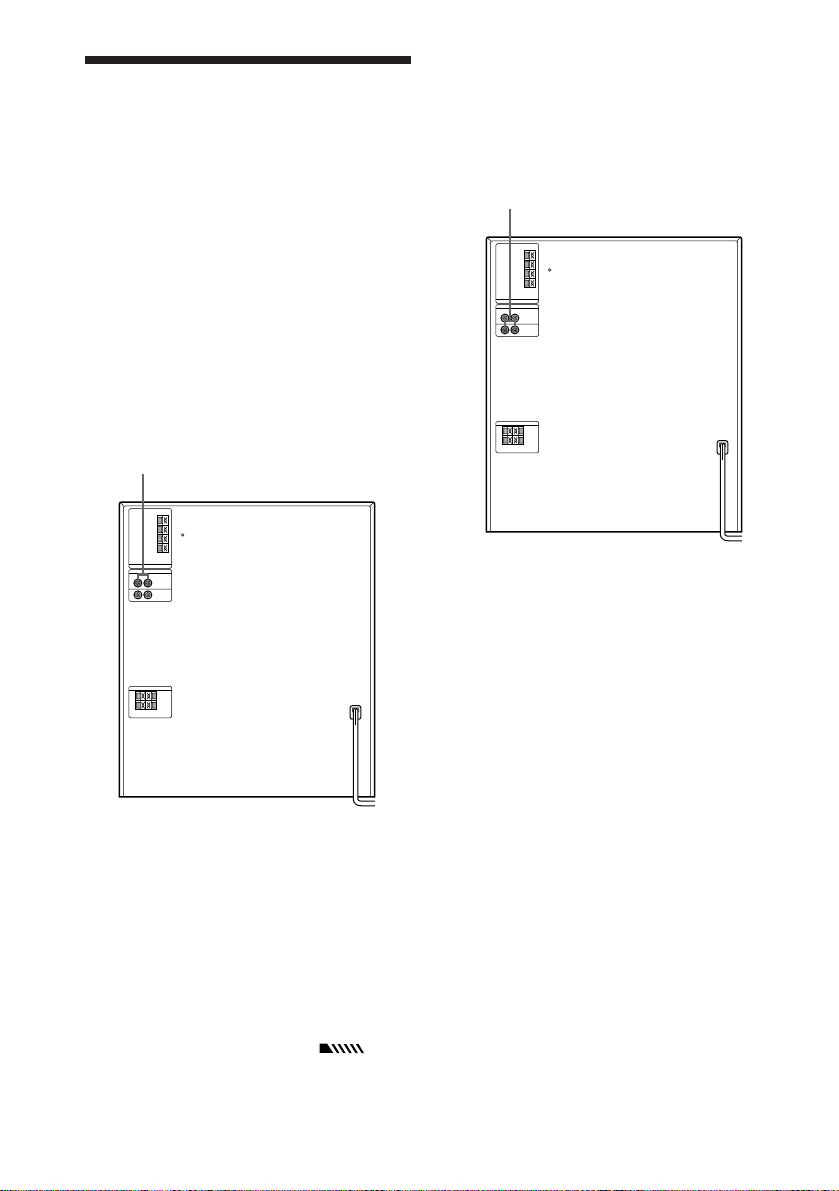

Connecting optional

AV components

To enhance your system, you can connect

optional components. Refer to the

instructions included with each component

for details.

Connecting audio

components

Connecting a turntable

Be sure to match the color of the plugs and

the connectors. To listen to the sound from

the connected turntable, press FUNCTION

repeatedly until “PHONO” appears.

Note

Using the turntable at high volume may cause

distortion or howling. This is often caused by the

bass sound from the speakers. The bass sound may

be picked up by the needle of the turntable, and

produce the distortion or howling. To avoid this, do

the following:

1Keep some distance between the speakers and the

turntable.

2Stop using the surround effect.

3Install the speakers or the turntable on a firm and

stable surface.

4Press DBFB repeatedly until “DBFB ”

disappears from the display (LBT-XB3S only).

Press SUPER WOOFER repeatedly until the

indicator on this button goes off (LBT-XB4KS

only).

Connecting a VCR

Be sure to match the color of the plugs and

the connectors. To listen to the sound from

the connected VCR, press FUNCTION

repeatedly until “VIDEO” appears.

To the audio output of the turntable

To the audio output of the VCR

Connecting outdoor

antennas

Connect an outdoor antenna to improve the

reception.

FM antenna

Connect an optional FM outdoor antenna.

You can also use the TV antenna instead.

AM antenna

Connect a 6 to 15 meter (20 to 50 feet)

insulated wire to the AM antenna terminal.

Leave the supplied AM loop antenna

connected.

Important

If you connect an outdoor antenna, connect a

ground wire to the yterminal with the screw

clamp. To prevent a gas explosion, do not

connect the ground wire to a gas pipe.

75-ohm coaxial cable

(not supplied)

Screw clamp

Ground wire (not supplied)

FM75

Insulated wire (not supplied)

Screw clamp

Ground wire (not supplied)

FM75

Playing a CD

— Normal Play

Basic Operations

You can play up to five CDs in a row.

1Press 6OPEN and place a CD on

the disc tray.

If the disc is not placed properly it will

not be recognized.

2Press DISC SKIP to place up to four

more CDs on the tray.

The disc tray rotates so you can insert

other CDs.

3Close the front cover.

4Press one of the DIRECT PLAY

buttons.

Playback starts.

If you press ·(or CD (on the

remote), playback starts from the CD in

the playing position.

AMS =/+

0/)

DISC SKIP

VOLUME +/–

POWER

1234

CD (

)

1/ALL DISCS

·VOLUME

Jog dial

0)p

)

With the label

side up.

When you play

a CD single,

place it on the

inner circle of

the tray.

Disc number in the playing position

Track number

Elapsed time

DOLBY NR

OFF

ALL DISC S

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Système stéréo

Sony

Sony MHC-EC70 - Mini Hi-fi Component System Manuel utilisateur

Sony

Sony LBT-V102 Manuel utilisateur

Sony

Sony CMT-AH10 Mode d’emploi

Sony

Sony HCD-EX66 Manuel utilisateur

Sony

Sony LBT-DR4 Manuel utilisateur

Sony

Sony NAS-Z200DIR Manuel utilisateur

Sony

Sony MHC-RXD3 - 3 Ch Mini System Manuel utilisateur

Sony

Sony STR-DH130 Manuel d'utilisation et d'entretien

Sony

Sony HCD-LX20i - Amplifier, Cd Player Manuel utilisateur

Sony

Sony SRS-XB2 Manuel utilisateur

Sony

Sony HCD-C7NT Manuel utilisateur

Sony

Sony HCD-CPX1 Manuel utilisateur

Sony

Sony CDP-X3000 Manuel utilisateur

Sony

Sony MHC-AG121 Manuel utilisateur

Sony

Sony HMC-NX5MD Manuel utilisateur

Sony

Sony MHC-EC68USB Manuel utilisateur

Sony

Sony SRS-X11 Guide de l'utilisateur

Sony

Sony MHC-GX45 - Mini Hi-fi Component System Manuel utilisateur

Sony

Sony HCD-EP315 Manuel utilisateur

Sony

Sony DHC-MD595 - Mini Hi Fi Component System Manuel utilisateur

Sony

Sony ZS-RS60BT Manuel utilisateur

Sony

Sony MEX-N5000BT Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Sony

Sony MEX-M70BT Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
