Sony HT-ST7 Manuel utilisateur

HT-ST7 4-463-413-21(1)

Sound Bar

HT-ST7

Operating Instructions GB

HT-ST7 4-463-413-21(1)

Table of contents

Setup / Setup

What’s in the box 3

Installation 4

Inserting the wireless transceivers 5

Connection 6

Turning on the system 8

Basic Operations

Listening to the audio 9

Enjoying the sound effects 10

Listening to the audio from BLUETOOTH devices 12

Others

Parts and controls 14

Adjusting the settings 17

Troubleshooting 19

HT-ST7 4-463-413-21(2)

What’s in the box

Bar Speaker (1) Grille frame (1) Subwoofer (1) Remote control (1)

R03 (size AAA) batteries (2) Digital optical cable for a TV (1) IR blaster* (1) * Refer to the Reference Guide on how to use the IR blaster.

Sound Bar

HT-ST7

Sound Bar

Stands (2) and screws (2) Wireless transceivers (2) Operating Instructions (this book) (1) Reference Guide (1)

HT-ST7 4-463-413-21(1)

121 2

Installation

Do you want to install the Bar

Speaker on a wall?

See the instructions in the

Reference Guide.

Attaching the grille frame Attaching the side stands

•Attachorremovethegrilleframeinparallelwiththe

front panel.

If you prefer…

HT-ST7 4-463-413-21(1)

Inserting the wireless transceivers

Tip

•Thetwowirelesstransceiversareidentical.YoucaninserteitherofthemintotheBarSpeakerorthesubwoofer.

HT-ST7 4-463-413-21(1)

OPTICAL

OUT

Connection

(Supplied)

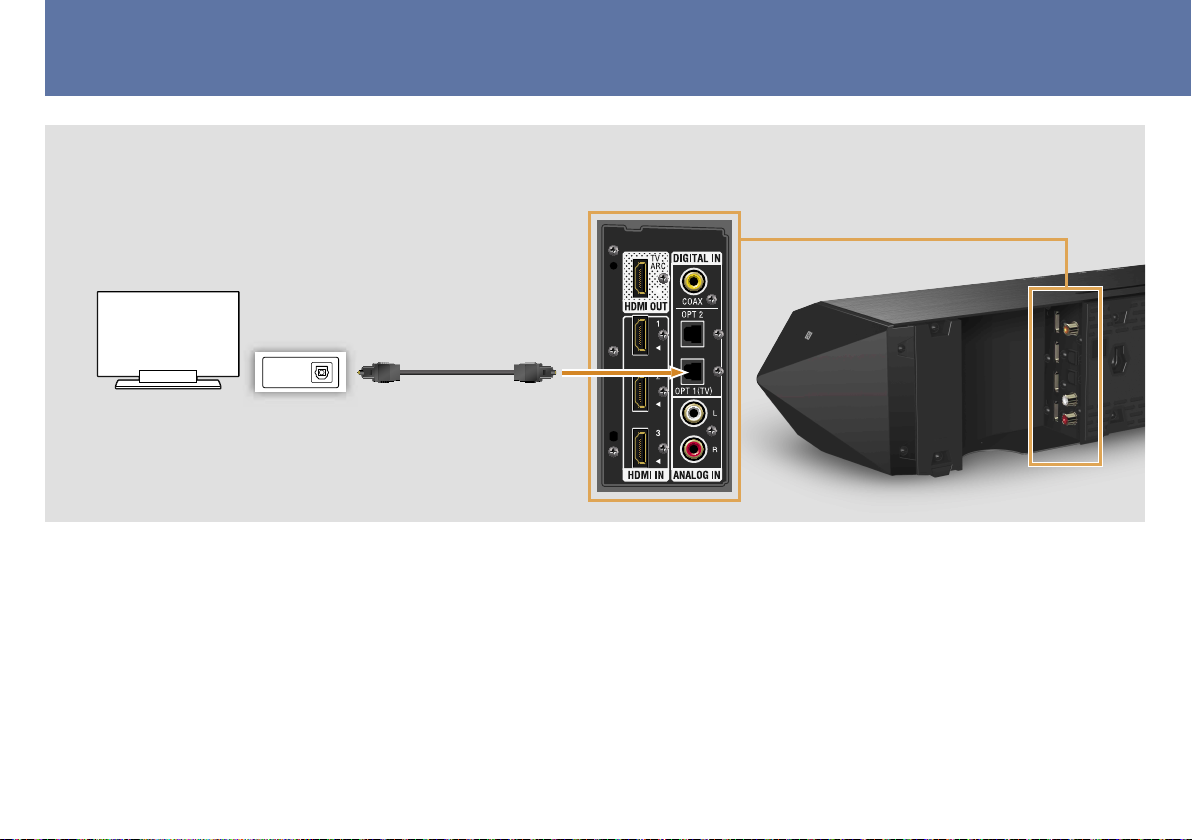

Connecting a TV only

HT-ST7 4-463-413-21(1)

OPTICAL

OUT

(ARC)

OUT

Use HDMI cables (not supplied). If your TV supports the ARC function, you do not need to connect the

digital optical cable .

Refer to the Reference Guide for notes on HDMI connections.

To output multi-channel digital audio, check the digital audio output setting on the device connected to the

system.

Blu-ray

When connecting a TV and other devices

HT-ST7 4-463-413-21(1)

Turning on the system

1 Connect the AC power cords (mains leads).

2 Press the  button on the Bar Speaker.

3 Confirm the  indicator of the subwoofer is lit in green. If not, the wireless transmission is not

activated. See “Troubleshooting” (page 19).

Insert the batteries (supplied).

HT-ST7 4-463-413-21(1)

Listening to the audio

Press the INPUT button repeatedly until the input device appears on the display.

TV HDMI 1 HDMI 2 HDMI 3 OPT COAX ANALOG BT AU

INPUT



Input device selected

HT-ST7 4-463-413-21(1)

Enjoying the sound effects

SOUND MODE:

Allows you to enjoy sound effects.

MOVIE Sound effects suitable for movies

MUSIC Sound effects suitable for music

FOOTBALL

(virtual football

mode)

Sound effects for enjoying the feeling of being present in a football

stadium (when watching the football match broadcast)

Note: This feature does not support monaural sound.

STD (standard) Sound effects suitable for TV programs

VOICE:

Helps make dialogs clearer. LEVEL 1 – 3

SW TONE (subwoofer tone):

Selects the bass tone.

TONE 1 A more crisp bass tone

TONE 2 A bass tone suitable for various sources (default)

TONE 3 A more dynamic bass tone

SOUND MODE

VOICE

SW TONE
