Sony HT-ST5 Guide de l'utilisateur

HT-ST5 4-538-290-22(1)

Sound Bar

Startup Guide

HT-ST5

HT-ST5 4-538-290-22(1)

Table of contents

Setup

1What’s in the box 4

2Installation 5

3Connection 6

4Turning on the system 8

5Listening to the sound 9

Basic Operations

Enjoying the sound effects 10

Listening to the sound from BLUETOOTH devices 12

Refer to the supplied Operating Instructions for more information on other features.

HT-ST5 4-538-290-22(1)

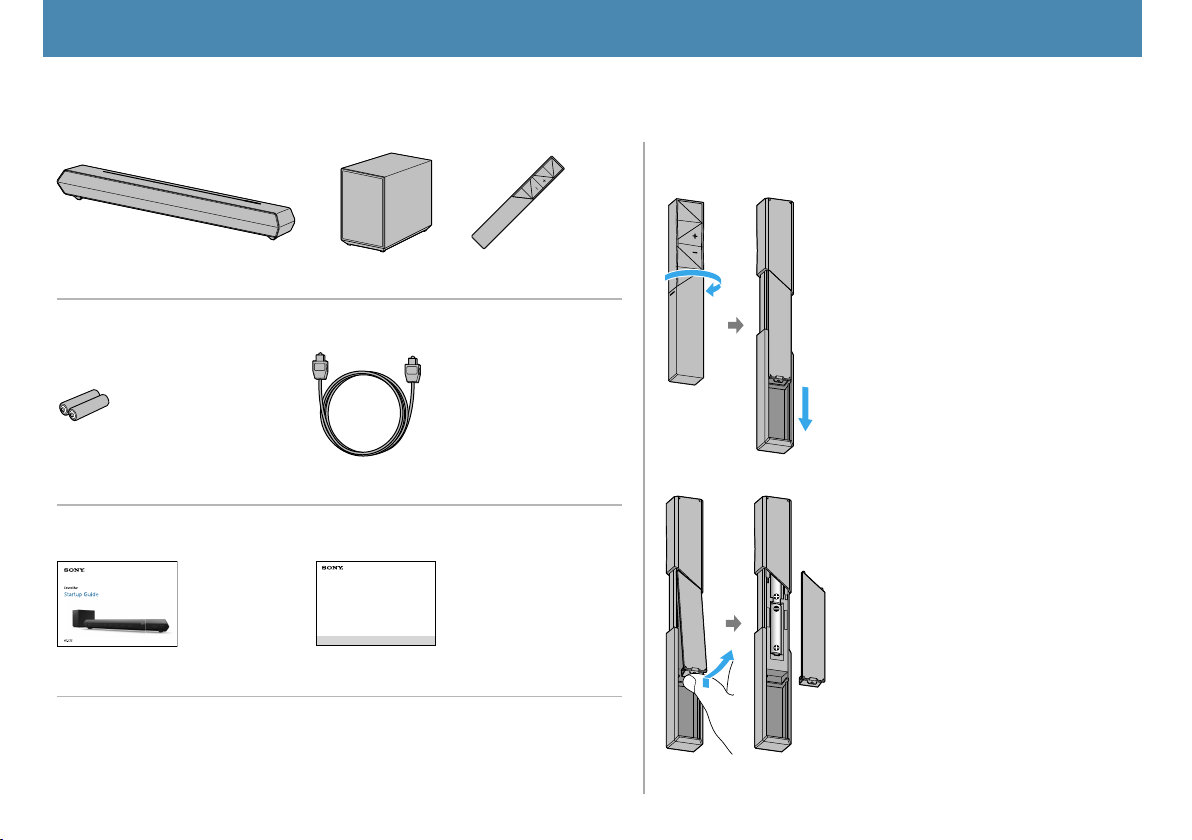

Bar Speaker (1) Subwoofer (1) Remote control (1)

R03 (size AAA) batteries (2) Optical digital cable for a TV (1)

Sound Bar

Startup Guide (this book) (1) Operating Instructions (1)

Setup

1What’s in the box

Setting up the remote control

1.Face the rear of the remote control

upward and slide down the cover.

2. Pull up the battery compartment

cover and insert in the orientation

shown in illustration two AAA

batteries.

HT-ST5 4-538-290-22(1)

2Installation

Setup

To mount the Bar Speaker on a wall

Refer to the supplied Operating

Instructions.

To modify the angle of the Bar

Speaker

Refer to the supplied Operating

Instructions.

When connecting cables to the Bar Speaker

To prevent the Bar Speaker falling, place the rear side of the Bar Speaker facing upward and in a stable

place for the cable connection. When doing so, spread a soft cloth etc. to prevent damage.

Soft cloth

HT-ST5 4-538-290-22(1)

If the TV to be connected is not equipped with an optical audio output terminal, connect an HDMI cable (sold separately, High Speed type).

Subsequently, you need to connect to the HDMI input terminal labeled “ARC.”

If the HDMI input terminal labeled “ARC” is connected to another device, disconnect the other device from the TV and connect this Bar Speaker.

3Connection

Setup / Setup / SetupSetup

Connecting with TV

HT-ST5 4-538-290-22(1)

This is a connection for enjoying surround sound more effectively.

If the HDMI input terminal on the TV is not labeled “ARC,” connect to the TV with optical digital cable (included) in addition to HDMI cable (sold

separately, High Speed type).

For connection (sold separately, High Speed type), when connected to another device and the TV, disconnect the other device from the TV and

connect it to the Bar Speaker.

When connecting with TV and other devices

Blu-ray Disc™ player, etc.

HT-ST5 4-538-290-22(1)

4Turning on the system

Setup



On/standby lamp

1 Connect the AC power cords (mains leads).

2 Press the  (on/standby) button.

The display lights.

3 Confirm that the on/standby lamp of the subwoofer is lit in green. If not, the wireless transmission is not activated.

Refer to “No sound is heard from the subwoofer.” of “Troubleshooting” in the supplied Operating Instructions.

4 Turn on the connected device.

HT-ST5 4-538-290-22(1)

5Listening to the sound

Setup / Setup / SetupSetup / Setup / Setup

Listening to the audio of the TV

1 Press the INPUT button repeatedly to select “TV” input.

2 Press the VOL button to adjust the volume.

To listen to audio from an input device other than the TV

Press the INPUT button repeatedly until the desired input device is indicated on the display.

TV HDMI 1 HDMI 2 HDMI 3 OPT ANALOG BT AU

Setup completed! Enjoy!

Setup / Setup / SetupSetup

INPUT

VOL

INPUT VOL

Input device selected

HT-ST5 4-538-290-22(1)

Basic Operations

SOUND FIELD

VOICE

NIGHT

Enjoying the sound effects

To set a sound effect, press one of the sound effect buttons on the

remote control repeatedly to select the desired mode while checking

the display.

SOUND FIELD:

Effects optimized to

the input sound.

CLEARAUDIO+ The suitable sound setting is automatically

selected for the sound source.

STANDARD Sound effects optimized for TV programs.

MOVIE1

Sound effects optimized for movie-viewing.

Suitable to experience a wider surround-

sound effect.

MOVIE2

Sound effects optimized for movie-viewing.

Suitable to experience a stronger surround-

sound effect.

MUSIC Sound effects optimized for music.

GAME Sound effects optimized for game play.

FOOTBALL

(virtual football

mode)

Sound effects to give you a genuine in-

stadium feeling when watching live football

broadcasts.

Note: This feature does not support

monaural sound.
