Operating Instructions

CMT-A70

This manual describes how to use the player. For the supplied software

SonicStage, please see “Installation/Operating Guide.”

Warning

To prevent fire or shock hazard,

do not expose the player to rain

or moisture.

This symbol is intended to alert the

user to the presence of uninsulated

“dangerous voltage” within the

product's enclosure that may be of

sufficient magnitude to constitute a

risk of electric shock to persons.

This symbol is intended to alert the

user to the presence of important

operating and maintenance

(servicing) instructions in the

literature accompanying the

appliance.

CAUTION

The use of optical instruments with this product

will increase eye hazard.

WARNING

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

To prevent fire or shock hazard, do not place

objects filled with liquids, such as vases, on the

appliance.

Information

For customers in the United States

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to

try to correct the interference by one or more of

the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the

equipment and receiver.

—Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV

technician for help.

This class B digital device complies with part 15

of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not

cause harmful interference, and (2) this device

must accept any interference received, including

interference that may cause undesired operation.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate this

equipment.

Owner's Record

The model number and the serial number are

located at the rear.

Record the model number and the serial number in

the space provided below. Refer to these numbers

whenever you call upon your Sony dealer

regarding this product.

Model No. CMT-A70

Serial No.

Table of contents

Create your own ATRAC CDs....................... 4

Basic Operations

Playing a CD .................................................. 6

Listening to the radio.................................... 10

Playing a tape ............................................... 12

Recording on a tape ...................................... 14

The CD Player

Using the display .......................................... 17

Locating a specific track............................... 18

Searching for your favorite tracks/files ........ 19

Playing a specific group

(ATRAC CD/MP3 CD only).................... 20

Playing a single track

(Single track play) .................................... 21

Playing tracks in random order

(Shuffle play)............................................ 21

Playing your favorite tracks by adding

Bookmarks (Bookmark track play) .......... 22

Playing your favorite play lists

(m3u play list play) (MP3 CD only) ........ 23

Creating your own program

(Program play).......................................... 24

Playing tracks repeatedly (Repeat play) ....... 25

Changing the resume play setting ................ 26

The Radio

Presetting radio stations................................ 27

Playing preset radio stations ......................... 28

The Audio Emphasis

Selecting the audio emphasis ....................... 29

The Timer

Setting the clock ........................................... 30

Waking up to music...................................... 31

Timer-recording radio programs .................. 32

Falling asleep to music ................................. 34

Setting Up

Hooking up the system ................................. 35

Adjusting the contrast of the display ............ 37

Connecting optional components ................. 37

Additional Information

Precautions ................................................... 39

Troubleshooting............................................ 41

Maintenance ................................................. 43

Specifications ............................................... 44

Index ............................................................. 45

Create your own ATRAC CDs

In addition to the usual audio CDs, you can play an original CD, called “ATRAC CD,” that

you create with the supplied software, SonicStage. Using SonicStage, about 30 audio CDs*

can be recorded on one CD-R or CD-RW.

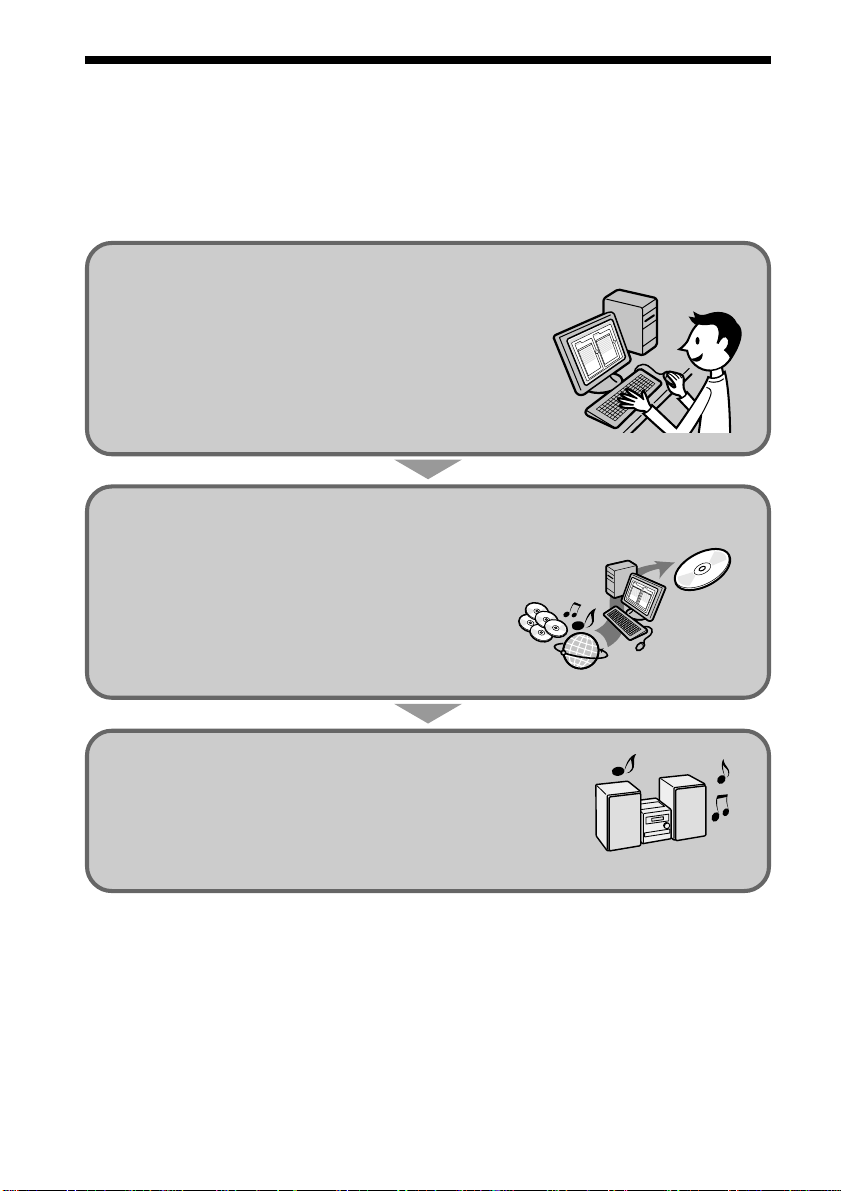

The following is a quick overview of how you listen to music on your ATRAC CD.

Install SonicStage on your computer.

SonicStage is software that takes music downloaded

from audio CDs and the Internet on your computer and

creates original CDs. It can be installed from the

supplied CD-ROM.

Create an ATRAC CD.

After selecting your favorite songs from music stored

on your computer, record them on a CD-R/CD-RW

using SonicStage.

Listen to them with this CD player.

You can enjoy lots of songs on your original CD.

Please see the supplied “Installation/Operating Guide” for how to install SonicStage and how

to create ATRAC CDs.

* When the total playing time of one CD (album) is estimated at 60 minutes and you are recording on a

700MB CD-R/CD-RW at 48kbps in ATRAC3plus format.

ATRAC CD

Internet

Audio CDs

MP3 files

Create your own ATRAC CDs

Which discs can you play on this CD player?

Audio CDs:

CDDA format CDs

CDDA (Compact Disc Digital Audio) is a recording standard

used for Audio CDs.

ATRAC CDs:

CD-R/CD-RW on which audio data compressed in the ATRAC3plus

or/and ATRAC3 format has been recorded*

ATRAC3 (Adaptive Transform Acoustic Coding3) is audio compression technology

that satisfies the demand for high sound quality and high compression rates.

ATRAC3plus is audio compression technology developed from the ATRAC3 format

and can compress audio files to about 1/20 of their original size at 64kbps.

You can create an ATRAC CD using SonicStage.

MP3 CDs:

CD-R/CD-RW on which audio data compressed in the MP3 format

has been recorded*

MP3 (MPEG-1 Audio Layer3) is audio compression technology that can compress

audio files to about 1/10 of their original size.

CD-R/CD-RW on which mixed audio data compressed in the ATRAC3plus/ATRAC3, or MP3

formats has been recorded by using an software other than SonicStage can also be played.

With SonicStage, you cannot create a CD on which mixed audio data is recorded.

* Only ISO 9660 Level 1/2 and Joliet extension format discs can be played.

Note

Characters that can be displayed on this CD player are listed below.

– A to Z

– a to z

– 0 to 9

– ! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ~

If you use other characters on your computer using software such as SonicStage, they are displayed as “–”

on this CD player.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard.

Recently, various music discs encoded with copyright protection technologies are marketed by

some record companies. Please be aware that among those discs, there are some that do not

conform to the CD standard and may not be playable by this product.

ATRAC, ATRAC3, ATRAC3plus, SonicStage and their logos are trademarks of Sony Corporation.

Playing a CD

For hookup instructions, see pages 35 - 36.

1Press ZOPEN/CLOSE (direct

power-on) and place the CD on the

CD tray.

2Press ZOPEN/CLOSE to close the

CD tray.

With the label side up

1, 2 3

Basic Operations

Playing timeTrack number Playing time

3Press CD u(uon the remote).

The player plays all the tracks once.

**When playing an MP3 CD,

“MP3” appears on the display.

File number

continued

Display

Audio CD

CD u

VOLUME

STOP x

Use these buttons for additional operations

To Do this

adjust the volume Turn the VOLUME control. (Press

VOL +*1, – on the remote.)

stop playback Press STOP x(xon the remote).

pause playback Press CD u*2(uon the remote).

The playing time of the current track/file

flashes on the display.

Press the button again to resume play after

pause.

go to the next track Press M/>.

go back to the Press ./m.

previous track

*1The button has a tactile dot.

*2There is a tactile dot beside CD uon the main unit.

Tips

• To listen through

headphones, connect the

headphones to the i

(headphones) jack.

• Playback starts from the

point you last stopped

playing (Resume play).

During stop, the point to be

played is displayed.

To start play from the

beginning of the first track,

press STOP xin stop

mode.

To cancel the resume play,

see page 26.

File name

ATRAC CD/MP3 CD**

ZOPEN/CLOSE

M/>

./m

–, +

Note

Before playing an ATRAC

CD/MP3 CD, this player

reads all file and group

information on the CD.

Depending on the file

structure, it may take more

than a minute to read them.

During this time, “Reading”

is displayed.

Track name*

* When playing an audio CD

containing text information

such as CD-TEXT, track name

appears on the display.

?/1

Notes

• If ATRAC3plus/ATRAC3

files and MP3 files are

recorded on the same CD,

this CD player plays the

ATRAC3plus/ATRAC3

only.

• The playback capability of

this CD player may vary

depending on the quality of

the disc and the condition of

the recording device.

• Characters that can be

displayed on this CD player

are listed below.

–A to Z

–a to z

–0 to 9

–! " # $ % & ' ( ) * + , - . / :

; < = > ? @ [ \ ] ^ _ ` { | }

If you use other characters

on your computer using

software such as

SonicStage, they are

displayed as “–” on this CD

player.

• On a disc that has

ATRAC3plus/ATRAC3/

MP3 files, do not save files

in other formats and do not

make unnecessary groups.

ATRAC CD

To Press

select a group*3+ to go forward and – to go

backward

select a file*3M/>to go forward and ./m to

go backward

remove the CD ZOPEN/CLOSE*4

turn on/off the player ?/1

*3You can operate during play of ATRAC CDs/MP3 CDs.

*4Once you open the CD tray, the track to start play will change to

the beginning of the first track.

The structure of ATRAC CDs/MP3 CDs

ATRAC CDs/MP3 CDs consist of “files” and “groups.” A

“file” is equivalent to a “track” of an audio CD. A “group”

is a bundle of files and is equivalent to an “album.”

For MP3 CDs, this CD player recognizes an MP3 folder as

a “group” so that ATRAC CDs and MP3 CDs can be

operated in the same way.

Playing order of ATRAC CDs and MP3 CDs

For ATRAC CDs, files are played in the order selected in

SonicStage.

For MP3 CDs, the playing order may differ depending on

the method used to record MP3 files on the disc. In the

following example, files are played in order of 1to 7.

File

Group

MP3 CD

Playing a CD

(continued)

Basic Operations

Notes on ATRAC CDs

• Maximum number of groups: 255

Maximum number of files: 999

• CD-Rs/CD-RWs recorded in the ATRAC3plus/ATRAC3 format

cannot be played on your computer.

Notes on MP3 CDs

• Maximum number of groups: 100

Maximum number of files: 400

Maximum directory level: 8

• A group that does not include an MP3 file is skipped.

• Be sure to add the file extension “mp3” to the file name.

However, if you add the file extension “mp3” to a file other than

an MP3 file, the player will not be able to recognize the file

properly.

• This player can play bit rates of 16 to 320 kbps, and sampling

frequencies of 32/44.1/ 48 kHz. Variable Bit Rate (VBR) file

can also be played.

• To compress a source in an MP3 file, we recommend setting the

compression parameters to “44.1 kHz,” “128 kbps,” and

“Constant Bit Rate.”

• To record up to the maximum capacity, set the writing software

to “halting of writing.”

• To record to the maximum capacity at one time up on media that

has nothing recorded on it, set the writing software to “Disc at

Once.”

Listening to the radio

For hookup instructions, see pages 35 - 36.

1Press TUNER BAND•AUTO

PRESET (BAND on the remote)

repeatedly until the band you want

appears on the display (direct power-

on).

2Press TUNING + or TUNING – and

hold it until the frequency digits

begin to change on the display.

The player automatically scans the

radio frequencies and stops when it

finds a clear station.

If you cannot tune in a station, press

TUNING + or TUNING – repeatedly

to change the frequency step by step.

1 2

Display

Indicates an FM

stereo broadcast

Autres manuels pour CMT-A70 - Personal Component System

Table des matières

Autres manuels Sony Système de haut-parleurs

Sony

Sony HT-NT3 Manuel utilisateur

Sony

Sony SRS-A17 Manuel utilisateur

Sony

Sony HT-CT390 Guide de l'utilisateur

Sony

Sony HT-ST9 Manuel utilisateur

Sony

Sony SS-SFCR505H Manuel d'instructions d'installation

Sony

Sony SRS-RF930RK - Wireless Speaker Sys Manuel utilisateur

Sony

Sony SS-F33H Manuel utilisateur

Sony

Sony SA-VE230 Manuel utilisateur

Sony

Sony SS-CT60AV Manuel utilisateur

Sony

Sony HT-S100F Manuel utilisateur

Sony

Sony SS-GN800 Manuel utilisateur

Sony

Sony SRS-Z30 Manuel utilisateur

Sony

Sony PHC-Z10 Primary Manuel utilisateur

Sony

Sony HT-CT260H Manuel utilisateur

Sony

Sony MHC-5500 Manuel utilisateur

Sony

Sony HCD-M500AV Manuel utilisateur

Sony

Sony WAHTSA1 - Wireless Audio Delivery System Manuel utilisateur

Sony

Sony SS-SR3000 Manuel utilisateur

Sony

Sony SS-CR350 Manuel utilisateur

Sony

Sony HT-CT380 Manuel utilisateur

Sony

Sony HT-ST3 Manuel utilisateur

Sony

Sony SS-V331 Manuel utilisateur

Sony

Sony SRSD25 - SRS D25 2.1-CH PC Multimedia Speaker... Manuel utilisateur

Sony

Sony HT-NT3 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
